1. SPECIAL FEATURES

• RF2.4GHz USB nano receiver (range – up to 10 m)
  • High-precision optical technology
• Operates practically on any surface
  • High speed operation
• Resolution 1200 dpi
• USB interface
• Attractive glossy surface
  • 2 AAA Alkaline type batteries
• Drivers installation is not required for Windows XP/Vista/7/8
• Energy saving system increases battery life up to 6 months (see comparison table)

Operating mode	RX-610 Wireless	Other mice
During work 4.8 — 6 mA 10 mA
Motionless 0.5 — 0.55 mA	8 mA
Standby mode 0.1 — 0.12 mA 3 mA
Sleep mode 0.03 — 0.05 mA	0.15 mA

2. PACKAGE CONTENTS

• Optical mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
• AAA type batteries — 2 pcs
- User's manual — 1 pc
- Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8 or higher, Mac OS 10.4 or higher, Linux
• Free USB port

User's Manual

RX-610

WIRELESS

4. DESCRIPTION

① Scroll wheel
② Optical sensor
③ Battery compartment
④ Nano receiver
⑤ Connector USB

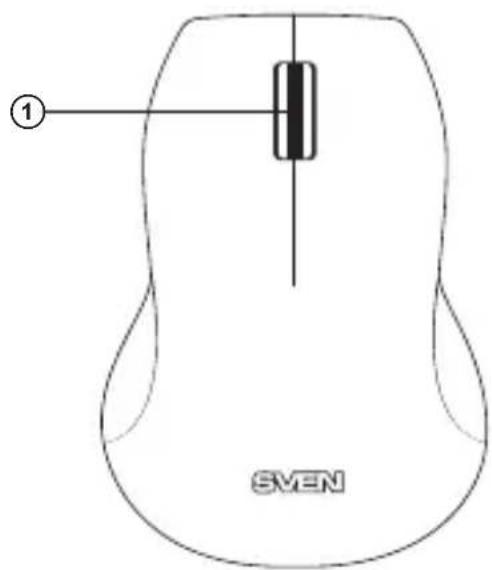

Fig. 1. Top view

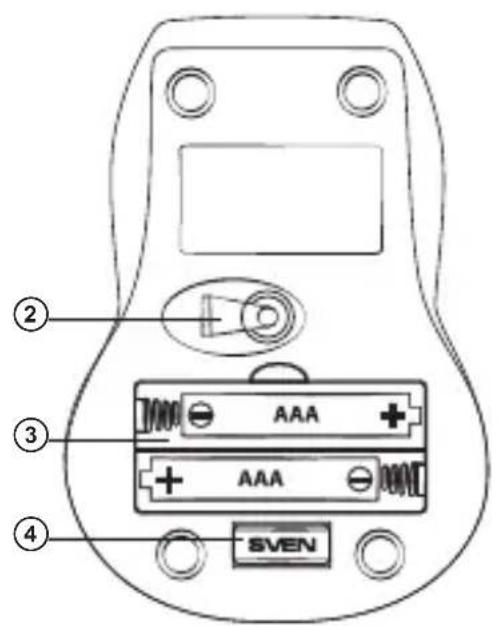

Fig. 2. Bottom view Fig. 3. Nano receiver

5. INSTALLATION

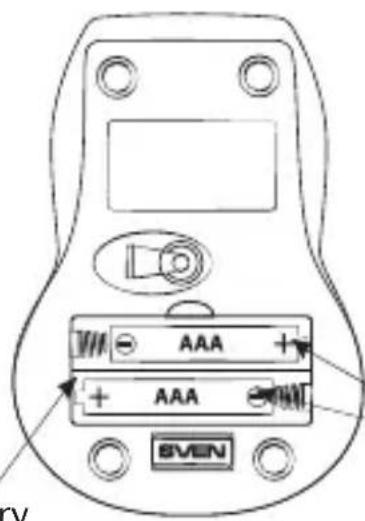

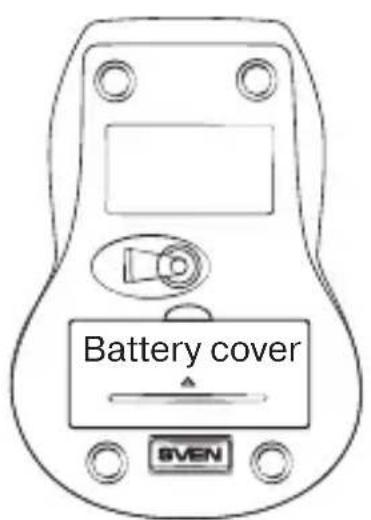

• Open the cover of the mouse battery compartment ③, insert two AAA type batteries into the battery compartment matching polarity, and close the cover of the battery compartment (see Fig. 4).

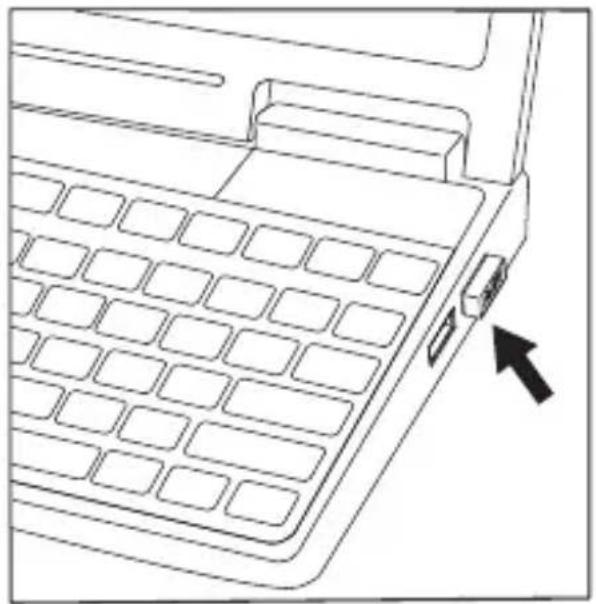

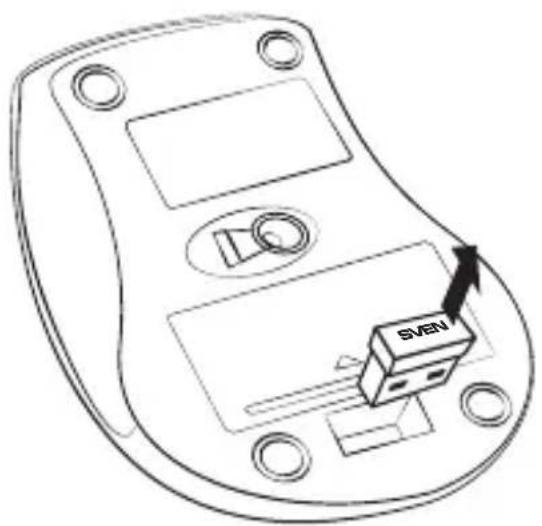

• Pull out the nano receiver ④ from the mouse (Fig. 5) and connect it to a free PC USB port without switching off the PC (Fig. 6). To activate the mouse, press any button of the mouse or turn the scroll wheel. If the mouse has been connected correctly, it will turn on automatically.

Battery mpartment

Improper installation of batteries can result in failure of the mouse!
2 × AAA type batteries

Fig. 6. Receiver connection

Technical line drawing of a device casing with a labeled component (no text or symbols beyond the label)

from the mouse case

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

Fig. 6. Receiver connectionFig. 5. b

User's Manual

RX-610

WIRELESS

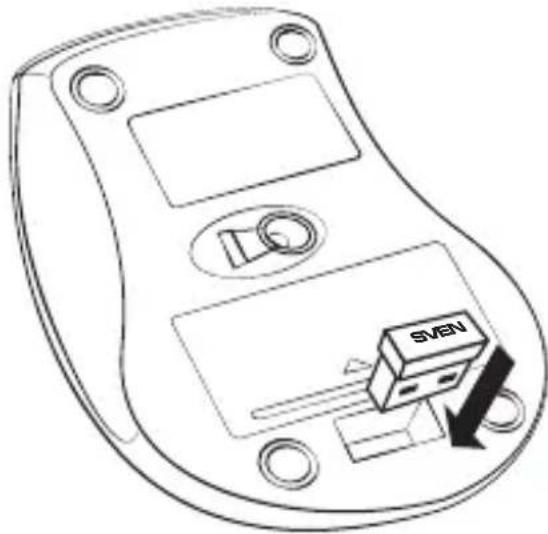

• After finishing work, the receiver can be pulled out from the PC USB port and inserted back into the mouse (Fig. 7).
- Do not place the receiver in a metal confined space (table drawer, box, safe), as metal screen does not transmit radio signals.
- If the batteries run down, the mouse works fy fits. It means that batteries should be replaced with new ones, as it is shown in Fig. 4. Always install only identical new batteries.

Line drawing of a device casing with a switch and circular ports, no text or symbols present

Fig. 7. Fitting the receiver into the mouse case

Important

This device meets highest standards of energy conservation. During long pauses in operation the mouse enters economical Sleep mode. To enter working mode just press any button or turn the scroll wheel.

6. TROUBLESHOOTING

Problem	Solution
The mouse does not work.	1. Make sure that the nano receiver has been inserted into a USB port and its distance to the mouse is less than 10 m.2. Check whether the batteries have been installed correctly.3. Check if the batteries have run down, replace the batteries with new ones if necessary.4. Address nearest authorized service center.

7. TECHNICAL SPECIFICATIONS

Parameter	Value
OS required	Windows XP/Vista/7/8
Type of mouse	Wireless 2.4 GHz
Resolution, dpi	1200
Q-ty of buttons	2 + 1 (scroll wheel)
Interface	USB
Dimensions, mm	70 × 42 × 108
Weight, g	60

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.
