Congratulations on your purchase of the SVEN PC mouse!

Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this Manual in a safe place for future reference.

COPYRIGHT

© 2013. SVEN Company Ltd. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 7

ENG 14

1. SPECIAL FEATURES ...... 16
2. PACKAGE CONTENTS ...... 16
3. SYSTEM REQUIREMENTS ...... 16
4. DESCRIPTION 17
5. INSTALLATION 17
6. TROUBLESHOOTING 20
7. TECHNICAL SPECIFICATIONS 20

Technical support is on www.sven.

1. SPECIAL FEATURES

• BlueLED advanced optical technology
  • Power saving wireless technology
  • Stylish ergonomic design
  • Effective on most surfaces
  • High speed operation
  • 2.4GHz USB nano receiver included (range up to 10 m)
  • Resolution 1000/1200/1600 dpi
• DPI resolution switch
• Two navigation buttons (Forward and Back)
• USB interface
• Powered by 2 AAA batteries
• Drivers installation is not required for Windows XP/Vista/7/8
• Soft Touch coating

2. PACKAGE CONTENTS

• Optical mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
• AAA batteries — 2 pcs
- User's Manual — 1 pc
- Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

User's Manual

RX-370 WIRELESS

4. DESCRIPTION

① Scroll wheel
② Additional navigation buttons
③ Dpi resolution switch
④ Power switch
⑤ Optical sensor
⑥ Battery compartment
⑦ Nano receiver
⑧ USB connector

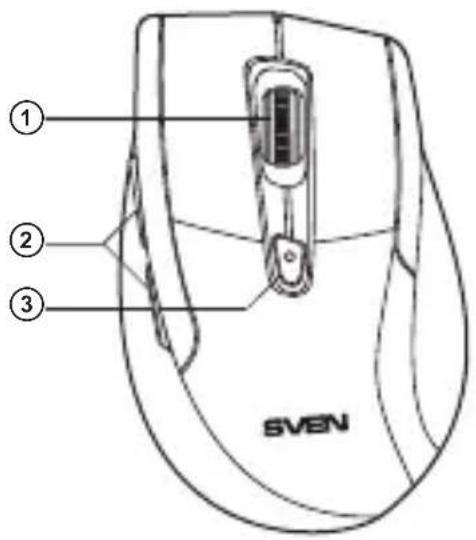

Fig. 1. Top view

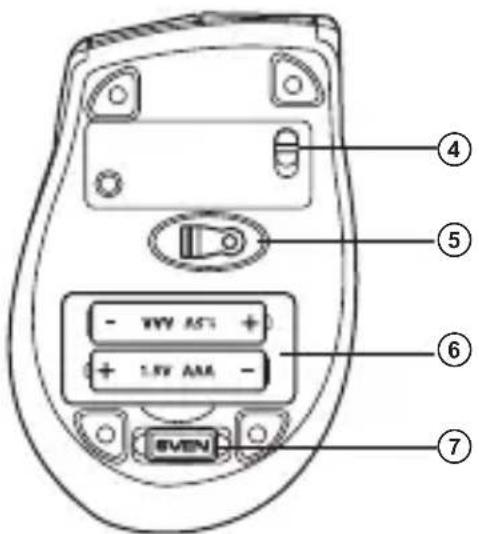

Fig. 2. Bottom view Fig. 3. Nano receiver

5. INSTALLATION

• Open the cover of the mouse battery compartment ⑥, insert 2 AAA batteries into the battery compartment matching the polarity, and close the cover of the battery compartment (see Fig. 4).
• Connect the included nano receiver ⑦ to a free PC USB port (Fig. 5).

- Turn on the mouse with the on/off switch ④ (the ON position). To activate the mouse, press any button of the mouse or turn the scroll wheel. If the mouse is connected correctly, it will turn on automatically.

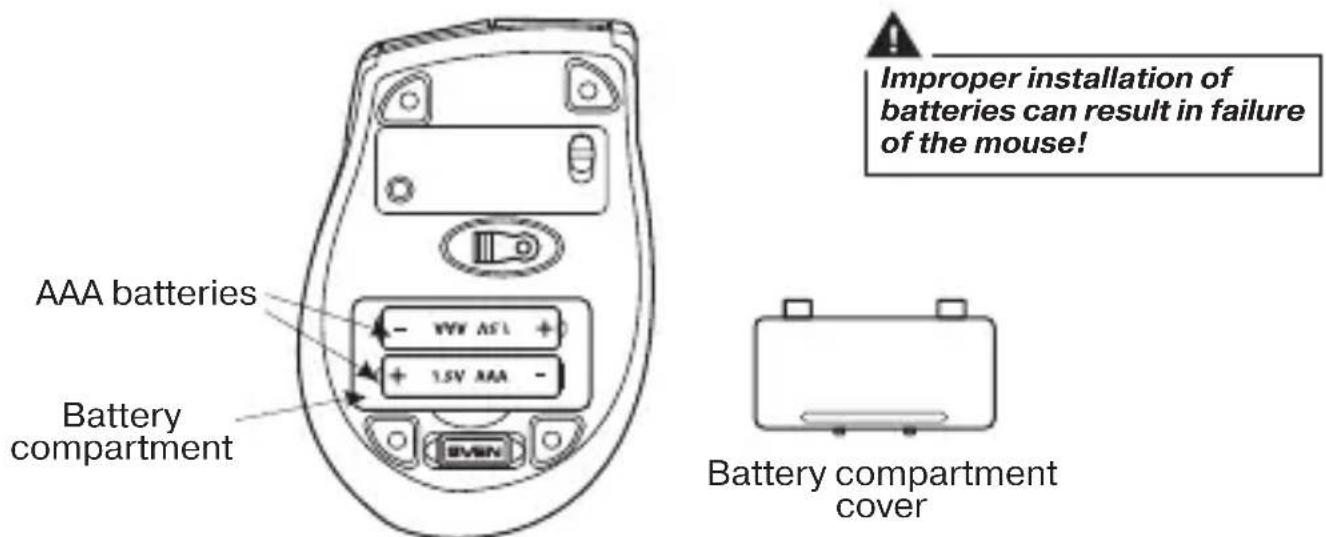

Fig. 4. Battery installation

Line drawing of a computer keyboard with an arrow pointing to the right side (no text or symbols present)

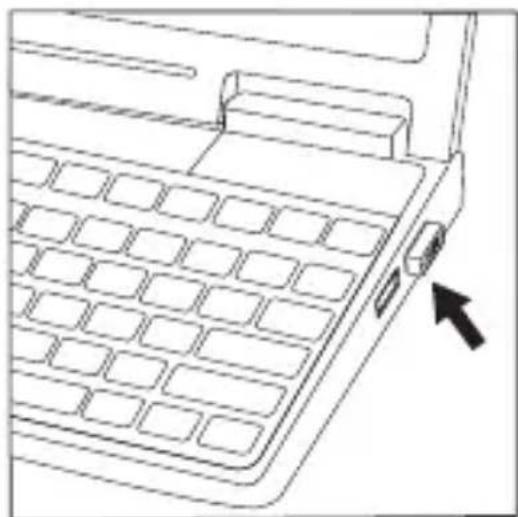

Fig. 5. Receiver connection

User's Manual

RX-370 WIRELESS

• After finishing work turn off the mouse with the power switch ④ (the OFF position). After this, you can pull out the receiver ⑦ from the PC USB port and insert it into the mouse (Fig. 6). When using the receiver again, pull it out from the mouse (Fig. 7) and connect it to the PC USB port again.
• Do not place the receiver into a confined metal space (table drawer, box, safe), as a metal screen does not transmit radio signals.
• If the batteries run down, the mouse works in jerks. It means that the batteries should be replaced with new ones, as it is shown in Fig. 4. Always install only identical new batteries.

Line drawing of a mobile phone with ports and a cable inserted (no text or symbols)

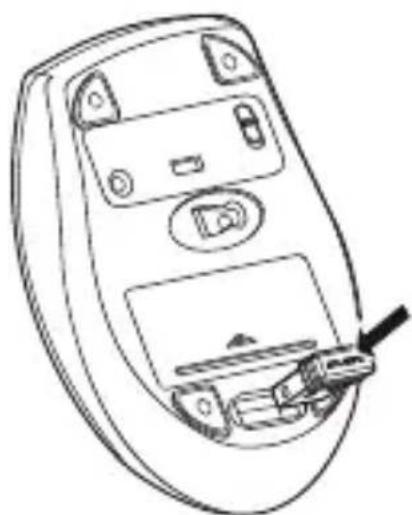

Fig. 6. Fitting the receiver into the mouse case

Line drawing of a remote control device with a USB flash drive inserted (no text or symbols)

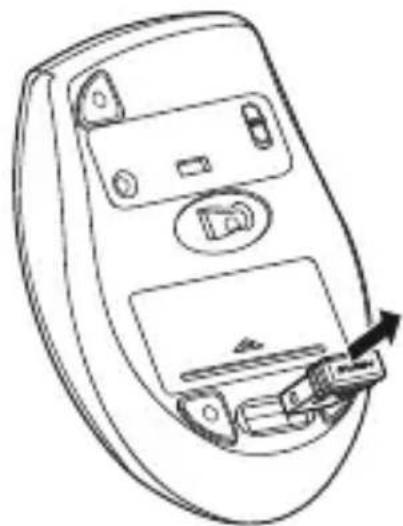

Fig. 7. Extraction of the receiver from the mouse case

Important

This device meets the highest standards of energy conservation. Use the switch ④ on the bottom of the mouse to switch it on/off – it will help you extend the mouse battery life.

6. TROUBLESHOOTING

Problem	Solution
The mouse does not work.	1. Make sure that the nano receiver has been inserted into the USB port and its distance to the mouse is less than 10 m.2. Check whether the batteries have been installed correctly.3. Check if the batteries have run down, replace the batteries with new ones if necessary.
The batteries are in good order, but the mouse still does not work.	Install software to coordinate the mouse and the receiver. Software can be downloaded from Support on www.sven.fi

7. TECHNICAL SPECIFICATIONS

Parameter	Value
OS compatibility	Windows XP/Vista/7/8
Type of mouse	wireless 2.4 GHz
Resolution, dpi	1000/1200/1600
Q-ty of buttons	5 + 1 (scroll wheel)
Interface	USB
Dimensions, mm	72 × 40 × 112
Weight, g	75.5

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310.

Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
