Product Type	Webcam
Brand	Sven
Model	IC-305
Color	Black
Resolution	Full HD 1920 x 1080 pixels
Frame Rate	30 fps
Lens Type	Fixed focus
Field of View	70 degrees
Built-in Microphone	Yes, mono
Connection Interface	USB 2.0
Cable Length	1.5 meters
Mounting Type	Clip-on or tripod mount
Compatibility	Windows, macOS, Chrome OS
System Requirements	USB port, internet connection for certain apps
Dimensions (L x W x H)	90 x 30 x 30 mm
Weight	80 g
Power Source	USB bus powered (5V)
LED Indicator	Yes, when camera is active
Software Included	Driver-free for basic use, optional software for advanced settings
Warranty	1 year

Frequently Asked Questions - IC-305 Sven

How do I install the Sven IC-305 webcam?

Simply plug the webcam into a USB 2.0 port on your computer. Most operating systems will automatically recognize it and install the necessary drivers. For advanced settings, you can use the included software.

Is the Sven IC-305 compatible with macOS?

Yes, the IC-305 is compatible with macOS along with Windows and Chrome OS. No additional drivers are needed for basic use.

What is the maximum resolution of the IC-305?

The webcam supports Full HD resolution up to 1920 x 1080 pixels at 30 frames per second.

Does the webcam have a built-in microphone?

Yes, it features a built-in mono microphone for audio capture during video calls or recordings.

Can I use the Sven IC-305 for streaming?

Absolutely. The webcam is suitable for streaming on platforms like Twitch or YouTube thanks to its 1080p resolution and 30fps frame rate.

How do I mount the webcam on my monitor?

The IC-305 comes with a universal clip that fits most monitors and laptops. You can also mount it on a tripod using the standard thread at the bottom.

Why is the LED light on the webcam not turning on?

The LED indicator lights up when the webcam is being used by an application. Ensure the app has permission to access the camera. If the issue persists, try reconnecting the USB cable.

What should I do if the image quality is poor?

Check that the lens is clean and the lighting in your room is adequate. You can also adjust settings like brightness and contrast in your video conferencing software.

Is the webcam compatible with video conferencing apps?

Yes, it works with popular apps such as Zoom, Skype, Microsoft Teams, and Google Meet.

Does the IC-305 require any special software?

No, it is plug-and-play for basic functions. However, Sven offers a utility for fine-tuning settings like exposure and white balance.

USER MANUAL IC-305 Sven

Black SVEN camera with visible lens and external frame (no text or symbols on device body)

IC-305

www.sven.fi

Black SVEN camera with visible lens and external frame (no text or symbols on device body)

IC-305

www.sven.fi

Black SVEN camera with visible lens and external frame (no text or symbols on device body)

Congratulations on your purchase of the Sven web camera!

Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference.

COPYRIGHT

© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 4

ENG 8

1. SAFETY PRECAUTIONS ...... 10
2. PACKAGE CONTENTS .... 10
3. SPECIAL FEATURES ...... 10
4. SYSTEM REQUIREMENTS ...... 10
5. CONNECTION AND INSTALLATION 11
6. DESCRIPTION 11
7. TECHNICAL SPECIFICATIONS 11

Technical support: www.sven.fi

1. SAFETY PRECAUTIONS

• Protect your web camera from high humidity, dust or high temperatures.
• Do not use gasoline, spirit or other dissolvents for cleaning. This may cause damage to the surface. Clean the outside of the camera with soft cloth.
• Do not attempt to disassemble or repair your device.
• Protect the device against powerful shocks and falls – they may damage the internal electronics.

2. PACKAGE CONTENTS

• Web camera — 1 pc
• User's manual — 1 pc
• Warranty card — 1 pc

3. SPECIAL FEATURES

• Built-in microphone
- Manual focus
- Comfortable mounting clip for camera ☒xation
• Hinge for camera rotation
- Plug&Play

4. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10
• Pentium P4 1.4GHz or AMD Athlon 1GHz
• 128 MB RAM
  • 24-bit color video adapter
  • Available USB port

User's Manual

IC-305

5. CONNECTION AND INSTALLATION

• Connect the web camera to an available USB port.
• This web camera supports Plug and Play technology. Installation of the device is automatic after its connection to the USB port.

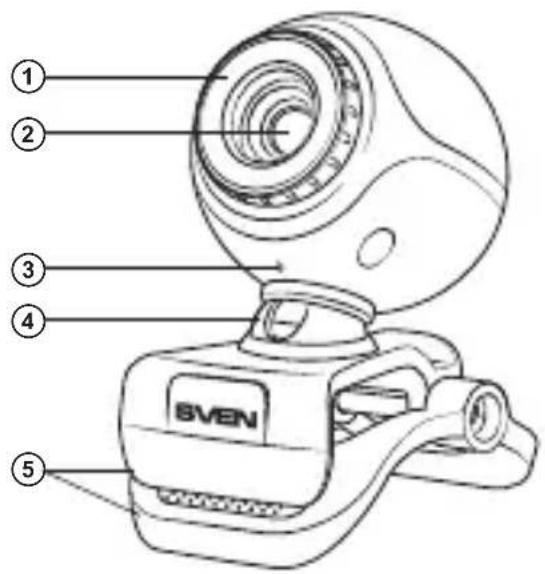

6. DESCRIPTION

① Focus
② Lenses
③ Built-in microphone
④ Hinge
⑤ Mounting clip

Fig. 1. Web camera description

7. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensor type	CMOS
Resolution, pix	640 × 480
Frame rate, frames/sec	up to 30 fps for 640 × 480
Focus distance, mm	4.8 to infinity
Cable length, m	1.45

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

IC-305
