IC-525 - Webcam Sven - Free user manual and instructions

Product Type	Webcam
Brand	Sven
Model	IC-525
Sensor Type	CMOS
Sensor Resolution	1.3 MP (1280 × 1024)
Frame Rate	30 fps at 640 × 480
Focus Type	Manual
Focus Distance	4.8 mm to infinity
Built-in Microphone	Yes
Lens System	5-element
Mounting	Adjustable clip with hinge
Indicator Light	Power LED
Connection Interface	USB 2.0 (Plug & Play)
Cable Length	1.45 m
Power Source	USB bus-powered
System Requirements	Windows XP/Vista/7/8, Pentium P4 1.4 GHz or AMD Athlon 1 GHz, 128 MB RAM, 24-bit color video adapter, USB port
Dimensions (Approx.)	8.0 × 5.0 × 5.0 cm
Weight (Approx.)	100 g
Package Contents	Webcam, User Manual, Warranty Card
Cleaning Instructions	Clean with soft cloth; do not use solvents
Safety Precautions	Avoid high humidity, dust, high temperatures, shocks; do not disassemble
Compliance	CE, RoHS (assumed)

Frequently Asked Questions - IC-525 Sven

How do I install the Sven IC-525 webcam?

The webcam supports Plug and Play. Simply connect it to an available USB port on your computer, and the drivers will install automatically. No additional software is required.

Is the webcam compatible with Windows 10?

The manual specifies compatibility with Windows XP, Vista, 7, and 8. It may work on Windows 10 with basic functionality, but full compatibility is not guaranteed.

How do I adjust the focus on the IC-525?

The webcam features manual focus. Rotate the focus ring around the lens (labeled 'Focus' in the diagram) to achieve a sharp image.

Does the webcam have a built-in microphone?

Yes, the IC-525 includes a built-in microphone located near the lens. It picks up audio during video calls or recordings.

What is the maximum resolution and frame rate?

The sensor resolution is 1.3 MP (1280 × 1024 pixels). The maximum frame rate is 30 fps at 640 × 480 resolution.

How do I clean the webcam?

Use a soft, dry cloth to clean the exterior. Do not use gasoline, alcohol, or other solvents, as they may damage the surface.

Can I mount the webcam on a tripod?

The IC-525 comes with a mounting clip designed for attaching to monitors or flat surfaces. It does not have a tripod screw mount.

What should I do if the webcam is not recognized?

Ensure the USB port is working. Try a different USB port. If using Windows, check Device Manager for any driver issues. The webcam should be Plug and Play.

What is the warranty period for the Sven IC-525?

The product includes a warranty card. Warranty terms vary by region; please refer to the warranty card or contact the seller for details.

How long is the USB cable?

The integrated USB cable is 1.45 meters long, providing flexibility in positioning the webcam.

USER MANUAL IC-525 Sven

Black SVEN webcam device with adjustable cable and stand (no visible text or symbols on body)

Congratulations on your purchase of the Sven web camera!

Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

1. SAFETY PRECAUTIONS ...... 2
2. PACKAGE CONTENTS 2
3. SPECIAL FEATURES ...... 2
4. SYSTEM REQUIREMENTS ...... 2
5. CONNECTION AND INSTALLATION .... 3
6. DESCRIPTION 3
7. TECHNICAL SPECIFICATION 3

Technical support: www.sven.fi

1. SAFETY PRECAUTIONS

• Protect your web camera from high humidity, dust or high temperatures.
• Do not use gasoline, spirit or other dissolvents for cleaning. This may cause damage to the surface. Clean the outside of the camera with soft cloth.
• Do not attempt to disassemble or repair your device.
• Protect the device against powerful shocks and falls – they may damage the internal electronics.

2. PACKAGE CONTENTS

• Web camera — 1 pc
• User's Manual — 1 pc
• Warranty card — 1 pc

3. SPECIAL FEATURES

• High-quality CMOS sensor and 5-lens system
• Built-in microphone
- Manual focus
- Power LED
• 1.3 Mpix sensor resolution
- Comfortable mounting clip for camera fixation
• Hinge for camera rotation
- Plug&Play

4. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8
• Pentium P4 1.4GHz or AMD Athlon 1GHz
• 128 MB RAM
  • 24-bit color video adapter
  • Available USB port

5. CONNECTION AND INSTALLATION

• Connect the web camera to an available USB port.
• This web camera supports Plug and Play technology. Installation of the device is automatic after its connection to the USB port.

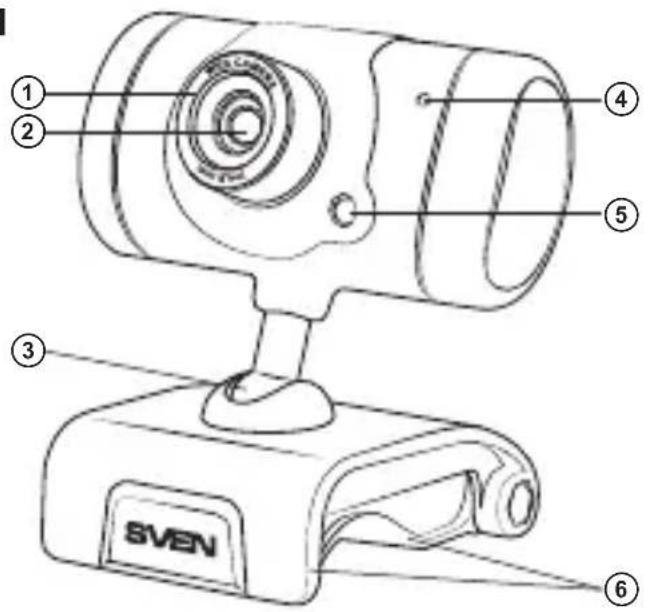

6. DESCRIPTION

① Focus
② Lenses
③ Hinge
④ Built-in microphone
⑤ LED
⑥ Mounting clip

Fig. 1. Web camera description

7. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensor type	CMOS
Resolution, pix	1280 × 1024
Frame rate, frames/sec	30 fps for 640 × 480
Focus distance, mm	4.8 to infinity
Cable length, m	1.45

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

Web Camera with Microphone

SVEN®

YOU WANT - WE CAN

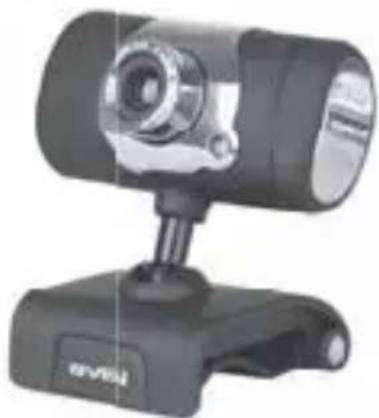

Black and white photo of a desktop computer with a curved camera and stand (no visible text or symbols)

Модель: IC-525

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

IC-525
