Product Type	Webcam
Model	IC-325
Brand	Sven
Sensor Type	CMOS
Maximum Resolution	640 × 480 pixels
Frame Rate	Up to 30 fps (at 640×480)
Focus Type	Manual
Focus Distance	4.8 mm to infinity
Built-in Microphone	Yes
Interface	USB 2.0 (Plug & Play)
Cable Length	1.45 m
Mounting Type	Clip with hinge for rotation
System Requirements	Windows XP/Vista/7/8/10; Pentium P4 1.4 GHz; 128 MB RAM; 24-bit color video adapter; available USB port
Power Supply	USB bus-powered (5V, ~500mA)
Dimensions (approx.)	80 × 50 × 60 mm
Weight (approx.)	100 g
Package Contents	Webcam, User Manual, Warranty Card
Cleaning	Use a soft cloth; do not use gasoline, spirit or solvents
Safety Precautions	Protect from humidity, dust, high temperatures; do not disassemble; avoid shocks

Frequently Asked Questions - IC-325 Sven

How do I install the Sven IC-325 webcam?

Simply connect the webcam to an available USB port. It supports Plug & Play and will install automatically on Windows XP/Vista/7/8/10.

Does the webcam work with Windows 10?

Yes, the Sven IC-325 is compatible with Windows 10. It uses a standard USB driver and should be recognized automatically.

Can I adjust the focus?

Yes, the webcam has manual focus. Rotate the lens ring to adjust the focus distance from 4.8 mm to infinity.

Does it have a built-in microphone?

Yes, the IC-325 includes a built-in microphone located near the lens.

What is the maximum video resolution?

The webcam supports a maximum resolution of 640 × 480 pixels at up to 30 frames per second.

How do I clean the webcam?

Use a soft cloth to clean the exterior. Do not use gasoline, spirit, or other solvents, as they may damage the surface.

Can I mount the webcam on a monitor?

Yes, the webcam comes with a mounting clip and a hinge for rotation, making it easy to attach to a monitor or stand.

What are the system requirements?

You need a PC with Windows XP/Vista/7/8/10, Pentium P4 1.4 GHz or AMD Athlon 1 GHz, 128 MB RAM, a 24-bit color video adapter, and an available USB port.

Is the webcam repair-friendly?

The manual advises against disassembly. Do not attempt to repair it yourself; contact professional support if needed.

How long is the USB cable?

The USB cable length is 1.45 meters.

USER MANUAL IC-325 Sven

Black SVEN camera with lens and external frame (no visible text or symbols on body)

Black SVEN digital camera with lens and external cable (no visible text or symbols on body)

Black SVEN digital camera with lens and external frame (no visible text or symbols on body)

Congratulations on your purchase of the Sven web camera!

Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference.

COPYRIGHT

© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 4

ENG 8

1. SAFETY PRECAUTIONS .... 10
2. PACKAGE CONTENTS ...... 10
3. SPECIAL FEATURES .... 10
4. SYSTEM REQUIREMENTS ...... 10
5. CONNECTION AND INSTALLATION ...... 11
6. DESCRIPTION 11
7. TECHNICAL SPECIFICATIONS ...... 11

Technical support: www.sven.fi

1. SAFETY PRECAUTIONS

• Protect your web camera from high humidity, dust or high temperatures.
• Do not use gasoline, spirit or other dissolvents for cleaning. This may cause damage to the surface. Clean the outside of the camera with soft cloth.
• Do not attempt to disassemble or repair your device.
• Protect the device against powerful shocks and falls – they may damage the internal electronics.

2. PACKAGE CONTENTS

• Web camera — 1 pc
• User's Manual — 1 pc
• Warranty card — 1 pc

3. SPECIAL FEATURES

• Built-in microphone
- Manual focus
- Comfortable mounting clip for camera fixation
• Hinge for camera rotation
- Plug&Play

4. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10
- Pentium P4 1.4GHz or AMD Athlon 1GHz
- 128 MB RAM
• 24-bit color video adapter
• Available USB port

User's Manual

IC-325

5. CONNECTION AND INSTALLATION

• Connect the web camera to an available USB port.
• This web camera supports Plug and Play technology. Installation of the device is automatic after its connection to the USB port.

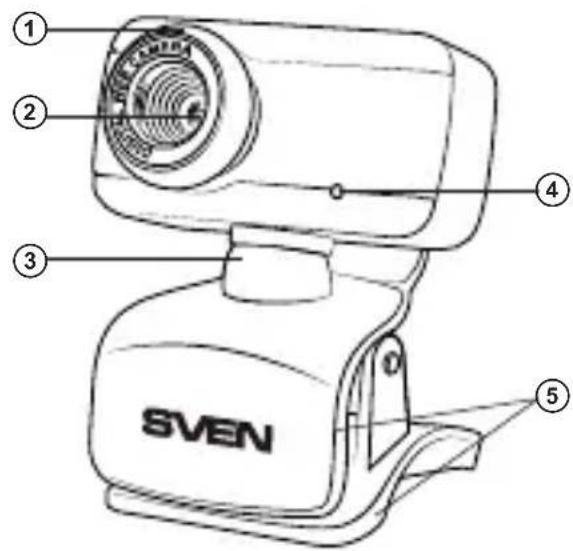

6. DESCRIPTION

① Focus
② Lenses
③ Hinge
④ Built-in microphone
⑤ Mounting clip

Fig. 1. Web camera description

7. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensor type	CMOS
Resolution, pix	640 × 480
Frame rate, frames/sec	up to 30 fps for 640 × 480
Focus distance, mm	4.8 to infinity
Cable length, m	1.45

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

Модель: IC-325

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
