DEBETA100 - Range hood DELONGHI - Free user manual and instructions

Brand	De'Longhi
Model	DEBETA100
Product Type	Range hood
Installation Type	Wall-mounted
Dimensions (H x W x D)	150 x 600 x 500 mm
Weight	10 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Number of Speeds	3
Extraction Capacity	650 m³/h
Noise Level	55 dB (max speed)
Lighting	2 x 40 W halogen
Filter Type	Aluminum grease filter
Control Type	Push buttons
Duct Diameter	120 mm
Energy Class	C
Annual Energy Consumption	60 kWh
Grease Filter Efficiency	70%
Airflow Efficiency	40%
Warranty	2 years
Cleaning	Wash filters monthly; clean surfaces with damp cloth
Safety	Auto shut-off after 12 hours
Spare Parts	Grease filters and light bulbs available

Frequently Asked Questions - DEBETA100 DELONGHI

What are the dimensions of the De'Longhi DEBETA100 range hood?

The dimensions are 150 mm (height) x 600 mm (width) x 500 mm (depth). Always check the manual for exact measurements before installation.

How do I clean the grease filters?

Remove the aluminum grease filters and wash them with warm soapy water or in a dishwasher. Allow them to dry completely before reinstalling. Clean them monthly for optimal performance.

Can the De'Longhi DEBETA100 be used without ducting (recirculation mode)?

This model is designed for ducted extraction. For recirculation, you would need to purchase a charcoal filter separately. Check the manual for compatibility.

How do I replace the light bulbs?

The hood uses 40 W halogen bulbs. To replace, remove the bulb cover, unscrew the old bulb, and insert a new one of the same type. Ensure the power is off before replacing.

What is the noise level of this range hood?

The noise level is up to 55 dB at maximum speed, which is comparable to a normal conversation.

Does the hood have a remote control?

No, the DEBETA100 is controlled via push buttons on the unit itself.

How often should I clean the canopy surface?

Clean the exterior surfaces with a damp cloth and mild detergent weekly to prevent grease buildup. Do not use abrasive cleaners.

What is the warranty period?

De'Longhi offers a 2-year warranty for manufacturing defects. Keep your proof of purchase.

Can I install the hood over a gas stove?

Yes, but ensure proper clearance: at least 65 cm between the hob and the hood. Follow local safety regulations.

Why is my hood less effective?

Check if the grease filters are clogged. Clean them as recommended. Also ensure that the duct is not blocked and that the motor speed is set appropriately.

USER MANUAL DEBETA100 DELONGHI

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

DEBETA60/70/90 Stainless Steel Canopy Range Hoods

Available in 60cm, 70cm & 90cm

■ 3 Speed Electronic Touch Controls
■ Automatic Switch off Timer
- Suitable for re-circulating or fully ducted
■ Dishwasher proof filters
■ High quality halogen lights
■ Air Movement up to 1,200 m3/h(free inlet delivery)
150mm Spigot exhaust outlet

Optional Extras

• Carbon Filters
• 850mm extension flues (extends maximum range hood height by 300mm)

The product dimensions and specifications on this page apply to the specific product and model at the time of issue. These dimensions and specifications may change at any time.

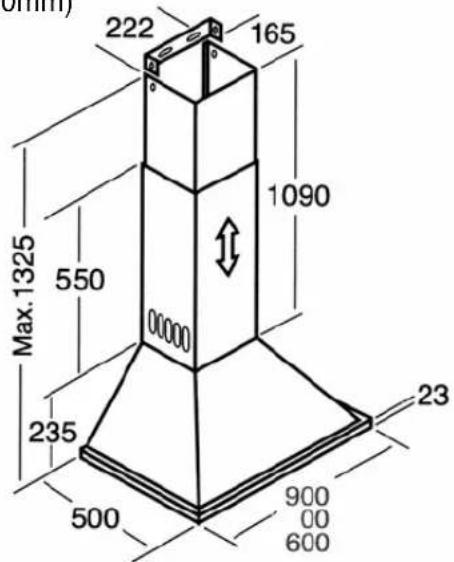

*Diagrams are a guide only. Final fittings should be made with actual product.

Halogen Lights produce a natural brightness illuminating the cooking area.

HALOGEN LIGHTING

Close-up of a metallic object with a circular, reflective surface and a bright light at the center (no visible text or symbols)

AUTOMATIC TIMER

The timer function can be set so the motor and light can turn off automatically

Close-up of a metallic surface with a circular hole and a black triangular mark (no text or symbols)

TOUCH CONTROLS

All Canopies feature a streamlined electronic touch control panel

Close-up of a metallic control panel with four buttons and a hand pointing to it (no visible text or symbols)

EASY CARE FILTERS

The aluminum mesh filters can be placed in your dishwasher for easy cleaning

Architectural rendering of a building with exposed structural elements and mesh floor (no text or symbols visible)
