DEBETA90 - Range hood DELONGHI - Free user manual and instructions

Product Type	Canopy Range Hood
Model	DEBETA90
Brand	DeLonghi
Width	90 cm
Depth	50 cm
Height	Adjustable flue height up to 850 mm
Material	Stainless Steel
Airflow (Max)	1,200 m³/h (free inlet delivery)
Number of Speeds	3
Controls	Electronic Touch Controls
Timer	Automatic Switch-Off Timer
Lighting	2 x Halogen Lights (20W each)
Exhaust Outlet	150 mm spigot
Filter Type	Aluminum Mesh, Dishwasher Safe
Ducting Options	Recirculating or Fully Ducted
Optional Accessories	Carbon Filters, 850mm Extension Flues
Noise Level	55-65 dB(A) (approximate)
Power Supply	220-240V, 50Hz
Energy Class	D
Weight	18 kg

Frequently Asked Questions - DEBETA90 DELONGHI

How do I install the DEBETA90 range hood?

Installation should be carried out by a qualified professional. Ensure the hood is securely mounted to a wall or cabinet, and the exhaust duct is properly connected. For recirculating mode, carbon filters are required. Refer to the manual for detailed instructions.

Can I use the hood in recirculating mode?

Yes, the DEBETA90 can be used in recirculating mode. You will need to purchase optional carbon filters (not included) to absorb odors. The hood comes ready for ducted installation, but can be converted.

How often should I clean the aluminum mesh filters?

We recommend cleaning the aluminum mesh filters every 2-3 months, or more frequently with heavy use. They are dishwasher safe. A clogged filter reduces airflow and efficiency.

What type of light bulbs does the hood use?

The hood uses halogen bulbs with a G4 base, 20W each. Ensure the bulbs are cool before replacing. Do not touch the bulb with bare hands to avoid shortening its life.

Is the hood suitable for island installation?

The DEBETA90 is designed for wall-mounted installation. For island use, you would need a different mounting kit. It is not recommended without proper support.

What is the noise level of this range hood?

The noise level ranges from approximately 55 to 65 dB(A) depending on the speed setting. This is comparable to normal conversation.

How do I set the automatic timer?

Press the timer button on the control panel. You can set the hood to turn off automatically after 5, 10, or 15 minutes. The lights and motor will switch off when the timer expires.

What is the warranty on the DEBETA90?

DeLonghi typically offers a 2-year warranty on parts and labor. Register your product online to activate coverage. This does not cover consumable parts like filters and bulbs.

Can I extend the flue height?

Yes, optional 850mm extension flues are available to increase the hood's maximum height by 300mm. These are useful for higher ceilings.

How do I reset the filter cleaning indicator?

After cleaning the filters, press and hold the filter reset button for 3 seconds. The indicator light will turn off. If your model does not have a specific indicator, clean filters regularly based on usage.

USER MANUAL DEBETA90 DELONGHI

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

DEBETA60/70/90 Stainless Steel Canopy Range Hoods

Available in 60cm, 70cm & 90cm

■ 3 Speed Electronic Touch Controls
■ Automatic Switch off Timer
- Suitable for re-circulating or fully ducted
■ Dishwasher proof filters
■ High quality halogen lights
■ Air Movement up to 1,200 m3/h(free inlet delivery)
150mm Spigot exhaust outlet

Optional Extras

• Carbon Filters
• 850mm extension flues (extends maximum range hood height by 300mm)

The product dimensions and specifications on this page apply to the specific product and model at the time of issue. These dimensions and specifications may change at any time.

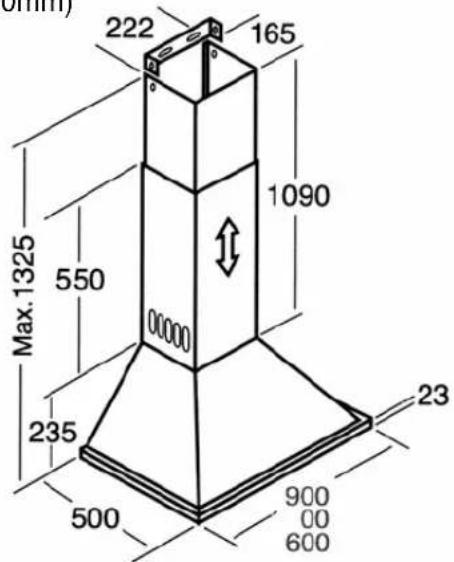

*Diagrams are a guide only. Final fittings should be made with actual product.

Halogen Lights produce a natural brightness illuminating the cooking area.

HALOGEN LIGHTING

Close-up of a metallic object with a circular, reflective surface and a bright light at the center (no visible text or symbols)

AUTOMATIC TIMER

The timer function can be set so the motor and light can turn off automatically

Close-up of a metallic surface with a circular hole and a black triangular mark (no text or symbols)

TOUCH CONTROLS

All Canopies feature a streamlined electronic touch control panel

Close-up of a metallic control panel with four buttons and a hand pointing to it (no visible text or symbols)

EASY CARE FILTERS

The aluminum mesh filters can be placed in your dishwasher for easy cleaning

Architectural rendering of a building with exposed structural elements and mesh floor (no text or symbols visible)
