TA60SS - Range hood DELONGHI - Free user manual and instructions

Product Type	Range Hood
Brand	DeLonghi
Model	TA60SS
Width	60 cm (23.6 inches)
Depth	50 cm (19.7 inches)
Height	30 cm (11.8 inches)
Weight	Approximately 12 kg (26.5 lbs)
Power Supply	220-240 V, 50/60 Hz
Maximum Power Consumption	200 W
Number of Fan Speeds	3 speeds
Extraction Capacity	650 m³/h (max)
Lighting	2 x 40 W halogen bulbs (G9, not included)
Filter Type	Aluminum grease filter (washable) + optional charcoal filter for recirculation
Noise Level	45-60 dB (depending on speed)
Installation Type	Under-cabinet or wall-mount
Venting Type	Ducted (external) or recirculating (with charcoal filter)
Duct Diameter	150 mm (6 inches)
Control Type	Push buttons
Energy Class	A (estimated)
Grease Filter Cleaning	Monthly; dishwasher safe
Charcoal Filter Replacement	Every 3-6 months
Safety Features	Thermal motor cutoff, certified to EU safety standards
Spare Parts	Grease filters, charcoal filters, bulbs available
Warranty	2 years (standard)
Included Accessories	User manual, installation guide, grease filter

Frequently Asked Questions - TA60SS DELONGHI

What are the dimensions of the DeLonghi TA60SS range hood?

The hood is 60 cm wide, 50 cm deep, and 30 cm high.

How do I install the TA60SS hood?

It can be installed under a cabinet or mounted on the wall. Ensure the ducting (150 mm) leads outside or use the recirculation mode with a charcoal filter. Follow the step-by-step instructions in the manual.

How often should I clean the grease filter?

Clean the aluminum grease filter monthly. It is dishwasher safe. This prevents grease buildup and maintains efficiency.

When should I replace the charcoal filter?

If you use recirculation mode, replace the charcoal filter every 3 to 6 months, depending on usage.

What type of bulbs does the hood use?

It uses two 40 W halogen bulbs with G9 base. Not included. Replace with max 40 W G9 bulbs.

How loud is the TA60SS hood?

Noise levels range from 45 dB on low speed to 60 dB on high speed.

Can I use the hood without ducting outside?

Yes, you can use it in recirculation mode by installing a charcoal filter. The air is filtered and returned to the kitchen.

What is the extraction capacity?

It has a maximum extraction capacity of 650 m³/h.

How do I reset the filter alarm?

Some models have a filter saturation indicator. After cleaning/replacing filters, press and hold the reset button for 3 seconds (refer to manual).

What is the warranty on the DeLonghi TA60SS?

It comes with a standard 2-year warranty. Retain your proof of purchase.

USER MANUAL TA60SS DELONGHI

Exterior view of a stainless steel kitchen air duct with mesh ventilation slots (no text or symbols visible)

Contents

Parts and Features 03

De'Longhi Safety Precautions 04

Rangehood Safety Precautions 05

Installation Safety Precautions....08

Installing your Rangehood 09

Using your Rangehood 11

Care and Cleaning 12

Help us Help You 13

Warranty Information....14

Model: TA60SS (60cm) / TA90SS (90cm)

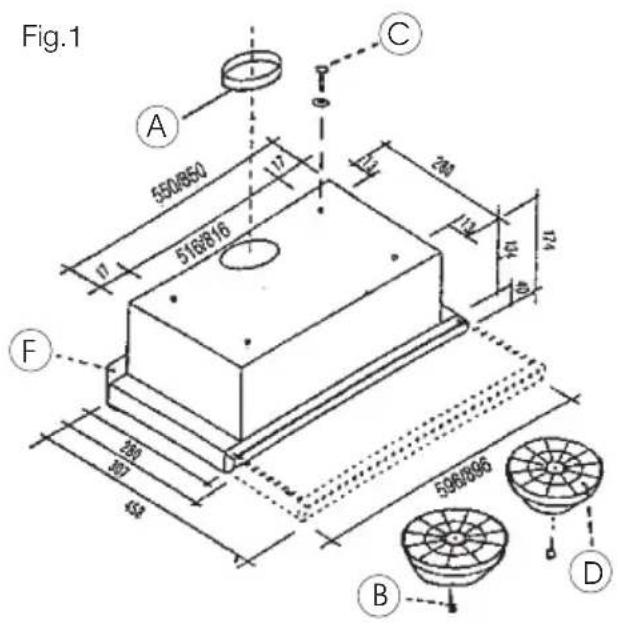

Components:

A. Connecting Ring
B. Filter Knob
C. M4 × 40mm Screws
D. Carbon Filters (Optional Accessory)
E. Mesh Grids
F. Rear Spacer
G. Slide-Out Hood Extension

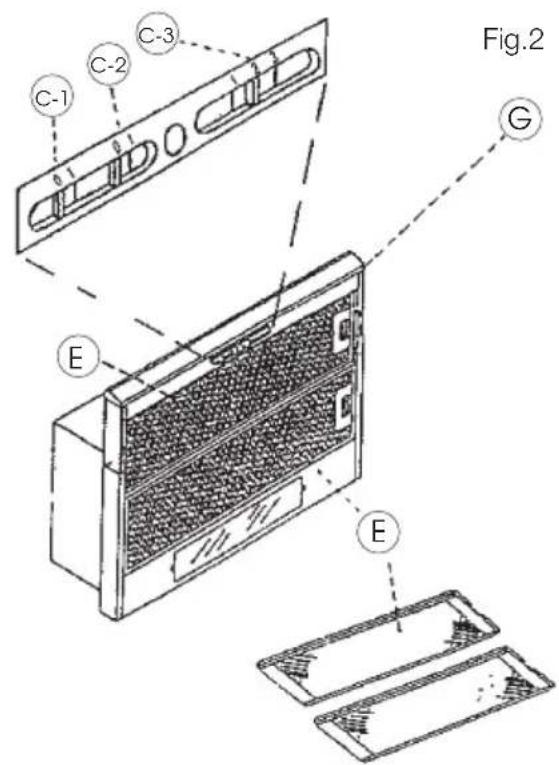

Controls

C-1. Lamp Switch on/off
C-2. Fan Switch on/off
C-3. Fan Speed Switch 1/2/3

SPECIFICATIONS:

Dimensions

Height 174mm

Width 596/896mm

Depth 280mm

Voltage

220-240V

Frequency 50 Hz

Input 330W

Noise 31.4 - 67dB

Speed 225 - 340 m³/h

Spigot Outlet ∅120mm

De'Longhi's Safety Precautions

De'Longhi pride themselves on their innovative range of the highest quality consumer products.

De'Longhi ensures all of its products are 100% safe through quality design and manufacture. All products meet or exceed stringent laboratory-tested safety requirements.

It is necessary for anyone using an electrical appliance to be safety conscious. The following precautions are essential for the safe use of an electrical appliance. Carefully read all of the instructions provided with your appliance:

• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug, do not pull on the cord.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person. The extension cord must be a VDE-Listed, 3-wire grounding extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 220-240 volts and at least 10 amperes.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• Do not use an appliance for any purpose other than its intended use.
• Do not attempt to repair an electrical appliance. Return a damaged or malfunctioning appliance to a qualified service centre for adjustment or repair if required.

• The appliance must be positioned so the AC plug is accessible.

• This appliance is designed exclusively for household use and not for commercial or industrial use. All other uses are strictly forbidden.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING, AND SAVE FOR FUTURE REFERENCE.

Your safety and the safety of others is very important. Safety messages are displayed in this manual and on your appliance.

Read and obey these safety messages as they will alert you to potential hazards and tell you how to reduce the chance of injury.

Safety Alert Symbol

This symbol alerts you to potential hazards.

DANGER

WARNING

CAUTION

Danger

Danger indicates a high level of risk to yourself and others. Ensure that care is taken to avoid severe injury or even death.

Warning

Warning indicates a moderate level of risk to yourself, others and the product. Ensure that care is taken to avoid extensive product damage or serious injury.

Caution

Caution indicates a level of risk to yourself, others and the product. Ensure care is taken to avoid moderate product damage or injuries.

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual

carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

Caution: risk of fire

PLEASE READ ALL INSTRUCTION CAR EFU LLY BEFORE COMMENCING INSTALLATION. CHECK THAT THE ELECTRICAL SUPPLY DATA QUOTED ON THE RATING PLATE OF THE APPLIANCE AGREES WITH THAT OF YOUR SUPPLY.

DANGER

• The appliance must be installed by the service agent or a similar qualified technician in order to avoid hazard.
• Make sure the rangehood is fixed directly to a wall or mounted in the lower part of a hanging cupboard.
• Do not install the rangehood close to a window, rain may cause an electrical hazard.
• To protect against electrical shock, do not immerse the appliance or cord in water or spray with liquids.
• Before performing any maintenance operation, disconnect the hood from the mains supply.
• Do not operate in the presence of explosive and/or flammable fumes.

• Do not operate any appliance with a damaged cord, after the appliance malfunctions or has been dropped or damaged in any manner.

• Do not let the cord touch any hot surfaces.

• Do not check the filter while the appliance is operating.
• Do not touch the lamps after a prolonged use of the appliance.
• Do not flambé under the rangehood. The use of an unprotected flame is dangerous for the filters and could cause fires.
• Constantly watch food being fried in order to avoid oil flare ups during cooking.
• Do not switch on the appliance unless completely assembled and adjusted.
• The manufacturers refuse to accept any responsibility for eventual damages, because of failure to observe these instructions.
• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet. There is a potential hazard of electric shock.
• Turn off and unplug the appliance before cleaning or servicing. Failure to do so can result in electrical shock or death.
• DO NOT insert any objects such as wooden sticks or metal sticks into the appliance. It may lead to leakage, short circuit, or product damage.

Rangehood Safety Precautions

• If something is wrong with the product, please call a De'Longhi representative. Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.
• Unauthorised disassembly will affect the safety of the product.
• DO NOT spray pesticide or any other flammable sprays near the product.
• When cleaning or filling the appliance, please turn it off and unplug the power cord. Do not proceed until it has completely stopped functioning.
• If you notice an abnormal smell or sound during use, please turn off the appliance immediately and unplug the power.
• DO NOT shower the appliance in water, it may lead to electrical shock, leakage, short circuit or product damage.

• The fuse (or circuit breaker) size should be 10 amperes.

• Operate the appliance on a level surface.

• Keep ventilation openings clear of obstruction.
• This appliance is intended to be used in household and similar applications eg:
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
  -Catering and similar non-retail applications.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• Regulations concerning the discharge of air have to be fulfilled.

WARNING

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (220-240V AC only, 50 Hz), properly grounded in accordance with the local codes and regulations.
• Do not locate the appliance next to ovens, grills or other sources of high heat.
• This appliance complies with the directions EMC 89/336/EEC revised 92/31/EEC and 93/68/EEC.
• If the room contains a flue fuel burning appliance which is not of the 'Balance Flue' type - make sure there is an adequate air inlet to the room at all time so that fumes are not drawn down the flue.

Electrical Connection

• This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimise the possibility of electrical shock.
• Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

• This appliance requires a standard 220-240 Volt AC \~/50Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

• The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

• The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated.
• Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• When moving the appliance, be careful not to damage the power cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Service agent or a similarly qualified person in order to avoid a hazard.
• Make sure that the plug is fully inserted into the wall socket before use.
• DO NOT fold or put kinks in the supply cable or place heavy objects on it. It could lead to cable damage.

Extension Cord

- Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it must be checked and tested by a qualified technician or service person.

The extension cord must be a VDE-Listed, 3-wire grounding extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 220-240 Volts and at least 10 amperes.

Connection to the Electrical Supply

• This appliance is supplied with a flexible cord and 3 pin plug for connection to a properly earthed 10A power point.
• Check that the rating of the appliance matches the rating of the power point.
• The power point must be accessible after installation to allow disconnection of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Attention: Should the lamps not work, make sure they are tightened and re-check.

Installation Instructions

• The rangehood is supplied with
- 1 x Spacer
- 4 x Screws (M4 × 40mm)
- 2 x Bulbs

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the rangehood when the rangehood is located above a gas appliance, this distance shall be at least 65cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
• Where installed above a gas cooktop, the rangehood must be installed in accordance with AS/NZS 5601 - Gas Installations and any other statutory regulations.
• This rangehood is designed for fitting in a cabinet or on similar support. For fixing, utilise the four M4 × 40mm screws supplied with the hood (C).
• Close the space that remains between the hood and the wall, adjusting the spacer (F).
• Before completing any connections, make sure the voltage of the home corresponds with the voltage indicated on the data label.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Installation Method

The rangehood is designed to be installed in either Extraction Method or Re-Circulating Method (Requires purchase of Carbon Filters sold separately).

Extraction Installation Method

• The air is vented outdoors by a duct which must be connected to exhaust hole ∅120mm using the connecting ring (A).
• The hood must not be connected to fuel exhaust flues or to a duct in which hot air is circulated, or is utilised to remove the fumes from appliances stocked by an energy different from the electric one.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• For correct functioning, provide suitable ventilation of the room using doors, windows or other technical devices.

Re-circulation Installation Method

The Rangehood can only be installed in this method with the purchase of Carbon Filters that are sold as an optional accessory.

• When there is no exhaust duct for venting outdoors, you can use a carbon filter (D). The cooking fumes are filtered and then pushed back out again.
• Filters are not washable; they cannot be regenerated and have to be replaced at most every 2 months.
• The saturation of the activated charcoal depends on the frequency of use of the hood, on the type of cooking and on the regularity of cleaning the grease filter.
• The carbon filter has to be fitted inside the hood. Push it into place until the stop click is heard to lock it.
• Remove the grill (E) see figure 2 to carry out this operation.
• The air is released in the room through a connecting pipe, which goes through the hanging cupboard and is connected to the connecting ring supplied (A) see figure 1.

To use the appliance in this method, proceed as follows:

• Open the grids (E)
• Insert the filter (D) with the knob (B).
• Reinstall the grids.

Using your Rangehood

Operating the Rangehood

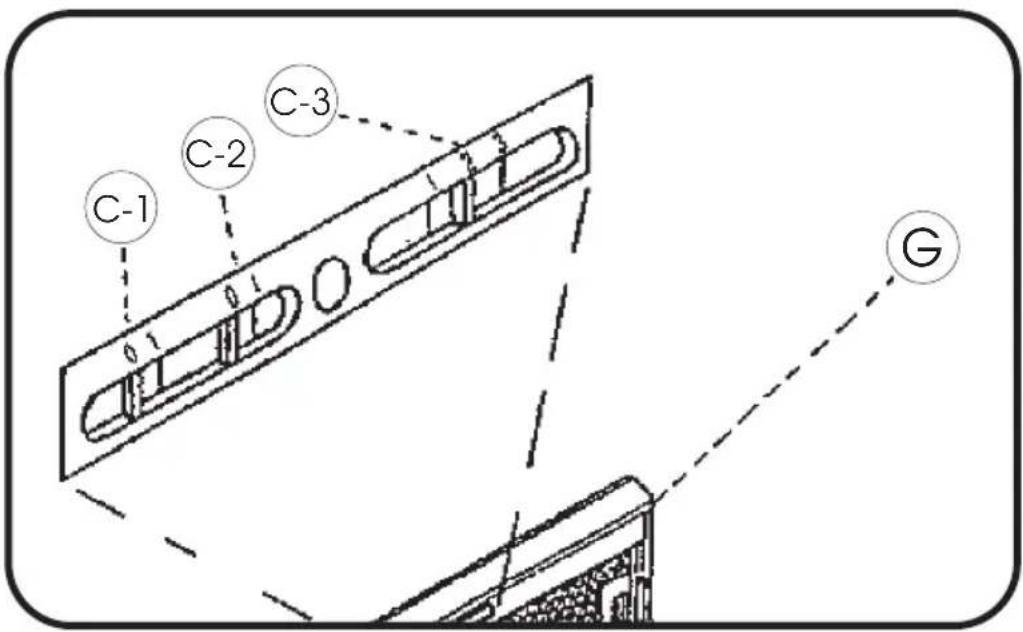

SWITCH ON THE LAMPS

- Pull out the grill (G) more than 50mm

- Slide the switch (C-1) from position '0' to '1'

ADJUSTING THE FAN SPEED

• Pull out the grill (G) more than 50mm
• Slide the switch (C-2) from position '0' to '1' at low speed.
• Adjust the fan to mid speed by sliding the switch (C-3) from position '1' to '2'.
• Adjust the fan speed to high by sliding the switch (C-3) from position '2' to '3'.
• Switch off the appliance by sliding the switch (C-2) from position '1' to '0'
• LED (C-4) will be lit up when the fan motor operates.

Note: You can change speed during operation.

Maintenance

The effective functioning of the hood depends on the regularity with which cleaning and maintenance is carried out. Particularly in the case of the grill (E) and optional charcoal filters (D).

The grids (E) serve the function of catching the fat and solid particles suspended in the air. It is thus subject to clogging at various intervals, depending on use and the type of cooking. In any case, it is necessary to clean the grid at least every two months as follows:

• Remove the grid and wash it with a solution of lukewarm water and neutral liquid detergent, allowing the dirt to soften.
• Rinse thoroughly with lukewarm water.
• Failure to follow the washing instructions can create a fire risk.

Charcoal Filters (Optional Accessory)

• The activated charcoal filter present only in re-circulation versions have the function of trapping odours and purifying the air. The saturation of the activated charcoal occurs after more or less prolonged use: depending on the type of cooking and the regularity of cleaning of the grease filter.
• In any case it is necessary to replace the cartridge at least every four months. Clean frequently all the deposits on the fan and the other surfaces, utilising a cloth moistened by neutral and non abrasive liquid detergent.

Changing the Bulbs

• Disconnect the hood from the electricity.
• Remove the lamp cover.
• Always replace burnt-out lamps, according to what is provided for your appliance, with olive shaped Max. 40W bulbs.
  • Re-close the lamp cover.

Help us Help You

Read this guide carefully, it is intended to help you operate and maintain your new Rangehood properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call the De'Longhi Helpline.

To help us provide prompt answers to your queries, please record your Rangehood model and serial numbers.

Rangehood details

Date of Purchase

Model Number

Serial Number

STAPLE OR AFFIX PURCHASE RECEIPT HERE

The De'Longhi Rangehood is warranted against faults resulting from manufacturing or material defects. The warranty period for normal domestic installation and use is one year from the date of purchase. In non-domestic use De'Longhi limits the voluntary warranty to 6 months.

De'Longhi undertakes to repair or replace the Rangehood at our discretion if the product is found to be defective due to a manufacturing fault during the warranty period.

This warranty excludes any damage caused by misuse, neglect, shipping accident, or incorrect installation. Normal wear and tear is also expressly excluded. The warranty claim is void if no fault is found with the product or if work is carried out by anyone other than an authorised De'Longhi Service Agent.

In Australia, this warranty is additional to the conditions and guarantees which are mandatory as implied under the Trade Practices Act 1974 and State and Territory legislation.

How to contact us about a warranty claim

Talk to a De'Longhi representative for further warranty or product information please call the number in your country:

Australia

www.delonghi.com.au

Phone: [phone]

New Zealand

www.delonghi.co.nz

Phone: [phone]

Notes

Consumer Helpline

Australia

Phone: [phone]

Fax: [phone]

New Zealand

Phone: [phone]

Fax: [phone]

www.delonghi.com.au

www.delonghi.co.nz

Distributed by De'Longhi Australia Pty Ltd.

ABN 49 104 012 857

P.O. Box 4540 Casula Mall, NSW 2170

Distributed by De'Longhi New Zealand Ltd.

P.O. Box 58-056 Botany, MANUKAU 2163

DeLonghi

is a registered Trademark

of De'Longhi Australia Pty Ltd.

ABN 49 104 012 857.
