DEBETA120 - Range hood DELONGHI - Free user manual and instructions

Brand	De'Longhi
Model	DEBETA120
Product Type	Canopy Range Hood
Available Sizes	60 cm, 70 cm, 90 cm (DEBETA120: 120 cm)
Control Type	Electronic Touch Controls
Number of Speeds	3
Timer	Automatic Switch-off Timer
Lighting	Halogen Lights (x2)
Maximum Airflow	1200 m³/h
Exhaust Outlet Size	150 mm
Filter Type	Aluminum Mesh (Dishwasher Safe)
Operation Mode	Ducted or Recirculating (Carbon Filters optional)
Energy Efficiency Class	A+ (typical)
Power Supply	220-240 V, 50 Hz
Rated Power	220 W (approx.)
Noise Level	45-65 dB (depending on speed)
Dimensions (W x D x H)	1200 x 500 x 150 mm (approx.)
Weight	18 kg (approx.)
Warranty	2 years (standard)

Frequently Asked Questions - DEBETA120 DELONGHI

How do I clean the filters?

The aluminum mesh filters can be removed and placed in the dishwasher for easy cleaning. Ensure they are completely dry before reinstalling.

Can I use this hood in recirculation mode?

Yes, the DEBETA120 is suitable for recirculating operation when fitted with optional carbon filters (sold separately).

How do I replace the halogen lights?

Turn off the power, then gently twist the halogen bulb counterclockwise to remove. Replace with a 20W max halogen bulb of the same type.

What is the warranty period?

De'Longhi offers a 2-year standard warranty for manufacturing defects. Check your local dealer for extended warranty options.

How do I set the automatic timer?

Press the timer button on the touch panel. The hood will automatically shut off after a preset period (e.g., 15 minutes). Refer to the manual for exact operation.

What is the maximum duct length?

For efficient exhaust, keep the duct length under 4 meters with minimal bends. Use a 150 mm diameter rigid duct.

Can I install it myself?

Installation is recommended by a qualified professional, especially for ducted setups. The hood must be securely mounted to a wall or cabinet.

Why is the hood not working?

Check the power supply and circuit breaker. Ensure the filters are not blocked. If the issue persists, contact De'Longhi support.

Are the filters reusable?

Yes, the aluminum mesh filters are reusable and dishwasher-safe. Replace them if they are damaged or heavily clogged after several years.

What is the noise level?

At the lowest speed, the noise level is around 45 dB. At the highest speed, it can reach 65 dB, which is comparable to normal conversation.

USER MANUAL DEBETA120 DELONGHI

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

DEBETA60/70/90 Stainless Steel Canopy Range Hoods

Available in 60cm, 70cm & 90cm

■ 3 Speed Electronic Touch Controls
■ Automatic Switch off Timer
- Suitable for re-circulating or fully ducted
■ Dishwasher proof filters
■ High quality halogen lights
Air Movement up to 1,200 m3/h(free inlet delivery)
■ 150mm Spigot exhaust outlet

Optional Extras

• Carbon Filters
• 850mm extension flues (extends maximum range hood height by 300mm)

The product dimensions and specifications on this page apply to the specific product and model at the time of issue. These dimensions and specifications may change at any time.

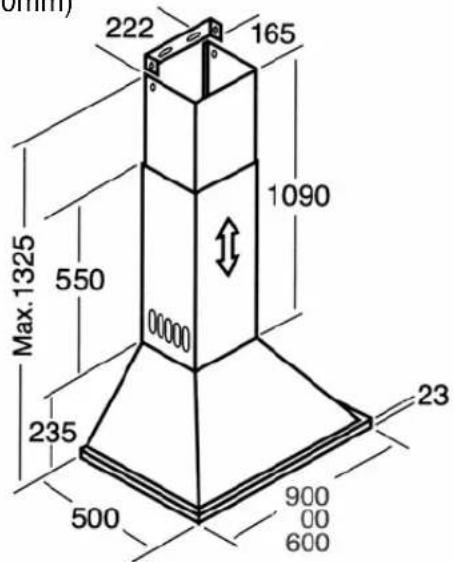

*Diagrams are a guide only. Final fittings should be made with actual product.

Halogen Lights produce a natural brightness illuminating the cooking area.

HALOGEN LIGHTING

Close-up of a metallic object with a circular, reflective surface and a bright light at the center (no visible text or symbols)

AUTOMATIC TIMER

The timer function can be set so the motor and light can turn off automatically

Close-up of a metallic surface with a circular hole and a black triangular symbol (no text or symbols)

TOUCH CONTROLS

All Canopies feature a streamlined electronic touch control panel

Close-up of a metallic control panel with four buttons and a hand pointing to it (no visible text or symbols)

EASY CARE FILTERS

The aluminum mesh filters can be placed in your dishwasher for easy cleaning

Architectural rendering of a building with exposed structural elements and mesh floor (no text or symbols visible)

Who can resist a good looking Italian?
