DEBETA60 - Range hood DELONGHI - Free user manual and instructions

Product Type	Range Hood
Brand	DeLonghi
Model	DEBETA60
Width	60 cm
Depth	50 cm
Height	15 cm (approx.)
Weight	10 kg (approx.)
Power Supply	220-240 V ~ 50 Hz
Motor Power	150 W (approx.)
Max Airflow	600 m³/h
Noise Level	55 dB (max)
Controls	Slider or push buttons (depending on version)
Lighting	2 x 20 W halogen or LED (depending on version)
Filter Type	Washable metal grease filter
Charcoal Filter	Optional (for recirculation mode)
Installation	Wall-mounted, ducted or recirculation
Duct Diameter	120 mm or 150 mm (depending on version)
Energy Class	B (approx.)
Annual Energy Consumption	60 kWh (approx.)
Grease Filter Efficiency	Class B (approx.)
Fluid Dynamic Efficiency	Class C (approx.)
Lighting Efficiency	Class D (approx.)
Included Accessories	Instruction manual, mounting kit

Frequently Asked Questions - DEBETA60 DELONGHI

How often should I clean the grease filters?

It is recommended to clean the metal grease filters every month or more frequently if the hood is used intensively. Remove them and wash with warm soapy water or in the dishwasher.

Can I use the hood without a charcoal filter?

Yes, if the hood is installed in extraction mode (ducting outside), no charcoal filter is needed. For recirculation mode, a charcoal filter is required.

How do I replace the light bulb?

First, disconnect the hood from power. Depending on the model, you may need to remove the lamp cover or filter. Use a suitable replacement bulb (type specified in manual, typically G4 20W halogen or LED).

What is the recommended installation height above the hob?

For electric hobs, the minimum height is 65 cm; for gas hobs, 75 cm. Refer to your hob manual for exact distances.

Can the hood be used for recirculation?

Yes, but you need to purchase a charcoal filter separately and install it according to the instructions. The hood can be converted from ducted to recirculation mode.

Why is the hood not extracting properly?

Check if the grease filters are clogged. Also ensure the duct is not blocked and that the charcoal filter (if used) is not saturated. Regular maintenance is essential.

How do I reset the filter saturation indicator?

Press and hold the filter reset button (often marked with a filter icon) for about 3-5 seconds until the indicator light turns off. Refer to the manual for exact location.

What is the noise level of this hood?

The noise level is approximately 55 decibels at maximum speed, which is moderate. Quiet operation can be achieved at lower speeds.

Is the hood suitable for use over a gas hob?

Yes, it is suitable. Ensure the installation height is at least 75 cm above the burners and that the flame does not come into direct contact with the filter.

Where can I find spare parts or accessories?

Spare parts such as filters and bulbs can be purchased from authorized DeLonghi dealers or online. Use the model number DEBETA60 for compatibility.

USER MANUAL DEBETA60 DELONGHI

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

DEBETA60/70/90 Stainless Steel Canopy Range Hoods

Available in 60cm, 70cm & 90cm

■ 3 Speed Electronic Touch Controls
■ Automatic Switch off Timer
- Suitable for re-circulating or fully ducted
■ Dishwasher proof filters
■ High quality halogen lights
Air Movement up to 1,200 m3/h(free inlet delivery)
■ 150mm Spigot exhaust outlet

Optional Extras

• Carbon Filters
• 850mm extension flues (extends maximum range hood height by 300mm)

The product dimensions and specifications on this page apply to the specific product and model at the time of issue. These dimensions and specifications may change at any time.

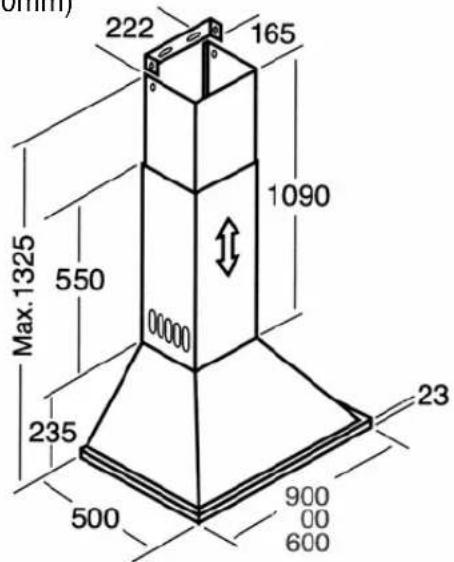

*Diagrams are a guide only. Final fittings should be made with actual product.

Halogen Lights produce a natural brightness illuminating the cooking area.

HALOGEN LIGHTING

Close-up of a metallic object with a circular, reflective surface and a bright light at the center (no visible text or symbols)

AUTOMATIC TIMER

The timer function can be set so the motor and light can turn off automatically

Close-up of a metallic surface with a circular hole and a black triangular mark (no text or symbols)

TOUCH CONTROLS

All Canopies feature a streamlined electronic touch control panel

Close-up of a kitchen control panel with four buttons and a finger pointing to the button (no visible text or symbols)

EASY CARE FILTERS

The aluminum mesh filters can be placed in your dishwasher for easy cleaning

Aerial view of a building with a mesh floor and adjacent structures (no visible text or symbols)

Who can resist a good looking Italian?
