Product Type	Video Conferencing System
Brand	HuddleCamHD
Model	3XA
Dimensions (W x D x H)	11.0 x 7.5 x 5.5 inches (approx.)
Weight	3.5 lbs (approx.)
Power Supply	12V DC, 2A power adapter included
Power Consumption	24W max
Camera Resolution	1080p Full HD
Field of View	90° diagonal
Microphone	Built-in omnidirectional microphone array
Speaker	Full-range speaker, 5W
Connectivity	USB 3.0, HDMI out, 3.5mm audio jack, Ethernet (PoE)
Video Output	HDMI 1.4, USB 3.0 (UVC/UAC)
Audio Output	HDMI, USB, 3.5mm line out
Mounting Options	Tabletop, tripod, wall mount (VESA compatible)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Maintenance	Wipe with dry cloth; do not use solvents
Safety	Use only included power adapter; avoid liquid exposure
Spare Parts	Power adapter, remote control (if applicable), USB cable
Reparability	Contact HuddleCamHD support for repairs; no user-serviceable parts
General Information	Designed for small to medium meeting rooms; plug-and-play with major video conferencing apps

Frequently Asked Questions - 3XA HuddleCamHD

How do I connect the HuddleCamHD 3XA to my computer?

Use the included USB 3.0 cable to connect the 3XA to your computer. The device will be recognized as a USB camera and microphone. For HDMI output, connect an HDMI cable from the 3XA to an external display.

Can I use the 3XA with Zoom, Teams, or Skype?

Yes, the 3XA is a standard UVC/UAC device and works with all major video conferencing platforms including Zoom, Microsoft Teams, Google Meet, and Skype without additional drivers.

What is the field of view of the camera?

The camera has a 90° diagonal field of view, suitable for capturing groups of 3-5 people in a small meeting room.

How do I adjust the camera angle?

The 3XA has a manual tilt adjustment of -10° to +20°. You can also pan the camera by rotating the base. For remote adjustments, use the included remote control (if available) or the app.

Does the device support Power over Ethernet (PoE)?

Yes, the Ethernet port supports PoE (802.3af), allowing both data and power over a single cable. If using PoE, no separate power adapter is needed.

My audio is not working. What should I check?

Ensure the 3XA is selected as the audio input and output device in your computer settings. Check that the mute button on the remote or device is not active. For HDMI audio, confirm the display supports audio.

Can I mount the 3XA on a wall or ceiling?

Yes, the 3XA has a standard VESA mounting pattern (75x75mm) and can be mounted using a compatible bracket. A tripod mount is also available.

How do I update the firmware?

Firmware updates are available on the HuddleCamHD website. Download the latest firmware and follow the instructions in the manual to update via USB or SD card if supported.

What is the warranty period?

The HuddleCamHD 3XA comes with a limited 2-year warranty from the date of purchase. Please register your product for warranty support.

How do I clean the device?

Use a soft, dry, lint-free cloth to wipe the exterior. For the camera lens, use a lens cleaning pen or a microfiber cloth. Do not use any liquids or abrasive cleaners.

USER MANUAL 3XA HuddleCamHD

Black HuddleCamHD camera with a curved base and control panel (no visible text or symbols on the device itself)

USB 2.0 PTZ Camera w/ built-in Mic Array Installation and Operation Manual

Precautions

Safety Tips

• Please be aware any deviation from these tips may void your warranty
• Please read this manual carefully before using the camera.
• Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage, or installation.
• Take care of the camera during installation to prevent damage to the camera case, ports, lens, or tilt mechanism.
• Keep the camera away from strong electromagnetic sources.
• Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for extended periods of time.
• Do not clean the camera with any active chemicals or corrosive detergents.
• Do not disassemble the camera or any of the camera's components. If problems arise, please contact your authorized HuddleCamHD dealer.
• After long term operation, moving components may wear down. Please contact your authorized HuddleCamHD dealer for repair.

What's in the Box

Supplied Hardware

• HuddleCamHD 3XA - 3X Optical Zoom USB 2.0 camera
○ Camera
- Dual Microphone Array
• 12V 2.0A DC Power Adapter
- Mounts: Tripod Mount
• USB 2.0 A-A cable (4.8m 16ft)
- IR Remote Controller
• This User Manual

Physical Description

Front View of the Camera

1. Lens

3X Optical Zoom

1. Left Microphone Element

2. IR Receiver

To receive IR remote controller signal

1. Power LED

Blue LED lights when unit is powered and is dark in Stand-By status.

1. IR Receiver

To receive IR remote controller signal

1. Right Microphone Element

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Physical Description

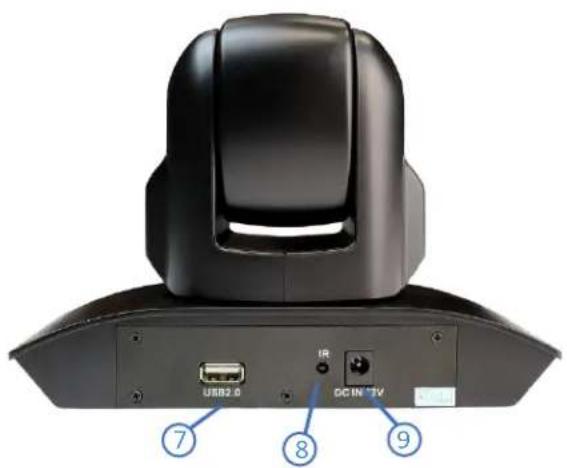

Rear View of the Camera

7. USB 2.0 Interface

For video/audio connection to PC (USB 2.0 Port. Will also function in a USB 3.0 port as a USB 2.0 device)

8. IR Receiver

To receive IR remote controller signals

9. DC IN 12V socket

Only use the Power Adapter supplied with this camera

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Physical Description

Bottom View of the Camera

10. Dip-Switches

Used for selecting serial (virtual com port via USB) and IR communications settings.)

11. Tripod

Will accept 1 / 4 20 bolt from 3 ^rd party tripod, wall or ceiling mount using included tripod adapter.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Dip-Switch Settings

Bottom Switch: Used for serial and IR communication settings.

Note: When changing Dip-Switch settings, make all changes with camera powered off.

DIP-1,2:

Virtual COM Port – Baud Rate & Communication Protocol

Baud Rate	Switch State	Communication Protocol	Switch State
	DIP-1		DIP-2
9600bps	OFF (Default)	VISCA	OFF (Default)
38400bps	ON	PELCO-D	ON

DIP-3,4,5:

IR Remote Control – Camera ID

IR Remote Address	Switch State
	DIP-3	DIP-4	DIP-5
1 (Default)	OFF (Default)	OFF (Default)	OFF (Default)
1	ON	OFF	OFF
2	OFF	ON	OFF
3	OFF	OFF	ON

OSD Menu

Dome

- Pan Speed Default Value: 20

- Set speed of Pan motor

■ Range = 1 - 63

- Tilt Speed Default Value: 20

- Set speed of Tilt Motor

■ Range = 1 - 63

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

• Scan Speed (Auto Pan Mode)

- Set speed of boundary scan

■ Range = 1 - 63

• Tour Path (Uses presets) Default Value: 1

○ Select desired tour path

■ Range = 1 - 4

- Tour Dwell Default Value: 5

- Set duration to dwell on each preset

■ Range = 1 - 60

• Proportion Default Value: On

(Pan + Tilt speed proportional to zoom level)

- Set Proportion

■ Range = On - Off

• Auto Rev Default Value: P

- Set camera mounting orientation

■ N for inv ceiling mount, P for std. mount

• Frame Default: 60Hz

- Set Refresh Rate

■ Range = 50Hz or 60Hz

- Preset Freeze Default: On

- Provides automatic temporary freeze frame when switching between presets

■ Range = On - Off

- POS COMEBACK

- Allows the camera to revert to last position left at for 30+ seconds

■ Range = On - Off

Lens

- BL (Backlight) Default Value: OFF

○ ON/OFF

• Saturation Default Value: 9

○ 0 - 15

- Sharpness Default Value: 3

○ 0 - 15

- NR (Noise Reduction) Default Value: Auto

○ Adjustable Value: OFF, AUTO, 1 – 4

• WB (White Balance) Default Value: Auto

○ Auto/Indoor/Outdoor/Onepush/ATW/Manual

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Manual Settings:

• R GAIN (Red Gain) Default Value: 76

○ Adjustable Scope: 0 – 255

• B GAIN (Blue Gain) Default Value: 82

○ Adjustable Scope: 0 – 255

• AE (Auto Exposure) Default Value: Auto

○ Auto/Manual

Manual Settings:

• SHUTTER Default Value: 1/90

○ Shutter Speed Range: 1/60 – 1/10000

• IRIS

○ FIXED only

• BRIGHT Default Value: 8

- Set Brightness: 0 – 15

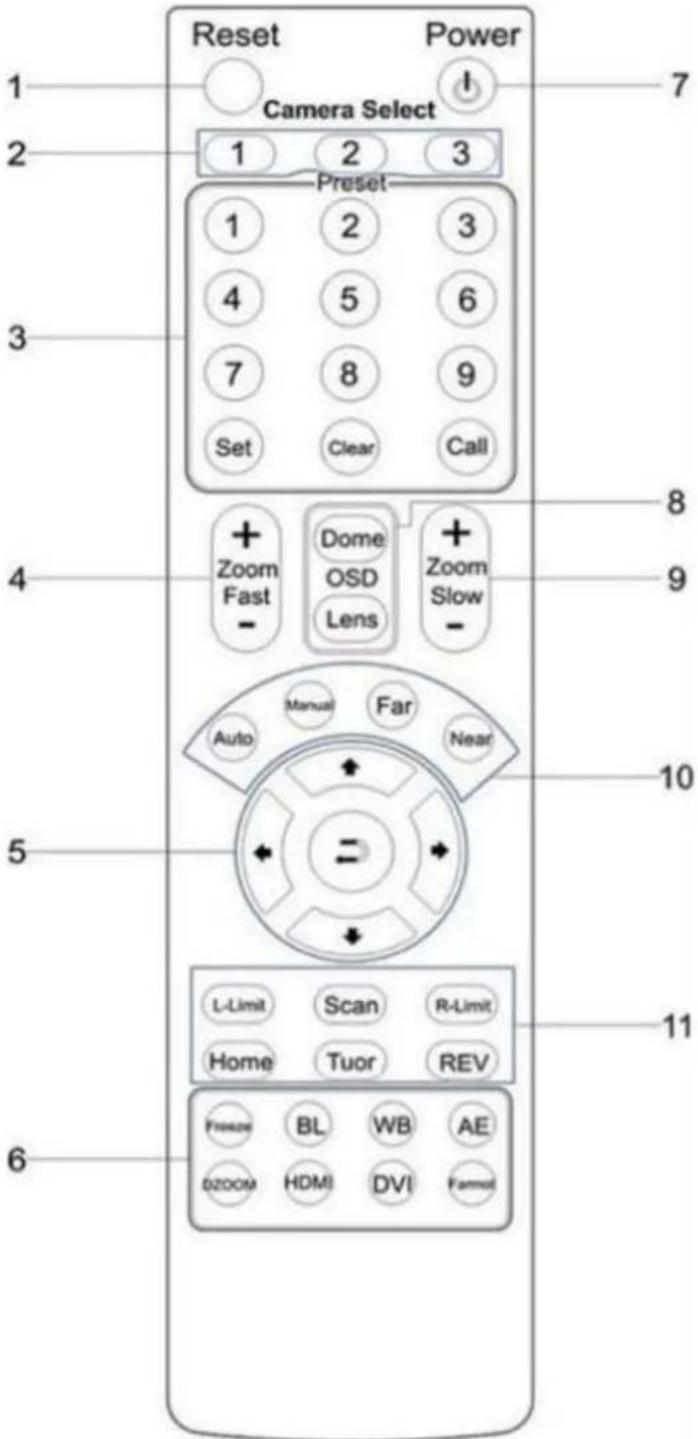

IR Remote Controller

(Note: Some buttons do not operate for all camera modes)

1. Reset

Restarts the camera and restores it to Factory Default Settings. (Note: Will delete all saved settings and presets.)

2. Camera Selection

Select which Camera to control via IR: 1, 2, or 3

3. Preset Positions

1-9: Preset Position

Set: Set a Preset Position

Clear: Clear a Preset Position

Call: Call a Preset Position

Note: If you want to set (or call) the first preset position

to 1, you simply press the number key "1", then press

"Set" or "Call" to set (call) the position

4. Fast Zoom in/out Control Zone

+: Zoom in quickly

-: Zoom out quickly

5. Pan/Tilt Controller

↑Move Up

↓Move Down

Move Left

Move Right

Auto Pan (through full pan range)

6. Additional Function Zone

Model Dependent Functions

Not Applicable to this model

7. Power Supply Switch

Switch for turning camera on/off

(i.e. Working Mode vs. Stand-By mode)

8. OSD Menu Zone

Model Dependent Functions

Not Applicable to this model

9. Slow Zoom in/out Zone

+: Zoom in quickly

-: Zoom out quickly

10. Focus Control Zone

Auto: Turn on Manual Focus

Manual: Turn on Manual Focus

Far: Set focus at a farther distance (req Man Focus)

Near: Set focus at a nearer distance (req man Focus)

11. Pan/Tilt Function Zone

Home: Go to camera's home position

Rev: Enable image flip for ceiling mounting

L-Limit: Sets left limit for Scan feature

R-Limit: Sets right limit for Scan feature

Scan: Auto Pan to L&R limits

Tour: Auto tour of all saved presets

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Connection Instructions

1. Connect included Power Supply to the camera.
2. Wait for camera to come to Home Position.
3. Connect included USB 2.0 cable to camera and USB 2.0 port of PC.
4. Select and configure camera in your software of choice.

NOTE: Failure to follow this sequence may result in no connection to PC.

Care of the Unit

Remove dust or dirt on the surface of the lens with a blower (commercially available).

Installation Instructions

Desktop Installation

When using the HuddleCam on a desk, make sure that it will stand level. If you want to use the camera on an incline, make sure the angle is less than 15 degrees to ensure that the camera's pan and tilt mechanism operates normally.

Line drawings of two computer monitors with control buttons and indicator lights (no text or symbols)

Max 15°

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Desktop Installation

When using the HuddleCam with a tripod, screw the tripod to the bottom of the camera. The tripod screw must fit below specifications:

Note: Tripod must stand on a level surface.

To fix the tripod mount to the bottom of the camera, use the supplied screws to hold it in place.

Then screw the tripod to the tripod bracket.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Troubleshooting

Problem	Cause	Resolution
There is no power to the camera.	Power adapter is disconnected from mains or from camera.	Check the connection between the camera, power adapter, and mains. If anything is disconnected, reconnect it.
Camera will not connect to the PC via USB	USB cable is bad.	Try new USB Cable
	Camera connects sometimes.	Connect USB only after camera has completely booted.
Camera unable to pan, tilt, and/or zoom.	Power adapter is disconnected from mains or from the camera	See Camera Power, above
	Pan, tilt, or zoom range limit was reached	Try to pan/tilt/zoom in the other direction
Remote control not working	The “camera select” button on the remote control is not set to match the “IR address” set on the camera dip switch.	Choose the correct “IR select” number to match camera settings (default address 1).
Camera cannot be controlled via VISCA.	The connection between the PC and camera is incorrect.	Refer to USB connectivity section of this manual.
	Commands being sent are incorrect.	Refer to VISCA section of this manual.
The camera is not working at all.	No response or image from camera.	Disconnect power, and wait a few minutes, then connect the power again. Retry.

Important Notes Regarding USB Connectivity

USB 3.0 ports are backwards compatible with USB 2.0 devices. USB 2.0 ports are not completely forward compatible with USB 3.0 devices (some USB 3.0 devices will connect to USB 2.0 with limited functionality).

External USB hubs should be avoided (i.e. give the camera its own USB port on the device) as they are not well suited to transmitting HD video reliably.

USB extension systems must be fully compatible with the version of USB that you are using and must utilize and external power supply, when required. Always connect the HuddleCam directly to the device in order to associate the UVC drivers before attempting to USB any extension system.

USB power saving settings in the device's operating system should be turned off completely for reliable USB camera connectivity.

HuddleCam Cameras – Video (General to all HuddleCamHD models)

All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS, and Linux to stream HD video to your device via your device's USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model). When your device successfully recognizes the camera, your device will register the HuddleCam as an “image device”. You can see this in your Windows Device Manager program (type “device manager” into the Windows search tool) as shown in the screenshot, below:

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

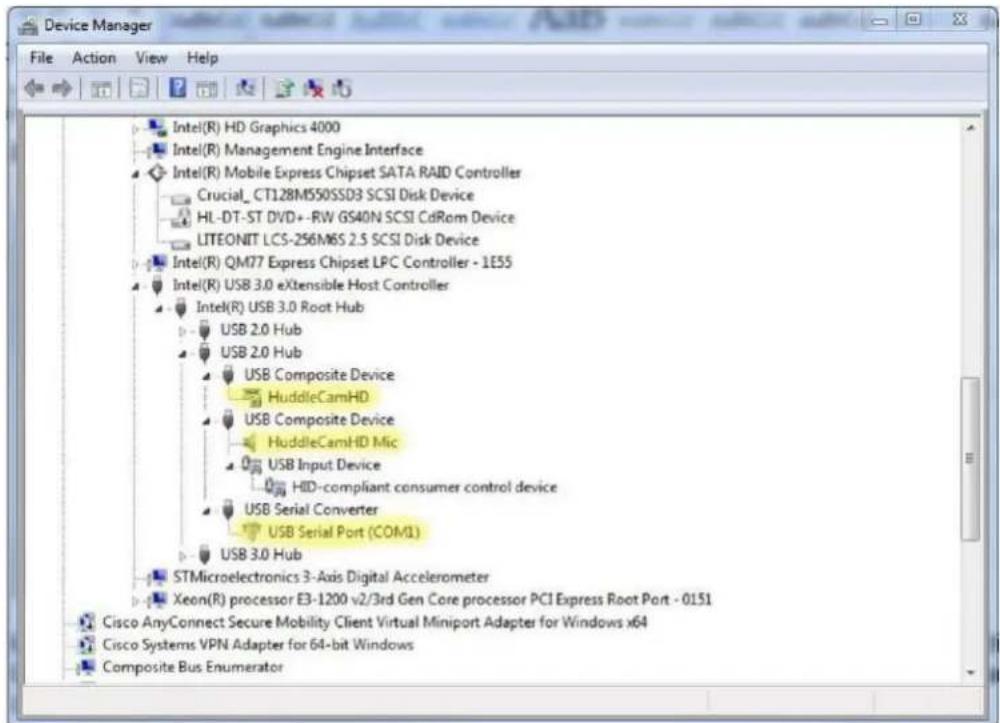

In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB 2.0 Camera).

If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge” or “CYTFX3” labeled device show up in Device Manager’s “Universal Serial Bus Controllers” section rather than in the “Imaging Devices” section), the HuddleCam will not be available to programs that utilize a camera. In this case, try restarting the device and reconnecting the camera via USB – and to a different available USB port, if possible.

Similarly, you can see a connected device in System Information on a MAC. See screenshot below:

In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device "HuddleCamHD" as well as a "USB2.0 camera" with limited functionality (USB 2.0 camera).

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

HuddleCam Cameras – Audio (Specific to HuddleCamHD models with built-in audio)

In the case of the HuddleCamHD model HC3XA-xx, the unit also has a built-in microphone array. Because of this, it also shows up as a UAC (USB Audio Class) device on your PC.

In this example, you can find the camera's mic system under Sound Controllers in the Windows Device Manager, shown as "HuddleCamHD Mic". If the camera is connected properly, the mics will show up here and be available to any program that is able to utilize your connected audio devices.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

HuddleCam Cameras – Serial Control (Specific to HuddleCamHD models with virtual COM)

Since the HuddleCamHD model HC3XA-xx also includes a virtual serial connection, the camera will actually make 3 separate connects to your PC: UVC for video, UAC for audio, and virtual com port for serial communication, as can be seen here:

This view uses the Windows Device Manager's "View by Connection" mode rather than the default "View by Type" mode, which allows you to "sort" by physical connection to see your connected devices. However, all 3 USB connection types may be viewed in any of Device Manager's viewing modes (just not grouped together like this).

Changing the Advanced Port properties of the USB Serial Port (right click on “USB Serial Port (COMx)” connection as shown above) will allow you to set the virtual Com Port address of the camera to match the Com Port settings of your PTZ controlling software (like the free “Remote PTZ Control Software” available at http://huddlecamhd.com/resources/

Specifications

Model Number: HC3XA-(xx)

Color (xx): BK=Black; WH=White; SV=Silver

Camera & Lens

Video CMOS Sensor	1/2.8" CMOS, 2.1 Mega Pixel
Resolutions	1080p-30/25, 720p-30/25, SVGA, VGA
Frame Rate Up to 30fps (MJPEG)
Lens Zoom	3X Optical Zoom f=3.3-10mm F1.6
Min Lux 0.1 Lux at F1.6
Horizontal Field of View	32° (Tele) to 84° (Wide)

Built-in Audio

• Mic Array	Dual Mics on front of camera base
• Pickup Range	360° up to 16.5 ft (5m)
• Processing	Advanced Auto Gain and Noise Control

Pan/Tilt Movement

• Pan Movement	±340°
• Tilt Rotation	Up: 90°, Down: 30°
• Presets		64 Presets

Rear Board Connectors

Video interface USB 2.0
Control Signal Interface	USB 2.0 Virtual Com Port (VISCA, PelcoD)
Baud Rate	9600, 38400 bps
Audio Interface	USB 2.0 Plug and Play
Power Supply Interface	DC 12V 1.2A

Electrical Index

Power Supply Adapter	12V DC 2A
Input Voltage	12V DC (10.5-14V DC)
Input Power	15W (Max)

Physical

Material	Aluminum, Plastic
Dimensions 7.1"W x 5.2"H x 3.1"D	(180mm x 132mm x 78mm [140mmH w/ tilt])
Weight	1.41 lbs (0.64 kg)
Color	Black, White, *Silver (* Special Order)
Operating Temperature	32°F to + 113°F (0°C to +45°C)
Storage Temperature	-14°F to 140°F (-10°C +60°)
Working Environment	Indoor only

Warranty

• Mfg Warranty

2 Years parts and labor
