Product Type	Video Conferencing System
Model	10X-USB2
Brand	HuddleCamHD
Zoom	10x optical zoom
Connection	USB 2.0
Sensor	1/2.8-inch CMOS
Resolution	Full HD 1080p at 60 fps
Field of View	72.5° (horizontal)
Pan Range	±170°
Tilt Range	-30° to +90°
Dimensions (W x H x D)	7.9 x 5.5 x 5.1 inches
Weight	2.2 lbs
Power Supply	5V DC via USB
Operating Temperature	0°C to 40°C
Mounting	Tabletop or tripod mount
Compatibility	Windows, Mac, Chrome OS, Linux
PTZ Control	IR remote, RS-232, USB HID
Preset Positions	Up to 10 presets
Microphone	Built-in omnidirectional
Warranty	3 years limited
Cleaning	Use a soft, dry cloth; avoid solvents
Spare Parts Availability	Contact HuddleCamHD support
Repairability	Professional repair recommended

Frequently Asked Questions - 10X-USB2 HuddleCamHD

How do I connect the HuddleCamHD 10X-USB2 to my computer?

Connect the camera to your computer using a USB 2.0 cable. The device is plug-and-play on Windows, Mac, and Linux, no additional drivers required.

What software is compatible with this camera?

The 10X-USB2 works with all major video conferencing platforms like Zoom, Microsoft Teams, Skype, and Google Meet, as it appears as a standard UVC camera.

How do I use the PTZ controls?

You can control pan, tilt, and zoom using the included IR remote or via RS-232 connection. Some software also allows control through USB HID commands.

Can I mount this camera on a tripod?

Yes, the camera has a standard 1/4-inch tripod mount on the bottom, allowing easy mounting on any compatible tripod or stand.

What is the maximum resolution and frame rate?

The camera supports 1080p at 60 fps for smooth video. Lower resolutions like 720p are also available at higher frame rates if needed.

How do I clean the camera lens?

Use a soft, lint-free cloth to gently wipe the lens. Avoid using any liquids or solvents, as they may damage the lens coating.

Does the camera have a built-in microphone?

Yes, it includes a built-in omnidirectional microphone for capturing audio in small to medium rooms.

What is the field of view?

The camera has a 72.5° horizontal field of view, suitable for capturing a group of people in a conference room.

How do I set presets?

Use the IR remote to position the camera, then press and hold a preset number (1-10) to save. To recall a preset, simply press that number.

Where can I find spare parts or service?

Contact HuddleCamHD support directly for spare parts or repair services. The product has a 3-year limited warranty.

USER MANUAL 10X-USB2 HuddleCamHD

HuddleCamHD 10X-USB2

USB 2.0 PTZ CAMERA

Black HuddleCam camera with lens and control buttons (no readable text beyond brand name)

Precautions.

Safety Tips.

• Please read this manual carefully before using the camera.
• Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation.
• Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.
• Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you may experience electrical shock.
• Keep the camera away from strong electromagnetic sources.
• Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for extended periods of time.
• Do not clean the camera with any active chemicals or corrosive detergents.
• Do not disassemble the camera or any of the camera's components. If problems arise, please contact your authorized dealer.
• After long term operation, moving components can wear down. Contact your authorized dealer for repair.

Supplied Accessories

• 10X Zoom 1080p USB 2.0 HD Video Conference Camera (1)
• 12V/2.0A DC Power Adapter (1)
- Tripod Mounting System (1)
• USB 2.0 Data Cable (16ft/4.8m), Serial Control Cable, RS-232C to RS-485 Adapter
- IR Remote Controller
- User Manual (1)

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com I 1 800 - 486-5276

Physical Description......

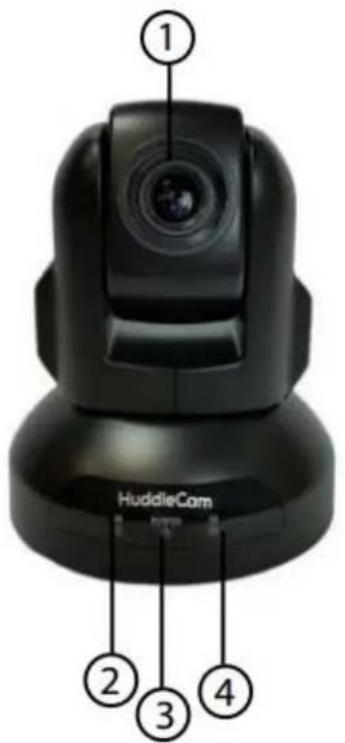

1. Front View......

1. Lens
2. IR Receiver

To receive IR remote controller signal.

1. Power LED

Blue LED lights when unit is powered, LED is dark for Stand-By status.

1. IR Receiver

To receive IR remote controller signal.

2. Rear View

5. DC IN 12V Socket

Only use the Power Adapter supplied with this camera.

6. IR Receiver

To receive IR remote controller signals.

7. RS232 IN Port

For hard wired remote control from a 3^rd party PC, joystick, etc...

8. RS485 IN Port

For hard wired remote control from a 3^rd party PC, joystick, etc...

9. USB 2.0 Interface

For connection to PC USB 2.0 port. Will also function in a USB 3.0 port as USB 2.0 device.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

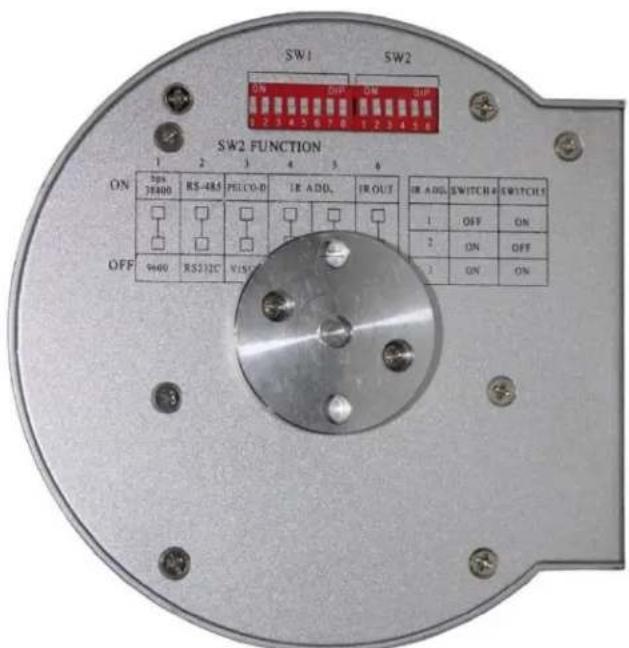

3. Bottom View.

1. Tripod

Will accept 1/4-20 bolt from 3 ^rd party tripod, wall or ceiling mount using included tripod adapter.

2. Dip-Switch

Used for selecting serial and IR communications settings.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com I 1 800 - 486-5276

1. Dip-Switch Settings......

Note: When changing Dip-Switch settings, make all changes with camera powered off.

SW1: Used for setting RS232 address.

1. Broadcast address: If the Joystick is 255 (all dip switches on), any Camera can be controlled by any address.
2. Test Address: If the dome camera address is 0 (all dip switches off), any address code can control the dome camera.

SW2: Used for communication settings.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com I 1 800 - 486-5276

SW2 DIP-1,2,3: Baud Rate, Communication Protocol

Baud Rate	SW2 DIP-1	Communication Mode	SW2 DIP-2	Communication Protocol	SW2 DIP-3
9600bps	OFF (Def)	RS-232	OFF (Def)	VISCA	OFF (Def)
38400bps	ON	RS-485	ON	PELCO-D	ON

SW2 DIP-4,5: IR Remote Control Receiving Address Table

IR Remote Address	SW2 Switch State (4-5)
	DIP-4	DIP-5
0	OFF (Def)	OFF (Def)
1	OFF	ON
2	ON	OFF
3	ON	ON

SW2 DIP-6: IR Output

IR Out	SW2 DIP-6
Disabled	OFF (Def)
Enabled	ON

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com I 1 800 - 486-5276

Cable Connection Info.

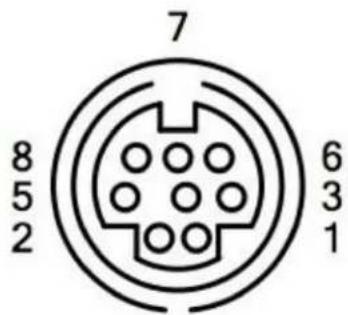

VISCA RS-232C - IN Reference.

Pin S/N	Function
1	DTR IN
2	DSR IN
3	TXD IN
4	GND
5	RXD IN
6	GND
7	IR Commander Signal OUTPUT
8	NO Connection

VISCA RS-232C - Out Reference.

VISCA RS-232C OUT

Pin S/N	Function
	RS-232	RS-485
1	DTR OUT	TX+
2	DSR OUT	TX-
3	TXD OUT
4	GND
5	RXD OUT
6	GND
7		RS-485 -
8		RS-485 +

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

IR Remote Controller

(Note: Some buttons do not operate for all camera models)

1. Reset:

Restarts the camera and restores it to Factory Default settings. (Note: Will delete all memory).

2. Camera Selection

Select Camera ID: 1, 2 or 3

3. Preset Positions

1-9: Preset Positions

Set: Setting Preset Position

Clear: Clear Preset Position

Call: Call Preset Position

Note: If you want to set (or call) the first preset position to 1, you should press number key "1", then press "Set" (or "Call") to set (call) the position.

4. Fast Zoom in/out Control Zone

+: Zoom in quickly

-: Zoom out quickly

5. Pan/Tilt Controller

Move Down

Move Left

Move Right

Auto Pan

6. Additional Function Zone

Freeze: Image Freeze

BL: Back-light Compensation

WB: White Balance

AE: Auto Exposure

D Zoom: Digital Zoom

HDMI: Swap to HDMI video output

DVI: Swap to DVI video output

Format: Swap between different formats

7. Power Supply Switch

Switch for turning camera on

(i.e. Stand-By mode vs. Working mode)

8. OSD Menu Zone

Dome OSD: Enter Pan Tilt Zoom OSD menu

Lens OSD: Enter lens OSD menu

9. Slow Zoom In/Out Zone

+: Zoom in slowly

-: Zoom out slowly

10. Focus Control Zone

Auto: Turn on auto focus Manual: Turn on manual focus

Far: Set focus at farther distance

Near: Set focus at nearer distance

Page 9 of 19

11. Pan/Tilt Function Zone

L-Limit: Set left boundary limit scanning position

Scan: Enable Boundary Scanning (Auto Panning)

R-Limit: Set right boundary limit scanning position

Home: Go to camera's Home position

Tour: Enable automatic patrol tour of presets

Rev: Enable image flip for ceiling mounting

OSD MENU

DOME.

- Pan Speed Default Value: 20

- Set speed of Pan motor

■ Range = 1 - 63

- Tilt Speed Default Value: 20

- Set speed of Tilt motor

■ Range = 1 - 63

- Scan Speed (Auto Pan Mode) Default Value: 6

- Set speed of boundary scan

■ Range = 1 - 63

• Tour Path (User Presets) Default Value: 1

○ Select desired tour path

- Range = 1 - 4

• Tour Dwell Default Value: 5

- Set duration to dwell on each preset

■ Range = 1 - 60

- Proportion

Default Value: ON

- (Pan + Tilt speed proportional to zoom level)

- Set Proportion

- Range = On - Off

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

• Auto Rev Default Value: P

- Set camera mounting orientation

■ N for inverted ceiling mount, P for std. mount

• Frame Default Value: 60Hz

- Set refresh Rate

■ Range = 50Hz or 60Hz

- Preset Freeze Default Value: ON

- Provides automatic temporary freeze frame when switching between presets

■ Range = On - Off

• POS Comeback Default Value: ON

- Allows the camera to revert to last position left at for 30+ seconds

■ Range = On - Off

LENS

- BL (Backlight) Default Value: OFF

○ ON/OFF

• Saturation Default Value: 9

○ 1 - 15

- Sharpness Default Value: 3

○ 0 - 15

• NR (Noise Reduction)

○ OFF/AUTO/1-4

Default Value: OFF

WB (White Balance)

Default Value: AUTO

○ Range: AUTO/INDOOR/OUTDOOR/ONEPUSH/ATW/MANUAL

- RGAIN

Default Value: 76

○ 0 - 255

- BGAIN

Default Value: 82

○ Range: 0 - 255

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

• AE (Auto Exposure) Default Value: AUTO

○ Auto/Manual

- Shutter Default Value: 1/90

○ Shutter Speed Range: 1/60 - 1/10000

- Iris Default Value: FIXED

- FIXED only

• Bright Default Value: 8

- Set Brightness: 0 - 15

Connection Instructions.

1. Connect included Power Supply to the camera.
2. Wait for camera to come to Home Position.
3. Connect included USB 2.0 cable to camera and USB port of PC.
4. Select and configure camera in your software of choice.

NOTE: Failure to follow this sequence may result in no connection to PC.

Care Of The Unit

Remove dust or dirt on the surface of the lens with a blower (commercially available).

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Installation Instructions......

Desktop Installation......

When using the HuddleCam™ on a desk, Make sure that it will stand level. If you want to use the camera on an incline, make sure the angle is less than 15 degrees to ensure that the camera's pan and tilt mechanism operates normally.

Line drawings of two computer monitors with front and back views, showing front and side views (no text or symbols)

Max 15°

Tripod Installation......

When using the HuddleCam™ with a tripod, screw the tripod to the bottom of the camera. The tripod screw must fit below specifications:

Note: Tripod must stand on a level surface.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

To fix the tripod mount to the bottom of the camera, use the supplied screws to hold it in place.

Then screw the tripod to the tripod bracket.

Troubleshooting

Problem	Cause	Resolution
There is no power to the camera.	Power adapter is disconnected from mains or from camera.	Check the connections between the camera, power adapter and mains. If anything is disconnected, reconnect it.
Camera will not connect to the PC via USB.	USB cable is bad.	Try new USB Cable
	Camera connects sometimes.	Connect USB only after camera has completely booted.
Camera unable to pan, tilt, and/or zoom.	Menu is currently displayed on the screen.	Retry after exiting the menu.
	Pan, tilt or zoom range limit was reached.	Try to pan/tilt/zoom in the other direction.
Remote control not working.	The “camera select” button on the remote control is not set to match the “IR address” set on the camera dip switch.	Choose the correct “IR select” number to match camera settings.
Camera cannot be controlled via VISCA.	The connection between the PC and camera is incorrect.	Refer to Cable Connection Info section of this manual.
	Commands being sent are incorrect.	Refer to VISCA manual.
The Camera is not working at all.	No response or image from camera.	Disconnect power, and wait a few minutes, then connect the power again. Retry.

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

Important Notes Regarding USB Connectivity:

USB 3.0 ports are backwards compatible with USB 2.0 devices. USB 2.0 ports are not completely forward compatible with USB 3.0 devices (some USB 3.0 devices will connect to USB 2.0 with limited functionality).

External USB hubs should be avoided (i.e. give the camera its own USB port on the device) as they are not well suited to transmitting HD video reliably.

USB extension systems must be fully compatible with the version of USB that you are using and must utilize an external power supply, when required. Caution: Some “compatible”

USB 3.0 extenders do not actually have the full 5Gbps bandwidth required for uncompressed HD video - so check bandwidth specs. Always connect the HuddleCam directly to the device in order to associate the UVC drivers before attempting to use any extension system.

USB 3.0 power saving settings in the device's operating system should be turned off completely for reliable USB 3.0 camera connectivity.

HuddleCam Cameras

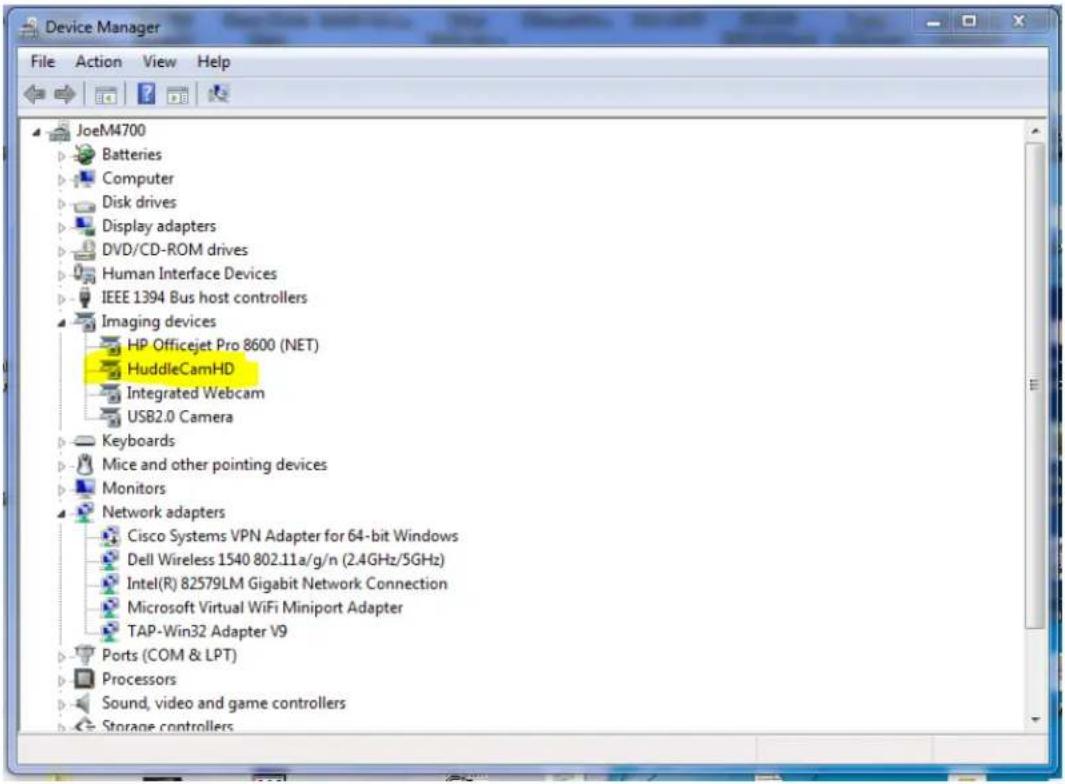

All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS and Linux to stream HD video to your device via your device's USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model). When your device successfully recognizes the camera, your device will register the HuddleCam as an “imaging device”. You can see this in your Windows Device Manager program (type “device manager” into the Windows search tool) as shown in the screenshot, below:

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB2.0 Camera).

If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge” or “CYTFX3” labeled device show up in Device Manager’s “Universal Serial Bus Controllers” section rather than in the “Imaging Devices” section), the HuddleCam will not be available to programs that utilize a camera. In this case, try restarting the device and reconnecting the camera via USB (USB 2.0 or USB 3.0 depending upon HuddleCam model).

Similarly, you can see a connected device in System Information on a MAC. See screenshot below:

HuddleCamHD

152 Robbins Rd, Downingtown, PA, 19335, USA - HuddleCamHD.com | 1 800 - 486-5276

In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device “HuddleCamHD” as well as a “USB2.0 camera” with limited functionality (USB2.0 camera).

Specs

Model Number: HC10X-USB2-(xx) Color (xx): BK=Black; WH=White

Camera & Lens

• Video CMOS Sensor 1/2.8" CMOS, 2.1 Mega Pixel
• Frame Rate 30fps 1920 x 1080
- Lens Zoom 10X Optical Zoom f=4.7 47mm
• Min Lux 0.1 Lux at F1.6
• Field of View 7° (tele) to 57° (wide)
- Warranty 2 Years

Pan/Tilt Movement

• Pan Movement 0-359°
- Tilt Rotation Up: 90^ , Down: 45^
- Presets 64 Presets

Rear Board Connectors

• Video Interface USB 2.0 UVC 1.5
• Control Signal Interface UVC 1.5 - Mini DIN-8 (RS232 IN, RS485 IN, Pelco-D/P IN/OUT)
• Control Signal Config. Dip-Switch Pin 7/TTL Signal
• Baud Rate 9600 bps
• Power Supply Interface DC 12V 2A

Electrical Index

• Power Supply Adapter 12V DC 2A
• Input Voltage 12V DC (10.5-14V DC)
• Input Power 24W (Max)
• Working Environment Indoor

Physical

• Material Aluminum, Plastic
- Dimensions 4.88"W x 5.5"H x 4.75"D (6" H w/ Tilt up)
124mm x 139mm x 120mm (152mm H w/ Tilt up)
• Weight 1.66 lbs (.75 kg)
- Box Dimensions 8.75" x 8.88" x 7" (222mm x 225mm x 178mm)
- Boxed Weight 3.66 lbs | 1.66 kg
• Color Black & White
• Operating Temperature 32^ F to +113°F ( 0^ C to +45°C)
• Storage Temperature -14°F to 140°F (-10°C +60°C)
• Working Environment Indoor only
