USER MANUAL C 375BEE NAD

SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1 Readinstructions - All the safety and operating instructions should be read before the product is operated. 2 Retaininstructions - The safety and operating instructions should be retained for future reference. 3 HeedWarnings - Al wamings on the product and in the operating instructions should be adhered to. 4° Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning

Do not use liquid cleaners or aerosol cleaners. Clean only with a dry cloth 6 Attachments - Do not use attachments not recommended by the product manufacture as they may cause hazards

7. Water and Moisture - Do not use this product near water-for example,

near à bath tub, wash bowl, kitchen sink, or laundry tub: in à wet basement: or near a swimming pool and the like. 8 Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table: The product may fall causing serious injury to à child or aduft, and serious damage to the product. Use only with à cart, stand, tripod, bracket, or table recommended by the manufacture, or sold with the product. Any mounting ofthe product should follow the manufacturers instructions, and should use à mounting accessory recommended by the manufacturer. 9° A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overtum: 10 Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a buï-in installation such as à bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to 11 Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure ofthe type of power supply ta your home, consult your product dealer or local power company. The primary method of isolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord from the AC outlet ifthe unit wil not be used for several months or more 12 Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. Ifyou are unable to insert the plug full into the outlet, try reversing the plug. Fthe plug should still fai to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13 Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product 14 Outdoor Antenna Grounding - fan outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding ofthe mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NOTE TO CATV SYSTEM INSTALLER

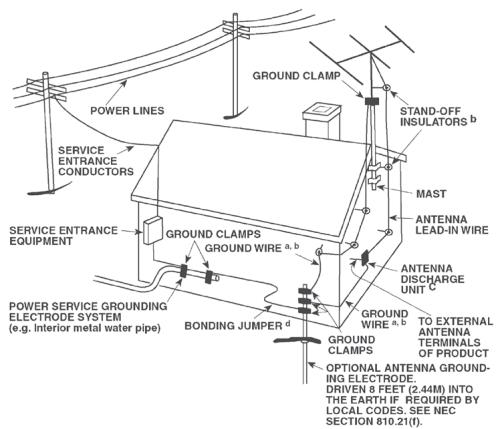

This reminder is provided to call the CATV system installer$ attention to Section 820-40 ofthe NEC which provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system ofthe building, as close to the point of cable entry as practical ( FRS e DSL SLÉRF au ro Sétionane a 15 Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges. 16 Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal 17 Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 18 Object and Liquid Entry - Never push objects of any Kind into this product through apenings as they may touch dangerous voltage points or short-out parts that could result in a ire or electric shock. Never spill liquid of any kind on the product

19 Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power supply cord or plug is damaged b) 1fliquid has been spilled, ar objects have fallen into the product. © lfthe product has been exposed to rain or water. d) IFthe product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e)_IFthe product has been dropped or damaged in any way. #)_ when the product exhibits a distinct change in performance-this indicates à need for service. 20 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21 Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition 22 Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 23 Heat- The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat. 24 Headphones - Excessive sound pressure form earphones and headphones can cause hearing loss. 25 Battery Disposal - When disposing of used batteries, please comply with govermmental regulations or environmental public instructions rules that apply in your country or area. Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED *DANGEROUS VOLTAGE” WITHIN THE PRODUCT'S ENCLOSURE THAT MAYBE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCKTO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE 15 INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT

QUALIFIED SERVICE PERSONNEL. CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the users authority to operate this equipment.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below. Left and Right Panels: 10 cm Rear Panel: 10 cm Top Panel: 10 em

Atthe end of its useful life, this product must not be disposed of with regular household waste but must be retumed to à collection point for the recycling of electrical and electronic equipment. The symbol on the product, users manual and M packeging point this out The materials can be reused in accordance with their markings, Through re-use, recycling of raw materials or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point.

INFORMATION ABOUT COLLECTION AND DISPOSAL OF

WASTE BATTERIES (DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION) (FOR EUROPEAN CUSTOMERS ONLY) Batteries bearing any of these symbols indicate that they should be treated as "separate collection" and not as municipal waste. lt is encouraged that

necessary measures are implemented to maximize the separate collection of waste batteries and to minimize the disposal of batteries as mixed municipal waste. Hg Cd End-users are exhorted not to dispose waste batteries as unsorted municipal waste. In order to achieve a high level of recycling waste batteries, discard waste batteries separately and properly through an accessible collection point in your vicinity. For more information about collection and recycling of waste batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. By ensuring compliance and conformance to proper disposal of waste batteries, potential hazardous effects on human health is prevented and the negative impact of batteries and waste batteries on the environment is minimized, thus contributing to the protection, preservation and quality improvement of the environment. NOTE: THE C 375BEE IS NOT AN AUTO VOLTAGE UNIT. CONNECT ONLY TO THE PRESCRIBED AC OUTLET, LE, 120V 60HZ OR 230V 50HZ. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new C 375BEE are located on the back ofthe cabinet. For your future convenience, we suggest that you record these numbers here Model no: Serial no. k of NAD Electronics Intemational a dision of Lenbrock Industries Limited Copyright 2010, NAD Electronies Intematianal, a division of Lenbrook Industries Limited

Packed with your C 375BEE you will find + The SR 8 remote control with 2 (two) AA batteries + This owners manual + Adetachable AC power cord.

Please save the box and all ofthe packaging in which your C 3758E arrived. Should you move or otherwise need to transport your C 375BEE, this is by far the safest container in which to do so. Weve seen too many otherwise perfect components damaged in transit for lack of à proper shipping carton, so please: Save that box! CHOOSING À LOCATION Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide a clear line of sight, within 23 feet/7 meters, between the C 375BÈES front panel and your primary listening/viewing position. This will ensure reliable infrared remote control communications. The C 375BEE generates a modest amount of heat, but nothing that should trouble adjacent components. It is perfectly possible to stackthe C 375BEE atop other components, but the reverse usually should be avoided. I is especially important that sufficient ventilation be provided. you are contemplating locating the C 375BEE within a cabinet or other furniture, consult your NAD audio/video specialist for advice on providing adequate airflow.

NOTES ON INSTALLATION

Your NAD C 375BEE should be placed on a firm, level surface. Avoid placing the unit in direct sunlight or near sources of heat and damp. Allow adequate ventilation. Do not place the unit on a soft surface like a carpet. Do not place it in an enclosed position such a bookcase or cabinet that may impede the air-flow through the ventilation slots. Make sure the unit is suitched off before making any connections The RCA sockets on your NAD C 375BEE are colour coded for convenience. Red and white are Right and Left audio respective. Use high quality leads and sockets for optimum performance and relisbility. Ensure that leads and sockets are not damaged in any way and all sockets are fmly pushed home. For best performance, use quality speaker leads of 16 gauge (1.5mm) thickness or more. IFthe unit is not going to be used for some time, disconnect the plug from the AC socket. Should water get into your NAD C 375BEE, shut off the powrer to the unit and remove the plug from the AC socket. Have the unit inspected by à qualified service technician before attempting to use it again. DO NOT REMOVE THE COVER; THERE ARE NO USER-SERVICEABLE PARTS INSIDE. Use a dry soft cloth to clean the unit. Ifnecessary lightly dampen the cloth with soapy water. Do not use solutions containing benzol or other volatile agents. GETTING STARTED

BARE WIRES AND PIN CONNECTORS

WARNING: The terminals marked with this symbol

are hazardous live. External wiring connected to these terminals requires installation by an instructed person or the use of ready-made leads or cords. Bare wires and pin sockets should be inserted into the hole in the shaft ofthe terminal. Unscrew the speaker terminal plastic bushing until the hole in the screw shaf is revealed. Insert the pin or bare cable end into the hole and secure the cable by tightening down the terminal's bushing. Ensure bare wire from the speaker cables does not touch the back panel or another socket. Ensure that there is only 1/2'(1em) of bare cable or pin and no loose strands of speakers wire. QUICK START In case you simply cannot wait to experience the performance of your new NAD C 375BEE, we provide the following "QUICK START'instructions to get you underweÿ. Please make all the connections to your € 375BEE with the unit unplugged Ki also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 Connect the speakers to the rear Speaker terminals and sources to the relevant rear Input sockets 2 Connect the AC cord to the C 375BEE's AC Mains input and then plug into an AC outlet. 3 Switch the POWER switch on the rear panel to the“ON'setting in order to turn the C 375BEE to standby mode. The Standby LED indicator embedded around the bezel ofthe STANDBY button williluminate amber. The C 375BEE will go to standby mode. 4 Press the STANDBY button to turn ON the C 375BEE. The Standby LED indicator will turn from amber to blue.

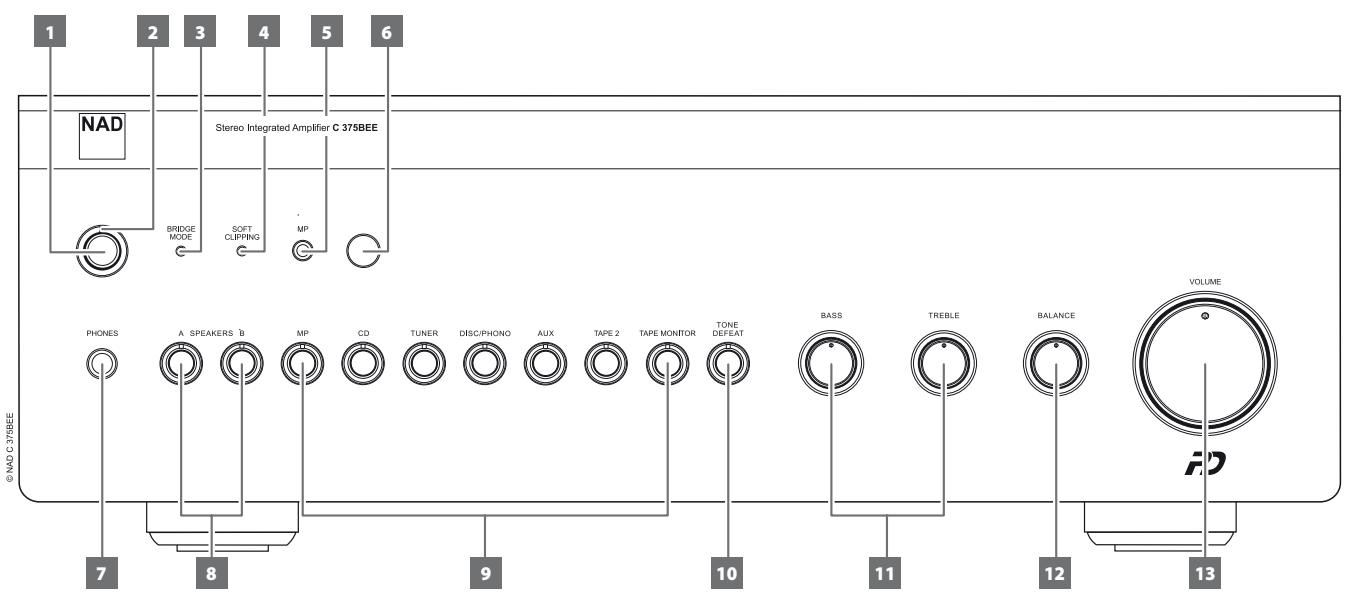

— d —7 1 STANDBY: With the rear panel POWER switch set to ON position, 5 MP SOCKET: Using a 3.5mm stereo plug, connect into this socket the press this button to switch ON the C 375BEE from standby mode. audio output of a Media Player. The Standby LED indicator will turn from amber to blue. Pressing the STANDBY button again turns the unit back to standby mode. NOTES + lfan external Media Player is connected to the front MP socket (using a The C 375BÈE can also be swsitched ON from standby mode by pressing 3.5mm stereo plug) while listening to a MP line-level source, the external any ofthe front panel buttons. Media Player will be directly selected with the MP line-level source immediately disconnected. 2 STANDBY LED: This indicator will light up amber when the C 375BEE + ltisrecommended to mute the volume or switch to a different input is in standby state. When the C 375BEE is at ON state, this indicator will before plugging/unplugging the external Media Player cable. illuminate blue. When infrared command from the SR 8 is received, this indicator will also flash momentariy. 6 REMOTE SENSOR: Point the SR 8 remote control at the remote sensor and press the buttons. Do nat expose the remote sensor ofthe In cases of serious abuse ofthe C 375BEE, such as excessively lowr € 375BEE to a strong light source such as direct sunlight or ilumination. loudspeaker impedance and short circuit, the € 375BEE will engage its I you do so, you may not be able to operate the C 375BEE with the Protection circuitry, indicated by the Standby LED turning from blue to remote control red and the sound being muted Distance: About 23ft (7m) from the front of the remote sensor. In such a case, turn the C 3758EE OFF by the rear panel POWER switch, Angle: About 30° in each direction of the front of the remote sensor. wait for it to cool down and/or check the speaker connections, making sure the overall loudspeaker impedance doesn't go below 4 ohms or 7. PHONES: À 1/4'stereo jack socket is supplied for headphone listening 8 ohms in Bridge Mode. Once the cause for the protection circuitry to and will work with conventional headphones of any impedance. The engage has been removed, switch ON the rear POWER switch and the headphone socket will work in parallel to the selected speakers. To STANDBY button to resume normal operation. listen to headphones only, de-select Speakers A and/or B. The volume, tone and balance controls are operative for headphone listening. Use 3 BRIDGE MODE INDICATOR: This BRIDGE MODE indicator lights up a suitable adapter to connect headphones with other types of sackets, blue when the C 375BEE is switched to Bridge Mode. Refer also to the such as 3 5mm "personal stereo” jack plugs. item below about BRIDGE MODE at the IDENTIFICATION OF CONTROLS

Make certain that the volume control is turned to minimum (fully 4 SOFT CLIPPING INDICATOR: The blue SOFT CLIPPING LED shows counter-clockwise) before connecting or disconnecting headphones. thatthe SOFT CLIPPING mode is engaged. Refer also ta the item below Listening at high levels can damage your hearing. about SOFT CLIPPING (item 13) at the IDENTIFICATION OF CONTROLS - REAR PANEL. 8 SPEAKERS A, B: The SPEAKERS A and B buttons engage or disengage the speakers connected respectively to the SPEAKERS À and SPEAKERS B terminals on the rear panel. Press ‘A"to switch ON or OFF the speakers connected to the SPEAKERS A terminals. Press *B'to switch ON or OFF the speakers connected to the SPEAKERS B terminals. Press both*A"and *B'to engage at the same time both SPEAKERS A and SPEAKERS B. The corresponding blue LED indicator embedded around the SPEAKERS À and SPEAKERS B buttons williluminate accordingly when each or both are engaged.

INPUT SELECTORS: These buttons select the active input to the NAD C 3758EE and'the signal sent to the loudspeakers, headphones and the PRE OUT sockets. The buttons on the remote control handset duplicate these buttons. When selected, the corresponding input LED indicator embedded around the bezel of the particular input button will iluminate blue MP (MEDIA PLAYER): Selects à line-level source connected to the MP sockets as the active input. Ian external Media Player is connected to the front MP socket (using à 3.5mm stereo plug) while listening to a MP line-level source, the external Media Player will be directly selected with the MP line-level source immediately disconnected. Itis recommended to mute the volume or switch to a different input before plugging/unplugging the external Media Player cable. CD: Selects the CD (or other line-level source) connected to the CD sockets as the active input. TUNER: Selects the tuner (or other line-level source) connected to the tuner sockets as the active input. DISC/PHONO: Selects à line-level source connected to the DISC sockets. With the optional PP 375 PHONO MODULE installed, the DISC input socket is disabled and the PHONO source selected as the active input. AUX: Selects a line-level source connected to the AUX sockets as the active input. TAPE 2: Selects Tape 2 as the active input. TAPE MONITOR: Selects the output from a tape recorder when playing back tapes or monitor recordings that are being made through the Tape Monitor sockets. TAPE MONITOR does not override the current input selection. For example, if CD is the active input when TAPE Monitor is selected, then the CD signal will continue to be selected and sent to both the TAPE 2 and TAPE Monitor OUTPUT sockets, but it is the sound from recorder connected to Tape Monitor that will be heard on the loudspeakers Apart from the TAPE MONITOR LED illuminated to indicate it is engaged, the corresponding LED indicator for the active input will also stay iluminated. FRONT PANEL 10 TONE DEFEAT: Tone Controls are enabled or disabled by pressing this button. When enabled (TONE DEFEAT LED indicator isilluminated), the one Control circuits are bypassed. The Tone Control circuits are active when the TONE DEFEAT LED indicator stays extinguished 11 TONE CONTROLS: The NAD C 375BEE is fitted with BASS and TREBLE tone controls to adjust the tonal balance of your system. The 12 otlock position is “flat” with no boost or cut, and an indent indicates this position. Rotate the control clockwise to increase the amount of Bass or Treble. Rotate the control counterclockwise to decrease the amount of Bass or Treble. The Tone controls do not affect recordings made using the Tape outputs but will affect the signal going to the Pre-amp outputs (PRE OUT 1 and PRE OUT 2) 12 BALANCE: The BALANCE control adjusts the relative levels ofthe left and right speakers The 12 dock position provides equal level to the left and right channels. A detent indicates this position. Ratating the control clockwise moves the balance towards the right. Rotating the control counterclockwise moves the balance to the left. The BALANCE control does not affect recordings made using the Tape outputs but wil affect the signal going to the Pre-amp output (PRE OUT 1 and PRE OUT 2). 13 VOLUME: The VOLUME control adjusts the overall loudness ofthe signals being fed to the loudspeakers or headphones. Turn clockwise to increase the volume setting; counter clockwise to lower it. The VOLUME control does not affect recordings made using the Tape outputs but wil affect the signal going to the Pre-amp output (PRE OUT 1 and PRE OUT 2).

Please make sure that the C 375BEE is powered off or unplugged before making any connections. is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 MPINPUT: Input for a Media Player or other line-level signal source Use a twin RCA-to-RCA lead to connect these sockets to the left and right analog output of a Media Player. NOTE Ian external Media Player is connected to the front MP socket (using a 3.5mm stereo plug) while listening to a MP line-level source, the external Media Player will be directly selected with the MP line-level source immediately disconnected. 2 CDINPUT: Input for a CD player or other line-level signal source. Use à twin RCA-to-RCA lead to connect these sockets to the left and right analog output of a CD player. 3 TUNER INPUT: Input for a tuner or other line-level signal source. Use à twin RCA-to-RCA lead to connect these sockets to the left and right analog output ofa tuner. 4 DISC INPUT: Input for additional line level input signals such as CD, Mini Disc player or the output signal from a step-up amplifier for à turntable. Use a twin RCA-to-RCA lead to connect these sockets to the left and right analog output of the auxiliary device. NOTE With the optional PP 375 PHONO MODULE installed, the DISC input socket is disabled and the PHONO source selected as the active input. 5 AUXINPUT: Input for additional line level input signals such as another CD player. Use a twin RCA-to-RCA lead to connect these sockets to the left and right analog output of the auxiliary device. 6 TAPE 2 IN/OUT: Connections for analog recording and playback to an audio tape recorder of any type. Using twin RCA-to-RCA leads, connect to the left and right'Audio Output'of the tape machine to the TAPE 2 IN sockets for playback. Connect the left and right‘Audio Input" of the tape machine to the TAPE 2 OUT sockets for recording, TAPE MONITOR IN/OUT: Connections for analog recording and playback to à secondary audio tape recorder of any type. Using twin RCA-to-RCA leads, connect to the left and right'Audio Output” of the tape machine to the TAPE MONITOR IN sockets for playback and tape monitoring. Connect the left and right‘Audio Input” of the tape machine to the TAPE MONITOR OUT sockets for recording]

When any source is selected, its signal is also fed directly to any tape machine connected to the TAPE 2 OUT or TAPE MONITOR OUT for recording

TAPE TO TAPE COPYING

You can copy between two tape recorders connected to your NAD C 375BE£. Put the source tape in the recorder connected to Tape 2 and the blank tape into the recorder connected to Tape Monitor. By selecting TAPE 2 input you can now record from Tape 2 to Tape Monitor and monitorthe signal coming from the original tape. NOTE There will be no TAPE 2 output when TAPE 2 is the selected source input. This prevents feedback through the recording component thereby preventing possible damage to your speakers. The same applies to TAPE MONITOR IN/OUT.

8 PREOUT 1: The PRE OUT 1 sockets can be used to drive an additional power amplifier. Use a twin RCA-to-RCA lead to connect to the left and right'Audio Input'of the Power amplifier or processor to the PRE OUT 1 sockets. Always tum the C 375BEE and associated external power amplifiers OFF before connecting or disconnecting anything to the PRE OUT 1 socket. The PRE OUT 1 output signal will be affected by the C 375BEE' volume and tone control settings. 9 MAININ: Connections to an external pre-amplifier or processor, such 35 a surround-sound decoder. In normal use, this should be connected to PRE OUT 2 sockets with the links supplied. To connect your NAD C 37SBEE to external processor or pre-amplifier remove first these links. Use a twin RCA-to-RCA lead to connect the left and right"Audio Output" ofthe pre-amp or processor to the Main In sockets. Always tum the C 375BEE and associated external power amplifiers OFF before connecting or disconnecting anything to the MAIN IN sockets. 10 PRE OUT 2: Connections to an external power amplifier or processor, such 85 a surround-sound decoder.In normal use, this should be connected to the Main In sockets with the links supplied. To connect your NAD C 375BEE to external processor or amplifier sections, remove first these links. Use a twin RCA-t0-RCA lead to connect the left and right'Audio Input'of a power amplifier or processor ta the PRE OUT 2 sockets. Always tum the C 375BEE and associated external power amplifiers OFF before connecting or disconnecting anything to the PRE OUT 2 socket. The PRE OUT 2 output signal will be affected by the C 375BEE' volume and tone control settings.

VOLUME PRE OUT 2: The VOLUME PRE-OUT 2 control allows for adjustment ofthe output level of the PRE OUT 2 sockets. Turn clockwise to increase the PRE OUT 2 volume setting; counter clockwise to lower it. When set to the maximum position, the output level will be identical to that ofthe PRE OUT 1 sockets. Refer also to the item below about “B-Amping' BI-AMPING Some loudspeakers have separate connection terminals for the LF (Lowr Frequency) and HF (High Frequency) sections of the speaker This facility allons to"B-Amp' these speakers, where à separate power amplifier is used for the LF and HF section, which may improve overall sound quality. The C 375BEE provides to sets of preamplifier autputs (PRE OUT 1 and PRE OUT 2) to facilitate the connections for Bi-Amping. Moreover, the level from PRE OUT 2 can be reduced in relation to PRE OUT 1 to accommodite power ampliiers with different gain (amplification factor) To set upthe C 375BEE with power amplfers first decide which power amplifier has the highest gain. This is easy done by comparing the loudness level ofthe por amplifirs in an identical system (keep the volume control at the same level; use the same source and speakers.The amplifier that plays louder has the highest gain (note that this does not need to be the more powerful amplifier ofthe two). Connect the amplifier with highest gain to the PRE OUT 2 sockets:the other pouver amplifier to the PRE OUT 1 sockets. From the maximum level position, use the VOLUME PRE OUT 2 control to reduce the output level of PRE OUT 2 so that the volume level of both power amplfiersis exactly matched. REAR PANEL 12 BRIDGE MODE: The C 375BEE amplifier can be configured to be MONO (Bridge Mode), more than doubling its output power. This way, the C 375BEE can be used as part of a high power stereo or home- theatre system, by connecting additional power amplifiers. In BRIDGED MODE (switch at ON setting), the C 375BEE will produce approximately 330W into an 8 ohm loudspeaker In this mode, the amplifier sections will react as though the speaker impedance has been halved. Low impedance speakers (under 8 ohms) are not recommended when using Bridge Mode as these may cause the amplifier thermal cut-out to operate if played at high levels Set the BRIDGE MODE switch to the*ON' position and connect the speaker to the terminals marked *L +"and'R+"ensuring that the"L+" is connected to the “+"terminal of your loudspeaker and the'R+"is connected to the loudspeaker's “-"terminal. Connect the source to the Left INPUT sockets. The BRIDGE MODE indicator on the front panel will illuminate when the C375BEE is in Bridge mode. Return normal speaker connections (Refer also to the item below about "SPEAKERS AB). and keep BRIDGE MODE switch to*OFF' position for normal stereo listening, NOTE Do not connect anything to the Right Input socket when Bridge Mode is selected. 13 SOFT CLIPPING": Enables NADS proprietary Soft Clipping circuitry on all channels. At [ON position, Soft Clipping gently limits the output ofthe C 375BÈE to minimize audible distortion should the amplifier be over-driven. Soft Clipping may simply be left ON at all times to reduce the likelihood of audible distortion from excessive volume settings. However for critical listening and to preserve optimum dynamics, you may wish to defeat it by setting this switch to"OFF" position. The SOFT CLIPPING indicator on the front panel will illuminate when the C 375BEE is in Soft Clipping mode. See also below the item about *POWERDRIVE" POWERDRIVE The C 375BEE uses NADS proprietary PowerDrive" amplifier technology for al channels to reserve accurate, linear reproduction regardes ofthe loudspeaker This uniquely efficient power-supply topology provides the realkworld benefits of high dynamic power that remains uncompromised by lon-impedance speakers. By adding a second high-voltage rail to our well regulated high-current power supph.we get an‘overdrive" that can nearly double the continuous power on a shart term dynamic power basis. PowerDrive offers greater amplifier stability and low impedance drive capabilty resulting in less distortion when driving real speakers with real program material

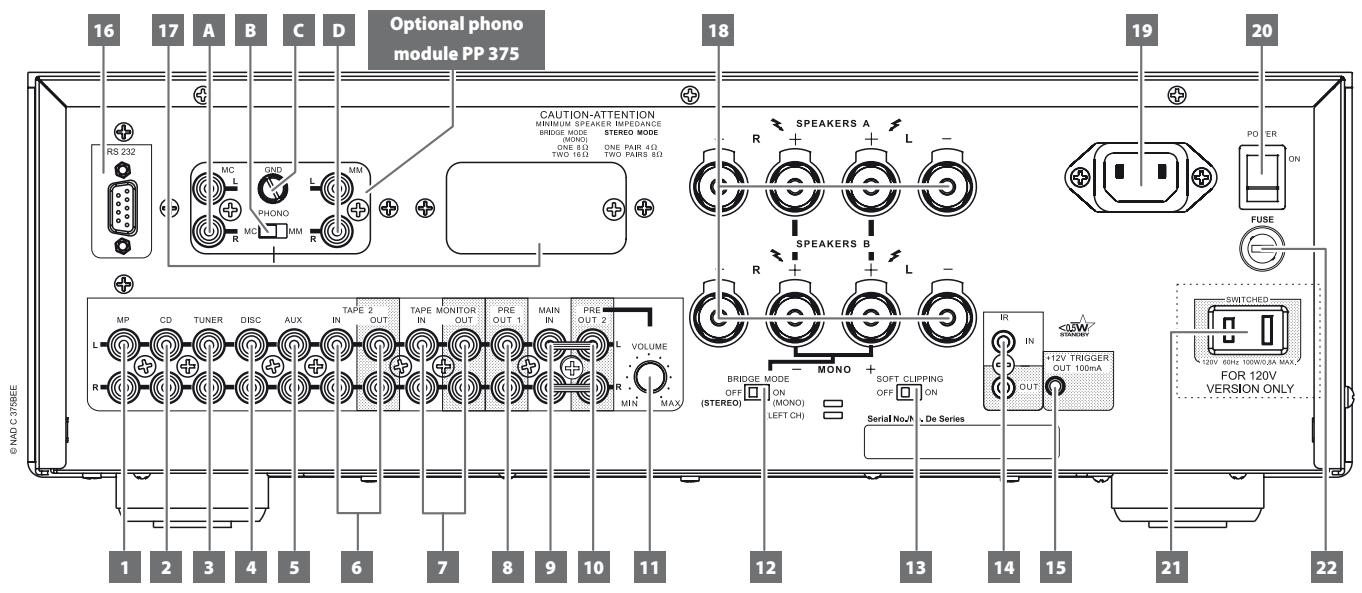

REAR PANEL 14 IRIN/OUT: These mini-jacks accept and output remote-controlled codes in electrical format, using industry-standard protocols, for use with”lR-repeater and multi-room systems and related technologies IR IN: This input is connected to the output of an IR (infrared) repeater {Xantech or similar) or the IR output of another component to allow control of the € 375BÈE from à remote location. IR OUT: When connected to the IR IN of an ancillary equipment, direct the ancillary equipment own remote control ta the C 375BÈES infrared receiver to command or control the linked unit. AILNAD products with IR IN/IR OUT features are fully compatible with the C 375BEE. For non-NAD models, please check with your other products service specialists as to their compatibility with the C 375BEES IR features. 15 +12VTRIGGER OUT: The +12VTRIGGER OUT is used for controlling external equipment that is equipped with a +12V trigger input. This output will be 12V when the C 375BEE is ON and OV when the unit is either OFF or in standby. This output can drive a load up to 50mA at 12V. 16 RS-232: Connect this interface via RS-232 serial cable (not supplied) to any Windows® compatible PC to allow remote control ofthe C 375BÈE through NADS proprietary PC software or other compatible extemal controllers. NAD is a certified partner of AMX and Crestron and full supports these external devices. See your NAD audio specialist or more information: 17 UPGRADE SLOTS: Use either slots to install optional module. Remove cover to install the optional module. An example of à C 37SBEE- compatible module is the PP 375 Phono Preamplifler module. The PP 375 is integrated into the chassis of the C 375BÈE, automatically assigned to the DISC input and ts level well matched to the other sets ofline level input Consult with your NAD dealer on how to procure the PP 375 and its consequent installation to the C 375BEE. Check out also the NAD website for any announcement about future release(s) of other C3758EE-compatible modules. With the optional PP 375 installed, refer belowr for descriptions of key PP 375 parts. A MCINPUT: Input for a Moving Coil phono cartridge. Connect the twin RCA lead from your turntable to this input f you are using à Moving Coil cartridge 8 MC-MM SWITCH: Slide this switch to either MM (Moving Magnet) or MC (Moving Coil) depending upon the Phono cartridge being used € PHONO GROUND CONNECTOR: Turniables normally includes à single wire earth lead. Use the C 375B£E Phono ground connector to connect this lead. Unscrew the terminal to expose the hole, which will accept the lead. After insertion, tighten the terminal to secure the lead. D MMINPUT: Input for a Moving Magnet Phono cartridge. Connect the twin RCA lead from your turntable to this input if you are using à Moving Magnet cartridge.

18 SPEAKERS À, B: The C 3758£E is equipped with two sets of speaker connectors. Use the Speakers A terminals for the"main' speakers and use the Speakers B terminals for a second pair for example, extension speakers located in another room. Connect the right speaker to the terminals marked'R +" and'R ensuring that the"R+'is connected to the"+"terminal on your loudspeaker and theR-is connected to the loudspeakers“" terminal Connect the terminals marked"L+' and'L'"to the left speaker in the same way. In Bridge Mode, connect the single speaker to the terminals marked *R+' and'L+"ensuring that the*L+"is connected to the "+" terminal on your loudspeaker and the “A+” is connected to the loudspeakers *" terminal. Refer also to the section above about BRIDGE MODE" Always use heavy duty (16 gauge; 1.5mm, or thicker) stranded wire to connect loudspeakers to your € 375BEE. The high-current binding post terminal can be used as a screw terminal for cables terminating in spade or pin sockets or for cables with bare wire ends 19 AC MAINS INPUT: The C 375BEE comes supplied with a separate AC Mains cable. Before connecting the cable to a live wall socket, ensure that it is firmly connected ta the C 375BEE's AC Mains input socket first, Connect only to the prescribed AC Outlet, ie, 120V 60 Hz or 230V 50 Hz Always disconnect the AC Mains cable plug from the live wall socket first, before disconnecting the cable from the C 375BEES Mains input socket. 20 POWER SWITCH: The POWER switch supplies the master AC mains power for the C 37SBEE. When this switch is at ON position, the C37SBEE is in standby mode as shown by the amber status condition ofthe standby LED. Toggle the front panel's STANDBY button to switch ON the C 37SBEE or back to standby mode. Ifyou intend not to use the C375BEE for long periods of time (such as when on vacation), switch the POWER switch to the OFF position. When the POWER switch is at OFF position, the front panel power button or SR 8 remote control cannot activate the C 375BEE. 21 SWITCHED AC OUTLET (120V version only): This convenience outlet can supply switched power to another component or accessory. With the Power switch at the rear panel set to ON position, this outlet is powered ON or OFF by the front panel STANDBY switch or by the SR 85 LON/OFF] buttons. The total draw of ll devices connected to this outlet must not exceed 100 watts. 22 FUSE HOLDER: in the unlikely event a fuse may need to be replaced, unplug the AC cord from the wall. Then, remove all connections from the amplifier Use a flathead screw driver or similar to open the fuse holder via the slot indicated. With the screw driver in place, push and turn counterclockwise to open the fuse holder. Only replace the fuse with the same type, size, and specification - TIOAL 250V for 120V version or TSAL 250V for 230V version. IMPORTANT NOTICE Do not use any substitute fuses of different types or with different ratings orvalues. Failure to observe this precaution may cause damage to the amplifier circuits and may create a fire hazard and/or defeat the safety buil into the C 375BEE and may void the warranty.

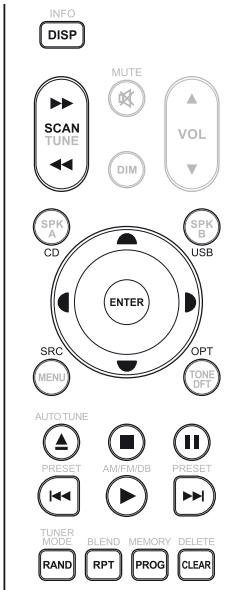

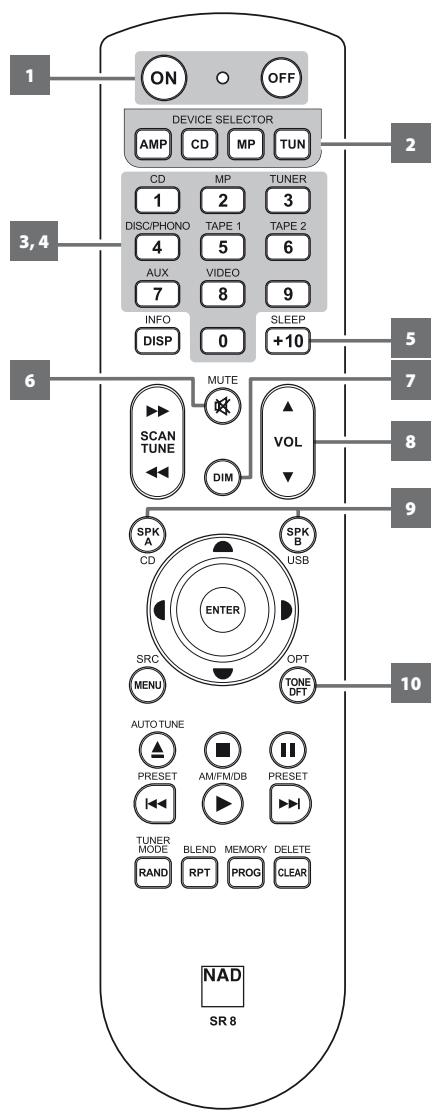

The SR 8 remote control handset handles the key functions of the C 375BÈE as well as other NAD Stereo Recelvers, Integrated Amplifiers and Preamplifers. It has additional controls to remotely operate NAD CD Players, AM/FM Tuners and dedicated AM/FM/DB Tuners. It will operate up to a distance of 23ft (7m). Alkaline batteries are recommended for maximum operating life. Two AA batteries should be fitted in the battery compartment at the rear ofthe Remote Control handset. When replacing batteries, check that they have been put in the right way round, as indicated on the base of the battery compartment. When à command from the remote control is received, the Standby LED indicator wi blink. Note that the indicator may also blink when receiving commandés not necessarily or the C 375BEE but for other components in the system. Please refer to previous sections of the manual for à full description of individual functions NOTE Theremote control handset supplied with the C 375BEE is of universal type designed to operate several NAD models Some buttons are applicable only to specific NAD models. Contact your dealer or NAD audio specialist for assistance. POWER ON, OFF: The SR 8 remote has a separate ON and OFF button. With the rear panel POWER switch set to ON position, press the ON button to switch the C 375BEE from Standby mode to operating mode. Press the OFF button to switch the unit to Standby mode. 2 DEVICE SELECTOR: A Device Selector button determines only what component the SR 8 will command; it does not perform any function on the C 375BEE. Press desired Device Selector button for the applicable buttons to be directed to a page" of commands relevant to the selected device Upon selecting a Device, you can now press the correspanding SR 8 control buttons applicable for the selected Device. 3 INPUT SELECTORS: Refer to the corresponding labels printed in the remote control faceplate and their respective assigned buttons to make use of these functions. Set the DEVICE SELECTOR to*AMP"in order to gain access to these buttons The input selector buttons perform the same functions as the buttons labeled the same on the front panel. 4 NUMERIC KEYS: The numeric keys allow for direct input of tracks for CD players, and direct channel/preset access for tuners and recelvers. 5 SLEEP: Switch off the NAD Receiver or Tuner after a preset number of minutes. 6 MUTE: Press the [MUTE] button to temporarily switch OFF the sound to the speakers and headphones MUTE mode is indicated by the Standby LED indicator flashing for NAD Integrated Amplifiers or‘Mute’ shown in the VFD of NAD Receivers. Mute does not affect recordings made using the TAPE output terminals but will affect the signal going to the PRE OUT terminals. Press [MUTE] again to restore sound. 7 DIM (for use with compatible NAD Stereo Receiver, Tuner and CD Player}: Reduce, turn off or restore VFD brightness. Depending on the NAD model, the brightness ofthe front panel display wil vary when you toggle this button: 8 VOLA/v:Press [VOL A/W] button to increase or decrease the loudness level. Release the button when the desired level is reached. For NAD Receivers, the VFD will also show*Volume Up" or“Volume Down while pressing SR 85 [VOL A/v ] buttons. The VOLUME buttons do not affect recordings made using the TAPE output terminals but wil affect the signal going to the PRE OUT terminals. 9 SPKA, SPK B: The [SPK A] and [SPK BJ buttons engage or disengage the speakers connected respectively to the SPEAKERS À and SPEAKERS B terminals, Toggle [SPK A] to switch ON or OFF the speakers connected to the SPEAKERS À terminals, Toggle [SPK BI to switch ON or OFF the speakers connected to the SPEAKERS B terminals. Press both buttons to engage both speakers. 10 TONE DFT: Tone Controls are enabled or disabled by pressing this button:

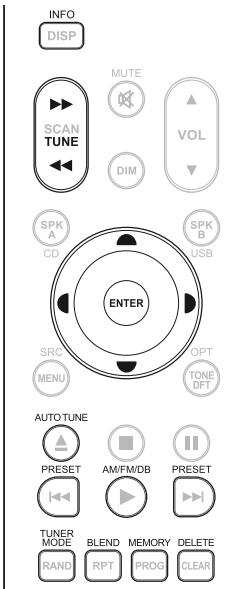

CD PLAYER CONTROL (for use with compatible NAD CD Player): Set the DEVICE SELECTOR to*CD'in arder to gain access to these buttons. Some of the control buttons below are applicable only to specific NAD CD Player models; check the owners manual of your NAD CD Player for control button compatibilty. You can also load the applicable NAD code library to this device so that it can be made compatible with your other NAD equipment. Refer to the section below about*USING THE SR 8 REMOTE CONTROL LIBRARY" on how to load a NAD code library. SCAN I -44/BB ]: Fast reverse/forward search. [4]: Open or close disc tray. LM]: Stop playback. 1] : Pause playback temporaril. De»1]: Go to next track/fle. [Hé4]: Go to beginning of current track/fle or to previous track. D I Start playback. LA/Y I Select through folder list/Select through WMA/MP3 files, ENTER: Select desired folder or WMA/MP3 file. DISP: Show playback time and other display information RAND: Play tracks/fles in random order. RPT: Repeat track file or whole disc. PROG: Enter or exit program mode. CLEAR: Delete track or file number fiom the program lis CD: Select CD as the active source. USB: Select USB as the active source. OPT: Select optical input as the active source. SRC: Select desired SRC mode. TUNER CONTROL (for use with compatible NAD Receiver, AM/FM/DB Tuner): Set the DEVICE SELECTOR to “TUN'in order to gain access to these buttons. Refer to the corresponding labels printed in the remote control faceplate and their respective assigned buttons to make use of these functions Some of the control buttons below are applicable only to specific NAD Receiver or Tuner models; check the owners manual of your NAD Receiver or Tuner for control button compatibility. You can also load the applicable NAD code library to this device so that it can be made compatible with your other NAD equipment. Refer to the section below about “USING THE SR 8 REMOTE CONTROL LIBRARY" on howr to load a NAD code library. AUTO TUNE: Automatically scan all available local DAB broadcasts. TUNE [44/2] or [4/2 J Tune forward or backwards PRESET [H&4/»»1] or [ A/Y ]: Step up or down Preset numbers. AM/FM/DB: Select XM, DAB, FM or AM band as applicable. TUNER MODE: Activate ‘FM Mute On'or"FM Mute Off at FM mode. In combination with [-@/], select through applicable XM or DAB menu options. BLEND: Engage or disengage BLEND feature. ave current station into à preset number. elete selected preset number or all preset numbers L<@» I: in combination with TUNER MODE or other compatible buttons, select through applicable XM or DAB menu options. ENTER: Select Preset or Tune mode at AM/FM band. Display signal strength at DAB mode. INFO: Show display information as supplied by the currently tuned RDS station, XM channel or DAB broadcast.

The SR 8 can store a different library of default NAD codes for each ofits DEVICE SELECTOR “pages! f the original default library does not control your NAD CD player, DVD player ar other component, follow the procedure below to change the library code. Refer as well to the table below for a list applicable NAD Library Codes with their corresponding NAD models

LOAD ANOTHER LIBRARY CODE

Example: Load NAD DVD PlayerT 517 library code to SR 85'CD' device. 1 Press and hold [CD] in the DEVICE SELECTOR section of SR 8

2. While holding down the device button (CD), press“2"and"2" using

SR85 numeric buttons.*22"is the corresponding library code for T 517. 3 Press [ENTER] while still holding down the device button (CD). The CD device selector will flash once to indicate that the library input is successful. Both the device selector button (CD) and [ENTER] can now be released. RESET THE SR 8 TO ITS DEFAULT SETTINGS The SR 8 can be restored to its factory settings, including default libraries, by the following procedures 1 Press and hold [ON] and [DELETE/CLEAR] buttons for about 10 seconds until the AMP device button lights up.

2. Within two seconds of the AMP device button lighting up release both

buttons. IFthe reset mode is successful, the [CD] device button will flash twice. TABLE OF LIBRARY CODES APPLICABLE TO SR 8 REMOTE CONTROL

REFERENCE TROUBLESHOOTING CONDITION No sound. No sound one channel. Weak bass/diffused stereo image. Remote control handset not working. Standby LED turns red during operation. POSSIBLE CAUSES + Power AC lead unplugged or power not switched ON. + Tape Monitor selected. + Mute on. + Rear Pre-out/Main-in amp links not fitted + Balance control not centered. + Speaker not properly connected or damaged + Input lead disconnected or damaged + Speakers wired out of phase + Battery flat or incorrectly inserted. + IRtransmitter or receiver windows obstructed - IR receiver in direct sun or very bright ambient light + C375BEE has overheated. + Overall impedance of loudspeakers to low POSSIBLE SOLUTIONS + CheckifAC lead is plugged in and power switched ON + De-select Tape Monitor mode. + Siitch off Mute. + Fitlinks. + Center Balance control + Check connections and speakers. + Check leads and connections + Check connections to all speakers in the system. + Check or replace battery. + Remove obstruction. - Place unit away from direct sun, reduce amount of ambient light. + Turn C 375BEE OFF; make sure ventilation slots on top and bottom of C 37SBEE are not blocked. After C 375BEE has cooled down, turn back ON - Ensure the overall loudspeaker impedance is not below 4 ohms.

POWER AMPLIFER SECTION

MAIN IN, SPEAKER OUT

Continuous output power into 8 ohms and 4 ohms (Stereo) Continuous output power into 8 ohms (Mono, Bridge mode) Rated THD 20 Hz — 20 kHz, CCIF IMD, SMPTE IMD, DIM 100 Clipping power IHF dynamic power - 8 ohms 4ohms 20hms IHF dynamic power (Bridge mode) - 8 ohms 4ohms Peak output current Signal-to-Noise Ratio Damping factor Frequency response Input impedance Input sensitivity Voltage gain Headphone output impedance Channel separation - 1 kHz 10kHz TRIGGER OUT Output resistance Output current Output voltage SPECIFICATIONS <0,004 % at 2 V out >102 dB (HF; Aweighted, ref 500 mV out, unity gain) >110 dB (A-weighted, ref. 2 V out, Volume maximum) >92 dB (ref. 100 mV out, unity gain) >80 dB >70 dB 100 kohms + 320 pF >8Vims (ref. 0.1 9% THD) 75 ohms <325 ohms Source Z + 1 kohm 158 mV (ref. 500 mV out)

20.1 dB (20 Hz - 20 kHz, Tone defeat ON)

20.5 dB (20 Hz - 20 kHz, Tone defeat OFF)

>10V (ref. 0.03 % THD) >10V (ref. 0.03 % THD) 25 dB at 10 kHz 28 dB at 100 Hz >150W (at rated THD, 20 Hz-20 kHz, both channels driven) >330W <0,009 % >170W (at 1 kHz 0.1 % THD) 250W 410w 600w 800w 1200W >50 A (in 1 ohm, 1 ms) >102 dB (A-weïghted, ref. 1 W) >123 dB (A-weïghted, ref. 150W) >200 (at 8 ohms, 50 Hz and 1 kHz)

20.1 dB (20 Hz - 20 kHz)

LINE LEVEL INPUT, SPEAKER OUT

Continuous output power into 8 ohms and 4 ohms (Stereo) THD 20 Hz 20 kHz, CIF IMD, SMPTE IMD, DIM 100 Signal-to-Noise Ratio Frequency response Channel separation - 1 kHz 10 kHz POWER CONSUMPTION Rated power Standby power Idle power

DIMENSION AND WEIGHT

Unit Dimensions (W x H x D) - Gross* Net weight Shipping weight *- Gross dimensions include feet, volume knob and extended speaker terminals. >150W (at rated THD, 20 Hz-20 kHz, both channels driven) <0,009 % (250 mW to 150, 8 ohms and 4 ohms) >94 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) >113 dB (A-weighted, ref. 150 W out in 8 ohms, maximum volume)

20.2 dB (20 Hz - 20 kHz, Tone Defeat ON)

10 Hz 65 kHz (-3 dB) >80 dB >70 dB 290 W (at 230 V AC 50 Hz; 120V AC 60 Hz) <05W <120W 435 x 150 x 396 mm 17 ax 5 hs x 15 */sinches 153kg (337 lbs) 180 kg (397 lbs) Specifications are subject to change without notice. For updated documentation and features, please log onto wwwNADelectronics.com for the latest information about C 3758EE.
