L32SBIN16 - Loudspeaker Logik - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Model	L32SBIN16
Brand	Logik
Dimensions (approx.)	200 x 100 x 100 mm
Weight (approx.)	0.5 kg
Power Supply	USB 5V / Built-in rechargeable battery
Battery Life	Up to 6 hours
Connectivity	Bluetooth 5.0, Aux-in
Functions	Play/Pause, Volume Control, Next/Previous Track, Hands-free Calling
Maintenance	Clean with a soft dry cloth. Do not use harsh chemicals.
Safety	Do not expose to water or extreme temperatures. Keep away from heat sources.
Spare Parts	Not available separately.
General Information	User manual included. Suitable for indoor and outdoor use (light splash protection).

Frequently Asked Questions - L32SBIN16 Logik

How do I pair the Logik L32SBIN16 with my phone?

Turn on the speaker and enable Bluetooth on your phone. Search for L32SBIN16 in the Bluetooth settings and select it to pair. If prompted, enter the default PIN 0000.

How do I reset the speaker?

To reset, press and hold the Power button for 10 seconds until the LED flashes rapidly. Then turn the speaker off and on again.

How do I charge the speaker?

Connect the included USB cable to the speaker's charging port and plug the other end into a USB power adapter (5V/1A). The LED will turn red while charging and go off when fully charged.

What is the battery life?

The battery lasts up to 6 hours at moderate volume. Actual battery life may vary depending on volume level and audio content.

Can I adjust the volume?

Yes, use the Volume + and Volume - buttons on the speaker. You can also adjust volume from your connected device.

How do I use the Aux-in?

Connect a 3.5mm audio cable from your device to the speaker's Aux-in port. The speaker will automatically switch to AUX mode. Press play on your device.

Can I use the speaker for hands-free calls?

Yes, the speaker has a built-in microphone. When a call comes in, press the Play/Pause button to answer. Press again to end the call.

What is the Bluetooth range?

The Bluetooth range is approximately 10 meters (33 feet) in open air. Walls and obstacles may reduce the range.

How do I clean the speaker?

Use a soft, dry cloth to gently wipe the surface. Do not use abrasive cleaners or immerse in water. Ensure ports are dry before use.

How should I store the speaker?

Store in a cool, dry place away from direct sunlight and moisture. If not using for an extended period, charge the battery to about 50% every 3 months.

USER MANUAL L32SBIN16 Logik

Exterior view of a black industrial air conditioner unit (no visible text or symbols)

Safety Warnings....4

Unpacking 6

Product Overview....7

Front View....7

Top View....7

Rear View ....7

Remote Control......8

Remove the Plastic Strip from the Remote Control 8

Battery Replacement for the Remote Control....9

Remote Control Operation Range....10

Wall Mounting 10

Connections 12

Method 1: Optical / Coaxial Connection ....12

Method 2: Using the AUX Connection....13

Method 3: Connecting to an external device....14

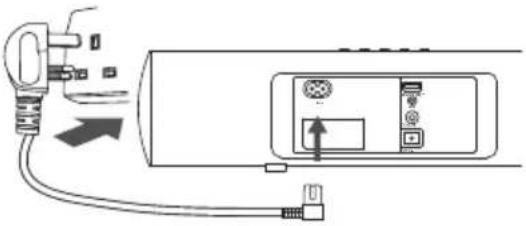

Connecting to the Mains Supply....14

General Operation....15

Selecting Modes....15

Adjusting the Volume....15

Selecting the Equaliser 15

Adjusting the Bass/Treble Level in CUSTOM EQ mode 16

Bluetooth® Operation 16

Listen to Music from Bluetooth® Device 17

Maintenance 17

Hints and Tips ....18

Specifications....19

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.

• Please dispose of batteries correctly by following the guidance in this manual.

• Do not expose the battery to direct sunlight or sources of excessive heat.

• Do not ingest the battery, Chemical Burn Hazard.
• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used battery away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

- This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

\~ AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
-- DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

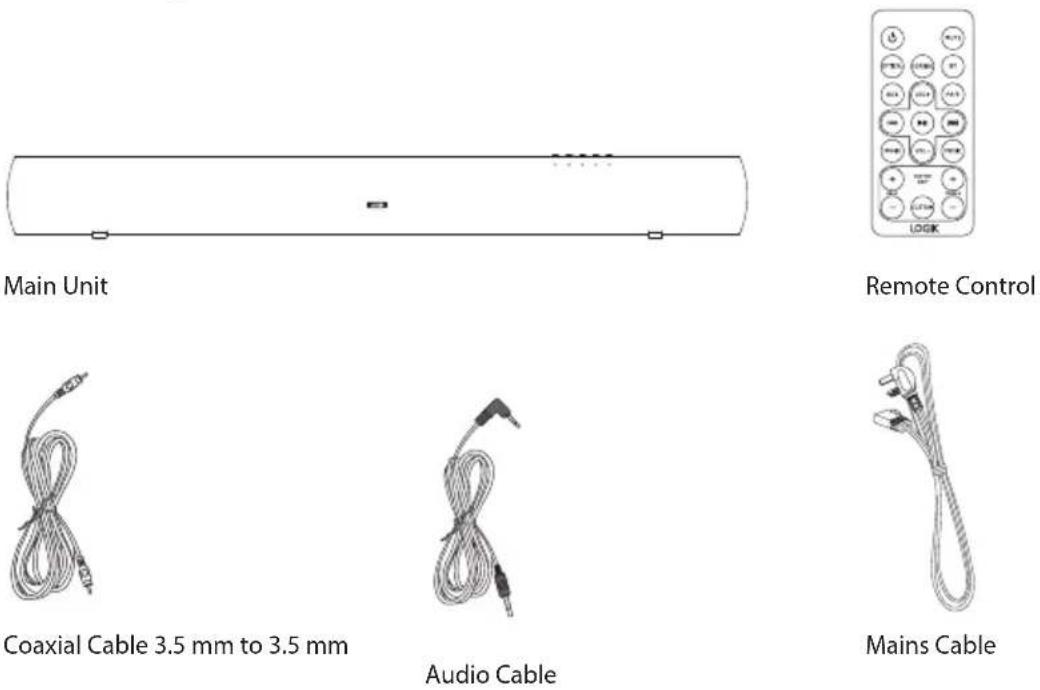

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Wall Bracket x 2

Screw × 2 Dowel × 2

Instruction Manual

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

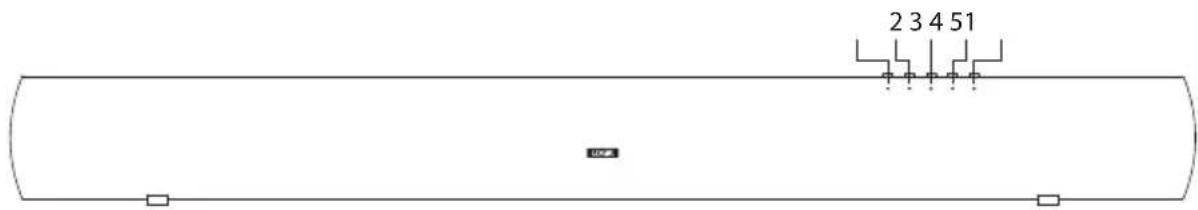

Front View

1. POWER Indicator

Light up in Standby mode.

2. AUX Indicator

Light up green in AUX mode.

Light up once while selecting CUSTOM EQ effect.

3. Bluetooth® Indicator

Light up blue in Bluetooth® mode.

Light up once while selecting MUSIC EQ effect.

4. Optical Indicator

Light up orange in Optical mode. Light up once while selecting MOVIE EQ effect.

5. Coaxial Indicator

Flash orange in Coaxial mode.

Top View

1. Button

Switch the unit between On and Standby mode.

2. SRC Button

Press repeatedly to select between AUX, Bluetooth®, Optical or Coaxial mode

3. EQ Button

Press repeatedly to select between CUSTOM / MOVIE / MUSIC EQ effect.

4. VOL +/- Button

Press to increase/decrease volume.

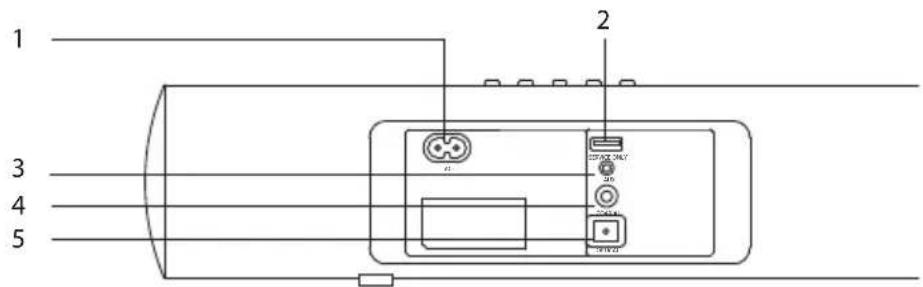

Rear View

1. AC\~Socket

2. SERVICE ONLY Socket

The USB socket is for service only. It is not designed to charge smartphones, tablets or similar devices.

3. AUX Socket

4. COAXIAL Socket

5. OPTICAL Socket

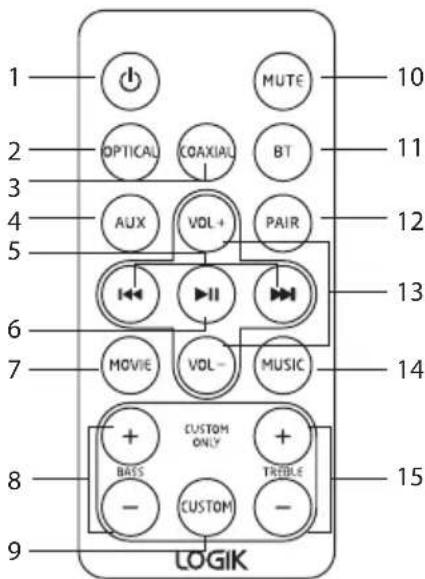

1. Button

Switch the unit between On and Standby mode.

2. OPTICAL Button

Press to select OPTICAL mode.

3. COAXIAL Button

Press to select COAXIAL mode.

4. AUX Button

Press to select AUX mode.

5. Button

Skip to previous track/Skip to next track in Bluetooth® mode.

6. Dutton

Play/pause/resume playback in Bluetooth® mode.

7. MOVIE Button

Press to switch to MOVIE EQ effect.

8. BASS +/- Button

Press to increase/decrease the bass level in default EQ mode.

9. CUSTOM Button

Press to select the default EQ setting.

10. MUTE Button

Silence the unit or restore the sound.

11. BT Button

Press to select Bluetooth® mode.

12. PAIR Button

Press to activate the pairing function in Bluetooth ^® mode and disconnect the existing paired Bluetooth ^® device.

13. VOL +/- Button

Press to increase/decrease volume.

14. MUSIC Button

Press to switch to MUSIC EQ effect.

15. TREBLE +/- Button

Press to increase/decrease the treble level in default EQ mode.

Remove the Plastic Strip from the Remote Control

Remove the plastic strip from the battery if the battery is being used for the first time. It is located at the bottom rear of the remote control.

Hand holding a device with a black arrow indicating direction (no text or symbols)

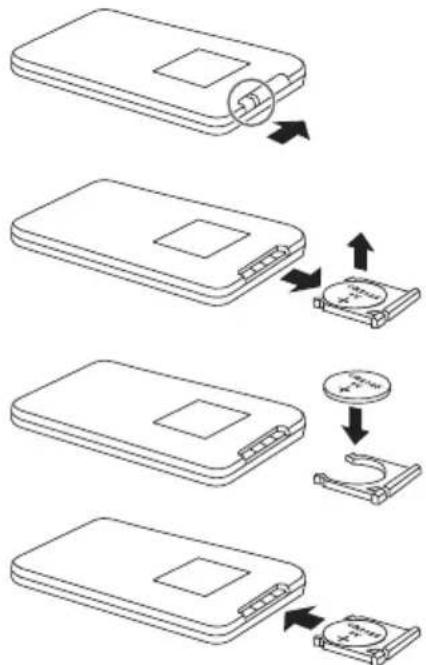

Battery Replacement for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.

2. Pull out the battery holder and remove the old battery.

3. Replace with a new battery.

4. Insert the battery holder back into the remote control.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Install the battery correctly in the battery compartment.
• When the battery is exhausted, the remote control will not function.
  • Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you slide and pull the battery release tab.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or liquid on the remote control.
• Do not place the remote control on a wet object.
- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

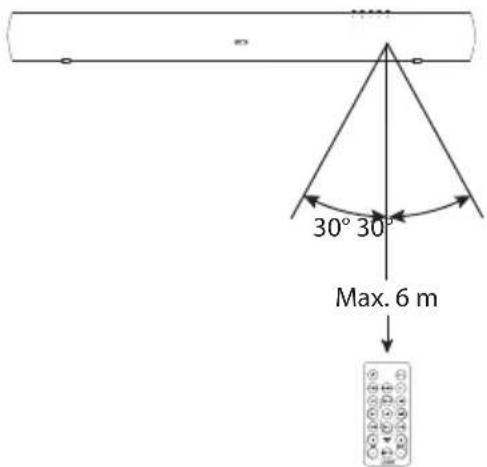

Remote Control Operation Range

• The remote control sensor at the front unit is sensitive to the remote control's commands up to a maximum of 6 metres away and within a maximum of a 60^ arc.
• Please note that the operating distance may vary depending on the brightness of the room.

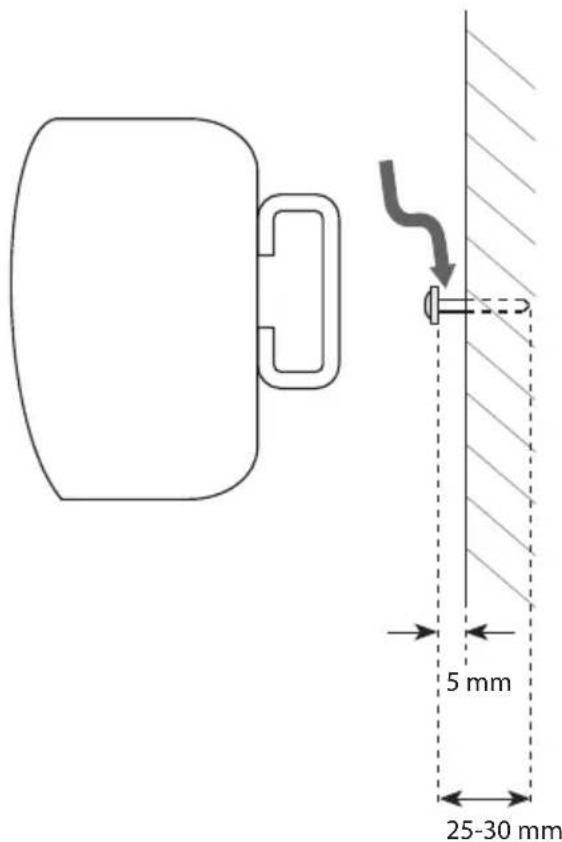

Wall Mounting

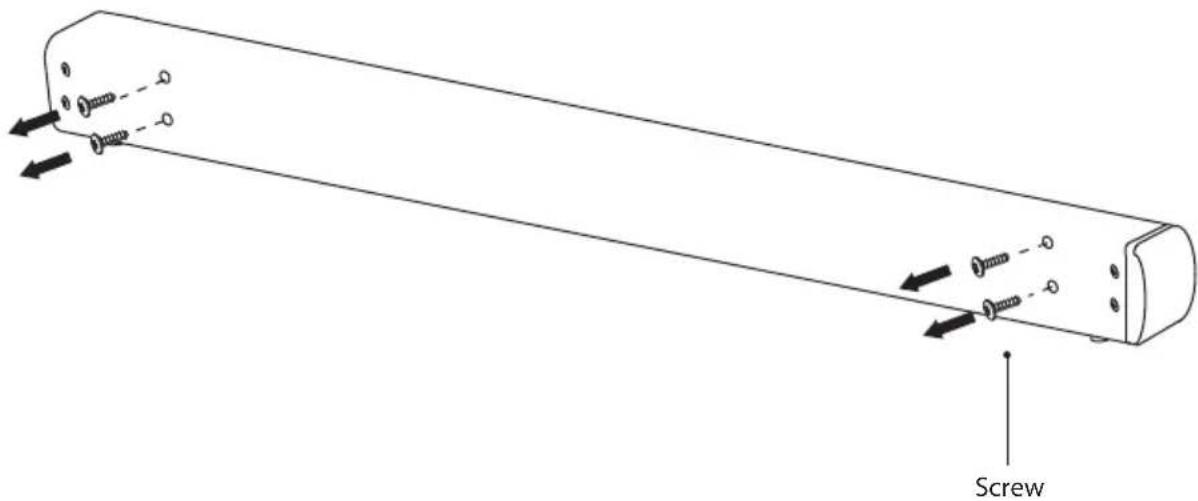

1. Remove the screws from the main unit.

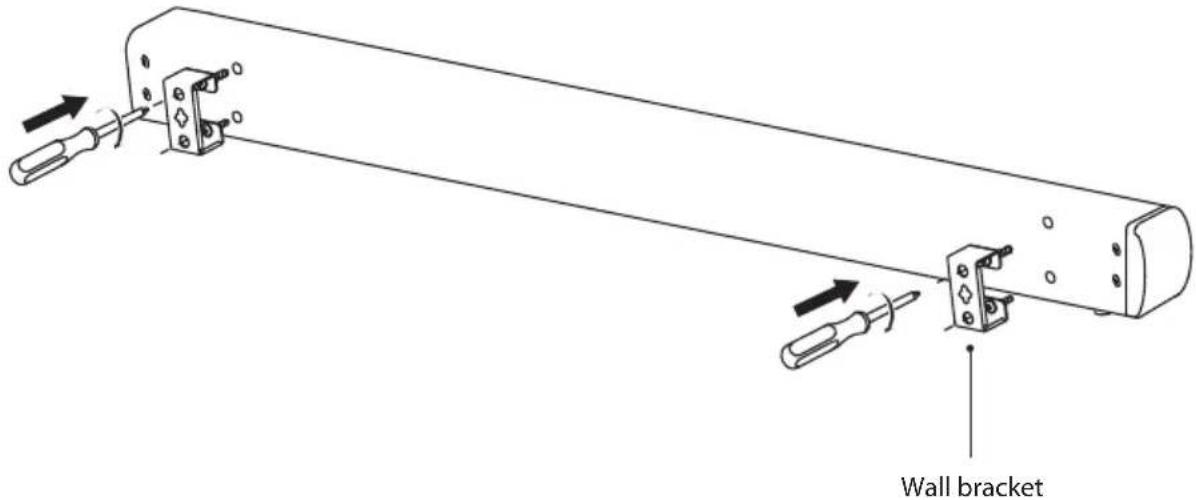

1. Attach the wall brackets to the main unit with the screws removed from the main unit.

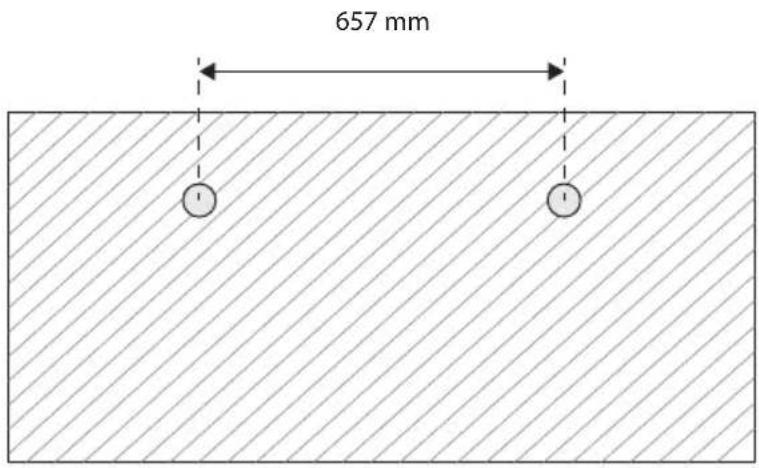

1. Fix two screws onto the wall. They should be parallel to each other. The distance between the two screws should be 657 mm.

1. Leave a 5 mm gap between the wall and the screw's head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place.

This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket.

After the unit is connected to an external device, audio will only be heard from the soundbar while the connected device is used as a source output.

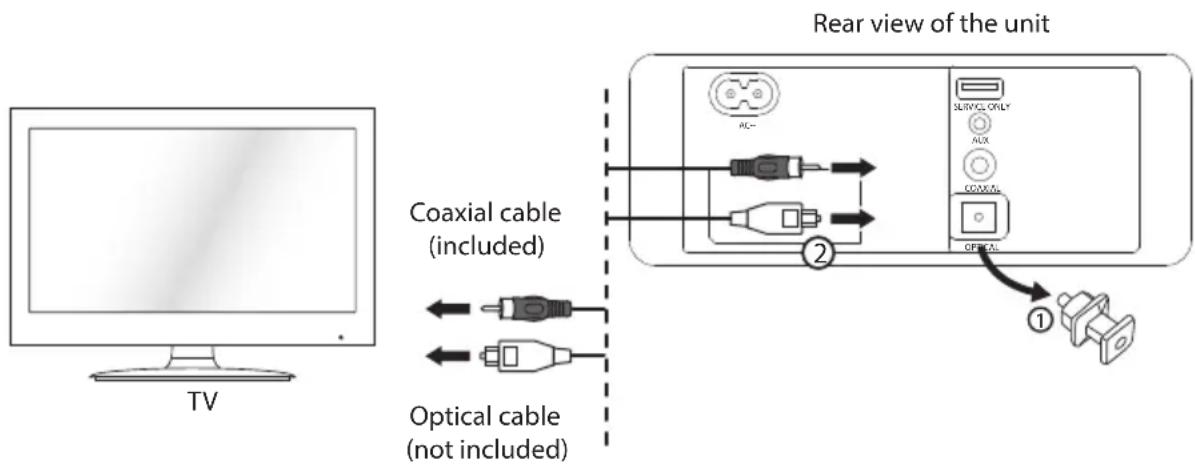

Method 1: Optical / Coaxial Connection

Use an optical cable (not included) / coaxial cable (included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.

After the connection is complete,

1. Press button on the unit or remote control to switch on the unit.
2. Press SRC button on the unit repeatedly or press OPTICAL or COAXIAL button on the remote control to select Optical or Coaxial mode.

• If there is no sound output and the Optical indicator / Coaxial indicator flashes quickly, ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode.
  • DO NOT connect the soundbar to the TV through its Yellow/Red/White sockets

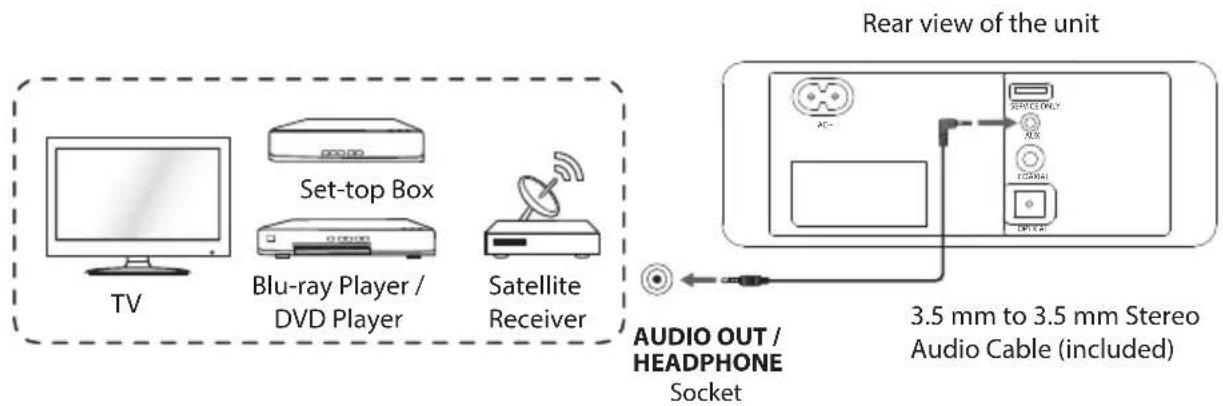

Method 2: Using the AUX Connection

Use the 3.5 mm to 3.5 mm stereo audio cable (included) to connect the AUDIO OUT / HEADPHONE socket of the external device (e.g. TV, DVD player, etc.) to the unit's AUX socket. Please ensure that the output volume is turned up in order for the soundbar to operate.

After the connection is complete,

1. Press button on the unit or remote control to switch on the unit.
2. Press SRC button on the unit repeatedly or press AUX button on the remote control to select AUX mode.

Please refer to the user manual of your TV to change the functionality of your headphone socket to a line out if possible.

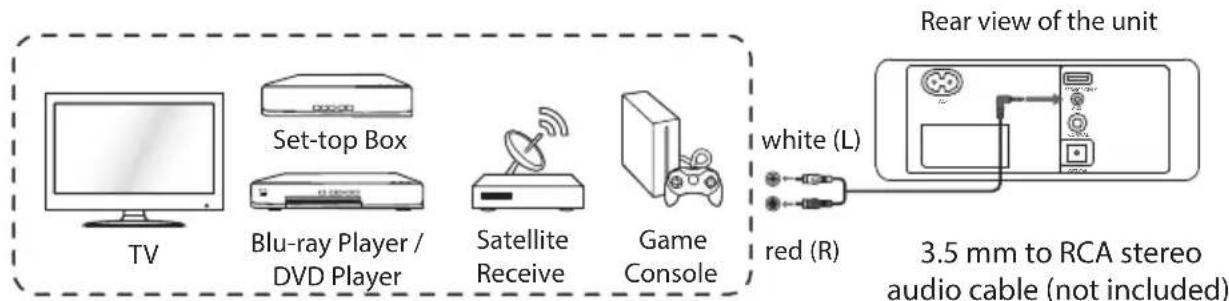

Method 3: Connecting to an external device

Use the 3.5 mm to RCA stereo audio cable (not included) to connect the AUDIO OUT sockets (L/R) of an external device to the unit's AUX socket.

1. Press button on the unit or remote control to switch on the unit.
2. Press SRC button on the unit repeatedly or press AUX button on the remote control to select AUX mode.

Connecting to the Mains Supply

• Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
• The soundbar is designed to operate with the supplied mains cable.
• Connecting the main unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length.
• Connect the mains plug of the main unit to a mains socket. Make sure the mains plug is fully inserted into the mains socket. The soundbar is now connected and ready to use.
• To switch off the soundbar completely, remove the mains plugs from the mains sockets.

Ensure all audio connections of the unit are connected before connecting to the mains power socket.

To the mains socket

Diagram showing a cable with a plug inserted into a device, connected to a terminal block (no text or symbols present)

When you first connect the main unit to the mains socket, the main unit will be in Standby mode. The POWER indicator will light up red.

• Press the button on the main unit or remote control to switch the main unit on. The status indicator of the last used mode will light up.
• Press the ⏻ button on the main unit or remote control to switch the main unit back to Standby mode. The POWER indicator will light up red.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

The eco-friendly technology will switch this device to Standby mode automatically when the input volume is too low or muted for 15 minutes.

Selecting Modes

Press the SRC button on the main unit repeatedly to switch between AUX, Bluetooth ^® , Optical or Coaxial mode, or press AUX, BT, OPTICAL or COAXIAL button on the remote control to select your desired mode.

Adjusting the Volume

• Press the VOL +/- button to adjust the volume.
• If you wish to turn the sound off, press the MUTE button on the remote control. Press the MUTE button again or press the VOL +/- button to resume normal listening.
  • While adjusting the volume, the status indicator flashes quickly.
• While the volume level reaches its maximum level, if you press the VOL + button again, the status indicator flashes once. While the volume level reaches its minimum level, if you press the VOL – button again, the status indicator flashes once.

If the unit is connected with an external device, you may also adjust the volume of the input source for volume control.

Selecting the Equaliser

While playing, press EQ button on the unit repeatedly, or press CUSTOM / MOVIE / MUSIC button on the remote control to select between preset equalisers: CUSTOM (default EQ mode), MOVIE (recommended for viewing movies) and MUSIC (recommended for listening to music).

• When Coaxial or Optical mode is selected, the unit will automatically switch into MOVIE EQ effect.
• When AUX or Bluetooth® mode is selected, the unit will automatically switch into MUSIC EQ effect.

Adjusting the Bass/Treble Level in CUSTOM EQ mode

1. Press EQ button on the unit repeatedly, or press CUSTOM button on the remote control to select default EQ mode. The AUX indicator (Green) will light up once.
2. Press BASS +/- or TREBLE +/- button on the remote control to adjust the bass/treble level.

• While adjusting the bass/treble level, the status indicator flashes quickly.
- While the BASS/TREBLE reaches its maximum or minimum level, the status will flash once if you press BASS +/- or TREBLE +/- button again.

The table below also shows the EQ mode supporting bass/treble adjustment.

EQ Mode Adjusting Bass Level? Adjusting Treble Level?
Custom	√	√
Movie N/A N/A
Music N/A N/A

Bluetooth® Operation

You can listen to tracks from a media device if it is connected to the unit via Bluetooth®.

• The operational range between the main unit and a Bluetooth® device is approximately 8 metres.
• Before you connect a Bluetooth ^ device to this unit, familiarize yourself with the Bluetooth ^ capabilities of the device.
• Compatibility with all Bluetooth ^ devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth ^ device can reduce the operational range.
• Keep this unit away from other electronic devices that may cause interference.

To connect your device to the unit via Bluetooth ^® , follow the steps below:

1. Switch the unit on. Press the SRC button on the main unit repeatedly or the BT button on the remote control to select Bluetooth® mode, the Bluetooth® indicator will flash slowly. The unit is now in pairing mode.
2. Activate your Bluetooth ^® device and select the search mode.
3. "L32SBIN16" will appear on your Bluetooth® device. Select "L32SBIN16" and enter "0000" for password if necessary.
4. On successful pairing, you will hear "Paired" from the unit, and the Bluetooth® indicator will light up steadily.

To disconnect the Bluetooth ^® function, switch to another function on the unit or disable the function from your Bluetooth ^® device, or press the PAIR button on the remote control. After the Bluetooth ^® device is disconnected from the soundbar, you will hear "DISCONNECT" from the unit.

• If there is an existing connection, press PAIR button on the remote control to re-activate the pairing mode, the existing connection will be interrupted.
• If no other Bluetooth® device pairs with this player within two minutes, the player will recover its previous connection.
• The player will also be disconnected when your device is moved beyond the operational range.
• If you want to reconnect your device to this player, place it within the operational range.
• If the device is moved beyond the operational range, when it is brought back, please check if the device is still connected to the player.

- If the connection is lost, follow the instructions above to pair your device to the player again.

Listen to Music from Bluetooth® Device

• If the connected Bluetooth® device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the player.

• If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player's remote control to play music stored on the device.

• Pair your device with the player.

• Play music via your device (if it supports A2DP)
• Use supplied remote control to control play (if it supports AVRCP)

• To pause/resume play, press the ▶I button.
• To skip to a track, press the button.

Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

If a problem occurs, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power. • Ensure the mains cable is connected securely.• Make sure that the unit is switched on.
Loud hum or noise is heard.	The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with an appropriate non-abrasive cleaning solution.
The remote control does not work.	• Use the remote control near the unit.• Point the remote control at the remote control sensor on the main unit.• Replace the battery in the remote control with a new one.• Remove any obstacles between the remote control and the unit.
The unit does not respond when pressing any buttons.	The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.
No sound output from the main unit	• Make sure that the unit is not muted. Press the MUTE Button or the VOL + Button to resume normal listening.• Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using optical or coaxial connection.
The sound output effect sounds unfamiliar	Press the EQ Button on the unit repeatedly or press CUSTOM / MOVIE / MUSIC button on the remote control for the optimal sound output effect.
I cannot find “L32SBIN16” on my Bluetooth® device	• Ensure that the unit is switched on.• Ensure that the Bluetooth® function is activated on your Bluetooth® device.• The unit has a Bluetooth® function that can receive a signal within 8 metres. Keep a distance within 8 metres between the unit and your Bluetooth® device.
The unit will sometimes switch back to standby mode automatically.	The eco-friendly technology will switch this device to Standby mode automatically when the input volume is too low or muted for 15 minutes. Press the ∪button on the main unit or remote control to switch the main unit on again.

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.

Model L32SBIN16
Main Unit
Power Supply AC 220 - 240V ~50/60 Hz
Main Unit Power Consumption 30 W
USB Service Port 5 V 500 mA (for service use		---only)Do NOT use for other purpose
Amplifier Output Power 15 W rms × 2 + 30 W rms
Bluetooth® Bluetooth® Version		Bluetooth® 3.0
		Maximum transmitted power
		Frequency bands
Ecodesign Information
Information on Power Consumption	Power Consumption of Another Condition (Sound bar was connected to AC mains via detachable power cordset, and without status display, and the USB port with 5V output and all network ports are deactivated)	< 0.5 W
	Network Standby Power Consumption	< 2.0 W
Time interval for power management function switches the unit automatically into Another Condition (Sound bar was connected to AC mains via detachable power cordset, and without status display, and the USB port with 5V output and all network ports are deactivated)		Switch to another condition within 15 minutes after intended use
Power consumption in network standby if all wireless network ports are activated		1.0 W
How to activate wireless network port:Switch to wireless mode (e.g. Bluetooth®, etc)Connect the unit with powerHow to deactivate wireless network port:Press the Standby button
Net Weight 2.1 kg
Dimension (W x H x D) 815 × 58 × 85 mm

Features and specifications are subject to change without prior notice.

Illustration of four people gathered around a computer, with no visible text or symbols

Team Knowhow

Help with all life's kit™

For general information about this appliance and handy hints and tips, please visit:

www.TeamKnowhow.com/discover

or call 0344 561 1234

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by DSG Retail Limited is under license. Other trademarks and trade names are those of their respective owners.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

In the unlikely event of a problem developing, please contact the store where you purchased your equipment.

We continually strive to improve our products; specifications may change without prior notice. For advice on where to purchase accessories, please contact the store where you purchased your equipment.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK
