Product Type	Portable USB Speaker
Brand	Logik
Model	LSPTRP11
Dimensions (W x D x H)	95 x 95 x 38 mm
Output Power (Total)	3 W max.
Speaker Driver	2 x Full-range
Frequency Response	150 Hz - 18 kHz
Power Supply	DC 5V from USB port
Current Consumption	500 mA max.
Connectivity	USB 2.0 (data and power)
Controls	Power button
Package Contents	Main unit, Quick Start Guide
Intended Use	Household indoor use only
Safety Warnings	Do not expose to rain or moisture; unplug during lightning storms; avoid heat sources
Cleaning Instructions	Wipe with a dry cloth; avoid liquid spills
Disposal	Separate collection for recycling (WEEE symbol)

Frequently Asked Questions - LSPTRP11 Logik

How do I power the Logik LSPTRP11 speaker?

Connect the USB cable to a PC or notebook USB port for power. Then press the power button on the speaker.

Why is there no sound from the speaker?

Ensure the USB is properly connected and the speaker power button is pressed. Also check that your PC volume is sufficiently high and not muted.

Can I use this speaker with my smartphone?

The speaker requires a USB connection for both power and audio. It is designed for use with PCs or notebooks. It may not work directly with smartphones unless they support USB audio and provide sufficient power.

What are the dimensions of the Logik LSPTRP11?

The speaker measures 95 x 95 x 38 mm (Width x Depth x Height).

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not allow any liquid to enter the speaker openings. Avoid using abrasive cleaners.

Is the speaker compatible with USB 3.0 ports?

Yes, it is backward compatible with USB 3.0 ports, but it only requires USB 2.0 support (500 mA).

What should I do if the speaker is not recognized by my computer?

Try a different USB port. Ensure the speaker's power button is pressed. Restart your computer if necessary. The speaker should appear as a USB audio device.

Can I leave the speaker plugged in all the time?

It is recommended to unplug the speaker when not in use for extended periods to save energy and for safety.

What is the power output of the speaker?

The total output power is 3 watts (max) with a current consumption of 500 mA from the USB port.

Where can I find replacement parts or accessories?

Visit Partmaster.co.uk or call 0844 800 3456 (UK only) for spares and accessories.

USER MANUAL LSPTRP11 Logik

Exterior view of a modern cylindrical device with a USB cable (no text or symbols visible)

Thank you for purchasing your new Logik Travel USD Speaker. Please familiarise yourself with this Quick Start Guide to enjoy all the exciting features.

1 Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of

it please do so according to local regulations. The following items are included:

Main unit

Quick Start Guide
(PN:LSFTRS11-002)

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

2 Product Overview

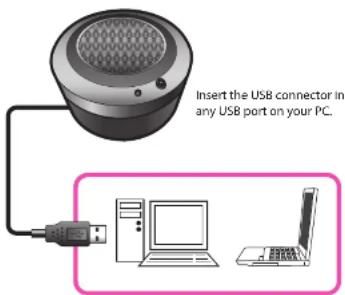

3Connection

• Connect the USB to the PC or Notebook for power supply.
• Press down the Power button on the speaker.
• Check that your PC volume level is sufficient.

4 Safety Warnings

• Read all instructions before using these speakers and keep them for future reference.
• Use only voltage specified on the rating label of the speaker.
• Do not place speakers close to heat sources, such as radiators and heaters.
• These speakers are intended for household use only and not for commercial or industrial use.
• Use these speakers only as described in this Quick Start Guide. Any other use is not
  recommended by the manufacturer and may cause fire, electric shock or injury.
• Always operate on a flat horizontal surface. Do not place the speakers on an unstable table, stored trained as bracket.
• If the mains cable is damaged, it must be replaced by a qualified electrical person in order to avoid a hazard.
• Do not use these speakers outdoors, or an wet surface. Avoid spilling liquid on the
  speakers. Keep the speakers dry and avoid contact with clamp or wet areas.
  • Do not block the openings in the speaker cabinets, never push objects into the speaker vents.
  or slots, and provide sufficient space around the speakers for proper ventilation.
• Only use attachments/accessories specified by the manufacturer.
• For electric protection during lighting storms, unplug the speakers from the mains socket and
  turn off the computer.
• Unplug the speakers when it is not in use for a long period of time.
• Do not expose these speakers to rain or moisture to reduce the risk of electric shock.
• Place the speakers away from strong electro magnetic environments.
• These speakers are not intended for use by persons including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the speakers by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the speakers.

Specification

Output Power (Total): 3W Max. 500mA

by USB 2.0 support

Speaker Driver Unit: 2 ^x Full-range

Frequency response: 150 Hz - 18kHz

Dimension: 95 X 95 X 38mm

Power Supply Input: DC 5V from USB port

Partmaster

Visit Partmaster.co.uk today for the easiest way to

buy electrical spares and accessories. With over 1

million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England

(PN: LSFTRS11-002)
