Product Type	Soundbar with Wireless Subwoofer
Brand	Logik
Model	L32SWLB14
Main Unit Dimensions (W x H x D)	806 x 62 x 60 mm
Subwoofer Dimensions (W x H x D)	240 x 315 x 240 mm
Total Power Output (RMS)	30W x 2 (main) + 60W (subwoofer) = 120W
Power Consumption (Main Unit)	30W
Power Consumption (Subwoofer)	30W
Power Supply	AC 220-240 V ~50/60 Hz
Connectivity	Bluetooth, Optical (Toslink), AUX (RCA), MP3 Link (3.5 mm)
Bluetooth Range	Approximately 8 meters
Equalizer Modes	Movie, Music
Remote Control	Included (CR2025 battery)
Wall Mountable	Yes (brackets included)
Auto Standby	Yes (after 15 minutes of inactivity or low volume)
Subwoofer Pairing	Automatic or manual; wireless
Included Accessories	Remote control, mains cable for subwoofer, RCA to RCA stereo audio cable, 3.5 mm to 3.5 mm audio cable, wall brackets, introduction manual
Safety Features	Overheating protection, ventilation requirement (5 cm clearance)
Maintenance	Unplug before cleaning; use slightly moist lint-free cloth; no abrasive cleaners
Recommended Use	Indoor only

Frequently Asked Questions - L32SWLB14 Logik

How do I pair the wireless subwoofer with the soundbar?

The subwoofer pairs automatically when both units are plugged into mains and turned on. If automatic pairing fails, manually pair by pressing and holding the Pair Button on the subwoofer for a few seconds until the Pair Indicator blinks quickly, then turn on the main unit using the SOURCE button or remote control. The Pair Indicator will light up when successful.

How can I connect the soundbar to my TV?

You can use an optical cable (not included) to connect the TV's optical output to the soundbar's OPTICAL socket. Alternatively, use the RCA to RCA stereo audio cable (included) to connect the TV's audio output to the AUX (L/R) sockets. Ensure the TV's audio output is set to PCM if using optical.

How do I connect my smartphone via Bluetooth?

Press the SOURCE button repeatedly to select BLUETOOTH mode. The Bluetooth indicator will flash. On your smartphone, enable Bluetooth and search for 'L32SWLB14'. Select it and enter '0000' if prompted. Once connected, the indicator will stay solid.

The soundbar has no sound. What should I do?

Check that the unit is not muted by pressing the MUTE button. Ensure the input source is correctly selected. If using optical connection, confirm the source device is set to PCM audio output. Also verify that the volume is turned up.

How do I mount the soundbar on the wall?

Remove the screws from the main unit, attach the wall brackets using those screws. Fix two screws (not included) into the wall 720 mm apart, leaving a 5 mm gap. Lift the unit onto the screw heads.

The remote control is not working. What can I do?

Ensure the remote is pointed at the remote sensor within 6 meters and within a 40-degree arc. Replace the CR2025 battery if drained. Remove any obstacles between the remote and the soundbar.

Can I use the soundbar with a device that has a 3.5 mm headphone jack?

Yes, use the included 3.5 mm to 3.5 mm audio cable to connect the device's headphone socket to the soundbar's MP3 LINK socket.

How do I change the equalizer settings?

Press the EQ button on the remote control to toggle between Movie and Music presets. Movie EQ is automatically selected for Optical and AUX modes; Music EQ for MP3 LINK and Bluetooth.

What should I do if the subwoofer loses connection?

First, ensure both units are powered on. If the Pair Indicator is blinking, try manual pairing: press and hold the Pair button on the subwoofer, then turn the main unit on. If still failing, unplug both from mains, wait, and plug back in. Keep the subwoofer within 6 meters of the soundbar.

How do I reset the soundbar if it freezes?

Switch the unit off and then on again at the mains socket to reset it.

USER MANUAL L32SWLB14 Logik

Soundbar with wireless subwoofer

L32SWLB14

Black audio streaming setup with a speaker tower and sound block (no visible text or symbols)

Contents

Safety Warnings....4

Unpacking....6

Product Overview....7

Main Unit 7

Subwoofer 8

Remote Control 9

Remove the Plastic Strip from the Remote Control 9

Battery Replacement for the Remote Control....10

Remote Control Operation Range....11

Wall Mounting 11

Connections 13

Using the OPTICAL Connection....13

Using the AUX Connection....13

Using the MP3 LINK Connection....14

Connecting to the Mains Supply....14

Pairing the Wireless Subwoofer with the Main Unit....15

General Operation....16

Selecting Modes 16

Adjusting the Volume....16

Selecting the Equaliser 16

Bluetooth® Operation 17

Listen to Music from Bluetooth ^® Device....18

Maintenance 18

Hints and Tips 18

Specifications....19

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

- The unit must be placed on a flat stable surface and should not be subjected to vibrations.

• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the
• unit and should be easily accessible.
• This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.

Safety

• Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
  • Please dispose of batteries correctly by
  • Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

CAUTION

1. 2017年1月1日

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

- To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel. - Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Thank you for purchasing your new Logik Soundbar.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit

Subwoofer

Remote Control

Mains Cable (for Subwoofer)

RCA to RCA Stereo Audio Cable

3.5mm to 3.5mm Audio Cable

Wall Bevelled

Introduction Manual

A.11.20

Product Overview

Main Unit

Front View

1. Speakers

2. Remote Control Sensor

3. POWER / AUX/MP3 LINK / OPTICAL / BLUETOOTH / MOVIE/MUSIC Indicators

Side View Rear View

1. MP3 LINK Socket

2. /SOURCE Button

- Switch the unit between On and Standby mode.

1. OPTICAL Socket

2. AUX (L/R) Sockets

3. AC\~Power

Subwoofer

Front View

Rear View

1. Pair Indicator
2. Pair Button
3. AC\~Socket

Remote Control

1. Button

Switch the unit between On and Standby mode.

1. VOL +/- Buttons

Adjust the volume.

3.

Skip to previous track/Skip to next track in Bluetooth mode.

1. BT PAIR Button

Activate the pairing function in BLUETOOTH mode and disconnect the existing paired Bluetooth device.

1. EO Button

Select the preset equaliser.

1. MUTE Button

Silence the unit or restore the sound.

1. Button

Play/pause/resume playback in BLUETOOTH mode.

1. SOURCE Sutton

Select the input source.

Remove the Plastic Strip from the Remote Control

Remove the plastic strip from the battery if the

battery is being used for the first time. It is located at the bottom rear of the remote control.

Battery Replacement for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.
2. Pull out the battery holder and remove the old battery.
3. Replace with a new battery.
4. Insert the battery holder back into the remote control.

Handling the Battery

- Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.

• Install the battery correctly in the battery compartment.

- When the battery is exhausted, the remote control will not function.

- Only use the battery type indicated in this manual.

- Do not dispose of the used battery as domestic waste. Dispose of it in

accordance with local regulations.

- Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you slide and pull the battery release tab.
• Do not drop the remote control.
- Do not allow anything to impact the remote control.
- Do not spill water or liquid on the remote control.
• Do not place the remote control on a wet object.

Remote Control Operation Range

• The remote control sensor at the front unit is sensitive to the remote control's commands up to a maximum of 6 metres away and within a maximum of a 40^ arc.
• Please note that the operating distance may vary depending on the brightness of the room.

Wall Mounting

1. Remove the screws from the main unit.

1. Attach the wall brackets to the main unit with the screws removed from the main unit.

Pure mechanical assembly diagram without any text, numbers, or symbols

1. Fix two screws (not included) onto the wall. They should be parallel to each other. The distance between the two screws should be 720 mm.

1. Leave a 5 mm gap between the wall and the screw/s head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place.

Connections

Using the OPTICAL Connection

Use an optical cable (not included) to connect the TV's optical output socket to the unit's OPTICAL socket. Before inserting the optical cable, remove the OPTICAL socket cover.

If there is no sound output and the OPTICAL Indicator flashes, ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode with optical input.

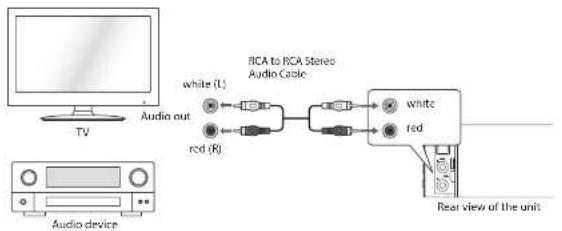

Using the AUX Connection

Use the RCA to RCA Stereo Audio Cable to connect the audio output sockets of a TV or an audio device to the unit's AUX (L/R) sockets. Please ensure that the output volume is turned up in order for the soundbar to operate.

Using the MP3 LINK Connection

Use the 3.5mm to 3.5mm audio cable to connect the audio device's headphone socket to the unit's MP3 LINK socket.

Connecting to the Mains Supply

• Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
• The soundbar and the subwoofer are designed to operate with the supplied mains cable.
• Connecting the main unit to any other power source may cause damage to the unit. Unwind the mains cable to their full length.
• Connect the mains plug of the main unit to a mains socket. Make sure the mains plug is fully inserted into the mains socket.
• Connect the mains cable to the AC\~ Socket of the subwoofer and then into a mains socket.
• Make sure the cables are firmly inserted into the mains socket. The soundbar and the subwoofer are now connected and ready to use.
• To switch off the soundbar and the subwoofer completely, remove the mains plugs from the mains sockets.

Ensure all audio connections of the unit are connected before connecting to the mains power socket.

Pairing the Wireless Subwoofer with the Main Unit

Automatic pairing

The subwoofer and soundbar will automatically pair when both units are plugged into the mains sockets and turned on. No cable is needed for connecting the two units.

- When the subwoofer is pairing with the main unit, the Pair Indicator will flash. - When the subwoofer is paired with the main unit, the Pair Indicator will light up.

Do not press the Pair Button on the rear of the subwoofer, except for manual pairing.

If the automatic pairing fails, pair the subwoofer with the main unit manually.

Manual pairing

1. Ensure that all the cables are well connected and the main unit is in Standby mode.

2. Press and hold the Pair Button on the rear of the subwoofer for a few seconds. The subwoofer will enter the pairing mode and the Pair Indicator will blink quickly.

3. Press the SOURCE Button on the main unit or the Button on the remote control to switch the main unit on.

4. After the wireless connection succeeded, the Pair Indicator will light up.

5. If the Pair Indicator blinks, the wireless connection has failed. Unplug the cable of the subwoofer and then reconnect the main cable. Repeat step 1 - 4.

• If the wireless connection fails again, check if there is conflict or strong interference (for example, interference from an electronic device) around your location. Remove these conflicts or strong interferences and repeat the above procedures.
  • The subwoofer should be within 6m of the soundbar.
• If a TV or an external device is connected, the main unit and the subwoofer will switch on automatically when the TV or the external device is switched on.
• If the TV or the external unit is disconnected or switched off, the main unit and the subwoofer will switch off automatically after 15 minutes.
• If the volume on the TV or an external device is too low, the main unit and the subwoofer will switch off after 15 minutes.
• If the main unit is not connected with the subwoofer and it is in On mode, the POWER Indicator will flash. Follow step 1 \~ 4 above to pair the subwoofer to the main unit.

General Operation

When you first connect the main unit to the mains socket, the main unit will be in Standby mode. The POWER Indicator will light up red.

• Press the / SOURCE Button on the main unit or the Button on the remote control to switch the main unit on. The status indicator of the last used mode will light up.
• Press and hold the Ⓗ/SOURCE Button on the main unit or press the Ⓗ Button on the remote control to switch the main unit back to Standby mode. The POWER Indicator will light up red.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

The eco-friendly technology will switch this device to Standby mode automatically when the input volume is too low or muted for 15 minutes. The device can be reactivated by pressing @Standby button and turning up the input device volume. Except for Optical mode, the eco-friendly control will switch the device to standby mode automatically when there is no input signal for 15 minutes.

Selecting Modes

Press the d/SOURCE Button on the main unit or the SOURCE Button on the remote control repeatedly to switch between AUX, MP3 LINK, OPTICAL and BLUETOOTH mode.

- When AUX mode is selected, the AUX/MP3 LINK Indicator will light up steadily.

- When MP3 LINK mode is selected, the AUX/MP3 LINK Indicator will flash.

Adjusting the Volume

• Press the VOL +/– Button to adjust the volume.
• If you wish to turn the sound off, press the MUTE Button on the remote control. Press the MUTE Button again or press the VOL + Button to resume normal listening.
  • While adjusting the volume, the status indicator flashes quickly.
• While the volume level reaches its maximum level, if you press the VOL + Button again, the status indicator flashes once. While the volume level reaches its minimum level, if you press the VOL - Button again, the status indicator flashes once.

If the unit is connected with an external device, you may also adjust the volume of the input source for volume control.

Selecting the Equaliser

While playing, press the EQ Button on the remote control to select between preset equalisers: Movie (recommended for viewing movies), Music (recommended for listening to

• While using the OPTICAL or AUX connection, Movie EQ will be automatically selected.
• While using the MP3 LINK connection or in BLUETOOTH operation, Music EQ will be automatically selected.

Bluetooth® Operation

You can listen to tracks from a media device if it is connected to the unit via Bluetooth.

• The operational range between the main unit and a Bluetooth device is approximately 8 meters.
• Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• Keep this unit away from other electronic devices that may cause interference.

To connect your device to the unit via Bluetooth, follow the steps below:

1. Switch the unit on. Press the d/SOURCE Button on the main unit or the SOURCE Button on the remote control repeatedly to select BLUETOOTH pairing mode, the BLUETOOTH Indicator will flash.

2. Activate your Bluetooth device and select the search mode.

3. "L32SWLB14" will appear on your Bluetooth device.

4. Select "L32SWLB14" and enter "0000" for password if necessary.

5. On successful pairing, the BLUETOOTH Indicator will light up steadily.

• If there is an existing connection, press the BT PAIR Button on the remote control to re-activate the pairing mode, the existing connection will be interrupted.
• If no other Bluetooth device pairs with this player within two minutes, the player will recover its previous connection.
• The player will also be disconnected when your device is moved beyond the operational range.
• If you want to reconnect your device to this player, place it within the operational range.
• If the device is moved beyond the operational range, when it is brought back, please check if the device is still connected to the player.
• If the connection is lost, follow the instructions above to pair your device to the player again.

Listen to Music from Bluetooth® Device

• If the connected Bluetooth device supports Advanced Audio Distribution Profile
(A2DP), you can listen to the music stored on the device through the player.
- If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player's remote control to play music stored on the device.

1. Pair your device with the player.

2. Play music via your device (if it supports A2DP)

3. Use supplied remote control to control play (if it supports AVRCP)

• To pause/resume play, press the ▶Button.

• To skip to a track, press the button.

Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem occurs, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power. Ensure the mains cable is connected securely.Make sure that the unit is switched on.
Loud hum or noise is heard.	The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with an appropriate non-abrasive cleaning solution.
The remote control does not work.	Use the remote control near the unit.Point the remote control at the remote control sensor on the main unit.Replace the battery in the remote control with a new one.Remove any obstacles between the remote control and the unit.
The unit does not respond when	The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.
No sound output from the main unit	Make sure that the unit is not muted. Press the MUTE Button or the VOL + Button to resume normal listening.Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using optical connection.
No connection between the main unit and the subwoofer	Ensure the mains cables of the main unit and the subwoofer are both connected securely to the mains power socket.Pair the main unit with the subwoofer manually. Please refer to Pairing the Wireless Subwoofer with the Main Unit above.
The sound output effect sounds unfamiliar	Press the EQ Button on the remote control to select preset EQ mode for the optimal sound output effect.Make sure that the subwoofer is connected with the main unit.

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.

Specifications

Model L32SWLB14
Main supply AC 220 - 240V ~50/60 Hz
Main Unit power consumption 30W
Subwoofer power consumption 30W
Output power RMS 30W x 2 + 60W
Main Unit (W x H x D) 806 x 62 x 60mm
Subwoofer (W x H x D) 240 x 315 x 240mm

Features and specifications are subject to change without prior notice.

KNOWHOW

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0544 5611234.

Partmaster

Visit Partmaster.co.uk today for the easiest way to buy electrical

spares and accessories. With over 1 million spares and accessories

www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by DSG Retail Limited is under license. Other trademarks and trade names are those of their respective owners and all rights are acknowledged.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handling it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

In the unlikely event of a problem developing, please contact the store where you purchased your equipment.

We continually strive to improve our products; specifications may change without prior notice. For advice on where to purchase accessories, please contact the store where you purchased your equipment.
