Product type	Refrigerator
Brand	Nardi
Model	HB21TSSAA
Energy class	A+
Total capacity (liters)	210 L (estimated)
Refrigerator volume (liters)	180 L (estimated)
Freezer volume (liters)	30 L (estimated)
Dimensions (H x W x D) (cm)	145 x 55 x 58 (estimated)
Net weight (kg)	35 kg (estimated)
Power supply	220-240 V ~ 50 Hz
Climate class	N-ST (16°C to 38°C)
Defrost type	Manual (freezer), automatic (refrigerator)
Number of shelves	3 glass shelves
Number of door bins	3 door bins (including 1 for bottles)
Interior lighting	LED
Refrigerant	R600a (isobutane)
Noise level (dB)	39 dB (estimated)
Adjustable thermostat	Yes, dial from 1 to 5
Temperature option	Off, Min, Med, Max
Control type	Mechanical dial
Adjustable feet	Yes, at the front
Door opening direction	Reversible (right or left)
Maintenance and cleaning	Clean with a soft cloth and soapy water. Defrost the freezer regularly.
Spare parts and repairability	Available from Nardi customer service or authorized dealers. Repairability index available.

Frequently Asked Questions - HB21TSSAA NARDI

What is the total capacity of the Nardi HB21TSSAA refrigerator?

The total capacity is approximately 210 liters, with about 180 liters for the refrigerator and 30 liters for the freezer.

How to adjust the refrigerator temperature?

Use the thermostat dial inside the refrigerator. Positions 1-2-3-4-5 correspond to increasingly less cold temperatures. For normal use, set to position 3.

How to defrost the freezer?

Unplug the appliance, remove food, open the door and let the ice melt. Do not use sharp objects to scrape the ice. Wipe up water with a cloth.

Why is my refrigerator making noise?

Gurgling or clicking noises are normal (refrigerant fluid). If the noise is loud, check that the appliance is level and not touching a wall or furniture.

How to clean the inside of the refrigerator?

Empty the appliance, remove shelves and door bins. Clean with a soft cloth soaked in warm water and a mild detergent. Rinse and dry. Do not use abrasive products.

What is the climate class of this refrigerator?

The climate class is N-ST, meaning it operates properly in ambient temperatures from 16°C to 38°C.

Can I reverse the door opening direction?

Yes, the door is reversible. You can change the opening direction by following the instructions in the manual. The hinges and holes are provided for the change.

What to do in case of a power outage?

Avoid opening the door. Food will stay cold for several hours. Do not refreeze partially thawed food.

How to get spare parts for my Nardi refrigerator?

Contact Nardi customer service or an authorized dealer. The repairability index of the appliance is available on the energy label. You can order parts online.

Is the Nardi HB21TSSAA refrigerator energy efficient?

The appliance is rated A+, which represents good energy performance for a refrigerator of this size. The annual consumption is estimated at about 200 kWh.

USER MANUAL HB21TSSAA NARDI

Household Refrigerator / Freezer

O p e r a t i o

Safety Precautions 4-6

Location 7

Removing & Replacing Door 8-10

Preparation 11-13

Initial Use....14

Functions 15-18

Instructions for the Refrigerator Compartment

About the Refrigerator Compartment 19-20

Storing Food in the Refrigerator Compartment ..... 21

Useful Tips 22

Instructions for the Freezer Compartment

About the Freezer Compartment ......22-23

Storing Food in the Freezer Compartment ...... 24

Defrosting · Cleaning · Vacation

Defrosting • Cleaning.... 25

Vacation 26-27

Troubleshooting • After-sale Services

Troubleshooting 28-29

After-sale Services.... 30-31

Technical Data: Circuit Diagram • Packaging List

Technical Data Circuit Diagram • Packing List -....32-38

- Please read this User Manual carefully before use.

- Please keep this User Manual in a safe place.

- The appearance and color of your refrigerator may vary slightly from that illustrated herein.

Features

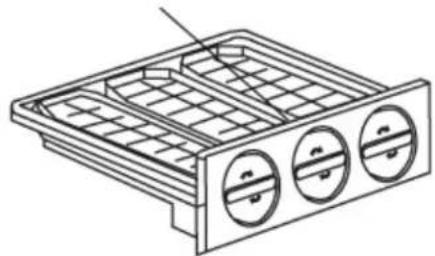

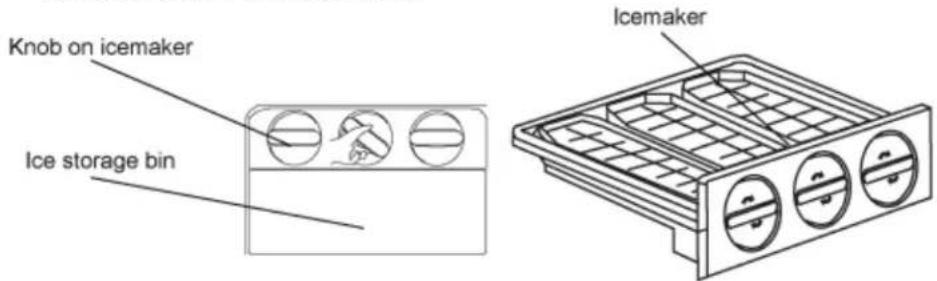

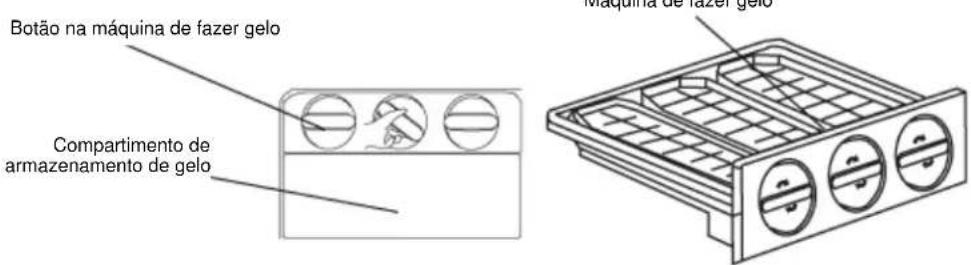

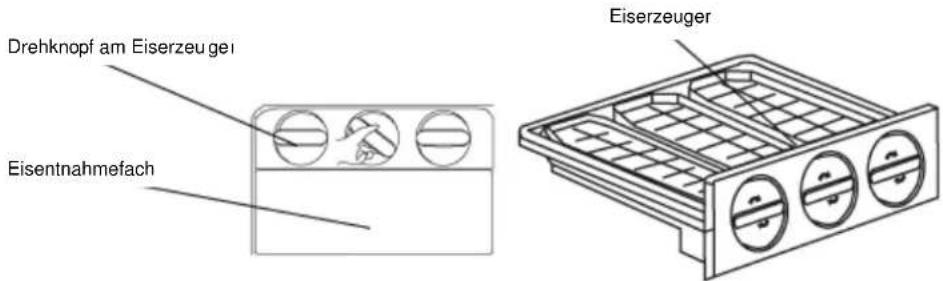

① Ice making

A built-in semi-automatic icemaker will produce ready-to-use ice cubes based on your preference.

② Chill compartment

The chill compartment at the bottom of the refrigerator compartment is intended for storage of delicatessen within the temperature range from -2°C to +3°C .

③ Slide-out shelf for easy food access

The refrigerator compartment is equipped with slide-out shelves for easy loading and unloading. These shelves can be removed when the door is at a right-angle.

④ Artificial Intelligent (AI) design

Optimum refrigeration performance is secured based on the inner and ambient temperature, without the need for manual intervention.

⑤ Super slim, super large and super luxurious

Compact dimensions, large capacity, spacious refrigerator compartment and freezer compartment, supreme internal and external design

⑥ CFC-free and frost-free deep freezing enabled by an efficient air cooling system

⑦ Air Curtain technology

The air curtain located at the front end of the refrigerator compartment is intended to aid food storage by preventing invasion of warm air and facilitating equal distribution of cool air.

Cooling before defrosting to prevent thawing

A pre-cooling process will be activated based on the measured inner temperature, to avoid the adverse impact of temperature rises on food stored in the refrigerator.

⑨ Optimized refrigeration performance and long service life of the compressor enabled by an efficient condenser unit and fan motor

⑩ Door-open alarm, touch button and large-screen LCD display

Vitamin C technology for fresh food storage

The Vitamin C technology effectively keeps the food fresh for a longer period of time while eliminating unpleasant odors.

⑫ Smooth and effortless drawer slide

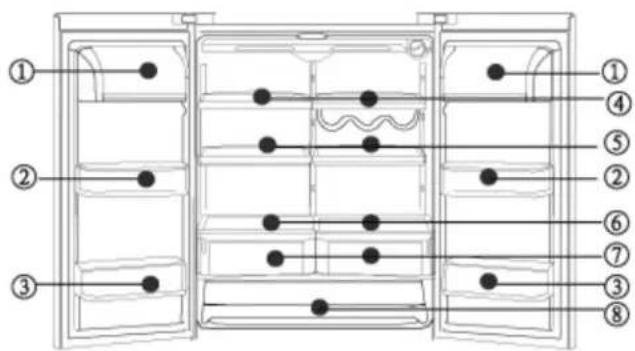

Names of parts

Names of parts

Dear Customer

Thank you for purchasing a NARDI product.

NARDI products are of supreme quality and superior performance. Please read these instructions and follow the procedures described herein.

You are enjoying a NARDI International Star Service. For any question you may have, please contact our service centers at the telephone numbers or addresses specified in the Letter of Warranty.

NARDI – Now, and always!

NOTE: Product specifications may change without notice due to product improvements.

Safety Precautions

Power supply: AC 220V-240V/5OHZIf the voltage fluctuates violently (beyond 187-242V), it is necessary to use a voltage stabilizer of 750W or above to prevent startup failure, damage to the control board or compressor, or unusual noises.[IMAGE]	The appliance must be plugged into a dedicated outlet that is securely grounded. The power cord of this appliance is fitted with a three-prong plug (grounded) that complies with the standard three-prong outlet (grounded). Never cut off or remove the third prong. The refrigerator should be located so that the plug is accessible. VWARNING! The plug should be securely connected to the socket to prevent fire hazards.
Be careful not to damage the power cord. Hold the plug, not the electric cable, when disconnecting the appliance from the outlet. Place the power cord in such a way as to eliminate the risk of damage caused by the refrigerator's weight. Be careful not to damage the power cord when moving the appliance.[IMAGE]	When the power cord is damagedThe use of a damaged cord or plug is strictly prohibited. If the power cord is damaged, it should be replaced at an authorized service center.
When there is a gas leakTurn off the gas valve.Open the doors and windows for ventilation.Do not plug or unplug the refrigerator or other electric appliances.	Always remember to unplug the appliance in the following cases:Unplug the appliance before cleaning and reparation.Unplug the appliance before replacing the old light bulb to prevent electric shock.

Safety Precautions

Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. Mousse / Spraying agent / Gas/ Acid / Alkali	This appliance is a household refrigerator, which is produced in accordance with the specifications of national standards. It is intended for food storage only, not for storage of blood, medicine and biological products.
To prevent the risk of fire, keep the appliance away from gasoline or any other inflammables.	To prevent the risk of electromagnetic interference or other accidents, do not place patch panels, voltage stabilizers or microwave ovens on top of the refrigerator or use any electric appliance (unless recommended by the manufacturer) inside the refrigerator.
Children must not play with the door or bottle racks as serious injury may occur. Do not swing on the door or cabinet when loading and unloading the refrigerator.	The internal surface of the freezer compartment is very cold when the appliance is running. Do not touch the surface, especially with wet hands.

Safety Precautions

Hold the door handle when opening and closing the door. The gap between the doors and the cabinet are very small. Ensure no children are standing within the range of the door movement when opening or closing the appliance doors.	Do not spray or splash the refrigerator, or place same in a damp area to avoid adverse effects on electric insulation performance.
Disassembly or maintenance must be authorized. Damage to the refrigeration system is strictly prohibited. Repairs must be carried out by authorized personnel.	Bottled beer or beverages must not be stored in the freezer compartment to avoid the risk of explosion.
Unplug the appliance in the event of a power interruption or when cleaning. Allow at least a 5 minute lapse before restarting the refrigerator, to prevent damage to the compressor caused by frequent startups.	Please remove the door, door seal and shelves before disposing of the old appliance and put them in a safe place to prevent children from being trapped inside.

Location

Leveling Do not expose the appliance to direct sunlight or

The appliance should stand firmly on a solid floor. To support it, use firm and solid, non-flammable pads. Never use the packaging materials for support. Level the appliance using the adjustable legs whenever necessary. Turn clockwise to raise the refrigerator, and anticlockwise to lower it.

sources of heat.

Do not expose the appliance to rain and moisture. Keep the appliance dry and clean.

To prevent the risk of injury and accidents, do not place heavy loads and water containers on top of the refrigerator.

The appliance should be placed in a well ventilated room. A minimum clearance of 10cm at both sides and at the rear is required. If a built-in installation is needed, allow 25cm or more above the top surface of the appliance and 5cm or more away from the walls, to enable proper air circulation.

Removing & Replacing Doors

NOTE

To avoid injury, property loss or damage to the refrigerator, make sure you remove all food from the door racks, remove the bottle bin(s), unplug the refrigerator and shut off the water supply before removing and replacing a door. To avoid injury or property loss, remove or replace the door with the help of 2 persons or more. The following instructions should be observed.

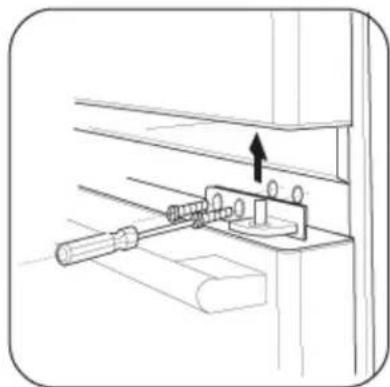

Removing and replacing the right hand door of the refrigerator

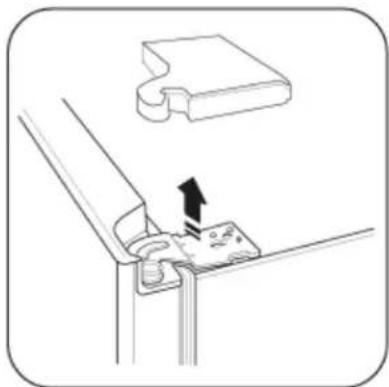

① Unscrew the upper right hand hinge cover and remove.

② Unscrew the upper right hand hinge and remove.

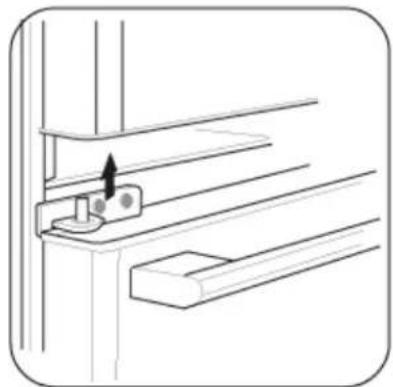

③ Remove the door and place it in a suitable position. Remove the middle hinge if necessary.

⑤ Replace the door in the reverse sequence.

NOTE

Take care to prevent the door from falling onto you when lifting the door off the hinge.

Removing & Replacing Doors

Removing and replacing the left hand door of the refrigerator

① Unscrew the upper left hand hinge cover and remove.

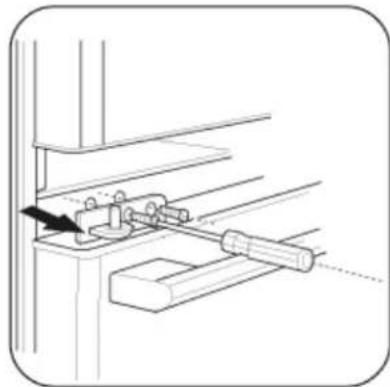

② Unscrew the upper left hand hinge by means of hexagonal screwdriver and remove.

③ Remove the door and place it in a suitable position. Remove the middle hinge if necessary.

⑤ Replace the door in the reverse sequence.

Take care to prevent the door from falling onto you when lifting the door off the hinge.

NOTE

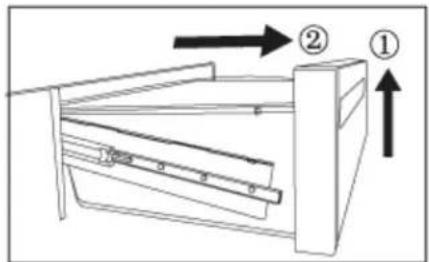

Removing & Replacing the Freezer Drawer

① Pull out the freezer drawer entirely and remove it from the refrigerator.

② Replace the freezer drawer in the reverse sequence.

Preparation

Remove all packaging materials.

Foam support and adhesive tapes should be removed.

Check the accessories and literature.

Check the accessories in accordance with the packing list. For any doubt, contact the dealer.

Locate the appliance in a proper position. See "Location".

Please write down the model number and serial number in the Letter of Warranty for later reference.

Preparation

It is recommended to clean the appliance before operation. See Cleaning.

Standstill

To ensure optimal operation, allow the appliance to stand still for 6 hours or longer after installation and cleaning.

Installing Bottom Trim

Open the door of the refrigerator compartment and take out the bottom trim. Fasten it to the bottom of the refrigerator with screws, as illustrated.

Wear a pair of gloves to protect your hands when dismantling the bottom trim and adjustable legs of the refrigerator.

WARNING

Preparation

Assembly of the Door Handle

Take out the door handles from the refrigerator compartment (2 longer handles to be installed on the refrigerator and 1 shorter handle to be installed on the freezer). The following instructions should be observed.

Assembly of the Refrigerator Door Handle

Please following the below operations when you are assembling the Refrigerator Door Handle:

1) Put the Handle Connector into the right holes on the Refrigerator Door with the help of screwdriver. (as showing by the arrow 1 of illustration 1)
2) Put the Refrigerator Door Handle onto the handle holder, and keep the hole of the handle holder and the handle connector to the right position of the vertical direction. (as showing by the arrow 2 of illustration 2)
3) Insert the Connecting Bolt of the Handle into the two holes of the Handle Holder with the help of Six angle Screwdriver. (as showing by the arrow 1 of illustration 2)
4) Fix the cover of top bolts to the right position. (as showing by the arrow 2 of illustration 2)
5) When you are disassembling the Refrigerator door handle, please operate as the opposite way of assembling.

Attention:

In case of no any special need, please do not disassemble the Refrigerator door handle, In case of any need to change the handle, please get in touch with the technicians

Assembly of the Freezer Door Handle

Please following the below operations when you are assembling the Freezer Door Handle:

1) Put the Handle Connector into the right holes on the Freezer Door with the help of screwdriver. (as showing by the arrow 1 of illustration 1)
2) Put the Freezer Door Handle onto the handle holder, and keep the hole of the handle holder and the handle connector to the right position of the vertical direction. (as showing by the arrow 2 of illustration 2)
3) Insert the Connecting Bolt of the Handle into the two holes of the Handle Holder with the help of Six angle Screwdriver. (as showing by the arrow 1 of illustration 2)
4) When you are disassembling the Freezer door handle, please operate as the opposite way of assembling.

Attention:

In case of no any special need, please do not disassemble the Freezer door handle, In case of any need to change the handle, please get in touch with the technicians

Preparation

Installing the wine shelf

Open the door of the refrigerator compartment. Take out the food shelf in the upper left corner. Place the glass shelf downwards on a table. Then take out the wine shelf from the delicatessen drawer at the bottom. Hold the wine shelf on both ends, attach it to the food shelf (as shown below in Fig 1) and then push it in place (as shown below in Fig 3).

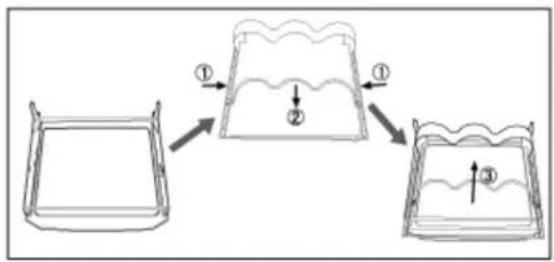

Installing the front cover of the chill compartment

Open the door of the refrigerator compartment. Remove the front cover of the chili compartment from the crisper cover. Then place the rotary shaft at the two ends of the chili compartment into the supporting slot of the stele guide, and turn the front cover of chili compartment downwards.

Initial Use

Connect the appliance to the power supply.

The actual refrigerator and the freezer temperatures are shown.

The appliance has a backup memory, storing the settings prior to a power interruption. (See Backup Memory section on Page 17 for details)

Operation Modes

Recommendation!

Once the AI mode is selected there is no need to make any adjustment within a prescribed temperature range, regardless of changes in ambient temperature.

You can select one of the following operation modes.

(1) AI: Unless otherwise required, it is recommended that the AI mode is used. Tap the AI button and the indicator will illuminate. The appliance will start an automatic operation. (See the AI Mode section on Page 14)

(2) Manual: Alternatively, you can adjust the inner temperature by means of the temperature control button. (See the Temperature Setting & Regulation section on Page 16)

Loading the refrigerator

The inner compartment will be cold enough and ready for food storage after a couple of hours of non-load operation.

NOTE

When the temperature setting is adjusted, it takes some time for the desired inner temperature to be reached. The period will be longer or shorter depending on the ambient temperature, the amount of food in storage and how often the door is opened.

Initial Use

Loading the refrigerator

The inner compartment will be cold enough and ready for food storage after a couple of hours of non-load operation.

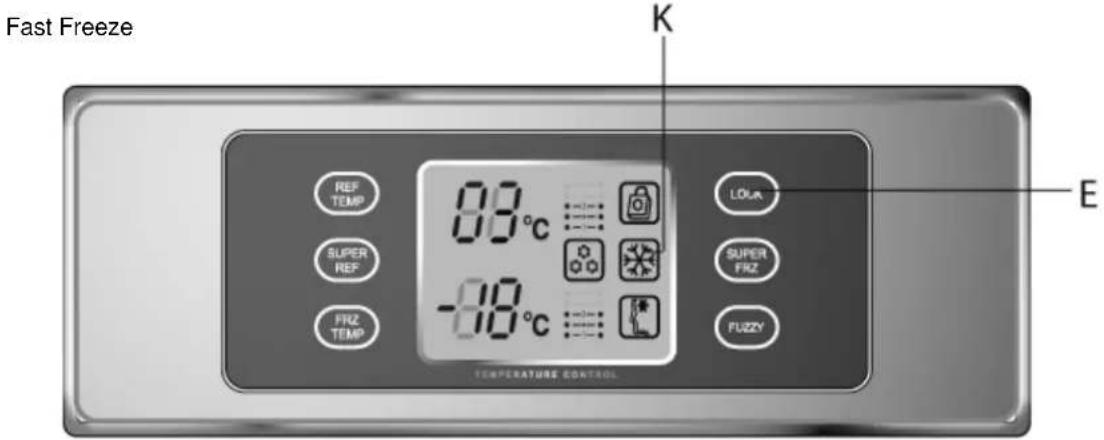

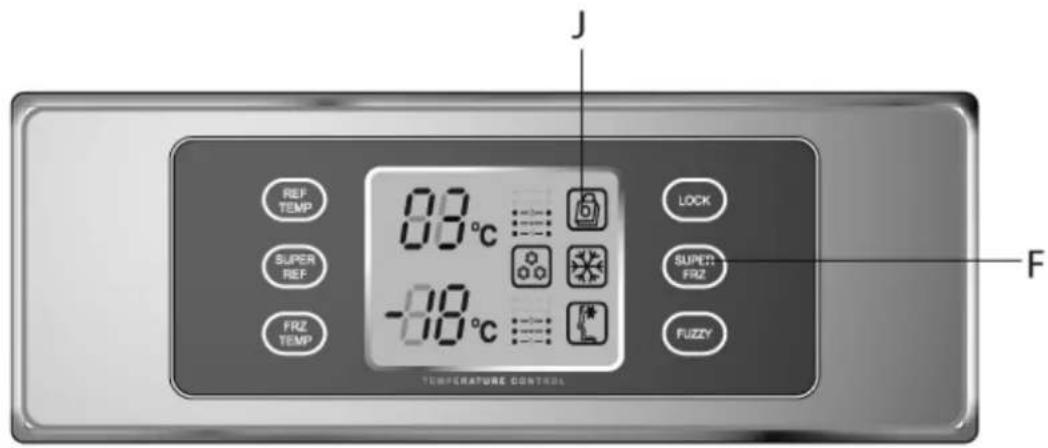

A Refrigerator temperature control button G Refrigerator temperature display
B Fast chill button H Freezer temperature display
C Freezer temperature control button I Fast chili icon
D AI button J Lock icon
E Fast freeze button K Fast freeze icon
F Lock / unlock button L AI icon

AI Mode

The AI mode means there is no need for manual intervention and the temperature setting will change automatically along with the ambient temperature and the inner temperature. In Unlock mode, the AI button (D) may be tapped to display the AI icon (L) and activate the AI mode. To quit the AI mode, tap the AI button (D) again. The AI icon (L) will disappear.

Fault Display

When a control or function fault is detected, the refrigerator temperature and the freezer temperature will disappear and the fault codes will be displayed, i.e. EO, E1, E2, F1, F2, F3, F5, etc.

Functions

Lock & Unlock

In Unlock mode, the Lock / Unlock button (F) may be tapped to display the Lock icon (J) and enter into the Lock mode. To quit the Lock mode, tap the Lock / Unlock button (F) again. The Lock icon (J) will disappear. NOTE: Controls for selecting temperatures in the refrigerator and freezer compartments and functions such as fast freeze, fast chill and AI (artificial intelligence) cannot be operated in Lock mode.

This function is designed to preserve the nutrients contained in food stored in the freezer, by freezing the food fully within a short period of time. In Unlock mode, the Fast Freeze button (E) may be tapped to display the Fast Free icon (K) and activate the Fast Freeze mode. The Fast Freeze mode is activated and will be stopped automatically after 3 hours. To quit the Fast Freeze mode, tap the Fast Freeze button (E) again. The Fast Freeze icon (K) will disappear. NOTE: The Fast Freeze mode is not available in AI mode. NOTE: When making ice, you may select Fast Freeze to speed up the ice-making process and quit Fast Freeze after the ice-making process is completed.

Functions

(6)

This function is designed to preserve the nutrients contained in food stored in the refrigerator, by chilling the food to the desired temperature within a short period of time.

In Unlock mode, the Fast Chill button (B) may be tapped to display the Fast Chill icon (I) and activate the Fast Chill mode. The Fast Chill mode will be stopped automatically after 3 hours.

To quit the Fast Chill mode, tap the Fast Chill button (B) again. The Fast Chill icon (I) will disappear.

(7)

Temperature Setting & Regulation

Temperature setting & regulation: This function is available only when the AI mode is deactivated. The following instructions should be observed.

To set the refrigerator temperature: In Unlock mode (the display screen is on), the refrigerator temperature control button (A) may be tapped. The refrigerator temperature display (G) will illuminate. Each time the refrigerator temperature control button (A) is tapped, the display sequence is as follows:

7°C - 5°C - 3°C - 2°C - 1°C - 7°C

Functions

To set the freezer temperature: In Unlock mode (the display screen is on), the freezer temperature control button (C) may be tapped. The freezer temperature display (H) will illuminate. Each time the freezer temperature control button (C) is tapped, the display sequence is as follows: -16°C -- -17°C -- -18°C -- -20°C -- -22°C -- -16°C

Door-open Alarm

When the door is kept open or not properly closed, an audible alarm will be given until the door is closed.

Economic Display Control

The display screen will go dark 30 seconds after the operation of the control panel is finished. The display is restored when any control button is tapped or any door is opened. This button operation will not change the present refrigerator setting.

Refrigerator On / Off Control

In Lock mode, hold the refrigerator temperature control button (A) 3 seconds to turn off the refrigerator. The refrigerator temperature display (G) will disappear while the refrigerator light will remain functional. Press the refrigerator temperature control button (A) for 3 seconds to turn on the refrigerator. The refrigerator temperature display (G) will illuminate and the normal operation of the refrigerator compartment will be resumed.

Backup Memory

The temperature settings will be memorized and, in the event of a power interruption, these will be restored once power is restored.

Refrigerator storage compartment

The refrigerator can be used for short-term food storage.

The average temperature of the compartment is generally maintained within 0-10°C (-2-3°C for the chill compartment). Therefore it is only used for short-term food storage and is not suitable for storing fresh food for long periods of time.

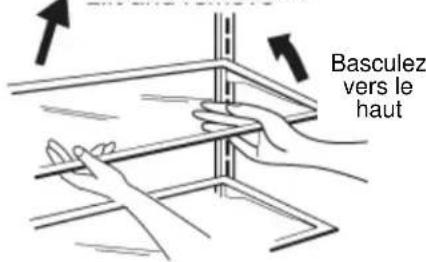

Height-adjustable shelf

The height of the shelf can be adjusted to meet your storage needs. To adjust the shelf height, remove the shelf first. The steps are as follows: tilt the shelf upwards at the front, and lift it up and out of the tracks. To replace the shelf, with the shelf front raised slightly, engage the lugs in the tracks. Then lower the shelf front until it locks into position.

NOTE

Make sure the shelf is installed securely and level, to prevent the shelf from falling or food from spilling.

How to User the Crisper

The appliance is equipped with a crisper for vegetable and fruit storage. You can set the humidity to meet your storage needs.

Turn up the humidity regulator (located in the upper right hand corner of the crisper) to increase the humidity, suitable for the storage of cucumbers, grapes, kiwis, persimmons, etc.
Turn down the humidity regulator (located in the upper right hand corner of the crisper) to reduce the humidity, suitable for the storage of strawberries, oranges, beans, garlic, watermelons, plums, tomatoes, etc.

Removing the Crisper Cover

Take the crisper out. Lift up the cover end (1) and remove it (2).

Lift and remove

To remove

Engage the lugs
To replace

Up

Refrigerator storage compartment

How to Use the Chill compartment.

The appliance is equipped with a delicatessen drawer with a temperature range from -2°C\~+3°C. The temperature can be adjusted by the air control knob to meet your storage needs.

Turn the air control knob leftwards (weak) to reduce the cool air moving in the chill compartment and maintain a higher temperature.

Turn the air control knob rightwards (strong) to increase the cool air moving in the chill compartment and maintain a lower temperature.

Cleaning the door bin

Lift the bin up (1) and pull it towards you (2). Replace the bin in the reverse sequence alter cleaning.

Food Arrangement

As a result of air circulation in the refrigeration compartment, some areas are warmer and the others colder. Foods should be organized accordingly.

① Egg, butter, cheese, etc.
② Pop cans, canned food, condiments, etc.
③ Beverages, bottled food, etc.
④ Pickles, canned food, etc.
⑤ Sausages, snacks, etc.
⑥ Pastries, canned food, milk, tofu, etc.
⑦ Fruit, vegetable, salad, etc.
⑧ Delis, sausages, etc.

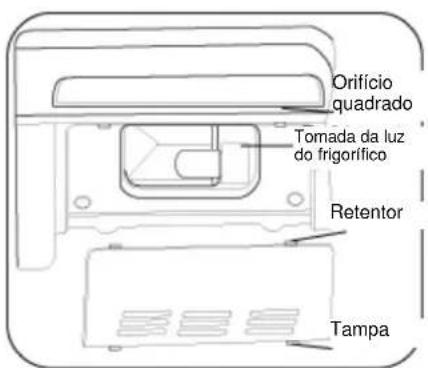

Replacing the Light Bulb

Bulb specifications: 220V-, 25W Socket: E14 (DO NOT use a bulb over 25W)

Unplug the appliance.

① To remove the lampshade, press the stopper at the rear through the square hole,
② Pull the lampshade backwards until the retainer is separated from the square hole.

Turn the bulb anticlockwise and pull outwards. Replace a bulb of the same specifications in the reverse sequence.

● To replace the lampshade: engage the retainer in the square hole and press the back of the lampshade forwards until the stopper is locked in the square hole.

Light bulb

Refrigerating storage precautions

When loading or unloading the dairy bin, open and close same as illustrated below.		Allow warm foods to cool down before putting them into the refrigerator.
Make sure food is clean and any drips of water are wiped away before storing.		Wrap or cover food before storing.This will help prevent the loss of water contents, keep fruit and vegetables fresh, and avoid any unpleasant odors.
Sorting before storageSort the foods by category. Place foods to be used up soon at the front of the shelf so as to avoid food deterioration as a result of frequent and prolonged door openings.		Do not overfill your refrigerator.Leave enough space between foods stored in the refrigerator to keep good air-circulation for better refrigeration.

NOTE

Greasy foods may gradually cause corrosion of lining materials. Keep them away from the walls of the inner compartment. Keep the inner compartment clean and free of oil stains.

Useful Tips

Remove leaves of carrots and radishes before adding them to the refrigerator, to prevent loss of nutrients.

Foods which preserve their freshness at room temperature, such as onions, garlic and other roots, need not be stored in the refrigerator.

Thaw frozen food in the refrigerator compartment; this will help the cooling performance of the refrigerator compartment and save energy.

Fruits such as rice melon, Chinese quince, sweet melon, banana and pineapple ripen faster at lower temperatures, as as a result are not suitable for refrigerated storage unless you need them to ripen sooner.

Freezer Storage Compartment

The Freezer is intended for long-term food storage. The temperature in the freezer is very low, making it ideal for the storage of frozen food. Freeze food that you expect to keep stored in the freezer for a longer period of time; however, but the expiry date indicated on the packing should be observed.

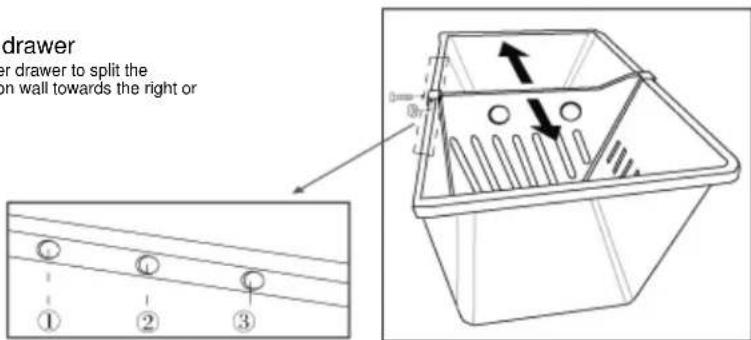

Adjustable partition of the freezer drawer

A movable partition wall is provided in the freezer drawer to split the drawer into two parts. You may move the partition wall towards the right or left to meet your storage needs.

Freezer Storage Compartment

Ice Cream Bin

An ice cream bin is provided to hold ice cream or similar items to be stored at low temperatures. How to use the ice cream bin

● To take out the ice cream bin, take the handle and pull it towards you.
● To clean the ice cream bin, follow these instructions:

① Pull the ice cream bin out to the stop position.
② Lift the ice cream bin up (in the direction indicated by Arrow 1) and remove it from the refrigerator (in the direction indicated by Arrow 2).
③ Replace the ice cream bin alter cleaning in the reverse sequence.

Ice-making

Pour water into the icemaker to 3/4 of its capacity and then place it in the freezer.
● To obtain ice cubes, turn the knobs on the icemaker and the ice cubes will be collected in the ice storage bin.
● The ice cubes in the ice storage bin are ready for use.
- Whenever necessary, the semi-automatic icemaker can be taken out and the ice storage bin can be used to store more food.

(Fig 1)

(Fig 2)

Limit of water level

● Replacing the Light Bulb

Bulb specifications: 220V-, 25W

Socket: E14 (DO NOT use a bulb over 25W)

To replace the light bulb:

● Unplug the appliance.

① Remove the front screw using a screwdriver.

② To remove the lampshade, press the stopper at the front through the square hole.

③ Pull the lampshade forwards until the retainer is separated from the square hole.

- Turn the bulb anticlockwise and outwards. Replace a bulb of the same specifications in the reverse sequence.

To replace the lampshade: engage the retainer in the square hole and press the lampshade front backwards until the stopper is locked in the square hole. Replace and tighten the screw.

Freezer light bulb

Freezer Storage Precautions

Allow warm foods to cool down before putting them into the freezer.

Store food in small packages. This will make it easier to freeze the food fully and provide better quality when the food is thawed. Each package should not exceed 2.5kg.

Wrap food before storing. Make sure the wrappings are dry to prevent them from sticking to each other. The wrapping materials used should be odorless, airtight, leak-proof, nontoxic and environmentally-friendly, to prevent unpleasant odors or food deterioration.

The food packages should indicate information such as the food type contained, the date of storage and the expiry date.

Once thawed, food cannot be returned to the freezer unless it has been cooked. Thaw out frozen food according to actual needs.

Do not put too much fresh food in your freezer. The freezing capacity indicated in the Technical Data sheet must be observed.

Defrosting · Cleaning

Defrosting the Freezer Compartment

The defrost cycle of the freezer compartment is automatic and no manual operation is needed.

Cleaning

Clean the inner compartments to get rid of food residues and eliminate unpleasant odors.

● Unplug the appliance before cleaning.
- Use a cloth or sponge to wash the inner compartments with lukewarm water and a mild detergent.
● Dry the external surface with a dry cloth.

NOTE

① The appliance is heavy. Protect flooring when the appliance has to be moved for cleaning and servicing.
② Do not splash water on the appliance to protect the electric insulation.
③ To clean electric components such as switches and illuminators, make sure the appliance is not connected before cleaning with a dry cloth.
④ When cleaning, do not use a sharp or pointed brush, hard cleansers, organic solvents (e.g. gasoline, amyl acetate or acetone), boiled water, acid or alkali.
⑤ Do not touch the cold metal surface with wet hands.
⑥ When cleaning, do not use hot water to clean the glass shelves as these may brake from thermal shock and risk causing injury and property loss.
⑦ Clean the door seal from time to time.
⑧ Never use amyl acetate to remove unpleasant odors as this would be a fire hazard.
⑨ Only detergents intended for refrigerators should be used in cleaning.

Vacation

Power failure

Food can be stored for several hours in the event of power failure, even in summer.

• Do not add foods in the appliance and keep the doors closed as far as possible when there is a power failure.
• If a power failure is announced beforehand, make some extra ice cubes and hold them in a leak-proof container. Place the container on the top shelf in the refrigerator compartment.

NOTE

A temperature rise in the freezer due to power interruption or other faults may shorten the shelf life of products stored within and have an adverse effect on food quality.

Ceased operation

Please unplug the appliance and clean it as described above if the appliance is not to be used for a long period of time.

Keep the door open to prevent unpleasant odors caused by food residues.

NOTE

To ensure a long service life, do not stop the appliance frequently.

NOTE

After unplugging the appliance, wait at least 5 minutes before re-connecting it to the power supply.

Vacation

When leaving on vacation

If you are leaving for a long vacation, it's necessary to shut off the power, take out all of the food, and defrost and clean the appliance. Dry the appliance and leave the door open to prevent odors

WARNING

Discarded appliances must be disposed of professionally to avoid undesired impacts on the environment or other hazards.

When moving your refrigerator

● Unplug the appliance before transportation.
Take out foods from the appliance.
Fix the refrigerator shelves, the crisper and the freezer shelves in position with adhesive tapes.
- Keep the door closed during transportation with adhesive tapes.
- When moving the refrigerator, do not tilt it by more than 45 degrees to prevent the malfunction of the refrigeration system.

NOTE

Never place the refrigerator horizontally.

Troubleshooting Tips

When the refrigerator is first plugged in, the compressor operates for long periods or switches on and off frequently. In this case, it will take a longer time for the inner temperature to reach the desired value.	The refrigerator makes a humming noise when first plugged in or started up. This sound will fade away when the refrigerator is in stable operation.
The external surface of the refrigerator will be warm, especially when first plugged in, as a result of its anti-sweat design.	The compressor may produce a humming sound during operation and a clicking sound upon starting and stopping.
The flow of the refrigerant through the refrigeration coils may make a babbling noise. This noise is usually produced by the evaporator and compressor. When the compressor comes to a stop, the refrigerant backflow of will make a noise like running water, either from time to time or continuously.	Water dropping onto the defrost heater can cause a sizzling or buzzing sound during a defrost cycle. At the end of a defrost cycle, a slight popping sound may be heard, and the evaporator may make a gurgling noise like that of boiling water.

Troubleshooting Tips

The fan makes a spinning noise during operation.	Expansion and contraction of the evaporator and refrigerating coils due to temperature changes can cause a cracking or popping sound.
Moisture may form on the outside of the refrigerator and between the doors during periods of high humidity.	The rated power consumption specified in the Technical Data sheet is measured during a period of 24 hours under stable operation at an ambient temperature of 25°C, with the refrigerator and freezer maintained at 5°C and -18°C respectively. The actual power consumption depends on the amount of fresh food stored in the refrigerator.

After-Sale Service

When calling for service, provide the model name, the list of accessories and the series number (stated on the product nameplate).

Before calling for services, check the following points to see if you can solve the problems yourself.

The refrigerator does not work.

The refrigerator is not connected to the power supply (plug, outlet and fuse) or the power control is set to OFF.

Voltage is too low.

The interior light does not

The light bulb has fused.

The refrigerator is not connected to the power supply.

Unusual noise

The refrigerator is not level.

The refrigerator rubs against the wall or furniture.

The compartments are warmer than expected.

The door is not closed properly, opened frequently or kept open too long.

The temperature is set to a warmer setting. (See the Functions section from Page 14 to Page 17.)

The appliance is exposed to direct sunshine or placed near a stove or radiator.

Poor ventilation. Check if the heat radiation unit on the rear is blocked.

After-Sale Service

Before calling for services, check the following points to see if you can solve the problems yourself.

The compressor operates for long periods or switches on and off frequently.

● This is normal when refrigerators are first plugged in.
● A large amount of food is placed in the refrigerator for storage or freezing.
The door has been left open or is held open by food.
● The door is opened frequently.
It is hot weather.
● The temperature is set to a warmer setting. See the Initial Use section.
Poor ventilation

Frost or ice crystals form on food. Unpleasant odor

● Frost within packages is normal.
● The door has been left open or is held open by food.
● The door is opened frequently or kept open too long.
● Food is placed near the vent.

● Food with strong odors should be tightly wrapped.
● Food has deteriorated.
● The compartments need cleaning.

Technical Data • Circuit Diagram • Packing List

Technical Data

Model	HB21T/HB21TNN		Total input power	180W
Star mark Defrost input power				280W
Climate type Rated power consumption				1.38kW·h/24h
Protection class Refrigerant				R134a 170g
Total storage volume	555L	Freezing capacity		10kg/24h
Freezer storage volume	158L	Weight		130kg
Rated voltage	220V-240V~	Overall dimensions (DxWxH)		770 ×910×1770
Rated frequency	50Hz	Type of cord connection		Y

NOTE: According to GB standards, the range of ambient temperature should be from 10° C to 38° C for the climate type SN/N/ST.

Technical Data • Circuit Diagram • Packing List

Packing List

Model\Name Quantity	Upr Manual	Leg	Bottom trim	Handle	Ice cream bin	Freezer divider	Freezer drawer	Ice storage bin	Icemaker Semi-automatic	Wine shelf	Movable shelf	Refrigerator shelf	Chill compartment	Crisper cover	Crisper	Dairy bin	Gallon bin	Handle fastener	Front cover of chill compartment
HB21T/HB21TNN	1	2	1	3	1	2	1	1	1	1	2	2	1	1	2	2	4	6	1

REMARQUE

⑤

REMARQUE

Préparation

Préparation

Repos

Préparation

Préparation

REMARQUE

Soulevez et enlevez

(Fig 2)

REMARQUE

REMARQUE

REMARQUE

REMARQUE

Service après-vente

Aufstellung

Nivellieren

ACHTUNG

ACHTUNG

Vorbereitung

Betrieb

ACHTUNG

Kühlfach

Gefrierfach

(Fig 2)

Wasserstandobergrenze

ACHTUNG

ACHTUNG

ACHTUNG

Installazione

Allineamento

④ Se necessario, rimuovere la cerniera intermedia.

NOTA

NOTA

Giù

(Fig 2)

NOTA

NOTA

NOTA

NOTA

③

⑤

Preparación

Preparación

Uso inicial

NOTA

Levante y extraiga

Compartimento congelador

(Fig 2)

NOTA

NOTA

NOTA

ADVERTENCIA

NOTA

Local

Nivelamento

Remover e recolocar a porta

NOTA

③

⑤

Preparação

Preparação

5 Suspensão

6 Instalar o acabamento inferior

Preparação

Utilização inicial

NOTA

Acerca do compartimento do frigorífico

(Fig 2)

Limit of water level

NOTA

NOTA

NOTA

NOTA
