NFR52NTX - Refrigerator NARDI - Free user manual and instructions

Product type	Combined refrigerator freezer
Brand	Nardi
Model	NFR52NTX
Dimensions (H x W x D)	180 x 60 x 65 cm
Net weight	65 kg
Power supply	220-240 V ~ 50 Hz
Energy efficiency class	A+
Net refrigerator capacity	250 L
Net freezer capacity	90 L
Power failure autonomy	15 hours
Freezing capacity	4 kg/24h
Climate class	N-ST (16°C to 38°C)
Noise level	42 dB(A)
Interior lighting	LED
Defrosting	Automatic (refrigerator), manual (freezer)
Reversible door	Yes
Temperature control	Electronic
Holiday function	No
Maintenance and cleaning	Unplug before cleaning; use a soft cloth and soapy water; do not use abrasive products
Safety	Open door alarm; child safety (depending on model)
Spare parts and repairability	Parts available through after-sales service; repairability index estimated at 7/10

Frequently Asked Questions - NFR52NTX NARDI

What is the ideal temperature for the refrigerator?

The recommended temperature for the refrigerator is +4°C. For the freezer, set to -18°C for optimal storage.

How do I adjust the temperature of my Nardi NFR52NTX refrigerator?

Use the dial or control panel inside the refrigerator. Turn the dial to a higher number for more cold. Consult the manual for precise settings.

My refrigerator is making noise, is this normal?

Yes, operating sounds (humming, clicking) are normal. If the noise is excessive, check that the appliance is level and not touching furniture.

How do I defrost the freezer?

Unplug the appliance, remove food, leave the door open to melt the ice. Never scrape ice with a sharp object. Wipe afterwards.

The door of my refrigerator does not close properly, what should I do?

Check that the appliance is level (adjust the feet), nothing is blocking the door, and the seals are clean and intact. If necessary, replace the seals.

Can I reverse the door opening direction?

Yes, the door is reversible. Consult the manual for instructions on disassembly and reassembly of the door on the other side.

How long do foods stay frozen in case of a power outage?

The autonomy is about 15 hours if the door is closed. Avoid opening the freezer during the outage.

How do I clean the inside of the refrigerator?

Unplug the appliance, remove the shelves and bins, wash with a soft cloth and soapy water. Rinse and dry. Do not use abrasive cleaners.

Where can I find spare parts for my Nardi refrigerator?

Contact Nardi after-sales service or an authorized dealer. Parts such as seals, shelves, or thermostats are available.

What to do if an alarm indicator lights up?

The open door alarm is triggered if the door remains open too long. Close the door. If the alarm persists, check the temperature and contact after-sales service.

USER MANUAL NFR52NTX NARDI

Household Refrigerator/Freezer

Operation Manual

NFR52NTX

Primary features

1. Efficient ice making

A semi-automatic icemaker is installed in the freezer compartment and ice cubes can be made efficiently.

2. Unique chiller compartment design

A chiller drawer is located on the top of the refrigerator compartment.

3. Automatic defrosting

This appliance features an air-cooling system for automatic defrosting.

4. Unique external layout

The streamlined external layout of the refrigerator features rounded doors.

5. Built-in cooling system

Simple rear design with built-in condenser and compressor.

6. Multiple venting system for efficient cooling

Multiple vents are designed in the air circulation channels for efficient distribution of coldness in each compartment.

7. Separate control for refrigerating and freezing controls

The refrigerating and freezing compartments are controlled separately to optimize cooling and economic efficiency.

Diagram of parts

WARNING The plug should be accessible after the appliance has been positioned. In order to avoid danger, if the supply cord is damaged it must be replaced by the manufacturer, its service agent or a similarly qualified person.

WARNING The appliance is not intended for use by young children or infirm persons without supervision.

WARNING Young children should be supervised to ensure that they do not play with the appliance. WARNING Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

WARNING Do not use mechanical devices or other means other than those recommended by the manufacturer, to accelerate the defrosting process.

WARNING Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).

WARNING Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

Safety precautions

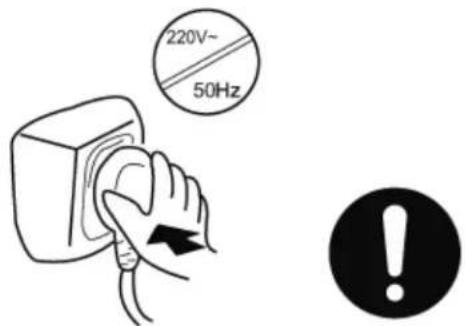

This refrigerator requires a 220V/50Hz supplyFailure in operation and damage to the control panel, thermostat or the compressor will occur if voltage is outside the range 187-242V, unless a regulator with a capacity of 750W or higher is installed.	A separate earthed socket is required.The refrigerator is supplied with a standard three-pin plug, of which the one for grounding should never be removed. The plug of the installed refrigerator must always be accessible.
Care for the external cable* Hold the plug, not the electric cable, when unplugging the refrigerator.* Ensure that the electric cable is not trapped by the refrigerator. Do not step on the cable.Avoid damage to the electric cable when moving the refrigerator	Damaged electric cableWhen the electric cable is damaged or worn, turn off the refrigerator and consult an authorized service agent for replacement.
Inflammable gas leakage in the vicinity of the refrigerator* Turn off any leaking valve;* Open the doors and windows;* Do not, under any circumstance, unplug electrical appliances in the vicinity of the leak.	Unplug the refrigerator in the following cases:* Cleaning or maintenance*Lamp replacement

Safety precautions

Never store inflammable, explosive or corrosive materials in the refrigerator.	This refrigerator should be used for food storage. It is not recommended for microbiological or chemical materials, which have special temperature requirements.
Do not install the refrigerator near gasoline or other inflammable articles.	Do not place electrical plugs, regulators or microwaves on top of the refrigerator. Do not use electric appliances (except those allowed by the manufacturer) inside the refrigerator.
Do not swing on or apply excessive pressure to the refrigerator door.	Do not place heavy or unstable articles or water containers on top of the refrigerator.

Safety precautions

Avoid prolonged contact with the food in the freezer compartment when the refrigerator is operational, especially with wet hands. Hands may freeze onto the surface of the frozen food.	Do not spray or splash the refrigerator when cleaning same, nor place the refrigerator in a damp area.
Disassembly, renovation or maintenance of the cooling system must be authorized.	Never store bottled beer or beverages in the freezer compartment.
Unplug the refrigerator in the event of a power interruption or during cleaning. Allow at least a 5 minute lapse before restarting the refrigerator.[IMAGE]	Remove the refrigerator door and door gasket if the refrigerator is discarded, to prevent it becoming accidentally trapped in the refrigerator.

Location

The refrigerator should be placed on a flat and solid surface. If the refrigerator is to be leveled, a flat, strong and fire-resistant material must be used. The foot of the refrigerator can be adjusted clockwise or anti-clockwise using a 22 mm spanner to lift or lower the refrigerator if it is placed on an uneven surface.

The refrigerator must be placed away from heat sources or direct sunlight.

Illustration of a refrigerator with hands reacting to heat and a fire extinguisher, accompanied by a warning symbol (no text or labels)

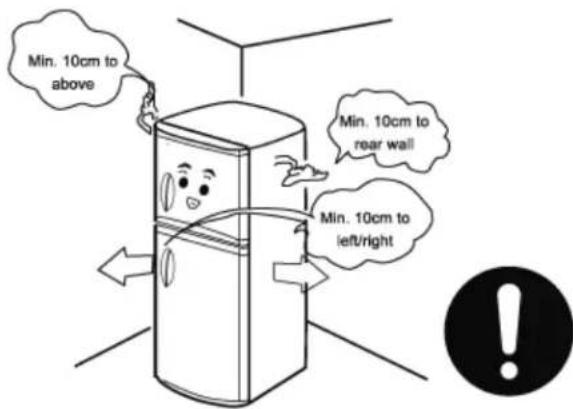

The refrigerator must be placed in a well-ventilated area, and a space of 10 cm or more should be allowed for around the refrigerator.

Never place the refrigerator near a water source. Clean and dry any water splashes and stains with a soft cloth.

Illustration of a hand washing a refrigerator with a water bottle nearby, next to an exclamation mark (no text or symbols on main elements)

Never place the refrigerator in an area with an ambient temperature below zero. Never operate the refrigerator outdoor or in the rain.

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Preparation

1. Unpacking

Remove all packing materials.

2. Check attached accessories and materials.

Check if all accessories specified in the Packing List are available. Contact the local distributor if any accessories are missing.

1. Ensure that the refrigerator is properly located. (See section "Location")

4. Clean the refrigerator before use.

(See section "Cleaning")

5. Time lapse before power supply

Connect the refrigerator to the power supply at least 30 minutes after the refrigerator is sited and cleaned.

Illustration of a person lifting a cardboard box next to a smiling refrigerator and a laptop (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Caution: After unpacking, write down the model and manufacture number of the refrigerator on the Warranty Certificate, which will be required if technical services are applied for.

Operation

①

Connection to the power supply

2

Temperature setting and adjusting

\* Adjusting freezing temperature

The temperature in the freezer compartment can be adjusted by setting the thermostat to the following positions on the dial: Position Min for higher temperature value and position Max for lower temperature value in the compartment. The thermostat can be set to the desired temperature degrees as indicated in the table below.

\* Adjusting refrigerating temperature

The temperature in the refrigerator compartment can be adjusted by setting the thermostat to the following positions on the dial: Position Min for higher and position Max for lower temperature values in the compartment (See table 1). The ambient temperature of the refrigerator should not be below 0°C.

Table 1

Position	Ambient Temperature
Min.	≥slant 32^
Mid.	16^ 32^
Max.	≤slant 16^

③

Loading the refrigerator with food

Load the refrigerator with food when the set temperature of the refrigerator compartments has been reached.

Illustration of a woman holding a plate of food next to a smiling refrigerator (no text or symbols)

Caution: Some time will be required for the refrigerator to reach the set level when the temperature is adjusted. The length of this period depends on the difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed, and the amount of food in storage.

Refrigerating storage compartment

The refrigerator is for short-term food storage or for daily consumption.

Although the temperature in most areas in the refrigeration compartment can be regulated between 0^ C and 10^ C, extended periods of food storage are not recommended. The refrigerator should only be used for short-term storage.

Line drawing of various vegetables including tomatoes, lettuce, and peaches (no text or labels)

Storage areas

As cold air circulates inside the refrigerator, temperature differences exist inside the storage compartments. Area 6 is the coldest. Different foods should be placed in different areas according to their properties.

1. Eggs and butter
2. Canned food and seasoning
3. Beverages and bottled food
4. Pickled and canned food
5. Wheaten food, canned food, milk and tofu
6. Cooked meat and sausages
7. Fruit, vegetables and salad

Caution: Ensure that the door of the chiller compartment is closed before closing the refrigerator door.

Lamp and lamp replacement

Lamp: 220-240V-, 15W

Lamp holder: E14 (lamps exceeding 15W must not be used)

When replacing the lamp (upper figure: freezer lamp; lower figure: refrigerator lamp):

1. Unplug the appliance.
2. Remove the food shelf in front of the lamp.
3. Remove the lampshade in the frozen food storage compartment: put your forefinger into the hole and press downwards to remove the lampshade.

Remove the lampshade in the unfrozen food storage compartment: remove the lampshade in the direction of the arrowhead.

1. Rotate the lamp anticlockwise to remove and clockwise to install same.
2. When replacing the lampshade, ensure that all the lampshade lugs are settled into the lamp holder slots.

Refrigerating storage compartment

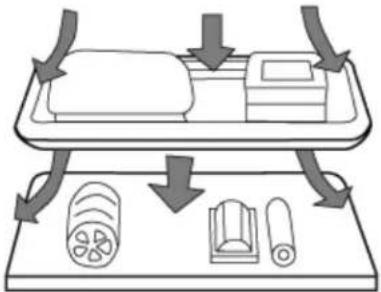

Hot food must be cooled to room temperature before storing in the refrigerator.	Dry any water droplets on the food before placing it in the refrigerator.

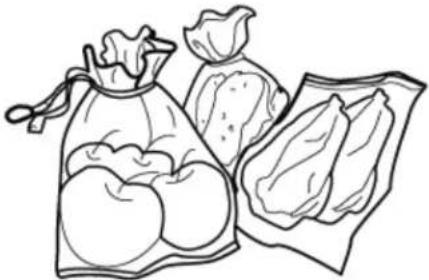

Food should be properly sealed before storage.This will prevent moisture in the food from evaporating and prevent vegetables and fruit from tainting in flavor.	Storage of sorted foodFood to be stored should be sorted according to consumer requirements. Food consumed daily should be placed in the most convenient area; this will minimize door opening periods.
Do not store excess quantities or weights of foodFor better storage results, do not amass food. Never overload shelves, as they may collapse under excessive loads.	Do not place food too close to the internal wallsFood with high moisture content should not be placed dose to the walls of the inner liner. Maintain a minimum distance to prevent food from freezing to the

Suggestions

The storage period will be extended if vegetables are placed with their roots towards the cold source.	Carrot or turnip leaves should be removed before storage.
Eggs should be stored vertically in the egg holder.	Frozen food can be placed in the cold compartment before serving, as this will conserve energy.
Onions, garlic, ginger, water chestnuts and other root vegetables should not be stored in the refrigerator, as these foods are suitable for long-term storage at normal temperatures.	Ripe squash, melon, pawpaw, bananas and pineapples should not be stored in the refrigerator. Freezing will accelerate the ripening process.

Freezing storage precautions

Long-term food storage

As the freezer storage temperature is very low, fresh food can be stored in the freezer compartment for a long time. Food requiring long-term storage can be stored in the frozen food compartment. Attention should be paid to the storage information printed on the food packing.

Suggested storage periods are as follows:

Food	Edibility (Month)	Maximum (Month)
Chicken, beef, mutton and shrimps	4	9
Dumplings, ribs and ice-creams	4	6
Cakes, breads, sliced meat and cheese	2	6
Seafood, sausages and ice-creams	1	3

The storage period is subject to the detailed information provided on the food packaging, the specific food properties and special requirements

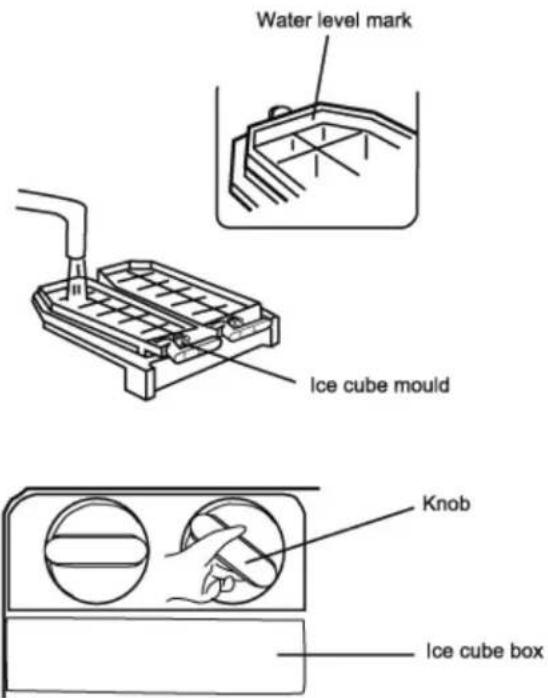

Making ice cubes

* Remove the ice moulds
* Pour water into the ice cube mould (Do not pour water over the water level mark, or ice cubes will be difficult to remove.)
* Place the ice cube mould back into the freezer compartment.
* Turn the knob on the front side of the icemaker clockwise; the ice cubes will drop onto the ice cube tray.
* Slightly tilt the front side of the ice cube tray when removing it from the refrigerator.

Caution: The ice cube box must not be used to make or store ice cubes of other liquids, as this may result in cracking.

Freezing storage precautions

Hot food should not be stored in the refrigerator until it has cooled down to room temperature.	Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg.
The outside of any food packing should be dried before storage in the freezer, and any packing materials should be odor-free, airtight, non-poisonous and nontoxic.	Food should be stored in accordance with any information printed on the packing.
Only remove the required amount of food from the refrigerator. Defrosted food cannot be re-stored in the freezer unless it is first cooked.	Do not load excessive quantities of food. The quantity of food in storage must comply with the cooling capacity of the refrigerator (See section "Technical Information").

Defrosting

Automatic defrosting

This refrigerator is equipped with an automatic defrosting system.

Cleaning

The refrigerator should be cleaned regularly to prevent the formation of bad odors.

* Disconnect the power before cleaning the refrigerator.

* Clean the refrigerator with a soft cloth or sponge using a mild detergent

Illustration of a refrigerator with steam rising, accompanied by a bottle labeled 'Auto' and a bag labeled 'Outergent', no text or symbols present.

Caution: Do not use a hard brush, steel brush, detergent, gasoline (or other solvents), hot water, acid or alkali for cleaning.

* Dry water droplets on the refrigerator surface with a cloth.

Caution: Do not use excessive amounts of water for cleaning the refrigerator. Use a dry cloth to clean the switch and the lamp.

* Regularly clean the surfaces of the external shell to improve the heat elimination efficiency.

* Always keep the door gasket clean

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Vacation

Power interruption

Even in summer, food can be stored in the refrigerator for a few hours after a power interruption.

* Don't load food into the refrigerator during a power interruption and try to open the door as infrequently as possible.
* If prior notice of a power interruption is given, make some ice and put it in a container at the top of the refrigeration compartment.

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Caution: Temperature in the refrigerator will rise as a result of a power interruption or technical problem, and the storage period will be reduced.

Ceased operation

If the refrigerator is to be switched off for an extended period, unplug the refrigerator and clean same as previously described.

Keep the door of the refrigerator open when the power is turned off to prevent any food remaining in the compartment from producing bad odors.

Simple line drawing of a refrigerator with a smiling face and smoke bubbles (no text or symbols)

Caution: It is recommended that the refrigerator not be turned off unless it is necessary.

Caution: Do not restart the refrigerator until a period of at least five minutes has elapsed.

Vacation

Before leaving on vacation

* Remove the food from the refrigerator if the vacation is short. Turn the temperature selection knob to the proper position, and make sure that the door of the refrigerator is properly closed.
* If the vacation is long, take the food out of the refrigerator and disconnect the power. Wait until the frost inside melts, then clean and dry the compartment. Leave the door open to prevent the formation of bad odors.

Moving the refrigerator

* Unplug the refrigerator.
* Remove all the food.
* Secure the shelves in the cold storage compartment, as well as the vegetable and fruit tray and the drawers in the freezer, with tape.
* Tightly close and tape the door of the refrigerator.
* Do not tilt the refrigerator by more than 45 degrees.

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people pushing a large rectangular object together (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Caution: Never place the refrigerator horizontally.

Troubleshooting

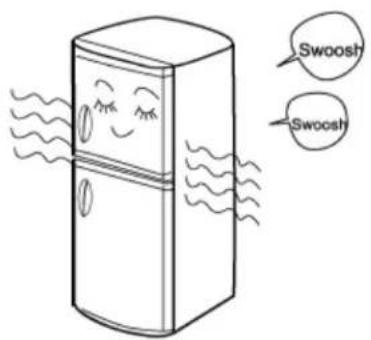

The evaporator and piping system of the refrigerator may produce a slight sound when the refrigerator is in operation due to ambient temperature changes.	The thermostat, starting capacitor and heat protector may produce a slight sound when the refrigerator is started or closed.
A slight sound may be produced by defrosting water flowing into the evaporating dish and the compressor at the time of operation commencement or vacation.	A slight continuous sound can be heard when the liquid refrigerant circulates into the evaporator.

Troubleshooting

A slight sound may be heard when the appliance is first started due to the operation of the compressor and motor. This sound will reduce in time.	The temperature of the refrigerator and compressor will rise and the compressor will run for comparatively longer periods when the refrigerator is first started.
The fan of an operating refrigerator may produce a slight sound.	The compressor will operate for comparatively longer periods if excessive quantity of food is stored or the ambient temperature is high.
Water droplets may occur on the outer surfaces and the middle connection of the refrigerator due to heavy moisture in the room air. Wipe clean with a soft cloth.	The two sides of the external surface and the middle connection of the refrigerator will be warm due to the appliance's heat radiation.

Troubleshooting

• WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstructions.
• WARNING: Do no use mechanical devices or other means other than those recommended by the manufacturer, to accelerate the defrosting process.
• WARNING: Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).
• WARNING: Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

Excessive vibration may occur in the following cases:

a) The refrigerator is not well positioned and adjusted.
b) The refrigerator is placed on a wood floor or near wooden furniture.

The liquid refrigerant flowing into the evaporator may produce a slight sound similar to that of flowing water. When the refrigerator is stopped, the backflow refrigerant may also generate this sound.

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D perspective (no text or symbols)

After-sales service

In the event of the refrigerator not working properly, please check and solve the problems in line with the following methods. If the problem persists, contact the after-sales service centre. Information concerning the model, the accessory list and the serial number of the refrigerator is required.

Please determine the cause of the problem before attempting any repairs.

The refrigerator does not operate.

The power supply is Voltage is low. Automatic defrosting is activated. (Compressor disconnected (plug, socket or fuse). ceases operation for 25 minutes)

Lamp does not illuminate

The bulb is fused. The power supply is not connected

Excessive noise

Contact between the refrigerator and a wall or Uneven placement other article.

The set temperature is not reached.

Line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

Illustration of a refrigerator and a gas stove under a sunny sky (no text or symbols)

Cartoon illustration of a distressed refrigerator with steam rising (no text or symbols)

The door is not properly. The refrigerator is in direct. The area is poorly ventilated, or closed, or the door has been sunlight, or dose to a heat. The two sides of the refrigerator opened for a prolonged period. source. are covered by too much dust.

After-sales service

Please determine the cause of the problem before attempting any repair.

Strange odor

* The food has not been sealed properly
* There is rotting food inside the refrigerator
* The refrigerator has not been cleaned regularly

Line drawing of five items: two bags and three bowls, arranged in a row (no text or symbols)

Prolonged operation of the compressor

* Initial operation
* Large quantity of food loaded
* Hot weather
* Frequent opening of the refrigerator door
* Door not properly closed
* Improper setting of the thermostat (see the section "Operation")
* Poor ventilation

NARDI

Illustration of a refrigerator, a sun, and a campfire with an exclamation mark (no text or symbols on main elements)

Illustration of a hand washing a refrigerator with a water bottle nearby, next to an exclamation mark (no text or symbols on main elements)

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Preparazione

Illustration of a person lifting a cardboard box next to a smiling refrigerator and a laptop (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Illustration of a woman holding a plate of food next to a smiling refrigerator (no text or symbols)

Line drawing of various vegetables including tomatoes, lettuce, and pumpkins (no text or labels)

Illustration of a refrigerator with steam rising, accompanied by a bottle labeled 'Auto' and a bag labeled 'Outergent', no text or symbols present.

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Periodi di assenza

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Simple line drawing of a refrigerator with smiling face and smoke bubbles (no text or symbols)

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people pushing a large rectangular object together (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D perspective (no text or symbols)

Assistenza tecnica

Line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

Illustration of a refrigerator with steam rising and a sun symbolizing heat (no text or symbols)

Cartoon illustration of a refrigerator with steam rising (no text or symbols)

Line drawing of five different items: bags, bread, cheese, and soda (no text or symbols)

Illustration of a refrigerator with hands reacting to heat and a fire extinguisher, accompanied by a warning symbol (no text or labels)

Illustration of a hand washing a refrigerator with a water tap nearby, next to an exclamation mark (no text or symbols on main elements)

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Vorbereitung

1. Auspacken

Illustration of a person lifting a cardboard box next to a refrigerator and a laptop (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Illustration of a woman holding a plate of food next to a refrigerator (no text or symbols)

Line drawing of various vegetables including tomatoes, lettuce, and peaches (no text or labels)

Illustration of a refrigerator with steam and cleaning tools nearby (no text or symbols)

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Ferien

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and two cloud-like smoke nearby (no text or symbols)

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people pushing a large rectangular object together (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D perspective (no text or symbols)

Kundendienst

Line drawing of a refrigerator with exhaust smoke and two leaf dropouts (no text or symbols)

Illustration of a refrigerator and a portable stove under a sunny sky (no text or symbols)

Cartoon illustration of a refrigerator with steam rising and crying (no text or symbols)

Line drawing of five items: two bags and three round objects (no text or symbols)

Ce réfrigérateur nécessite une alimentation de 220 V/50 Hz Failure in operation and damage to the control panel, thermostat or the compressor will occur if voltage is outside the range 187-242V unless a regulator with a capacity of over 750W or higher is installed.

Simple line drawings of an electrical socket, a plug, and an exclamation mark (no text or symbols)

Simple line drawing of a person opening a tree with stars, next to a prohibition symbol (no text or labels)

Illustration showing a cartoon character reacting with a window, a hand cleaning a box, and an exclamation mark (no text or symbols)

Illustration of a hand pressing a button with a downward arrow, next to an exclamation mark (no text or symbols present)

Illustration of a refrigerator with hands reacting to heat and a fire extinguisher, accompanied by a warning symbol (no text or labels)

Illustration of a hand washing a refrigerator with a water bottle nearby, next to an exclamation mark (no text or symbols on main elements)

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Préparation

1. Déballage

Illustration of a person loading a cardboard box to a refrigerator with a laptop nearby (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Illustration of a woman holding a plate of food next to a smiling refrigerator (no text or symbols)

Line drawing of various vegetables including tomatoes, lettuce, and peaches (no text or labels)

Zones de conservation

Illustration of a refrigerator with steam rising, accompanied by a bottle labeled 'Auto' and a bag labeled 'Outergent', no text or symbols present.

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Vacances

Coupure de courant

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Cartoon illustration of a refrigerator with smiling face and smoke bubbles (no text or symbols)

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people lifting a large rectangular object, one pulling the other (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D coordinate axis (no text or symbols)

Service après-vente

Line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

Illustration of a refrigerator and a gas stove under a sunny sky (no text or symbols)

Cartoon illustration of a refrigerator with steam rising from its side (no text or symbols)

Line drawing of five items: two bags and three round objects (no text or symbols)

Illustration of a refrigerator with hands reacting to heat and a fire extinguisher, accompanied by a warning symbol (no text or labels)

Illustration of a hand washing a refrigerator with a water bottle nearby, next to an exclamation mark (no text or symbols on main elements)

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Preparación

1. Desembalaje

Illustration of a person loading a cardboard box to a refrigerator, with a laptop nearby (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Illustration of a woman holding a plate of food next to a smiling refrigerator (no text or symbols)

Line drawing of various vegetables including tomatoes, lettuce, and peaches (no text or labels)

Illustration of a refrigerator with sound waves and cleaning items including a spray bottle, a bag labeled 'Bottled' (no text or symbols on main objects)

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Illustration of a smiling refrigerator with smoke bubbles nearby (no text or symbols)

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people lifting a large rectangular object, one pulling the other (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D coordinate axis (no text or symbols)

Simple line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

Illustration of a refrigerator emitting heat and a portable stove with a sun in the background (no text or symbols)

Cartoon illustration of a refrigerator with steam rising from its side (no text or symbols)

Line drawing of five items: two bags and three round objects (no text or symbols)

Illustration of a refrigerator with hands reacting to heat and a fire extinguisher, accompanied by a warning symbol (no text or labels)

Illustration of a hand washing a refrigerator with a water bottle nearby, next to an exclamation mark (no text or symbols on main elements)

Illustration of a refrigerator with snowflakes and a snowman, accompanied by a warning symbol (no text or labels)

Preparação

1. Desembalar

Illustration of a person loading a cardboard box to a refrigerator with a laptop nearby (no text or symbols)

Simple line drawing of a refrigerator with cartoon facial expressions on the front panel (no text or symbols)

Illustration of a woman holding a plate of apples next to a refrigerator (no text or symbols)

Line drawing of various vegetables including tomatoes, lettuce, and peaches (no text or labels)

Simple line drawing of a frog with a small fish-like object beside it (no text or symbols)

Illustration of a refrigerator with sound waves and two kitchen items (no text or symbols)

Simple line drawing of a person standing at a desk, holding an object (no text or symbols)

Férias

Cartoon illustration of a smiling refrigerator with arms waving, accompanied by apples on a plate (no text or symbols)

Cartoon illustration of a refrigerator with smiling face and smoke bubbles (no text or symbols)

Illustration of a person cleaning a refrigerator with food items nearby (no text or symbols)

Two people pushing a large rectangular object together (no text or symbols visible)

Simple line drawing of a van with a cross symbol on the side (no text or labels)

Simple line drawing of a cartoon refrigerator with a smiling face and eyes, placed on a 3D perspective (no text or symbols)

Line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

Illustration of a refrigerator emitting heat and a gas stove with its own cooling unit (no text or symbols)

Cartoon illustration of a distressed refrigerator with steam rising (no text or symbols)

Line drawing of five items: two bags and three round objects (no text or symbols)
