L423CD11 - Television Logik - Free user manual and instructions

Product Type	42-inch 3D Ready LCD TV
Model	L423CD11
Display Resolution	1920 x 1080 pixels (Full HD)
Panel System	42 inch LCD Panel
Television System	PAL I / BG / DK / SECAM BG/DK
Brightness	380 cd/m²
Contrast Ratio	1000:1
Power Source	100-240V~50/60Hz
Power Consumption (Home mode)	136W
Standby Power Consumption	0.4W (16W in software/EPG update mode)
Energy Efficiency Class	C
Dimensions (W x D x H) with base	1049 x 292 x 727 mm
Weight (Net)	23.0 kg
Speaker Power	8 W + 8 W
HDMI Inputs	3
USB Port	1 (supports up to 1 TB hard disk)
3D Technology	Side by Side, Top Bottom, Frame Packing, Line by Line, 2D to 3D conversion
PVR Recording	USB recording of DTV programmes, Time Shift
Remote Control Batteries	2 x AAA (included)
Included Accessories	Base stand, screws, mains cable, 3D glasses x5, instruction manual, quick start guide
Cleaning	Use soft dry cloth; mild soapy water if extremely dirty; never use alcohol or chemicals
Safety	Read all instructions; do not expose to moisture; ensure ventilation with 10cm sides, 20cm top
Spare Parts Availability	Partmaster.co.uk or call 0844 800 3456

Frequently Asked Questions - L423CD11 Logik

Why have I lost some or all of my channels?

This often happens due to weak signal. Rescan your TV by going to Channel > Auto Tuning. If problems persist, check your aerial or contact your local installer.

Why do I get 'blocking' on my digital picture?

Blocking is usually caused by reception issues – either signal too weak or interference. A strong signal can also cause blocking. Check your aerial or consult an installer.

How do I reset my password if I forget it?

Go to Lock > Set Password and enter the master password 4711. This clears your old password and allows you to set a new one.

Can I watch Freeview with a portable set-top aerial?

Some homes may work, but for best reception, use a rooftop aerial. Set-top aerials are weaker and more prone to interference.

What type of aerial do I need?

A wideband rooftop aerial is recommended over a loft aerial. Have a survey done before upgrading.

How do I record a programme on this TV?

Insert a USB storage device, then press the R button on the remote to start recording. Use EPG to set timer recordings. Ensure the USB is formatted as HiSpeed FS or FAT32.

Why is the remote control not working?

Check for obstructions, point directly at the TV, ensure batteries are inserted correctly (+/-), or replace batteries.

How do I watch 3D content?

Put on the included 3D glasses, press the 3D button, and select the correct 3D type (Side by Side, etc.). You can also convert 2D to 3D.

What should I do if the TV freezes?

Disconnect the mains cable for a few minutes, then reconnect and try again. This resets the TV.

How do I clean the TV screen?

Use a soft dry cloth. For stubborn dirt, dampen the cloth with mild soapy water and wring until almost dry. Never use alcohol, benzine, or chemical cleaners.

USER MANUAL L423CD11 Logik

Black-and-white photo of a LOGIK TV displaying multiple nature-themed images including birds and plants, with no visible text or symbols on the screens.

WE KNOWHOW™ TO HELP YOU WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you to get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at knowhow.com or call us on: 0844 561 1234

TV SET UP & DEMO

We'll assemble the stand and connect your new TV to the existing equipment. We'll tune your TV so it's ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We'll fix your TV to a suitable position on the wall and connect to your existing equipment, so it's all ready to go. We'll use neat wire management so you don't have to look at any untidy cabling and to complete your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT® SET UP & DEMO

We'll set up the Freesat® receiver and connect it to your existing dish, TV and cabling. We'll then tune in all available channels.

AERIAL INSTALL & TUNE

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV. Then we'll scan and tune in all available digital channels.

HOME THEATRE SET UP & DEMO

We'll un-box, connect and set up your new and existing equipment. We'll then configure, calibrate and optimise the equipment. To avoid ugly trailing cables, we'll clip them to your skirting board, if you'd like us to. Then we'll give you a demonstration.

FAULT & FIX SERVICES

With our FAULT & FIX services, we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for:

• Computer Desktops
• Laptops
• Netbooks
• TVs
• Games Consoles
• Sky & Freeview Digi Boxes

Preparation....5

Unpacking the TV 5

Installing / Removing the Base Stand 6

Front / Right Side View and Controls....7

Rear View and Sockets 8

Installing Batteries in the Remote Control 9

Remote Control Operation Range 9

Remote Control 10

Connections....12

Making Video and Audio Connections....12

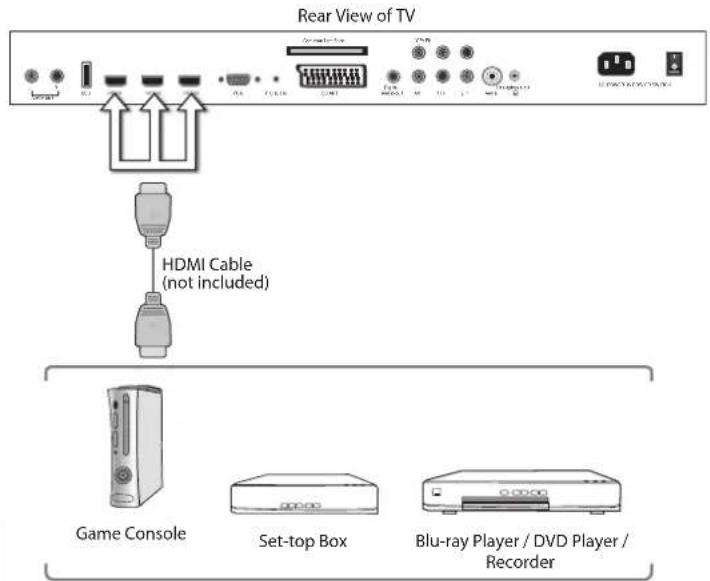

Connecting an AV Device with an HDMI Cable 12

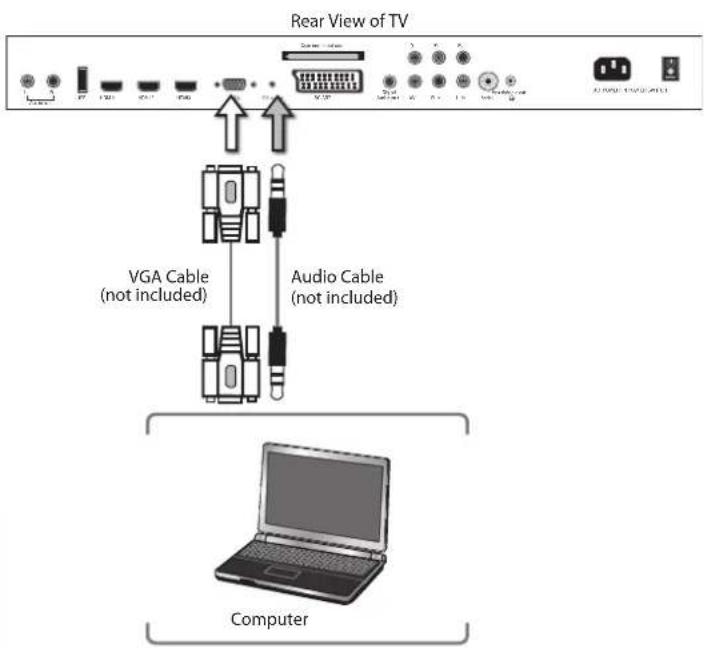

Connecting a Computer with a VGA Cable....13

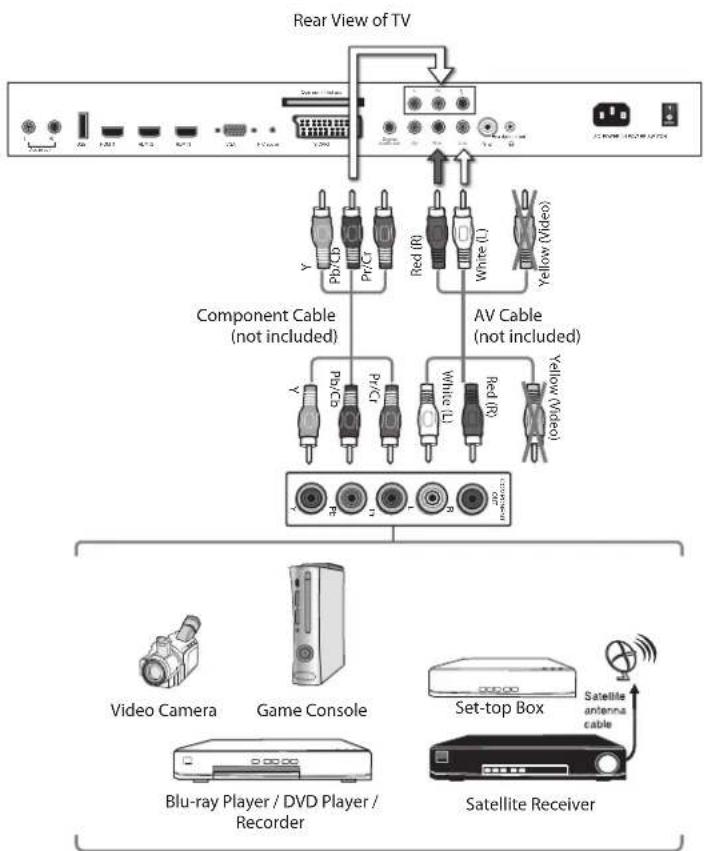

Connecting an AV Device with a Component (YPbPr) Cable....13

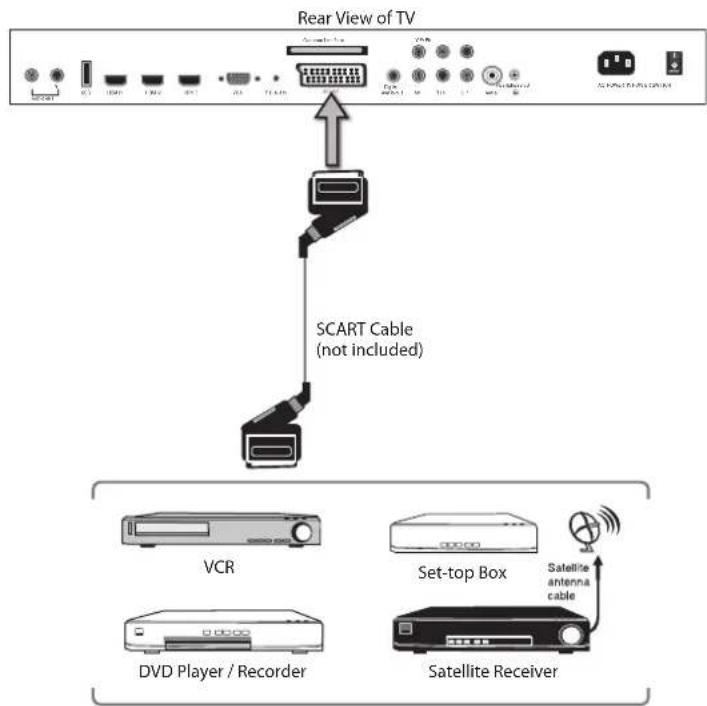

Connecting an AV Device with a SCART Cable....14

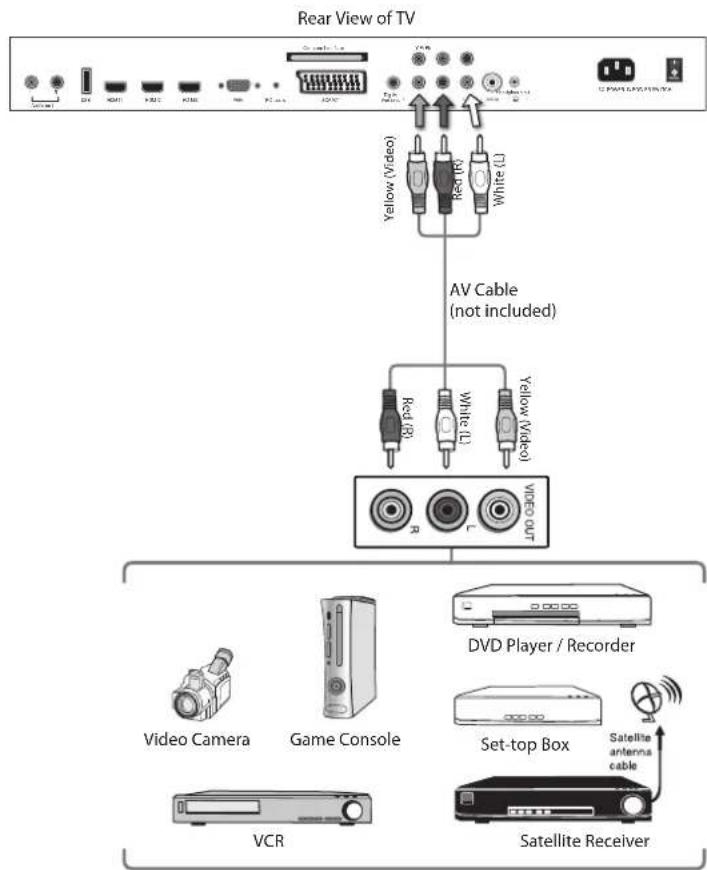

Connecting an AV Device with Composite Cable....14

Connecting a Digital Audio Receiver 15

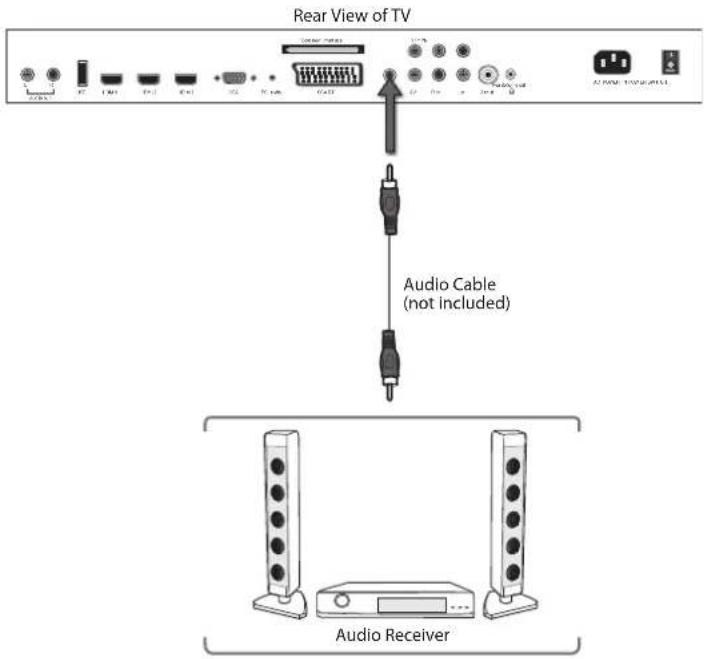

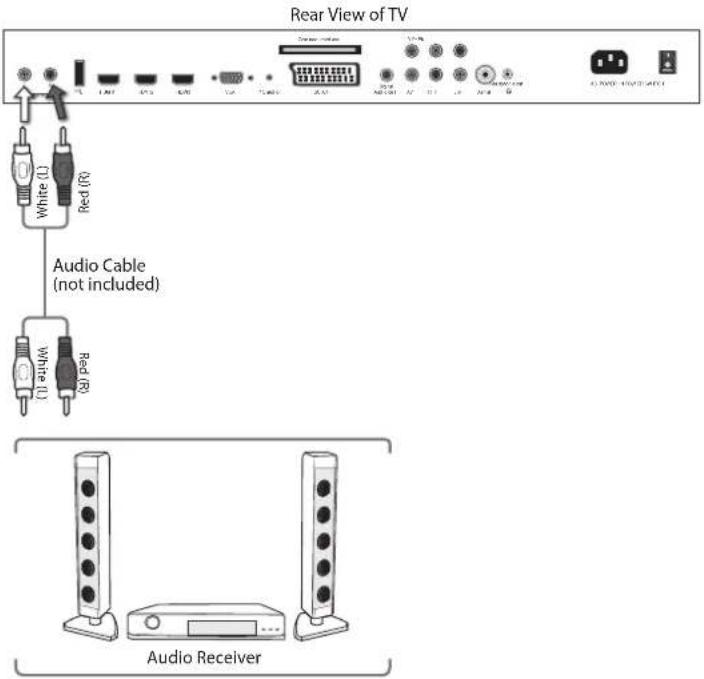

Connecting an Audio Receiver 15

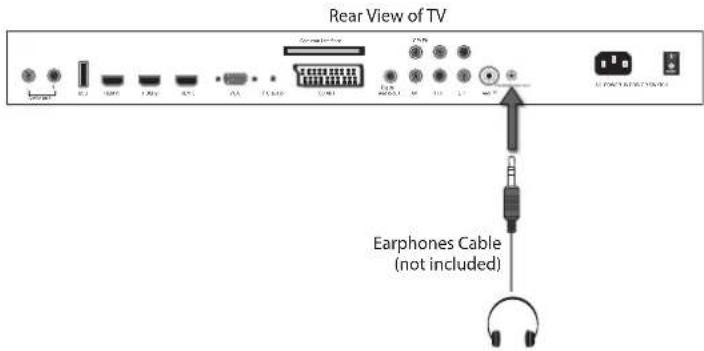

Connecting Headphones....16

Initial Setup 17

Turning the TV on for the First Time....17

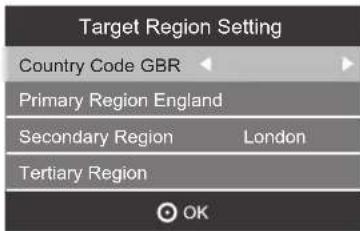

- Target Region Descriptor 18

- Selecting the Input Source....19

- Channel Selection ....19

- Display Channel Information ....19

– Volume Adjustment....19

Customising TV Settings 20

Channel Setting (TV, DTV or Radio Mode)....20

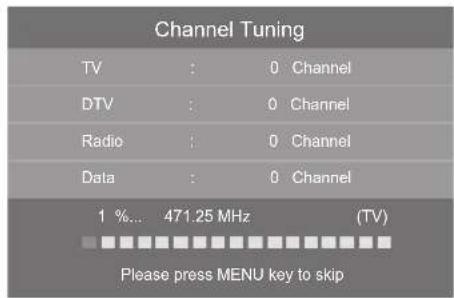

- Auto Tuning (ATV / DTV mode)....20

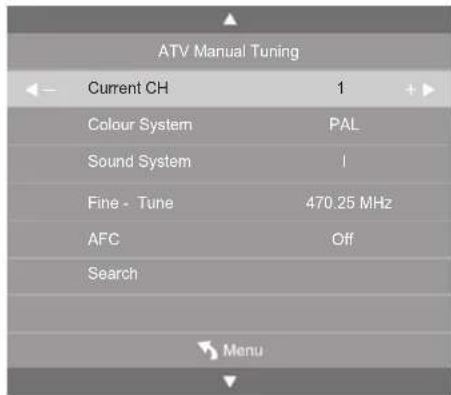

- ATV Manual Tuning (ATV mode) 21

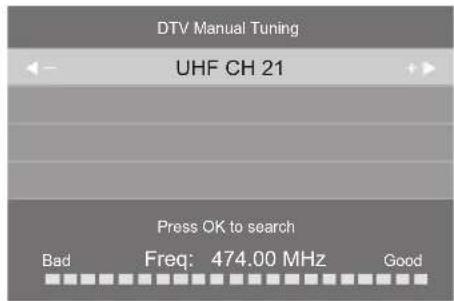

- DTV Manual Tuning (DTV mode) 21

- Channel Edit (ATV Mode) 22

- Channel Edit (DTV Mode)....23

– Signal Information (DTV Mode)....23

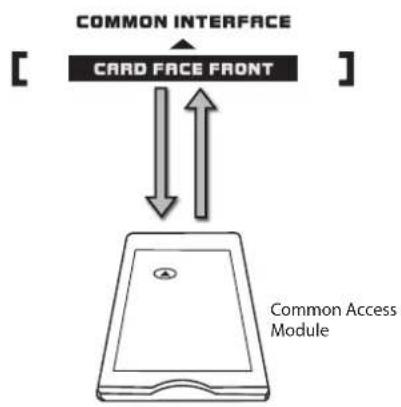

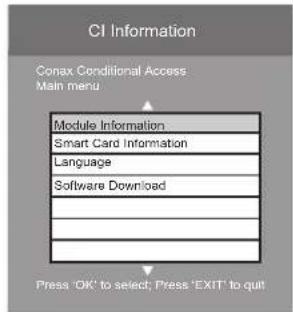

- CI (Common Interface) (DTV Mode) 24

- Software Update (USB) 25

Picture Setting 26

Sound Setting 27

– Stereo / Dual Sound Reception (ATV Mode)....28

- Speaker Sound Output Selection (DTV Mode) 29

Time Setting 29

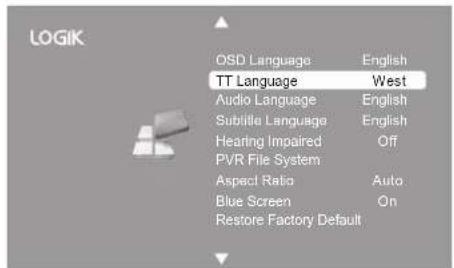

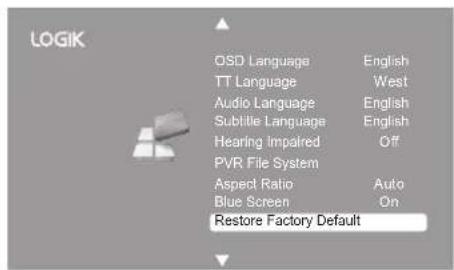

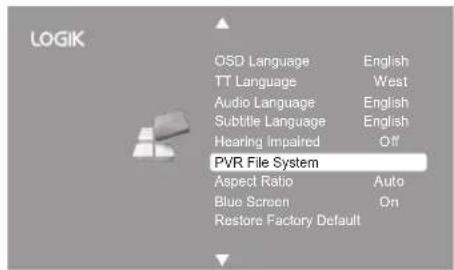

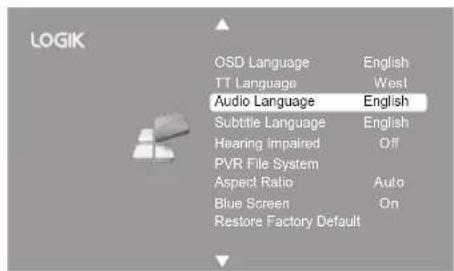

Option Setting 30

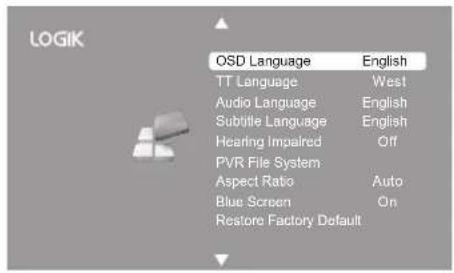

- OSD Language 30

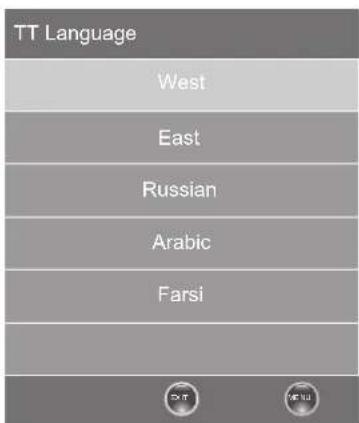

- TT Language....31

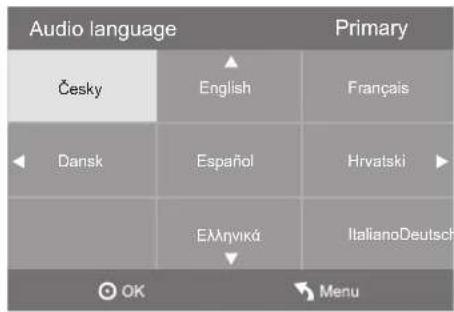

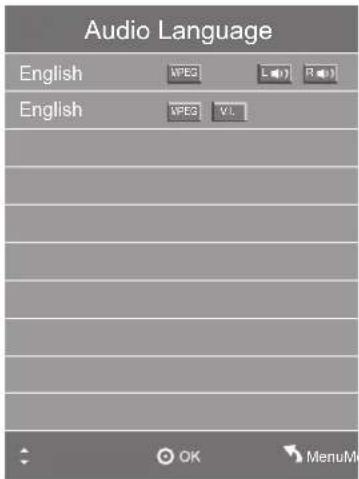

– Audio Language (DTV Mode).... 32

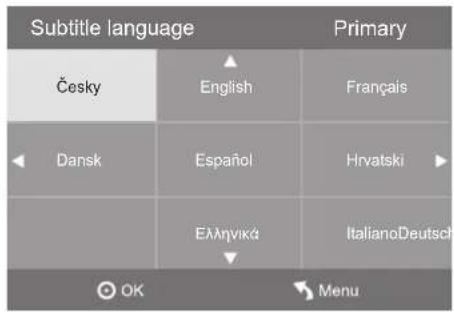

- Subtitle Language (DTV Mode) 32

- Hearing Impaired.... 33

- PVR File System (DTV Mode)....33

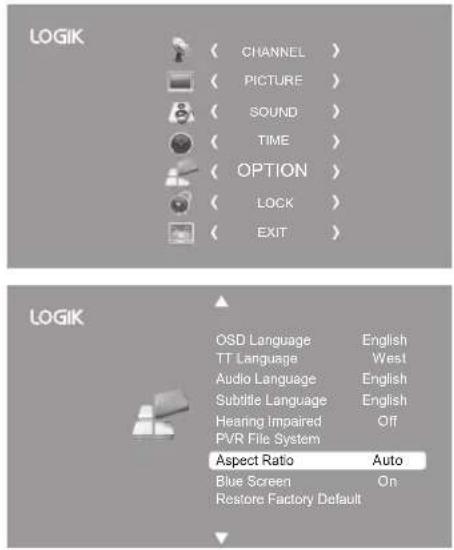

- Aspect Ratio.... 35

- Blue Screen 36

- Restore Factory Default....36

Lock Setting 37

- Lock System 37

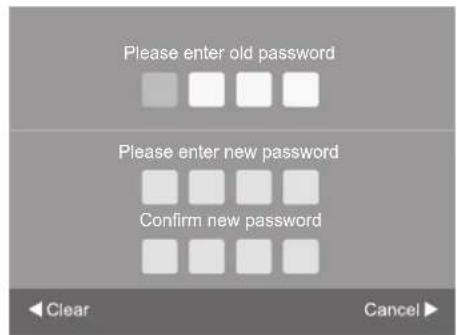

- Set Password 37

- Block Channel 38

- Parental Guidance 39

- Key Lock 40

Using the Features ....41

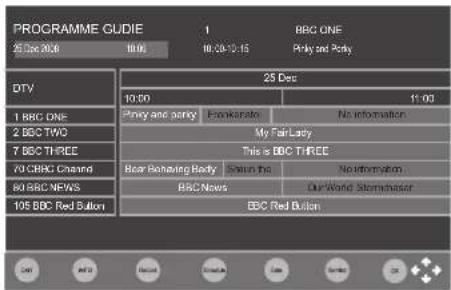

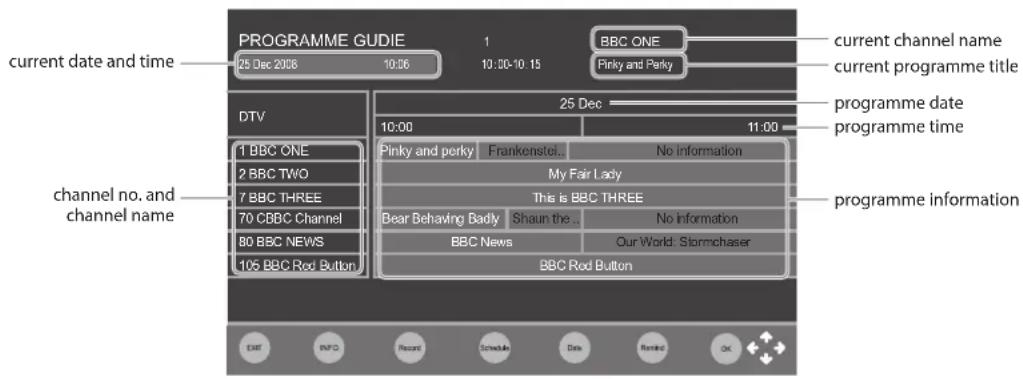

EPG (Electronic Programme Guide) (DTV Mode) 41

• Switch On / Off EPG....41
• Select a Programme ....41

Teletext (ATV Mode)....42

- To Turn on Teletext Function....42

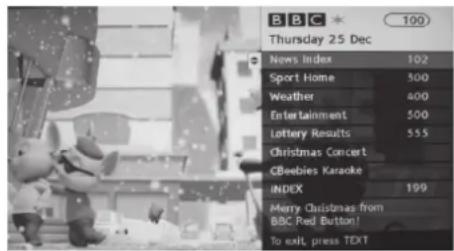

Digital Teletext (DTV Mode)....42
- Teletext within Digital Service....42

Entertainment 43

3D Imaging....43

• 3D Technology....43

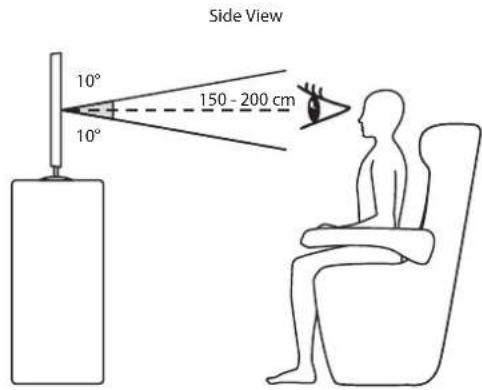

• 3D Imaging Viewing Range ....44
• Watching 3D TV....44
• 3D Options ....44
• 3D Customised Setting....44

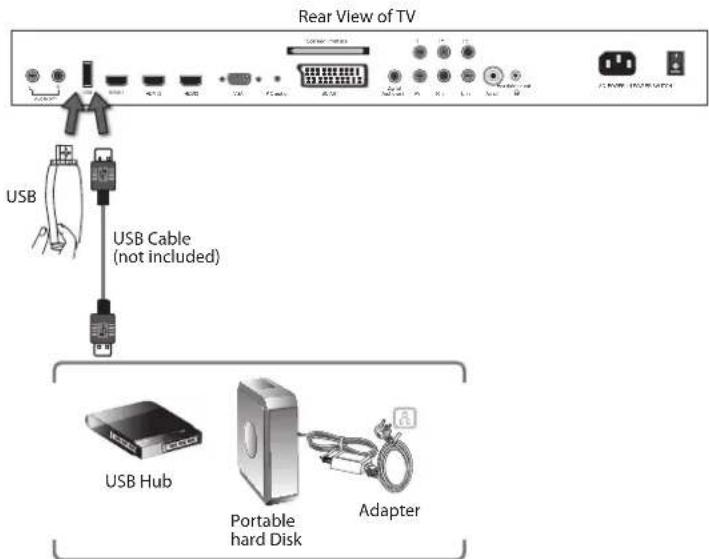

Connecting a USB Storage Device....45

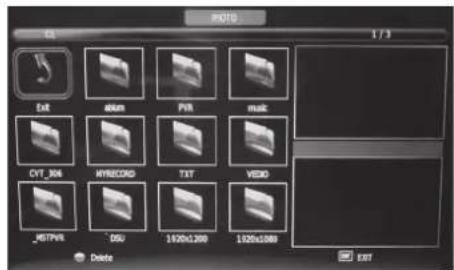

Viewing Photos....46

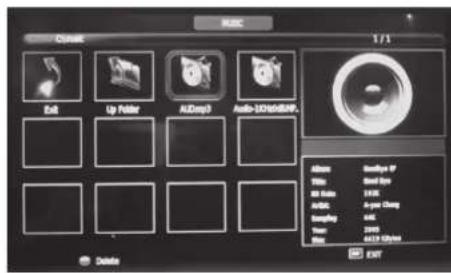

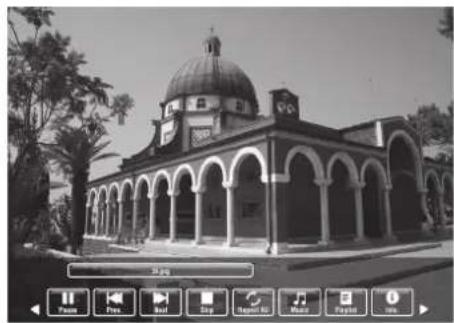

Listening to Music....46

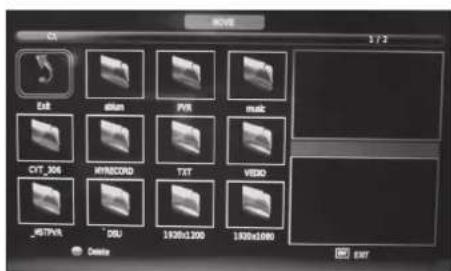

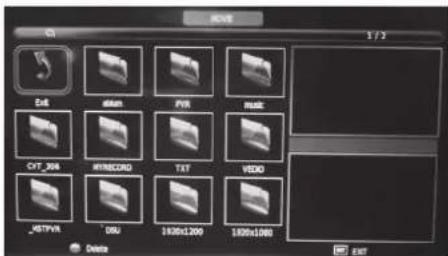

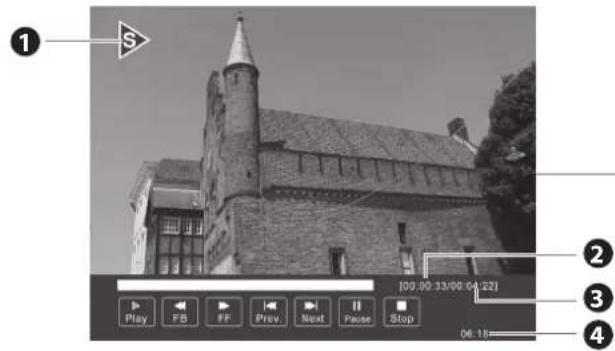

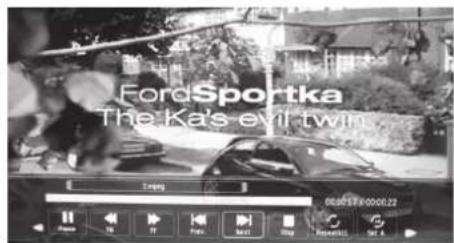

Watching Movies....47

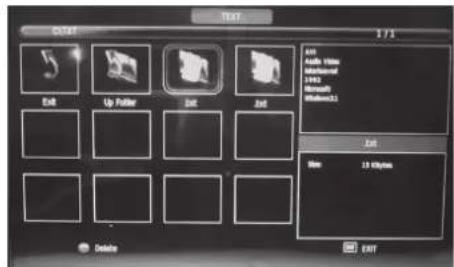

Viewing Texts 48

PVR (Personal Video Recorder)....49

Time Shift Function (DTV Mode) 49
Recording DTV Programme onto a USB Storage Device 50

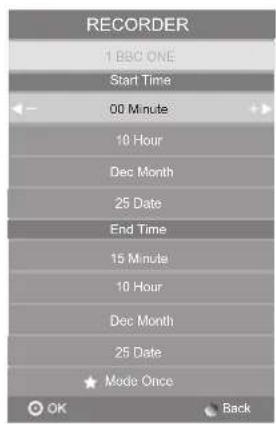

Timer Programming 50
Play Recorded Programme ....51

Maintenance....53

Display Modes 55

YPbPr Mode 55
PC Mode 55
HDMI Mode 55

Specifications 56

Safety Warnings ....58

Thank you for purchasing your new Logik 42" / 47" 3D Ready LCD TV.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included:

Blank rectangular image with no visible text, symbols, or markings

TV

Black remote control with two cable clips shown beside it (no text or symbols visible)

Remote Control / AAA Batteries x 2 (P.N.: 118020377 & 118030017)

3D Glasses x 5 (P.N.: 118050098)

Base Stand
(P.N.: 101040383)

Screws x 6
(P.N.: 119020013)

Mains Cable
(P.N.:117010062)

Instruction Manual
(P.N.: 120010001-L423CD11/L473CD11)

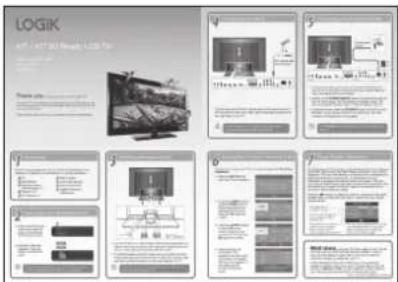

Quick Start Guide
(P.N.: 120010161-L423CD11/L473CD11)

Digital TV Switchcover Addendum (P.N.: 120010193)

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.

2. Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen.

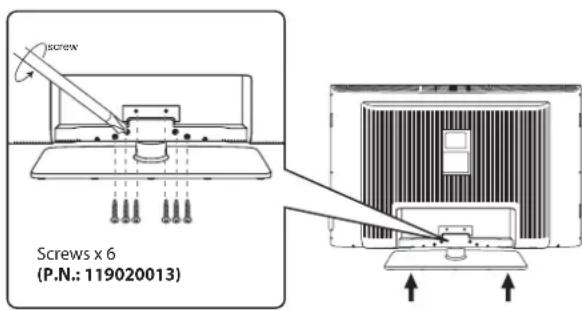

3. To install the base stand first make sure you position the front of the base stand at the front of the TV. Slide the base stand to the TV and then use the 6 screws to fix the base stand to the TV.

The screw holes will only align if the front of the base stand is at the front of the TV.

Diagram of a computer monitor with ventilation grilles and a base mount (no text or symbols)

Remove the stand assembly before mounting the TV onto the wall.

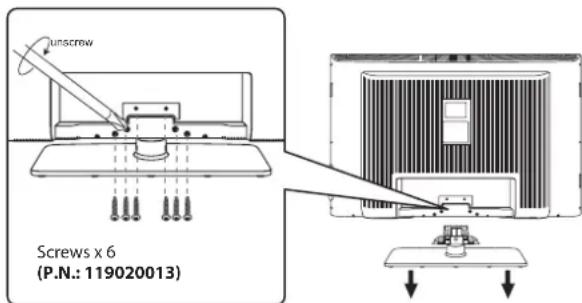

1. To remove the stand assembly, lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. Untighten the 6 screws that hold the stand assembly to the rear of the TV. Slide the base stand out.

Keep all the spare screws should you want to use the base stand option.

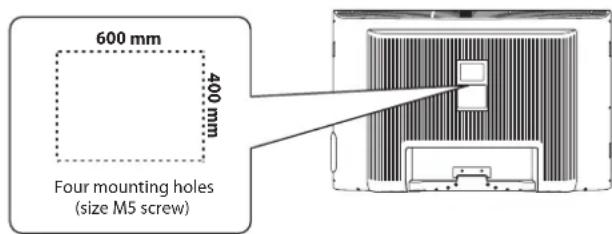

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 600 mm x 400 mm mounting kit designed for flat-panel TVs (sold separately). Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections (refer to pages 12-16 and page 45 for details) before mounting on to the wall.

• In order to get the best 3D effect from your wall mounted 3D TV, we strongly recommend that you use a tilting wall mount bracket. This will enable you to angle the TV direct at your favourite viewing position.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Item Description

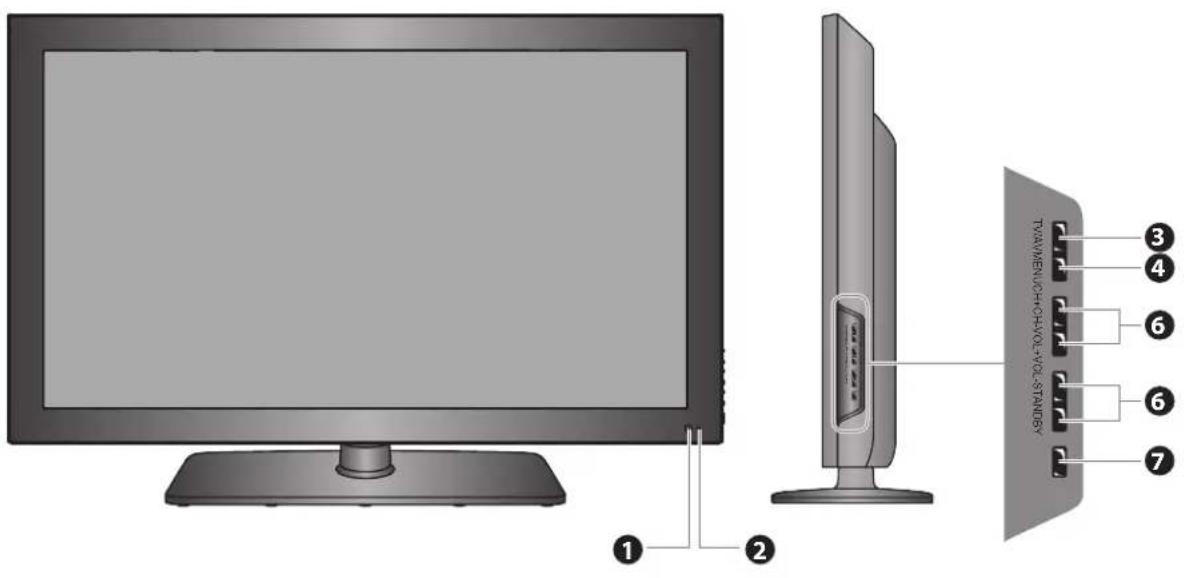

1 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
2 POWER LED	Illuminates green when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will alternate between red and green when the timer programming has started in the standby mode.
3 TV/AV	Press to select among different input signal sources:DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.Confirmed the selection on OSD menu.
4 MENU Displays the OSD (on screen display) menu.
5 CH + / - Press to select a channel or select a sub-menu from the OSD menu.
6 VOL + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
7 STANDBY	Switches the TV on from standby mode.Switches the TV back to standby mode.

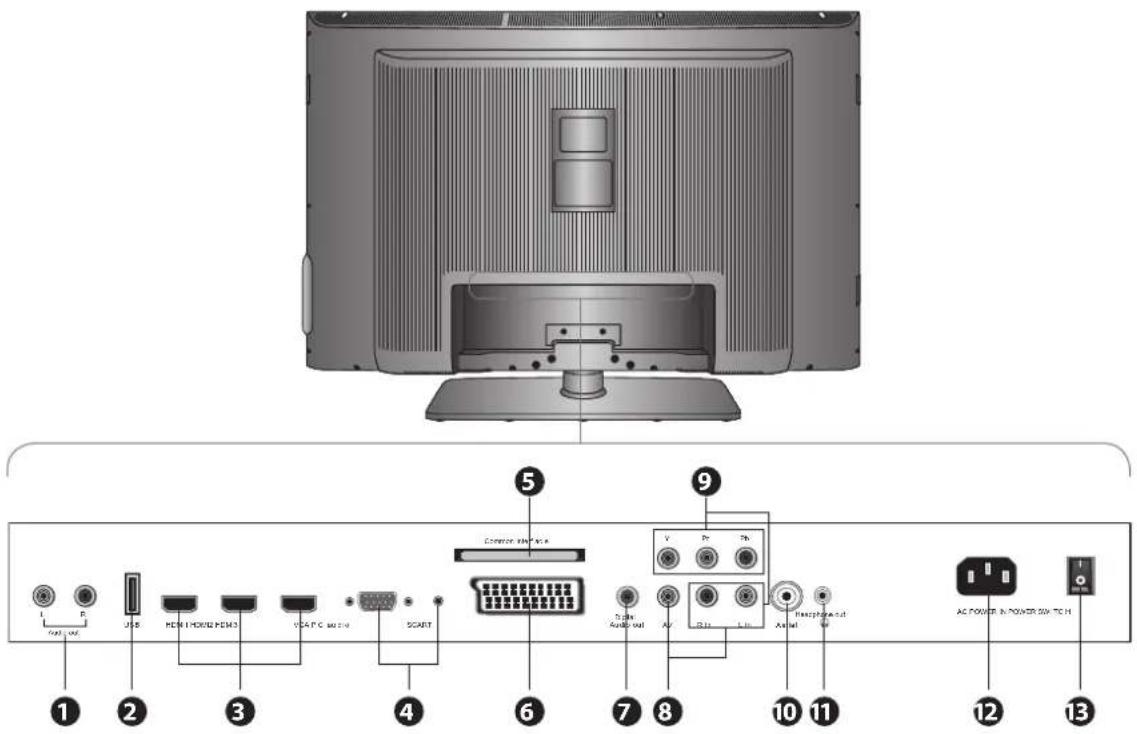

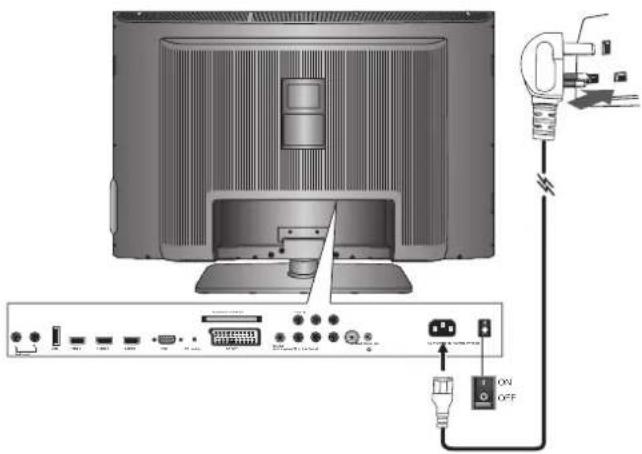

Socket Description
1 AUDIO OUT (L/R)	To connect to a DVD player, Digital Set-Top-Box, or other AV devices with audio input sockets.
2 USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (USB mode) and record DTV programmes on to a USB storage device.
3 HDMI1 / 2 / 3	To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.
4 PC Audio In / VGA To connect to a computer or other devices with a VGA interface.

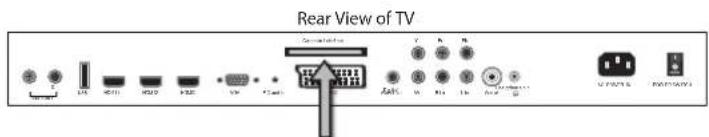

5 Common Interface Slot	Allows the insertion of a Common Access Module. (Refer to page 24 for details)
6 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
7 Digital Audio Out To connect to the audio socket on the digital/standard 5.1 audio system.
8 VIDEO / AUDIO (L/R)	To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.
9 YPbPr / AUDIO (L/R)	To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.

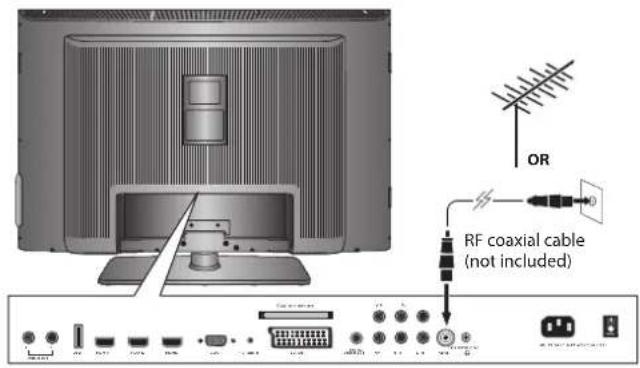

10 Aerial To connect to the aerial socket on the wall with the RF coaxial cable.
11 📋 Headphone Out	To connect to the headphones.
12 AC POWER IN Connects the mains cable to the mains socket.
13 POWER SWITCH	Switch on the POWER ON/OFF switch to turn the TV to standby mode.

Installing Batteries in the Remote Control

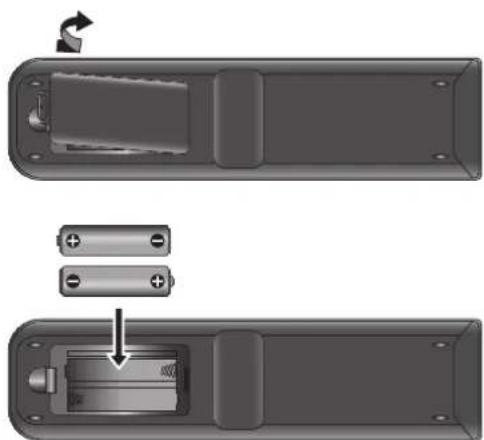

1. Press and lift the back cover to open the battery compartment of the remote control.

2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

Top-down diagram of a remote control box showing internal components and battery arrangement (no text or symbols)

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

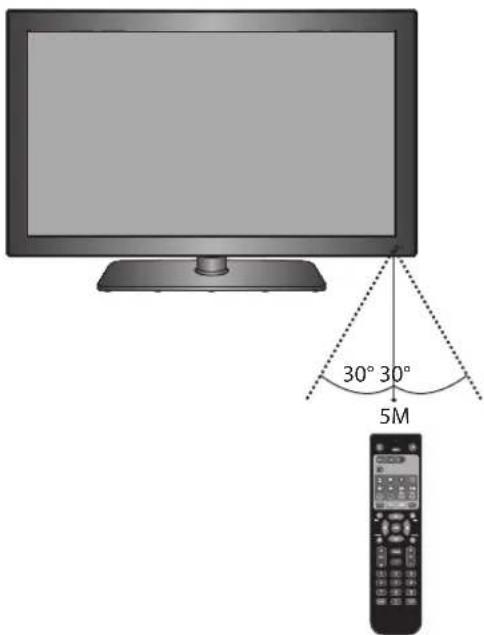

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

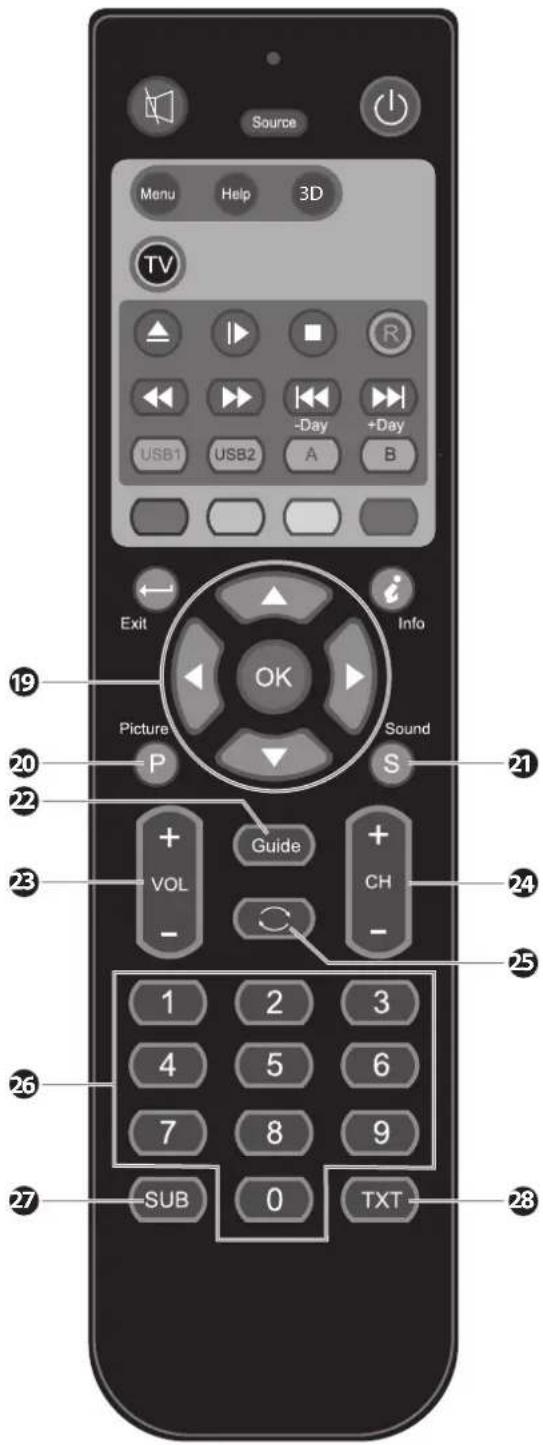

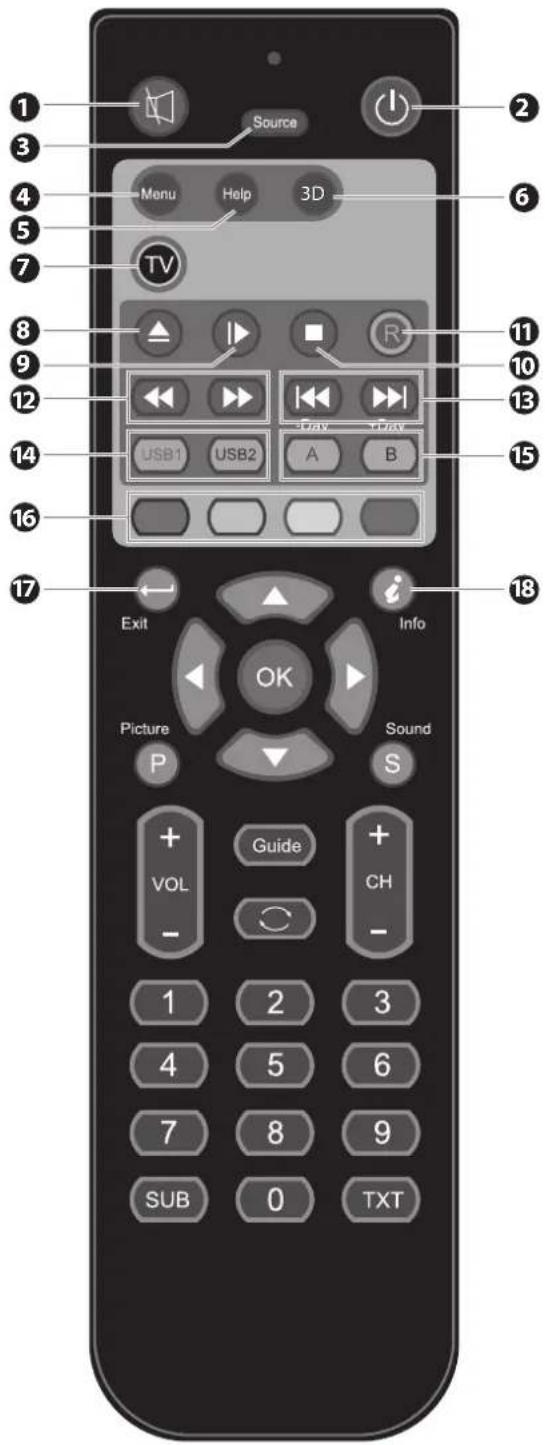

Remote Control

1.

Mutes and restores your TV sound.

2. ⏻

Switches the TV between on and standby mode.

3. Source

Select among the different input signal sources: DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.

4. Menu

Display the OSD (On Screen Display) menu.

5. Help

Display the Help menu.

6.3D

• Select among the different 3D options:
  Side by Side / Top Bottom / Frame Packing / Line by Line / 3D Off
  • Normal 2D images as a simulated 3D effect (2D to 3D).

7. TV

A short-cut to switch input source to TV / Digital radio channels. (DTV mode)

8.

Eject a disc. (DVD mode)

9.

• To start the timeshift playback. (DTV mode)
• To start playback or pause. (USB / DVD mode)

10.

To stop the playback or recording. (USB / DVD mode)

11. R

Record the current programme. (DTV mode)

12.

To reverse / advance playback rapidly. (DVD / USB mode)

13.

To skip to the beginning of the previous or next chapter / track / photo. (DVD / USB mode)

14. USB1 / USB2

Display the Recorded List on USB1 / USB2. (DTV mode)

15.A/B

Display the Schedule List on USB1 / USB2. (DTV mode)

16. Coloured buttons

Access the TELETEXT items or channel edit when using Digital / Freeview TV Channels. (ATV / DTV mode)

17. ← Exit

Exit the OSD menu.

18. i Info

• Display the present channel information such as the current time and channel name. (ATV / DTV mode)
  • Display the present disc information. (DVD mode)

Please note that the DVD mode functions on the remote control only operate on TV models with a built-in DVD player.

19.

Allows you to navigate the OSD menus and adjust the system settings to your preference.

OK

• Confirm the selection in the OSD menus.
• Display channel list. (ATV / DTV mode)

20. P

• Press the P button once and then press the◀▶ buttons to select picture mode: Dynamic / Standard / Mild / Personal.
• Press the P button twice and then press the▶ buttons to allow you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Dot to Dot / Subtitle. (Dot to Dot only operates in YPBPR / HDMI mode)

21.S

• Press the S button once and then press the◀▶ buttons to select sound mode: Standard / Music / Movie / Sports / Personal.
• Press the S button twice and then press the◀▲▼▶ buttons to select speaker sound output. (DTV mode)
• Press the S button twice and then press the▶ buttons to select Mono to Nicam Stereo. (ATV mode)

22. GUIDE

Displays the EPG (Electronic Programme Guide). (DTV mode)

23. VOL + / -

Adjusts the volume.

24. CH + / -

Select a channel.

25.

Return to the previous viewing channel. (ATV / DTV mode)

26. 0-9 Number Button

• Press to select a programme. (ATV / DTV mode)
• Select numbered items in a menu. (DVD mode)

27. SUB

• Selects subtitles which are broadcast with the programme. (DTV mode)
  • Selects subtitles on the DVD. (DVD mode)

28. TEXT

Turns on and off the teletext function. (ATV / DTV mode)

Please note that the DVD mode functions on the remote control only operate on TV models with a built-in DVD player.

Making Video and Audio Connections

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

	Signal Type	Separate Audio Connection Required
HDMI	HDMI(480i/480p/576i/576p/720p/1080i/1080p)	No
VGA	PC	YesPC AUDIO
PR PB Y	Component Video(480i/480p/576i/576p/720p/1080i/1080p)	YesR L
SCART	SCART (RGB Input) No
VIDEO	Composite Video	YesR L

Connecting an AV Device with an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) and supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• The TV has a total of 3 HDMI input sockets, please make sure the correct input source is selected corresponding to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.

• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p.

• Use an HDMI cable to connect the TV's HDMI1 / HDMI2 / HDMI3 input socket to the external AV device's HDMI output socket.

• Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
• Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
• Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select HDMI1 or HDMI2 or HDMI3 and then press the OK button to confirm.

Although this TV is able to connect to an HDMI device, it is possible that some devices may not operate correctly.

Connecting a Computer with a VGA Cable

1. Use a VGA cable to connect the TV's PC input socket to a computer's VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select PC and then press the OK button to confirm.

• The best resolution is 1440 x 900.
- If your computer is set to shut down after a few minutes of idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the STANDBY button at the right side of the TV when viewed from the front or the ⏻ button on the remote control to restart the TV.

Connecting an AV Device with a Component (YPbPr) Cable

1. Use a component cable to connect the TV's YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's AUDIO(L/R) input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV Y Pb Pr

Video output ports on DVD player	Y Pb	Pr
	Y Cb	Cr

1. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
2. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
3. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select YPbPr and then press the OK button to confirm.

Connecting an AV Device with a SCART Cable

1. Use a SCART cable to connect the TV's SCART input socket to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. The TV will change the input source to SCART automatically once the AV device is switched on.

Connecting an AV Device with Composite Cable

1. Use an AV cable to connect the TV's AUDIO(L/R)/VIDEO input sockets to an external AV device's composite audio/video sockets. (Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select AV and then press the OK button to confirm.

Connecting a Digital Audio Receiver

For better sound quality, you may want to play the audio through your multi-channel audio receiver.

1. Use an audio cable to connect the TV's Digital Audio out socket to an external audio receiver's audio coaxial input socket.
2. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select any desired input source and then press the OK button to confirm.

The TV's volume control will have no effect. You may control the audio level via the Audio Receiver.

Connecting an Audio Receiver

For better sound quality, you may want to play the audio through your multi-channel audio receiver.

1. Use an audio cable to connect the TV's AUDIO(L/R) input sockets to the external audio device's audio output sockets. (Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select any desired input source and then press the OK button to confirm.

Connecting Headphones

Connect your headphones to the TV's socket.

Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Turning the TV on for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the Aerial socket at the rear bottom of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

1. Connect the mains cable to the AC Power In located at the rear of the TV and then connect to the mains socket after you have completed all the connections.
2. Switch on the POWER SWITCH which is located at the rear of the TV. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
3. In standby mode, press the STANDBY button on the TV or the ⏻ button on the remote control to turn the TV on. The LED indicator will change from red to green.

The STANDBY button is located on the front right side of the TV.

• Always disconnect the TV from the mains socket when not in use for a long period of time.
- The STANDBY button at the front right side of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains cable from the mains socket.

1. The first time you turn the TV on, it will go straight into the First Time Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please go to "Selecting the Input Source" section on the next page.)

Please press OK button to begin auto tuning!

OK

1. Press the 🔊 buttons to navigate the menu and change the settings. Press the OK button to confirm.

OSD Language Select your desired language to be displayed on the menu. The default on-screen menu language is set as English.

Country Select the country where you will operate the TV.The default country is set as UK.

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you want to skip the ATV tuning, press the Menu button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged in the broadcaster's preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the Channel menu (refer to pages 22-23 for details).

Target Region Descriptor

During tuning your TV may have received signals from more than one transmitter. If this has occurred the Target Region Descriptor screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

Press the ◀buttons to adjust each option's setting and then press the OK button to confirm.

Country Code This will be shown as GBR for the UK.
Primary Region	This will show the regional country (England, Wales, Scotland, NI).
Secondary Region	This will allow you to set the region for your local news service on BBC and ITV (London, Beds and Cambs etc).
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath).

Selecting the Input Source

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Input source list.
2. Press the ▲▼ buttons to select the input source that you want: DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.
3. Press the OK button to confirm your selection. If you do not press the OK button to confirm, the TV will automatically confirm the selected input source within 4 seconds.

In DTV mode, press the TV button to switch to TV / digital radio channels directly.

Input Source

DTV

ATV

AV

SCART

YPBPR

HDMI1

HDMI2

HDMI3

PC

USB

OK

Channel Selection

- Press the CH+ / - buttons at the front right side of the TV or on the remote control repeatedly or the 0-9 buttons on the remote control to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 38 for details on Block Channel).
• Press the ⬆ button to return to the previously viewed channel.

Display Channel Information

- Press the info button to view the current information.

Volume Adjustment

• Press the VOL+ or – button at the front right side of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the 📁 button. Press the 📁 button again or the VOL+ or – button to resume audio listening.

Channel Setting (TV, DTV or Radio Mode)

Auto Tuning (ATV / DTV mode)

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select Auto Tuning and then press the OK button.

(ATV mode)

(DTV mode)

1. In the Tune Type menu, press the ▲buttons to select ATV / DTV / DTV + ATV. Press the ▼button and then press the ▲buttons to select the country where you will operate the TV. Press the OK button to confirm.

1. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you want to skip the ATV tuning, press the Menu button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the channel menu (refer to pages 22-23 for details).

ATV Manual Tuning (ATV mode)

Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

2. Press the ▲▼ buttons to select ATV Manual Tuning and then press the OK button.

3. The ATV Manual Tuning screen will pop up. Use the buttons to select the following options and the <buttons to adjust the setting.

Current CH Displays the current channel number.
Colour System	Selects the colour system: Auto / SECAM / PAL.
Sound System Selects the sound system: DK / I / BG.
Fine-Tune	Press the◀buttons to make manual fine tuning adjustments.
AFC (Auto Frequency Control)	Select AFC On to lock the desired frequency.
Search	Press the◀buttons to start the manual tuning.

1. After finishing the manual tuning adjustment of a channel, press the Menu button to save your channel before tuning the next channel.

2. Press the ← Exit button to exit the menu.

DTV Manual Tuning (DTV mode)

Allows you to make manual fine tuning adjustments of the channel under DTV mode.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select DTV Manual Tuning and then press the OK button.
2. The DTV Manual Tuning screen will pop up. Press the ◀buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
3. Press the Menu button to return back to the main menu.
4. Press the ← Exit button to exit the menu.

Channel Edit (ATV Mode)

Allows you to edit TV programmes in the Channel List.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.
3. A Channel Edit screen will pop up. Press the 🔵tons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Rename

Press the GREEN button to rename the selected channel. Press the ▲▼ buttons to select the characters to represent the station name. Press the ◀▶buttons to move to the next character and then press the OK button to confirm the new name.

c. Move

Press the YELLOW button and then press the ▲▼ buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm.

d. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

1. Press the Menu button to return back to the main menu.
2. Press the ←Exit button to exit the menu.

Channel Edit (DTV Mode)

Allows you to edit TV programmes in the Channel List.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.

3. A Channel Edit screen will pop up. Press the buttons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

1. Press the Menu button to return back to the main menu.
2. Press the ← Exit button to exit the menu.

Signal Information (DTV Mode)

Allows you to view the signal information.

1. Press the Menu button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.

2. Press the Menu button to return to the previous menu.

3. Press the ← Exit button to exit the menu.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the Menu button and then press the Buttons to select the CHANNEL menu and then press the OK button.

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

1. Press the ▲▼ buttons to select CI Information and then press the OK button.
2. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
3. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

This screen is for illustration only.

Software Update (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ or call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Allows you to set your preferred picture mode.

1. Press the Menu button and then press the ▲▼ buttons to select the PICTURE menu and then press the OK button.

1. Press the buttons to select the following picture options and then press the OK button.

Picture Mode Press the but▲▼s to cycle among picture mode: Dynamic / Standard / Mild / Personal and then press the OK button to confirm. [6x27] Alternative ____ You may press the P button once and then press the ◀▶ buttons to select the picture mode directly.
Contrast Press the ◀▶buttons to adjust the difference between light and dark levels in the picture. (for Personal mode)
Brightness Press the ◀▶buttons to increase or decreases the amount of white in the picture. (for Personal mode)
Colour Press the ◀▶buttons to control the colour intensity. (for Personal mode)
Tint (For NTSC format)	Press the ◀▶buttons to adjust the balance between red and green levels. (Tint is only available for NTSC signal input via the SCART or AV IN.)
Sharpness Press the ◀▶buttons to adjust the level of crispness in the edges between light and dark areas of the picture. (for Personal mode)
Colour Temperature	Press the ▲▼buttons to cycle among colour temperature: Cold / Normal / Warm and then press the OK button to confirm. Adjusts the colour components independently to achieve a warm or cool. (for Personal mode)Cold: Increases blue tintNormalWarm: Increases red tint
Noise Reduction Press the ▲▼buttons to select to reduce the noise level of the connected device: Off / Low / Middle / High and then press the OK button to confirm.
PC SETUP	Press the ▲▼ buttons to adjust the PC desktop content and then press the OK button to confirm. (PC mode only)
	Auto Adjust	Allows you to synchronise a PC signal automatically.
	H-Offset Adjusts the position of the picture left and right in the window.
	V-Offset Adjusts the position of the picture up and down in the window.
	Size Allows you to adjust the picture horizontally, in linear properties
	Phase Controls the signal phase, which can improve focus clarity and image stability based on the PC mode.
	Position Reset	Press to set the best screen position.
3D Type	Press the ◀buttons to choose a suitable 3D playback mode by matching the format of your 3D video to the available choice: Side by Side / Top Bottom / Frame Packing / Line by Line / 3D Off.Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.
Exchange 3D Left/Right	Press the ◀buttons to adjust the setting for the best 3D picture visibility.
3D to 2D	Press the ◀buttons to downscale 3D video or TV into 2D.Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.
2D to 3D	Press the ◀buttons to upscale 2D video or TV into 3D.Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.

1. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

Sound Setting

Allows you to select an audio-enhancement technique.

1. Press the Menu button and then press the ▲▼ buttons to select the SOUND menu and then press the OK button.

1. Press the buttons to select the following sound options and then press the OK button.

Sound Mode Press the button to select an audio-enhancement technique: Standard / Music / Movie / Sports / Personal and then press the OK button to confirm.
Alternative You may press the S button to select the sound mode directly.
Treble Press the	buttons to control the relative intensity of higher pitched sounds. (for Personal mode)
Bass Press the	buttons to control the relative intensity of lower-pitched sounds. (for Personal mode)
Balance Press the	buttons to adjust the relative volume of the speakers in a multiple speaker system.
Auto Volume Press the	buttons to turn on / off the auto volume. Select On to automatically control the volume. (e.g. advertisements tend to be louder than the programmes)
SRS TruSurround HD	SRS TruSurround HD^TM (TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT^® . Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity. Press the buttons to select On / Off.
SPDIF Mode Press the	buttons to select the digital audio output mode.
AD Switch (For DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster.Set to "Off" for normal broadcasting sound coming out from speakers.Set to "On" to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner.

1. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Stereo / Dual Sound Reception (ATV Mode)

When a programme is selected, press the S button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo for the selected station.

Broadcast On Screen Display
Mono	MONO
Stereo	NICAM STEREO

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono by pressing the S button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo. In mono reception, the clarity of sound is improved. To switch back to stereo, press the S button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo again.

Speaker Sound Output Selection (DTV Mode)

While watching a DTV programme, you can press the S button to display the audio language list (only applicable when the TV programme has this feature).

Press the ▲▼ buttons to select an audio language or audio format if available and then press the ◀▶buttons to select sound track between L/R (Stereo), L/L (Mono Left) and R/R (Mono Right). Press the OK button to confirm and exit.

Time Setting

Allows you to adjust timer zone, sleep timer, auto standby, OSD timer and summer time.

1. Press the Menu button and then press the ▲▼ buttons to select the TIME menu and then press the OK button.

1. Press the Buttons to select the following time options and then press the OK button.

Clock The clock is set automatically when receiving a digital signal. (DTV mode)

Time Zone When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

Press the ◀▲Buttons to select the desired time zone city and then press the OK button to confirm.

Sleep Timer The sleep	timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.Press the ▲▼ buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min and then press the OK button to confirm. The timer begins to count down from the number of minutes selected.
	If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased.
Auto Standby The unit will automatically switch to standby mode 4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.If you want to operate the TV for a long period of time, turn off the auto standby function. Press the Menu button to display the main menu. Press the ▲▼ buttons to select the Time option and then press the OK button. Press the ▲▼ buttons to select the Auto Standby option and then press the OK button to select "Off". Press the ←Exit button to exit the main menu. To save energy you should always turn the auto standby function back to "4H".	The unit will automatically switch to standby mode in 4 Min 25 Sec. Press the OK button to continue viewing.
OSD Timer Press the	buttons to Select the display time of the on-screen menu: 5s / 10s / 15s / 20s / 25s / 30s and then press the OK button to confirm.	OSD Timer
Summer Timer Press the OK button repeatedly to select OFF / ON / Auto.

1. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Option Setting

OSD Language

Allows you to select your desired on screen menu language.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select OSD Language and then press the OK button. The default on-screen menu language is set as English.
2. Press the ▲buttons to navigate the menu and change the settings. Press the OK button to confirm and return to the previous menu.
3. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

TT Language

Allows you to select your preferred Teletext language.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select TT Language and then press the OK button.
3. Press the ▲▼ buttons to select your desired TT Language. Press the OK button to confirm and return to the previous menu.
4. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

Audio Language (DTV Mode)

Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.)

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Audio Language and then press the OK button.

1. Press the ▶ buttons to select the Primary / Secondary Audio Language. Press the ▼ button and then press the ▲ buttons to select your desired audio language. Press the OK button to confirm and return to the previous menu.

2. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Subtitle Language (DTV Mode)

Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Subtitle Language and then press the OK button.

1. Press the ◀buttons to select the Primary / Secondary Subtitle Language. Press the ▼button and then press the ▲buttons to select your desired subtitle language. Press the OK button to confirm and return to the previous menu.
2. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

While watching a DTV programme, you can press the SUB button on the remote control to display the Subtitle Language List and then press the ▲▼ buttons to select the Subtitle Language. Press the OK button to confirm. (Only applicable when the TV programme has this feature)

Hearing Impaired

Allows you to show more information in subtitles for the hearing-impaired in some programmes (for DTV channels only if available).

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the Buttons to select Hearing Impaired and then press the OK button to select On / Off and return to the previous menu.
3. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select PVR File System and then press the OK button.

Select Disk Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR. The system will show "Checking". Upon the completion the system will show either "SUCCESS" or "FAIL".
USB Disk	If no USB storage device is connected, it will show "No USB Device". If the Check PVR File System has a "SUCCESS" it will show "Pass".
Format	Press the OK button, a File System Size menu will pop-up. Press the ▶buttons to select your preferred file type between FAT32 and Hi Speed FS. If you select Hi Speed FS, press the ▼button and then press the ▶buttons to select your preferred file size. Press the OK button to confirm and then press the ▶button to start formatting. This may take awhile depending on the size of your USB storage device.
Time Shift Size After formatting the Time Shift Size menu will appear if you have selected Hi Speed FS in PVR File System Type. Press the ▶buttons to select your preferred file size. Press the OK button to confirm. This option cannot be chosen if you have selected FAT32 in PVR File System Type.			Time Shift SizeTime Shift Disk Size 4GBSD 112 Mins
Speed This shows you the transfer rate of your USB storage device.
Free Record Limit Press the ▶buttons to set the recording time limit from 1-4 hours.

1. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Aspect Ratio

Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Subtitle / Dot to Dot.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

2. Press the ▲▼ buttons to select Aspect Ratio and then press the OK button.

3. Press the ▲▼ buttons to change the following settings and then press the OK button to confirm to return to previous menu.

Alternative

You may press the P button twice and then press the ◀buttons to select the aspect ratio directly.

	Input Signal 4:3 Input Signal 16:9
Auto This selection	will display the picture according to the aspect ratio of the input source.		This selection will display the picture according to the aspect ratio of the input source.
4:3 This selection will allow you to view a picture with an original 4:3 aspect ratio. Black bars will appear on both the left and right of the screen.			This selection will allow you to adjust the picture horizontally, in linear proportion. Black bars will appear on both the left and right of the screen.
16:9 This selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen.			This selection will allow you to view a picture with an original 16:9 aspect ratio.
Zoom This selection will allow you to zoom in the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.			This selection will allow you to zoom in the picture without any alteration, while the 4 sides of the picture will be cropped.
Smart Zoom This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.			This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.
Dot by Dot (HDMI & YPBPR mode only)	This selection will detect the resolution of the HDMI signal and display an image with the same number of pixels.		This selection will detect the resolution of the HDMI signal and display an image with the same number of pixels.
Subtitle This selection will allow you to zoom in the picture without any alternation, while filling the entire screen with subtitles shown at the bottom of the screen.			This selection will allow you to zoom in the picture without any alternation, while showing subtitles at the bottom of the screen.

1. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

Blue Screen

Allows the blue background to turn On or Off during weak or no signal conditions.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Blue Screen and then press the OK button to select On / Off.
2. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Restores all settings to the factory defaults.

1. Press the Menu button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button.

1. Press the ◀ button to select "Yes". The TV will return to the first time installation menu. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

To access the LOCK menu, you must enter the password. Enter the default password "0000" for first time use. To change the password, please refer to page 37 "Set Password".

Lock System

The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Restore Factory Default.

1. Press the Menu button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

2. Press the ▲▼ buttons to select Lock System and then press the OK button.

3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the ▲▼ buttons to select Lock System and then the OK buttons to select On / Off. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / First Time Installation / Restore Factory Default.

2. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

Set Password

1. Press the Menu button and then press the buttons to select the LOCK menu and then press the OK button.

1. Press the ▲▼ buttons to select Set Password and then press the OK button.

2. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.

• The default password is "0000".

- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

Block Channel

Block Channel is designed to prevent children watching unsuitable programmes.

1. Press the Menu button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

2. Press the ▲▼ buttons to select Lock System and then press the OK button.

3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

• The default password is "0000".

- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the ▲▼ buttons to select Block Channel and then press the OK button.

1. A Block Channel screen will pop up. Press the ▲▼ buttons to select a channel. Press the GREEN button on the remote control to lock or unlock the channel. Press the GREEN button again to unblock.
2. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

When a channel is blocked, a valid password must be entered.

Parental Guidance

This function allows you to set up blocking schemes to block specific programmes and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate.

This TV is programmed to remember which option it was last set to even if you switch the TV off.

1. Press the Menu button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.

2. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm to return to the previous menu.

3. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

When a programme is rated above the selected age rating, the programme will be blocked, a valid password must be entered.

Key Lock

Key Locked is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Key Locked is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only.

1. Press the Menu button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On.

The default password is "0000".

- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the ▲▼ buttons to select Key Lock and then press the OK button to select On / Off.
2. Press the Menu button to return to the previous menu. Press the ← Exit button to exit the menu.

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the GUIDE button to switch on EPG.
2. Press the GUIDE button or the ← Exit button again to switch off EPG and return to normal TV viewing.

Select a Programme

Press the ▲▼ buttons to select the desired channel and then press the ◀▶ buttons to select the desired programme. Press the OK button to confirm.

Button Functions in a 7 Days Guide

Remote Control Button Function
RED (Record)	Timer ProgrammingSee page 50 for details onTimer Programming.Press theREDbutton in theSchedule Listto delete the selected preset reminder.
GREEN (Schedule)	Press theGREENbutton to view the preset reminders or scheduled recordings in theSchedule List.	Schedule List15:30 10th Mar DeleteBack
			Time Date		Programme Title	Chair name
YELLOW (Date)	Press to highlight the current date. Press the◀buttons to select the date and then press theYELLOWbutton again to confirm.
BLUE (Remind)	Press theBLUEbutton while on the selected programme, theReminder settingmenu will be displayed.Press the▲◀buttons to adjust the settings and then press theOKbutton to confirm the settings. After confirmation, theSchedule listwill then be displayed with your preset reminders shown. Press theGREENbutton to return to the EPG. The TV will automatically tune to the selected programme when it starts.				Reminder setting←=802 SZTVM03+▶08 Minute05 HourApr Month28 Date★Once ModeOKBACK
InfoPress to display detailed information of the selected programme (if available).
▲or▼	Press to select a channel.
◄or►	Press to view the schedule of the previous / next day.
OKPress to confirm and view the selected channel.
←ExitPress to switch off the EPG.

Teletext (ATV Mode)

Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

To Turn on Teletext Function

Make sure the TV channel you are watching transmits teletext. "No Teletext" sign will show on the screen if teletext is not available.

In ATV mode, press the TEXT button to enter Teletext mode.

Press the TEXT button three times to exit and the TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text, press the ▲button.

To move to the previous page, press the ▼ button.

Mix

To view a page of text while watching a TV programme, press the TEXT button twice. The text will be superimposed over the TV programme.

Fasttext

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 32 for details).

Teletext within Digital Service

1. Press the TEXT button to display the teletext page. If no Teletext service is available, a "No Teletext" message will be displayed.
2. Press the 0-9 buttons to select a page number.
3. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.
4. To change digital teletext service, select a different service by pressing the 0-9 buttons or the ▲▼ buttons.

Alternative

You may press the RED button to the TEXT button to display the teletext information when you see a ●red logo displayed on the screen (e.g. BBC).

1. Press the TEXT button to exit.

3D Technology

This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. You need such a device to watch the TV in 3D. The 3D TV displays two separate pictures formatted for each eye. The viewer needs to wear 3D glasses in order to see these images in 3D format.

• When watching 3D images, you should maintain a distance of at least twice the screen width, and you should also be able to see all of the screen at eye level.
• If you watch the 3D imaging too closely or for a long period of time, it may harm your eyesight.
• Watching the TV or playing video games that incorporate 3D imaging with the 3D glasses for a long period of time can cause drowsiness, headaches or fatigue to you and/or your eyes. If you have a headache, or otherwise feel fatigued or drowsy, stop watching the TV and take a rest.
• Pregnant women, seniors, persons with heart problems or persons who experience frequent drowsiness should refrain from watching 3D TV.
• Some 3D imaging may cause you to duck or dodge the image displayed in the video. Therefore, it is best if you do not watch 3D TV near fragile objects or near any objects that can be knocked over easily.
• Please prevent children under the age of 5 from watching 3D TV. It may affect their vision development.
• Warning for photosensitization seizure: Some viewers may experience a seizure or epilepsy when exposed to certain factors, including flashing lights or images in TV or video games. If you or anybody from your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV.
• Also certain symptoms can occur in unspecified conditions without any previous history. If you experience any of the following symptoms, immediately stop watching the 3D imaging and consult a doctor: dizziness or lightheadedness, visual transition or altered vision, visual or facial instability, such as eye or muscle twitching, unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea. Parents should monitor their children, including teenagers, for these symptoms as they may be more sensitive to the effects of watching 3D TV.

• Risk of photosensitization seizure can be reduced with the following actions.

• Take frequent breaks from watching 3D TV.

• For those who have vision that is different in each eye, they should watch the TV after taking vision correction measures.
• Watch the TV so that your eyes are on the same level as the 3D screen and refrain from sitting too closely to the TV.
• Do not watch the 3D imaging when tired or sick, and avoid watching the 3D imaging for a long period of time.
• Do not wear the 3D glasses for any other purpose than viewing 3D imaging on a 3D TV.

• Some viewers may feel disoriented after watching 3D TV. Therefore, after you watch 3D TV, take a moment to regain awareness of your situation before moving.

• To watch the TV in 3D, you must put on your 3D glasses. Do not move around while wearing the 3D Glasses as they may alter your sense of sight, balance and distance, leading to possible physical injury or property damage.

• After watching 3D TV, remove the 3D glasses and be aware of possible disorientation due to the change of balance and distance before moving around.
  • After powering on the TV, a few seconds may be needed for your TV to calibrate.
• It may take a moment for you to see the 3D imaging if you look away from the TV and then revert your eyes back to the 3D programme.
  • If there is an obstacle between the TV and the 3D glasses, the 3D imaging may not display properly.
• Do not use the TV in close proximity to other electronic equipments and RF equipments.
• When watching 2D images, it is recommended to take off the 3D glasses. If you watch 2D images with the 3D glasses on, you may see distorted images.

• Additional 3D glasses are sold separately.
- Do not use the 3D glasses to replace your corrective glasses, sunglasses or protective goggles.
- Do not store the 3D glasses in hot or cold locations.
- Do not drop objects onto the 3D glasses. Do not drop or bend the glasses.
- Since the lenses of the 3D glasses are easily scratched, make sure to clean only with a soft cloth. Shake off any dust before using the cloth since the glasses are easily scratched.

3D Imaging Viewing Range

TV size, viewing angle & other circumstances may change the viewing distance and the angle of view.

Watching 3D TV

1. Start a 3D video playback from a Blu-ray disc, USB multimedia playback or 3D TV broadcasting, or turn on the 2D to 3D function.
2. Put on compatible 3D glasses.
3. Press the 3D button to turn on 3D mode. The default 3D Type is Side by Side. Adjust the 3D Type setting if necessary to match the 3D video format. If the 3D picture layers look reversed or otherwise incorrect, adjust the Exchange 3D L/R setting in Picture setting.
4. Press the 3D button again to close the 3D Setup Menu.

3D Options

This TV has the facility to display the 3D image as normal 2D, or to display normal 2D images as a simulated 3D effect.

3D to 2D	Press the 3D button on the remote control repeatedly until Off appears on the screen.
2D to 3D	Press the 3D button on the remote control to switch 2D to 3D on or off.

3D Customised Setting

1. Press the Menu button and then press the buttons to select the PICTURE menu and then press the OK button.

1. Press the buttons to select the following picture options and then press the OK button.

3D Type	Press the◀▶buttons to choose a suitable 3D playback mode by matching the format of your 3D video to the available choice: Side by Side / Top Bottom / Frame Packing / Line by Line / 3D Off.
	Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.
Exchange 3D Left/Right	Press the◀▶buttons to adjust the setting for the best 3D picture visibility.
3D to 2D	Press the◀▶buttons to downscale 3D video or TV into 2D.
	Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.
2D to 3D	Press the◀▶buttons to upscale 2D video or TV into 3D.
	Alternative____Whilst in viewing mode, press the 3D button repeatedly to select this function.

1. Press the Menu button to return to the previous menu. Press the ←Exit button to exit the menu.

Connecting a USB Storage Device

1. Switch off the TV before connecting any USB storage device.
2. Connect your USB storage device to the USB port of your TV.
3. Plug the connected devices into the mains socket before switching on the POWER SWITCH which is located at the rear of the TV.
4. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
5. Press the TV/AV button at the front right side of the TV or the Source button on the remote control to display the Source List. Use the ▲▼ buttons to select USB and then press the OK button to confirm.

• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
- If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
• The maximum supported storage space of the hard disk is 1 TB.
• The file system only supports HiSpeed FS, FAT16, FAT32, NTFS formats (NTFS Compressed files are not supported).
- If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
- The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
- Disconnect the USB storage device if it is not in use.

Viewing Photos

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀▶ buttons to select PHOTO and then press the OK button.

3. Press the ◀▶ buttons to select PHOTO and then press the OK button.

4. Press the ◀buttons to select your storage device and then press the OK button.

File format supported: JPG / JPEG / BMP / PNG.

1. Press the ▲◀▶buttons to navigate in the picture folder and then press the OK button. Select the picture file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀button to confirm.

2. Press the i Info button or the OK button to display the function bar. Press the ▶buttons and then press the OK button to select the function: Play / Prev. / Next / Stop / Repeat All / Music / Playlist / Info / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View.

If this folder also contains music files. You can select a music track to play at the same time while viewing your photo.

1. Press the ← Exit button to return back to the previous menu and to select another file to play. Press the ← Exit button repeatedly to return to the root menu.

Listening to Music

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the functions bar.
2. Press the ◀buttons to select MUSIC and then press the OK button.

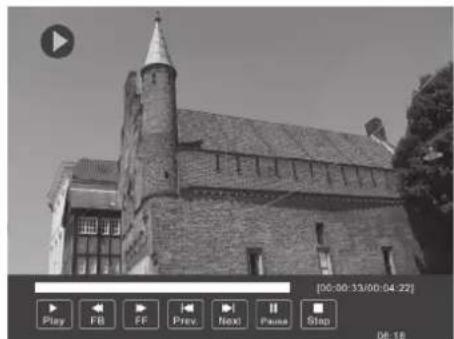

Exterior view of a historic domed building with arched colonnades and columns, surrounded by trees (no visible text or signage)

1. Press the ◀buttons to select your storage device and then press the OK button.

2. Press the ▲ buttons to navigate in the music folder and then press the OK button. Select the music you want to play and then press the OK button to play it. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

- Some audio file formats will not be supported. - Supported file formats: MP3 / WMA / AAC / AC3.

1. Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size).
2. Press the ◀buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / Playlist / Goto Time.
3. Press the ← Exit button to return back to the previous menu and to select another file to play. Press the ← Exit button repeatedly to return to the root menu.

Watching Movies

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀buttons to select MOVIE and then press the OK button.
3. Press the ◀buttons to select your storage device and then press the OK button.
4. Press the ▲buttons to navigate in the movie folder. Select the movie file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀button to confirm.

- Some audio file formats will not be supported. - Supported file formats: MPEG1/2 / MPEG4 / DivX / H.264.

1. Press the i Info button or the OK button to display the function bar. Press the ◀ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info / Aspect Ratio.
2. Press the ← Exit button to return back to the previous menu and to select another file to play. Press the ← Exit button repeatedly to return to the root menu.

Viewing Texts

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀buttons to select TEXT and then press the OK button.
3. Press the ◀buttons to select your storage device and then press the

OK button.

1. Press the ▲◀▶buttons to navigate in the text folder. Select the text

file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

1. Press the i Info button or the OK button to display the function bar.

Press the ◀buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info.

If this folder also contains music files. You can select a music track to play at the same time while viewing your text.

1. Press the — Exit button to return back to the previous menu and to select another file to play. Press the — Exit button repeatedly to return to the root menu.

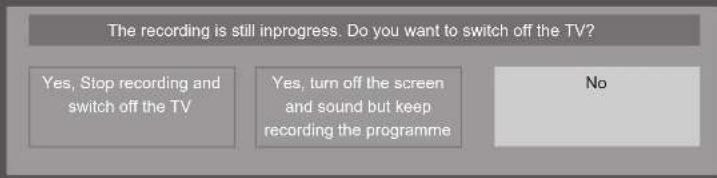

This function allows the TV to virtually record the live viewing broadcast programme.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
- Stop the time-shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.

During normal TV viewing, you may press the ▶ button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). " Ⅱ" will show on the screen.

Alternative

Press the OK button to display the PVR Time Shift progress bar and then press the ◀▶ buttons to select "▶Play" on the bar. Press the OK button to confirm.

When you have returned, press the ▶ button to play the missed broadcast programme. " ▶ will show on the screen.

There may be a few seconds delay in video and sound when the unit starts to playback the missed broadcast programme. It will return to normal.

The 'PVR Time Shift Progress Bar'

1 Indicates the status of the currently displayed video (▶/▶/◀) ▶
2 Indicates the time lagging behind the live broadcast (DVR reviewing)
3 Indicates the available recording time on your USB storage device
4 Indicates the current time

Using the Remote Control

You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the screen for 15 seconds. Press the OK button to display the PVR Time Shift progress bar again.

▶	During playback, press the ▶ button to display a still screen and then press the ▶ button again to resume playback.During fast forward / fast backward state, press the ▶ button to return to normal playback.
◀ or ▶▶	When playing,Press the◀ button repeatedly to speed up ◀1 / x 4 / x 8 / x 16.Press the▶ button repeatedly to speed up ◀2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶ button to return to normal playback.
◀ or ▶▶▶	Press the▶ button to jump about 10% forward.Press the◀ button to jump about 10% back.
OK	During playback, press the OK button to display a still screen and then press the ▶ button again to resume playback.
■	If you want to exit the PVR Time Shift progress bar and return to the current live broadcast, press the ■ button and then press the ▶ button to confirm.

Recording DTV Programme onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save them for future viewing.

Make sure that your connected USB storage device has enough available memory space.

1. Press the Ⓑ button to record the programme that you are currently watching.

The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the Ⓡ button.

1. Press the ☐ top button to stop recording.

Recording will stop automatically when the disk is full.

Black-and-white photo of a historic stone church with a pointed spire, surrounded by trees and a play button (no readable text or symbols in the scene)

If you want to turn off your TV during recording, press the button. A dialogue will be displayed.

Press the ◀buttons to select your desired option and then press the OK button to confirm. If you select the middle option in the box, the screen will turn off but the recording will still continue, and the LED indicator will alternatively flash red and blue.

Timer Programming

This function is used to perform scheduled recording.

1. Press the GUIDE button on the remote control. The EPG menu will appear.

2. Press the Ⓗ button or the RED button on the remote control while on the selected programme, the RECORDER menu will be displayed. Press the ▲◀▶▼ buttons to select the settings in the RECORDER menu for the Channel, Start time, End time and Mode.

Start time(for Mode Once, Every Day, Weekly)	Press the ▲buttons to select the Minutes / Hour / Month / Date and then press the ◀buttons to adjust the start time.
End time(for Mode Once, Every Day, Weekly)	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀buttons to adjust the end time.
Mode Press the	◀buttons to select the Once / Every Day / Weekly.

1. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display.

1. The Schedule List will then be displayed with your preset reminders shown.

2. Press the GREEN button to return to the EPG.

3. Press the ← Exit button to exit EPG.

- When the preset time is reached, the TV will start recording automatically.

- If a programme recording starts when the TV is in standby mode, the LED indicator will alternately flash red and green.

Schedule List 18:30 10th Mar Deloit Back
	Free Date		Foreign Date	Ocean State

Play Recorded Programme

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button.

2. Press the ◀buttons to select MOVIE and then press the OK button.

3. Press the ◀buttons to select your storage device and then press the OK button.

4. Press the ▲◀▶▼ buttons to select the "MY PVR" folder and then press the OK button. Press the ▲◀▶buttons to navigate in the "MY PVR" folder. Select your recorded programme and then press the OK button to view.

1. Press the i Info button or the OK button to display the function bar.
2. Press the ◀buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info.
3. Press the ← Exit button or the □ button to stop the current playback and to return back to the previous menu.

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the STANDBY button at the front right side of the TV when viewed from the front or the ⏻ button on the remote control. Disconnect the mains cable from the mains socket before any cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.
2. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV.
3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Illustration of a hand holding a computer mouse on a monitor (no text or symbols)

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

The TV does not operate properly.
The TV does not respond when pressing any buttons	The TV may freeze up during use. Disconnect the mains cable from the mains socket for a few minutes. Reconnect the mains cable and try to operate it again as usual.
TV cannot be switched on	Check that the TV is connected to the mains supply and the POWER SWITCH at the rear of the TV is switched on.Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.Ensure that the batteries are installed with the correct polarity (+ to +, - to -).Install new batteries.
Power is suddenly turned off	Check the power of the TV. The mains supply maybe interrupted.Check if the sleep timer is set.Check whether the Auto Standby is activated.

The video function does not work.
No Picture & No Sound	Check whether the TV is switched on.Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	Adjust the settings in thePICTUREmenu.Try another channel. The problem may be caused by the broadcaster.Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable channel may be experiencing problems, tune to another station.Station signal is weak, reposition the aerial for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	Check if the input source isHDMI1 / HDMI2 / HDMI3.
Picture appears in wrong ratio	Adjust theAspect Ratiosettings in theOPTIONmenu.
The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from Inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI1 / HDMI2 / HDMI3.
Audio noise	Keep the RF coaxial cable away from the other connected cables.

Password
Lost password	• Select the Set Password setting in the LOCK menu, then enter the following master password “4711”. The master password clears your previous password and allows you to enter a new password.

There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour	Check the signal cable.Reinstall the PC video card.

FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes, if you have a weak signal. Usually it just means you'll need to rescan your digital box or TV. Don't worry, it easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get 'blocking' on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set – top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

YPbPr Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480I: 720 x 480	60	Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Dot to Dot / Subtitle
480P: 720 x 480
576I: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080I: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution Vertical Frequency (Hz) Aspect Ratio
640 x 480	60	4:3 / 16:9
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1360 x 768 60
1920 x 1080 60

HDMI Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480l: 1440 x 480 60		Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Dot to Dot / Subtitle
480P: 720 x 480 60
576l: 1440 x 576 50
576P: 720 x 576 50
720P: 1280 x 720	50
	60
1080l: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60
Model L423CD11 L473CD11
Panel System 42 inch LCD Panel 47 inch LCD	Panel
Display Resolution	1920 pixels (horizontal) x 1080 pixels (vertical)	1920 pixels (horizontal) x 1080 pixels (vertical)
Television System PAL I / BG / DK / SECAM BG/DK PAL I / BG / DK / SECAM BG/DK
Brightness 380 cd/m	^2	400 cd/m ^2
Contrast Ratio 1000:1 1100:1
Power Source 100-240V~50/60Hz 100-240V~50/60Hz
Energy Efficiency Class C	D
Screen Size (measured diagonally)	Approx. 107 cm (42 inch)	Approx. 119 cm (47 inch)
Power Consumption (In Home mode)	136W	185W
Average Annual Energy Consumption	198kWh	270kWh
Standby Power Consumption	0.4W (16W in software / EPG update mode)	0.4W (16W in software / EPG update mode)
Operating Temperature	0°C - 40°C	0°C - 40°C
Operating Humidity	10% - 80% RH (non-condensing)	10% - 80% RH (non-condensing)
Reference Period	2010/1062 - 2011 2010/1062 - 2011
Speaker Power	8 W + 8 W	8 W + 8 W
Dimension (W x D x H) with base	1049 x 292 x 727 mm	1143 x 291 x 765 mm
Weight (Net)	23.0 kg	26.6 kg
Inputs / Output
SCART	1	1
HDMI	3	3
PC	1	1
PC AUDIO	1	1
YPbPr	1	1
Common Interface	1	1
AV	1	1
USB	1	1
AUDIO IN (RCA)	1 (L + R) 1 (L + R)
DIGITAL (Coaxial)	1	1
RF (75 Ω)	1	1
Earphone (3.5mm)	1	1
Audio Out	1 (L + R) 1 (L + R)

Features and specifications are subject to change without prior notice.

L423CD11 L473CD11

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
  • Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LCD screen

- The LCD screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and LCD TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen. - Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.
2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

- To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Headphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Standby

- The ⏻ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Base Stand 101040383
Remote Control 118020377
AAA Batteries 118030017
3D Glasses 118050098
Mains Cable 117010062
Screws 119020013

Partmaster \_\_\_\_.co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

The FREEVIEW word and logo are trademarks of DTV services Ltd and are used under licence. ©DTV Services Ltd 2002

The "HD Ready" logo is a trademark of DIGITALEUROPE.

SRS TruSurround HD ^™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialogue.

TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc.

All trademarks are the property of their respective owners and all rights are acknowledged.

Gradient background transitioning from white to dark gray, no text or symbols present

Gradient background transitioning from white to dark gray, no text or symbols present
