Product Type	LED TV
Screen Size	19 inches
Resolution	1366 x 768 pixels (HD)
Aspect Ratio	16:9
Contrast Ratio	1000:1 (typical)
Brightness	200 cd/m²
Viewing Angle	178° horizontal / 178° vertical
Refresh Rate	60 Hz
Inputs	HDMI, USB, VGA, AV (composite), RF (antenna)
Outputs	3.5mm headphone jack
Power Consumption	30 W (typical), < 0.5 W standby
Power Supply	100-240 V AC, 50/60 Hz
Weight (without stand)	2.5 kg
Dimensions (W x H x D) without stand	450 x 280 x 50 mm
USB Media Playback	Supported formats: MP4, AVI, MKV, JPEG, MP3
Sleep Timer	Yes, selectable up to 120 minutes
Parental Control	Yes, channel lock
Cleaning Instructions	Use a soft, dry cloth. Do not use liquid cleaners.
Safety Instructions	Keep ventilation slots clear; avoid moisture; unplug during lightning storms.
Spare Parts Included	Remote control, power cord, stand base, screws
Repairability	User-accessible ports; internal repairs should be done by qualified personnel.
Warranty	1 year limited warranty

Frequently Asked Questions - L19LI628E Logik

How do I connect my Logik L19LI628E TV to a cable or satellite box?

Use an HDMI cable to connect the box's HDMI output to the TV's HDMI input. If your box only has AV (composite) output, use the included AV cable (yellow, red, white) connected to the TV's AV input. Then select the correct source using the Source button on the remote.

What should I do if the TV screen shows 'No Signal'?

Check that the connected device is powered on and the cable is securely connected. Press the Source button on the remote to cycle through inputs (HDMI1, HDMI2, VGA, AV, TV). Ensure you have selected the input corresponding to your device.

How can I play media files from a USB drive?

Insert the USB drive into the USB port on the TV. Press the Source button and select USB. The TV will automatically detect media files. Use the remote to navigate and select Video, Music, or Photo folders. Supported formats include MP4, AVI, MKV, JPEG, and MP3.

Why is the remote control not working?

First, check the batteries and replace them if needed. Ensure there are no obstacles between the remote and the TV's sensor. Point the remote directly at the TV. If the problem persists, try resetting the remote by removing batteries and pressing any button for 10 seconds, then reinsert batteries.

How do I set up the TV for the first time?

Connect the TV to power and press the Power button. The Setup Wizard will appear. Select your language, country, and time zone. Choose Antenna or Cable for TV channels, then perform Auto Scan. Follow on-screen instructions to complete the setup.

Can I mount the TV on a wall?

Yes, the TV is VESA mount compatible (75 x 75 mm). Use a VESA 75x75 wall mount kit. Ensure the wall mount is rated for the TV's weight (2.5 kg). Follow the wall mount instructions carefully. The TV's stand can be removed by unscrewing the screws at the bottom.

How do I clean the TV screen safely?

Turn off the TV and unplug it. Use a soft, dry, lint-free cloth to gently wipe the screen in a circular motion. Do not use water, cleaning liquids, or paper towels as they may damage the screen. For stubborn smudges, slightly dampen the cloth with water and wring it out thoroughly before wiping.

What should I do if the TV turns off by itself?

Check if the Sleep Timer is set. Press the Menu button, go to Timer or Sleep Timer and set it to Off. Also ensure the TV is not overheating; allow ventilation. If the issue continues, try a factory reset from the menu: Settings > System > Factory Reset.

How can I adjust the picture settings?

Press the Menu button on the remote, select Picture settings. You can adjust Brightness, Contrast, Color, Sharpness, and Color Temperature. You can also choose a preset mode: Standard, Vivid, Movie, or Sport.

Is the TV compatible with a universal remote?

Yes, the Logik L19LI628E uses standard IR codes. Consult your universal remote's manual for code setup. Common codes for Logik TVs include 001, 002, or 003. You may need to try different codes or search automatically.

USER MANUAL L19LI628E Logik

L15LID628E

L19LI628E

L19LID628E

L19LID628WE

L22LI628E

L22LID628E

L22LID628WE

Warnings

Thank you for purchasing this television. For your safety, please take time to read these instructions carefully in order to familiarise yourself with the operation of the appliance and the important safety information. We strongly recommend that this product is installed by a competent person. If in doubt, refer to the retailer or the manufacturer helpline.

Caution

This television contains no user serviceable parts. Please refer to the manufacturer or authorised repair agent in the event of malfunction. Do not remove the back cover from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use an alcohol based cleaner.

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.

Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration. Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.

Safety Warnings

Warnings

Screen Burn

A characteristic of Plasma and LCD TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on your TV will be constantly moving and fill the screen.

Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen. • Picture-in-Picture and Multi Picture-in-Picture: Do not view for long periods of time using the Picture-in-Picture or Multi Picture-in-Picture functions. - Time Displays - Teletext: Do not view a stationary page for long periods of time. • TV/DVD Menus: e.g. Listings of DVD disk content. - Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Note: To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Contents

■ Chapter 1 Introducing the LCD TV

Getting Started 4 - 5

■ Chapter 2 Installing the LCD TV

Remote Control Buttons 6 - 7 TV Buttons & Source Menu 8 Inputs & Connections 9

■ Chapter 3 Using The Features

Video Menu 10 - 13 Audio Menu 14 - 15 TV Menu 16 - 18 Setup Menu 19 - 23 Parental Menu 24 Program Guide & Digital Text 25 - 26 TV Text 27 Connecting to a PC 28 - 29 Menu 30 - 31 DVD Menu 32 - 41 Wall Mounting 42 With Sky Digital 43 - 44

Troubleshooting

Frequently Asked Questions 45

Specifications

Technical Specification 47 Index

Study Warnings

Producing the LED TV

Installing the LCD TV

using the resources

Touleschooling

soulouyeds

What is included in the box

Accessories

Included with this TV are the following accessories:

1x - User Guide Book

1x - Remote control

Part No.: EMU/MAN/0001

Part No.: EMU/RMC/0002 with DVD

EMU/RMC/0003 without DVD

1x - RF lead

2x - AAA batteries

Part No.: RMU/CAB/0026

Part No.: RMU/BAT/0001

1x - Quick Start Guide

1x - TV

Part No.: EMU/QSG/0001

If you experience any problems with this Television, please contact the helpline.

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: [phone] | Email: [e-mail]

Getting Started - Initial Set Up

IMPORTANT - AFTER TUNING, DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL INFORMATION CAN BE STORED.

TUNING IN TV

IMPORTANT — Please ensure the TV has reached room temperature before connecting the power for the first time.

1) Connect the mains lead to your electrical outlet and switch on the TV using the switch next to where the power cable goes into the TV.

2) Connect the RF cable supplied to the 'RF IN' on the rear of the TV and connect the other end of the cable to your TV aerial outlet.

3) Install batteries in the remote control and press the [POWER] button to turn on the TV.

The 'Initial Set up' menu should now appear.

4) Press [OK] on the remote control.

5) Select the required language then press [OK].

Getting Started - Initial Set Up

6) Select country then press [OK].

7) Press [OK] and tuning will take place.

8) After tuning a screen will appear to confirm tuning is complete.

Press [OK] and you can now watch TV.

Important - Due to signal strength variations across the EU for Digital TV, please note that not all of the channels/services may be available in your region. Over the coming months as coverage increases, more services and channels may become available. In the event of poor reception in either Analogue TV or Digital TV (DVB) it may be necessary to install a signal 'booster' to enhance reception. For Digital/Freeview TV (DVB) you may need to upgrade your aerial to a High Gain Digital version.

Ideal set up for optimum picture

Remote Control Buttons

DVD mode: Press to eject disc TV mode: Press to increase channel on favorite list

DVD mode: Press to play or pause DVD TV mode: Press to activate subtitles

DVD mode: Press to stop DVD TV mode: Press to open EPG

DVD mode: Press to play a DVD program in fast forward mode.

DVD mode: Press to play a DVD program in fast rewind mode.

DVD mode: Press to advance forward to the next chapter.

DVD mode: Press to replay the current program from the previous chapter.

1

Power

Switches on LCD TV when in Standby mode or vice versa

2 – These buttons only work when on an analogue TV channel (Channels 901 upwards)

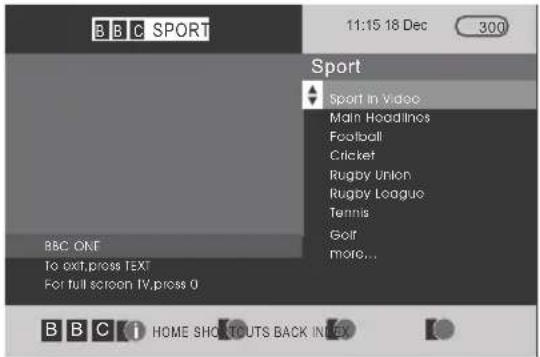

TXT

Opens Teletext mode

MIX

Changes the background so you can see the channel you are watching underneath the text information

SIZE

Alters the size of the text

INDEX

Requests the index page

HOLD

Press hold on or off for current page display.

REVEAL

To reveal or hide the hidden words

SUBCODE

Sub coded page access. To switch the dialogue at the bottom of the screen

CANCEL

Cancels the action

3

NUMBER BUTTONS

Press the number buttons to select the channel and wait 2 seconds for the channel to change. Also work as alphabet buttons as required.

TIMER

Displays the current time

O

Return to the previous channel viewed

Remote Control Buttons

4

+P

Lets you change the picture mode presets between User -> Cinema -> Sport -> Vivid -> Hi-Bright -> Standard

+SH

Switch between the different present sound options Off -> Rock -> POP -> Live -> Dance -> Techno -> Classic -> Soft

VOL +/-

Press to increase/decrease the sound level

CH +/-

Press to increase/decrease the channel

Sleep

Activates the sleep mode, continue to press until required time is selected

Display

Press to display the source and channel information

5

MENU

Press to open the OSD Menu

MUTE

Press to mute the sound and press again to restore

NAVIGATION BUTTONS (◀, ▶, ▲, ▼, OK)

Allows you to navigate the on screen menus and adjust the system settings to your preferences

SOURCE

Press to bring up the source menu

EXIT

Press to exit the OSD Menu

6

FREEZE

Press and the picture will be frozen and pushing this key again the picture will return.

ZOOM/STRETCH

Press to change the picture format of the screen

|/||

Press to switch the modes of sound processing

FAV

Press to display favorite menu.

7 – Buttons that relate to DVD features are only for use on TV with a built-in DVD player

DVD-M / Add/Erase

DVD mode: Press to enter the disc menu

TV mode: Add or erase program from favorite list

RED / SETUP

TV mode: For opening Digital Teletext and operating digital and analogue Teletext

DVD mode: Press to opening DVD OSD menu

GREEN / REPEAT

TV mode: For operating digital and analogue Teletext

DVD mode: Press to set a chapter so that it repeats

YELLOW / SUB-T

TV mode: For operating digital and analogue Teletext

DVD mode: Press to select caption when playing DVD or SVCD that has multiple captions.

BLUE / AUDIO

TV mode: For operating digital and analogue Teletext.

DVD mode: During DVD or SVCD playback, press it repeatedly to select audio language.

TV Buttons & Source Menu

SIDE PANEL BUTTONS

1	DVD – Eject
2	DVD – Stop
3	DVD – Play/Pause
4	Select the input source
5	Channel down
6	Channel up
7	Volume down
8	Volume up
9	OSD (On Sreen Display) Menu

Choosing Mode/Source

To switch between the different connections is very easy.

1) Press [SOURCE] - The following will appear.

Screen varies by model.

SOURCE MENU

√ TV/FREEVIEW

DVD

HDMI

SCART

COMPONENT

PC/VGA

2) Press [V] or [A] to select the input you require. 3) Press [OK].

Connecting HD Ready Devices

There are two options for HD.

1) By connecting via HDMI cable (not included) – this provides both HD picture and sound. 2) By connecting via Component (YPbPr) cable (not included) – this provides HD picture. Source should be set to YPbPr.

Inputs & Connections

REAR CONNECTIONS

A	RF In	RF input
B	AUDIO L/R In	Audio input
C	Component	Component (YPbPr) input
D	PC Audio	PC Audio input
E	SCART	SCART input
F	VGA (PC)	VGA (PC) input
G	HDMI	HDMI input

TV Menu Operation

VIDEO MENU

This menu lets you alter all the aspects that relate to the picture settings to enhance the viewing experience.

Selecting Picture Mode

Lets you change the picture mode presets between User -> Cinema -> Sport -> Vivid -> Hi-Bright -> Standard.

1) Press [MENU] to enter menu. 2) Press [>] to enter Video Menu. 3) Picture Mode should be highlighted. 4) Press [>] to change between the different options.

5) Press [EXIT] to exit.

Adjusting Brightness

Increase or decrease the brightness of the picture.

1) Press [MENU] to enter menu. 2) Press [>] to enter Video Menu. 3) Press [V] to highlight Brightness. 4) Press [>] to increase the brightness or [<] to decrease the brightness.

5) Press [EXIT] to exit.

TV Menu Operation

Adjusting Contrast

Adjust the balance between black & white and vivid.

1) Press [MENU] to enter the menu. 2) Press [>] to enter the Video Menu. 3) Press [V] to highlight Contrast. 4) Press [>] to make the picture more vivid or [<] to make the picture more black & white.

5) Press [EXIT] to exit.

Adjusting Colour

Increase or decrease the Red, Green & Blue which make up the picture.

1) Press [MENU] to enter the menu. 2) Press [>] to enter the Video Menu. 3) Press [V] to highlight Colour. 4) Press [>] to increase the colour or [<] to decrease the colour.

5) Press [EXIT] to exit.

TV Menu Operation

VIDEO MENU

Adjusting Sharpness

Increase or decrease the sharpness of the picture. If you have a poor signal strength you should reduce the sharpness to get a better picture.

1) Press [MENU] to enter the menu. 2) Press [>] to enter the Video Menu. 3) Press [V] to highlight Sharpness. 4) Press [>] to increase the sharpness or [<] to decrease the sharpness.

5) Press [EXIT] to exit.

Dynamic Noise Reduction

Reduces the interference in the picture. Medium -> Strong -> Auto -> Off -> Low

1) Press [MENU] to enter the menu. 2) Press [>] to enter the Video Menu. 3) Press [V] to highlight DNR. 4) Press [>] to switch between the different options.

5) Press [EXIT] to exit

TV Menu Operation

Adjusting Colour Balance

Select between the different preset colour balance options or adjust manually. User -> Cool -> Standard -> Warm

1) Press [MENU] to enter menu 2) Press [>] to enter Video Menu 3) Press [V] to highlight Colour Balance

4) Press [>] to enter menu

5) Press [>] to switch between the different presets or move down and adjust the red, green and blue manually. 6) Press [EXIT] to exit

TV Menu Operation

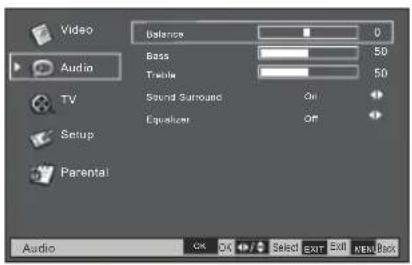

AUDIO MENU

This menu lets you alter all the aspects that relate to the audio settings to enhance the viewing experience

Adjusting Balance

To switch the sound between the left and right speakers

1) Press [MENU] to enter menu 2) Press [V] to highlight Audio Menu 3) Press [>] to enter Audio Menu 4) Balance should be highlighted 5) Press [>] to move to the right and [<] to move to the left

6) Press [EXIT] to exit

Adjusting Bass

To increase or decrease the low frequency part of the sound.

1) Press [MENU] to enter menu 2) Press [V] to highlight Audio Menu 3) Press [>] to enter Audio Menu 4) Press [V] to highlight Bass 5) Press [>] to increase the bass and [<] to decrease the bass

6) Press [EXIT] to exit

TV Menu Operation

Adjusting Treble

To increase or decrease the high frequency part of the sound.

1) Press [MENU] to enter menu 2) Press [V] to highlight Audio Menu 3) Press [>] to enter Audio Menu 4) Press [V] to highlight Treble 5) Press [>] to increase the treble and [<] to decrease the treble

6) Press [EXIT] to exit

Surround Sound

This provides virtual surround sound so the sound appears to be coming from around you.

1) Press [MENU] to enter menu 2) Press [V] to highlight Audio Menu 3) Press [>] to enter Audio Menu 4) Press [V] to highlight Surround Sound 5) Press [>] to switch on or off

6) Press [EXIT] to exit

Adjusting Equalizer

Switch between the different present sound options Off -> Rock -> POP -> Live -> Dance -> Techno -> Classic -> Soft

1) Press [MENU] to enter menu 2) Press [V] to highlight Audio Menu 3) Press [>] to enter Audio Menu 4) Press [V] to highlight Equalizer 5) Press [>] to switch between the different preset options

6) Press [EXIT] to exit

TV Menu Operation

TV MENU

Adjusting Country

If you are moving the TV to another country you will need to change the region. The TV's default is United Kingdom

1) Press [MENU] to enter menu 2) Press [V] to highlight TV 3) Press [>] to enter TV Menu 4) Country should be highlighted 5) Press [>] to change the country

6) Press [EXIT] to exit

Adjusting Audio Language

To change the audio language. As default the TV is set to English

1) Press [MENU] to enter menu 2) Press [V] to highlight TV 3) Press [>] to enter TV Menu 4) Press [V] to highlight Audio Language 5) Press [>] to change the language

6) Press [EXIT] to exit

TV Menu Operation

Adjusting Channels

This lets you re-tune in the channels.

1) Press [MENU] to enter menu 2) Press [V] to highlight TV 3) Press [>] to enter TV Menu 4) Press [V] to highlight Channels

Press [>] to enter channel menu

6) Press [EXIT] to exit

Channel Skip

a) Press [>] to enter channel skip b) Press [V] or [A] to select the channel you wish to skip c) Press [OK] to select d) Press [EXIT] to exit

Colour System

a) Press [<] or [>] to adjust b) Press [EXIT] to exit

Sound System

a) Press [<] or [>] to adjust b) Press [EXIT] to exit

Channel Edit (Only available when on analogue TV – channel 900 upwards)

a) Press [>] to enter Channel Edit b) You can now move the location of channels by pressing the RED button moving to location you require and press [OK] c) Press [EXIT] to exit

Analogue Channel Fine Tune (Only available when on analogue TV – channel 900 upwards)

a) Press [>] to enter Analogue Channel Fine Tune b) Press [OK] to adjust c) Press [EXIT] to exit

TV Menu Operation

TV MENU

Auto Scan

Scan for all channels based on the current settings

1) Press [MENU] to enter menu. 2) Press [V] to highlight TV. 3) Press [>] to enter TV Menu. 4) Press [V] to highlight Auto Scan. 5) Press [>] to start the search.

6) After tuning, the channel edit screen will appear. Press [EXIT] to exit.

Update Scan

Every so often, new digital channels are launched or signal strength improves. You can search for these as follows.

1) Press [MENU] to enter menu. 2) Press [V] to highlight TV. 3) Press [>] to enter TV Menu. 4) Press [V] to highlight Update Scan. 5) Press [>] to start the search.

6) Press [EXIT] to exit.

Analogue Manual Scan

This scan is used to manually scan for a channel based on the current settings.

1) Press [MENU] to enter menu. 2) Press [V] to highlight TV. 3) Press [>] to enter TV menu. 4) Press [>] to highlight Analogue Manual Scan. 5) Press [>] to enter menu. 6) Move to scan up or scan down by pressing [V]. 7) Press [>] to start scan.

Common Interface Slot

This lets you adjust the CI slot settings.

1) Press [MENU] to enter menu. 2) Press [V] to highlight TV. 3) Press [>] to enter TV Menu. 4) Press [V] to highlight CI. 5) Press [>] to enter CI.

6) Press [EXIT] to exit.

TV Menu Operation

SETUP MENU

On Screen Display Language

You may wish to change the language of the OSD. The TV's default is English.

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Country should be highlighted 5) Press [>] to change the country

6) Press [EXIT] to exit

Screen mode

Lets you adjust the picture format of the screen from 4:3, Full

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Screen Mode 5) Press [>] to change

6) Press [EXIT] to exit

TV Menu Operation

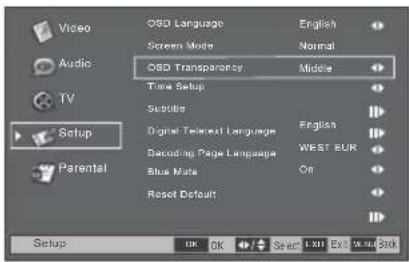

On Screen Display Transparency

This is the transparency of the On Screen menu Low -> Middle -> High.

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight OSD Transparency 5) Press [>] to change

6) Press [EXIT] to exit

Time Setup

You may wish to set the Time

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Time Set up

5) Press [>] to enter menu

Time can now be set automatically or manually. If you wish to set manually see the next page.

TV Menu Operation

SETUP MENU

6) Press [V] to highlight Time 7) Press [>] to enter Time menu

8) The time can now be adjusted manually by moving the time or date and altering it. 9) Press [EXIT] to exit

Choosing Subtitles

You may wish to have the subtitles switch on

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Subtitle

5) Press [>] to enter menu

Analogue Subtitle

a) Press [<] or [>] to adjust b) Press [EXIT] to exit

Digital Subtitle Language

a) Press [<] or [>] to adjust

b) Press [EXIT] to exit

Subtitle Type

a) Press [<] or [>] to adjust b) Press [EXIT] to exit

6) Press [EXIT] to exit

TV Menu Operation

SETUP MENU

Digital Teletext Language

Choose the language that you would like for digital Teletext (available via the red button)

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Digital Teletext Language 5) Press [>] to change the language

6) Press [EXIT] to exit

Decoding Page Language

If you are moving the TV to another country you will need to change this setting.

The TV's default is WEST EUR

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Decoding Page Language 5) Press [>] to change

6) Press [EXIT] twice to exit

TV Menu Operation

SETUP MENU

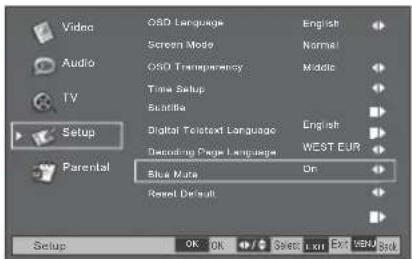

Blue Mute

Changes the background when there is no input, between clear and a blue background

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Blue Mute 5) Press [>] to switch the blue on or off

6) Press [EXIT] to exit

Reset

You may wish to reset the menus to factory settings e.g. if you have forgotten a changed password

1) Press [MENU] to enter menu 2) Press [V] to highlight Setup 3) Press [>] to enter Setup Menu 4) Press [V] to highlight Reset 5) Press [>] to reset

6) Press [>] to highlight yes 7) Press [OK].

The TV will now reset.

TV Menu Operation

PARENTAL MENU

Password

You may wish to add a password so that you can lock channels. Once added, if forgotten, it can only be reset by switching the TV back to factory settings. The default password is set as 0000.

1) Press [MENU] to enter the menu. 2) Press [V] to highlight Parental. 3) Press [>] to enter the Parental Menu. 4) Password should be highlighted. 5) Enter the password, you can then block channels, inputs, programs as well as setting a new password.

6) Press [EXIT] to exit.

Electronic Program Guide & Digital Teletext

Electronic Program Guide (EPG)

The Electronic Program Guide (EPG) is available in Digital TV mode. It is a TV guide and provides information about forthcoming programmes (where supported by the broadcasted channel).

You can view the start and end time of all programs and on all channels.

It is very simple to operate.

1) Press [EPG]. The following will appear.

2) Press [>] or [<] to select the channel you wish to see information about.

3) Press [V] or [A] to move through the programs for the day highlighted. 4) Press [EPG] to exit the Electronic Program Guide (EPG).

Electronic Program Guide & Digital Teletext

Digital TV Teletext

With Digital TV (Freeview) there is also digital teletext available on some channels. Simply follow the on-screen commands. Here is an example of the BBC digital teletext service.

1) To start digital teletext, press the RED button.

2) To select the information you require, you can scroll using [V] or [/A] and press [OK]. Alternatively, you can key in the page number, for example [3][0][0], followed by [OK].

You can then navigate using the colour buttons (Red, Green, Yellow, Blue), the [V] [/A] buttons, and numbers.

Analogue TV Teletext

Teletext is a service offered by some broadcasters.

Teletext Operation

1) Press [TXT]. After a few seconds, teletext page 100 should appear. Here is an example of BBC1.

2) You can now navigate to the page you require in a number of ways:

a) Press the page you require using the number buttons, i.e., page 02, by pressing [3][0][2]. b) Press the colour buttons; these will take you to the page indicated on screen for each colour.

3) To exit Teletext, press [TXT] at any time.

Other buttons

[SIZE] This increases or decreases the size of the text on screen. [INDEX] Some pages are more than one page long; this button displays the number of pages. [REVEAL] If there is an answer or something hidden, this will display it. [SUBCODE] Displays the sub page if it exists. [MIX] Displays the TV picture behind the text. [HOLD] This stops the pages changing when there are multi pages.

Connecting to a PC - Windows XP

IMPORTANT— Before connecting to a PC, you must ensure that the settings of the PC's output are correct for the new LCD Monitor.

You need to do the following with your old monitor connected:

1) Switch on your PC. 2) When finished booting up, right-click your mouse anywhere on the screen; the below will appear.

3) Left-click your mouse on Properties, this screen will appear

Connecting to a PC - Windows

4) Left-click on Settings, this screen will appear. Check that the screen resolution is set to a level that can be displayed by your television (refer to the technical specification for details). You can adjust the resolution by moving the slider on screen.

5) Left-click on Advanced, this screen will appear, click on the tab called 'Monitor'

6) Left-click on the drop-down for Screen refresh rate and select 60 Hertz. 7) Finally click Apply, then click Yes and the settings will be saved. 8) Turn off your PC. 9) Connect your LCD TV to your PC and switch on. 10) Switch on your PC, Windows will automatically install the LCD TV.

For Windows Vista operating system the process is very similar to the above. If you require additional support please contact the helpline.

PC Menu Operation (VGA)

VGA MENU

Automatic Configuration of Screen

Lets you automatically configure the television to be used as a computer monitor

1) Press [MENU] to enter menu 2) Press [V] to select VGA Menu 3) Press [>] to enter VGA Menu 4) Auto Adjust will be highlighted 5) Press [>] to start automatic adjustment

6) Press [EXIT] to exit

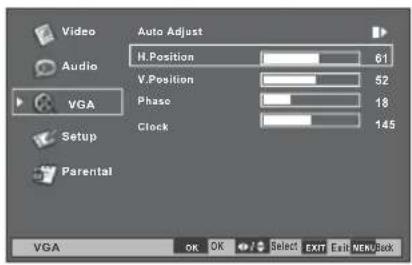

Horizontal Position

Changes the horizontal position of the picture

1) Press [MENU] to enter menu 2) Press [V] to select VGA Menu 3) Press [>] to enter VGA Menu 4) Press [V] to highlight H Position 5) Press [>] or [<] to adjust

6) Press [EXIT] to exit

PC Menu Operation (VGA)

Vertical Position

Changes the vertical position of the picture

1) Press [MENU] to enter menu 2) Press [V] to select VGA Menu 3) Press [>] to enter VGA Menu 4) Press [V] to highlight V Position 5) Press [>] or [<] to adjust

6) Press [EXIT] to exit

Phase

To adjust delay time of phase in order to reduce the noise of picture

1) Press [MENU] to enter menu 2) Press [V] to select VGA Menu 3) Press [>] to enter VGA Menu 4) Press [V] to highlight Phase 5) Press [>] or [<] to adjust

6) Press [EXIT] to exit

Clock

Alter this in order to reduce the noise within the picture

1) Press [MENU] to enter menu 2) Press [V] to select VGA Menu 3) Press [>] to enter VGA Menu 4) Press [V] to highlight Clock 5) Press [>] or [<] to adjust

6) Press [EXIT] to exit

DVD Menu Operation (DVD Models Only)

DVD BASIC PLAY

1) Press [SOURCE]

2) Select DVD 3) Press [OK] 4) Insert disc the correct way round (see image on the side of TV)

On screen will appear READING, once the disc has been accepted it will start to play. If it does not please refer to the frequently asked questions at the rear of the manual.

Within DVD Mode there is an additional menu. This can be operated in the following way.

SYSTEM SET UP

Adjusting TV System

Lets you adjust between NTSC, PAL, AUTO (Pal is default for the UK)

1) Press [SETUP] to enter menu 2) System Setup will be displayed 3) Press [V] to select TV System 4) Press [>] to enter TV System 5) Press [V] to change between NTSC, PAL, AUTO 6) Press [OK] to confirm

7) Press [SETUP] to exit

DVD Menu Operation (DVD Models Only)

Adjusting Video

Lets you adjust the video format.

1) Press [SETUP] to enter menu 2) System Setup will be displayed 3) Press [V] to select Video 4) Press [>] to enter Video 5) Press [V] to change 6) Press [OK] to confirm

7) Press [SETUP] to exit

Picture Format

Lets you adjust

1) Press [SETUP] to enter menu 2) System Setup will be displayed 3) Press [V] to select TV Type 4) Press [>] to enter TV Type 5) Press [V] to change between 4:3 PS, 4:3 LB & 16:9 6) Press [OK] to confirm

7) Press [SETUP] to exit

DVD Menu Operation (DVD Models Only)

Password

You may wish to add a password so that you can lock DVDs of a certain rating. Once added if forgotten it can only be reset by switching the TV back to factory settings. Default password is set as 0000 back to factory settings (see reset to default section).

1) Press [SETUP] to enter menu 2) System Setup will be displayed 3) Press [V] to select Password 4) Press [>] to enter Password 5) Enter the current password followed by the new one

6) Press [SETUP] to exit

DVD Ratings

You may wish lock DVD of a certain rating for example if you have small children.

1) Press [SETUP] to enter menu 2) System Setup will be displayed 3) Press [V] to select Rating 4) Press [>] to enter Rating 5) Select the rating level you would like 6) Press [OK] to confirm

7) Press [SETUP] to exit

Reset to default

You may wish to reset the menus to factory settings e.g. if you have forgotten a changed password

1) Press [SETUP] to enter the menu. 2) System Setup will be displayed. 3) Press [V] to select Reset. 4) Press [>] to enter Reset. 5) Press [OK].

6) Press [SETUP] to exit.

DVD Menu Operation (DVD Models Only)

LANGUAGE SETUP

On Screen Display Language

Lets you change the language of the On Screen Menu.

1) Press [SETUP] to enter the menu. 2) Press [>] to select Language Setup. 3) Press [V] to select OSD Language. 4) Press [>] to enter OSD Language. 5) Press [V] to select the language. 6) Press [OK] to confirm.

7) Press [SETUP] to exit.

Audio Language

Lets you change the audio language (if available on the DVD you are watching).

1) Press [SETUP] to enter the menu. 2) Press [>] to select Language Setup. 3) Press [V] to select Audio Language. 4) Press [>] to enter Audio Language. 5) Press [V] to select the language. 6) Press [OK] to confirm.

7) Press [SETUP] to exit.

DVD Menu Operation (DVD Models Only)

Subtitle Language

Lets you change the subtitle language (if available on the DVD you are watching).

1) Press [SETUP] to enter menu 2) Press [>] to select Language Setup 3) Press [V] to select Subtitle Language 4) Press [>] to enter Subtitle Language 5) Press [V] to select language 6) Press [OK] to confirm

7) Press [SETUP] to exit

Disc Menu Language

Lets you change the disc menu language (if available on the DVD you are watching)

1) Press [SETUP] to enter menu 2) Press [>] to select Language Setup 3) Press [V] to select Menu Language 4) Press [>] to enter Menu Language 5) Press [V] or [A] to select language 6) Press [OK] to confirm

7) Press [SETUP] to exit

DVD Menu Operation (DVD Models Only)

AUDIO SETUP

Key

Lets you adjust the key of the sound

1) Press [SETUP] to enter menu 2) Press [>] to select Audio Setup 3) Press [V] to select Key 4) Press [>] to enter Key 5) Press [V] or [A] to select 6) Press [OK] to confirm

7) Press [SETUP] to exit

Changing Regions

This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.skymediauk.co.uk. Select 'product support', 'DVD region code information'

DVD Menu Operation (DVD Models Only)

VIDEO SETUP

Brightness

Increase or decrease the brightness of the picture

1) Press [SETUP] to enter menu 2) Press [>] to select Video Setup 3) Press [V] to select Brightness 4) Press [>] to enter Brightness 5) Press [<] or [>] to select required level 6) Press [OK] to confirm

7) Press [SETUP] to exit

Contrast

Increase or decrease the contrast of the picture

1) Press [SETUP] to enter menu 2) Press [>] to select Video Setup 3) Press [V] to select Contrast 4) Press [>] to enter Contrast 5) Press [<] or [>] to select required level 6) Press [OK] to confirm

7) Press [SETUP] to exit

DVD Menu Operation (DVD Models Only)

Hue

1) Press [SETUP] to enter menu 2) Press [>] to select Video Setup 3) Press [V] to select Hue 4) Press [>] to enter Hue 5) Press [<] or [>] to select required level 6) Press [OK] to confirm

7) Press [SETUP] to exit

Saturation

Alter the Red, Green & Blue which make up the picture

1) Press [SETUP] to enter the menu. 2) Press [>] to select Video Setup. 3) Press [V] to select Saturation. 4) Press [>] to enter Saturation. 5) Press [<] or [>] to select the required level. 6) Press [OK] to confirm.

7) Press [SETUP] to exit.

Sharpness

Increase or decrease the sharpness of the picture. If you have a poor signal strength, you should reduce the sharpness to get a better picture.

1) Press [SETUP] to enter the menu. 2) Press [>] to select Video Setup. 3) Press [V] to select Sharpness. 4) Press [>] to enter Sharpness. 5) Press [<] or [>] to select the required level. 6) Press [OK] to confirm.

7) Press [SETUP] to exit.

DVD Menu Operation (DVD Models Only)

SPEAKER SETUP

Downmix

Choose between Left/Right, Stereo, and USS.

1) Press [SETUP] to enter the menu. 2) Press [>] to select Speaker Setup. 3) Press [V] to select Downmix. 4) Press [>] to enter Downmix. 5) Press [V] or [A] to select. 6) Press [OK] to confirm.

7) Press [SETUP] to exit.

Front Speakers

Select whether you wish to use either small or large front speakers, thus altering the sound.

1) Press [SETUP] to enter the menu. 2) Press [>] to select Speaker Setup. 3) Press [V] to select Front. 4) Press [>] to enter Front. 5) Press [V] or [A] to select. 6) Press [OK] to confirm.

7) Press [SETUP] to exit

DVD Menu Operation (DVD Models Only)

DIGITAL SETUP

Dynamic Range

This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

FULL: Set this to listen with the range recorded on the disc.

4/8: Set this to listen with a range equivalent to a normal television.

2/8: Set this to listen with a smaller difference

1) Press [SETUP] to enter menu 2) Press [>] to select Digital Setup 3) Press [V] to select Dynamic Range 4) Press [>] to enter Dynamic Range 5) Press [V] or [A] to select 6) Press [OK] to confirm

7) Press [SETUP] to exit

Adjusting the Sound

Lets you change the sound between Stereo, Mono Left, Mono Right and Mixed Mono.

1) Press [SETUP] to enter menu 2) Press [>] to select Digital Setup 3) Press [V] to select Dual Mono 4) Press [>] to enter Dual Mono 5) Press [V] or [A] to select 6) Press [OK] to confirm

7) Press [SETUP] to exit

Wall Mounting

IMPORTANT— BEFORE DRILLING ANY HOLES IN THE WALL ENSURE YOU ARE NOT DRILLING WHERE THERE COULD BE ANY ELECTRIC WIRES, WATER OR GAS PIPES

15" MODELS REQUIRE A VESA 75 WALL MOUNT. 19" & 22" REQUIRE VESA 100 WALL MOUNT.

75

100

To remove the stand

1) Remove the five screws highlighted below

2) The stand will now come off

Wall Mounting the TV.

1) Remove the four screws highlighted below. 2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below

Important – Ensure the length of screws included with your wall mount that secure the Wall Mount to the TV do not exceed 10 mm. Using longer screws could cause irreparable damage to the TV

Using with Sky Digital

You may wish to use your TV with Sky Digital.

There are a number of connection options, the best being connecting via SCART cable.

Connecting via SCART

1) Connect the SCART cable from the Sky Digital Box to SCART of the TV

2) Press [SOURCE]

3) Press [V] or [A] to select SCART

4) Press [OK]

The channel your Sky Digital box is displaying will now be shown on the TV.

You may wish to share your Sky Digital signal around the home by using an RF connection.

If this TV is to be connected in this way, please follow the below.

Connecting via RF

Ensure the Sky signal is switched on, before you start the below.

1) Connect the RF cable from the RF output socket of the sky/cable box to the 'RF IN' of the TV. 2) Press [MENU] to enter menu 3) Press [V] to select TV Menu 4) Press [>] to enter Menu

5) Press [V] to highlight Channel

6) Press [>] to enter Channel menu

7) Press [>] to highlight Analogue Fine Tuning

8) Select the channel you wish to use using [V]

9) Press [OK]

10) Press [>] or [<] to adjust the frequency. When you stop the channel will be saved.

Manually tune until you locate the Sky channel. If it stops, press [>] again and the search will continue. (Often, the frequency required is 847.25 MHz, depending on which model of Sky Set top box)

Once tuned in, it will go back to TV.

Using a Sky or Universal Remote Control

USING WITH SKY DIGITAL REMOTE CONTROLS (BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this TV. For this, you require a 'code' that needs to be programmed into your Sky Digital or universal remote control.

For codes for universal remote controls, please visit our website where you will find the very latest information and codes.

For codes for Sky/Sky+Sky HD, please note that at the point of manufacture, BSkyB have not launched the code required for this model of TV. They are due to launch a new remote control which should include the necessary code to operate the functions of the TV during 2009 (called revision 9). The launch date was not known at the time of printing this manual.

Please check our website for updates, alternatively, see below some other options of remote controls that are available.

REPLACE BOTH YOUR SKY & TV REMOTE WITH A ONE FOR ALL SKY & TV 2 IN 1 REMOTE CONTROL

The One for All remote controls shown above will operate all of the functions of the Sky box in the same way the original remote control will, in addition, they will also operate the functions of this model of TV. The One for All versions are available to purchase from the helpline/website. The original Sky remote controls are shown for comparison purposes.

If you require any further information, you can contact us:

www.skymediauk.co.uk email - [e-mail] Tel - 0870 242 6292

Frequently Asked Questions

Question:

I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up	1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk or call 08701 111 270.2) Check you have a suitable aerial. Many indoor aerials will say they are digital ready, but you will not get a good signal3) Consider purchasing a signal booster, it is much cheaper than a digital aerial and cures 70% of poor signal problems.4) Failing the above for now use the analogue TV, until the signal becomes stronger in your area.For best performance we recommend using an outdoor hi-gain digital aerial. If you are receiving some digital stations first, try to connect a signal booster in between the TV and TV aerial socket
The sound quality is high pitched?	Go into the sound settings menu as shown earlier in the manual and increase the level of the bass and decrease the treble
I have inserted a disc but it is not playing	1) Ensure you have put the disc as shown on the diagram next to the DVD loading slot.2) Ensure the disc is clean and is not scratched3) Some copied discs will not play.
The subtitles are switched on when I am watching a DVD	Each time you press [Subtitles] button you switch between the different languages. Off is one of the options. If you still have subtitle on, access through the DVD disc menu and switch off
I have connected the TV to my VCR via SCART but it is not recording	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to VCR and another aerial cable from the VCR to the TV

Solution:

Technical Specification

		L15LID628E (156/13A)	L19LI628E (19/13A)
Panel	Size (Inches) 15.6"	19"
	Resolution	1366x768 1440x900
	Contrast Ratio	500:1 800:1
	Brightness cd/m2	250 300
Input Signal	PC RGB Yes Yes
	RF	75 ohm Antenna / PAL-SECAM
	Video	1 x SCART, 1 x Component (YPbPr - 1080i)
	Audio	1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr
	HDMI	1 (up to 1080i)
Speaker Output	Watts (RMS) 2 x 1.5	2 x 1.5
DVD player		Yes -
Power	Voltage	100-240v 47-63Hz 1.5A
Dimensions	Inc Stand TBC 472W x 398H x 180D
	Exc Stand	TBC	472W x 353H x 75D
Weight	Net (Kgs) 5,5	6,1
	Gross (Kgs) 6,5	7,5

		L19LID628E (19/13A)	L22LID628E (22/13A)	L22LID628E (22/13A)
		L19LID628WE (19/13A)		L22LID628WE (22/13A)
Panel	Size (Inches)	19"	22"	22"
	Resolution	1440x900	1680x1050	1680x1050
	Contrast Ratio	800:1 700:1	700:1
	Brightness cd/m2	300 300	300
Input Signal	PC RGB Yes Yes	Yes
	RF	75 ohm Antenna / PAL-SECAM
	Video	1 x SCART, 1 x Component (YPbPr - 1080i)
	Audio	1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr
	HDMI	1 (up to 1080i)
Speaker Output	Watts (RMS) 2 x 1.5	2 x 1.5	2 x 1.5
DVD player		Yes	-	Yes
Power	Voltage	100-240v 47-63Hz 1.5A
Dimensions	Inc Stand	472W x 398H x 180D	537W x 439H x 180D	537W x 439H x 180D
	Exc Stand	472W x 353H x 75D	537W x 394H x 80D	537W x 394H x 80D
Weight	Net (Kgs) 6,5	6,9	7,3
	Gross (Kgs) 7,9	8,3	8,8

Index

Analogue TV teletext 27		Inputs and Connections	9
Audio Language 16		On Screen Display Language - TV	19
Audio Language - DVD 35		On Screen Display Language - DVD	35
Balance	14	Parental Menu	24
Bass	14	Password - DVD mode	34
Blue Mute 23		Password Settings	24
Brightness - DVD mode 38		PC Menu Settings	30 - 31
Brightness - TV Mode 10		Picture Format - DVD mode	33
Channels 17		Picture Mode	10
Colour	11	Remote control buttonsand their functions	6 - 7
Colour Balance 13		Removing the stand	42
Common Interface Slot 9		Reset	23
Connecting to a PC 28 - 29		Reset to Default - DVD mode	33
Contrast - DVD mode 38		Saturation - DVD mode	39
Contrast - TV Mode 11		Screen Mode	19
Country	16	Sharpness - DVD mode	39
Decoding Page Language	22	Sharpness - TV Mode 12
Digital Teletext Language	22	Source	8
Digital TV teletext	26	Subtitle Language	36
Disc Menu Language	36	Subtitles	21
DVD basic play 32		Surround Sound	15
DVD Menu Operation(DVD Models Only)	37	Technical Specifications 46
DVD Ratings	34	Time Setup	20
Dynamic Noise Reduction	12	Treble	15
Dynamic Range	41	Tuning in TV	4 - 5
Electronic Program Guide	25	TV buttons and their functions	8
Equalizer 15		TV System	32
Frequently Asked Questions	45	Using with Sky Digital	43 - 44
Hue - DVD mode	39	Wall mounting the TV	42
Index	47	What is included in the box	3

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Partmaster

.co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.

With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk or call 0870 6001 338

Visit www.partmaster.co.uk

or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers.
	rebmuNtraPtraPtnemecalpeR
	1000/NAM/UMEkooBediuGresU
	)DVD(1000e00RME)
Remote control (without DVD)	EMU/RMC/0003
RF dael	620BAC/UMR
AAA batteries	RMU/BAT/0001
Quick Start Guide	EMU/QSG/0001
