L32HED13A - Television Logik - Free user manual and instructions

Product Type	LED TV
Brand	Logik
Model	L32HED13A
Screen Size	32 inches (80 cm)
Resolution	1366 x 768 (HD Ready)
Display Technology	LED
Refresh Rate	50 Hz / 60 Hz
Power Consumption (Typical)	50 W
Standby Power Consumption	< 0.5 W
Dimensions (without stand)	73 x 43 x 8 cm
Dimensions (with stand)	73 x 48 x 18 cm
Weight (without stand)	4.5 kg
Weight (with stand)	5.0 kg
VESA Wall Mount Pattern	200 x 200 mm
HDMI Inputs	2
USB Inputs	1
Composite AV Input	1 (shared with component)
Component Video Input	1 (shared with composite)
VGA (PC) Input	1
Audio Output	3.5 mm headphone jack, RCA
Built-in Speakers	2 x 8W
Tuner	DVB-T/T2/C
Remote Control	Included (batteries not included)
Power Supply	AC 100-240V, 50/60Hz
Cleaning	Wipe with a soft, dry cloth. Do not use liquids or sprays.
Safety	Keep away from heat sources and water. Do not open the device.
Spare Parts & Repairability	Contact Logik support. Remote control and stand available.

Frequently Asked Questions - L32HED13A Logik

How do I connect external devices like a DVD player or gaming console to the Logik L32HED13A?

You can connect using an HDMI cable for best quality, or use the composite/component inputs for older devices. The TV has 2 HDMI ports, 1 composite/component input, and 1 VGA port for PC.

How do I set up the TV channels?

Press the Menu button, go to Channel or Setup, select Auto Tuning, and choose your signal type (DVB-T for aerial, DVB-C for cable). The TV will scan and store channels automatically.

What is the screen resolution of the Logik L32HED13A?

The TV has a resolution of 1366 x 768 pixels, which is HD Ready. It can display HD content but is not Full HD (1080p).

Can I mount the Logik L32HED13A on a wall? What VESA pattern does it use?

Yes, you can wall mount it. The VESA pattern is 200 x 200 mm. Use screws appropriate for your mount (usually M4 or M6, length depends on mount).

How should I clean the TV screen and body?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen and body. Do not use any liquids, sprays, or abrasive cleaners.

What is the power cord length?

The power cord length is approximately 1.5 meters (standard for most TVs). If you need a longer cord, use an extension rated for the TV's power consumption.

Does the TV have USB playback? What formats are supported?

Yes, the USB port supports playback of media files such as JPEG (photos), MP3 (music), and AVI/MP4 (video). Check the manual for full format compatibility.

How do I reset the TV to factory settings?

Press Menu, go to Settings or Setup, select Factory Reset or Reset to Default, confirm with OK. The TV will restart and lose all saved settings.

What is the warranty period for the Logik L32HED13A?

Typically, Logik TVs come with a 1-year warranty from the date of purchase. Check your retailer or contact Logik support for exact terms.

Where can I download the user manual for the Logik L32HED13A?

You can download the manual for free from notice-facile.com or the Logik support website. Search for the model number L32HED13A.

USER MANUAL L32HED13A Logik

32" HD Ready LED TV with DVD Player

L32HED13A

WE KNOWHOW™ TO HELP YOU WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you to get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at knowhow.com or call us on: 0844 561 1234

TV SET UP & DEMO

We'll assemble the stand and connect your new TV to the existing equipment. We'll tune your TV so it's ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We'll fix your TV to a suitable position on the wall and connect to your existing equipment, so it's all ready to go. We'll use neat wire management so you don't have to look at any untidy cabling and to complete your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT® SET UP & DEMO

We'll set up the Freesat® receiver and connect it to your existing dish, TV and cabling. We'll then tune in all available channels.

AERIAL INSTALL & TUNE

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV. Then we'll scan and tune in all available digital channels.

HOME THEATRE SET UP & DEMO

We'll un-box, connect and set up your new and existing equipment. We'll then configure, calibrate and optimise the equipment. To avoid ugly trailing cables, we'll clip them to your skirting board, if you'd like us to. Then we'll give you a demonstration.

FAULT & FIX SERVICES

With our FAULT & FIX services, we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for:

• Computer Desktops
• Laptops
• Netbooks
• TVs
• Games Consoles
• Sky & Freeview Digi Boxes

KNOWHOW™

Contents

Safety Warnings....5

Preparation....7

Unpacking the TV 7

Installing / Removing the Base Stand 8

Mounting the TV to a Wall....8

Front / Right Side View and Controls....9

Rear View and Sockets....10

Installing Batteries in the Remote Control 11

Remote Control Operation Range....11

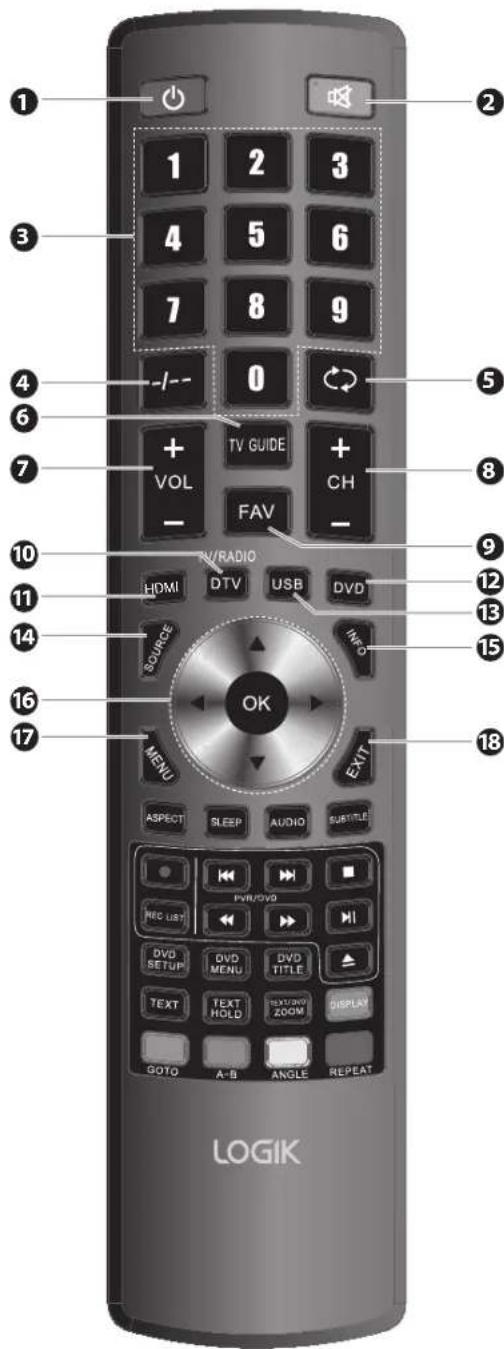

Remote Control 12

Initial Setup 14

Turning the TV On for the First Time 14

- Target Region Setting 15

- Connecting an Analogue Device....15

– Channel Selection ...... 16

- Display Channel Information ....16

– Volume Adjustment....16

Adjusting the Picture Settings....16

- Aspect Ratio....18

Sound Setting 19

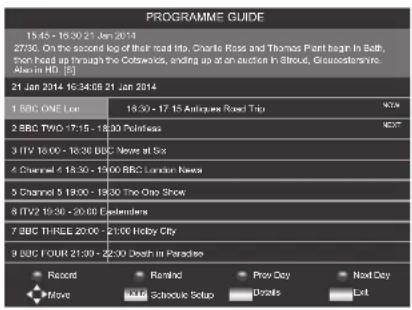

EPG (Electronic Programme Guide) (DTV Mode) 20

- Switch On / Off EPG....20

- Select a Programme 20

Time Shift Recording onto a USB Storage Device 21

Recording DTV Programmes onto a USB Storage Device 22

Timer Programming 23

Playing Recorded Programmes 24

Digital Teletext (DTV Mode) 25

- Teletext within Digital Service 25

Listening to the Radio 25

Using the DVD Features....26

Using the Built-in DVD Player 26

Compatible Disc Types 26

– Supported Formats......26

- Region Code 26

Basic DVD Playback Functions 27

Using the DVD General Setup Page 29

Using the DVD Audio Setup Page....30

– Signal Information (DTV Mode)....31

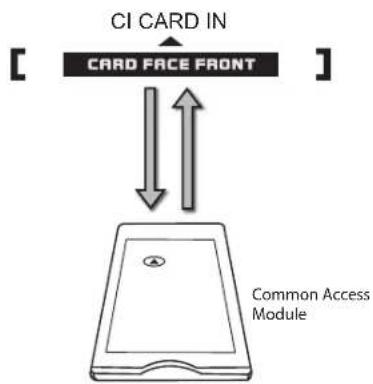

- CI (Common Interface) (DTV Mode)....31

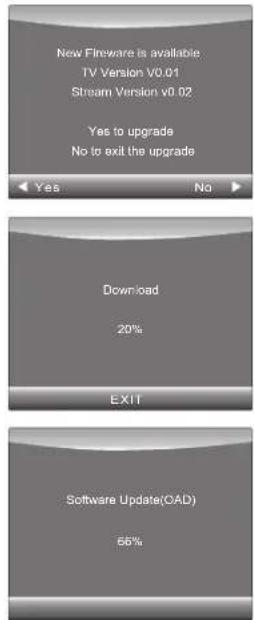

- Software Update (Over Air Download) (DTV Mode) 32

- Software Update (USB) 33

Time Settings....34

Option Setting 36

- OSD Language 36

- TT Language 36

– Audio Language (DTV Mode)....36

- Subtitle Language (DTV Mode) 37

– Hearing Impaired....37

- PVR File System (DTV Mode)....38

- Blue Screen 39

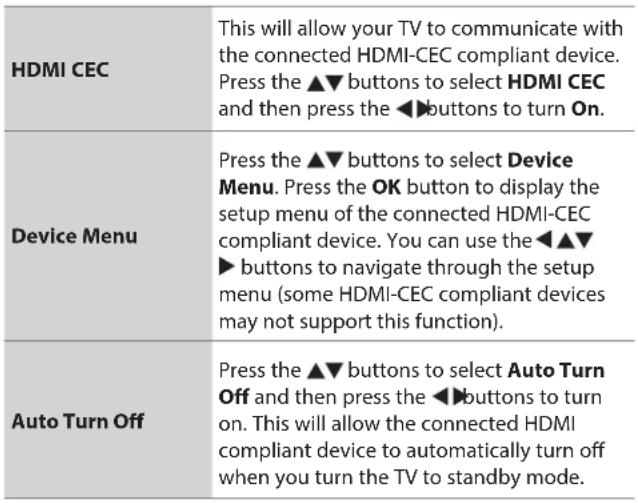

– HDMI CEC (Consumer Electronics Control) (HDMI Mode) 39

• Lock System 41
• Set Password 42
• Block Channel 42
• Parental Guidance 43
• Key Lock 44

Connecting a USB Storage Device....44

Viewing Photos....45

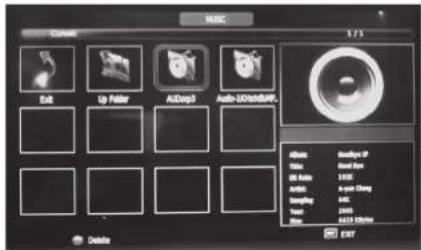

Listening to Music....46

Viewing Movies 47

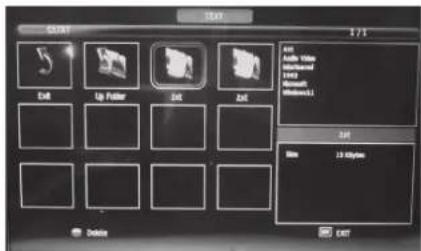

My Text....48

Play Recorded Programme 49

Maintenance....50

Hints and Tips....51

YPbPr Mode 53

PC Mode 53

HDMI Mode 53

Specifications....54

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. - If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents. - Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated. - Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

Safety

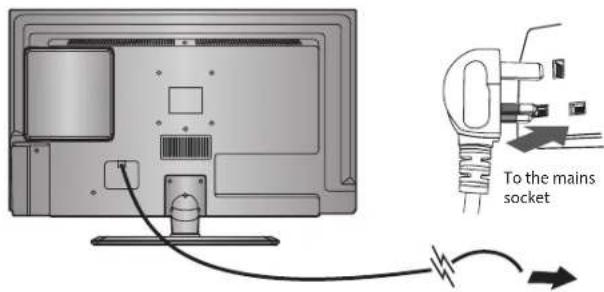

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit. - Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum Viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LCD Screen

- The LCD screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen.

• Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.
2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

• To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Standby

- The ⏻ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control. - Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

DVD

• Class 1 Laser Product

This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
• Always remove the disc when the unit is not in use.
• Failure to do so will risk severely damaging the disc and the unit.
• Do not stack devices, heat from other devices may affect the performance of the unit.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.
• The wall socket plug is used as a disconnect device, the disconnect device should be readily accessible.
• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Thank you for purchasing your new Logik 32" HD Ready LED TV with DVD Player.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

TV

TV Stand

Remote Control / AAA Batteries x 2

Screw x 5

Component Adapter Cable (YPbPr)

Composite Adapter Cable (AV)

Instruction Manual Quick Start Guide

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.

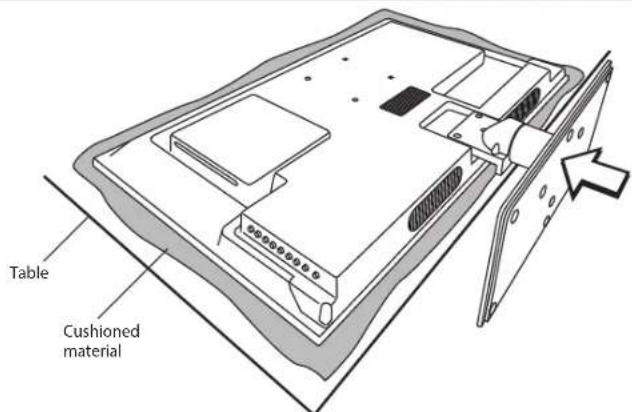

2. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly overhangs the edge of the table, with the back side facing up. Please make sure a soft cushioned material (such as a dry bath towel or thick piece of foam) is placed beneath the screen.
3. To install the TV stand, place the stand into the stand recess on the back of the TV.
4. Secure the stand using the 5 screws provided.

Mounting the TV to a Wall

Remove the stand assembly before mounting the TV onto the wall.

1. To remove the stand assembly, untighten the 5 screws holding the stand assembly to the rear of the TV. Slide the stand assembly out.

Keep all the spare screws should you want to use the stand assembly option.

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 100 mm x 100 mm mounting kit (sold separately) designed for flat-panel TVs. Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections before mounting on to the wall.

- Please read this instruction manual carefully while setting up your TV. - If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Item Description

1 POWER LED	Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will illuminate blue and then blink red and blue confirming that a timer recording programme has started in the standby mode.
2 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
3 Disc Slot	Insert the disc with the label side facing the rear of the TV. (12 cm discs only. Don't insert 8 cm discs.)
4 ▲	Press to eject disc. (DVD mode)
5 ▶II	Press to start playback or pause. (DVD mode)
6 SOURCE	Press to select among different input signal sources:DTV / ATV / DVD / AV / SCART / YPBPR / HDMI 1 / HDMI 2 / HDMI 3 / PC / USB.Confirmed the selection on OSD menu.
7 MENU Displays the OSD (on screen display) menu.
8 V + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
9 CH + / - Press to select a channel or select a sub-menu from the OSD menu.
10 STANDBY Switches the TV on or into standby mode.

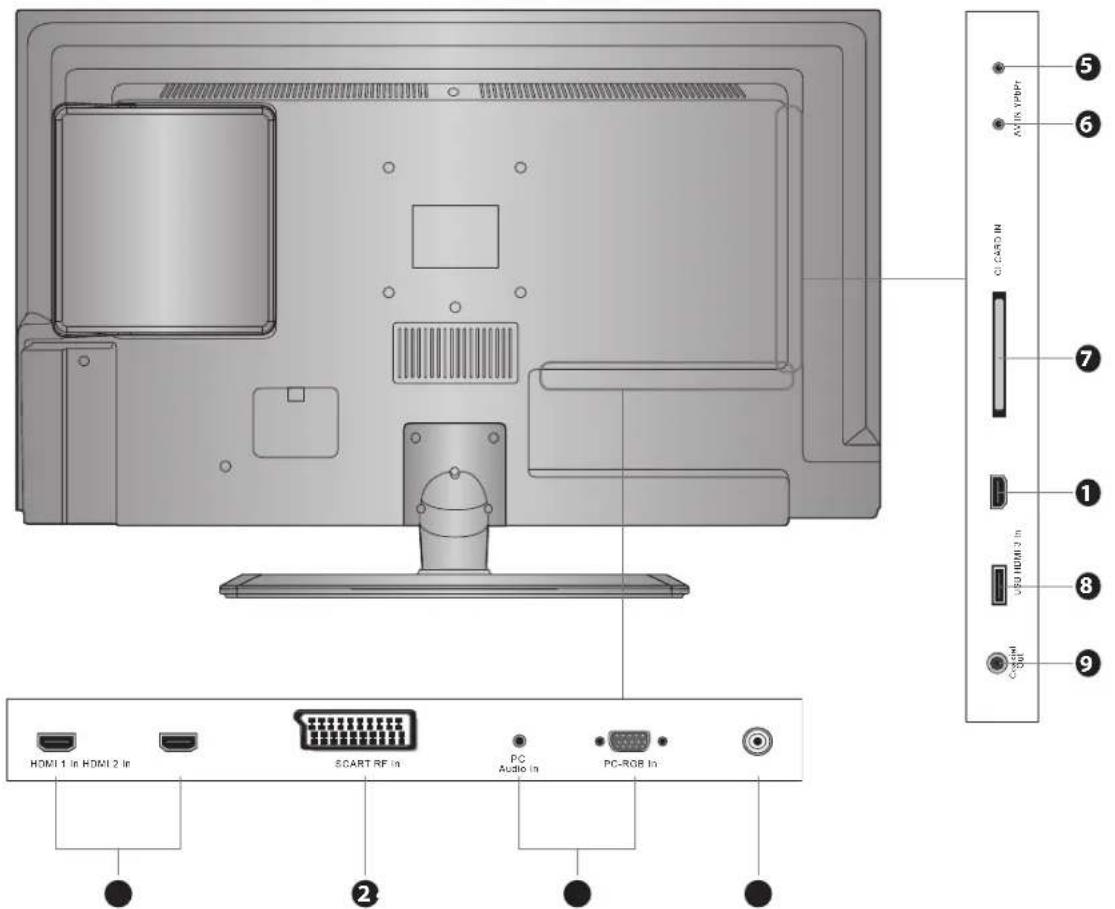

Rear View and Sockets

Item Description

1 HDMI 1 / HDMI 2 / HDMI 3	Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.
2 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
3 PC-RGB In / PC AUDIO In Connects to a computer or other devices with a VGA interface.
4 RF In Connects to the aerial socket on the wall with the RF coaxial cable.
5 YPbPr	Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
6 AV IN	Connects to the Composite output sockets on external video devices.
7 CI CARD In	Allows the insertion of a Common Access Module.
8 USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (USB mode) and record DTV programmes on to a USB storage device.
9 Coaxial Out	Connects to the audio socket on the digital/standard 5.1 audio system.

Installing Batteries in the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab. - Do not drop or cause impact to the remote control. - Do not spill water or any liquid on the remote control. - Do not place the remote control on a wet object. - Do not place the remote control under direct sunlight or near sources of excessive heat. - Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

Remote Control

1. ⏻ Switch the TV between on and standby mode.
2. MUTE Mute and restore your TV sound.
3. 0-9 Number Button • Press to select a programme. (DTV / RADIO mode) • Select numbered items in a menu. (DVD mode)
4. -/-- Feature not available.
5. ☐RECALL Return to the previous viewing channel. (DTV mode)
6. TV GUIDE Display the EPG (Electronic Programme Guide). (DTV mode)
7. VOL + / - Adjust the volume.
8. CH + / - Select a channel.
9. FAV Display the favourite channel list. (DTV mode)
10. DTV (TV/RADIO) A short-cut to switch input source to TV / Digital radio channels. (DTV mode)
11. HDMI A short-cut to switch input source to HDMI 1, 2, or 3.
12. DVD A short-cut to switch input source to DVD. (DVD mode)
13. USB A short-cut to switch input source to TV / Digital radio channels. (DTV mode)
14. SOURCE Select among the different input signal sources: DTV / ATV / DVD / AV / SCART / YPBPR / HDMI 1 / HDMI 2 / HDMI 3 / PC / USB.
15. INFO
16. Display the present channel information such as the current time and channel name. (DTV mode)
17. Display the present disc information. (DVD mode)
18. ◀▲▼▶ Allow you to navigate the OSD menus and adjust the system settings to your preference.

OK

• Confirm the selection in the OSD menus. • Display channel list. (DTV / RADIO mode)
• MENU • Display the OSD (On Screen Display) menu. • Return to the previous menu in the OSD menus.
• Exit Exit the OSD menu.

19. SLEEP

Set the TV sleep timer: OFF / 10 / 20 / ... / 180 / 240 min.

20. ASPECT

Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Subtitle.

21. AUDIO

- Switches between the audio languages (only applicable when the TV programme / disc has this feature). (DTV / DVD mode)

22. SUBTITLE

- Select subtitles which are broadcast with the programme. (DTV mode) - Select subtitles on the DVD. (DVD mode)

23.

To skip to the beginning of the previous chapter / track / photo. (DVD / USB mode)

24.

Record the current programme. (DTV mode)

25.

To skip to the beginning of the next chapter / track / photo. (DVD / USB mode)

26.

To stop the playback or recording. (DTV / DVD / USB mode)

27.

To reverse playback rapidly. (DVD / USB mode)

28. REC LIST

Display the record list. (DTV mode)

29.

To advance playback rapidly. (DVD / USB mode)

30.

- To start the timeshift playback. (DTV mode) - To start playback or pause. (DTV / DVD mode)

31. DVDSETUP

Display and exit the DVD setup menu. (DVD mode)

32. DVDMENU

Display the DVD menu. (DVD mode)

33.

Eject a disc. (DVD mode)

34. DVD TITLE

Display the DVD title content. (DVD mode)

35. TEXT

Turn on and off the teletext function. (DTV mode)

36. TEXT HOLD

Freeze a multi-page passage on screen in teletext. (Feature not available)

37. DISPLAY

Displays channel and programme information.

38. TEXT/DVD ZOOM

- Zoom in on the displayed frame. (DVD mode)

39. Coloured buttons

Access the TELETEXT items (DTV mode) or menu options. GOTO (RED) To skip to a specific location on a DVD / CD. (DVD mode)

A-B (GREEN)

Repeat a segment between A and B. (DVD mode)

ANGLE (YELLOW)

Select different angles for the video. (DVD mode)

REPEAT (BLUE)

Select between different repeat modes. (DVD mode)

Turning the TV On for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the AERIAL IN socket at the rear right bottom view of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. In standby mode, press the ⏻ button on the remote control to turn the TV on. The red LED indicator will turn blue.

• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.
• The first time you turn the TV on, it will go straight into the First Time Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please skip this section).
• Your TV should be automatically set to the correct OSD language and country. Simply press OK to start tuning in your TV.

If you need to change the OSD language and country, press the ▲◀▶▼ buttons. Leave the TV in Home mode.

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.

If you want to exit the tuning menu, press the MENU button to interrupt the tuning process. A pop-up screen will be displayed; press the ◀ button.

1. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order, or add them as favorite channels, select Channel Edit under the Channel menu.

Target Region Setting

During tuning, your TV may have received signals from more than one transmitter. If this has occurred, the Target Region Setting screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

1. Press the OK button to confirm the Country Code; this will highlight the Primary Region England.
2. Press the OK button to highlight Secondary Region, and press the ◀▶ buttons to select your preferred option (if available).
3. Press the OK button to confirm, and Tertiary Region will be highlighted. Press the ◀▶ buttons to select your preferred option (if available).
4. Press the OK button to confirm. The main menu will be briefly displayed. Your TV is now fully tuned in.

Country Code This will be shown as GBR for the UK.
Primary Region	This will show the regional country (England, Wales, Scotland, NI).
Secondary Region	This will allow you to set the region for your local news service on BBC and ITV (London, Beds and Cambs etc).
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath).

Connecting an Analogue Device

If you have connected an analogue device such as a video recorder via the aerial socket on your TV, you will have to tune it in using ATV mode. Ensure the device is switched on before you start the tuning process.

1. Press the SOURCE button, press the ▲▼ buttons to select ATV, and press OK.
2. Press the MENU button, then press the ▲▼ buttons to select CHANNEL and press OK.
3. Press the ▲▼ buttons to select ATV MANUAL TUNING and press OK.
4. Press the ▲▼ buttons to select SEARCH, then press one of the ◀▶ buttons to start the search for your device. The search will automatically stop when the device is found.
5. Press the EXIT button to exit the menu.

Channel Tuning
DTV	:	0 Channel
Radio	:	0 Channel
DATA	:	0 Channel

Target Region Setting
Country Code GBR
Primary Region England
Secondary Region	London
Tertiary Region

LOGIK	CHANNEL
	SOUND
	TIME
	OPTION
	LOCK
	EXIT

Channel Selection

- Press the CH + / - buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to Block Channel for details).
• Press the FAV button to view the Favourite List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel. The Favourite List will be blank unless you have added your favorites.
• Press the ↻ button to return to the previously viewed channel.

Display Channel Information

- Press the INFO button to view the current information.

Volume Adjustment

• Press the V + or – button on the right side panel of the TV or the VOL + or – button on the remote control to adjust the volume.
• If you wish to switch the sound off, press the ✗MUTE button. Press the ✗MUTE button again or the VOL + or - button to resume audio listening.

Adjusting the Picture Settings

Allows you to set your preferred picture mode.

1. Press the MENU button and then press the ▲▼ buttons to select the PICTURE menu and then press the OK button.
2. Press the ▲▼ buttons to select the following picture options and then press the OK button.
3. Press the ◀ buttons to adjust the levels in the menus.

Picture Mode Select among picture mode: Standard / Mild / Personal / Dynamic.The default setting is Standard. Select Personal if you want to adjustthe picture settings yourself.
Contrast	Adjusts the difference between light and dark levels in the picture. (for Personal mode)
Brightness Increases or decreases the amount of white in the picture. (for Personal mode)
Colour Controls the colour intensity. (for Personal mode)
Tint (For NTSC format)	Adjusts the balance between red and green levels.(Tint is only available for NTSC signal input via the SCART or AV IN.)
Sharpness	Adjusts the level of crispness in the edges between light and dark areas of the picture. (forPersonal mode)
Colour Temperature	Select among colour temperature: Cold / Normal / Warm.Adjusts the colour components independently to achieve a warm orcool colour. (for Personal mode)Cold: Increases blue tintNormalWarm: Increases red tint
Noise Reduction Reduces the noise level of the connected device: Off / Low / Middle/ High / Default.
Screen(PC mode)	Adjusts the PC desktop content.
	Auto Adjust	Allows you to synchronise a PC signal automatically.	LOGIKAuto AdjustH-Offset 50V-Offset 50Size 50Phase 50Position Reset
	H-Offset Adjusts the position of the picture left and right in the window.
	V-Offset Adjusts the position of the picture up and down in the window.
	Size Adjusts the picture horizontally, in linear properties
	Phase Controls the signal phase, which can improve focus clarity and image stability based on the PC mode.
	Position Reset Press to set the best screen position.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Aspect Ratio

Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Full Screen. The default setting is AUTO.

1. Press the ASPECT button to scroll through the aspect ratios. The aspect ratio can also be selected from the OPTION menu.

	Input Signal 4:3 Input Signal 16:9
Auto This selection	will display the picture according to the aspect ratio of the input source. Black bars will appear on both the left and right of the screen.		This selection will display the picture according to the aspect ratio of the input source.
4:3 This selection will allow you to view a picture with an original 4:3 aspect ratio. Black bars will appear on both the left and right of the screen.			This selection will allow you to adjust the picture horizontally, in linear proportion. Black bars will appear on both the left and right of the screen.
16:9 This selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen.			This selection will allow you to view a picture with an original 16:9 aspect ratio.
Zoom This selection will allow you to zoom in the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.			This selection will allow you to zoom in the picture without any alteration, while the 4 sides of the picture will be cropped.
Smart Zoom This selection is similar to 16:9 mode, but the picture slightly stretches horizontally and clips off a little from the top and bottom.			This selection is similar to 4:3 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.
Full Screen This selection will take whatever is on the screen and expand it to fill the screen.			This selection will take whatever is on the screen and expand it to fill the screen.

Allows you to adjust the sound settings on your TV.

1. Press the MENU button, then press the ▲▼ buttons to select the SOUND menu, and then press the OK button.

1. Press the ▲▼ buttons to select the following sound options, and then press the OK button.

1. Press the ◀ buttons to adjust each option's setting.

Sound Mode Allows the selection of an audio-enhancement technique: Standard / Music / Movie / Sports / Personal.
Treble Controls the relative intensity of higher pitched sounds. (for Personal mode)
Bass Controls the relative intensity of lower-pitched sounds. (for Personal mode)
Balance Adjusts the relative volume of the speakers in a multiple speaker system.
Auto Volume	Volume levels are automatically controlled (e.g., advertisements tend to be louder than the programmes).
SRS	SRS TruSurround HDTM (TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT*. Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity.Press the OK button to select On / Off.
SPDIF Mode Selects the digital audio output mode.
AD Switch(For DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster.Set to "Off" for normal broadcasting sound coming out from speakers.Set to "On" to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner. When you select ON you can adjust the volume of the Audio Description by pressing the◀buttons.

1. Press the MENU button to return to the previous menu; press again to return to the main menu.
2. Press the EXIT button to exit the menu.

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the TV GUIDE button to switch on EPG.
2. Press the TV GUIDE button or the EXIT button again to switch off EPG and return to normal TV viewing.

Select a Programme

Press the ▲▼ buttons to select the desired channel and then press the ◀▶ buttons to select the desired programme. Press the OK button to confirm.

Button Functions in a 7-Days Guide

Remote Control Button Function
RED (Record)	Timer ProgrammingSelect a programme then press the RED button to set a recording.Press once to record once, press twice to record daily or press three times to record weekly.
GREEN (Reminder)	Select a programme then press the GREEN button to set a reminder.Press once to remind once, press twice to remind daily or press three times to remind weekly.
YELLOW (Previous Day)	Press the YELLOW button see the previous days programmes.
BLUE (Next Day)	Press the BLUE button see the next days programmes.
▲ or ▼ or ◄ ▶	Press to move around the guide.
OK Press to confirm and view the selected channel.
TV GUIDE / EXIT Press to switch off the EPG.

To view all of the scheduled recording, reminders or previously recorded programmes stored on your USB memory stick press the REC LIST button. Press ◀ or ▶ to change the list view to Recorded List or Schedule list.

Time Shift Recording onto a USB Storage Device

This function allows you to pause live TV. The picture will pause and the programme will begin recording so you don't miss any of the programme. You will have to have a USB storage device attached to the USB socket for Time Shift Recording to work.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.

- Stop the time shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device. The minimum transfer speed is 5MB/s.

While watching your TV, you may press the ▶II button to pause the live programme if you want to go out for a while (e.g. going to the bathroom / kitchen). "II" will show on the screen.

When you have returned, press the ▶||button to play the missed broadcast programme. "s" will show on the screen.

The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed programme. It will soon turn to normal.

Alternative

Press the OK button to display the PVR Time Shift progress bar and then press the ◀▶ buttons to select "▶ Play" on the bar. Press the OK button to confirm.

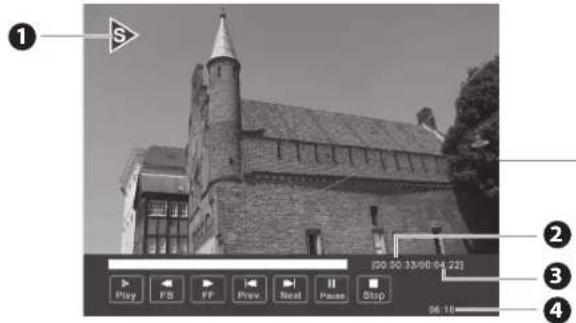

The 'PVR Time Shift Progress Bar'

1 Indicates the status of the currently displayed video (play/pause)

2 Indicates the time lagging behind the live broadcast (PVR reviewing)

3 Indicates the available recording time on your USB storage device

4 Indicates the current time

Using the Remote Control

You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the screen for 15 seconds. Press the OK button to display the PVR Time Shift progress bar again.

◀or ▶▶	When playing,Press the ◀◀ button repeatedly to speed up ◀2 / x 4 / x 8 / x 16.Press the ▶▶ button repeatedly to speed up ▶2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶|| button to return to normal playback.
◀or ▶▶Press the	button to jump about 10% forward.Press the ◀◀ button to jump about 10% back.
▶||	During playback, press the ▶|| button to display a still screen and then press the ▶|| button again to resume playback.During fast forward / fast backward state, press the ▶|| button to return to normal playback.
OK	During playback, press the OK button to display a still screen and then press the ▶|| button again to resume playback.
■	If you want to exit the PVR Time Shift progress bar and return to the current live broadcast, press the ■ button and then press the ◀button to confirm.

Recording DTV Programmes onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save it for future viewing.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the ● button to record the programme that you are currently watching.

The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the ● button.

1. Press the ■ button to stop recording.

Recording will stop automatically when the disk is full.

If you want to turn off your TV during recording, press the button. A dialogue will display.

The recording is still in progress. Do you want to switch off the TV?

Yes, stop recording and switch off the TV

Yes, turn off the screen and sound but keep recording the programme

No

Press the ◀▶ buttons to select your desired option and then press the OK button to confirm. If you select the middle option in the box, the screen will turn off but the recording will still be in progress, the LED indicator will alternatively flash red and blue.

Timer Programming

This function is used to perform scheduled recording.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the TV GUIDE button on the remote control. The EPG menu will appear. Press the ▲◀▶ buttons to select the desired programme to record.
2. Press the RED button on the remote control while on the selected programme, the RECORDER icon will be displayed.
3. You can also set a timer recording in the Schedule Setup menu. Press the REC LIST button. Press the ◀▶ buttons to select the Schedule Setup menu.

NEW RECORDING OR REMINDER

1. Press the YELLOW button to add a new recording or reminder. Press the ▲◀▶ to set the programme number, type, mode, start and finish times, then press OK.

EDITING AN EXISTING RECORDING OR REMINDER

1. Press the ▲▼ buttons to highlight the recording or reminder that you wish to edit.
2. Press the BLUE button to edit the recording or reminder. Press the ▲◀▶▼ to set the programme number, type, mode, start and finish times, then press OK.
3. After finishing all the recorder adjustments, the Timer Save Success screen will display.

- If you see the 'Please connect USB first' display, then you must connect a USB storage device and set the recording again, or your recording will NOT record.

• When the preset time is reached, the TV will start recording automatically.
• If a programme recording starts when the TV is in standby mode, the LED indicator will alternatively flash red and blue.

Playing Recorded Programmes

The recorded List shows a list of all the recordings that have been made. You can view all your recordings from this list and see information about each recording.

1. Press the REC List button on the remote control. The Recorded List menu will appear. Press the ▲ buttons to select the desired recorded programme.
2. Press the OK button to view the recording.

- To delete a recording, highlight the recording you wish to delete and press the RED button.

1. To view the Schedule Setup press the ◀ buttons. This will show you all the scheduled recordings and reminders.

- Press the YELLOW button to add a new scheduled recording/reminder.

- Press the BLUE button to edit a recording/reminder that you have already set.

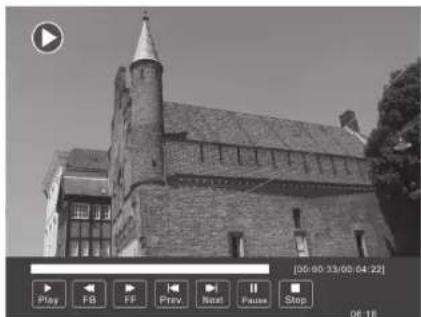

Playback Controls

You can play, pause, fast forward, fast rewind and skip forwards and backwards in 30 second increments.

◀ or ▶	When playing,Press the ◀button repeatedly to speed up ◀/ x 4 / x 8 / x 16.Press the ▶button repeatedly to speed up ▶2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶||button to return to normal playback.
◀ or ▶Press the	button to jump forward 30 seconds.Press the ◀button to jump back 30 seconds.
▶||	During playback, press the ▶|| button to display a still screen and then press the ▶|| button again to resume playback.During fast forward / fast backward state, press the ▶||button to return to normal playback.
OK	During playback, press the OK button to display the recording progress bar. It the recording progress bar is already displayed pressing the OK button will pause the recording. Press the ▶|| button to resume playback.
■	If you want to stop the recording and return to the current live broadcast, press the ■button and then press the ◀button to confirm.

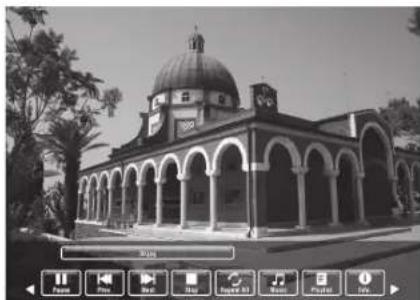

1. Press any one of the Playback Controls on the remote control and the playback control menu will appear at the bottom of the screen. You can now press any of the playback controls on the remote control or press ◀▶ to highlight the button on the screen then press OK.
2. Press the EXIT button to remove the Playback Control menu.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 37 for details).

Teletext within Digital Service

1. In DTV mode press the TEXT button to display teletext page.
2. Follow the instructions on digital teletext page and move around the page by pressing ▲◀▶▼, OK, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.

To change digital teletext services, you will need to exit the current text service and change channels. Then enter the text service on the newly selected channel.

Alternative

You may press the RED button to display the teletext information when you see a red "press ●" logo in the top right corner of the screen (e.g. BBC services). This will now display the teletext menu and available information categories.

To access the pages, use navigation buttons to highlight item required and press the OK button to select.

Follow on screen prompts for other functions.

1. Press the TEXT button to exit.

Listening to the Radio

You can listen to radio stations through your TV.

1. Press the TV/RADIO button to select radio mode.

- If you want to remove the radio display from your TV screen press the DISPLAY button, this will hide the display. To see the display again press DISPLAY.

1. Press the CH +/- buttons to change radio stations or press the TV GUIDE button to see all the stations in the Programme Guide.

- You will NOT be able to record any radio stations.

Using the Built-in DVD Player

1. Insert a disc with the label side facing towards the rear of the TV. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW) Allow 10 seconds for the player to load the disc. If you insert the disc incorrectly, an error message will be displayed.
2. After the disc is inserted, the TV will change the input source to DVD automatically and Smart NAVI will show the content of the disc automatically.
3. If the DVD player does not automatically play the disc, press the DVD button then press the ▶II button on the remote control to start playing.
4. Press the ▲ button if you want to remove the disc.

Unable to play disc! Check label faces rear of TV Check disc for marks or damage Check disc is compatible type.

• Only insert 12cm discs. Do not insert or play 8cm discs; they will get stuck.
• Ensure the disc is fully ejected before removing it, or else you risk damaging the DVD player.
• If you eject a DVD and want to play it again, fully remove the disc then replace it. Do NOT push it straight back in, it may damage the DVD mechanism.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc)		AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Supported Formats

JPEG

- Pictures encoding must comply with JPEG/ISO format.

Some recorded files may not be played due to the type and format of the disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described on the rear panel of the TV.

Disc Type DVD-VIDEO
Region code

Basic DVD Playback Functions

Playing the DVD

Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the ▶ button to switch between Play and Pause mode.

Menu Playback (for DVD)

For DVD discs, the screen will display the DVD Disc Menu (Root Menu).

Press the ▶|| button or the OK button to start from the highlighted content.

Press the DVD MENU button to return to the Root Menu when playing the disc.

For some DVD discs you may need to press the DVD MENU button or the DVD TITLE button to display the Disc Menu.

Stopping Playback

Press the ■ button once to stop. Press the ▶ button to resume from where you stopped. Pressing the ■ button twice to stop will remove the resume feature. The next time you play the DVD it will start from the beginning of the disc.

In order to protect the disc, press the ■ button and then press the ▲ button to eject the disc. When the disc is ejected, hold the disc edge and remove it from the disc slot.

When not using the DVD function, please take out the disc to protect the DVD loader and the disc.

Previous / Next (for DVD / CD / Multimedia discs)

Press the Button to play the last Title / Chapter / Track.

Press the ▶ button to play the next Title / Chapter / Track.

If the current track is the first one, pressing the ◀ button will restart the disc from the beginning. If the current track is the last one, pressing the ▶ button will stop the playback.

For DVD discs, the above functions may vary due to different DVD disc's structure.

Forward / Backward (for DVD / CD / Multimedia discs)

There are 4 forwards and backwards speeds. Press the ▶ button to toggle between the different speed options in sequence. (x 2 / x 4 / x 8 / x 16 / x 32 / Play).

Press the ▶|| button to return to normal speed playback.

For DVD discs, when selecting backward to first title / chapter, the disc will start from the beginning.

There will be no sound during forward or backward.

Pause (for DVD / CD / Multimedia discs)

- Press the button to pause; press the button again to resume playback.

Repeat (for DVD / CD / Multimedia discs)

Press the REPEAT button once to display the current repeat mode.

- For CD discs, while playing in sequence, you may use the repeat playback. There are 2 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT TRACK / REPEAT ALL / REPEAT OFF).

- For DVD discs, you may set up the repeat playback mode. There are 3 repeat modes. Press the REPEAT button to toggle between the different repeat functions (REPEAT CHAPTER / REPEAT TITLE / REPEAT ALL).

For example.

REPEAT CHAPTER: will repeat the current selected chapter of the film REPEAT TITLE: will repeat the current title playing REPEAT ALL: will repeat the film when it finishes

- For MP3 / JPEG discs, while playing the disc, you may use the repeat playback. There are 4 repeat modes. Press the REPEAT button to toggle between the different repeat functions (REPEAT ONE / REPEAT FOLDER / FOLDER / SINGLE).

Repeat A-B (for DVD / CD)

When playing DVD, CD disc, press the A-B button to repeat certain content. Press the A-B button on the start point (A) and the end point (B) to select the repeat part. Press the A-B button a third time to cancel the A-B button function and return to normal playback.

Info (for DVD / CD / Multimedia discs)

Press the INFO button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information.

For DVD discs, press the INFO button once to display the first page as shown below:

For CD discs, press the INFO button once to display the first page as shown below:

Press the INFO button twice to display the second page as shown below:

Press the DISPLAY button three times to display the three page as shown below:

Press the DISPLAY button four times to display the four page as shown below:

Angle (for DVD)

Allows you to switch the viewing angle of video, this feature is not available on every DVD, check your DVD for details.

Press the ANGLE button repeatedly to select the different angle you want to view.

Zoom (for DVD)

Allows you to zoom into the picture, 2x, 3x or 4x.

Press the DVD ZOOM button to select the size you want.

Goto (for DVD / CD / Multimedia discs)

This function allows you to play your favourite Title / Chapter / Time. Press the GOTO button. Enter your Title / Chapter / Time by pressing the 0-9 buttons or enter the playback time. Press the OK button to start. If you enter an invalid Title / Chapter or Time, it will not function.

For some discs, only Time can be selected in the GOTO function.

Audio (for DVD / CD)

Press the AUDIO button to toggle between different audio modes in sequence.

For CD discs: Stereo / Mono Left / Mono Right / Mono - Mix.

Some discs may contain multiple languages which can be selected by pressing the AUDIO button.

Using the DVD General Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the General Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

TV Type 4:3 Pan Scan

Widescreen picture shown in the full screen with some part cut.

4:3 Letter box

Widescreen picture shown in the full screen with black bars on the top and bottom of the screen.

16:9 Wide

Widescreen picture shown in the full screen.

OSD Set the OSD language to your language of choice

The default language is English.

Screen Saver When the player stops or the picture becomes motionless for a couple of minutes, there will be a screen saver to prevent damage to the display screen.

ON: To activate screen saver.

OFF: To disable screen saver.

Last Memory

ON: Shutdown the TV before the settings for memory, re-boot the machine setting.

OFF: Every time the TV automatically switched back to the default settings.

Using the DVD Audio Setup Page

In DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the Audio Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

Speaker Setup / Downmix

LT/RT Mixed stereo LT/RT output.

Stereo Mixed stereo surround output.

Dual Mono: This is used to select the Stereo, L-Mono, R-Mono, and Mix-Mono.

Dynamic: This is used to set the compression ratio in order to control the sound (volume) contrast.

Signal Information (DTV Mode)

Allows you to view the signal information.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.
3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off at the mains.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

To view the module information

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select CI Information and then press the OK button.

1. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
2. Press the EXIT button to return to the previous menu. Press the EXIT button again to exit the menu.

This screen is for illustration only.

Software Update (Over Air Download) (DTV Mode)

The TV auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select Software Update(OAD) and then press the OK button to select On.
2. Press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

1. During normal DTV viewing, if the TV detects the latest firmware from the DTV signal, the Over Air Download screen will appear. Press the ◀ buttons to select Yes / No for upgrade procedure.
2. If you select Yes, the over air download will start. Press the EXIT button if you want to stop the download and exit the menu.

During the download, please do not turn off or unplug your TV.

1. When the download is complete, the TV will automatically upgrade the software.
2. When the update is complete, the TV will return to standby mode.
3. Press the ⏻ button on the remote control to switch on the TV.

If you experience difficulties after the software update, we recommend that you restore your TV to the factory default settings. To do this, follow the steps below:

1. Press the MENU button. Press the ▲▼ buttons to select OPTION and then press the OK button.
2. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button. Press the ◀ button to select Yes to reset the setting.
3. The TV will restore all settings and go to the First Time Installation. Follow the Turning the TV on for the First Time section at the front of this book.

Software Update (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ or call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Time Settings

Allows you to adjust time zone, sleep time, auto standby, OSD timer and summer time.

1. Press the MENU button and then press the ▲▼ buttons to select the TIME menu and then press the OK button.
2. Press the ▲▼ buttons to select the following time options and then press the OK button.

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Clock(DTV mode) The clock is set automatically when receiving a digital signal.
Time Zone(DTV mode)	When you select a Time Zone city, the TV time is set bythe time offset information based on Time Zone and GMT(Greenwich Mean Time) which is received with the broadcastsignal and the time is set automatically by a digital signal.
Sleep TimerThe sleep timer automatically switches the TV to standbyafter the preset time has elapsed. The clock will be setautomatically when receiving a digital signal. Time must beset before using Sleep Timer function.Press the ▲▼ buttons to select a period of time after whichthe TV automatically switches to standby mode: OFF / 10/20/.../180/240 min and then press the OK button toconfirm. The timer begins to count down from the numberof minutes selected.Turning the TV off after setting the sleep timer, will erase the sleep timer.Alternative1. You may press the SLEEP button repeatedly toselect the number of minutes: OFF / 10 / 20 / ... /180 / 240 min directly.To cancel the sleep time, press the SLEEP buttonrepeatedly until Off appears.
Auto StandbyThe unit will automatically switch to standby mode up to4 hours after the last time the remote control was used. Areminder screen will pop up and count down before the unitswitches to standby mode.If you want to operate the TV for a long period of time, turnoff the auto standby function. Press the MENU button todisplay the main menu. Press the ▲▼ buttons to select theTime option and then press the OK button. Press the ▲▼buttons to select the Auto Standby option and then pressthe OK button to select "Off". Press the EXIT button exit themain menu. To save energy you should always turn the autostandby function back to "3H", "4H" or "5H".	The unit will automatically switch to standby mode in4 Min 26 Sec.Press the OK button to continue viewing.OKAuto StandbyOK3H4H5H
OSD TimerThis is the amount of time on screen displays are displayedfor, the time can be set as follows:5s / 10s / 15s / 20s / 25s / 30sPress the ▲▼ to select a time and then press the OK buttonto confirm.	OSD Timero33196153203253303

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Option Setting

OSD Language

Allows you to select your desired on screen menu language.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select OSD Language and then press the OK button. The default on-screen menu language is English.
3. Press the ▲ buttons to navigate the menu and change the settings. Press the OK button to confirm to return to the previous menu.
4. Press the EXIT button to exit the menu.

TT Language

Allows you to select your preferred Teletext language (if the language is being broadcast).

- The TT Languages are West - East - Russian - Arabic - Farsi. West is the default language.

Audio Language (DTV Mode)

Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.) The Audio Language is the language used to describe the programmes when the Hearing Impaired option is switched on.

1. Press the ▲◀▶▼ buttons to select your desired audio language.

Subtitle Language (DTV Mode)

Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the ◀ buttons to select the Primary / Secondary Subtitle Language. Press the ▼ button and then press the ▲ buttons to select your desired subtitle language. Press the OK button to confirm and return to the previous menu.

While watching a DTV programme, you can press the SUBTITLE button on the remote control to display the Subtitle Language List and then press the ▲▼ buttons to select the Subtitle Language or OFF. Press the OK button to confirm. (Only applicable when the TV programme has this feature.)

Hearing Impaired

This feature enhances the audio level on dialogue. (For DTV channels only if available.)

1. Press the ▲▼ buttons to select Hearing Impaired and then press the OK button to select On / Off.
2. Press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select PVR File System and then press the OK button.
3. Press the ▲▼ buttons to select the following PVR File System options and then press the OK button.

Select Disk Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR.The system will show "Checking". Upon completion, the system will show either "SUCCESS" or "FAIL".
USB Disk	If no USB storage device is connected, it will show "No USB Disk". If the Check PVR File System has a "SUCCESS" it will show "Pass".
Format	Press the OK button, a File System Size menu will pop-up. Press the◀buttons to select your preferred file type between FAT32 and HiSpeed FS. If you select HiSpeed FS, press the▼button and then press the◀buttons to select your preferred file size. Press the OK button to confirm and then press the◀button to start formatting Formatting the disk will delete any information previously stored on the disk.
Time Shift Size After formatting the Time Shift Size menu will appear if you have selected HiSpeed FS in PVR File System Type. Press the◀buttons to select your preferred file size. Press the OK button to confirm.This option cannot be chosen if you have selected FAT32 in PVR File System Type.
Speed This shows the transfer rate of your USB storage device.
Free Record Limit	Press the◀buttons to set the recording time limit from 1-4 hours per recording.

Blue Screen

Allows the blue background to turn On or Off during weak or no signal conditions.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Blue Screen and then press the OK button to select On / Off.
3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

HDMI CEC (Consumer Electronics Control) (HDMI Mode)

Allows you to command and control two or more HDMI CEC compliant devices, that are connected through HDMI, by using only one of the remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). HDMI CEC also allows individual HDMI CEC compliant devices to command and control each other without user intervention.

Make sure that your HDMI CEC-compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.)

HDMI-CEC Connection

• This unit can only communicate with HDMI-CEC compatible devices.
• To be sure that the HDMI-CEC device has this feature, check to see if there is HDMI-CEC compatible logo on it.
• Press the ▲▼ buttons to select HDMI CEC and then press the OK button.
• The HDMI CEC sub-menu will display.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Restores all settings to the factory defaults.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button.
3. Press the ◀ button to select "Yes". The TV will return to the first time installation menu. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Lock Setting

To access all the LOCK menu options, you must enter the password. Enter the default password "0000" for first time use. To change the password, refer to "Change Password".

Lock System

The Lock System is designed to prevent accidental re-tuning of the TV / losing of channels and to prevent children from watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / Restore Factory Default.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "8899".

1. Press the ▲▼ buttons to select Lock System and then the OK button to select On / Off. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / Restore Factory Default.
2. Press the MENU button to return to the previous menu, press again to return to the main menu.
3. Press the EXIT button to exit the menu.

Set Password

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Set Password and then press the OK button.
3. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter the new password for confirmation.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "8899".

1. Press the EXIT button to exit the menu.

Block Channel

Block Channel is designed to prevent someone from watching unsuitable programmes.

When a channel is blocked, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "8899".

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.
2. Press the ▲▼ buttons to select Block Channel and then press the OK button.
3. A Block Channel screen will pop up. Press the ▲▼ buttons to select a channel. Press the GREEN button on the remote control to block or unblock the channel. Press the GREEN button again to unblock.
4. Press the MENU button to return to the previous menu, press again to return to the main menu.
5. Press the EXIT button to exit the menu.

If you now try to select a blocked channel you will be asked for your password.

Parental Guidance

This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate.

This TV is programmed to remember the last option set even if the TV is switched off.

When a programme is locked or rated, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "8899".

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.
2. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.
3. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm.
4. Press the MENU button to return to the previous menu, press again to return to the main menu.
5. Press the EXIT button to exit the menu.

Key Lock

Key Locked is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Key Locked is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "8899".

1. Press the ◀ buttons to switch the System Lock ON.
2. Press the ▲▼ buttons to select Key Lock and then press the OK button to select On / Off.
3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

Connecting a USB Storage Device

1. Switch off the TV before connecting any USB storage device.
2. Connect your USB storage device to the USB port of your TV. If your USB device is powered by the main, plug the connected devices into the mains socket and switch on.
3. Press the ⏻ button on the remote control to turn on your TV.
4. Press the USB button on the remote control to enter USB mode.

• Some versions of portable hard disk may require more power than the TV USB socket can provide. To ensure correct operation please use the power adapter for that device.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
• The file system only supports FAT32 format.
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.

Viewing Photos

1. Press the USB button on the remote control.
2. Press the ◀▶ buttons to select PHOTO and then press the OK button.
3. Press the ◀ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶▼ buttons to navigate in the picture folder/file and then press the OK button.

If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀ button to confirm.

Supported file formats: JPG.

1. Press the OK button to display the function bar. Press the ▶ buttons and then press the OK button to select the function: Pause / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Music / Playlist / Info / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View.
2. Press the EXIT button to return to the previous menu.

If this folder also contains music files, you can select a music track to play at the same time you view your photos.

Listening to Music

1. Press the USB button on the remote control.
2. Press the ◀▶ buttons to select MUSIC and then press the OK button.
3. Press the ◀▶ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶ buttons to navigate in the music folder/file and then press the OK button. The music will start to play.

If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀ button to confirm.

• Some audio file formats will not be supported. • Supported file formats: mp3.
• The music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size) will be displayed. To display the function bar, press the OK button. Then press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / Playlist / Goto Time.
• Press the EXIT button to return to the previous menu.

Viewing Movies

1. Press the USB button on the remote control.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.
3. Press the ◀ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶ buttons to navigate in the movie folder/file and then press the OK button. The movie will start to play.

If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀ button to confirm.

• Some video file formats will not be supported. • Supported file formats: MPEG1/2/4 and AVI.
• Press the OK button to display the function bar. Press the ◀ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Set A / Playlist / Info / Aspect Ratio.
• Press the EXIT button to return to the previous menu.

1. Press the USB button on the remote control.
2. Press the ◀▶ buttons to select TEXT and then press the OK button.
3. Press the ◀ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶ buttons to navigate in the text folder/file and then press the OK button. The file will now be displayed.

If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀ button to confirm.

• Supported file format: TXT.

1. Press the OK button to display the function bar. Press the ▶ buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info.
2. Press the EXIT button to return to the previous menu.

Play Recorded Programme

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the USB button on the remote control.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.
3. Press the ◀ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶▼ buttons to select the "MY PVR" folder and then press the OK button.
5. Press the ▲◀ buttons to select your recorded programme and then press the OK button. The programme will start to play.

- If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀ button to select "Yes" to confirm. Press the OK button or the INFO button to display the function bar.

1. Press the OK button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Set A / Playlist / Info / Aspect Ratio.
2. Press the EXIT button to return to the previous menu.

Maintenance

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the button on the remote control and disconnect the mains cable from the mains socket before any cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.
2. If the surfaces are extremely dirty, clean the TV with a damp cloth.
3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier. Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

The TV does not operate properly.
The TV does not respond when pressing any buttons	· The TV may freeze up during use. Switch the TV off at the main for a few minutes. Switch on again and try to operate it again as usual.
TV cannot be switched on	· Check that the TV is connected to the mains supply and switched on. · Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	· Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV. · Ensure that the batteries are installed with the correct polarity (+ to +, - to -). · Install new batteries.
Power is suddenly turned off	· Check the power of the TV. The mains supply maybe interrupted. · Check if the sleep timer is set. · Check whether the Auto Standby is activated.

The video function does not work.
No Picture & No Sound	Check whether the TV is switched on.Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	Adjust the settings in thePICTUREmenu.Try another channel. The problem may be caused by the broadcaster.Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable channel may be experiencing problems, tune to another station.Station signal is weak, reposition the aerial for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	Check if the input source isHDMI 1 / HDMI 2 / HDMI 3.
Picture appears in wrong ratio	Adjust theAspect Ratio. Press theASPECTbutton on the remote control.

The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the MUTE button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI 1 / HDMI 2 / HDMI 3.
Audio noise	Keep the RF coaxial cable away from other connected cables.

Password
Lost password	Select the Set Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.
There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & horizontal noise & incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or shows a single colour	Check the signal cable.Reinstall the PC video card.

The DVD function does not work.
DVD will not read the disc	Check if the disc is correctly inserted.Check that the disc is clean.Check if there is any obvious damage to the disc.Try to play the disc on another DVD to check whether it has content.
DVD does not have the signal• Check if the TV is in DVD mode.

FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes if you have a weak signal. Usually it just means you'll need to re-tune your TV. Don't worry, it is easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get ‘blocking’ on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices at home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

Although this TV is compatible with a 1080i/1080p input, it is possible that the screen may not display the exact resolution and consequently the picture quality will be adjusted accordingly.

YPbPr Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480I: 720 x 480	60	Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Subtitle
480P: 720 x 480
576I: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080I: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution Vertical Frequency (Hz) Aspect Ratio
640 x 480	60	4:3 / 16:9
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1360 x 768 60

HDMI Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480I: 1440 x 480 60		Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Subtitle
480P: 720 x 480 60
576I: 1440 x 576 50
576P: 720 x 576 50
720P: 1280 x 720	50
	60
1080I: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

Specifications

Model L32HED13A
Panel System 32 inch LED Panel
Display Resolution 1366 pixels (horizontal) x 768 pixels (vertical)
Television System	PAL I / BG / DK SECAM I / BG / DK DVBT (VIDEO: MPEG-2 MP@ML, SOUND: MPEG-1 LAYER 1/2, MPEG-2 LAYER 2)
Brightness 250 cd/m	2
Contrast Ratio 3000 : 1
Power Source AC 100V~240V
Energy Efficiency Class A
Screen Size (measured diagonally) 31.5"
Power Consumption (In HOME / STANDBY mode)	35W/0.5W
Average Annual Energy Consumption 51.1 kWh / annum
Standby Power Consumption 0.5W
Operating Temperature 0°C - 50°C
Operating Humidity 10% - 80%
Mercury Content (mg)	X
Presence of Lead	√
Reference Period	2010/1062 - 2014
Speaker Power	2 x 5W
Dimension( W x D x H) with base	736(W) x 490(H) x 200(D)
Weight (Net)	5.9kg
Inputs / Output
SCART	1
HDMI	3
PC-RGB	1
PC AUDIO	1
YPbPr	1
Common Interface	1
USB	1
RF	1
Coaxial	1

Features and specifications are subject to change without prior notice.

KNOWHOW™

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234.

Partmaster.co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

MPEG-2 NOTICE

Any use of this product in any matter other than personal use that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 Patent Portfolio, which license is available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado, 80111 U.S.A.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

The FREEVIEW word and logo are trademarks of DTV Services Ltd and are used under licence. ©DTV Services Ltd 2002

The "HD Ready" logo is a trademark of DIGITALEUROPE.

SRS TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialogue.

TruSurround HD, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Limited (Registered in England No. 504877)

Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK

(IB-L32HED13A-140122V1)
