Product Type	LED TV
Brand	Logik
Model	L22FEDV12
Screen Size (Diagonal)	22 inches (55.9 cm)
Resolution	1366 x 768 pixels (HD Ready)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Brightness	200 cd/m²
Contrast Ratio (Dynamic)	1000:1
Viewing Angle (H/V)	178° / 178°
Inputs	1 x HDMI, 1 x USB (2.0), 1 x VGA (PC), 1 x SCART, 1 x Composite (AV), 1 x RF (Antenna), 1 x Headphone (3.5 mm)
Outputs	1 x Audio Out (3.5 mm), 1 x Coaxial (SPDIF)
Speaker Power	2 x 3W
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	30W
Standby Power Consumption	< 0.5W
Dimensions (W x H x D) with Stand	507 x 342 x 150 mm
Dimensions (W x H x D) without Stand	507 x 302 x 44 mm
Weight (with Stand)	3.5 kg
Weight (without Stand)	3.0 kg
VESA Wall Mount Pattern	100 x 100 mm
Supported Wall Mount Screws	M4 x 10 mm
Cable Management	Built-in cable tidy
Remote Control Included	Yes
Manual Language	English

Frequently Asked Questions - L22FEDV12 Logik

How do I turn on the TV for the first time?

Connect the power cord and press the Power button on the TV or remote. Follow the on-screen Setup Wizard to select language, country, and scan for channels.

Why is there no picture but sound is playing?

Check the Input Source using the Source button on the remote. Ensure the correct HDMI or AV source is selected. Also verify the connected device is powered on.

How can I connect external devices?

Use the HDMI port for HD devices like game consoles or Blu-ray players, USB for media playback, VGA for PC, and Composite for older devices. Select the corresponding input from the source list.

How do I scan for digital TV channels?

Press Menu, go to Channel or Setup, select Auto Tuning or Channel Scan, and choose Digital or DVB-T. The TV will search and store available channels.

Why is the remote control not working?

Replace the batteries with two new AAA batteries. Ensure there is no obstruction between the remote and the TV's IR sensor. If it still fails, try resetting the TV by unplugging for 30 seconds.

How do I adjust the picture settings?

Press Menu and navigate to Picture. You can adjust Brightness, Contrast, Colour, Sharpness, and choose from presets like Standard, Cinema, or Game.

Can I mount this TV on a wall?

Yes, the TV supports VESA 100 x 100 mm wall mounts. Use appropriate screws (M4 x 10 mm) and wall anchors. Ensure the wall can support the TV's weight (3.5 kg with stand).

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn marks, slightly dampen the cloth with distilled water. Do not spray liquid directly onto the screen.

What should I do if the TV doesn't power on?

Check the power cord is securely connected to both the TV and the wall outlet. Press the Power button on the TV (not just the remote). If still off, try a different outlet or reset the TV by unplugging for 1 minute.

How do I reset the TV to factory settings?

Press Menu, go to Setup or Settings, select Factory Reset or Restore Defaults. Enter the PIN (default is 0000 or 1234) and confirm. All settings will be erased.

USER MANUAL L22FEDV12 Logik

22" Full HD LED TV with DVD Player

Instruction Manual

L22FEDN12 / L22FEDP12 /

L22FEDR12 / L22FEDW12 /

L22FEDV12 / L22FEDY12 /

L22FEDO12

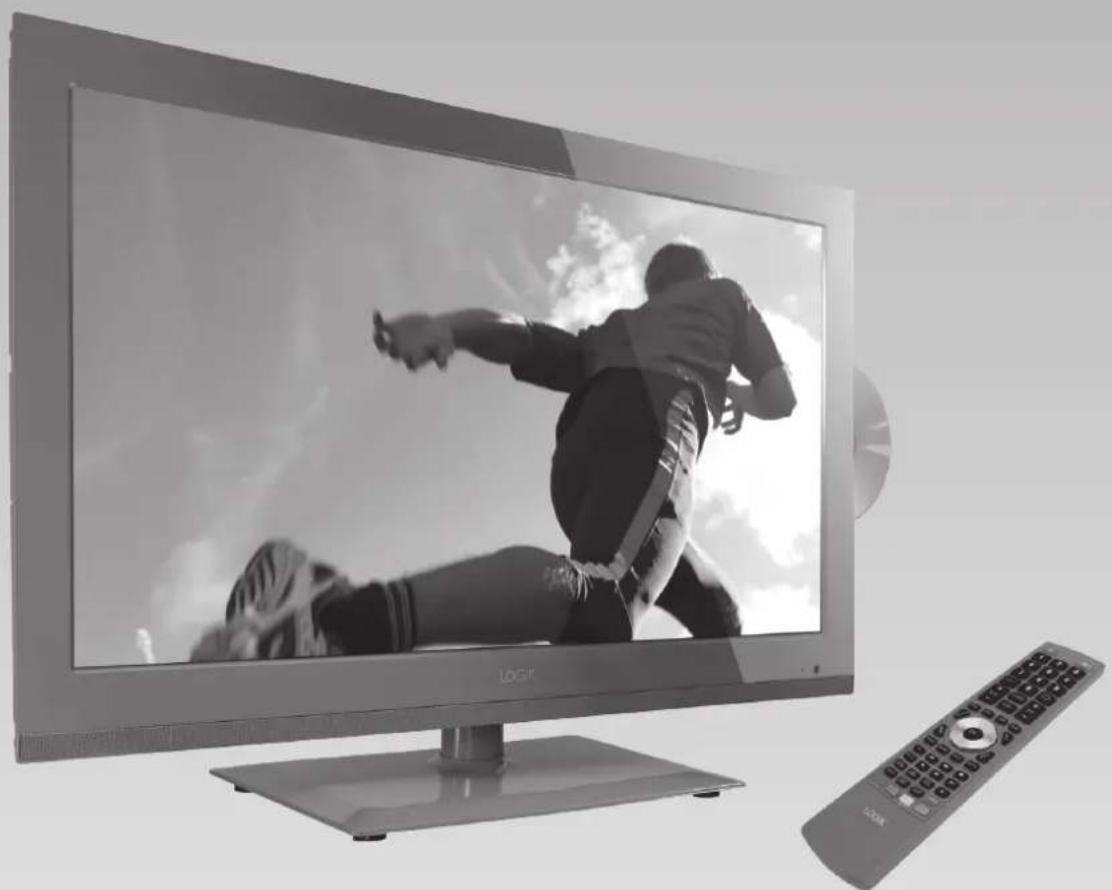

Black-and-white photo of a flat-screen TV displaying a person in motion, next to a remote control (no visible text or symbols)

WE KNOWHOW™ TO HELP YOU WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you to get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at knowhow.com or call us on: 0844 561 1234

TV SET UP & DEMO

We'll assemble the stand and connect your new TV to the existing equipment. We'll tune your TV so it's ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We'll fix your TV to a suitable position on the wall and connect to your existing equipment, so it's all ready to go. We'll use neat wire management so you don't have to look at any untidy cabling and to complete your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT® SET UP & DEMO

We'll set up the Freesat® receiver and connect it to your existing dish, TV and cabling. We'll then tune in all available channels.

AERIAL INSTALL & TUNE

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV. Then we'll scan and tune in all available digital channels.

HOME THEATRE SET UP & DEMO

We'll un-box, connect and set up your new and existing equipment. We'll then configure, calibrate and optimise the equipment. To avoid ugly trailing cables, we'll clip them to your skirting board, if you'd like us to. Then we'll give you a demonstration.

FAULT & FIX SERVICES

With our FAULT & FIX services, we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for:

• Computer Desktops
• Laptops
• Netbooks
• TVs
• Games Consoles
• Sky & Freeview Digi Boxes

Preparation....5

Unpacking the TV 5

Installing / Removing the Base Stand 6

Front / Right Side View and Controls....7

Rear View and Sockets 8

Installing Batteries in the Remote Control 9

Remote Control Operation Range....9

Remote Control 10

Connections....13

Making Video and Audio Connections....13

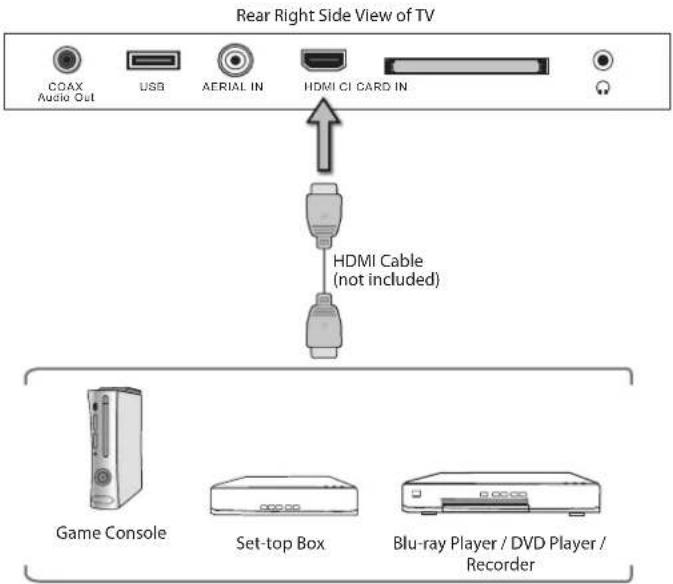

Connecting an AV Device Using an HDMI Cable....13

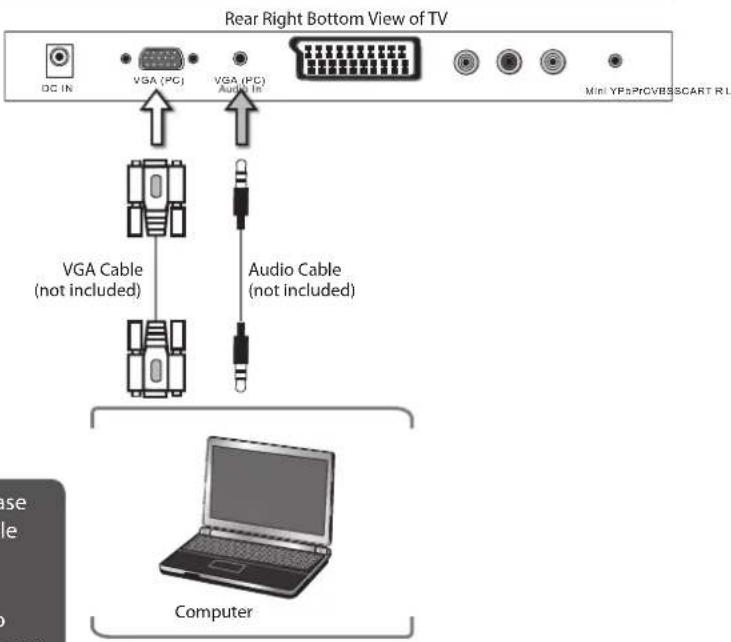

Connecting a Computer Using a VGA Cable 14

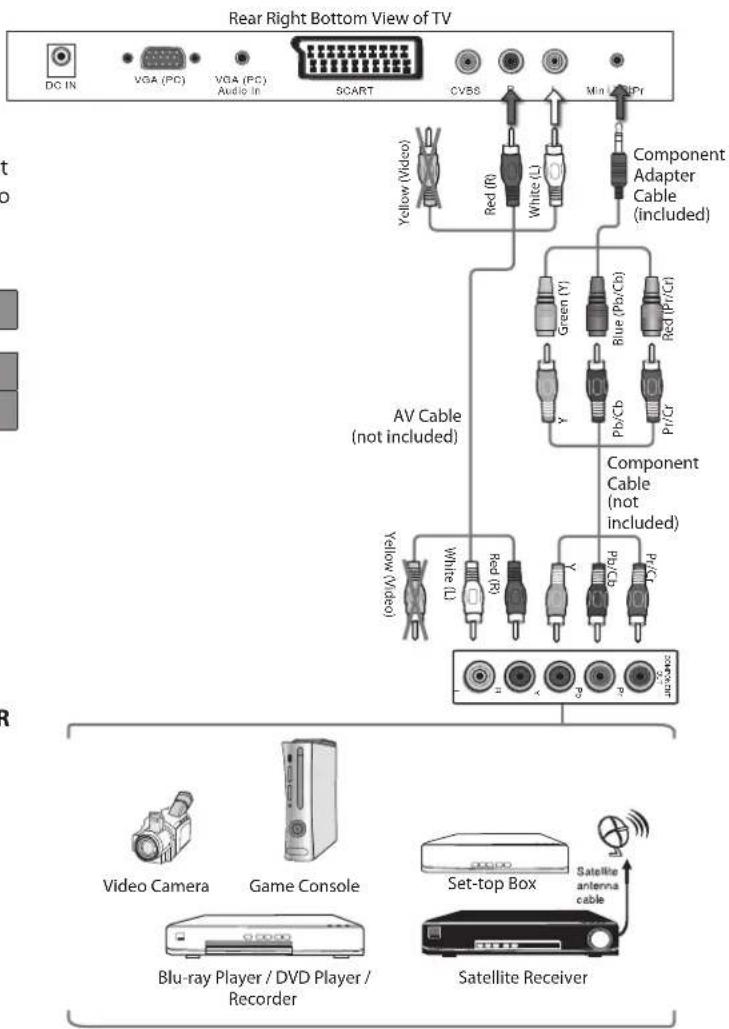

Connecting an AV Device Using a Component (YPbPr) Cable 14

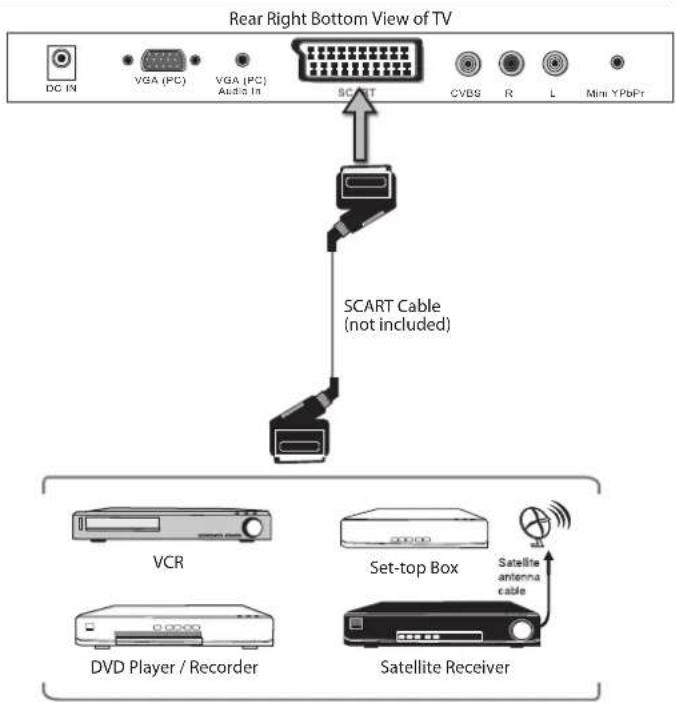

Connecting an AV Device Using a SCART Cable 15

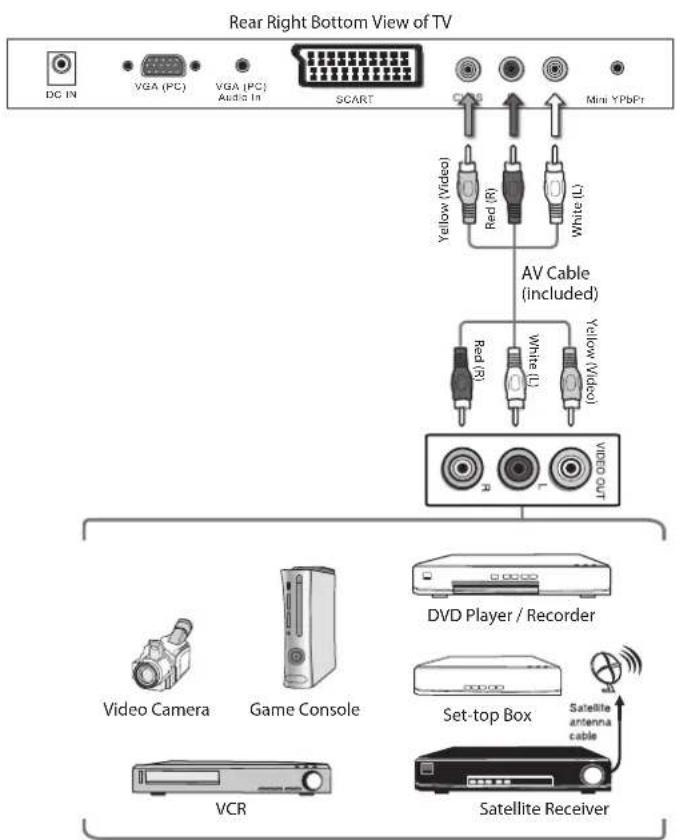

Connecting an AV Device Using Composite Cable 15

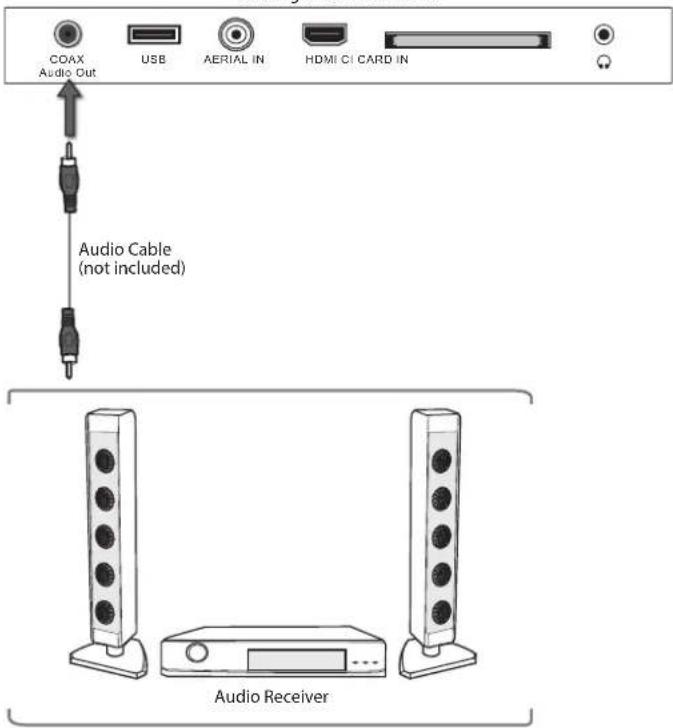

Connecting a Coaxial Audio Receiver Using an Audio Cable....16

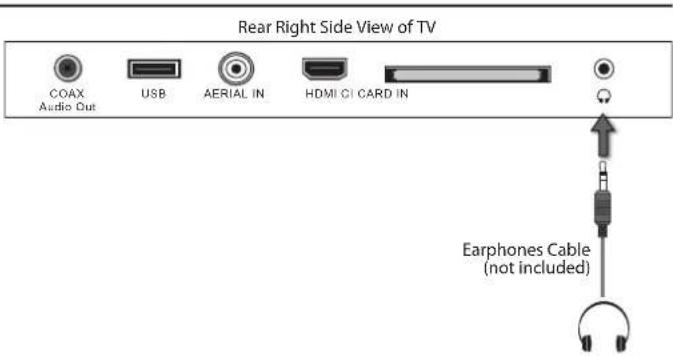

Connecting Headphones....16

Initial Setup 17

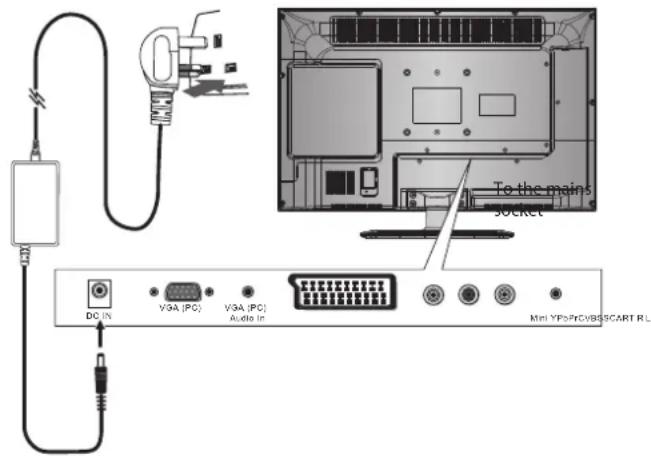

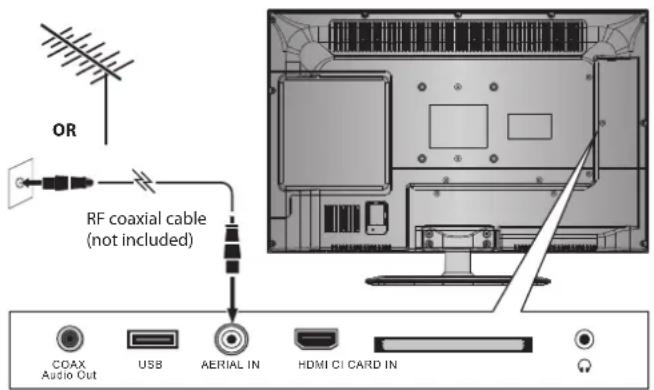

Turning the TV On for the First Time 17

- Target Region Descriptor....18

- Selecting the Input Source....19

- Channel Selection ....19

- Display Channel Information ....19

– Volume Adjustment....19

Customising TV Settings 20

Channel Setting (TV, DTV or Radio Mode)....20

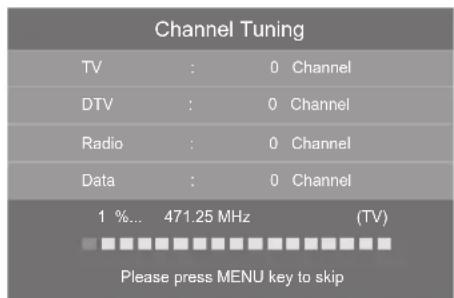

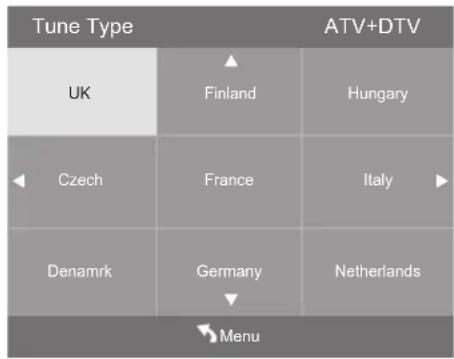

- Auto Tuning 20

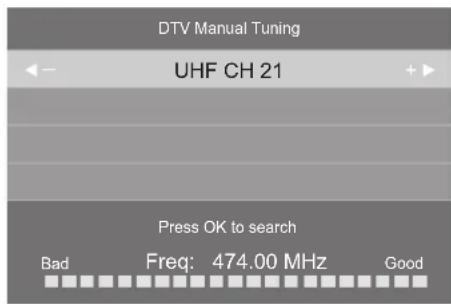

- DTV Manual Tuning (DTV Mode)....21

- ATV Manual Tuning (ATV Mode)....21

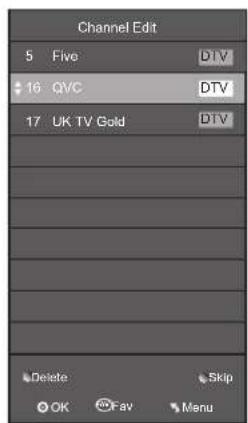

- Channel Edit (DTV Mode)....22

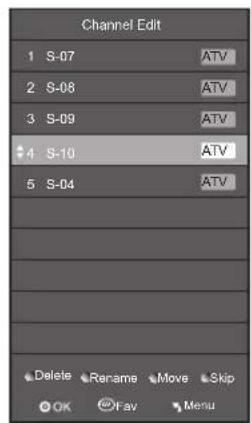

- Channel Edit (ATV Mode) 23

– Signal Information (DTV Mode)....24

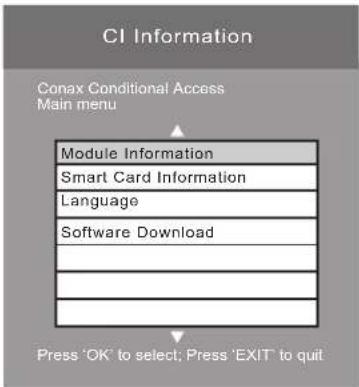

- CI (Common Interface) (DTV Mode) 24

- Software Update (Over Air Download) (DTV Mode) 25

- Software Update (USB) 26

Picture Setting 26

Sound Setting 28

– Stereo Sound Reception (ATV Mode)....29

Time Settings....29

Option Setting 31

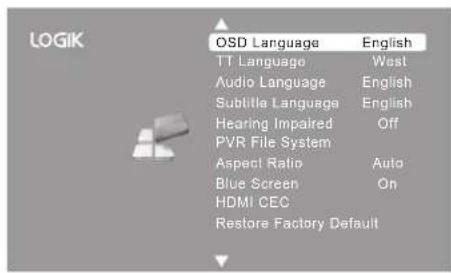

- OSD Language 31

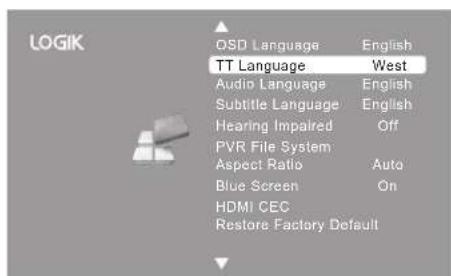

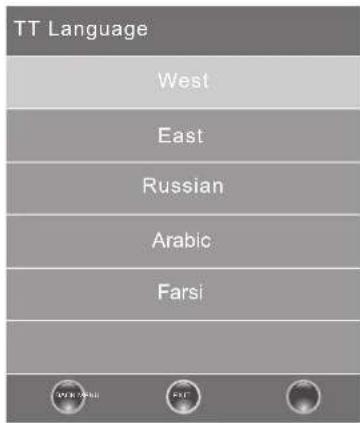

- TT Language....31

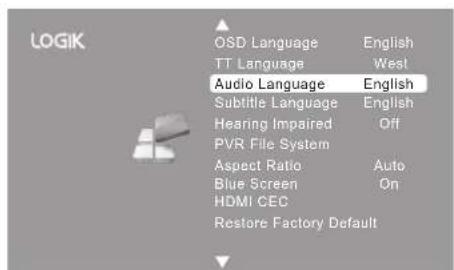

- Audio Language (DTV Mode).... 32

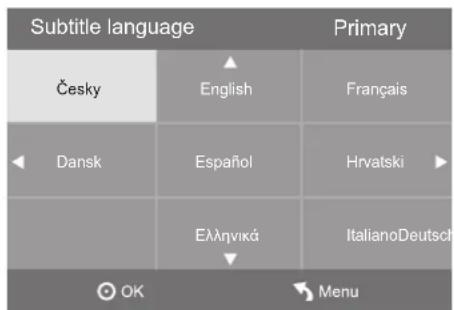

- Subtitle Language (DTV Mode) 33

- Hearing Impaired.... 33

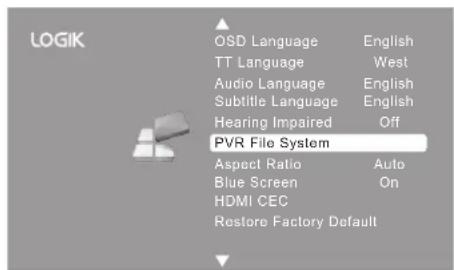

- PVR File System (DTV Mode).... 34

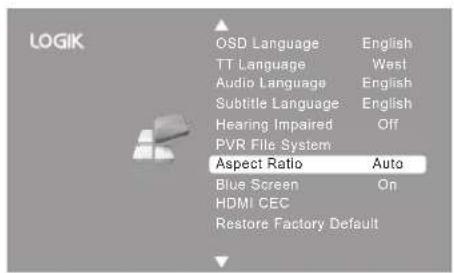

- Aspect Ratio....35

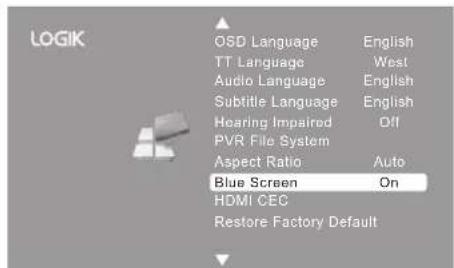

- Blue Screen 36

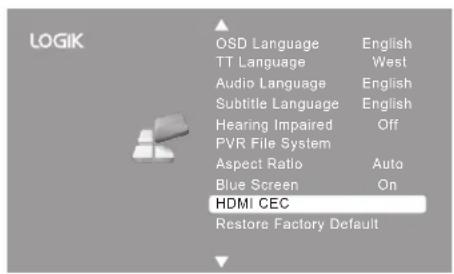

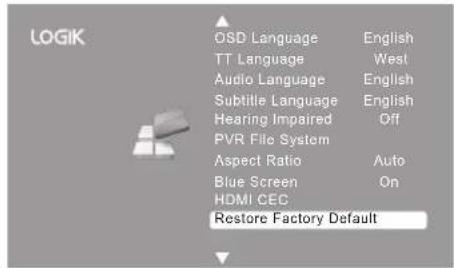

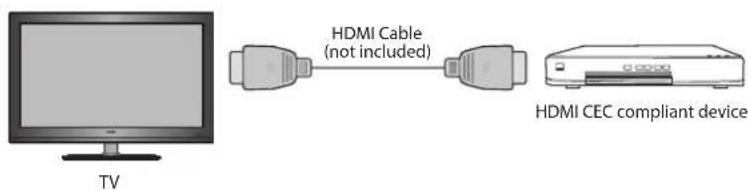

– HDMI CEC (Consumer Electronics Control) (HDMI Mode) 36

Using the Features 43

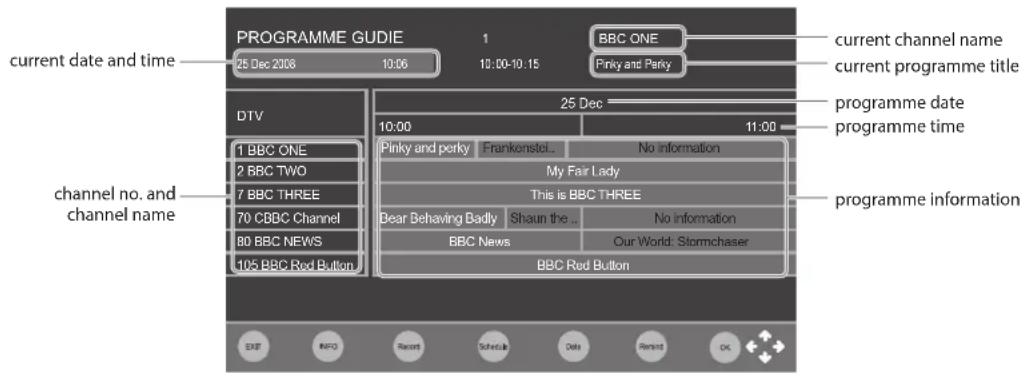

EPG (Electronic Programme Guide) (DTV Mode) 43

• Switch On / Off EPG 43
• Select a Programme 43

Teletext (ATV Mode)....44

- To Turn on Teletext Function....44

Digital Teletext (DTV Mode) 45
- Teletext within Digital Service 45

Entertainment 46

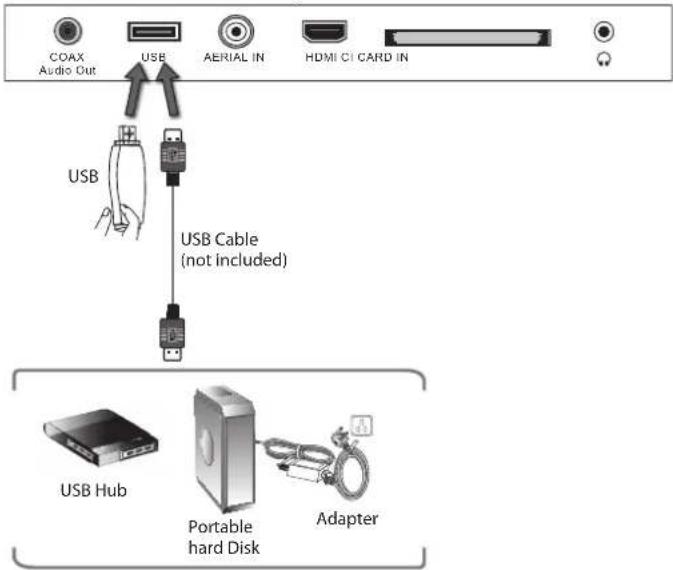

Connecting a USB Storage Device....46

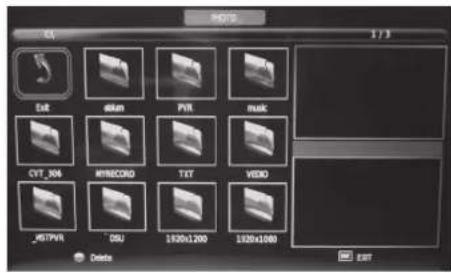

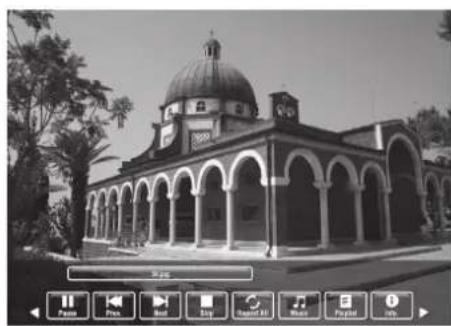

Viewing Photos....46

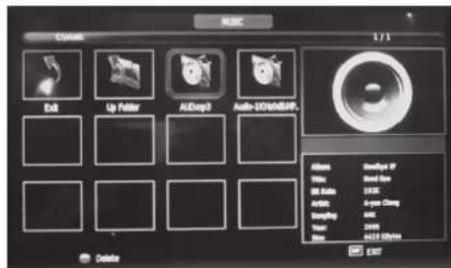

Listening to Music....47

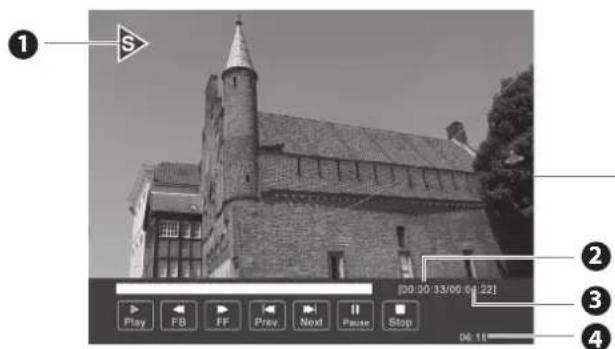

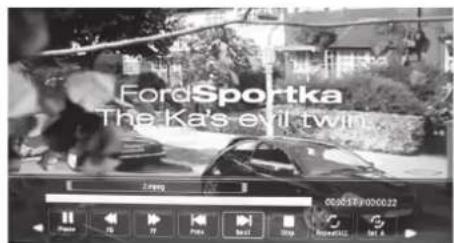

Viewing Movies 48

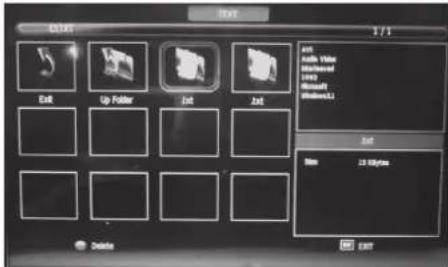

My Text....49

PVR (Personal Video Recorder)....50

Time Shift Function....50

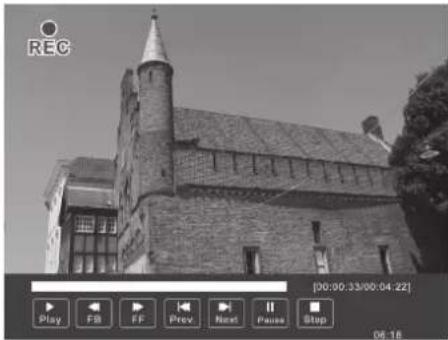

Recording DTV Programme onto a USB Storage Device 51

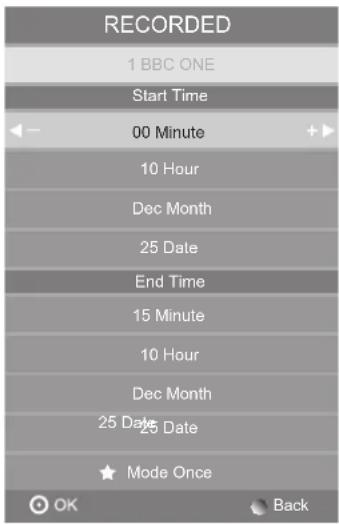

Timer Programming 52

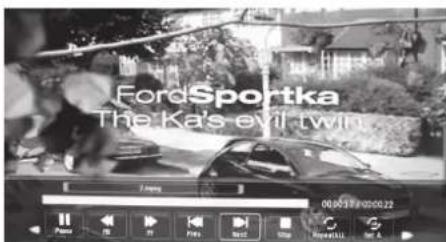

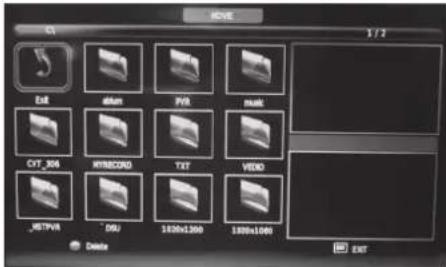

Play Recorded Programme 53

Using the DVD Features....54

Using the Built-in DVD Player 54
Compatible Disc Types 54

– Supported Formats....54
- Region Code 54

Basic DVD Playback Functions 55
Playing Multimedia Discs....57
Using the DVD General Setup Page....58
Using the DVD Audio Setup Page....59
Using the DVD Preference Setup Page 60

Maintenance....62

Hints and Tips....63

Display Modes 65

YPbPr Mode 65
PC Mode 65
HDMI Mode 65

Specifications 66

Safety Warnings 68

Thank you for purchasing your new Logik 22" Full HD LED TV with DVD Player.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a flat-screen television displaying (no visible text or symbols)

TV with Stand Support Mains Adapter

Exterior view of a silver remote control with two open clip illustrations beside it (no text or symbols visible)

Remote Control
(P.N.: S10090071G (L22FEDW12)
S10090072G (L22FEDN12)
S10090073G (L22FEDP12)
S10090074G (L22FEDR12)
S10090075G (L22FEDV12, L22FEDY12, L22FEDO12)
AAA Batteries x 2
(P.N.:S16150012G)

Line drawing of a rectangular electronic device with coiled cables and a power outlet (no text or symbols)

(P.N.: S10051231G)

TV Base
(P.N.: S11191060G (L22FEDW12)
S11191052G (L22FEDN12)
S11191061G (L22FEDP12)
S11191054G (L22FEDR12)
S11191065G (L22FEDV12)
S11191066G (L22FEDY12)
S11191067G (L22FEDO12))

Screw A x 3
(P.N.: S15022036G)

Component Adapter Cable
(P.N.: S09090005G)

LOGIK 22nd Full HD LED TV with DVD Player LOGIK® LOGIK® LOGIK® LOGIK® LOGIK® LOGIK®

Instruction Manual
(P.N.: S17011074G)

LOGIK For the 10th edition to the 20th edition Paper [1] [2] [3] [4] [5] [6] [7]

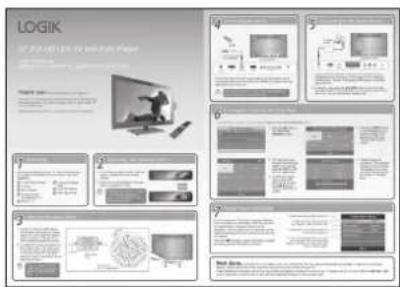

Quick Start Guide
(P.N.: S17141118G)

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

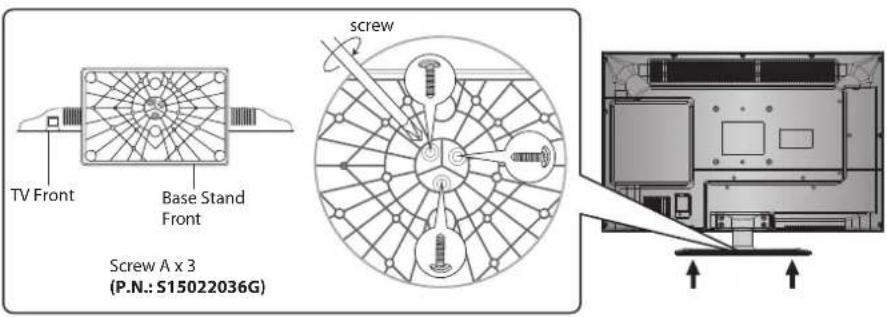

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.

2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.

3. To install the TV stand, first attach the base stand to the TV by using screw A. Align the screw holes then secure with a screw driver (not included) using the 3 screw A provided to fix the base stand to the TV.

The screw holes will only align if the front of the base stand is at the front of the TV.

TV Front Base Stand Front Screw A x 3 (P.N.: S15022036G) screw

Remove the stand assembly before mounting the TV onto the wall.

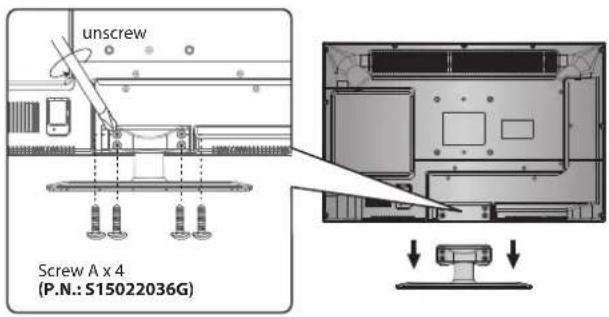

1. To remove the stand assembly, untighten the 4 screw A holding the stand assembly to the rear of the TV. Slide the stand assembly out.

Keep all the spare screws should you want to use the stand assembly option.

unscrew Screw A x 4 (P.N.: S15022036G)

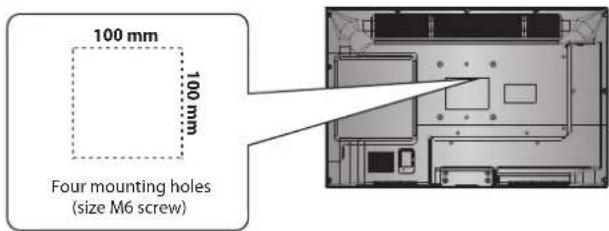

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 100 mm x 100 mm mounting kit (sold separately) designed for flat-panel TVs. Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections (refer to page 13-16 and page 47 for details) before mounting on to the wall.

100 mm 100 mm Four mounting holes (size M6 screw)

• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

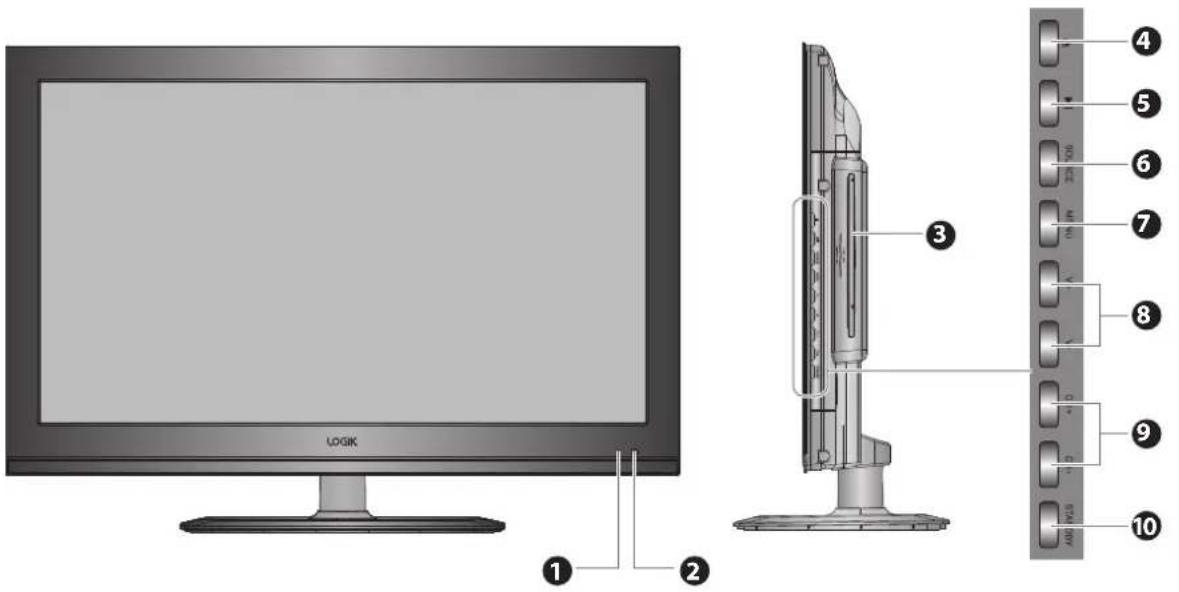

LOGIK ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

Item Description

1 POWER LED	Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will illuminate blue and then blink red and blue confirming that a timer recording programme has started in the standby mode.
2 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
3 Disc Slot	Insert the disc with the label side facing the rear of the TV. (12 cm discs only. Don't insert 8 cm discs.)
4 ▲	Press to eject disc. (DVD mode)
5 ▶II	Press to start playback or pause. (DVD mode)
6 SOURCE	Press to select among different input signal sources:DTV / ATV / DVD / AV / SCART / YPBPR / HDMI / PC / USB.Confirmed the selection on OSD menu.
7 MENU Displays the OSD (on screen display) menu.
8 V + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
9 CH + / - Press to select a channel or select a sub-menu from the OSD menu.
10 STANDBY	Switches the TV on from standby mode.Switches the TV back to standby mode.

DC IN VGA (PC) VGA (PC) Audio In Mini YPbPrCVBS SCART R L 6 7 HDMI CI CARD IN 8 AERIAL IN 9 USB 10 COAX Audio Out 11

Socket Description

1 DC IN Connects the mains adapter to the mains socket.

2 VGA (PC) / VGA (PC) AUDIO IN	Connects to a computer or other devices with a VGA interface.
3 SCART	Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 CVBS / AUDIO IN (L/R)	Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.
5 Mini YPbPr / AUDIO IN (L/R)	Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
6 ☉	Connects to the headphones.

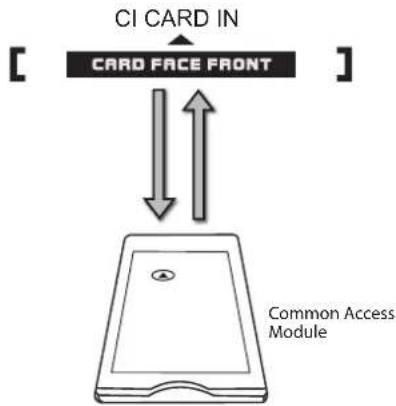

7 CI CARD IN	Allows the insertion of a Common Access Module. (Refer to page 24 for details.)
8 HDMI	Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.
9 AERIAL IN	Connects to the aerial socket on the wall with the RF coaxial cable.
10 USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (USB mode) and record DTV programmes on to a USB storage device.
11 COAX Audio Out	Connects to the audio socket on the digital/standard 5.1 audio system.

Installing Batteries in the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.

2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

Diagram showing battery charging process with labeled components and polarity indicators

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

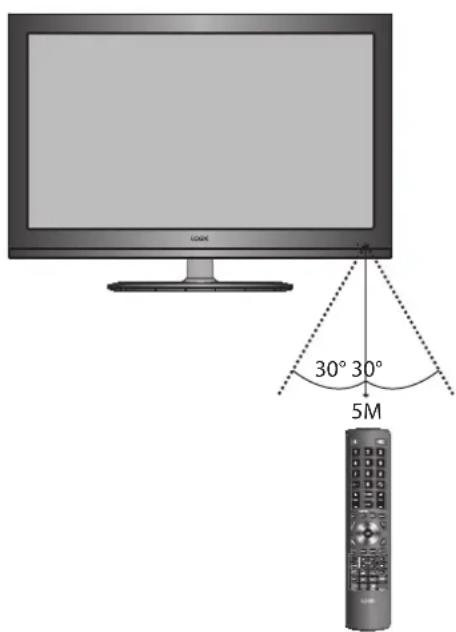

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

30° 30° 5M

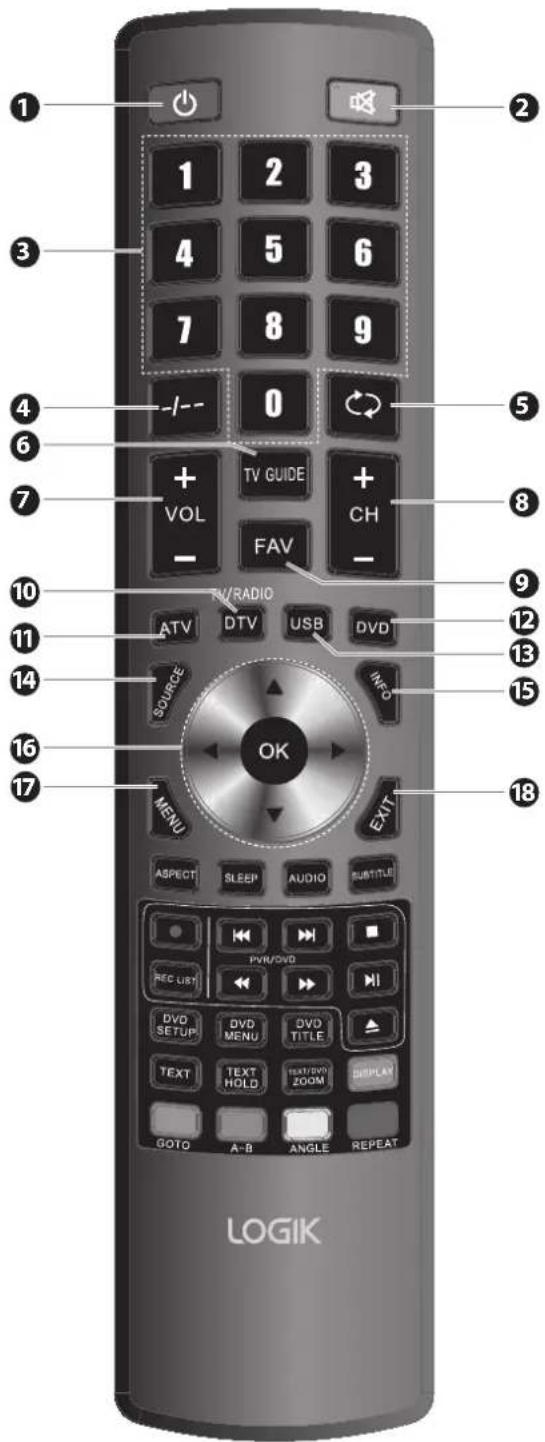

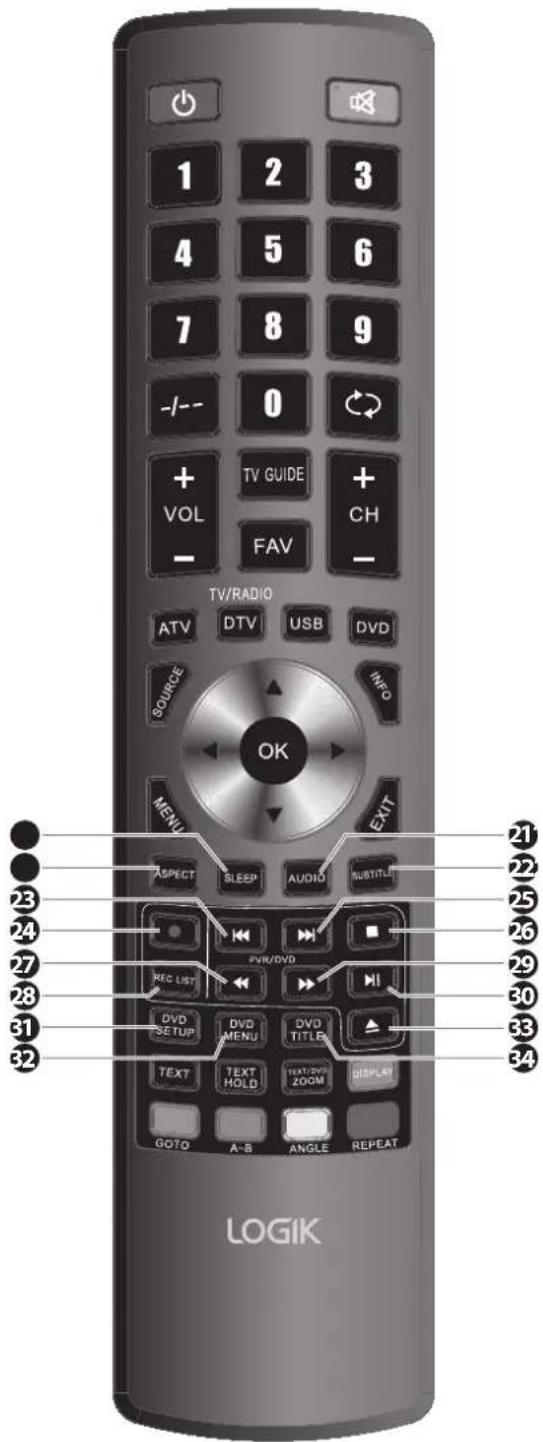

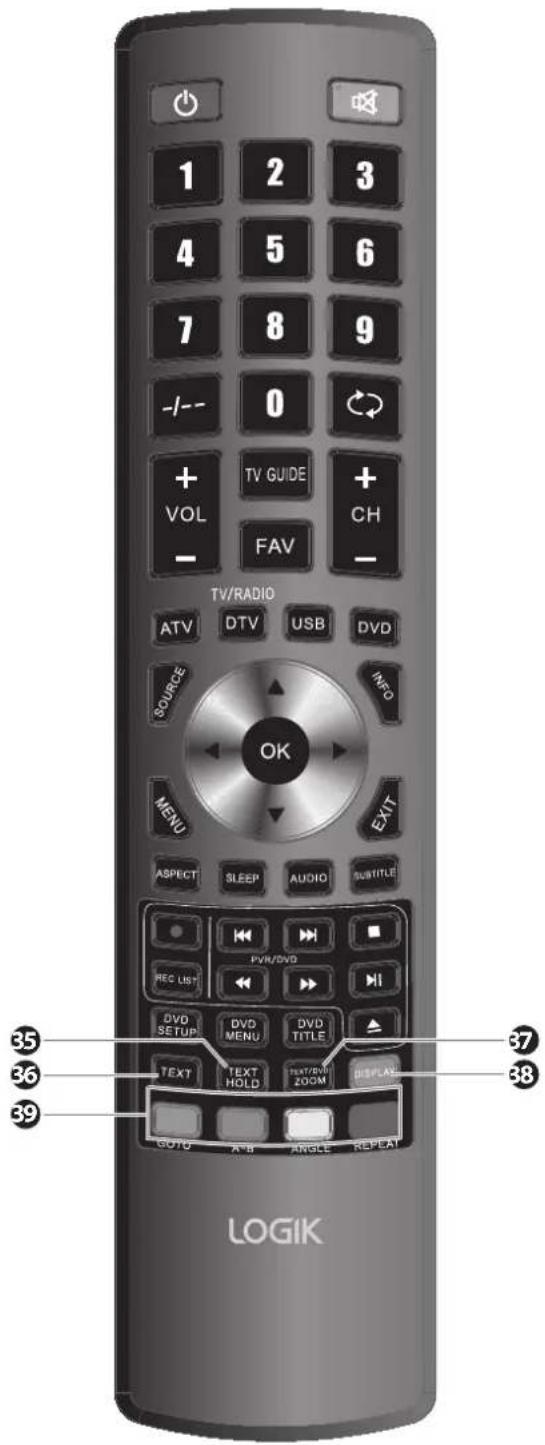

Remote Control

1. ⏻

Switch the TV between on and standby mode.

2. MUTE

Mute and restore your TV sound.

3. 0-9 Number Button

• Press to select a programme. (ATV / DTV mode)
- Select numbered items in a menu. (DVD mode)

4. -/--

Select and switch to a channel that is higher than Channel 9. (ATV mode)

5. ↔ RECALL

Return to the previous viewing channel. (ATV / DTV mode)

6. TV GUIDE

Display the EPG (Electronic Programme Guide). (DTV mode)

7. VOL + / -

Adjust the volume.

8. CH + / -

Select a channel.

9. FAV

Display the favourite channel list. (ATV / DTV mode)

10. DTV (TV/RADIO)

A short-cut to switch input source to TV / Digital radio channels. (DTV mode)

11. ATV

A short-cut to switch input source to ATV. (ATV mode)

12. DVD

A short-cut to switch input source to DVD. (DVD mode)

13. USB

A short-cut to switch input source to TV / Digital radio channels. (DTV mode)

14. SOURCE

Select among the different input signal sources: DTV / ATV / DVD / AV / SCART / YPBPR / HDMI / PC / USB.

15. INFO

• Display the present channel information such as the current time and channel name. (ATV / DTV mode)
  • Display the present disc information. (DVD mode)

16.

Allow you to navigate the OSD menus and adjust the system settings to your preference.

OK

• Confirm the selection in the OSD menus.
• Display channel list. (ATV / DTV mode)

17. MENU

• Display the OSD (On Screen Display) menu.
• Return to the previous menu in the OSD menus.

18. Exit

Exit the OSD menu.

1 2 3 4 5 6 7 8 9 -/-- 0 4 5 6 7 TV GUIDE + VOL CH FAV - 10 TV/RADIO ATV DTV USB DVD SOURCE INFOS 11 12 13 14 15 16 17 OK MENU EXIT ASPECT SLEEP AUDIO SUBTITLE PVR/DVD REC LIST DVD SETUP DVD MENU DVD TITLE TEXT TEXT HOLD TEXT/(DVD) ZOOM DISPLAY GOTO A-B ANGLE REPEAT LOGIK

19. SLEEP

Set the TV sleep timer: OFF / 10 / 20 / ... / 180 / 240 min.

20. ASPECT

Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Full / Subtitle. (Full only operates in YPBPR / HDMI mode)

21. AUDIO

• Switches between the audio languages (only applicable when the TV programme / disc has this features). (DTV / DVD mode)
  • Select Mono / Stereo Sound Reception. (ATV mode)

22. SUBTITLE

• Select subtitles which are broadcast with the programme. (DTV mode)
  • Select subtitles on the DVD. (DVD mode)

23.

To skip to the beginning of the previous chapter / track / photo. (DVD / USB mode)

24.

Record the current programme. (DTV mode)

25.

To skip to the beginning of the next chapter / track / photo. (DVD / USB mode)

26.

To stop the playback or recording. (DVD / USB mode)

27.

To reverse playback rapidly. (DVD / USB mode)

28. REC LIST

Display the record list. (DTV mode)

29.

To advance playback rapidly. (DVD / USB mode)

30.

• To start the timeshift playback. (DTV mode)
• To start playback or pause. (Media / DVD mode)

31. DVDSETUP

Display and exit the DVD setup menu. (DVD mode)

32. DVDMENU

Display the DVD menu. (DVD mode)

33.

Eject a disc. (DVD mode)

34. DVD TITLE

Display the DVD title content. (DVD mode)

TV GUIDE VOL FAV TV/RADIO ATV DTV USB DVD SOURCE INFO OK MENU EXIT ASPECT SLEEP AUDIO SUBTITLE PVR/DVD REC LIST DVD SETUP DVD MENU DVD TITLE TEXT TEXT HOLD TEXT/DVD ZOOM DISPLAY GOTO A-B ANGLE REPEAT LOGIK

35. TEXT HOLD

Freeze a multi-page passage on screen in teletext. (ATV mode)

36. TEXT

Turn on and off the teletext function. (ATV / DTV mode)

37. TEXT/DVD ZOOM

- To enlarge the picture on the TV in teletext. (ATV mode)

• Zoom in on the displayed frame. (DVD mode)

38. DISPLAY

Displays channel and programme information.

39. Coloured buttons

Access the TELETEXT items or channel edit when using Digital / Freeview TV Channels. (ATV / DTV mode)

GOTO (RED)

To skip to a specific location on a DVD / CD. (DVD mode)

A-B (GREEN)

Repeat a segment between A and B. (DVD mode)

ANGLE (YELLOW)

Select different angles for the video. (DVD mode)

REPEAT (BLUE)

Select between different repeat modes. (DVD mode)

1 2 3 4 5 6 7 8 9 -/- - 0 + TV GUIDE + VOL CH - FAV - TV/RADIO ATV DTV USB DVD SOURCE INFO OK MENU EXIT ASPECT SLEEP AUDIO SUBTITLE PVR/DVD REC LIST DVD MENU DVD TITLE DVD SETUP TEXT TEXT HOLD TEXT/BLOGO ZOOM DISPLAY GOTO A-B ANGLE REPEAT LOGIK 35 36 39 37 38

Making Video and Audio Connections

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

	Signal Type	Separate Audio Connection Required
HDMI	HDMI(480i/480p/576i/576p/720p/1080i/1080p)	No
VGA (PC)	PC	YesVGA (PC)Audio In
YPbPrIN	Component Video(480i/480p/576i/576p/720p/1080i/1080p)	YesR L
SCART	SCART (RGB Input) No
CVBS	Composite Video	YesR L

Connecting an AV Device Using an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.

• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p.

• Use an HDMI cable to connect the TV's HDMI input socket to the external AV device's HDMI output socket.

• Plug the connected devices into the mains socket before switching on the TV.
• Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.
• Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select HDMI and then press the OK button to confirm.

Although this TV is able to connect to an HDMI device, it is possible that some devices may not operate correctly.

Rear Right Side View of TV COAX Audio Out USB AERIAL IN HDMI CI CARD IN HDMI Cable (not included) Game Console Set-top Box Blu-ray Player / DVD Player / Recorder

Connecting a Computer Using a VGA Cable

1. Use a VGA cable to connect the TV's VGA (PC) input socket to a computer's VGA output socket. Use an audio cable to connect the TV's VGA (PC) Audio In input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select PC and then press the OK button to confirm.

• The native resolution of this TV is 1920x1080 please check your PC graphic settings for the most suitable picture quality.
• If your computer is set to shut down after a few minutes in the idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the

STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to restart the TV.

Rear Right Bottom View of TV DC IN VGA (PC) VGA (PC) Audio In Mini YF5PrCVBSSCART RL VGA Cable (not included) Audio Cable (not included) Computer

Connecting an AV Device Using a Component (YPbPr) Cable

1. Connect the supplied component adapter cable and a component cable from the TV's Mini YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's AUDIO(L/R) input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV Y Pb Pr

Video output ports on DVD player	Y Pb	Pr
	Y Cb	Cr

1. Plug the connected devices into the mains socket before switching on the TV.
2. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.
3. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select YPBPR and then press the OK button to confirm.

Rear Right Bottom View of TV DC IN VGA (PC) VGA (PC) Audio In 5CART CVBS Min LnPf Yellow (Video) Red (R) White (L) Component Adapter Cable (included) AV Cable (not included) Green (Y) Blue (Pb/Cb) Red (Pr/Cr) Pb/Cb Pr/Cr Component Cable (not included) Yellow (Video) White (L) Red (R) Dy/Pd Dy/Pd Video Camera Game Console Blu-ray Player / DVD Player / Recorder Set-top Box Satellite antenna cable Satellite Receiver

Connecting an AV Device Using a SCART Cable

1. Use a SCART cable to connect the TV's SCART input socket to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.
4. The TV will change the input source to SCART automatically once the AV device is switched on.

Rear Right Bottom View of TV DC IN VGA (PC) VGA (PC) Audio In SCART CVBS R L Mini YPbPr SCART Cable (not included) VCR Set-top Box Satellite antenna cable DVD Player / Recorder Satellite Receiver

Connecting an AV Device Using Composite Cable

1. Use the AV cable to connect the TV's AUDIO(L/R)/VIDEO IN input sockets to an external AV device's composite audio/video sockets.
   (Video = yellow, Audio Left = white, and Audio Right = red)

2. Plug the connected devices into the mains socket before switching on the TV.

3. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.

4. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select AV and then press the OK button to confirm.

Rear Right Bottom View of TV DC IN VGA (PC) VGA (PC) Audio In SCART Mini YPbPr Yellow (Video) Red (R) White (L) AV Cable (Included) Red (R) White (L) Yellow (Video) VIDEO OUT DVD Player / Recorder Video Camera Game Console Set-top Box Satellite antenna cable VCR Satellite Receiver

Connecting a Coaxial Audio Receiver Using an Audio Cable

For better sound quality, you may want to play the audio through your multi-channel audio receiver.

1. Use an audio cable to connect the TV's COAX Audio Out output socket to an external audio receiver's audio coaxial input socket.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select any desired input source and then press the OK button to confirm.

The TV's volume control will have no effect. You may control the audio level via the Audio Receiver.

COAX Audio Out USB AERIAL IN HDMI CI CARD IN Audio Cable (not included) Audio Receiver

Connecting Headphones

Connect your headphones to the TV's socket.

Before putting on the headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.

Rear Right Side View of TV COAX Audio Out USB AERIAL IN HDMI CARD IN Earphones Cable (not included)

Turning the TV On for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the AERIAL IN socket at the rear right bottom view of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

OR RF coaxial cable (not included) COAX Audio Out USB AERIAL IN HDMI CI CARD IN

1. Connect the mains adapter to the mains socket after you have completed all the connections. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
2. In standby mode, press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn the TV on. The red LED indicator will turn blue.

• Only use the included mains adapter. Do not use it with any other equipment.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains adapter from the mains socket.

To the mains SOCKET DO IN VGA (IPO) VGA (IPO) Audio In Mini YPsPrCvBSSCART RL

1. The first time you turn the TV on, it will go straight into the First Time Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please go to the section "Selecting the Input Source" on the next page.)
2. Press the ▲◀buttons to select your desired language to be displayed on the menu. The default on-screen menu language is set as English. Press the OK button to confirm.

Please ensure aerial is plugged in!! Then press OK button to start

Please select an OSD Language English Español Français Deutsch Português Italiano OK

1. The Tune Type menu will have the priority set to DTV, if you want to select ATV+DTV / ATV press the ◀buttons.

2. To select the country option press the ▼ button and then press the ▲◀▶buttons. Press the OK button to confirm.

3. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.

When only the DTV tune function is selected the channel tuning progress will not find any ATV channels and will show TV : 0 channel).

1. If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
2. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the Channel menu (refer to page 22-23 for details).

Target Region Descriptor

During tuning your TV may have received signals from more than one transmitter. If this has occurred the Target Region Descriptor screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

1. Press the OK button to confirm the Country Code, this will highlight the Primary Region England.
2. Press the OK button to highlight Secondary Region and press the ◀▶ buttons to select your preferred option (if available).
3. Press the OK button to confirm, and Tertiary Region will be highlighted. Press the ◀buttons to select the your preferred option (if available).
4. Press the OK button to confirm.

Country Code This will be shown as GBR for the UK.
Primary Region	This will show the regional country (England, Wales, Scotland, NI).
Secondary Region	This will allow you to set the region for your local news service on BBC and ITV (London, Beds and Cambs etc).
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath).

Tune Type		DTV
UK	▲Finland	Hungary
◀ Czech	France	Italy ▶
Denamrk	Germany▼	Netherlands
Menu

Channel Tuning
TV	:	0 Channel
DTV	:	0 Channel
Radio	:	0 Channel
Data	:	0 Channel
1 %... 471.25 MHz (TV) Please press MENU key to skip

Target Region Setting
Country Code GBR
Primary Region England
Secondary Region	London
Tertiary Region

Selecting the Input Source

1. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Input Source list.
2. Press the ▲▼ buttons to select the input source that you want: DTV / ATV / DVD / AV / SCART / YPBPR / HDMI / PC / USB.
3. Press the OK button to confirm your selection. If you do not press the OK button to confirm, the TV will automatically confirm the selected input source within 4 seconds.

Alternative

• Press the ATV button to switch to ATV channels directly.
• Press the DTV (TV/RADIO) button to switch to TV / digital radio channels directly.
• Press the USB button to switch to USB mode directly.
• Press the DVD button to switch to DVD mode directly.

Input Source

DTV

ATV

DVD

AV

SCART

YPBPR

HDMI

PC

USB

OK

Channel Selection

- Press the CH + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

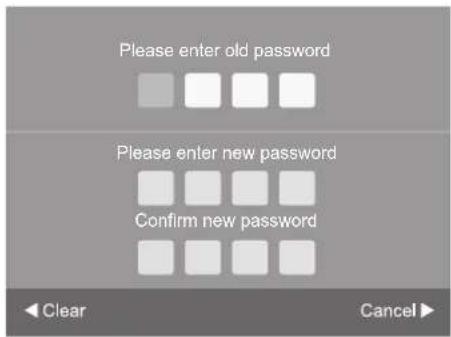

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 40 for details on Block Channel).
• Press the FAV button to view the Favourite List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel (refer to page 22-23 for details on Channel Edit).
• Press the ⬆ button to return to the previously viewed channel.

Display Channel Information

- Press the INFO button to view the current information.

Volume Adjustment

• Press the V + or – button on the right side panel of the TV or the VOL + or – button on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Ⓧ MUTE button. Press the Ⓧ MUTE button again or the VOL + or – button to resume audio listening.

Channel Setting (TV, DTV or Radio Mode)

Auto Tuning

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select Auto Tuning and then press the OK button.

LOGIK Auto Tuning ATV Manual Tuning Channel Edit Software Update(OAD) Off Software Update(USB)

(ATV mode)

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

(DTV mode)

1. In the Tune Type menu, press the ◀buttons to select ATV / DTV / ATV+DTV. Press the ▼button and then press the ▲buttons to select the country where you will operate the TV. Press the OK button to confirm.

Tune Type ATV+DTV UK Finland Hungary Czech France Italy Denamrk Germany Netherlands Menu

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the channel menu (refer to page 22-23 for details).

Channel Tuning TV : 0 Channel DTV : 0 Channel Radio : 0 Channel Data : 0 Channel 1 %... 471.25 MHz (TV) Please press MENU key to skip

DTV Manual Tuning (DTV Mode)

Allows you to make manual fine tuning adjustments to the channel under DTV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select DTV Manual Tuning and then press the OK button.
3. The DTV Manual Tuning screen will pop up. Press the ▶buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4. Press the MENU button to return to the main menu.
5. Press the EXIT button to exit the menu.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

DTV Manual Tuning UHF CH 21 Press OK to search Bad Freq: 474.00 MHz Good

ATV Manual Tuning (ATV Mode)

Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select ATV Manual Tuning and then press the OK button.

LOGIK < CHANNEL > < PICTURE > < SOUND > < TIME > < OPTION > < LOCK > < EXIT >

LOGIK Auto Tuning ATV Manual Tuning Channel Edit Software Update(OAD) Off Software Update(USB)

1. The ATV Manual Tuning screen will pop up. Use the ▲▼ buttons to select the following options and the ◀buttons to adjust the setting.

Current CH Displays the current channel number.
Colour System	Selects the colour system: Auto / SECAM / PAL.
Sound System Selects the sound system: DK / I / BG.
Fine-Tune	Press the ◀buttons to make manual fine tuning adjustments.
AFC (Auto Frequency Control)	Select AFC On to lock the desired frequency.
Search	Press the ◀buttons to start the manual tuning.

1. After finishing the manual tuning adjustment of a channel, press the MENU button to save your channel before tuning the next channel.
2. Press the EXIT button to exit the menu.

Channel Edit (DTV Mode)

Allows you to edit TV channel information in the Channel List under DTV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.

3. A Channel Edit screen will pop up. Press the ▲▼ buttons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

c. FAV (Favourite)

Press the FAV button to set the selected channel as one of the favourite programmes. Press the FAV button again to undo it.

1. Press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

ATV Manual Tuning
Current CH	1
Colour System	PAL
Sound System	I
Fine - Tune	470.25 MHz
AFC	Off
Search

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

Channel Edit 5 Five DTV 16 QVC DTV 17 UK TV Gold DTV Delete Skip OK Fav Menu

Channel Edit (ATV Mode)

Allows you to edit TV channel information in the Channel List under ATV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.

3. A Channel Edit screen will pop up. Press the ▲▼ buttons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Rename

Press the GREEN button to rename the selected channel. Press the ▲▼ buttons to select the characters to represent the station name. Press the ◀▶buttons to move to the next character and then press the OK button again to confirm the new name.

c. Move

Press the YELLOW button and then press the ▲▼ buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm.

d. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

e. FAV (Favourite)

Press the FAV button to set the selected channel as one of the favourite programmes. Press the FAV button again to undo it.

1. Press the MENU button to return to the main menu.

2. Press the EXIT button to exit the menu.

LOGIK < CHANNEL > < PICTURE > < SOUND > < TIME > < OPTION > < LOCK > < EXIT >

LOGIK Auto Tuning ATV Manual Tuning Channel Edit Software Update(OAD) Off Software Update(USB)

Channel Edit 1 S-07 ATV 2 S-08 ATV 3 S-09 ATV 4 S-10 ATV 5 S-04 ATV Delete Rename Move Skip OK Fav Menu

Signal Information (DTV Mode)

Allows you to view the signal information.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.
3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

Signal Information Channel 50 Frequency 706.00Mhz Quality 99 Strength 91 Network Crystal Palace

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

Rear Right Side View of TV

COAX Audio Out USB AERIAL IN HDMI CI ON ON

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

To view the module information

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select CI Information and then press the OK button.

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

1. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
2. Press the EXIT button to return to the previous menu. Press the EXIT button again to exit the menu.

This screen is for illustration only.

Software Update (Over Air Download) (DTV Mode)

The TV auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

LOGIK < CHANNEL > < PICTURE > < SOUND > < TIME > < OPTION > < LOCK > < EXIT >

1. Press the ▲▼ buttons to select Software Update(OAD) and then press the OK button to select On.
2. Press the MENU button to return to return to the main menu.
3. Press the EXIT button to exit the menu.

LOGIK Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB)

1. During normal DTV viewing, if the TV detects the latest firmware from the DTV signal, the Over Air Download screen will appear. Press the ▶buttons to select Yes / No for upgrade procedure.

2. If you select Yes, the over air download will start. Press the EXIT button if you want to stop the download and exit the menu.

During the download, please do not turn off or unplug your TV.

1. When the download is complete, the TV will automatically upgrade the software.
2. When the update is complete, the TV will return to standby mode.
3. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to switch on the TV.

New Fireware is available TV Version v0.01 Stream Version v0.02 Yes to upgrade No to exit the upgrade

Download 20% EXIT

Software Update(OAD) 66%

If you experience difficulties after the software update, we recommend that you restore your TV to the factory default settings. To do this, follow the steps below:

1. Press the MENU button to go to the MAIN menu. Press the ▲▼ buttons to select OPTION and then press the OK button.
2. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button. Press the ◀button to select Yes to reset the setting.
3. The TV will restore all settings and go to the First Time Installation. Follow the First Time Installation steps (refer to page 17-19 for details).

Software Update (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ or call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Picture Setting

Allows you to set your preferred picture mode.

1. Press the MENU button and then press the ▲▼ buttons to select the PICTURE menu and then press the OK button.
2. Press the ▲▼ buttons to select the following picture options and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Picture Mode Standard Contrast 50 Brightness 50 Colour 50 Tint 50 Sharpness 50 Colour Temp Normal Noise Reduction Off SCREEN

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Picture Mode Cycles among picture mode: Standard / Mild / Personal / Dynamic.
Contrast	Adjusts the difference between light and dark levels in the picture. (for Personal mode)
Brightness Increases or decreases the amount of white in the picture. (for Personal mode)
Colour Controls the colour intensity. (for Personal mode)
Tint (For NTSC format)	Adjusts the balance between red and green levels.(Tint is only available for NTSC signal input via the SCART or AV IN.)
Sharpness	Adjusts the level of crispness in the edges between light and dark areas of the picture. (for Personal mode)
Colour Temperature	Cycles among colour temperature: Cold / Normal / Warm.Adjusts the colour components independently to achieve a warm or cool. (for Personal mode)Cold: Increases blue tintNormalWarm: Increases red tint		Colour TempColdNormalWarm
Noise Reduction	Reduces the noise level of the connected device: Off / Low / Middle / High.		Noise ReductionOffLowMidscHigh
Screen(PC mode)	Adjusts the PC desktop content.
	Auto Adjust	Allows you to synchronise a PC signal automatically.
	H-Offset Adjusts the position of the picture left and right in the window.
	V-Offset Adjusts the position of the picture up and down in the window.
	Size Adjusts the picture horizontally, in linear properties
	Phase	Controls the signal phase, which can improve focus clarity and image stability based on the PC mode.
	Position Reset	Press to set the best screen position.

Press the MENU button to return to the previous menu, press again to return to the main menu.
5. Press the EXIT button to exit the menu.

Allows you to select an audio-enhancement technique.

1. Press the MENU button and then press the ▲▼ buttons to select the SOUND menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select the following sound options and then press the OK button.

LOGIK Sound Mode Standard Treble 50 Bass 50 Balance 0 Auto Volume On SRS TruSurround HD On SPDIF Mode Auto AD Switch Off

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Sound Mode Allows the selection of an audio-enhancement technique: Standard / Music / Movie / Sports / Personal.
Treble Controls the relative intensity of higher pitched sounds. (for Personal mode)
Bass Controls the relative intensity of lower-pitched sounds. (for Personal mode)
Balance Adjusts the relative volume of the speakers in a multiple speaker system.
Auto Volume	Volume levels are automatically controlled (e.g., advertisements tend to be louder than the programmes).
SRS	SRS TruSurround HD^TM (TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT^® . Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity. Press the OK button to select On / Off.
SPDIF Mode Selects the digital audio output mode.
AD Switch(For DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster. Set to "Off" for normal broadcasting sound coming out from speakers. Set to "On" to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Stereo Sound Reception (ATV Mode)

When a programme is selected, press the AUDIO button to display the sound information for the selected station.

Broadcast On Screen Display
Mono	MONO
Stereo	NICAM STEREO

Mono sound selection

If the stereo signal is weak, you can switch to mono by pressing the AUDIO button. In mono reception, the clarity of sound is improved. To switch back to stereo, press the AUDIO button again.

Time Settings

Allows you to adjust time zone, sleep time, auto standby, OSD timer and summer time.

1. Press the MENU button and then press the ▲▼ buttons to select the TIME menu and then press the OK button.

2. Press the ▲▼ buttons to select the following time options and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Clock Time Zone GMT Sleep Timer Off Auto Standby 4 H OSD Timer 10 S Summer Time Auto

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Clock (DTV mode) The clock is set automatically when receiving a digital signal.

Time Zone (DTV mode) When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

Time Zone Carney GKT Global GKT Raven GKT-1 London 6KT Amsterdam GKT-1 Shenzhen 6KT-1 London 6KT Biogold GKT-1 Buccaded GKT-1 Move OK Menu

Sleep Timer The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.Press the▲▼buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min and then press theOKbutton to confirm. The timer begins to count down from the number of minutes selected.
	If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased.
	Alternative1. You may press theSLEEPbutton repeatedly to select the number of minutes: OFF / 10 / 20 / ... / 180 / 240 min directly.2. To cancel the sleep time, press theSLEEPbutton repeatedly until Off appears.
Auto Standby The unit will automatically switch to standby mode 4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.If you want to operate the TV for a long period of time, turn off the auto standby function. Press theMENUbutton to display the main menu. Press the▲▼buttons to select theTimeoption and then press theOKbutton. Press the▲▼buttons to select theAuto Standbyoption and then press theOKbutton to select "Off". Press theEXITbutton exit the main menu. To save energy you should always turn the auto standby function back to "3H" or "4H".
OSD Timer Displays time of the on-screen menu: 5s / 10s / 15s / 20s / 25s / 30s and then press theOKbutton to confirm.	[OBD Timer]5.810.515.820.825.830.8
Summer Timer Press the butto select OFF / ON / Auto.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

OSD Language

Allows you to select your desired on screen menu language.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select OSD Language and then press the OK button. The default on-screen menu language is English.
3. Press the 🔊 buttons to navigate the menu and change the settings. Press the OK button to confirm to return to the previous menu.
4. Press the EXIT button to exit the menu.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK OSD Language English IT Language West Audio Language English Sublittle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

OSD Language English Español Français Deutsch Português Italiano OK Menu

TT Language

Allows you to select your preferred Teletext language.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select TT Language and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK QSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

1. Press the ▲▼ buttons to select your desired TT Language. Press the OK button to confirm and return to the previous menu.
2. Press the EXIT button to exit the menu.

TT Language West East Russian Arabic Farsi AVK/AFBI PRT

Audio Language (DTV Mode)

Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Audio Language and then press the OK button.

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

1. Press the ◀▶ buttons to select the Primary / Secondary Audio Language. Press the ▼ button and then press the ▲buttons to select your desired audio language. Press the OK button to confirm and return to the previous menu.

2. Press the EXIT button to exit the menu.

Audio language Primary Česky English Français Dansk Español Hrvatski EÀlhyviká ItalianoDeutsch OK Menu

Subtitle Language (DTV Mode)

Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

2. Press the ▲▼ buttons to select Subtitle Language and then press the OK button.

3. Press the ◀buttons to select the Primary / Secondary Subtitle Language. Press the ▼button and then press the ▲buttons to select your desired subtitle language. Press the OK button to confirm and return to the previous menu.

4. Press the EXIT button to exit the menu.

While watching a DTV programme, you can press the SUBTITLE button on the remote control to display the Subtitle Language List and then press the ▲▼ buttons to select the Subtitle Language OFF. Press the OK button to confirm. (Only applicable when the TV programme has this feature.)

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

Subtitle language Primary Česky English Français Dansk Español Hrvatski Ελληνικά ItalianoDeutsch OK Menu

Hearing Impaired

Shows information for the hearing-impaired in some programmes. (For DTV channels only if available.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Hearing Impaired and then press the OK button to select On / Off.
3. Press the MENU button to return to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select PVR File System and then press the OK button.

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

1. Press the ▲▼ buttons to select the following PVR File System options and then press the OK button.

Select Disk Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR. The system will show "Checking". Upon the completion the system will show either "SUCCESS" or "FAIL".
USB Disk	If no USB storage device is connected, it will show "No USB Disk". If the Check PVR File System has a "SUCCESS" it will show "Pass".
Format	Press the OK button, a File System Size menu will pop-up. Press the◀buttons to select your preferred file type between FAT32 and HiSpeed FS. If you select HiSpeed FS, press the▼button and then press the◀buttons to select your preferred file size. Press the OK button to confirm and then press the◀button to start formatting.
Time Shift Size After formatting the Time Shift Size menu will appear if you have selected HiSpeed FS in PVR File System Type. Press the◀buttons to select your preferred file size. Press the OK button to confirm. This option cannot be chosen if you have selected FAT32 in PVR File System Type.
Speed This shows you the transfer rate of your USB storage device.
Free Record Limit Press the◀buttons to set the recording time limit from 1-4 hours.

Aspect Ratio

Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Full / Subtitle.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Aspect Ratio and then press the OK button.

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

1. Press the ▲▼ buttons to change the following settings and then press the OK button to confirm and return to previous menu.

	Input Signal 4:3 Input Signal 16:9
Auto This selection	will display the picture according to the aspect ratio of the input source.		This selection will display the picture according to the aspect ratio of the input source.
4:3 This selection will allow you to view a picture with an original 4:3 aspect ratio. Black bars will appear on both the left and right of the screen.			This selection will allow you to adjust the picture horizontally, in linear proportion. Black bars will appear on both the left and right of the screen.
16:9 This selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen.			This selection will allow you to view a picture with an original 16:9 aspect ratio.
Zoom This selection will allow you to zoom in the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.			This selection will allow you to zoom in the picture without any alteration, while the 4 sides of the picture will be cropped.
Smart Zoom This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.			This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.
Full (HDMI & YPBPR mode only)	This selection will detect the resolution of the HDMI signal and display an image with the same number of pixels.		This selection will detect the resolution of the HDMI signal and display an image with the same number of pixels.

Subtitle This selection will allow you to zoom in the picture without any alternation, while filling the entire screen with subtitles shown at the bottom of the screen.

This selection will allow you to zoom in the picture without any alternation, while showing subtitles at the bottom of the screen.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Blue Screen

Allows the blue background to turn On or Off during weak or no signal conditions.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Blue Screen and then press the OK button to select On / Off.
2. Press the MENU button to return to the previous menu, press again to return to the main menu.
3. Press the EXIT button to exit the menu.

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

HDMI CEC (Consumer Electronics Control) (HDMI Mode)

Allows you to command and control two or more HDMI CEC compliant devices, that are connected through HDMI, by using only one of the TV remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). HDMI CEC also allows individual HDMI CEC compliant devices to command and control each other without user intervention.

Make sure that your HDMI CEC compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.)

HDMI-CEC Connection

HDMI Cable (not included) HDMI CEC compliant device TV

• This unit can only communicate with HDMI-CEC compatible devices.
• To be sure that the HDMI-CEC device has this feature, check to see if there is HDMI-CEC compatible logo on it.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

2. Press the ▲▼ buttons to select HDMI CEC and then press the OK button.

3. The HDMI CEC sub-menu will display.

HDMI CEC	This will allow your TV to communicate with the connected HDMI CEC compliant device. Press the ▲▼ buttons to select HDMI CEC and then press the ◀▶buttons to turn On.
Device Menu	Press the ▲▼ buttons to select Device Menu. Press the OK button to display the setup menu of the connected HDMI CEC compliant device. You can use the ◀▲▼▶ buttons to navigate through the setup menu (some HDMI-CEC compliant devices may not support this function).
Auto Turn Off	Press the ▲▼ buttons to select Auto Turn Off and then press the ◀▶buttons to turn on. This will allow the connected HDMI compliant device to automatically turn off when you turn the TV to standby mode.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.

2. Press the EXIT button to exit the menu.

Restores all settings to the factory defaults.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

LOGIK HDMI CEC Off Device Menu Auto Turn Off Off

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button.

LOGIK OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired Off PVR File System Aspect Ratio Auto Blue Screen On HDMI CEC Restore Factory Default

1. Press the ◀ button to select "Yes". The TV will return to the first time installation menu. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Are you sure? Yes No

Lock Setting

To access the LOCK menu, you must enter the password. Enter the default password "0000" for first time use. To change the password, refer to "Change Password" (see below).

Lock System

The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / Restore Factory Default.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

Please enter password ◀ Clear Cancel ►

1. Press the ▲▼ buttons to select Lock System and then the OK buttons to select On / Off.
   If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / Restore Factory Default.
2. Press the MENU button to return to the previous menu, press again to return to the main menu.
3. Press the EXIT button to exit the menu.

Set Password

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

2. Press the ▲▼ buttons to select Set Password and then press the OK button.

3. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.

The default password is "0000". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

1. Press the ▶ button to return to the previous menu. Press the MENU button to return to the main menu.

2. Press the EXIT button to exit the menu.

Block Channel

Block Channel is designed to prevent children watching unsuitable programmes.

When a channel is blocked, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

Please enter old password Please enter new password Confirm new password ◀ Clear Cancel ►

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

2. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

1. Press the ▲▼ buttons to select Block Channel and then press the OK button.
2. A Block Channel screen will pop up. Press the ▲▼ buttons to select a channel. Press the GREEN button on the remote control to block or unblock the channel. Press the GREEN button again to unblock.
3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

Please enter password ◀ Clear Cancel ►

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

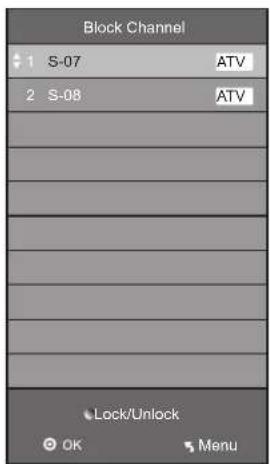

Block Channel 1 S-07 ATV 2 S-08 ATV Lock/Unlock OK Menu

Parental Guidance

This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This allows you to set up blocking schemes to block specific channels and ratings.

This TV is programmed to remember which option it was last set to even if you switch the TV off.

When a programme is locked or rated with delayed state, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

2. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

1. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.

2. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm.

3. Press the MENU button to return to the previous menu, press again to return to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

Please enter password ◀Clear Cancel▶

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

Parental Guidance Off 4 5 6 7 8

Key Lock

Key Locked is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Key Locked is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "0000".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

Please enter password ◀ Clear Cancel ►

1. Press the ▲▼ buttons to select Key Lock and then press the OK button to select On / Off.
2. Press the MENU button to return to the previous menu, press again to return to the main menu.
3. Press the EXIT button to exit the menu.

LOGIK Lock System Off Set Password Block Channel Parental Guidance Off Key Lock Off

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the TV GUIDE button to switch on EPG.
2. Press the TV GUIDE button or the EXIT button again to switch off EPG and return to normal TV viewing.

PROGRAMME GUDIE 1 BBC ONE 25 Dec 2008 10:06 10:00-10:15 Pinky and Parky current date and time current channel name current programme title 25 Dec 10:00 11:00 DTV 1 BBC ONE 2 BBC TWO 7 BBC THREE 70 CBBC Channel 80 BBC NEWS 105 BBC Red Button 25 Dec Pinky and perky Frankenstein No information My Fair Lady This is BBC THREE Bear Behaving Badly Shaun the ... No information BBC News Our World: Stormchaser BBC Red Button channel no. and channel name programme information programme information EXIT INFO Record Schedule Date Remed Ok

Select a Programme

Press the ▲▼ buttons to select the desired channel and then press the ◀▶ buttons to select the desired programme. Press the OK button to confirm.

Button Functions in a 7 Days Guide

Remote Control Button Function
RED (Record)	Timer ProgrammingSee page 52 for details on Timer Programming.Press the RED button in the Schedule List to delete the selected preset reminder.
GREEN (Schedule)	Press the GREEN button to view the preset reminders or scheduled recordings in the Schedule list. Press the GREEN button again to return to the EPG.	Schedule List 15:30 10th Mar Delete Back
			Time Date		Programme Title	Channel Name
YELLOW (Date)	Press the YELLOW button and then press the◀buttons to view the schedule of the previous / next day. Press the YELLOW button again to return to the EPG.
BLUE (Remind)	Press the BLUE button while on the selected programme, the Reminder setting menu will be displayed.Press the▲◀buttons to adjust the settings and then press the OK button to confirm the settings. After confirmation, the Schedule list will then be displayed with your preset reminders shown. Press the GREEN button to return to the EPG. The TV will automatically tune to the selected programme when it starts.				Reminder setting←=802 SZTVM03+▶08 Minute05 HourApr Month28 Date★Once ModeOK BACK
INFO Press to display detailed information of the selected programme (if available).
▲or▼	Press to select a channel.
◀or▶	Press to select a programme.
OK Press to confirm and view the selected channel.
TV GUIDE / EXIT Press to switch off the EPG.

Teletext (ATV Mode)

Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

To Turn on Teletext Function

Make sure the TV channel you are watching transmits teletext. "No Teletext" sign will show on the screen if teletext is not available.

In ATV mode, press the TEXT button to enter Teletext mode.

Press the TEXT button once to exit and the TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text, press the ▲ button.

To move to the previous page, press the ▼ button.

To return to the index page, enter the "100" by using the 0-9 buttons.

Mix

To view a page of text while watching a TV programme, press the TEXT button twice. The text will be superimposed over the TV programme.

Double height text

If you have difficulty reading the text on the TV you can double the height of the text.

Press the TEXT ZOOM button. The top half of the page will be displayed in double height text.

Press the TEXT ZOOM button again. The bottom half of the page will be displayed in double height text.

Press the TEXT ZOOM button again to return to the full page.

Page STOP

If the page of text you have selected contains subpages, these subpages will automatically be displayed in order with a delay to allow you to have enough time to read the page.

To stop the movie to the next sub page, press the TEXT HOLD button.

To continue moving through the sub pages, press the TEXT HOLD button again.

Fasttext

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 33 for details).

Teletext within Digital Service

1. In DTV mode press the TEXT button to display teletext page.
2. Press the TEXT button to display the teletext page.
3. Press the 0-9 buttons to select a page number.
4. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.
5. To change digital teletext service, select a different service by pressing the 0-9 buttons or the ▲▼ buttons.

BBC Thursday 25 Dec 100 News Index 102 Sport Home 500 Weather 400 Entertainment 500 Lottery Results 555 Christmas Concert GBeebies Karaoke INDEX 199 Merry Christmas from BBC Paid Button! To exit press TEXT

Alternative

You may press the RED button to display the teletext information when you see a red "press ●" logo in the top right corner of the screen (e.g. BBC services). This will now display the teletext menu and available information categories.

To access the pages, use navigation buttons to highlight item required and press the OK button to select.

Follow on screen prompts for other functions.

1. Press the TEXT button to exit.

Connecting a USB Storage Device

1. Switch off the TV before connecting any USB storage device.
2. Connect your USB storage device to the USB port of your TV.
3. Plug the connected devices into the mains socket before switching on the TV.
4. Press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn on your TV and your USB storage device.
5. Press the SOURCE button on the front right side panel of the TV or on the remote control to display the Source List. Use the ▲▼ buttons to select USB and then press the OK button to confirm.

Rear Right Side View of TV

• Some versions of portable hard disk may require more power than the TV USB socket can provide. To ensure correct operation please use the power adapter for that device.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
• The maximum supported storage space of the hard disk is 250 GB.
  • The file system only supports FAT32 format.
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.

Viewing Photos

1. Press the SOURCE button on the front right side panel of the TV or on the remote control then press the ▲▼ buttons to select the USB mode and then press the OK button.
2. Press the ◀▶ buttons to select PHOTO and then press the OK button.
3. Press the ◀buttons to select your storage device and then press the OK button.

USB2.0 PHOTO MUSIC MOVIE TEXT

PHOTO Return C

1. Press the ▲◀▶buttons to navigate in the picture folder and then press the OK button.

If you want to select the specified photos, press the ▲◀buttons to select the picture file and then press the OK button. A tick box will be displayed. If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀button to confirm.

File format supported: JPG.

1. Press the ▶|| button to view.

2. Press the OK button or the INFO button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Music / Playlist / Info / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View.

If this folder also contains music files, you can select a music track to play at the same time you view your photos.

1. Press the EXIT button to return to the previous menu.

EST Exit skun PVR muk CVT_306 MYRECORD TXT VEGO JGTPVR DSU 1030x1200 1030x1080 Delete EXIT

Exterior view of a historic domed building with arched colonnades and columns, surrounded by trees and a play button interface (no readable text on main structure)

Listening to Music

1. Press the SOURCE button on the front right side panel of the TV or on the remote control then press the ▲▼ buttons to select the USB mode and then press the OK button.

2. Press the ◀▶ buttons to select MUSIC and then press the OK button.

3. Press the ◀buttons to select your storage device and then press the OK button.

4. Press the ▲◀buttons to navigate in the music folder and then press the OK button.

If you want to select the specified music, press the ▲◀▶buttons to select the music file and then press the OK button. A tick box will be displayed. If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀button to confirm.

- Some audio file formats will not be supported. - Supported file formats: mp3.

USB2.0 PHOTO MUSIC MOVIE TEXT

MUSIC EXIT C

MUSIC 1.7.1 Effect Up Filter Audio3 Audio-350/64MPK Album Adder: IP Video Read Now Edit Audio Audio A pin Chang AudioUp 400 Sound 2000 Noise 6222.0000 退出

1. Press the ▶II button to start to play.

2. Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size). Then press the ▶ll button to play.

3. Press the ▲▼ buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / Playlist / Goto Time.
4. Press the EXIT button to return to the previous menu.

Album: Title Bit Rate: 12.8K Artist: Sampling: 44K Year: Size: 4640 KB/tes Auto-Invoice/RF 0000.27 / 0000.56 Name: F6 F7 Pass: Next Stop RepeatALL Payout

Viewing Movies

1. Press the SOURCE button on the front right side panel of the TV or on the remote control then press the ▲▼ buttons to select the USB mode and then press the OK button.

2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

3. Press the ◀buttons to select your storage device and then press the OK button.

4. Press the ◀buttons to select your storage device and then press the OK button.

5. Press the ▲◀▶buttons to navigate in the movie folder and then press the OK button.

If you want to select the specified movie, press the ▲◀buttons to select the movie file and then press the OK button. A tick box will be displayed. If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀button to confirm.

• Some audio file formats will not be supported.
• Supported file formats: MPEG1/2.

1. Press the ▶II button to view.
2. Press the OK button or the INFO button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Set A / Playlist / Info / Aspect Ratio.
3. Press the EXIT button to return to the previous menu.

USB2.0 PHOTO MUSIC MOVE TEXT

MOVIE EXIT C

EXIT 1 / 2 Exit skum FVR muk CYT_306 RTRECORD TXT VIDD JSTPVR DRU 1028x299 1028x500 Delete EXIT

FordSportka The Ka's evil twin...

My Text

1. Press the SOURCE button on the front right side panel of the TV or on the remote control then press the ▲▼ buttons to select the USB mode and then press the OK button.

2. Press the ◀▶ buttons to select TEXT and then press the OK button.

3. Press the ◀buttons to select your storage device and then press the OK button.

4. Press the ▲◀▶buttons to navigate in the text folder and then press the OK button.

If you want to select the specified text file, press the ▲◀▶buttons to select the text file and then press the OK button. A tick box will be displayed. If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀button to confirm.

1. Press the ▶|| button to view.

2. Press the OK button or the INFO button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info.

If this folder also contains music files, you can select a music track to play at the same time you view your photos.

1. Press the EXIT button to return to the previous menu.

USB2.0 PHOTO MUSIC MOVE TEXT

TEXT EXIT C

START 1 / 1 AVR Audio Video Audiovisual 1900 Microsoft Shinlin3.1 OUT 800000000 OK 12 Options Delete EXIT

ID: 001758 August 3, 2016 BP-4-02-07/08/TCPI: 001758.AID CATRIN: 19 USC 1231.04M Competition File 3: Newer, File New Page Next Page Pres Next Drop Note PayOut XML

Time Shift Function

This function allows the TV to virtually record the live viewing broadcast programme.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
• Stop the time-shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device. The minimum transfer speed is 5MB/s.

During normal TV viewing, you may press the ▶II button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). "II" will show on the screen.

When you have returned, press the ▶ button to play the missed broadcast programme. " ▶ will show on the screen.

The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed broadcast programme. It will soon turn to normal.

Alternative

Press the OK button to display the PVR Time Shift progress bar and then press the ◀▶ buttons to select "▶Play" on the bar. Press the OK button to confirm.

1 S 2 [00:00:33/00:04:22] Play FB FF Prev Next Paste Stop 06:18

The 'PVR Time Shift Progress Bar'

1 Indicates the status of the currently displayed video (▶/IV ◀◀ ▶▶
2 Indicates the time lagging behind the live broadcast (DVR reviewing)
3 Indicates the available recording time on your USB storage device
4 Indicates the current time

Using the Remote Control

You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the screen for 15 seconds. Press the OK button to display the PVR Time Shift progress bar again.

◀ or ▶When playing,Press the◀button repeatedly to speed up ◀/ x 4 / x 8 / x 16.Press the▶button repeatedly to speed up ▶2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press th▶llbutton to return to normal playback.
◀ or ▶Press the button to jump about 10% forward.Press th◀button to jump about 10% back.
▶II	During playback, press the ▶llbutton to display a still screen and then press the ▶llbutton again to resume playback.During fast forward / fast backward state, press th▶llbutton to return to normal playback.
OK	During playback, press the OK button to display a still screen and then press the ▶llbutton again to resume playback.
■	If you want to exit the PVR Time Shift progress bar and return to the current live broadcast, press the ■button and then press the ◀button to confirm.

Recording DTV Programme onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save it for future viewing.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the ● button to record the programme that you are currently watching.

The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the ● button.

1. Press the ■ button to stop recording.

Recording will stop automatically when the disk is full.

Black-and-white photo of a historic stone church with a conical spire, no visible text or symbols on the building itself.

If you want to turn off your TV during recording, press the button. A dialogue will display.

The recording is still inprogress. Do you want to switch off the TV?

Yes, Stop recording and switch off the TV

Yes, turn off the screen and sound but keep recording the programme

No

Press the ◀▶ buttons to select your desired option and then press the OK button to confirm. If you select the middle option in the box, the screen will turn off but the recording will still in progress, the LED indicator will alternatively flash red and blue.

Timer Programming

This function is used to perform scheduled recording.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the TV GUIDE button on the remote control. The EPG menu will appear.

PROGRAMME GUDIE 25 Dec 2016 10:00 10:00-10:15 BBO ONE Pinky and Parity Pinky and Parity DTY 25 Dec 10:00 11:00 1 BBC ONE Parity and Parity Frankenstein No information 2 BBC TWO My Fair Lady 7 BBC THREE This is BBC THREE WORBC Channel Bear Behaving Brady Shaun the No information 80 BBC NEWS BBC News Our World: Stormhouser 105 BBC Red Button BBC Red Button

1. Press the ● button or the RED button on the remote control while on the selected programme, the RECORDED menu will be displayed. Press the ▲◀▶▼ buttons to select the settings in the RECORDED menu for the Channel, Start time, End time and Mode.

Channel Press the buttons◀ select the channel that you wanted to record.
Start time(for Mode Once, Every Day, Weekly)	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀buttons to adjust the start time.
End time(for Mode Once, Every Day, Weekly)	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀buttons to adjust the end time.
Mode Press the	◀buttons to select the Auto / Once / Every Day / Weekly.

1. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display.

RECORDED 1 BBC ONE Start Time 00 Minute 10 Hour Dec Month 25 Date End Time 15 Minute 10 Hour Dec Month 25 Date 25 Date Mode Once OK Back

1. The Schedule List will then be displayed with your preset reminders shown.

2. Press the GREEN button to return to the EPG.

3. Press the EXIT button to exit EPG.

• When the preset time is reached, the TV will start recording automatically.
• If a programme recording starts when the TV is in standby mode, the LED indicator will alternatively flash red and blue.

Timer Save Success 800 TVE 1 11 Mar 2008 10:00

Schedule List 15:30 16th Mar Delacn Bank
	Time	Date	Programme Title	Channel Name

Play Recorded Programme

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the SOURCE button on the front right side panel of the TV or on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button.

2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

3. Press the ◀buttons to select your storage device and then press the OK button.

4. Press the ▲◀▶▼ buttons to select the "MY PVR" folder and then press the OK button.

5. Press the ▲◀buttons to select your recorded programme and then press the OK button. A tick box will be displayed. If you want to delete the file, press the RED button to enter the Sub Menu and then press the ◀button to confirm. Press the ▶Button to view.

6. Press the OK button or the INFO button to display the function bar.

7. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat (Repeat All / Repeat Off / Repeat 1) / Set A / Playlist / Info / Aspect Ratio.

8. Press the EXIT button to return to the previous menu.

USB2.0 PHOTO MUSIC MOVIE TEXT

MOVIE EXIT C

C:\MOVE 1 / 2 Exit Edit Edit FVB FVB OK CYT_306 RIMECOND TXT VEKO JSTPVR DOU 100x1000 100x1000 Delete EXIT

FordSportka The Ka's evil twin

Using the Built-in DVD Player

1. Insert a disc with the label side facing towards the rear of the TV. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW) Allow 10 seconds for the player to load the disc. If you insert the disc wrongly, an error message will be displayed.
2. After the disc is inserted, the TV will change the input source to DVD automatically and Smart NAVI will show the content of the disc automatically.
3. If the DVD player does not automatically play the disc, press the SOURCE button on the front right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲▼ buttons to select DVD and then press the OK button to confirm. Press the ▶|| button on the unit or the ▶|| button on the remote control to start playing.

Label side at the back

Unable to play disc!

Check label faces rear of TV Check disc for marks or damage Check disc is compatible type.

1. Press the ▲ button if you want to remove the disc.

• Only insert 12cm discs. Do not insert or play 8cm discs; they will get stuck.
- Ensure disc is fully ejected before removing it, or else you risk damaging the DVD player.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc)		AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Supported Formats

JPEG

• The file extensions has to be .jpg and not .jpeg.
• Pictures encoding must comply with JPEG/ISO format.
• This DVD player can only display DCF-standard still pictures or JPEG pictures such as TIFF.

Some recorded files may not be played due to the type and format of the disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described on the rear panel of the TV.

Disc Type DVD-VIDEO
Region code

Playing the DVD

Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the ▶ button to toggle between Play and Pause mode. This product also supports Menu / Title / Sequential / Programme Playback.

Menu Playback (for DVD)

For DVD discs, the screen will display the DVD Disc Menu (Root Menu).

Press the ▶|| button or the OK button to start from the highlighted content.

Press the DVD MENU button to return to the Root Menu when playing the disc.

For some DVD discs you may need to press the DVD MENU button or the DVD TITLE button to display the Disc Menu.

Stopping Playback

Press the button once to stop. Press the button to resume from where you stopped.

Press the ■ button twice to stop. Press the ▶ button to start from the beginning.

In order to protect the disc, press the ■ button and then press the ▲ button to eject the disc. When the disc is ejected, hold the disc edge slightly and remove it from the disc slot.

When not using the DVD function (in stand-by-mode or using others modes for a long period of time), please take out the disc to protect the DVD loader and the disc.

Previous / Next (for DVD / CD / Multimedia discs)

Press the Button to play the last Title / Chapter / Track.

Press the ▶ button to play the next Title / Chapter / Track.

If the current track is the first one, pressing the ◀ button will restart the disc from the beginning. If the current track is the last one, pressing the ▶ button will stop the playback.

For DVD discs, the above functions may very due to different DVD disc's structure.

Forward / Backward (for DVD / CD / Multimedia discs)

There are 4 speeds for forward. Press the ▶ button to toggle between the different forward options in sequence. (FORWARD x 2 / FORWARD x 4 / FORWARD x 8 / FORWARD x 16 / FORWARD x 32 / Play).

Press the ▶ button to return to normal speed playback.

For DVD discs, when selecting backward to first title / chapter, the disc will start from the beginning.

There will be no sound during forward or backward.

Pause (for DVD / CD / Multimedia discs)

• For CD / JPEG discs, press the ▶|| button to pause; press the ▶|| button again to resume playback.
• For DVD discs, press the ▶II button to pause; press the ▶Button again to resume playback.

Repeat (for DVD / CD / Multimedia discs)

Press the REPEAT button once to display the current repeat mode.

• For CD discs, while playing in sequence, you may use the repeat playback. There are 2 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT TRACK / REPEAT ALL / REPEAT OFF).
• For DVD discs, you may setup the repeat playback mode. There are 3 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT ALL / REPEAT TITLE / REPEAT CHAPTER).

For example, if there are two movies on the disc.

REPEAT ALL: will repeat two movies

REPEAT TITLE: will repeat only one selected movie

REPEAT CHAPTER: repeat only one selected chapter of movie

- For MP3 / JPEG discs, while playing the disc, you may use the repeat playback. There are 4 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT ONE / REPEAT FOLDER / FOLDER / SINGLE).

Info (for DVD / CD / Multimedia discs)

Press the DISPLAY button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information.

For DVD discs, press the DISPLAY button once to display the first page as shown below:

Title Elapsed

TT 02/11 CH 05/10

00:02:56

Press the DISPLAY button twice to display the second page as shown below:

Title Remain

TT 02/11 CH 05/10

00:01:42

Press the DISPLAY button three times to display the three page as shown below:

Chapter Elapsed

TT 02/11 CH 05/10

00:03:05

Press the DISPLAY button four times to display the four page as shown below:

Chapter Remain

TT 02/11 CH 05/10

00:01:33

Angle (for DVD)

Allows you to switch the viewing angle of video.

Press the ANGLE button repeatedly to select the different angle you want (Only for the discs has this character).

Zoom (for DVD)

Allows you to select the video size of programme stream.

Press the DVD ZOOM button to select the size you want.

Goto (for DVD / CD / Multimedia discs)

This function allows you to play your favourite Title / Chapter / Time. Press the GOTO button to activate the on screen scroll-down menu for selecting. Input your Title / Chapter / Time by pressing the 0-9 buttons or input the playback time. After editing, press the OK button to start. If the input is invalid, it will not function.

For some discs, only Time can be selected in the GOTO function.

Audio (for DVD / CD)

Press the AUDIO button to toggle between different audio modes in sequence.

For CD discs: Stereo / MonoL / MonoR.

Some discs may contain multiple languages which can be selected by pressing the AUDIO button.

Repeat A-B (for DVD / CD)

When playing DVD, CD disc, press the A-B button to repeat certain content. Press the A-B button on the start point (A) and the end point (B) to select the repeat part. Press the A-B button a third time to cancel the A-B button function and return to normal playback.

Playing Multimedia Discs

After loading the multimedia disc, the disc contents will automatically be displayed and sorted by different file formats into Music / Picture / Video folders.

1. Press the ▲◀▶buttons to navigate through the folders and files.
2. Press the 0-9 buttons to select the contents directly (for example, to select track 23, press the OK button twice followed by 3).
3. When playing or pausing with picture playback, you may use the ▲◀▶buttons to flip / rotate the picture.

Using the DVD General Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the General Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

-- General Setup Page -- TV Display 16 : 9 4 : 3 / PanScan OSD Lang ENG 4 : 3 / LetterBox Screen Saver On Wide Last Memory Off

TV Type 4:3 Pan Scan

Widescreen picture shown in the full screen with some part cut.

Black-and-white photo of a person in diving gear mid-air, with water droplets visible (no text or symbols)

4:3 Letter box

Widescreen picture shown in the full screen with black bars on the top and bottom of the screen.

Black-and-white photo of a person mid-air during a swimmer (no visible text or symbols)

16:9 Wide

Widescreen picture shown in the full screen.

Person swimming in water wearing goggles (no visible text or symbols)

-- General Setup Page -- TV Display 16 : 9 OSD Lang ENG English Screen Saver On French Last Memory Off German Spanish Italian Protuguese

OSD Set the OSD language to your language of choice

The default language is English.

-- General Setup Page -- TV Display 16:9 OSD Lang ENG Screen Saver On On Last Memory Off Off

Screen Saver When the player stops or the picture becomes motionless for a couple of minutes, there will be a screen saver to prevent damage to the display screen.

ON: To activate screen saver.

OFF: To disable screen saver.

-- General Setup Page -- TV Display 16:9 OSD Lang ENG Screen Saver On Last Memory Off On Off

Last Memory

ON: Shutdown the TV before the settings for memory, re-boot the machine setting.

OFF: Every time the TV automatically switched back to the default settings.

Using the DVD Audio Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the Audio Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

Audio Setup Page Speaker Setup Dual Mono Dynamic

Speaker Setup / Downmix

LT/RT Mixed stereo LT/RT output.

Stereo Mixed stereo surround output.

Audio Setup Page Downmix STR LT/RT Stereo

Audio Setup Page -- Speaker Setup Dual Mono Dynamic Stereo L-Mono R-Mono Mix-Mono

Dual Mono This is used to select the Stereo, L-Mono, R-Mono and Mix-Mono.

Audio Setup Page Speaker Setup Dual Mono Dynamic FULL 3/4 1/2 1/4 OFF

Dynamic This is used to set the compression ratio in order to control the sound (volume) contrast.

Using the DVD Preference Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the Preference Setup menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

Preference Page TV Type Multi PAL Audio ENG Multi Subtitle ENG NTSC Disc Menu ENG Parental Password Default

TV Type In order for the disc to play, the colour system of the DVD player, disc and TV should match.

PAL

This is the format used in UK.

Multi

This format can be used if your TV / DVD is capable of both PAL and NTSC formats and this is the default setting.

NTSC

This format is used by some other countries, e.g. USA.

PAL format is generally used for TV's in the UK. If NTSC is selected with a non-compatible television, you may experience interference or picture scrolling.

-- Preference Page -- TV Type Audio ENG English Subtitle ENG French Disc Menu ENG German Parental Spanish Password Italian Default Protuguese

Audio Set the Audio language to your language of choice.

Not all DVD discs support multiple audio languages.

Preference Page -- TV Type Multi Audio ENG English Subtitle ENG French Disc Menu ENG German Parental Spanish Password Italian Default Protuguese Off

Subtitle Select the Subtitle language.

Not all DVD discs support multiple audio languages.

Preference Page TV Type Multi Audio ENG English Subtitle ENG French Disc Menu ENG German Parental Spanish Password Italian Default Protuguese

Disc Menu Select the Disc Menu language.

The default language is English.

Preference Page TV Type Multi 1 KID SAF Audio ENG 2 G Subtitle ENG 3 PG Disc Menu ENG 4 PG13 Parental 5 PGR Password 6 R Default 7 NC17 8 ADULT

Parental Allows the user to set a maximum rating level for a movie that can be played (e.g. PG rating). Movies rated higher than the level set will not be played. The parental lock can only be changed after inputting the correct password.

This function is available only when the discs have ratings encoded on them.

Option Description

--Preference Page -- TV Type Multi Audio ENG Subtitle ENG Disc Menu ENG Parental Password Change Default

Password Password Change

To change the password, you need to:

1. Input old password. (for initial use, please enter factory default password "136900")
2. Input a new 6 digit password and then press the OK button to confirm.

-- Preference Page -- TV Type Multi Audio ENG Subtitle ENG Disc Menu ENG Parental Password Default Reset

Default Default

To restore all setup parameters to the factory settings EXCEPT the password.

This function is available in stop state or when the tray is opened.

Maintenance

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control to turn off the TV. Disconnect the mains adapter from the mains socket before cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.
2. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV.
3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Illustration of a hand holding a computer monitor with a blank screen (no text or symbols)

Handling Discs

• Do not touch the playback side of the disc.
  • Do not attach paper or tape to the disc.

Playback side

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

Diagram showing two hand-drawn scenarios: checkmark (✓) and cross (×), indicating a correct or incorrect operation.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
  • Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

The TV does not operate properly.
The TV does not respond when pressing any buttons	The TV may freeze up during use. Disconnect the mains adapter from the mains socket for a few minutes. Reconnect the mains adapter and try to operate it again as usual.
TV cannot be switched on	Check that the TV is connected to the mains supply and the POWER ON/OFF switch which is located at the front right side under the frame is switched on.Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.Ensure that the batteries are installed with the correct polarity (+ to +, - to -).Install new batteries.
Power is suddenly turned off	Check the power of the TV. The mains supply maybe interrupted.Check if the sleep timer is set.Check whether the Auto Standby is activated.

The video function does not work.
No Picture & No Sound	Check whether the TV is switched on.Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	Adjust the settings in thePICTUREmenu.Try another channel. The problem may be caused by the broadcaster.Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable channel may be experiencing problems, tune to another station.Station signal is weak, reposition the aerial for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	Check if the input source isHDMI.
Picture appears in wrong ratio	Adjust theAspect Ratiosettings in theOPTIONmenu or press theASPECTbutton on the remote control.

The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the MUTE button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from Inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI.
Audio noise	Keep the RF coaxial cable away from the other connected cables.

Password
Lost password	Select the Set Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.
There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or shows a single colour	Check the signal cable.Reinstall the PC video card.

The DVD function does not work.
DVD will not read the disc	Check if the disc is correctly inserted.Check that the disc is clean.Check if there is any obvious damage to the disc.Try to play the disc on another DVD to check whether it is has content.
DVD does not have the signal	Check if the TV is in DVD mode.
Lost DVD password	Select Password in the Preference Page of DVD menu, then enter the following master DVD password “136900”. The master password clears your previous password and allows you to enter new password.

FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes if you have a weak signal. Usually it just means you'll need to rescan your digital box or TV. Don't worry, it easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get 'blocking' on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set – top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

YPbPr Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480I: 720 x 480	60	Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Full / Subtitle
480P: 720 x 480
576I: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080I: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution Vertical Frequency (Hz) Aspect Ratio
640 x 480	60	4:3 / 16:9 / Full
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1360 x 768 60
1920 x 1080 60

HDMI Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480l: 1440 x 480 60		Auto / Smart Zoom / Zoom / 16:9 / 4:3 / Full / Subtitle
480P: 720 x 480 60
576l: 1440 x 576 50
576P: 720 x 576 50
720P: 1280 x 720	50
	60
1080l: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

Model	L22FEDN12 / L22FEDP12 / L22FEDR12 / L22FEDW12 / L22FEDV12 / L22FEDY12 / L22FEDO12
Panel System 22 inch LED Panel
Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical)
Television System PAL I / BG / DK SECAM L / BG / DK
Brightness 250 cd/m	2
Contrast Ratio 1000 : 1
Power Source DC12V 3.5A
Energy Efficiency Class B
Screen Size (measured diagonally) 21.5" (55cm)
Power Consumption (In HOME / STANDBY mode)	37W/ <0.5W
Average Annual Energy Consumption 54.00 kWh / annum
Standby Power Consumption <0.5W
Operating Temperature 0°C - 50°C
Operating Humidity 10% - 80%
Mercury Content (mg) X
Presence of Lead	√
Reference Period	2010/1062 - 2011
Speaker Power	2 x 3W, 4OHM
Dimension( W x D x H) with base	530 x 170 x 386 mm
Weight (Net)	4.4 kg
Inputs / Output
SCART	1
HDMI	1
PC IN	1
PC AUDIO	1
YPbPr	1
Common Interface 1
AV	1
USB	1
ADUIO IN (RCA)	1 (L + R)
AERIAL IN	1
Coaxial	1

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains adapter and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
  • Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

20 cm 10 cm 40 cm 10 cm

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the mains adapter cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LCD screen

- The LCD screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen. - Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.

2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

4. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

6. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

- To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Standby

- The ⬤ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Disconnect the mains adapter from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

DVD

• Class 1 Laser Product

This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
• Always remove the disc when the unit is not in use.
- Failure to do so will risk severely damaging the disc and the unit.
- Do not stack devices, heat from other devices may affect the performance of the unit.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.
• The wall socket plug is used as a disconnect device, the disconnect device should be readily accessible.
• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
TV Base	S11191060G (L22FEDW12) S11191052G (L22FEDN12)S11191061G (L22FEDP12) S11191054G (L22FEDR12)S11191065G (L22FEDV12) S11191066G (L22FEDY12)S11191067G (L22FEDO12)
Main Adapter S10051231G
Remote Control	S10090071G (L22FEDW12) S10090072G (L22FEDN12)S10090073G (L22FEDP12) S10090074G (L22FEDR12)S10090075G (L22FEDV12, L22FEDY12, L22FEDO12)
Battery S16150012G
Component Adapter Cable S09090005G
Screw A S15022036G

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

The FREEVIEW word and logo are trademarks of DTV services Ltd and are used under licence. ©DTV Services Ltd 2002

The "HD Ready" logo is a trademark of DIGITALEUROPE.

SRS TruSurround HD ^™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialogue.

TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc.

All trademarks are the property of their respective owners and all rights are acknowledged.

Gradient background transitioning from white to dark gray, no text or symbols present

Gradient background transitioning from white to dark gray, no text or symbols present
