Preparation....5

Unpacking the TV 5

Installing / Removing the Base Stand 6

Front View and Controls....7

Rear View and Sockets 8

Installing Batteries in the Remote Control 9

Remote Control Operation Range 9

Remote Control 10

Connections....13

Making Video and Audio Connections....13

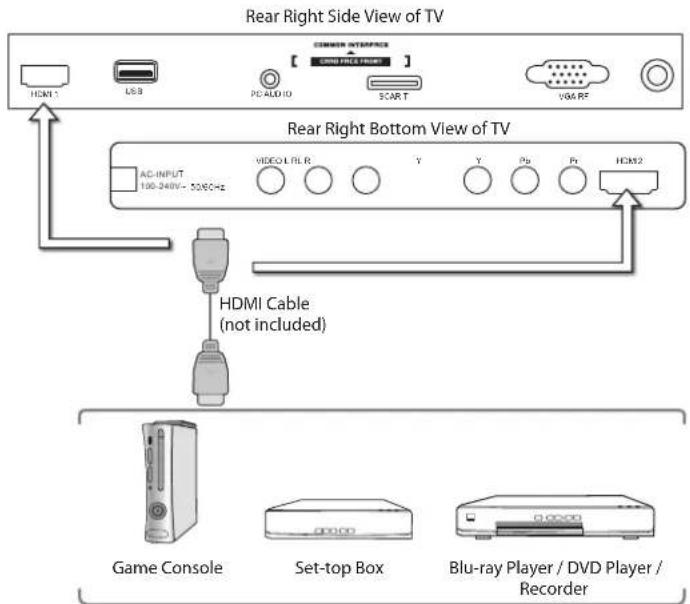

Connecting an AV Device with an HDMI Cable 13

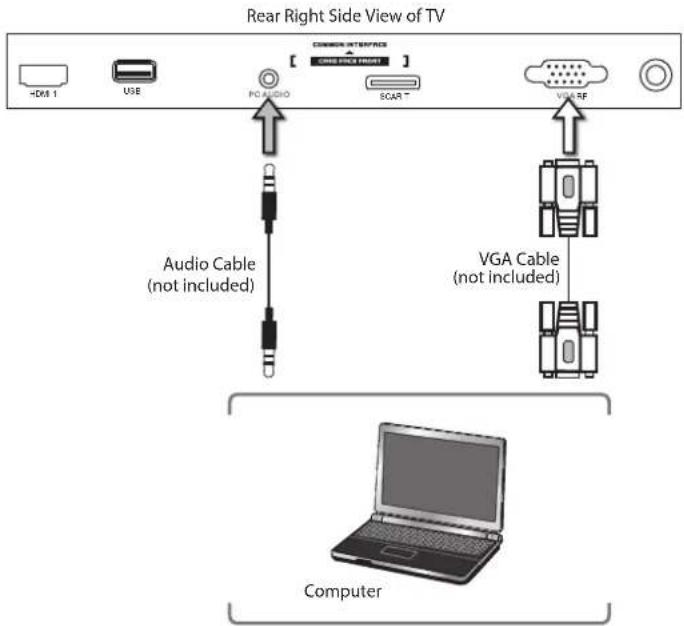

Connecting a Computer with a VGA Cable....14

Connecting an AV Device with a Component (YPbPr) Cable....14

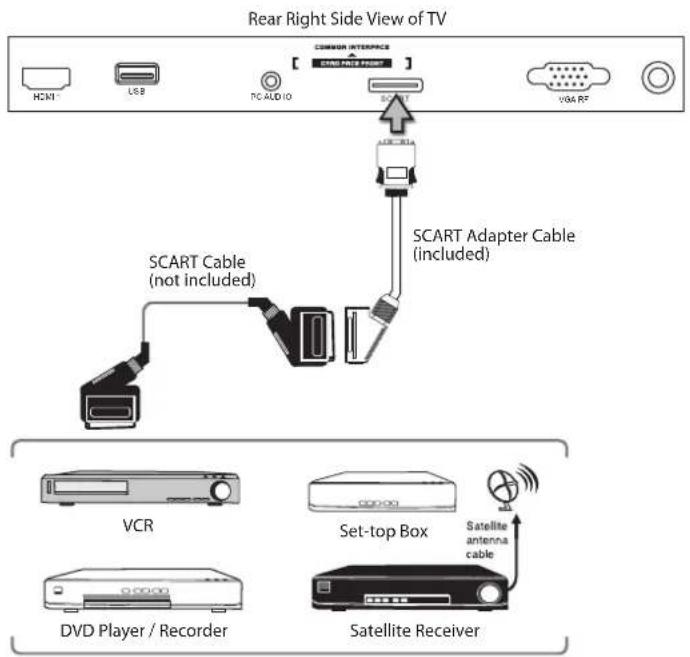

Connecting an AV Device with a SCART Cable....15

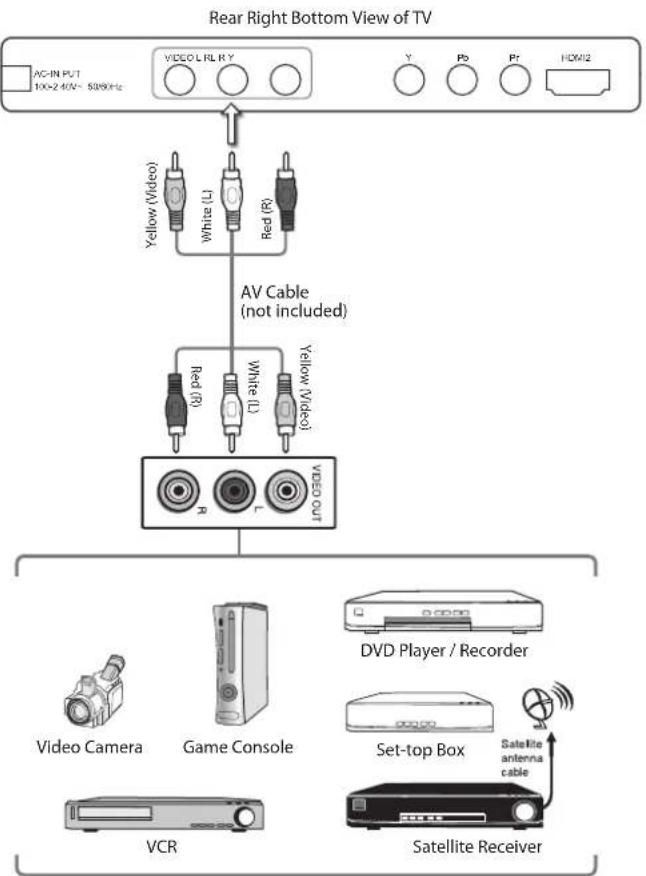

Connecting an AV Device with Composite Cable....15

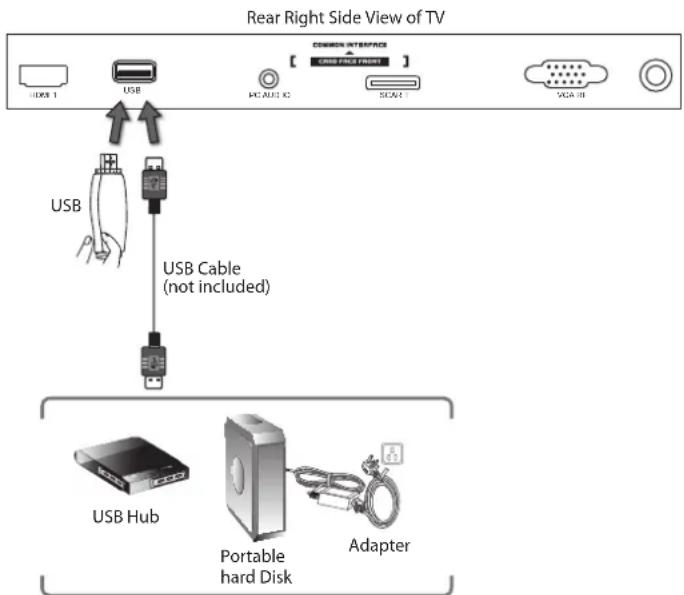

Connecting a USB Storage Device....16

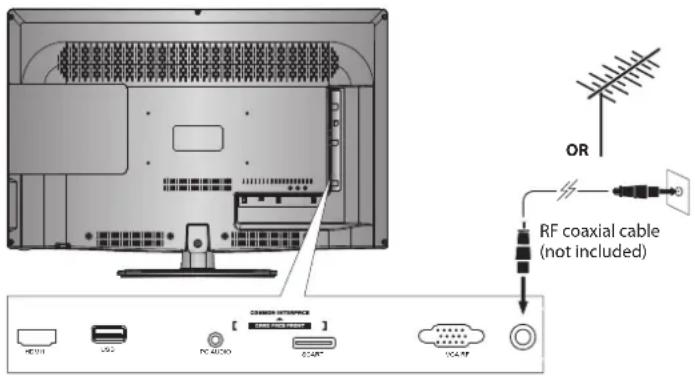

Connecting the Aerial 16

Initial Setup 17

Turning the TV on for the First Time....17

- Selecting the Input Source....18

- Channel Selection ....18

- Display Channel Information ....18

– Volume Adjustment....18

Using the Features 19

Customising the Channel Setting (TV, DTV or Radio Mode)....19

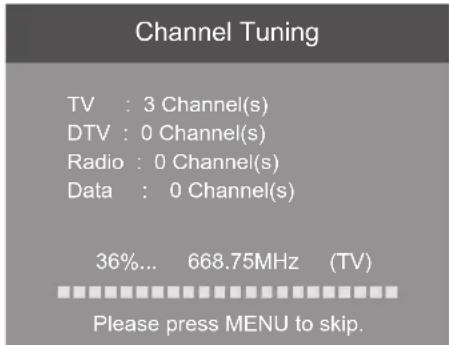

- Auto Tuning 19

- DTV Manual Tuning....20

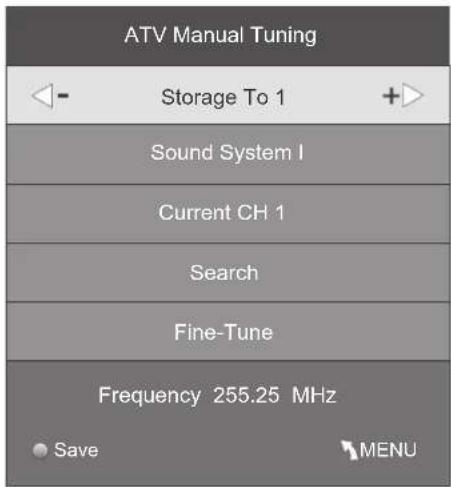

- ATV Manual Tuning 20

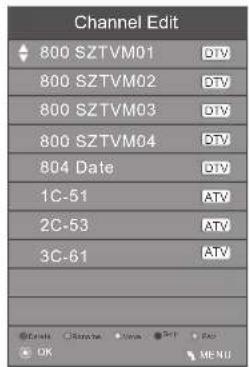

– Channel Edit (ATV / DTV Mode)....21

– Signal Information (DTV Mode)....22

- CI (Common Interface) (DTV Mode)....23

- Software Update (Over Air Download)....24

- Software Update (USB) 24

Customising the Picture Setting 25

Customising the Sound Setting 27

- Stereo / Dual Sound Reception (ATV Mode) 28

Customising the Time Settings....28

Customising the Option Setting 29

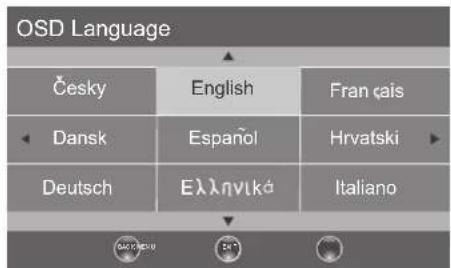

- OSD Language 29

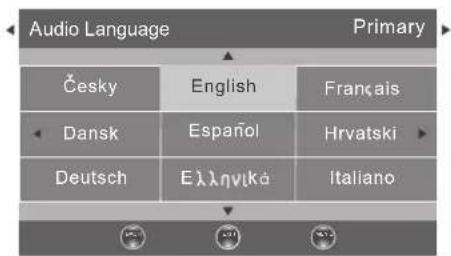

– Audio Language (DTV Mode)....30

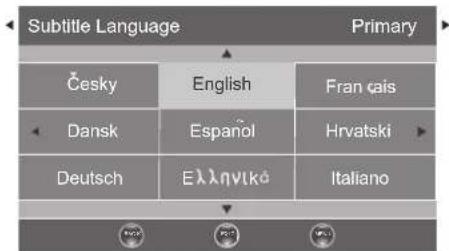

- Subtitle Language (DTV Mode) 31

– Hearing Impaired....31

– Country....31

- PVR File System (DTV Mode) 32

- CEC (Consumer Electronics Control) 33

-Backlight 33

- Restore Factory Default....34

Customising the LOCK Setting....34

- Lock System 34

- Set Password 35

- Block Channel 36

- Parental Guidance 37

Teletext (ATV Mode)....39

- To Turn on Teletext Function....39

Digital Teletext (DTV Mode)....40

- Teletext within Digital Service....40

EPG (Electronic Programme Guide) (DTV Mode) 40

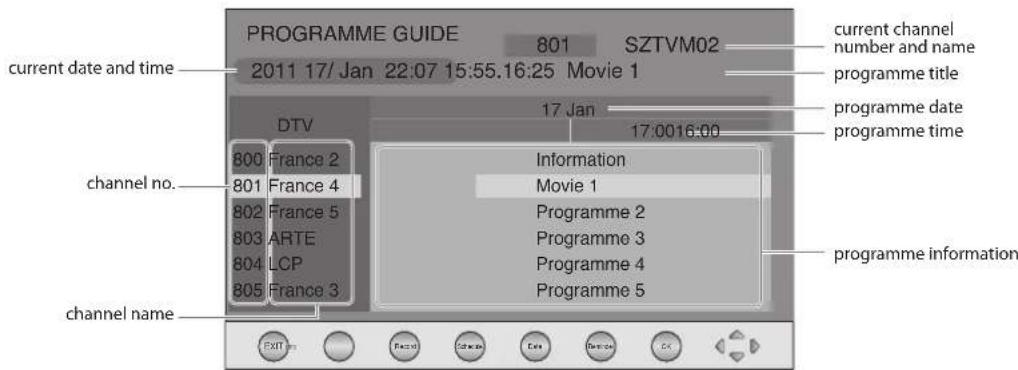

- Switch On / Off EPG 40

- Select a Programme ....41

Using the Features via USB Port 42

My Photo 42

My Music 42

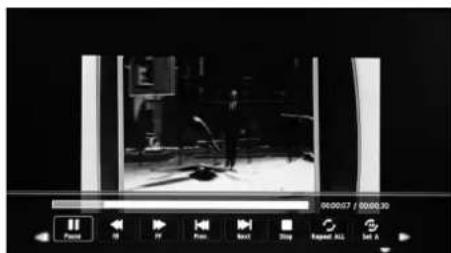

My Movie....43

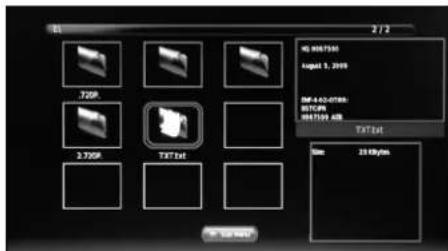

My Text....44

PVR (Personal Video Recorder)......45

Time Shift Function 45

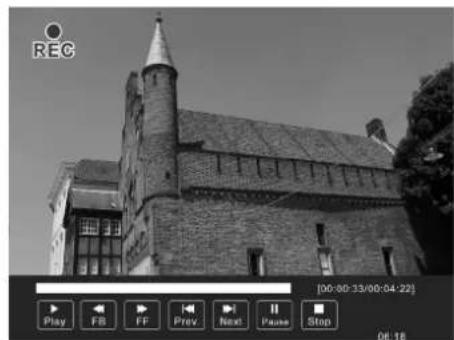

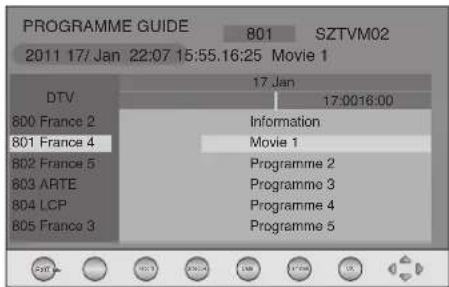

Recording DTV Programme onto a USB Storage Device 46

Timer Programming 47

Play Recorded Programme 48

Maintenance....49

Display Modes ....51

YPbPr Mode 51

PC Mode 51

HDMI Mode 51

Specifications 52

Safety Warnings ....53

Thank you for purchasing your new Logik 32" HD Ready LED Backlit Digital TV.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included:

Front view of a flat-screen monitor with black frame and gray screen (no text or symbols visible)

TV

Exterior view of a remote control with two rectangular clip designs beside it (no text or symbols visible)

Remote Control / AAA Batteries x 2 (P.N.: 504C3236102 & 32200007158)

SCART Adapter Cable (P.N.: 30430110019)

TV Stand Support (P.N.: 115C2631003)

Base Stand (P.N.: 102C2631111)

Screw A x 3 (P.N.: 209060410B1)

Screw B x 1 (P.N.: 209100422B1)

LOGIK 32" HD Peaky LED Screen/ Digital TV Cable Hour Microphone (100.00V) AMD HDMI SOP

Instruction Manual (P.N.: 4031C323601)

LOGIK 3D - 4D Panels - Left Panel 23 - Designer 10 Thank you 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Quick Start Guide (P.N.: 4033C323601)

Keep this important information about how to re-tune your TV during the digital TV switchover See this detail and your content of the TV with a digital TV switch over the next year.

Digital TV Switchcover Addendum (P.N.: 4031C241307)

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

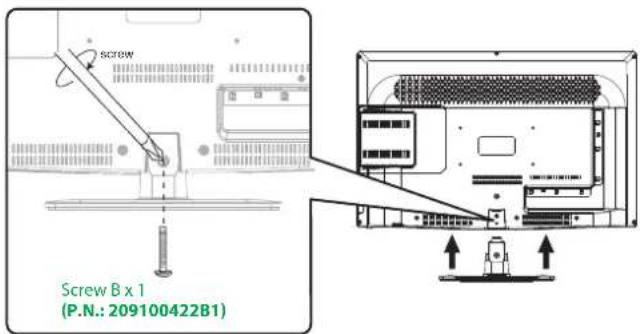

Installing / Removing the Base Stand

• Remove the base stand before mounting the TV onto the wall.

• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

• Disconnect all cables connected to the TV.

• Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen.

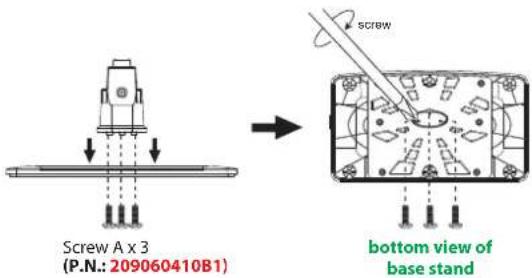

• To install the TV stand support onto the base stand, align the screw hole and then secure the base stand with provided 3 screws (screw A).

• Attach the base stand with provided screw (screw B).

• To remove the base stand, untighten the screw that holds the base stand to the rear of the TV. Slide the base stand out.

Keep all the spare screws should you want to use the base stand option.

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 200 mm x 100 mm mounting kit designed for flat-panel TVs (sold separately). Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections (refer to page 13-16 for details) before mounting on to the wall.

Screw A x 3 (P.N.: 209060410B1) bottom view of base stand

Screw B x 1 (P.N.: 209100422B1)

unscrew Screw B x 1 (P.N.: 209100422B1)

200 mm 100 mm Four mounting holes (size M4x12 screw)

- Please read this instruction manual carefully while setting up your TV. - If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Diagram of a computer monitor with labeled control panel components including menu, channel, and volume indicators

Item Description

1 POWER LED	Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will flash blue and red when the timer programming has started in the standby mode.
2 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
3 INPUT ≡	Press to select among different input signal sources:DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DMP.Confirmed the selection on OSD menu.
4 MENU Displays the OSD (on screen display) menu.
5 CH +/– Press to select a channel or select a sub-menu from the OSD menu.
6 VOL +/–	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
7 ⏻	Switches the TV on from standby mode.Switches the TV back to standby mode.

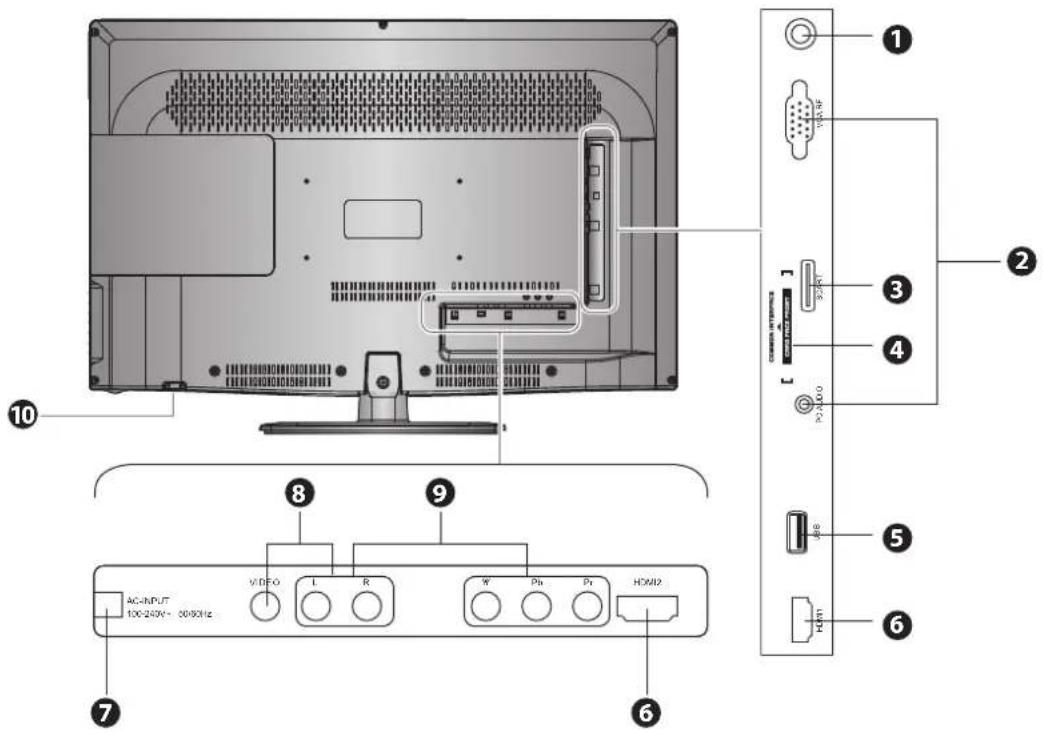

Diagram of a computer monitor rear panel with labeled ports and connectors, including AC INPUT, HDMI2, and network ports.

Socket Description

1 RF Aerial To connect to the aerial socket on the wall with the RF coaxial cable.

2 VGA / PC AUDIO To connect to a computer or other devices with a VGA interface.

3 SCART	To connect to a VCR, DVD Player, or other AV device with a SCART output socket by using the SCART adapter cable provided.

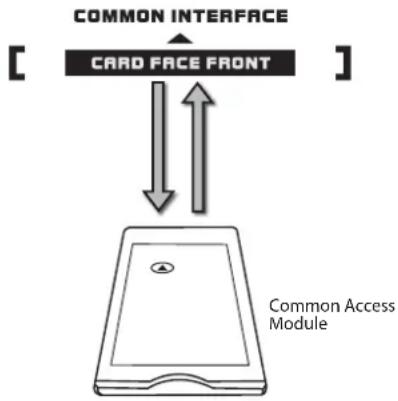

4 COMMON INTERFACE	Allows the insertion of a Common Access Module. (Refer to page 23 for details)
5 USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (DMP mode) and record DTV programmes on to a USB storage device.
6 HDMI1 / HDMI2	To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.

7 AC Connects the mains cable to the mains socket.

8 VIDEO / AUDIO (L/R)	To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.
9 Y, PB, PR / AUDIO (L/R)	To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
10 Power ON/OFF button	Press the POWER ON/OFF button to turn the TV to standby or off mode.

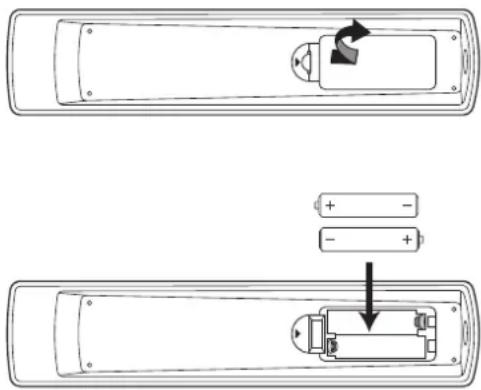

Installing Batteries in the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Diagram showing a device with battery and switch components, including an arrow indicating rotation direction.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire

Remote Control Operation Range

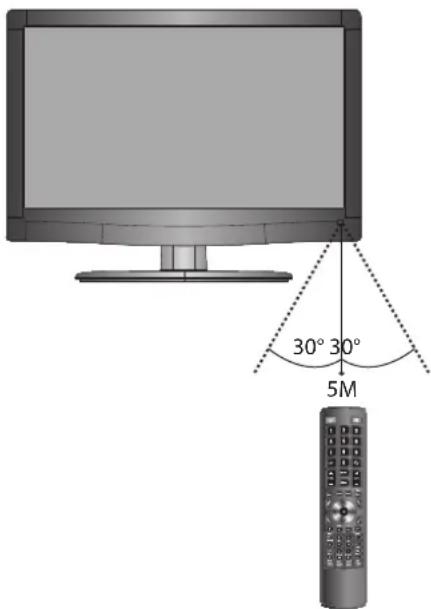

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

30° 30° 5M

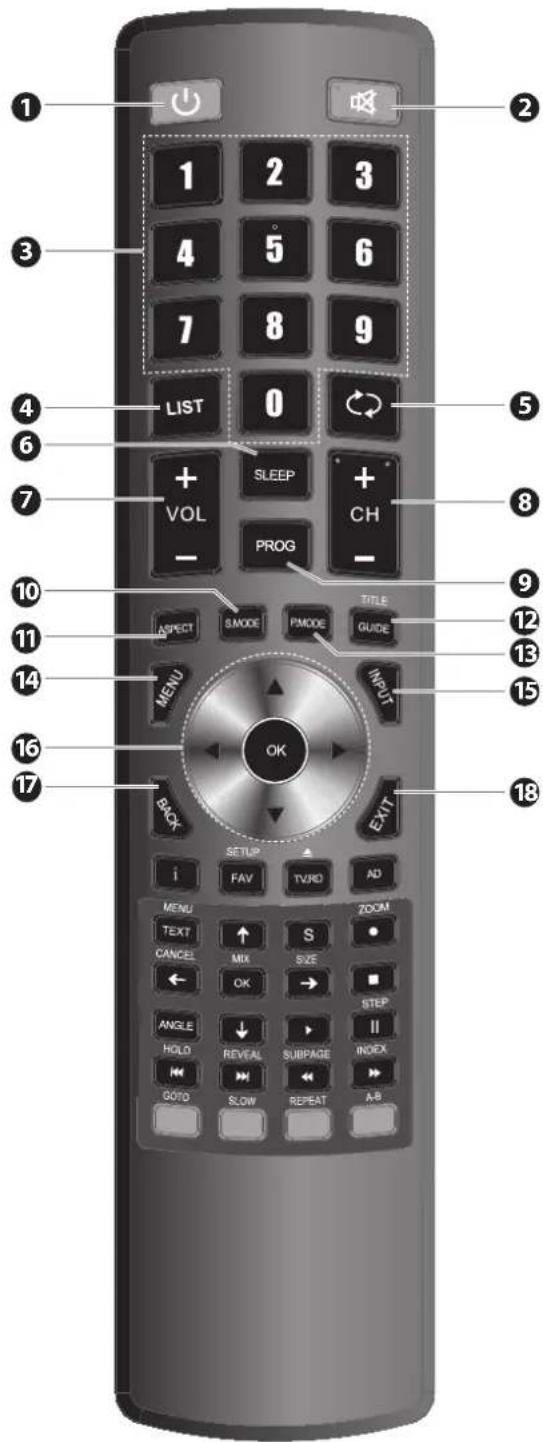

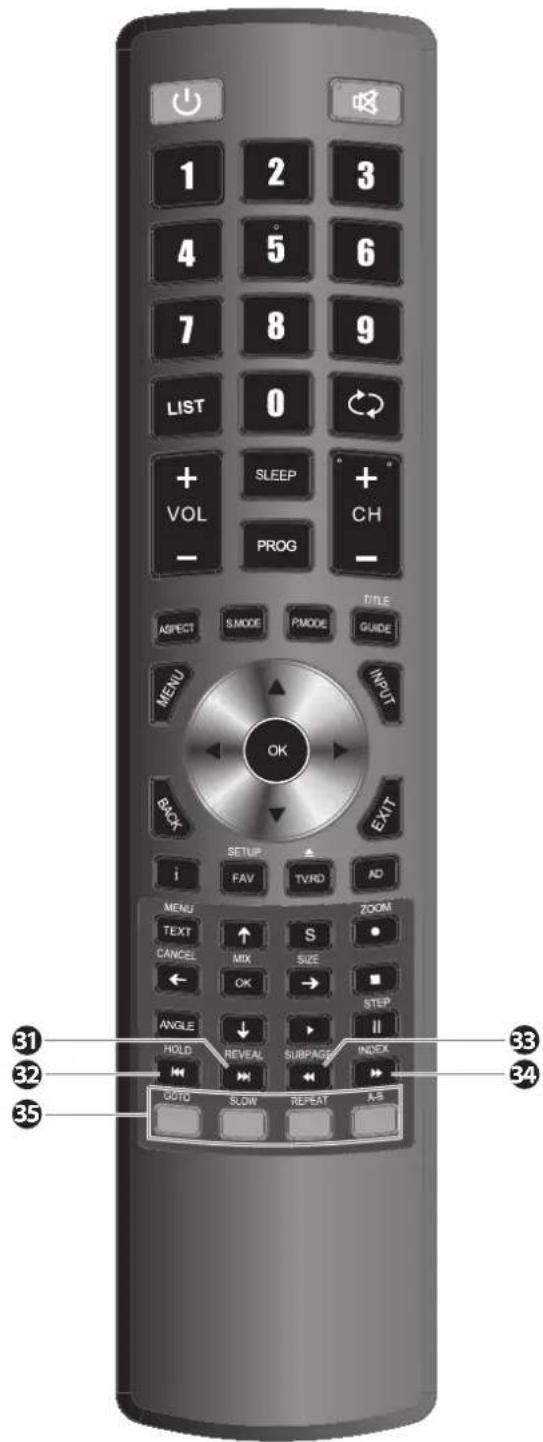

Remote Control

1. ⏻

Switches the TV between on and standby mode.

2. MUTE

Mutes and restores your TV sound.

3. 0-9 Number Button

• Press to select a programme.
  • Select numbered items in a menu. (DVD mode)

4. LIST

• Display the channel list. (ATV / DTV mode)
• Display the text page on the teletext screen. (ATV mode)

5. RECALL

• Return to the previous viewing channel. (ATV / DTV mode)
• Return to menu (DVD mode)

6. SLEEP

Sets the TV sleep timer: OFF / 10 / 20 / ... / 180 / 240 min.

7. VOL + / -

Adjusts the volume.

8. CH + / -

Select a channel.

9. PROG

• Display the channel edit menu. (ATV / DTV mode)
• Programme the DVD. (DVD mode)

10. S.MODE

Select sound mode: Standard / Music / Movie / Sports / User.

11. ASPECT

Allows you to watch the screens in various formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom.

12. GUIDE

Displays the EPG electronic Programme guide. (DTV mode)

TITLE

Displays the DVD title content. (DVD mode)

13. P.MODE

Select picture mode: Standard / Mild / User / Dynamic.

14. MENU

Display the OSD (On Screen Display) menu.

15. INPUT

Select among the different input signal sources: DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DMP

16.◀ ▲ ▼ ▶

Allows you to navigate the OSD menus and adjust the system settings to your preference.

OK

Confirm the selection in the OSD menus.

17. BACK

Return to the previous menu in the OSD menus.

18. Exit

Exit the OSD menu.

Diagram of a remote control with numbered keys and function buttons for navigation and function functions.

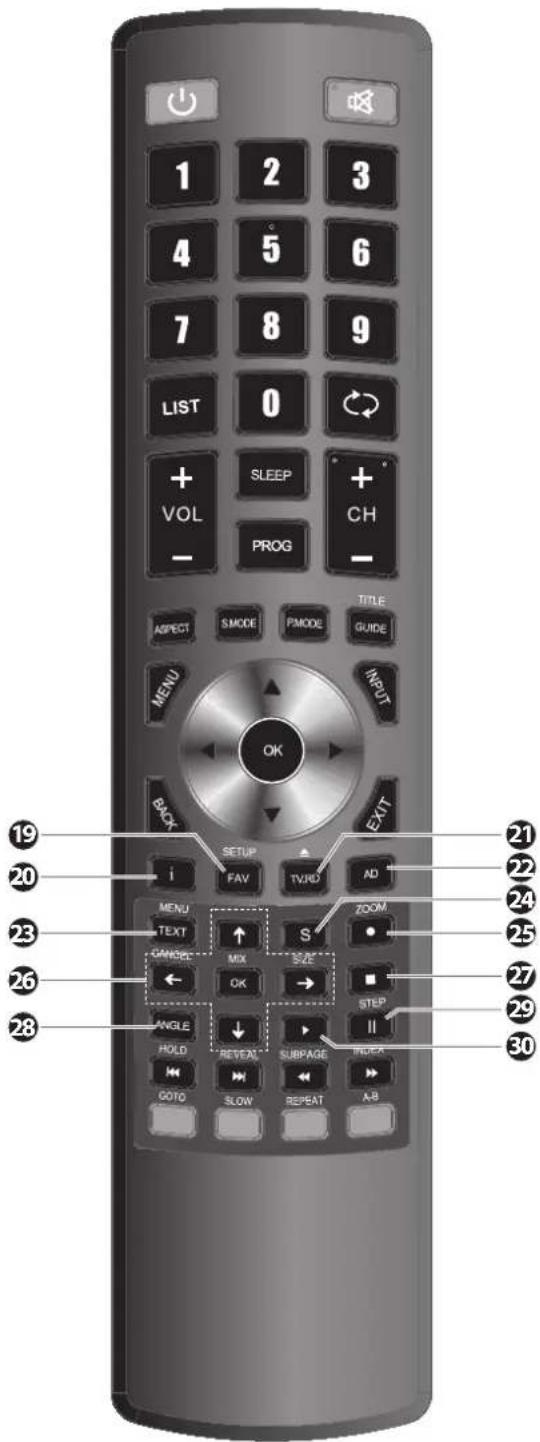

Please note that there are DVD mode functions on the remote control only operate on TV models with a built-in DVD player.

19. FAV

Display the favourite channel list. (ATV / DTV mode)

SETUP

Display and exit the DVD setup menu. (DVD mode)

20.i

Display the present screen information such as the current channel on ATV / DTV mode and the input source except ATV / DTV mode.

21. TV.RD

A short-cut to switch input source to TV / Digital radio channels.

Eject a disc. (DVD mode)

22. AD (Audio Description)

• To turn on / off the Audio Description (AD) function (only applicable when the TV programme has this feature). (DTV mode)
• Select different Audio mode on DVD mode. (DVD mode)
  • Select Stereo / Dual Sound Reception. (ATV mode)

23. TEXT

Turns on and off the teletext function. (ATV / DTV mode)

MENU

Display the DVD menu. (DVD mode)

24. S (Subtitle)

• Displays subtitles which are broadcast with the programme. (DTV mode).
• Displays subtitles on the DVD. (DVD mode)

25. REC

Record the current programme. (DTV mode).

ZOOM

Zoom in on the displayed frame. (DVD mode)

26.←↑↓→

Allows you to navigate the DVD menu and adjust the system settings to your preference. (DVD mode)

OK

Confirm the selection in the DVD menus. (DVD mode)

CANCEL

To exit the teletext mode. (ATV mode)

MIX

Select TELETEXT with a TV programme. (ATV mode)

SIZE

To enlarge the picture on the TV in teletext. (ATV mode)

27. Stop

To stop the playback or recording. (DVD / DMP mode)

28. ANGLE

Select different angles for the video. (DVD mode)

29. || Pause

• To pause playback. (DVD / DMP mode)
• Start the time-shift function (DTV mode)

STEP

To play the playback forward frame by frame. (DVD mode).

30. DELAY

To start playback. (DVD / DMP mode)

Please note that there are DVD mode functions on the remote control only operate on TV models with a built-in DVD player.

1 2 3 4 5 6 7 8 9 LIST 0 + SLEEP + + VOL CH - PROG - ASPECT SMODE PMODE GUIDE MENU INPUT OK BACK EXIT SETUP i FAV TVRD AD MENU TEXT ↑ S ZOOM CANODE MIX SIZE ← OK → ■ ANGLE ↓ SUPER STEP II HOLD REVEAL SUBPAGE INDEXA GOTO SLOW REPEAT A-B 20 21 22 23 24 25 26 27 28 29 30

31.

To skip to the beginning of the next chapter / track / photo.

REVEAL

Reveals hidden information such as the answer to a quiz in teletext. (ATV mode).

32.

To skip to the beginning of the previous chapter / track / photo.

HOLD

Freezes a multi-page passage on screen in teletext. (ATV mode)

33.

To reverse playback rapidly.

SUBPAGE

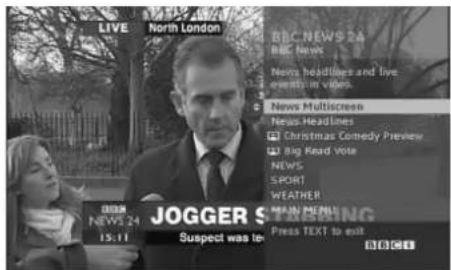

Displays the subpage on the teletext screen. (ATV mode)

34.

To advance playback rapidly.

INDEX

To select the page number of the index from teletext. (ATV mode)

35. Coloured buttons

Access the TELETEXT items or channel edit when using Digital / Freeview TV Channels. (ATV / DTV mode)

GOTO (RED)

To skip to a specific location on a DVD / CD. (DVD mode)

SLOW (GREEN)

Play video slow. (DVD mode)

REPEAT (YELLOW)

Select between different repeat modes. (DVD mode)

A-B (BLUE)

Repeat a segment between A and B. (DVD mode)

1 2 3 4 5 6 7 8 9 LIST 0 + SLEEP + VOL CH - PROG - ASPECT SMODE PMODE TITLE MENU GUIDE INPUT OK BACK EXIT SETUP FAV TVRD AD MENU ZOOM TEXT ↑ S CANCEL MIX SIZE ← OK → ■ ANGLE ↓ ▶ STEP HOLD REVEAL SURPAGE INDEX → → → COTO SLOW REPEAT A-B 31 33 32 34 35

Please note that there are DVD mode functions on the remote control only operate on TV models with a built-in DVD player.

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

Best Video Performance		Signal Type	Separate Audio Connection Required
		HDMI(480i/480p/576i/576p/720p/1080i/1080p*)	No
		VGA	YesPC AUDIO
		Component Video(480i/480p/576i/576p/720p/1080i/1080p*)	YesL R
		SCART (RGB Input) No
	VIDEO	Composite Video	Yes

*1080p: Although this TV is compatible with a 1080p input, the screen is not capable of displaying this resolution and consequently the image will be scaled to suit the screen.

Connecting an AV Device with an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.

• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p.

• Use a HDMI cable to connect the TV's HDMI input socket to the external AV device's HDMI output socket.

• Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
• Press the button on the right side panel of the TV or on the remote control to turn on your TV.
• Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to select HDMI1 / HDMI2 and then press the OK button to confirm.

Although this TV is able to connect to a HDMI device, it is possible that some devices may not operate correctly.

Rear Right Side View of TV HDMI 1 USB PC AUDIO SCART VGA RF Rear Right Bottom View of TV AC-INPUT 100-240V~50GHz VIDEO L FL R Y Y Pp Fr HDMI2 HDMI Cable (not included) Game Console Set-top Box Blu-ray Player / DVD Player / Recorder

Connecting a Computer with a VGA Cable

1. Use a VGA cable to connect the TV's VGA input socket to a computer's VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
3. Press the button on the right side panel of the TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲buttons to select PC and then press the OK button to confirm.

• The best resolution is 1366 x 768.
- If your computer is set to shut down after a few minutes of idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the button on the right side panel of the TV or on the remote control to restart the TV.

Rear Right Side View of TV +DMS 1 USE PO AUDIO SCAR VGA RF Audio Cable (not included) VGA Cable (not included) Computer

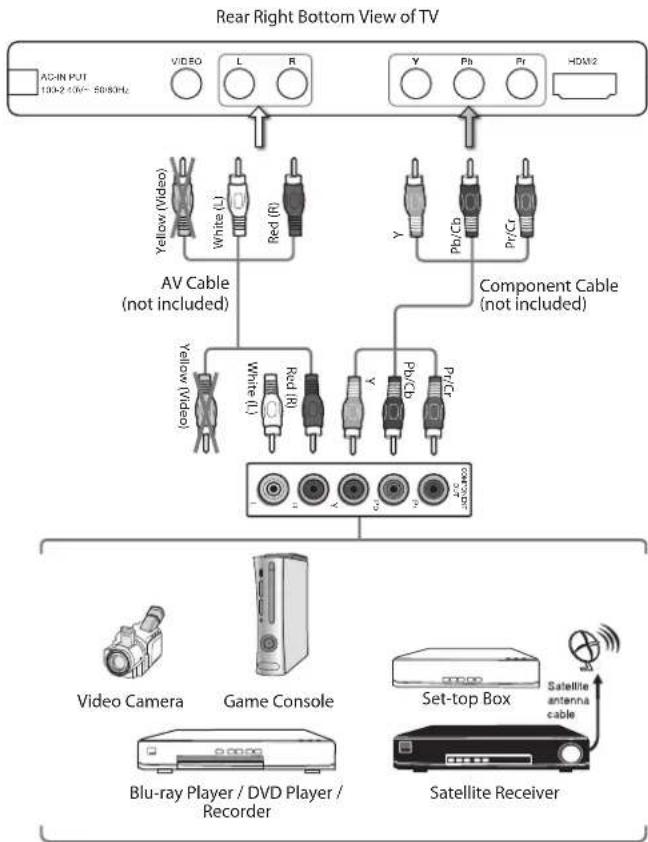

Connecting an AV Device with a Component (YPbPr) Cable

1. Use a component cable to connect the TV's YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's AUDIO(L/R) input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV Y Pb Pr
Video output ports on DVD player	Y Pb	Pr
	Y Cb	Cr

1. Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
2. Press the Button on the right side panel of the TV or on the remote control to turn on your TV.
3. Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to select YPbPr and then press the OK button to confirm.

Connecting an AV Device with a SCART Cable

1. Use a SCART cable to connect the TV's SCART adapter cable to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
3. Press the button on the right side panel of the TV or on the remote control to turn on your TV.
4. The TV will change the input source to SCART automatically once the AV device is switched on.

Rear Right Side View of TV COMMON INTERFACE [ ] [ ] HCM1 USB PC ALD IO SMART RF SCART Adapter Cable (included) SCART Cable (not included) SCART Adapter Cable (VCR) Set-top Box Satellite antenna DVD Player / Recorder Satellite Receiver

Connecting an AV Device with Composite Cable

1. Use an AV cable to connect the TV's AUDIO(L/R) / VIDEO input sockets to the external AV device's composite audio / video output sockets. (VIDEO = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
3. Press the button on the right side panel of the TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲buttons to select AV and then press the OK button to confirm.

Connecting a USB Storage Device

1. Switch off the TV before connecting any USB storage device.
2. Connect your USB storage device to the USB port of your TV.
3. Plug the connected devices into the mains socket before switching on the POWER ON/OFF button which is located at the bottom edge of the TV.
4. Press the Button on the right side panel of the TV or on the remote control to turn on your TV and your USB storage device.
5. Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to select DMP and then press the OK button to confirm.

Rear Right Side View of TV USB 1 USB USB Cable (not included) USB Hub Portable hard Disk Adapter

• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
- If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
• The maximum supported storage space of the hard disk is 250 GB.
• The file system only supports FAT32 format.
- If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
- The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
- Disconnect the USB storage device if it is not in use.

Connecting the Aerial

Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the rear right side of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

OR RF coaxial cable (not included) HOTU USB PC 4000 CCAR VGA RF

Turning the TV on for the First Time

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. Press the POWER ON/OFF button which is located at the bottom edge of the TV. At this stage, the TV switches to standby mode. The red LED indicator at the bottom right side at the front of the TV will illuminate.
3. In standby mode, press the ⏻ button on the right side panel of the TV or on the remote control to turn the TV on. The red LED indicator will turn blue.

• Always disconnect the TV from the mains socket when not in use for a long period of time.

• The ⏻ button on the right side panel of the TV or on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket or press the POWER ON/OFF button to switch the TV off.

• The first time you turn the TV on, it will go straight into the First Time Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please go to the next step "Selecting the Input Source" on the next page.)

• Press the ▲ buttons to navigate the menu and change the settings. Press the OK button to confirm.

OSD Language Select your desired language to be displayed on the menu. The default on-screen menu language is set as English.

Country Select the country where you will operate the TV.The default country is set as UK.

1. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the Channel menu (refer to page 21-22 for details).

To the mains socket ON OFF Power ON/OFF button

First Time Installation

Please ensure aerial is plugged in!

Then press OK button.

OSD Language
Česky	English	Français	Magyar	Polski
Dansk	Español	Hrvatski	Nederlands	Portugues
Deutsch	Eλληνικύ	Italiano	Norsk	Pycok μή

Country
UK	Belgium	Czech	France	Hungary
Australia	Bulgaria	Denmark	Germany	Italy
Austria	Croatia	Finland	Greece	Luxembourg

Channel Tuning

TV : 3 Channel(s)

DTV : 0 Channel(s)

Radio : 0 Channel(s)

Data : 0 Channel(s)

36%... 668.75MHz (TV)

Please press MENU to skip.

Selecting the Input Source

1. Press the ☑ button on the right side panel of the TV or the INPUT button on the remote control to display the Input source list.

2. Press the Buttons to select the input source that you want: DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DMP.

3. Press the OK button to confirm your selection.

Alternative

Press the TV.RD button to switch to TV / digital radio channels directly.

Input Source

DTV

ATV

SCART

YPbPr

PC

HDMI1

HDMI2

AV

DMP

OK

Channel Selection

- Press the CH + / - buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the LIST button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 21-22 for details on Channel Edit).

• Press the FAV button to view the Favourite List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel (refer to page 21-22 for details on Channel Edit).
• Press the button to return to the previously viewed channel.

Display Channel Information

- Press the i button to view the current information.

Volume Adjustment

• Press the VOL + or - button on the side panel of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Ⓧ MUTE button. Press the Ⓧ MUTE button again or the VOL + button to resume audio listening.

Customising the Channel Setting (TV, DTV or Radio Mode)

Auto Tuning

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Auto Tuning and then press the OK button.
3. In the Tune Type menu, press the ◀▶ buttons to select ATV / DTV / DTV + ATV. Press the ▼button and then press the 🔵buttons to select the country where you will operate the TV. Press the OK button to confirm.
4. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
5. If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
6. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the channel menu (refer to page 21-22 for details).

Tune Type DTV+ATV UK Belgium Czech Australia Bulgaria Denmark Austria Croatia Finland MENU

Channel Tuning TV : 3 Channel(s) DTV : 0 Channel(s) Radio : 0 Channel(s) Data : 0 Channel(s) 36%... 668.75MHz (TV) Please press MENU to skip.

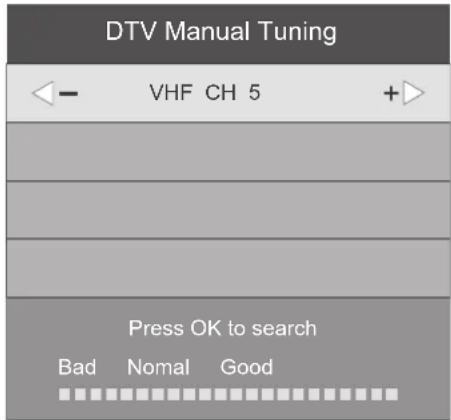

DTV Manual Tuning

Allows you to make manual fine tuning adjustments of the channel under DTV mode.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select DTV Manual Tuning and then press the OK button.

LOGIK Auto Tuning DTV Manual Tuning ATV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD)Off Software Update(USB)

1. The DTV Manual Tuning screen will pop up. Press the ◄buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.

2. Press the MENU button to return back to the main menu.

3. Press the EXIT button to exit the menu.

DTV Manual Tuning VHF CH 5 Press OK to search Bad Nomal Good

ATV Manual Tuning

Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select ATV Manual Tuning and then press the OK button.

LOGIK Auto Tuning DTV Manual Tuning ATV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD)Off Software Update(USB)

1. The ATV Manual Tuning screen will pop up. Use the buttons to select the following options and the buttons to adjust the setting.

Storage To Presets the channel number.
Sound System	Selects the sound system: I / DK / BG / L (for SECAM).
Current CH Displays the current channel number.
Search	Press the◀buttons to start the manual tuning.
Fine-Tune	Press the◀buttons to make manual fine tuning adjustments.
Frequency Displays the current tuned frequency.

1. After finishing the manual tuning adjustment of a channel, press the RED button to save your channel before tuning the next channel.
2. Press the MENU button to return back to the main menu.
3. Press the EXIT button to exit the menu.

Channel Edit (ATV / DTV Mode)

Allows you to edit TV programmes in the Channel List.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.
3. A Channel Edit screen will pop up. Press the 🔊tons to select the programme you want to edit.

All channels (DTV and ATV) are listed, please ensure that you edit the correct channel.

a. Delete

Press the RED button to delete the selected channel.

b. Rename (ATV channels)

Press the GREEN button to rename the selected channel. Press the ▲buttons to select the characters to represent the station name. Press the ◀buttons to move to the next character and then press the GREEN button again to confirm the new name.

ATV Manual Tuning Storage To 1 Sound System I Current CH 1 Search Fine-Tune Frequency 255.25 MHz Save MENU

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

LOGIK Auto Tuning DTV Manual Tuning ATV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD)Off Software Update(USB)

Channel Edit 800 SZTVM01 DTV 800 SZTVM02 DTV 800 SZTVM03 DTV 800 SZTVM04 DTV 804 Date DTV 1C-51 ATV 2C-53 ATV 3C-61 ATV OK MENI

c. Move

Press the YELLOW button and then press the buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm.

d. Skip

Press the BLUE button to skip the selected channel. Press the BLUE button again to undo it.

e. FAV (Favourite)

Press the FAV button to set the selected channel as one of the favourite programmes. Press the FAV button again to undo it.

1. Press the MENU button to return back to the main menu.
2. Press the EXIT button to exit the menu.

Care should be taken when editing the position of digital channels as this may affect EPG and reminder settings.

Signal Information (DTV Mode)

Allows you to view the signal information.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.
3. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
4. Press the EXIT button to exit the menu.

Signal Information Channel 52 Network SZTVM Modulation 16QAM Quality 99 Strength 81

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

Rear Right Side View of TV COMMON INTERFACE [ COME FREE FRONT ] PC AUDIO SCART VGA ID

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the MENU button and then press the Buttons to select the CHANNEL menu and then press the OK button.

2. Press the ▲▼ buttons to select CI Information and then press the OK button.

3. A CI Information Main menu will pop up. Press the 🔊mons to display the module information, smart card information, language, software download. Press the OK button to confirm.

4. Press the EXIT button to return to the previous menu. Press the EXIT button again to exit the menu.

This screen is for illustration only.

Software Update (Over Air Download)

The TV auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service.

1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.

1. Press the Buttons to select Software Update(OAD) and then press the OK button to select On.

2. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.

3. Press the EXIT button to exit the menu.

4. During normal DTV viewing, if the TV detects the latest firmware from the DTV signal, the Over Air Download screen will appear. Press the Buttons to select Yes / No for upgrade procedure.

5. If you select Yes, the over air download will start. Press the EXIT button if you want to stop the download and exit the menu.

During the download, please do not turn off or unplug your TV.

1. When the download is complete, the TV will automatically upgrade the software.

2. When the update is complete, the TV will return to standby mode.

3. Press the ⏻ button on the right side panel of the TV or on the remote control to switch on the TV.

If you experience difficulties after the software update, we recommend that you restore your TV to the factory default settings. To do this, follow the steps below:

1. Press the MENU button to go to the MAIN menu. Press the ▲buttons to select OPTION and then press the OK button.
2. Press the ▲ buttons to select Restore Factory Default and then press the OK button. Press the ◀ button to select Yes to reset the setting.
3. The TV will restore all settings and go to the First Time Installation. Follow the First Time Installation steps (refer to page 17-18 for details).

LOGIK Auto Tuning DTV Manual Tuning ATV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD)Off Software Update(USB)

New FW is available for upgrading TV Version v0.01 Stream Version v0.03 Yes to upgrade. No to ignore this upgrade.

Download 20% EXIT

Software Update(OAD) 71%

Software Update (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ or call our Customer Technical Services Centre. Tel: [phone] (UK only)

Allows you to set your preferred picture mode.

1. Press the MENU button and then press the buttons to select the PICTURE menu and then press the OK button.

1. Press the Buttons to select the following picture options and then press the OK button.

LOGIK Picture Mode Standard Colour Temperature Aspect Ratio Noise Reduction Screen

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Picture Mode Cycles among picture mode: Standard / Mild / User / Dynamic. Alternative____You may press the P.MODE button to select the picture mode directly.
Contrast Adjusts the difference between light and dark levels in the picture. (for User mode)
Brightness Increases or decreases the amount of white in the picture. (for User mode)
Colour Controls the colour intensity. (for User mode)
Sharpness Adjusts the level of crispness in the edges between light and dark areas of the picture. (for User mode)
Tint (For NTSC format)	Adjusts the balance between red and green levels. (Tint is only available for NTSC signal reception.)
Colour Temperature Cycles among colour temperature: Medium / Cool / User / Warm.Adjusts the colour components independently to achieve a warm or cool. (for User mode)Red: Increases red tintGreen: Increases green tintBlue: Increases blue tint

Picture Mode	Standard
Contrast 82
Brightness 50
Colour 50
Sharpness 50
Tint 50

Colour Temperature Medium

Red 40

Green 31

Blue 50

Aspect Ratio	Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom.
		Input Signal 4:3 Input Signal		16:9
	Auto This selection	will displaythe picture according tothe aspect ratio of theinput source.		This selection will displaythe picture according tothe aspect ratio of theinput source.
	4:3 This selection will allowyou to view a picture withan original 4:3 aspectratio. Black bars willappear on both the leftand right of the screen.			This selection will allowyou to adjust the picturehorizontally, in linearproportion. Black bars willappear on both the leftand right of the screen.
	16:9 This selection will allowyou to adjust the picturehorizontally, in linearproportion, to fill the entirescreen.			This selection will allowyou to view a picture withan original 16:9 aspectratio.
	Zoom This selection will allowyou to zoom in thepicture without anyalteration, while filling theentire screen. However,the top and bottomof the picture will becropped.			This selection will allowyou to zoom in thepicture without anyalteration, while the 4sides of the picture willbe cropped.
	Subtitle This selection will allowyou to zoom in the picturewithout any alternation,while filling the entirescreen with subtitlesshown at the bottom of thescreen.			This selection willallow you to zoom inthe picture withoutany alternation, whileshowing subtitles at thebottom of the screen.
	Smart Zoom This selection is similar to16:9 mode, but the pictureslightly stretches verticallyand clips off a little fromthe top and bottom.			This selection is similarto 16:9 mode, but thepicture slightly stretchesvertically and clips off alittle from the top andbottom.
Noise Reduction	Select to reduce the noise level of the connected device: Off / Low / Middle / High. (ATV mode)
Screen Allows you to adjust the PC desktop content. (PC mode only)
	Auto Adjust Allows you to synchronise a PC signal automatically.
	Horizontal Pos.	Adjusts the position of the picture left and right inthe window.
	Vertical Pos.	Adjusts the position of the picture up and down inthe window.
	Size	Allows you to adjust the picture horizontally, in linearproperties
	Phase	Controls the signal phase, which can improve focusclarity and image stability based on the PC mode.

1. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
2. Press the EXIT button to exit the menu.

Allows you to select an audio-enhancement technique.

1. Press the MENU button and then press the buttons to select the SOUND menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the buttons to select the following sound options and then press the OK button.

LOGIK Sound Mode Standard Balance Auto Volume SRS TruSurround HD Off AD Switch

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Sound Mode	Allows the selection of an audio-enhancement technique: Standard / Music / Movie / Sports / User.
	Alternative
	You may press the S.MODE button to select the sound mode directly.
	Treble Controls the relative intensity of higher pitched sounds. (for User mode)
	Bass Controls the relative intensity of lower-pitched sounds. (for User mode)
Balance Adjusts the relative volume of the speakers in a multiple speaker system.
Auto Volume	Volume levels are automatically controlled. (e.g. advertisements tend to be louder than the programmes)
SRS TruSurround HD	SRS TruSurround HD^TM (TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT^® . Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity. Press the OK button to select On / Off.
AD Switch (for DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster. Set to "Off" for normal broadcasting sound coming out from speakers. Set to "On" to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner.

1. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
2. Press the EXIT button to exit the menu.

Stereo / Dual Sound Reception (ATV Mode)

When a programme is selected, press the AD button to display the sound information for the selected station.

Broadcast On Screen Display
Mono	MONO / NICAM MONO
Stereo	MONO / NICAM STEREO
Dual	MONO / NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono by pressing the AD button. In mono reception, the clarity of sound is improved. To switch back to stereo, press the AD button again.

Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II or MONO by pressing the AD button repeatedly.

NICAM	DUAL	I	Sends the primary broadcast language to the loudspeakers
NICAM	DUAL	II	Sends the secondary broadcast language to the loudspeakers
NICAM	DUAL	I+I	Sends the primary and secondary broadcast languages to the loudspeakers

Customising the Time Settings

Allows you to adjust power on / off time, sleep timer, auto standby and time zone.

1. Press the MENU button and then press the buttons to select the TIME menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the 🔊 buttons to select the following time options and then press the OK button.

LOGIK Clock- --- -- Off Time On Time Sleep Timer Auto Standby Time Zone

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Clock The clock is set automatically when receiving a digital signal.
Off Time	Allows you to set the off time that will automatically switch off the TV. Cycle through and select from the following off time options: Off / Once / Every Day / Mon.~Fri. / Mon.~Sat. / Sat.~Sun. / Sunday.
On Time	Allows you to set the on time that the TV will automatically switch on the TV and tune to the source, channel and volume you select. Cycle through and select from the following on time options: Off / Once / Every Day / Mon.~Fri. / Mon.~Sat. / Sat.~Sun. / Sunday.
Sleep Timer	The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.Press the ▲Buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min. The timer begins to count down from the number of minutes selected. If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased. Alternative1. You may press the SLEEP button repeatedly to select the number of minutes: OFF / 10 / 20 / ... / 180 / 240 min directly.2. To cancel the sleep time, press the SLEEP button repeatedly until Off appears.
Auto Standby The unit will automatically switch to standby mode4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.To turn off the auto standby function, press the MENU button to display the main menu. Press the ▲▼ buttons to select the Time option and then press the OK button. Press the ▲▼ buttons to select the Auto Standby option and then press the OK button to select "Off". Press the EXIT button exit the main menu. To save energy you should always turn the auto standby function back to "3H" or "4H".
Time Zone	When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

1. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.

2. Press the EXIT button to exit the menu.

Customising the Option Setting

OSD Language

Allows you to select your desired on screen menu language.

1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT )

1. Press the ▲▼ buttons to select OSD Language and then press the OK button. The default on-screen menu language is set as English.
2. Press the 🔊 buttons to navigate the menu and change the settings. Press the OK button to confirm.
3. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK OSD Language English Audio Language Subtitle Language Hoaring Impaired Country PVR File System CEC Backlight Restore Factory Default

OSD Language Česky English Fran çais Dansk Espanõl Hrvatski Deutsch Eλληνικά Italiano

Audio Language (DTV Mode)

Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.)

1. Press the MENU button and then press the Buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Audio Language and then press the OK button.
3. Press the ◀buttons to select the Primary / Secondary Audio Language. Press the ▼button and then press the 🔊buttons to select your desired audio language. Press the OK button to confirm.
4. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
5. Press the EXIT button to exit the menu.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

LOGIK OSD Language Audio Language English Subtitle Language Hearing Impaired Country PVR File System CEC Backlight Restore Factory Default

Audio Language Primary Česky English Français Dansk Espanöl Hrvatski Deutsch Eλληνικά Italiano

Subtitle Language (DTV Mode)

Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button.

2. Press the ▲▼ buttons to select Subtitle Language and then press the OK button.

3. Press the ◀buttons to select the Primary / Secondary Subtitle Language. Press the ▼button and then press the 🔊buttons to select your desired subtitle language. Press the OK button to confirm.
4. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
5. Press the EXIT button to exit the menu.

While watching a DTV programme, you can press the S button on the remote control to display the Subtitle Language List and then press the ▲buttons to select the Subtitle Language OFF. Press the OK button to confirm. (Only applicable when the TV programme has this feature)

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

LOGIK OSD Language Audio Language Subtitle Language English Hearing Impaired Country PVR File System CEC Backlight Restore Factory Default

Subtitle Language Primary Česky English Fran çais Dansk Espanõl Hrvatski Deutsch Ελληνικό Italiano

Hearing Impaired

Shows information for the hearing-impaired in some programmes. (For DTV channels only if available.)

1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button.
2. Press the Buttons to select Hearing Impaired and then press the OK button to select On / Off.
3. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
4. Press the EXIT button to exit the menu.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

LOGIK OSD Language Audio Language Subtitle Language Hearing Impaired On Country PVR File System CEC Backlight Restore Factory Default

Country

This shows the country where you have selected in auto tuning. If you want to change the country, please refer to Auto Tuning on page 19.

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the ▲▼ buttons to select PVR File System and then press the OK button.

LOGIK OSD Language Audio Language Subtitle Language Hearing Impaired Country PVR File System CEC Backlight Restore Factory Default

1. Press the buttons to select the following PVR File System options and then press the OK button.

Select Disk Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR. The system will show "Checking". Upon the completion the system will show either "SUCCESS" or "FAIL".	Select Disk C:Check PVR File System StartUSB DiskFormatTime Shift SizeSpeedFree Record Limit 6 HrMenu	Select Disk C:Check PVR File System SUCCESSUSB Disk PassFormat PassTime Shift Size AllSpeed 1000 support 2048 KB/sFree Record Limit 6 HrMenu
USB Disk	If no USB storage device is connected, it will show "No USB Disk". If the Check PVR File System has a "SUCCESS" it will show "Pass".
Format	Press the OK button, a File System Sizemenu will pop-up. Press the ◀▶ buttons to select your preferred file type between FAT32 and HiSpeed FS. If you select HiSpeed FS, press the ▼ button and then press the ◀▶ buttons to select your preferred file size. Press the OK button to confirm and then press the ▼button to start formatting.File System SizeFormat diskFormat diskWarning! All data will be lost.Start Exit MENU	Format diskFormat diskWarning! All data will be lost.Start Exit MENU	Format diskDo not unplug USB devic e. Formatting,please wait......
Time Shift Size After formatting the Time Shift Size menu will appear if you have selected HiSpeed FS in PVR File System Type. Press the ◀▶ buttonsto select your preferred file size. Press the OK button to confirm.This option cannot be chosen if you have selected FAT32 in PVR File System Type.			Time Shift SizeTime Shift Disk Size 3/3/5Duration 84 Mins
Speed This shows you the transfer rate of your USB storage device.
Free Record Limit Press the buttons to set the recording time limit from 1-4 hours.

CEC (Consumer Electronics Control)

Allows you to command and control two or more CEC-enabled devices, that are connected through HDMI, by using only one of the TV remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). CEC also allows individual CEC-enabled devices to command and control each other without user intervention.

Make sure that your CEC compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.)

1. Press the MENU button and then press the Buttons to select the OPTION menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the ▲▼ buttons to select CEC and then press the OK button to select On / Off.
2. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
3. Press the EXIT button to exit the menu.

• This unit can only communicate with HDMI-CEC compatible devices.
• To be sure that the HDMI-CEC device has this feature, check to see if there is HDMI-CEC compatible logo on it.
• Some HDMI-CEC compliant devices may not support this function.
• HDMI-CEC function only works when the AV device supporting CEC is turned on.

LOGIK OSD Language Audio Language Subtitle Language Hearing Impaired Country PVR File System CEC Off Backlight Restore Factory Default

Backlight

Allows you to adjust the backlight setting of your TV. This controls the brightness and display performance of the screen.

1. Press the MENU button and then press the Buttons to select the OPTION menu and then press the OK button.

1. Press the buttons to select Backlight. Press the buttons to select your desired backlight level (1-5) of your TV.

Increasing the backlight setting will increase the brightness and display performance of the screen. The higher the setting is, the higher the power consumption. You can select from 1-5 to strike a balance between the picture brightness / display performance / power consumption. Reducing the backlight setting will help you to reduce the power consumption and thus save money by reducing electricity bills.

LOGIK OSD Language Audio Language Subtitle Language Hearing Impaired Country PVR File System CEC Backlight 4 Restore Factory Default

1. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
2. Press the EXIT button to exit the menu.

Restores all settings to the factory defaults.

1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button.

LOGIK OSD Language Audio Language Subtitle Language Hearing Impaired Country PVR File System CEC Backlight Restore Factory Default

1. Press the ◀ button to select "Yes". The TV will turn off and restart after a few seconds. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Are you sure?

Customising the LOCK Setting

To access the LOCK menu, you must enter the password. Enter the default password "6666" for first time use. To change the password, refer to "Change Password" (see below).

Lock System

The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Restore Factory Default.

1. Press the MENU button and then press the LEDs to select the LOCK menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

LOGIK Lock System Set Password Block Channel Parental Guidance Off

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "6666". If you change the password, be sure to remember the new password! If you forget the new password, press the master password"9527".

Please enter password Clear Cancel

1. Press the ▲▼ buttons to select Lock System and then the OK buttons to select On / Off. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Restore Factory Default.
2. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
3. Press the EXIT button to exit the menu.

Set Password

1. Press the MENU button and then press the Buttons to select the LOCK menu and then press the OK button.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "6666". If you change the password, be sure to remember the new password! If you forget the new password, press the master password"9527".

LOGIK Lock System Set Password Block Channel Parental Guidance Off

Please enter password Clear Cancel

1. Press the ▲▼ buttons to select Set Password and then press the OK button.

2. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.

The default password is "6666".

If you change the password, be sure to remember the new password! If you forget the new password, press the master password"9527".

LOGIK Lock System Set Password Block Channel Parental Guidance Off

Please enter old password Please enter new password Confirm new password ◀ Clear Cancel ►

1. Press the ▶ button to return to the previous menu. Press the MENU button to return back to the main menu.

2. Press the EXIT button to exit the menu.

Block Channel

Block Channel is designed to prevent children watching unsuitable programmes.

When a channel is blocked, a valid password must be entered.

1. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button.

LOGIK CHANNEL > PICTURE > SOUND > TIME > OPTION > LOCK > EXIT >

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

LOGIK Lock System Set Password Block Channel Parental Guidance Off

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "6666".

If you change the password, be sure to remember the new password! If you forget the new password, press the master password"9527".

Please enter password Clear Cancel

1. Press the ▲▼ buttons to select Block Channel and then press the OK button.

LOGIK Lock System Set Password Block Channel Parental Guidance Off

1. A Block Channel screen will pop up. Press the 🔍tons to select a channel. Press the GREEN button on the remote control to block or unblock the programme. Press the GREEN button again to unblock.
2. Press the MENU button once to return to the previous menu. Press the MENU button again to return back to the main menu.
3. Press the EXIT button to exit the menu.

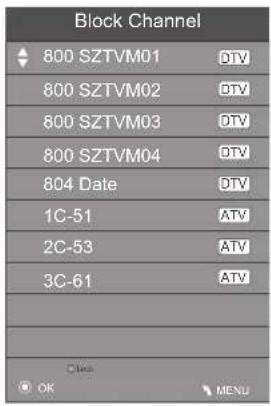

Block Channel 800 SZTVM01 DTV 800 SZTVM02 DTV 800 SZTVM03 DTV 800 SZTVM04 DTV 804 Date DTV 1C-51 ATV 2C-53 ATV 3C-61 ATV OK MENU

Parental Guidance

This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This allows you to set up blocking schemes to block specific channels and ratings.

This TV is programmed to remember which option it was last set to even if you switch the TV off.

When a programme is locked or rated with delayed state, a valid password must be entered.

1. Press the MENU button and then press the Buttons to select the LOCK menu and then press the OK button.

2. Press the ▲▼ buttons to select Lock System and then press the OK button.

LOGIK ( CHANNEL ) ( PICTURE ) ( SOUND ) ( TIME ) ( OPTION ) ( LOCK ) ( EXIT ) )

LOGIK Lock System Set Password Block Channel Parental Guidance Off

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "6666". If you change the password, be sure to remember the new password! If you forget the new password, press the master password"9527".

Please enter password Clear Cancel

1. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.

LOGIK Lock System Set Password Block Channel Parental Guidance Off

1. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm.
2. Press the BACK button to return to the previous menu or press the MENU button to return back to the main menu.
3. Press the EXIT button to exit the menu.

Parental Guidance

Off

4

5

6

7

8

Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

To Turn on Teletext Function

Make sure the TV channel you are watching transmits teletext. "No Teletext" sign will show on the screen if teletext is not available.

In ATV mode, press the TEXT button to enter Teletext mode. Press the INDEX button to display the index page.

Press the TEXT button once to exit and the TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text, press the CH + button.

To move to the previous page, press the CH - button.

To return to the index page, press the INDEX button.

Mix

Press the TEXT button to display the teletext page and then press the MIX button. The text will be superimposed over the TV programme.

Press the MIX button again to return to the text page.

Double height text

If you have difficulty reading the text on the TV you can double the height of the text.

Press the SIZE button. The top half of the page will be displayed in double height text.

Press the SIZE button again. The bottom half of the page will be displayed in double height text.

Press the SIZE button again to return to the full page.

Page STOP

If the page of text you have selected contains subpages, these subpages will automatically be displayed in order with a delay to allow you to have enough time to read the page.

Press the HOLD button. "Will appear on the top left corner of the screen.

While the page is on-hold, press the ◀buttons to scroll through the subpages in your own time.

Alternatively, press the SUBPAGE button, use the colour buttons to scroll through the subpages.

To Reveal Information

Press the REVEAL button to reveal concealed information (quiz answers etc.).

Press the REVEAL button again to conceal the information again.

Fasttext

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 31 for details).

Teletext within Digital Service

1. In DTV mode, press the LIST button to display the Channel List. Press the ▲▼ buttons and then press the OK button to select the teletext channel. Press the LIST button to exit the Channel List and the teletext page will be displayed after a few seconds.

Alternative

Press the TEXT button while watching some programmes to reveal the teletext page (MHEG).

1. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.

2. To change digital teletext service, select a different service by pressing the 0-9 buttons.

LIVE North London BBC NEWS 24 BBC News News headlines and live events in video. News Multiscreen News Headlines Christmas Comedy Preview Big Kard Vote NEWS SPORT WEATHER JOGGER S 15:11 MAN MEMSUNG Press TEXT to exit

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the GUIDE button to switch on EPG.
2. Press the GUIDE button or the EXIT button again to switch off EPG and return to normal TV viewing.

PROGRAMME GUIDE 801 SZTVM02 current date and time 2011 17/ Jan 22:07 15:55.16:25 Movie 1 DTV 17 Jan 17:0016:00 channel no. 800 France 2 801 France 4 802 France 5 803 ARTE 804 LCP 805 France 3 Information Movie 1 Programme 2 Programme 3 Programme 4 Programme 5 channel name EXIT Face Show View Balance OK

Select a Programme

Press the ▲▼ buttons to select the desired channel and then press the ◀▶ buttons to select the desired programme. Press the OK button to confirm.

Button Functions in a 7 Days Guide

Remote Control Button Function

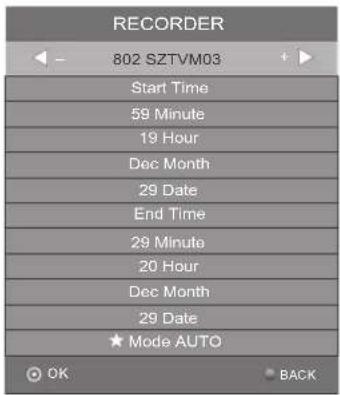

RED (Record)	Timer ProgrammingSee page 46 for details onTimer Programming.Press theREDbutton in theSchedule listto delete the selected preset reminder.
GREEN (Schedule)	Press theGREENbutton to viewthe preset reminders or scheduledrecordings in theSchedule list.Press theGREENbuttonagain to return to the EPG.
YELLOW (Date)	Press theYELLOWbutton and then press the◀▶buttons to view the schedule of the previous /next day. Press theYELLOWbutton again to return to the EPG.

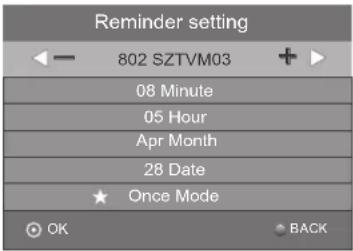

BLUE (Remind)	Press theBLUEbutton while on the selected programme,theReminder settingmenu will be displayed.Press the▲◀▶tons to adjust the settings andthen press theOKbutton to confirm the settings. Afterconfirmation, theSchedule listwill then be displayed withyour preset reminders shown. Press theGREENbutton toreturn to the EPG. The TV will automatically tune to theselected programme when it starts.
INFO Displays detailed information of the selected programme (if available).
▲or▼	Press to select a channel.
◀or▶	Press to select a programme.
OKPress to confirm and view the selected channel.
GUIDE / EXITPress to switch off the EPG.

My Photo

1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the ▲buttons to select the DMP mode and then press the OK button.

2. Press the ◀▶ buttons to select PHOTO and then press the OK button

3. Press the ◀buttons to select your storage device and then press the OK button.

File format supported: JPG.

USB 2.0 RUSIC MUSIC MOVIE TEXT

Pure electrical circuit lines without any symbols

1. Press the ▲buttons to navigate in the picture folder. Select the picture file and then press the ▶LAY button to view.

2. Press the i button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / Prev. / Next / Stop / Repeat All / Music / Playlist / Info / Rotate clockwise / Rotate anticlockwise / Zoom In / Zoom Out / Move View.

3. Press the EXIT button to return back to the previous menu.

CINCTURE Return Up Folder picture HD.JPG 720 480 1090 0021.JPG 0021.JPG Resolution: 893 x 500 Size: 62.8K bytes Date: 19-19-19 Time: 19:57:57

My Music

1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the ▲buttons to select the DMP mode and then press the OK button.

2. Press the ◀▶ buttons to select MUSIC and then press the OK button.

3. Press the <buttons to select your storage device and then press the OK button.

4. Press the 🔊️ button is to navigate in the music folder. Select the music you want to play and then press the 📄AY button to play it.

- Some audio file formats will not be supported. - Supported file formats: mp3 / wma

USB 2.0 F100C MUSIC MOVIE TEST

Pure electrical circuit lines without any symbols

01.01 1 / 3 Return Up Folder [1.mp3] 027795c5d48e3c37. [1.mp3] [1.mp3] [1.mp3] [1.mp3] Address Title: 33K Size: 44K Time: 900 Kbps Size: 900 Kbps

1. Press the ▲▲▲▼ is to navigate in the music folder. Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size). Then press the ▶ PLAY button to play.
2. Press the i button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / Playlist / Goto Time.
3. Press the EXIT button to return back to the previous menu.

A.mpt Albums Title On Date 4:01 Audio Sampling 826 Water Size 1944 Kbps 00:00:43 / 00:00:08 Paste 1B PF Prev. Next Stop Signal ALL Playoff

My Movie

1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the ▲buttons to select the DMP mode and then press the OK button.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.
3. Press the ◀buttons to select your storage device and then press the OK button.
4. Press the 🔊 buttons to navigate in the movie folder. Select the movie file and then press the ⬇LAY button to view.

• Some audio file formats will not be supported.
• Supported file formats: MPEG1/2

1. Press the i button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info / Aspect Ratio.
2. Press the EXIT button to return back to the previous menu.

USB 2.0 PHOTO MUSC MOVE TEXT

Pure electrical circuit lines without any symbols

DUP24 1 / 1 Return MY PWR OK OK

Black and white photo of a person in a dimly lit room with equipment, displayed within a video player interface (no readable text or symbols on the image itself)

Fuate 00:00:10 / 00:00:00 Ready Info Project Tools

My Text

1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the ▲buttons to select the DMP mode and then press the OK button.
2. Press the ◀▶ buttons to select TEXT and then press the OK button.
3. Press the ◀buttons to select your storage device and then press the OK button.
4. Press the 🔊 buttons to navigate in the text folder. Select the text file and then press the ⓂLAY button to view.
5. Press the i button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info.
6. Press the EXIT button to return back to the previous menu.

USB 2.0 RADIO MUSIC MOVIE TEXT

Pure electrical circuit lines without any symbols

2/12 725P 2.705P TFT 14t TFT 14t Size: 20 GBbps

BJ: 100758 August 5, 2019 BP-432-0738/BCP: 100758.AB CATDMY: 14 USC. 1337.16M Competition File & Camera Help Play Page Next Page Pres Back Stop Make Playset Info

This function allows the TV to virtually record the live viewing broadcast programme.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
- Stop the time-shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.

During normal TV viewing, you may press the ▪ button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). When you have returned, press the ▶ PLAY button to play the missed broadcast programme. The PVR Time Shift progress bar will be displayed on the screen.

The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed broadcast programme. It will soon turn to normal.

1 S 2 [00:00:33/00:04:22] Play FB FF Prev Next Pause Stop 06:18

The 'PVR Time Shift Progress Bar'

1 Indicates the status of the currently displayed video (s/ 11/ ◀ ◀ ◀)
2 Indicates the time lagging behind the live broadcast (DVR reviewing)
3 Indicates the available recording time on your USB storage device
4 Indicates the current time

Using the Remote Control

You can shift playback to any point of the virtually recorded programme.

◀ or ▶	When playing,Press the◀ button repeatedly to speed up x◀ x 4 / x 8 / x 16.Press the▶ button repeatedly to speed up ▶/ x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶ PLAY button to return to normal playback.
◀ or ▶▶Press the button to jump about 10% forward.Press the◀ button to jump about 10% back.
▶ PLAY or ||	During playback, press the || button to display a still screen and then press the ▶ PLAY button again to resume playback.During fast forward / fast backward state, press the ▶ PLAY button to return to normal playback.
■	If you want to exit the PVR Time Shift progress bar and return to the current live broadcast, press the ■ button.

Recording DTV Programme onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save it for future viewing.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the ● REC button to record the programme that you are currently watching.

2. Press the ● REC button again, the recording progress bar will disappear.

3. Press the ☐top button to stop recording.

Recording will stop automatically when the disk is full.

Black-and-white photo of a historic brick church with a conical spire, no visible text or symbols on the building itself.

If you want to turn off your TV during recording, press the button. A dialogue will display.

The recording is still in progress

Do you want to switch off the TV?

Yes, Stop recording and switch off the TV.

Yes, turn off the screen and sound, but keep recording the programme.

No

Press the ▲buttons to select your desired option and then press the OK button to confirm. If you select the middle option in the box, the screen will turn off but the recording will still in progress, the LED indicator will alternatively flash red and blue.

This function is used to perform scheduled recording.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the GUIDE button on the remote control. The EPG menu will appear.

2. Press the RED button on the remote control while on the selected programme, the RECORDER menu will be displayed. Press the ▲◀▶▼ buttons to select the settings in the RECORDER menu for the Channel, Start time, End time and Mode.

Channel Press the buttons to select the channel that you wanted to record.
Start time(for Mode Once, Every Day, Weekly)	Press the Buttons to select the Minutes / Hour / Month / Date and then press the Buttons to adjust the start time.
End time(for Mode Once, Every Day, Weekly)	Press the Buttons to select the Minutes / Hour / Month / Date and then press the Buttons to adjust the end time.
Mode Press the buttons to select the Auto / Once / Every Day / Weekly.

1. After finishing all the recorder adjustments, press the OK button to confirm your settings.

• After confirmation, you can press the GREEN button to view your scheduled recording in the Schedule list.
- If a programme recording starts when the TV is in standby mode, the blue / red LED indicator will flash.

PROGRAMME GUIDE 801 SZTVM02 2011 17/ Jan 22:07 15:55.16:25 Movie 1 DTV 17 Jan 17:0016:00 800 France 2 Information 801 France 4 Movie 1 802 France 5 Programme 2 803 ARTE Programme 3 804 LCP Programme 4 805 France 3 Programme 5

RECORDER 802 SZTVM03 Start Time 59 Minute 19 Hour Dec Month 29 Date End Time 29 Minute 20 Hour Dec Month 29 Date ★ Mode AUTO OK BACK

Play Recorded Programme

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the INPUT button then press the ▲▼ buttons to select the DMP mode and then press the OK button.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

USB 2.0 RADIO MUSIC MOVE SOD

1. Press the ◀▶ buttons to select your storage device and then press the OK button.

Pure electrical circuit lines without any symbols

1. Press the ▲◀▶▼ buttons to select the "MY PVR" folder and then press the OK button. Press the ▲◀▶▼ buttons to navigate in the "MY PVR" folder. Select your recorded programme and then press the ▶LAY button to view.

BMPR 1.11 Return MY PVR OK

1. Press the i button to display the function bar.
2. Press the <buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info / Aspect Ratio.
3. Press the EXIT button to return back to the previous menu.

00:00:07 / 00:00:30 Pulse 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Paste 90:00:10 / 00:00:31 Playoff Info Action Tools

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the Button on the right side panel of the TV or on the remote control and then press the POWER ON/OFF button which is located at the bottom edge of the TV to turn off the TV. Disconnect the mains cable from the mains socket before any cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.
2. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV.
3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Illustration of a hand cleaning a computer monitor (no text or symbols visible)

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

The TV does not operate properly.
The TV does not respond when pressing any buttons	The TV may freeze up during use. Disconnect the mains cable from the mains socket for a few minutes. Reconnect the mains cable and try to operate it again as usual.
TV cannot be switched on	Check that the TV is connected to the mains supply.Check the POWER ON/OFF button whether it is turn ON.Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.Ensure that the batteries are installed with the correct polarity (+ to +, - to -).Install new batteries.
Power is suddenly turned off	Check the power of the TV. The mains supply maybe interrupted.Check if the sleep timer is set.Check whether the Auto Standby is activated.

The video function does not work.
No Picture & No Sound	Check whether the TV is switched on.Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	Adjust the settings in thePICTUREmenu.Try another channel. The problem may be caused by the broadcaster.Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable channel may be experiencing problems, tune to another station.Station signal is weak, reposition the aerial for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	Check if the input source isHDMI1 / HDMI2.
Picture appears in wrong ratio	Adjust theAspect Ratiosettings in thePICTUREmenu.
The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the MUTE button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from Inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI1 / HDMI2.
Audio noise	Keep the RF coaxial cable away from the other connected cables.

Password
Lost password	Select theSet Passwordsetting in theLOCKmenu, then enter the following master password “9527”. The master password clears your previous password and allows you to enter a new password.

There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour	Check the signal cable.Reinstall the PC video card.

FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes, if you have a weak signal. Usually it just means you'll need to rescan your digital box or TV. Don't worry, it easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get 'blocking' on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set – top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically.

YPbPr Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480I: 720 x 480	60	Auto / Smart Zoom / Subtitle / Zoom / 16:9 / 4:3
480P: 720 x 480
576I: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080I: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution Vertical Frequency (Hz) Aspect Ratio
640 x 480	60	4:3 / 16:9
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1360 x 768 60

HDMI Mode

Resolution Vertical Frequency (Hz) Aspect Ratio
480l: 1440 x 480 60		Auto / Smart Zoom / Subtitle / Zoom / 16:9 / 4:3
480P: 720 x 480 60
576l: 1440 x 576 50
576P: 720 x 576 50
720P: 1280 x 720	50
	60
1080l: 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

Model L32LED11
Panel System 12 inch LED Backlit LCD Panel
Display Resolution	1366 pixels (horizontal) x 768 pixels (vertical)
Television System PAL I / BG / DK SECAM L / BG / DK
Brightness 150 cd/m	2
Contrast Ratio 2000-1
Inputs / Output
SCART 1
HDMI 2
VGA 1
PC AUDIO 1
YPbPr 1
Common Interface 1
AV 1
USB	1
Aerial	1
Speaker Power	8 W + 8 W
Power Source	100V-240V ~50/60Hz
Dimension( W x D x H) with base	768 x 180 x 540 mm
Weight (Net)	8.0 kg

Features and specifications are subject to change without notice.

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
• Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

20 cm 10 cm 40 cm 10 cm 10 cm

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LCD screen

- The LCD screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen. - Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.
2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

- To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Standby

- The button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
TV Stand Support 115C2631003
Base Stand 102C2631111
Remote Control 504C3236102
AAA Batteries 32200007158
SCART Adapter Cable 30430110019
Screw A 209060410B1
Screw B 209100422B1

Partmaster co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

The FREEVIEW word and logo are trademarks of DTV services Ltd and are used under licence. ©DTV Services Ltd 2002

The "HD Ready" logo is a trademark of DIGITALEUROPE.

SRS TruSurround HD ^™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialogue.

TruSurround HD, SRS and the Symbol are trademarks of SRS Labs, Inc.

All trademarks are the property of their respective owners and all rights are acknowledged.

Gradient background transitioning from white to dark gray, no text or symbols present

Gradient background transitioning from white to dark gray, no text or symbols present
