Product Type	LED Television
Brand	Logik
Model	L24FED13I
Screen Size	24 inches (diagonal)
Display Resolution	1366 x 768 (HD Ready)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (with stand)	560 x 380 x 150 mm (approx.)
Dimensions (without stand)	560 x 340 x 80 mm (approx.)
Weight (with stand)	3.5 kg (approx.)
Weight (without stand)	3.2 kg (approx.)
Power Consumption (typical)	30 W
Power Supply	AC 100-240V, 50/60Hz
HDMI Inputs	2 x HDMI
USB Ports	1 x USB 2.0
Composite Video Input	1 x AV (RCA)
Audio Output	1 x 3.5mm headphone jack
Tuner	DVB-T/T2/C
Remote Control	Included (batteries not included)
Wall Mount VESA	100 x 100 mm
Speakers	2 x 3W
Energy Class	A+ (EU)
Standby Power	< 0.5 W
Cleaning Instructions	Wipe with dry soft cloth. Do not use liquids.
Fix Availability	Spare parts available for 7 years (EU regulation)

Frequently Asked Questions - L24FED13I Logik

How do I set up my Logik L24FED13I TV?

Connect the power cable, attach the stand, and insert batteries into the remote. Then press the power button and follow the on-screen setup wizard to scan for channels.

What is the screen resolution of the L24FED13I?

The screen resolution is 1366 x 768 pixels, which is HD Ready.

Can I mount this TV on a wall?

Yes, it supports VESA 100 x 100 mm wall mounts. Use appropriate screws and ensure the wall can support the weight.

How do I connect external devices like a DVD player or games console?

Use the HDMI inputs for HD devices. For older devices, use the composite AV input (RCA cables). Ensure you select the correct input source via the remote.

Why is there no sound or picture?

Check that the power cable is firmly connected and the TV is turned on. Verify the input source is correct. If using external speakers, ensure they are powered and connected properly.

How do I clean the TV screen?

Use a dry, soft microfiber cloth to gently wipe the screen. Do not apply liquids or cleaning sprays directly to the screen.

The remote control is not working. What should I do?

Replace the batteries with new ones. Ensure there are no obstacles between the remote and the TV sensor. If still not working, try resetting the TV by unplugging it for 30 seconds.

How do I tune digital channels?

Go to the Menu, select 'Channel Setup' or 'Tuning', then choose 'Auto Tune'. The TV will scan for available digital channels (DVB-T/T2/C). Ensure an aerial is connected.

Can I play media from a USB stick?

Yes, insert a USB drive into the USB port. Use the Media Player function to browse and play supported video, music, and photo files.

What is the power consumption in standby mode?

The standby power consumption is less than 0.5 watts, which helps save energy when the TV is off.

USER MANUAL L24FED13I Logik

24" Full HD LED TV with DVD Player

L24FED13I / L24FDP13I / L24FDR13I / L24FDW13I

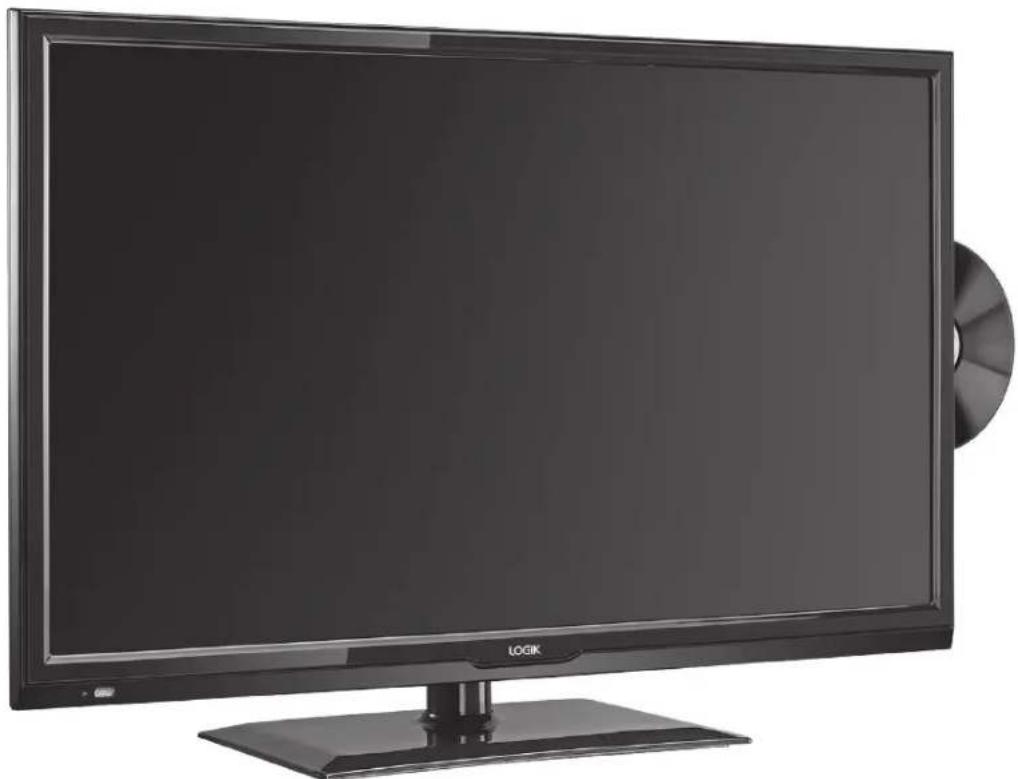

Black Logik TV monitor with CD/DVD disc on right side (no text or symbols on screen)

TV

RTÉ ONE

RTÉ TWO

K

TG4

RTE NEWS NOW

3e

rta

RT€ ONE

RT€ AERTEL

Full HD 1080p

SAORVIEW APPROVED

DVD VIDEO

Radio

DOLBY DIGITAL

HDMI ^TM HIGH DEFINITION MULTIMEDIA INTERFACE

SRS TruSurround HD

WE KNOWHOW TO HELP YOU WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at knowhow.com/ie or call us on: 1 890 818 575

TV SET UP TO STAND & DEMO

We'll assemble the stand and connect your new TV to the existing equipment. We'll tune your TV so it's ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We'll fix your TV to a suitable position on the wall and connect to your existing equipment, so it's all ready to go. We'll use neat wire management so you don't have to look at any untidy cabling and to complete your fuss-free installation, we'll test and demonstrate your TV's functions.

TV & HOME CINEMA INSTALLATION

We'll un-box, connect and set up your new and existing equipment. We'll then configure, calibrate and optimise the equipment. To avoid ugly trailing cables, we'll clip them to your skirting board, if you'd like us to. Then we'll give you a demonstration.

FAULT & FIX SERVICES

With our FAULT & FIX services, we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for:

• Desktops PCs
• Laptops
• Netbooks
• TVs
• Games consoles

KNOWHOW®

Contents

Safety Warnings....5

Preparation....7

Unpacking the TV....7

Installing / Removing the Base Stand....8

Mounting the TV to a Wall 8

Front / Right Side View and Controls....9

Rear View and Sockets 10

Installing Batteries in the Remote Control....11

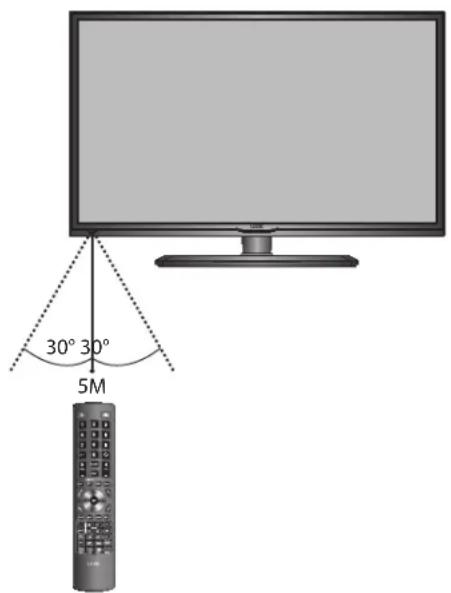

Remote Control Operation Range 11

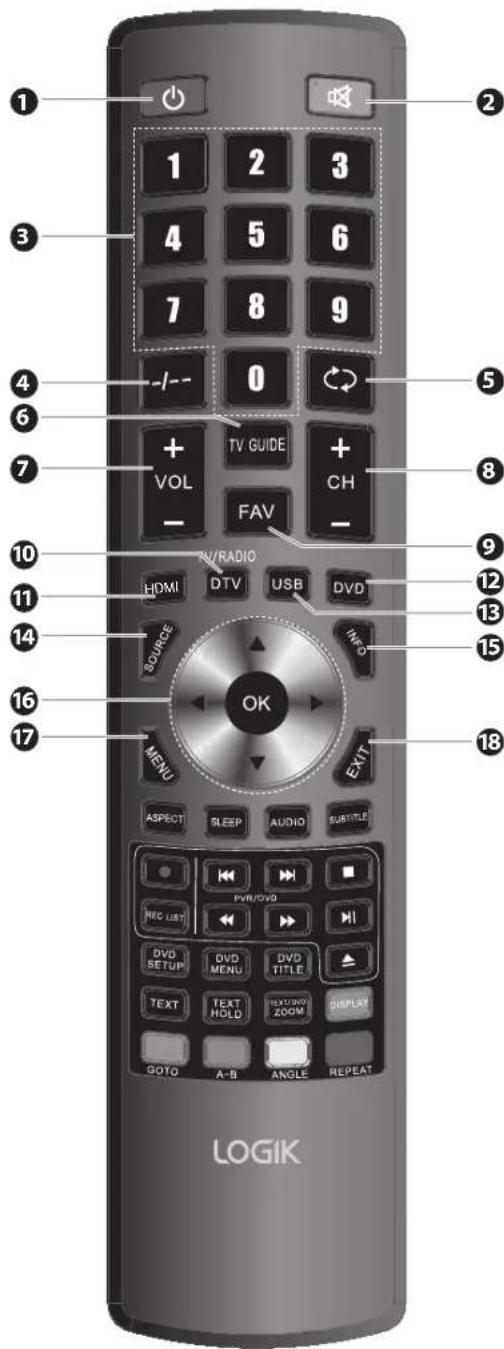

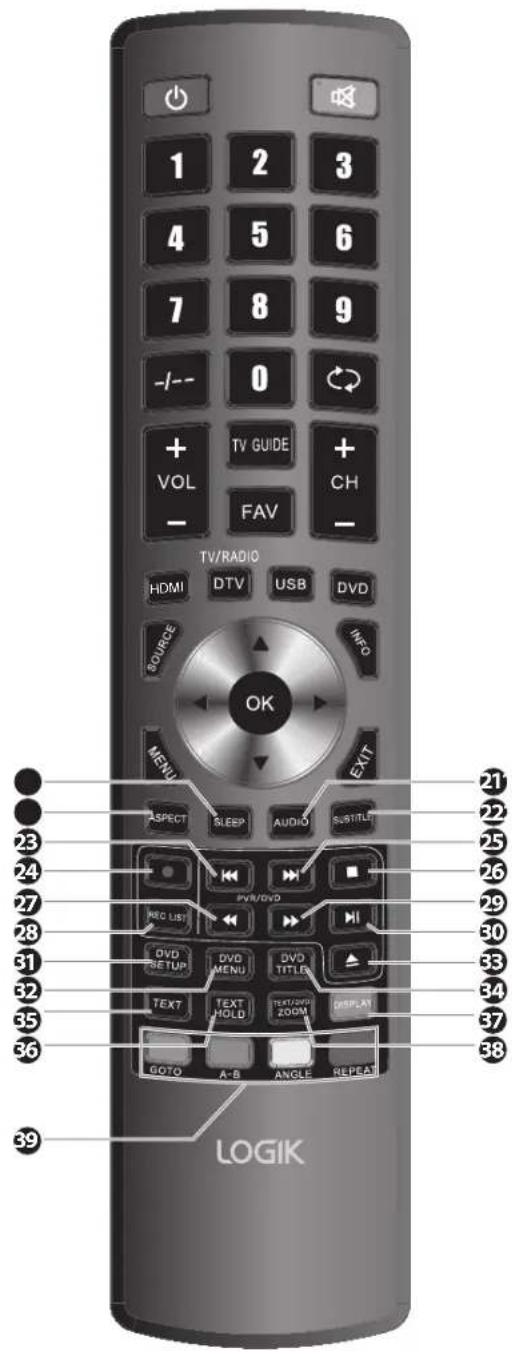

Remote Control....12

Initial Setup 14

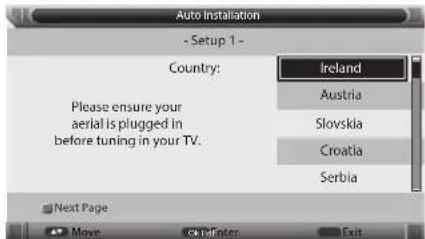

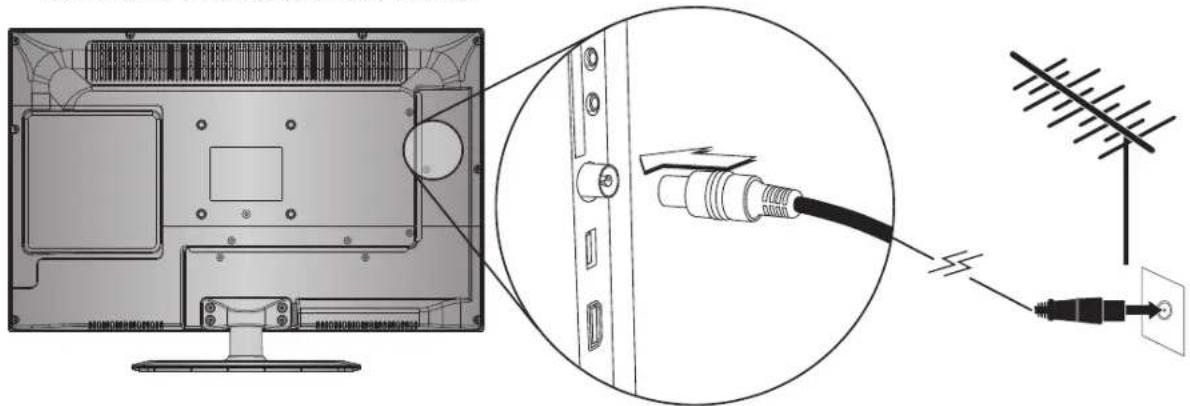

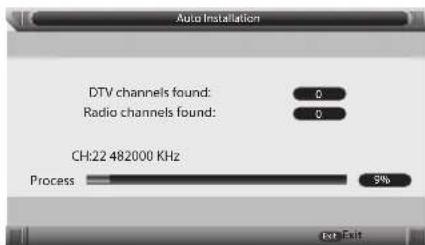

Turning the TV On for the First Time....14

- Connecting an Analogue Device....15

- Channel Selection ....16

– Display Channel Information ....16

– Volume Adjustment....16

– Picture Menu....17

– Sound Menu....17

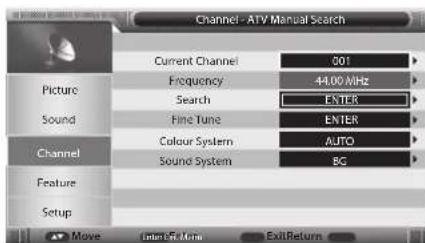

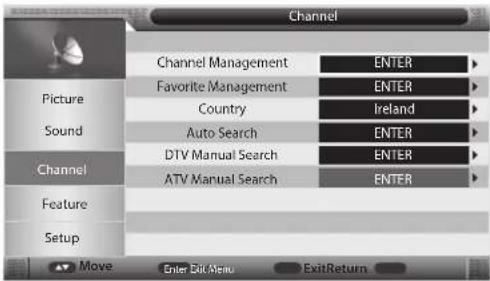

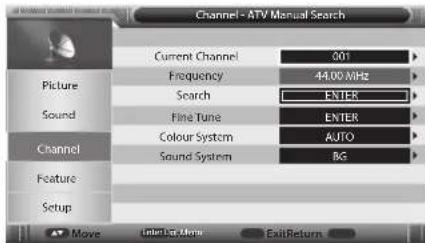

- Channel Menu....17

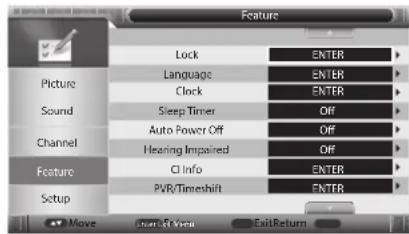

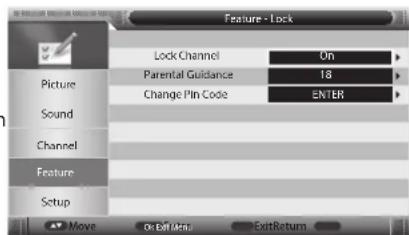

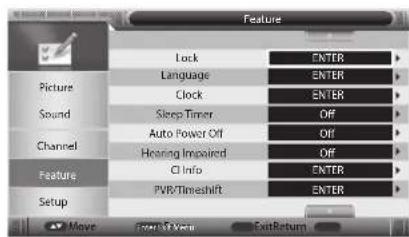

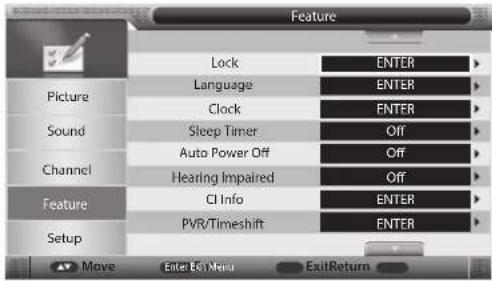

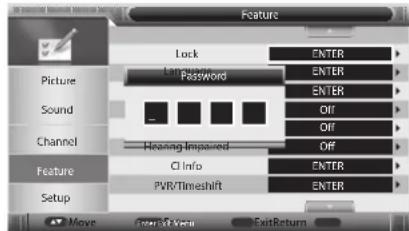

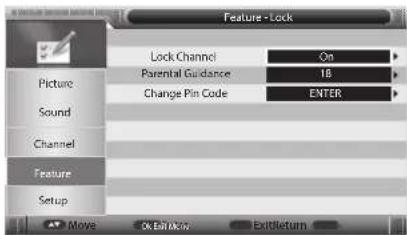

- Feature Menu....18

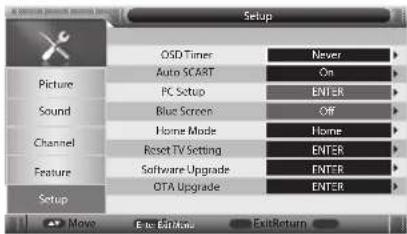

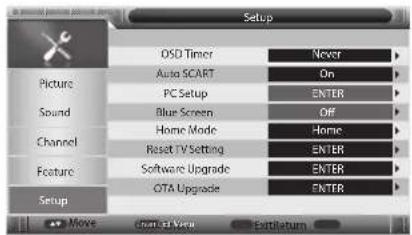

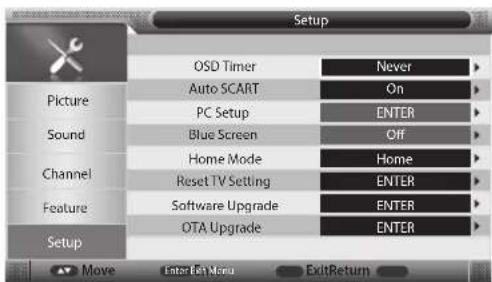

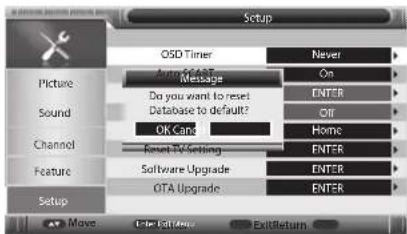

- Setup Menu....18

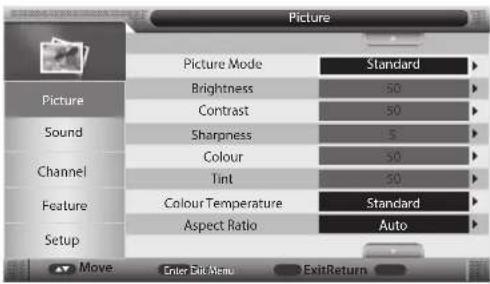

Picture Settings - Picture Menu....19

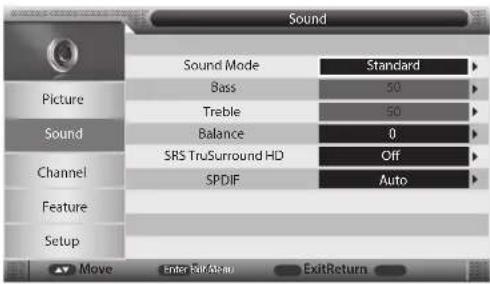

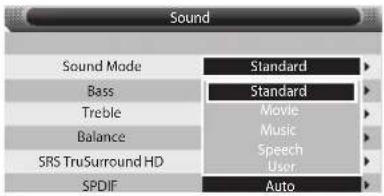

Sound Setting - Sound Menu 20

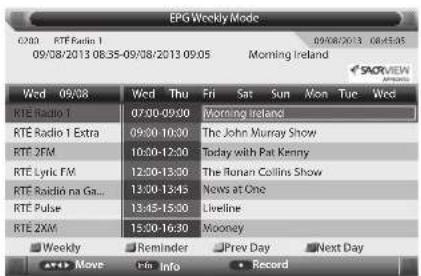

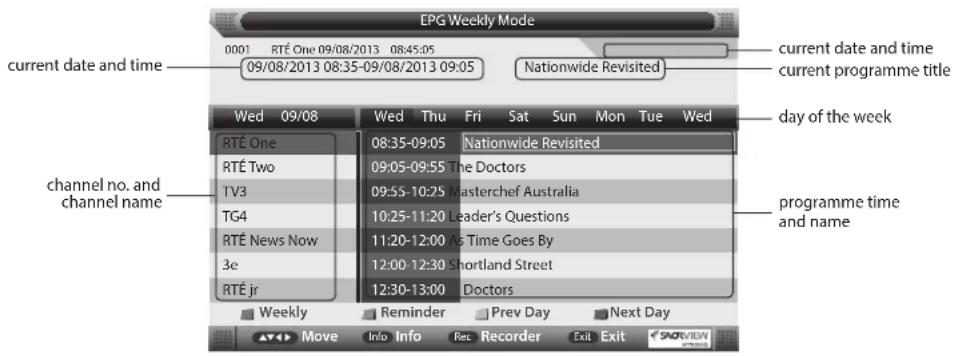

EPG (Electronic Programme Guide) (DTV Mode)....21

- Switch On / Off EPG....21

- Select a Programme ....21

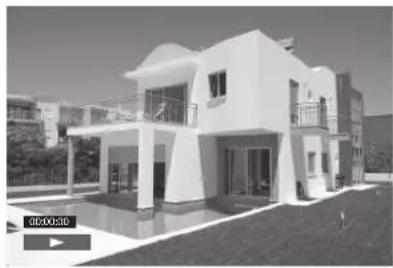

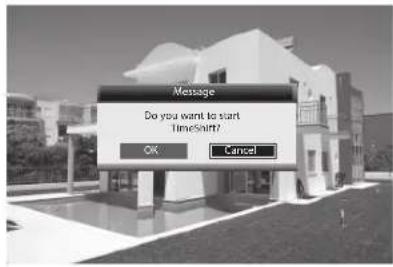

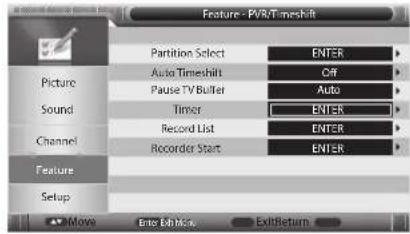

Time Shift Recording onto a USB Storage Device 22

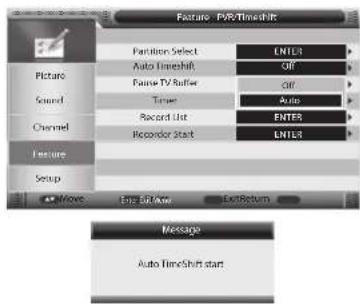

- Auto TimeShift....22

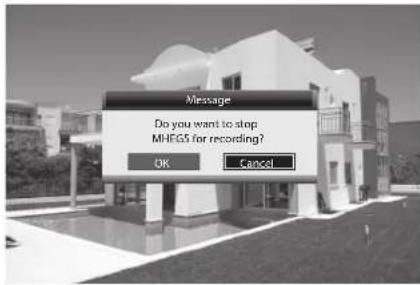

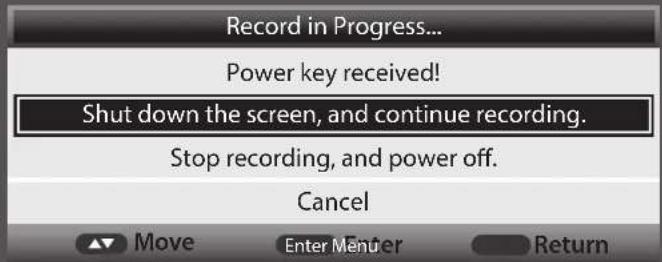

Recording DTV Programmes onto a USB Storage Device 23

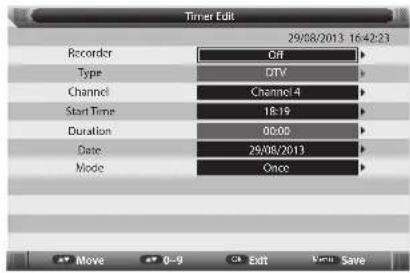

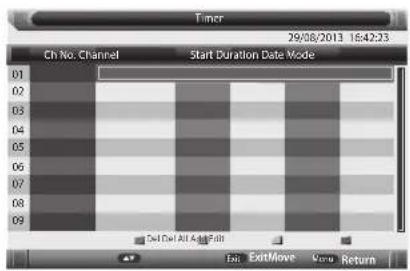

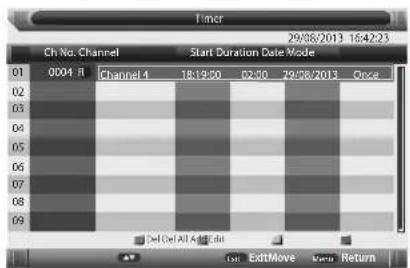

Timer Programming....24

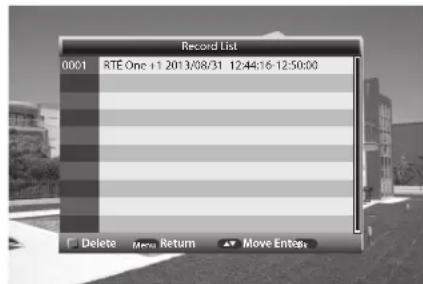

Playing Recorded Programmes 25

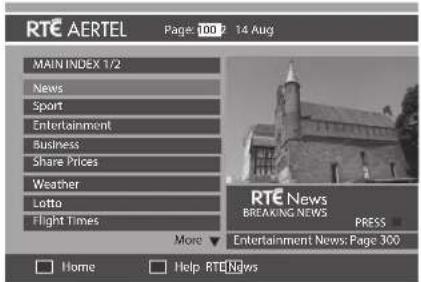

Digital Teletext (DTV Mode) 26

- Teletext within Digital Service....26

Listening to the Radio 26

Using the DVD Features....27

Using the Built-in DVD Player....27

Compatible Disc Types....27

– Supported Formats......27

- Region Code 27

Basic DVD Playback Functions 28

Using the DVD General Setup Page 30

Using the DVD Audio Setup Page 31

Using the DVD Preference Page 32

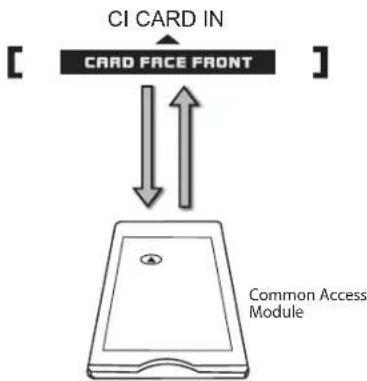

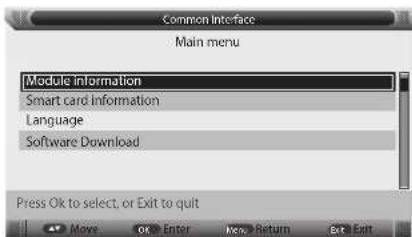

- CI (Common Interface) (DTV Mode) 33

- Software Upgrade (USB) 34

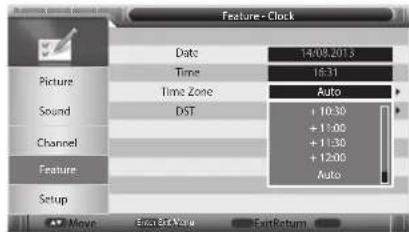

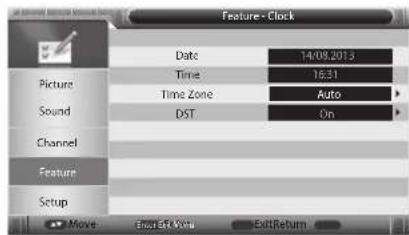

Clock Settings....34

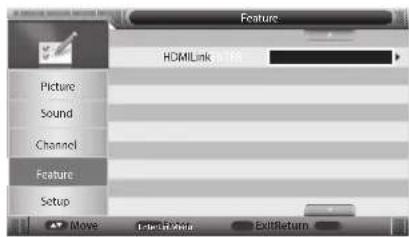

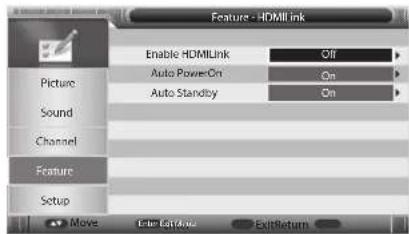

– HDMI CEC (Consumer Electronics Control) (HDMI Mode) 35

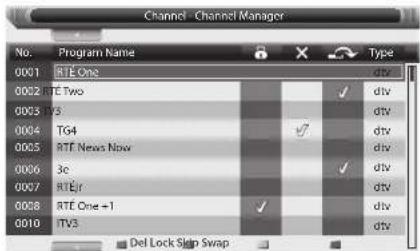

Channel Management....37

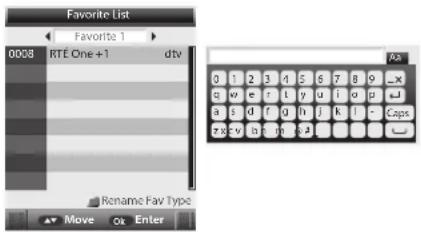

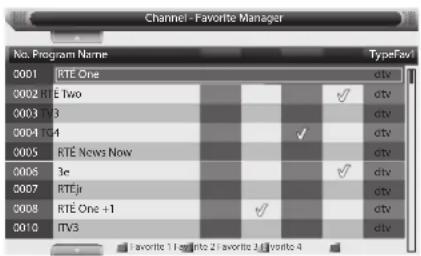

Favorite Channel Management 38

- Renaming your favorite list....38

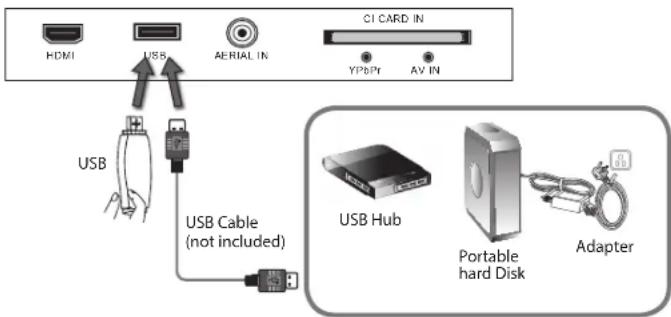

Connecting a USB Storage Device 38

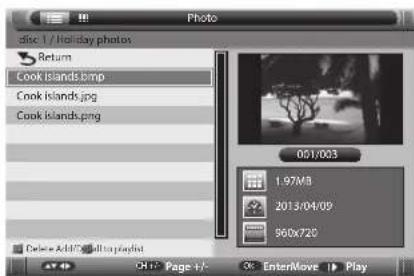

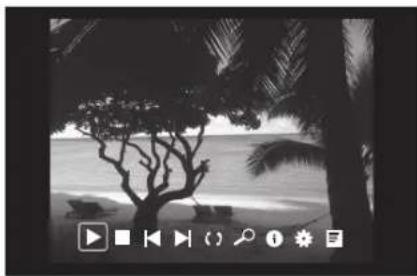

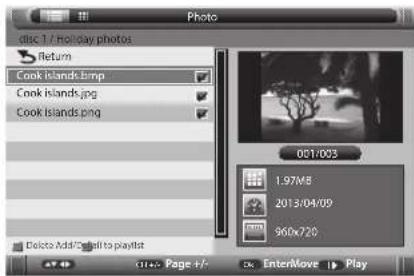

Media mode - Viewing Photos 39

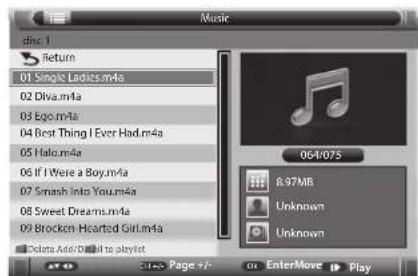

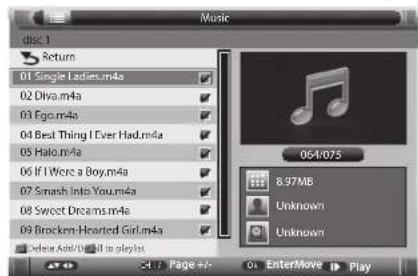

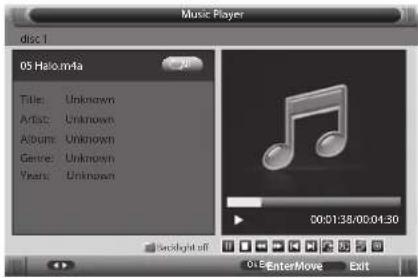

Media mode - Listening to Music....40

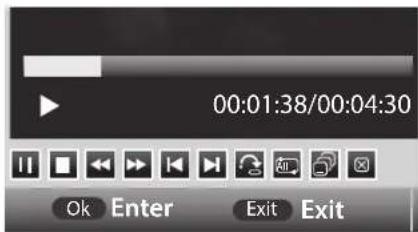

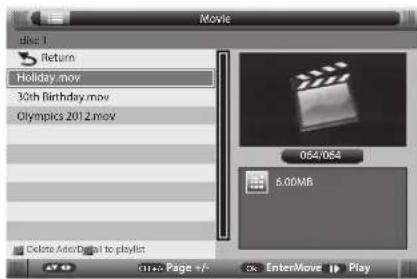

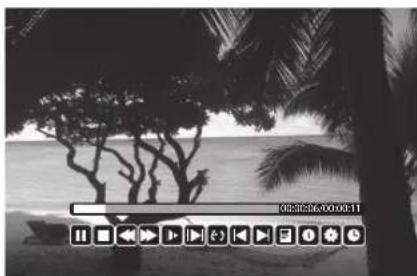

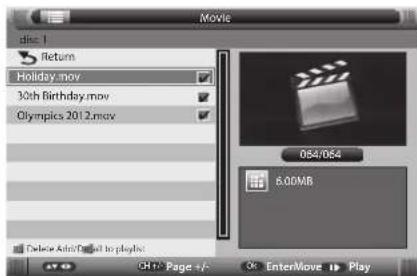

Media mode - Viewing Movies....41

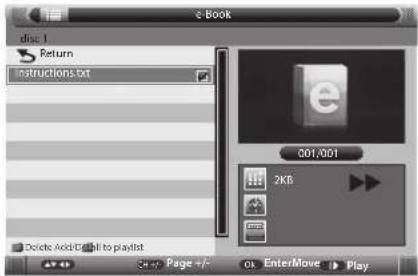

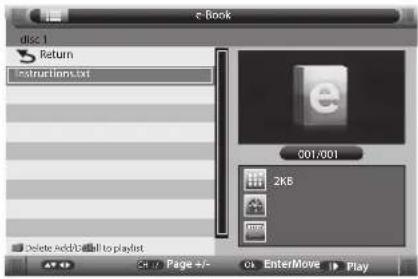

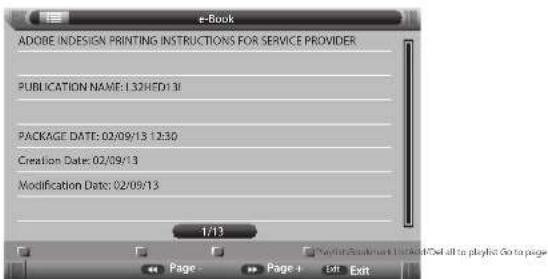

Media mode - Viewing eBooks 42

Maintenance....43

Hints and Tips....44

Specifications....46

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
- Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum Viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LCD Screen

- The LCD screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen.

• Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.
2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

• To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Standby

- The ⏻ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

DVD

• Class 1 Laser Product

This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.
• Always remove the disc when the unit is not in use.
• Failure to do so will risk severely damaging the disc and the unit.
• Do not stack devices, heat from other devices may affect the performance of the unit.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.
• The wall socket plug is used as a disconnect device, the disconnect device should be readily accessible.
• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Thank you for purchasing your new Logik 24" Full HD LED TV with DVD Player.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a blank television screen with no visible text, symbols, or markings

TV

TV Stand

Remote Control / AAA Batteries x 2

Screw x 3 Component Adapter Cable

(YPbPr)

Composite Adapter Cable (AV)

Instruction Manual Quick Start Guide

Line drawing of a Main Adaptor device with cables and power cord (no text or symbols on the device itself)

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

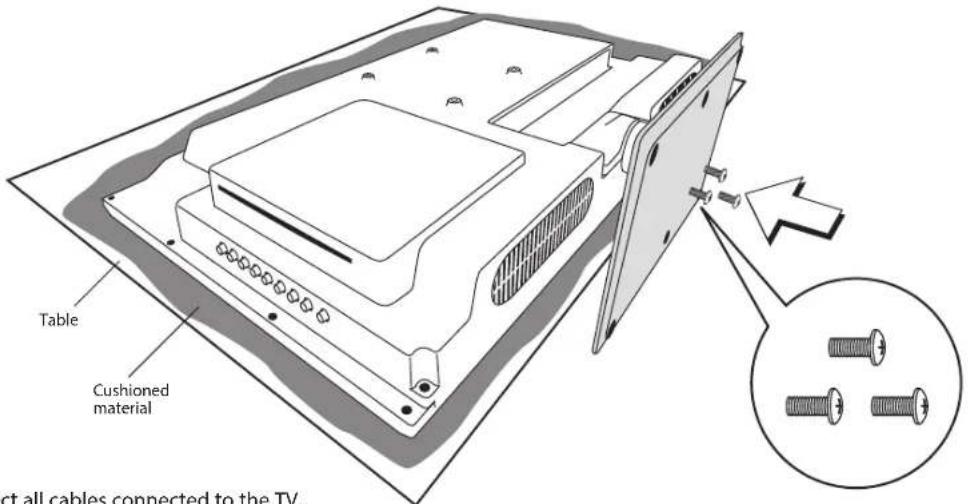

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly overhangs the edge of the table, with the back side facing up. Please make sure a soft cushioned material (such as a dry bath towel or thick piece of foam) is placed beneath the screen.
3. To install the TV stand, place the stand into the stand recess on the back of the TV.
4. Secure the stand using the 3 screws provided.

Mounting the TV to a Wall

Remove the stand assembly before mounting the TV onto the wall.

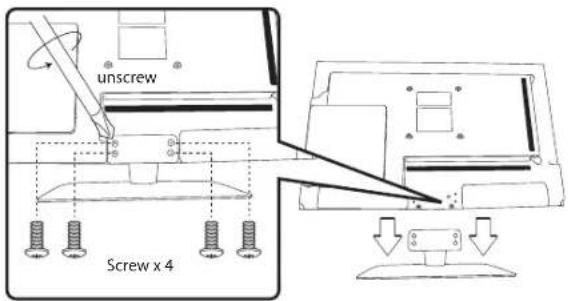

1. To remove the stand assembly, untighten the 4 screws holding the stand assembly to the rear of the TV. Slide the stand assembly out.

Keep all the spare screws should you want to use the stand assembly option.

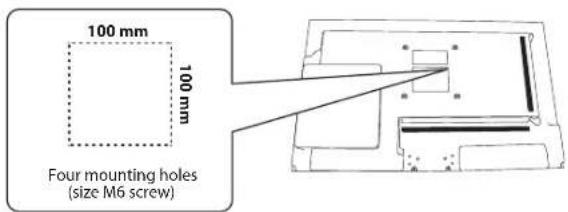

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 100 mm x 100 mm mounting kit (sold separately) designed for flat-panel TVs. Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections before mounting on to the wall.

• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our ROI Call Centre on 1 890 818 575 or UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

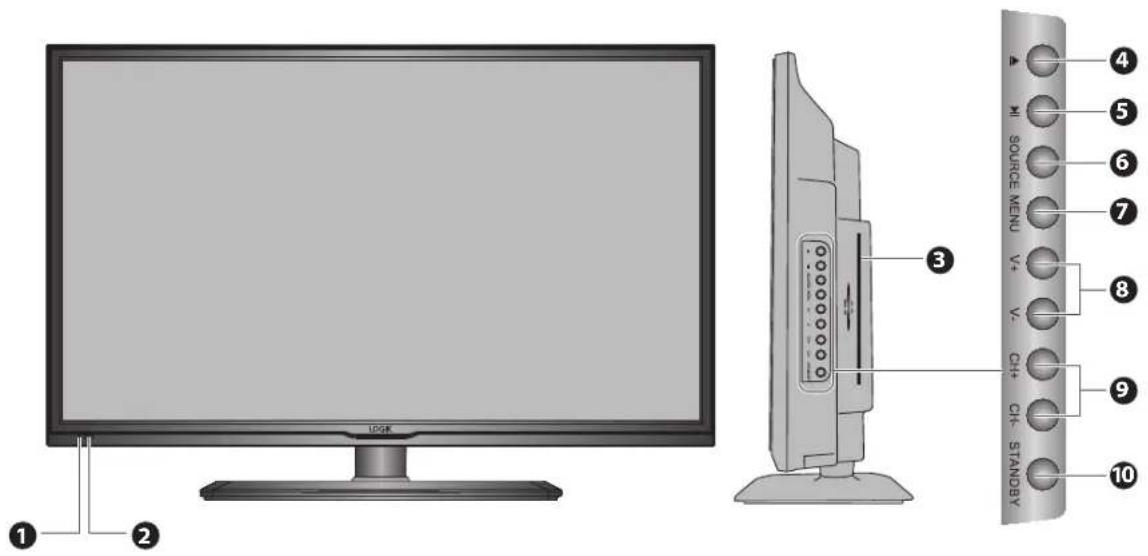

Item Description

1 POWER LED	Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will illuminate blue and then blink red and blue confirming that a timer recording programme has started in the standby mode.
2 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
3 Disc Slot	Insert the disc with the label side facing the rear of the TV. (12 cm discs only. Don't insert 8 cm discs.)
4 ▲	Press to eject disc. (DVD mode)
5 ▶II	Press to start playback or pause. (DVD mode)
6 SOURCE	Press to select among different input signal sources:DTV / ATV / AV / SCART / YPBPR / HDMI / PC / Media / DVD.Confirmed the selection on OSD menu.
7 MENU Displays the OSD (on screen display) menu.
8 V + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
9 CH + / - Press to select a channel.
10 STANDBY Switches the TV on or into standby mode.

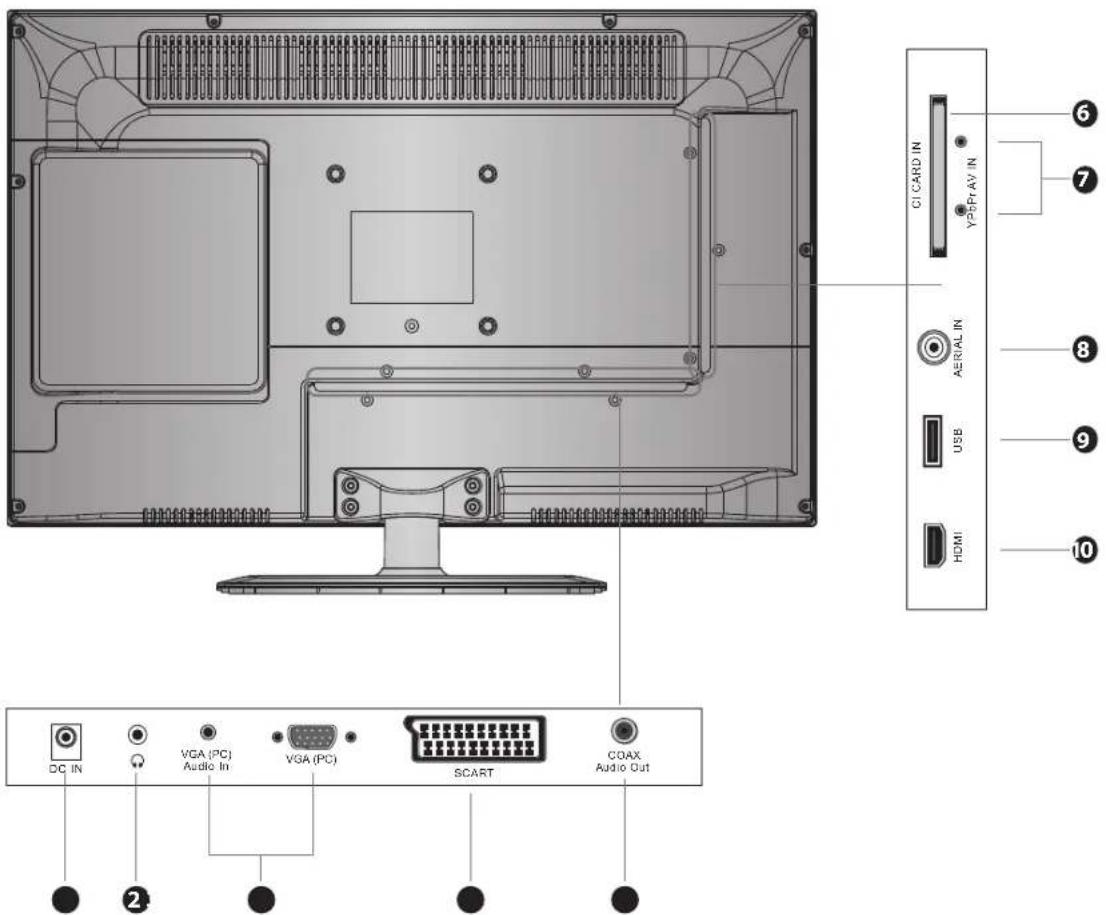

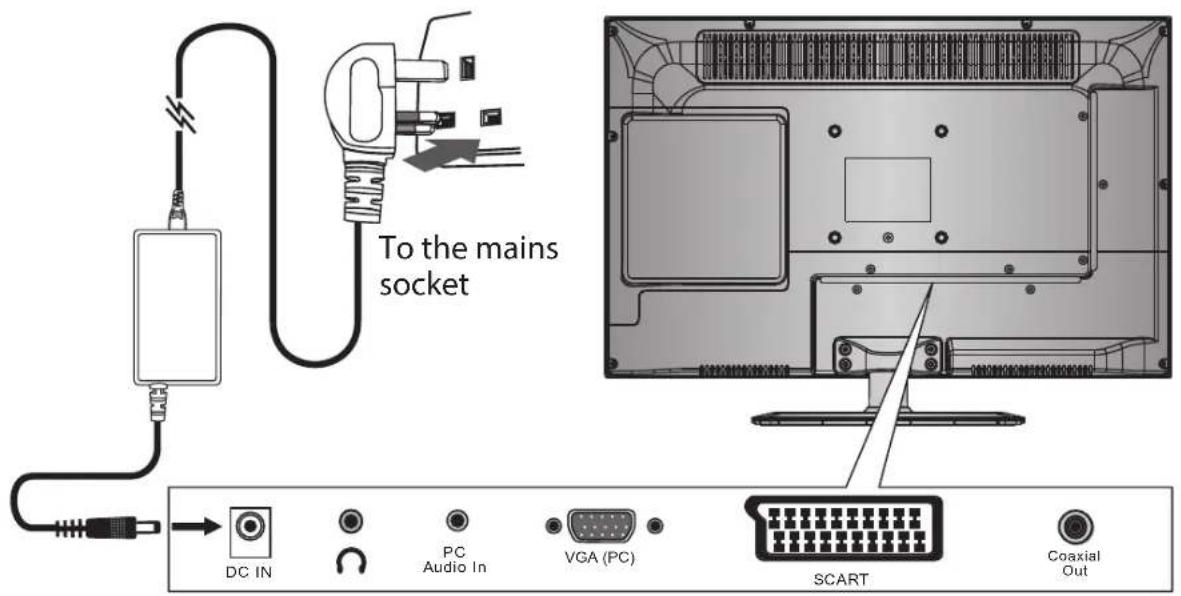

Rear View and Sockets

Item Description

1 DC IN Connects the mains adapter to the mains socket.

Connects to the headphones

3 VGA (PC) /

VGA (PC) AUDIO IN

Connects to a computer or other devices with a VGA interface.

4 SCART

Connects to a VCR, DVD Player, or other AV device with a SCART output socket.

5 COAX Audio Out

Connects to the audio socket on the digital/standard 5.1 audio system for listening to Dolby Digital sound.

6 CICARD IN Allows the insertion of a Common Access Module.

7 Mini YPbPr/AUDIO IN (L/R)

Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.

8 AERIAL IN Connects to the aerial socket on the wall with the RF coaxial cable.

9 HDMI

Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.

10 USB

Allows the insertion of a USB storage device to play video, audio, photo and text files (USB mode) and record DTV programmes on to a USB storage device.

Installing Batteries in the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Top-down schematic of a remote control panel with a directional arrow indicating movement (no text or symbols)

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

Remote Control

1. ⏻ Switch the TV between on and standby mode.

2. MUTE Mute and restore your TV sound.

3. 0-9 Number Button • Press to select a programme. (DTV / RADIO mode) • Select numbered items in a menu. (DVD mode)

4. -/-- Feature not available.

5. ☐RECALL Return to the previous viewing channel. (DTV mode)

6. TV GUIDE Display the EPG (Electronic Programme Guide). (DTV mode)

7. VOL + / - Adjust the volume.

8. CH + / - Select a channel.

9. FAV Display the favourite channel list. (DTV mode)

10. DTV (TV/RADIO) A short-cut to switch input source to TV / Digital radio channels. (DTV mode)

11. HDMI A short-cut to switch input source to HDMI 1, 2, or 3.

12. DVD A short-cut to switch input source to DVD. (DVD mode)

13. USB A short-cut to switch input source to TV / Digital radio channels. (DTV mode)

14. SOURCE Select among the different input signal sources: DTV / ATV / DVD / AV / SCART / YPBPR / HDMI 1 / HDMI 2 / HDMI 3 / PC / USB.

15. INFO

16. Display the present channel information such as the current time and channel name. (DTV mode)

17. Display the present disc information. (DVD mode)

18. ◀▲▼▶ Allow you to navigate the OSD menus and adjust the system settings to your preference.

OK

• Confirm the selection in the OSD menus.
  • Display channel list. (DTV / RADIO mode)

• MENU • Display the OSD (On Screen Display) menu. • Return to the previous menu in the OSD menus.

• Exit Exit the OSD menu.

19. SLEEP

Set the TV sleep timer: OFF / 10 / 20 / ... / 180 / 240 min.

20. ASPECT

Watch the screen in various formats: Auto / 4:3 / 16:9 / Full / Zoom 1 / Zoom 2 / Cinema / Just Scan.

21. AUDIO

- Switches between the audio languages (only applicable when the TV programme / disc has this features). (DTV / DVD mode)

22. SUBTITLE

- Select subtitles which are broadcast with the programme. (DTV mode) - Select subtitles on the DVD. (DVD mode)

23.

To skip to the beginning of the previous chapter / track / photo. (DVD / USB mode)

24.

Record the current programme. (DTV mode)

25.

To skip to the beginning of the next chapter / track / photo. (DVD / USB mode)

26.

To stop the playback or recording. (DTV / DVD / USB mode)

27.

To reverse playback rapidly. (DVD / USB mode)

28. REC LIST

Display the record list. (DTV mode)

29.

To advance playback rapidly. (DVD / USB mode)

30.

- To start the timeshift playback. (DTV mode) - To start playback or pause. (DTV / DVD mode)

31. DVDSETUP

Display and exit the DVD setup menu. (DVD mode)

32. DVDMENU

Display the DVD menu. (DVD mode)

33.

Eject a disc. (DVD mode)

34. DVDTITLE

Display the DVD title content. (DVD mode)

35. TEXT

Turn on and off the teletext function. (DTV mode)

36. TEXT HOLD

Freeze a multi-page passage on screen in teletext. (Feature not available)

37. DISPLAY

No function.

38. TEXT/DVD ZOOM

- Zoom in on the displayed frame. (DVD mode)

39. Coloured buttons

Access the TELETEXT items (DTV mode) or menu options. GOTO (RED) To skip to a specific location on a DVD / CD. (DVD mode)

A-B (GREEN)

Repeat a segment between A and B. (DVD mode)

ANGLE (YELLOW)

Select different angles for the video. (DVD mode)

REPEAT (BLUE)

Select between different repeat modes. (DVD mode)

Turning the TV On for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the AERIAL IN socket at the rear right bottom view of your TV.

Diagram showing a computer monitor with an attached cable and its connection to an antenna (no text or symbols present)

1. Connect the mains adapter to the mains socket after you have completed all the connections. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
2. In standby mode, press the ⏻ button on the remote control to turn the TV on. The red LED indicator will turn blue.

Do not connect the TV to the mains supply until you have completed all the connections.

• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The STANDBY button on the front right side panel of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.

The first time you turn the TV on, the above menu will appear on the screen.

Please ensure the aerial is plugged in.

1. Press the ▲▼buttons to select your desired country. The default country is Ireland. Then press OK.

2. Press the ▲▼ buttons to select your desired language. The default language is English. Then press OK

3. Press the OK button. Your TV will now start to tune in all available channel.

The tuning menu will appear, the tuning process will take a few minutes. When a picture appears your TV has finished tuning.

Connecting an Analogue Device

If you have connected an analogue device such as a video recorder via the aerial socket on your TV you will have to tune it in using ATV mode. Ensure the device is switch on before you start the tuning process.

1. Press the SOURCE button, press the ▲▼buttons to select ATV and press OK.

2. Press the MENU button, then press the ▲▼buttons to select CHANNEL and press OK.

3. Press the ▲▼ buttons to select ATV MANUAL SEARCH and press OK.

4. Press the ▲▼ buttons to select SEARCH then press OK. Press the ◀▶ buttons to start the search for your device. The search will automatically stop when the device is found.

5. Press the EXIT button to exit the menu.

Channel Selection

- Press the CH + / - buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to Channel Management for details).
• Press the FAV button to view the Favourite List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel, the Favourite List will be blank unless you have added your favorites.
• Press the ⬇ button to return to the previously viewed channel.

Display Channel Information

- Press the INFO button to view the current information.

Volume Adjustment

• Press the V + or – button on the right side panel of the TV or the VOL + or – button on the remote control to adjust the volume.
• If you wish to switch the sound off, press the MUTE button. Press the MUTE button again or the VOL + or - button to resume audio listening.

To access the menu press the MENU button. The main is split into 5 sub menus, PICTURE - SOUND - CHANNEL - FEATURE - SETUP. To select a sub menu press the ▼ button to highlight the desired menu and then press OK to enter the menu. The menus are shown below.

Picture Menu

Picture mode: Dynamic - Standard - Mild - User

Brightness: Only accessible if User was selected from Picture Mode.

Contrast: Only accessible if User was selected from Picture Mode.

Sharpness: Only accessible if User was selected from Picture Mode.

Colour: Only accessible if User was selected from Picture Mode.

Tint: Only accessible if User was selected from Picture Mode.

Colour Temperature: Standard - Cool - Warm.

Aspect ratio: Auto - 4:3 - 16:9 - Full - Zoom 1 - Zoom 2 - Cinema - Just Scan.

Noise Reduction: Off - Low - Middle - High

Sound Menu

Sound mode: Standard - Movie - Music - Speech - User - Auto.

Bass: Only accessible if User was selected from Sound Mode.

Treble: Only accessible if User was selected from Sound Mode.

Balance: Adjusts the sound from left and right speakers.

SRS TruSurround HD: On - Off.

SPDIF: Off - PCM - Auto - Multi.

Channel Menu

Channel Management: Opens the Channel Manager menu.

Favorite Management: Opens the Favorite Manager menu.

Country: Select your country from the list.

Auto Search: Opens the Auto Search menu.

DTV Manual Search: Opens the DTV Manual search menu.

ATV Manual Search: Only accessible in ATV mode. Opens the ATV Manual search menu.

Feature Menu

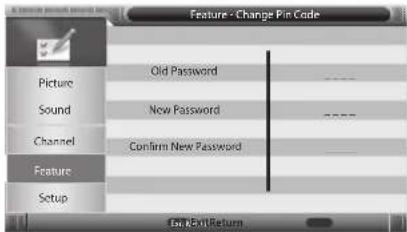

Lock: You will be asked for a Password (preset to 1234), then the Lock menu will open.

Language: Opens the Language menu.

Clock: Opens the clock menu.

Sleep Timer: Set the sleep timer from OFF to 240mins.

Auto Power Off: Set the TV to automatically switch off in a set time. OFF - 1 hour - 2 hour - 4 hour. The default setting is set to 4 hours.

Hearing Impaired: Switches hearing impaired on or off.

CI Info: Opens the Common Interface menu.

PVR/Timeshift: Opens the PVR/Timeshift menu.

HDMI Link: Opens the HDMI Link menu, where you can enable the HDMI link mode. Once enabled you can switch Auto powerOn ON/OFF and switch Auto standby ON/OFF.

Setup Menu

OSD Timer: Sets the amount of time the OSD will be displayed on the screen. Select from NEVER to 30 seconds.

Auto SCART: Sets the scart input to automatically switch on or off.

PC Setup: Only accessible only if you select PC from the source menu. This menu allows you to select AUTO ADJUST, H POSITION, V POSITION, PHASE and CLOCK.

Blue Screen: Switches blue screen on or off. When switched on if the TV can't find a signal a blue screen will be displayed. Not available in DTV and PC modes

Home Mode: Select HOME - DYNAMIC - STANDARD - MILD modes. This mode reduces the backlight brightness the lower the brightness the less energy your TV uses.

Reset TV Setting: Resets your TV back to factory settings. All channel and setting will be reset.

Software Upgrade: This is for updating the software on your TV, for a qualified engineer only.

OTA Upgrade: This option is not accessible.

For all picture adjustments you will need to access the picture menu.

Picture Mode Select among picture mode: Dynamic / Standard / Mild / User. The default setting is Standard. Select User if you want to adjust the picture settings yourself.
Brightness Increases or decreases the amount of white in the picture. (for User mode)
Contrast	Adjusts the difference between light and dark levels in the picture. (for User mode)
Sharpness	Adjusts the level of crispness in the edges between light and dark areas of the picture. (for Personal mode)
Colour Controls the colour intensity. (for User mode)
Tint (For NTSC format)	Adjusts the balance between red and green levels.(Tint is only available for NTSC signal input via the SCART or AV IN.)
Colour Temperature	Select among colour temperature: Standard / Cold / Warm.Adjusts the colour components independently to achieve a warm or cool colour. (for Personal mode)StandardCold: Increases blue tintWarm: Increases red tint
Aspect Ratio Changes the aspect ratio of the screen. The default is setting is Auto.You can set the aspect ratio to: Auto / 4:3 / 16:9 / Full / Zoom1 / Zoom 2 / Cinema / Full Scan.The aspect ratio can also be selected by pressing the ASPECTbutton on the remote control.
Noise Reduction Reduces the noise level of the connected device: Off / Low / Middle / High.

- Press the MENU button to return to the previous menu, press again to return to the main menu.

- Press the EXIT button to exit the menu.

Sound Setting - Sound Menu

Allows you to adjust the sound settings on your TV.

Sound Mode	Allows the selection of an audio-enhancement technique: Standard / Movie / Music / Speech / User.
Treble Controls the relative intensity of higher pitched sounds. (for User mode)
Bass Controls the relative intensity of lower-pitched sounds. (for User mode)
Balance Adjusts the relative volume of the speakers in a multiple speaker system.
SRS	SRS TruSurround HD^TM (TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT^® . Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity.
SPDIF Mode Selects the digital audio output mode.

• Press the MENU button to return to the previous menu, press again to return to the main menu.
• Press the EXIT button to exit the menu.

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the TV GUIDE button to switch on EPG.
2. Press the TV GUIDE button or the EXIT button again to switch off EPG and return to normal TV viewing.

Select a Programme

Press the ▲▼ buttons to select the desired channel and then press the ◀▶ buttons to select the desired programme. Press the OK button to confirm. To change between a weekly and daily view press the RED button.

Button Functions in a 7-Days Guide

Remote Control Button Function
RED Scroll between Weekly and Daily views.
GREEN	Press the GREENbutton to set reminder. The clock symbol will appear next to the time.A reminder will appear on the screen and count down 30 seconds from the start point of the chosen programme. Your TV will automatically switch to the chosen programme when the countdown get to '0'.
YELLOW	Press the YELLOWbutton to select the previous days programmes.
BLUEPress the BLUEbutton to select the next days programmes.
INFOPress to display detailed information of the selected programme (if available).
▲ or ▼ or ◄ ▶	Press to move around the EPG.
REC	To record a programme, you select the programme then press the RECbutton. The record symbol will appear next to the programme and it will be added into the Record list. This is a quick and easy way of setting a timer record.
OK	Highlight a channel and press OKto switch to view that channel.
TV GUIDE / EXITPress to switch off the EPG.

Time Shift Recording onto a USB Storage Device

This function allows you to pause live TV. The picture will pause and the programme will begin recording so you don't miss any of the programme. You will have to have a USB storage device attached to the USB socket for Time Shift Recording to work.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
- Stop the time shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device. The minimum transfer speed is 5MB/s.

1. While watching your TV, you may press the ▶■ button to pause the live programme if you want to go out for a while (e.g. going to the bathroom / kitchen).

2. You will then be asked if you want the start Timeshift. Highlight OK then press OK.

3. Then press the button.

4. When you have returned, press the ▶ button to play the missed broadcast programme.

The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed programme. It will soon turn to normal.

Exterior view of a modern two-story house with balconies and a curved roof (no signage or text visible)

Using the Remote Control

or ▶	When playing,Press the ◀button repeatedly to speed up ◀/ x 4 / x 8 / x 16.Press the ▶button repeatedly to speed up ▶2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶||button to return to normal playback.
||	During playback, press the ▶|| button to display a still screen and then press the ▶|| button again to resume playback.During fast forward / fast backward state, press the ▶||button to return to normal playback.
■	To stop timeshift recording or playback press the ■button.

Auto TimeShift

You can set your TV to automatically timeshift. When you switch Auto TimeShift to AUTO, every time you change channel your TV will automatically start to record the current programme. It will record for the time you set in the PAUSE TV BUFFER menu, 30 mins - 1 hour - 2 hours or if you set it to AUTO it will record until it runs out of space on your USB storage device.

1. In the FEATURE menu select AUTO TIMESHIFT and select AUTO.
2. Press the EXIT button to exit the menu. After a few seconds you will see the message 'Auto TimeShift Start'. The LED on the front of the TV will flash RED and BLUE, to indicate its recording.
3. To stop the auto timeshift, select OFF in the FEATURE MENU.

Recording DTV Programmes onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save it for future viewing.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. Press the ● button to record the programme that you are currently watching. A message will appear in the screen asking you 'Do you want to stop MHEG5 for record?' Select OK then press the OK button.

Your TV will now start to record and the Rec symbol will be displayed on the screen. The LED will also start to flash red and blue.

1. Press the ■ button to stop recording. The recording will then stop.

Recording will stop automatically when the disk is full.

Exterior view of a modern white house with balconies and water features (no signage or text visible)

If you want to turn off your TV during recording, press the 🔊 button. A dialogue will display.

Press the ▲▼ buttons to select your desired option and then press the OK button to confirm. If you select 'Shut down the screen, and continue recording', the screen will turn off but the recording will still be in progress, the LED indicator will alternatively flash red and blue.

Timer Programming

This function is used to perform scheduled recording. You can set the time and date you wish a recording to take place.

The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme.

Please make sure the USB device is inserted. If not, a warning message will pop up.

1. In the FEATURE menu select TIMER. The timer menu will appear.

1. Press the YELLOW button to add a timer record to the timer list. The TIMER EDIT menu will appear.
2. Set the Recorder to ON.
3. Choose the type of recording Digital TV (DTV) or Radio.
4. Select the channel that you wish to record.
5. Set the time you want to start the recording.
6. Set the duration of the recording.
7. Set the date you want the recording to record.
8. Finally, set the amount of times you would like the recording to record. ONCE - DAILY - WEEKLY - MONTHLY.

When you have set all of the above press the MENU button to save the timer into the TIMER menu.

• When the preset time is reached, the TV will start recording automatically.
• If a programme recording starts when the TV is in standby mode, the LED indicator will alternatively flash red and blue.

Playing Recorded Programmes

The recorded List shows a list of all the recordings that have been made. You can view all your recordings from this list and see information about each recording.

1. Press the REC List button on the remote control. The Record List menu will appear. Press the ▲▼ buttons to select the desired recorded programme.

2. Press the OK button to view the recording. If you have more than one recording in the list, when one finishes it will automatically start to play the next recording in the list.

- To delete a recording highlight the recording you wish to delete then press the RED button. Then select OK and the recording will be deleted.

Playback Controls

You can play, pause, fast forward, fast rewind and skip forwards and backwards in 30 second increments.

◀or ▶	When playing,Press the ◀button repeatedly to speed up ◀2 / x 4 / x 8 / x 16.Press the ▶button repeatedly to speed up ▶2 / x 4 / x 8 / x 16.During fast forward / fast backward state, press the ▶ll button to return to normal playback.
◀or ▶Press the	button to skip to the next recording.Press the ◀button to skip back to the previous recording.
▶II	During playback, press the ▶llbutton to display a still screen and then press the ▶llbutton again to resume playback.During fast forward / fast backward state, press the ▶ll button to return to normal playback.
■	If you want to stop the recording and return to the current live broadcast, press the ▶button.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 37 for details).

Teletext within Digital Service

1. In DTV mode press the TEXT button to display teletext page.
2. Follow the instructions on digital teletext page and move around the page by pressing ▲◀▶▼, OK, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.

To change digital teletext services, you will need to exit the current text service and change channels. Then enter the text service on the newly selected channel.

Alternative

You may press the RED button to display the teletext information when you see a red "press ●" logo in the top right corner of the screen (e.g. BBC services). This will now display the teletext menu and available information categories.

To access the pages, use navigation buttons to highlight item required and press the OK button to select.

Follow on screen prompts for other functions.

1. Press the TEXT button to exit.

Listening to the Radio

You can listen to radio stations through your TV.

1. Press the TV/RADIO button to select radio mode.
2. Press the CH +/- buttons to change radio stations or press the TV GUIDE button to see all the stations in the Programme Guide.
   • You will NOT be able to record any radio stations.

Using the Built-in DVD Player

1. Insert a disc with the label side facing towards the rear of the TV. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW) Allow 10 seconds for the player to load the disc. If you insert the disc incorrectly, an error message will be displayed.
2. After the disc is inserted, the TV will change the input source to DVD automatically and Smart NAVI will show the content of the disc automatically.
3. If the DVD player does not automatically play the disc, press the DVD button then press the ▶II button on the remote control to start playing.
4. Press the ▲ button if you want to remove the disc.

Unable to play disc!

Check label faces rear of TV Check disc for marks or damage Check disc is compatible type.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
DVD-VIDEO (Digital Versatile Disc)		AUDIO + VIDEO
DVD±RW (Audio/Video format or JPEG files)	[SWAG]	AUDIO + VIDEO + JPEG
DVD±R (DVD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Supported Formats

JPEG

- Pictures encoding must comply with JPEG/ISO format.

Some recorded files may not be played due to the type and format of the disc or condition of the recording.

Region Code

Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

The Region Number for this DVD player is described on the rear panel of the TV.

Disc Type DVD-VIDEO
Region code

Basic DVD Playback Functions

Playing the DVD

Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the ▶ button to switch between Play and Pause mode.

Menu Playback (for DVD)

For DVD discs, the screen will display the DVD Disc Menu (Root Menu).

Press the ▶|| button or the OK button to start from the highlighted content.

Press the DVD MENU button to return to the Root Menu when playing the disc.

For some DVD discs you may need to press the DVD MENU button or the DVD TITLE button to display the Disc Menu.

Stopping Playback

Press the ■ button once to stop. Press the ▶■ button to resume from where you stopped. Pressing the ■ button twice to stop will remove the resume feature. The next time you play the DVD it will start from the beginning of the disc.

In order to protect the disc, press the ■ button and then press the ▲ button to eject the disc. When the disc is ejected, hold the disc edge and remove it from the disc slot.

When not using the DVD function, please take out the disc to protect the DVD loader and the disc.

Previous / Next (for DVD / CD / Multimedia discs)

Press the button to play the last Title / Chapter / Track.

Press the ▶ button to play the next Title / Chapter / Track.

If the current track is the first one, pressing the ◀ button will restart the disc from the beginning. If the current track is the last one, pressing the ▶ button will stop the playback.

For DVD discs, the above functions may vary due to different DVD disc's structure.

Forward / Backward (for DVD / CD / Multimedia discs)

There are 4 forwards and backwards speeds. Press the ▶ button to toggle between the different speed options in sequence. (x 2 / x 4 / x 8 / x 16 / x 32 / Play).

Press the ▶ button to return to normal speed playback.

For DVD discs, when selecting backward to first title / chapter, the disc will start from the beginning.

There will be no sound during forward or backward.

Pause (for DVD / CD / Multimedia discs)

- Press the button to pause; press the button again to resume playback.

Repeat (for DVD / CD / Multimedia discs)

Press the REPEAT button once to display the current repeat mode.

• For CD discs, while playing in sequence, you may use the repeat playback. There are 2 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT TRACK / REPEAT ALL / REPEAT OFF).
• For DVD discs, you may setup the repeat playback mode. There are 3 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT CHAPTER / REPEAT TITLE / REPEAT ALL).

For example.

REPEAT CHAPTER: will repeat the current selected chapter of the film REPEAT TITLE: will repeat the current title playing REPEAT ALL: will repeat the film when it finishes

- For MP3 / JPEG discs, while playing the disc, you may use the repeat playback. There are 4 repeat modes, press the REPEAT button to toggle between the different repeat functions (REPEAT ONE / REPEAT FOLDER / FOLDER / SINGLE).

Repeat A-B (for DVD / CD)

When playing DVD, CD disc, press the A-B button to repeat certain content. Press the A-B button on the start point (A) and the end point (B) to select the repeat part. Press the A-B button a third time to cancel the A-B button function and return to normal playback.

Info (for DVD / CD / Multimedia discs)

Press the INFO button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information.

For DVD discs, press the INFO button once to display the first page as shown below:

For CD discs, press the INFO button once to display the first page as shown below:

Press the INFO button twice to display the second page as shown below:

Press the DISPLAY button three times to display the three page as shown below:

Press the DISPLAY button four times to display the four page as shown below:

Angle (for DVD)

Allows you to switch the viewing angle of video, this feature is not available on every DVD, check your DVD for details.

Press the ANGLE button repeatedly to select the different angle you want to view.

Zoom (for DVD)

Allows you to zoom into the picture, 2x, 3x or 4x.

Press the DVD ZOOM button to select the size you want.

Goto (for DVD / CD / Multimedia discs)

This function allows you to play your favourite Title / Chapter / Time. Press the GOTO button. Enter your Title / Chapter / Time by pressing the 0-9 buttons or enter the playback time. Press the OK button to start. If the enter an invalid Title / Chapter or Time, it will not function.

For some discs, only Time can be selected in the GOTO function.

Audio (for DVD / CD)

Press the AUDIO button to toggle between different audio modes in sequence.

For CD discs: Stereo / Mono Left / Mono Right / Mono - Mix.

Some discs may contain multiple languages which can be selected by pressing the AUDIO button.

Using the DVD General Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the General Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

TV Type 4:3 Pan Scan

Widescreen picture shown in the full screen with some part cut.

4:3 Letter box

Widescreen picture shown in the full screen with black bars on the top and bottom of the screen.

16:9 Wide

Widescreen picture shown in the full screen.

OSD Set the OSD language to your language of choice

The default language is English.

Screen Saver When the player stops or the picture becomes motionless for a couple of minutes, there will be a screen saver to prevent damage to the display screen.

ON: To activate screen saver.

OFF: To disable screen saver.

Last Memory

ON: Shutdown the TV before the settings for memory, re-boot the machine setting.

OFF: Every time the TV automatically switched back to the default settings.

Using the DVD Audio Setup Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the Audio Setup Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu.

In Setup mode, the disc playback function will not be available.

Option Description

Speaker Setup / Downmix

LT/RT Mixed stereo LT/RT output.

Stereo Mixed stereo surround output.

Dual Mono This is used to select the Stereo, L-Mono, R-Mono and Mix-Mono.

Dynamic This is used to set the compression ratio in order to control the sound (volume) contrast.

Using the DVD Preference Page

In the DVD mode, press the DVD SETUP button on the remote control. Press the ◀▶ buttons to select the Preference Page menu, and then press the ▲▼ buttons to select the menu options. Press the DVD SETUP button to exit the menu. This menu is only available when the DVD disk has been ejected.

Option Description

TV Type PAL

MULTI NTSC

Audio Select your audio language from English - French - German - Spanish - Italian - Portuguese.

Subtitle Select your subtitle language from English - French - German - Spanish - Italian - Portuguese or OFF.

Disc Menu Select your disc menu language from English - French - German - Spanish - Italian - Portuguese.

Parental

You can select your DVD player to play a particular age range of films that you think is suitable from 1 kid safe mode to Adult. The default setting is Adult so your DVD will automatically play all DVDs.

This feature may not be available on all DVD discs.

Password

The default password is 123456, but you can change this in the password menu.

Default

Select default if you want to reset all the settings back to the factory default.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off at the mains.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the MENU button and then press the ▲▼ buttons to select FEATURE menu and then press the ▶ button.
2. Press the ▲▼ buttons to select CI Info and then press the OK button.
3. You will see the name or your subscription channel provider, press OK. A CI Information Main menu will appear. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
4. Press the EXIT button to return to the previous menu. Press the EXIT button again to exit the menu.

Rear Right Side View of TV

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

Software Upgrade (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ie or call our Call Centre on 1 890 818 575. Our Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

• The OTA Upgrade menu is not available on this model.

Clock Settings

Allows you to adjust time zone and switch daylight saving on or off.

1. Press the MENU button and then press the ▲▼ buttons to select FEATURE and then press the ▶ button.

2. Press the ▲▼ buttons to select CLOCK then press the OK button.

The time will have been automatically set so you won't be able to select the time and date.

1. Press the ▲▼ buttons to select TIME ZONE or DST. Press the OK button and then press the ▲▼ buttons to adjust each option's setting.

2. Press the MENU button to return to the previous menu, press again to return to the main menu.

3. Press the EXIT button to exit the menu.

HDMI CEC (Consumer Electronics Control) (HDMI Mode)

Allows you to command and control two or more HDMI CEC compliant devices, that are connected through HDMI, by using only one of the remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). HDMI CEC also allows individual HDMI CEC compliant devices to command and control each other without user intervention.

Make sure that your HDMI CEC-compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.)

HDMI-CEC Connection

• This unit can only communicate with HDMI-CEC compatible devices.
  • To be sure that the HDMI-CEC device has this feature, check to see if there is HDMI-CEC compatible logo on it.

• Press the ▲▼ buttons to select HDMI LINK and then press the OK button.

• The FEATURE - HDMI LINK sub-menu will display.

Enable HDMI	This will allow your TV to communicate with the connected HDMI-CEC compliant device. Press the ▶ button the ▲Buttons to turn On or Off.
Auto PowerOn	This will allow your HDMI source to switch on automatically when HDMI is selected on your TV. Press the ▶ button the ▲▼ buttons to turn On or Off.
Auto Standby	This will allow your HDMI source to switch into standby automatically when HDMI is deselected on your TV. Press the ▶ button the ▲▼ buttons to turn On or Off.

1. Press the MENU button to return to the previous menu, press again to return to the main menu.
2. Press the EXIT button to exit the menu.

Restores all settings to the factory defaults.

1. Press the MENU button and then press the ▲▼ buttons to select the SETUP menu and then press the ▶button.
2. Press the ▲▼ buttons to select Reset TV Setting and then press the OK button.
3. Press the ◀ button to select "OK" then press OK. The TV will return to the first time installation menu. Press the ▶ button to select "Cancel" then press OK to cancel and return to the setup menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Lock Setting

To access all the LOCK menu options, you must enter the password. Enter the default password "1234" for first time use. To change the pin code, refer to "Change Pin Code".

Lock System

The Lock System is designed to prevent accidental re-tuning of the TV / losing of channels and to prevent children from watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock is set to On, a valid pin code must be entered when you accessing and of the feature in the Channel menu and Reset TV Setting in the Feature menu.

1. In the Feature menu select Lock.

1. You will be asked to enter a Password. The default password is 1234.

The default password is "1234".

If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

1. Once you have switched Lock Channel On you will be able to access Parental Guidance and Change Pin Code.

- Parental Guidance allows you to set a recommended viewing age for programmes (this is now always broadcast so may not work). This can be set from age 4 to 18 or set to Off.

1. Press the MENU button to return to the previous menu.

2. Press the EXIT button to exit the menu.

Changing the Pin Code

1. Select Change Pin Code in the Feature - Lock menu. The Change Pin code menu will appear.

1. Enter the old password using the 0-9 buttons. Confirmation. The default pin code is 1234.

The default password is "1234". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password"8899".

1. Then enter the new Password and confirm the new password. Your TV will say Successfully Updated and go back to the Lock menu.

Channel Management

In the channel management menu you can delete, lock or skip channel.

1. In the channel menu select CHANNEL MANAGEMENT.

2. To delete a channel, select the channel then press the RED button. A red tick will appear in the column with the 'X'. Press EXIT, a message will appear saying 'Do you want to delete the selected item?' select OK. And the channel will be deleted.

If the lock is switched on you will have to enter your password to delete a channel.

1. To lock a channel, select the channel then press the GREEN button. A green tick will appear in the column with the padlock. When you now try to view this channel you will be asked to enter the password.

2. To skip a channel, select the channel then press the GREEN button. A yellow tick will appear in the column with the arrow. This channel will now be skipped when you are using the channel + / - buttons, but you will be able to select it using the number buttons.

Favorite Channel Management

In the favourite management menu you can select your favorite channels. Your TV has 4 favorite lists that can be renamed so each member of the family can have their own favorite list.

1. Select a channel that you wish to add to your favorite list and press the RED button for Favorite 1, GREEN button for Favorite 2, YELLOW button for Favorite 3 or BLUE button for Favorite 4. Red, green, yellow or blue tick will appear in the columns.

Renaming your favorite list

1. Press the FAV button to view the Favorite List.
2. Press the ◀▶ buttons to select the favorite list that you wish to rename.
3. Press the RED button. A keyboard will appear on the screen.
4. Press the ◀▶▲▼ buttons to type in a new name. Then select ←.

Connecting a USB Storage Device

1. Switch off the TV before connecting any USB storage device.
2. Connect your USB storage device to the USB port of your TV. If your USB device is powered by the main, plug the connected devices into the mains socket and switch on.
3. Press the ⏻ button on the remote control to turn on your TV.
4. Press the USB button on the remote control to enter USB mode.

Rear Right Side View of TV

• Some versions of portable hard disk may require more power than the TV USB socket can provide. To ensure correct operation please use the power adapter for that device.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
  • The file system only supports FAT32 format.
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.

Media mode - Viewing Photos

1. Press the USB button on the remote control or select MEDIA in the source menu.

2. Press the ◀▶ buttons to select PHOTO and then press the OK button.

3. Press the ▲◀▶buttons to navigate in the picture folder/file.

4. To select one photo to view press the OK button. A tick will appear next to the file name. To select all the photos to view press the GREEN button. A tick will appear next each file name.

5. Press the ▶ button to view your photos.

6. If you press the OK button while viewing your photos the menu symbols will appear.

Play the photo

Stop the photo

Skip back to the previous photo

Skip forward to the next photo

Rotate the photo

Zoom in and out of the photo. When zoomed in you press the ▲◀buttons to move around the photo.

Shows information about the photo. Resolution - Date - Model - Size.

Selects the Photo setup menu, where you can create a presentation, including adding background music and effects.

Shows all the Playlists that have been created on the USB device.

Black-and-white beach scene with palm trees and ocean (no text or symbols)

Media mode - Listening to Music

1. Press the USB button on the remote control.

2. Press the ◀▶ buttons to select MUSIC and then press the OK button.

3. Press the ▲◀▶▼ buttons to navigate the folder/files to select a music file. When a file is selected after a few second it will automatically start to play.

4. Press the OK button to add a track to your playlist, or press the GREEN button and all music tracks will be selected. A tick will appear next to the file name to show its selected.

5. Press the button to listen to your selected music.

You can play, stop, skip and search using the buttons on your remote control.

Select the controls in the bottom corner of the display to:

• Go to a specific section of a track
• Repeat tracks or play in a random order
  • See the current track or a list view
  • To switch the display off, you can also do this using the BLUE button.

Four grayscale app icons on a dark background, including a music note, film clapperboard, and video player (no text or symbols)

Media mode - Viewing Movies

1. Press the USB button on the remote control.

2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

3. Press the ▲◀▶buttons to navigate the folder/files to select a movie file.

4. Press the OK button to add a movie to your playlist, or press the GREEN button and all music tracks will be selected. A tick will appear next to the file name to show its selected.

5. Press the ▶|| button to view to your selected movie.

You can play, stop, skip and search using the buttons on your remote control.

Pause the movie.

Stop the movie.

Fast forward and fast rewind.

Slow motion playback.

Frame by frame playback.

Repeat A-B, repeats a selected section of the movie.

Skips to next or previous movie.

Shows all the Playlists that have been created on the USB device.

Black-and-white beach scene with palm trees and ocean in background, no visible text or symbols

Shows information about the photo. Resolution - Date - Frame Rate - Size.

Selects the Movie setup menu, where you can select Program - Subtitle - Audio - Repeat modes.

Lets you select a particular time within the movie.

Media mode - Viewing eBooks

1. Press the USB button on the remote control.

2. Press the ◀▶ buttons to select eBook and then press the OK button.

3. Press the ▲◀buttons to navigate the folder/files to select a movie file.

4. Press the OK button to add an eBook to your playlist, or press the GREEN button and all eBooks will be selected.

5. Press the ▶|| button to view to your selected eBook.

6. Press the ▶▶ or ◀buttons on your remote control to select the next or previous page.

Maintenance

Careful and regular cleaning can prolong the life of your TV.

Be sure to press the button on the remote control and disconnect the mains cable from the mains socket before any cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.
2. If the surfaces are extremely dirty, clean the TV with a damp cloth.
3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Illustration of a hand cleaning a flat-screen monitor (no text or symbols visible)

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
  • Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our Call Centre on 1 890 818 575. Our Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

The TV does not operate properly.
The TV does not respond when pressing any buttons	· The TV may freeze up during use. Switch the TV off at the main for a few minutes. Switch on again and try to operate it again as usual.
TV cannot be switched on	· Check that the TV is connected to the mains supply and switched on. · Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	· Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV. · Ensure that the batteries are installed with the correct polarity (+ to +, - to -). · Install new batteries.
Power is suddenly turned off	· Check the power of the TV. The mains supply maybe interrupted. · Check if the sleep timer is set. · Check whether the Auto Standby is activated.

The video function does not work.
No Picture & No Sound	Check whether the TV is switched on.Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	Adjust the settings in the PICTURE menu.Try another channel. The problem may be caused by the broadcaster.Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable channel may be experiencing problems, tune to another station.Station signal is weak, reposition the aerial for better reception.Check for sources of possible interference.
Lines or streaks in pictures	Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	Check if the input source is HDMI.
Picture appears in wrong ratio	Adjust the Aspect Ratio. Press the ASPECT button on the remote control.

The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the MUTE button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI.
Audio noise	Keep the RF coaxial cable away from other connected cables.

Password
Lost password	Select the Set Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.
There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & horizontal noise & incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or shows a single colour	Check the signal cable.Reinstall the PC video card.
The DVD function does not work.
DVD will not read the disc	Check if the disc is correctly inserted.Check that the disc is clean.Check if there is any obvious damage to the disc.Try to play the disc on another DVD to check whether it has content.
DVD does not have the signal · Check if the TV is in DVD mode.

Specifications

Model L24FED13I / L24FDP13I / L24FDR13I / L24FDW13I
Panel System 24 inch LED Panel
Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical)
Television System	Saorview / PAL I / BG / DK SECAM I / BG / DK DVBT (VIDEO: MPEG-4, SOUND: MPEG-1 LAYER 1/2, MPEG-2 LAYER 2)
Brightness 200 cd/m	2
Contrast Ratio 1000 : 1
Power Source AC 100V~240V
Energy Efficiency Class B
Screen Size (measured diagonally) 23.5"
Power Consumption (In HOME / STANDBY mode)	30W/0.5W
Average Annual Energy Consumption 43.8 kWh / annum
Standby Power Consumption 0.5W
Operating Temperature 0°C - 50°C
Operating Humidity 10% - 80%
Mercury Content (mg)	X
Presence of Lead	√
Reference Period	2010/1062 - 2014
Speaker Power	2 x 3W
Dimension( W x D x H) with base	557(W) x 377(H) x 140(D)
Weight (Net)	3.9kg
Inputs / Output
SCART	1
HDMI	1
PC-RGB	1
PC AUDIO	1
YPbPr	1
Common Interface	1
USB	1
RF	1
Coaxial audio out	1
AV in (composite)	1
Headphone	1

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 1 890 818 575.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit

www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

MPEG-2 NOTICE

Any use of this product in any matter other than personal use that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 Patent Portfolio, which license is available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado, 80111 U.S.A.

Rovi Proprietary Rights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Restriction on Use & Rovi Trade Mark Rights

Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names "Rovi Corporation" and "Macrovision" are protected by trademarks.

Dolby Digital

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories, Inc. all rights reserved.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

The "HD Ready" logo is a trademark of DIGITALEUROPE.

SRS TruSurround HD ^™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialogue.

TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Limited (Registered in England No. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK

(IB-L24FED13I-140213V2)
