Product Type	LED Television
Brand	Logik
Model	L22FED12I
Screen Size	22 inches (55.9 cm)
Display Resolution	1366 x 768 (HD Ready)
Aspect Ratio	16:9
Brightness	200 cd/m²
Contrast Ratio	1000:1 (typical)
Viewing Angle	178° horizontal / 178° vertical
Refresh Rate	60 Hz
Connectivity	1 x HDMI, 1 x USB 2.0, 1 x VGA, 1 x SCART, 1 x RF Input, 1 x Composite Input, 1 x Headphone Jack
Tuner	DVB-T/T2, DVB-C, DVB-S/S2
Audio	2 x 3W speakers, NICAM/A2 stereo
Power Consumption	30W (typical), <0.5W standby
Power Supply	AC 100-240V, 50/60Hz
Dimensions (with stand)	516 x 350 x 160 mm (W x H x D)
Dimensions (without stand)	516 x 320 x 50 mm
Weight (with stand)	3.5 kg
VESA Mount	100 x 100 mm
Remote Control	Included (batteries: 2 x AAA)
Energy Class	E (EU energy label)
Operating System	None (non-smart TV)

Frequently Asked Questions - L22FED12I Logik

How do I connect external devices to the Logik L22FED12I?

Use the HDMI port for modern devices like game consoles or streaming sticks. For older devices, use the VGA input (PC) or composite (yellow/red/white) for DVD players. Connect a USB drive for media playback.

What is the screen resolution of this TV?

The Logik L22FED12I has a resolution of 1366 x 768 pixels, which is HD Ready. It displays high-definition content but not Full HD (1080p) or 4K.

How can I clean the screen safely?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use paper towels, chemical cleaners, or spray liquids directly on the screen.

Does the TV have built-in speakers?

Yes, it has two built-in 3W speakers providing stereo sound. For better audio, you can connect external speakers via the headphone jack or use an audio receiver.

Can I mount this TV on a wall?

Yes, the TV supports VESA 100 x 100 mm mounting. Use a compatible wall mount kit and ensure the wall can support the TV's weight (approximately 3.5 kg).

Why is there no picture but sound is working?

Check the input source is correct. Press the 'Source' button on the remote to cycle through HDMI, VGA, etc. Also ensure cables are securely connected. If the problem persists, try a factory reset.

How do I perform a factory reset?

Go to the Menu, select Settings > Installation > First Time Installation. You may need to enter a PIN (default is 0000). This will erase all settings and channels.

Does the TV have a USB port for recording?

The USB port supports media playback (photos, music, videos) but does not support PVR recording or timeshift. Use it for playing files from a USB drive.

What type of antenna do I need?

For terrestrial channels, connect a digital TV antenna (DVB-T/T2). For satellite, use a satellite dish with LNB (DVB-S/S2). Cable TV requires a cable feed (DVB-C).

How can I reduce power consumption?

Enable the Eco mode in the picture settings. Also, reduce backlight and contrast levels. Unplug the TV when not in use for long periods to avoid standby power (<0.5W).

USER MANUAL L22FED12I Logik

22" / 24" Full HD LED TV with DVD Player

Instruction Manual

L22FED12I

L24FED12I

WE KNOWHOW™ TO HELP YOU WITH YOUR TV

We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you to get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.

Here are some of our TV services but if you want to know more look us up at knowhow.com or call us on: 0844 561 1234

TV SET UP & DEMO

We'll assemble the stand and connect your new TV to the existing equipment. We'll tune your TV so it's ready to watch. We'll also give you a demonstration of your new TV's functions.

TV WALLMOUNT & DEMO

We'll fix your TV to a suitable position on the wall and connect to your existing equipment, so it's all ready to go. We'll use neat wire management so you don't have to look at any untidy cabling and to complete your fuss-free installation, we'll test and demonstrate your TV's functions.

FREESAT® SET UP & DEMO

We'll set up the Freesat® receiver and connect it to your existing dish, TV and cabling. We'll then tune in all available channels.

AERIAL INSTALL & TUNE

We'll supply, install and align a new, high quality aerial and connect it to your Freeview receiver and TV. Then we'll scan and tune in all available digital channels.

HOME THEATRE SET UP & DEMO

We'll un-box, connect and set up your new and existing equipment. We'll then configure, calibrate and optimise the equipment. To avoid ugly trailing cables, we'll clip them to your skirting board, if you'd like us to. Then we'll give you a demonstration.

FAULT & FIX SERVICES

With our FAULT & FIX services, we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for:

• Computer Desktops
• Laptops
• Netbooks
• TVs
• Games Consoles
• Sky & Freeview Digi Boxes

Preparation....5

Unpacking the TV 5

Installing / Removing the Base Stand 6

Front / Right Side View and Controls....7

Rear View and Sockets 8

Installing Batteries in the Remote Control 9

Remote Control Operation Range....9

Remote Control 10

Connections....13

Making Video and Audio Connections....13

Connecting an AV Device Using an HDMI Cable....13

Connecting a Computer Using a VGA Cable 14

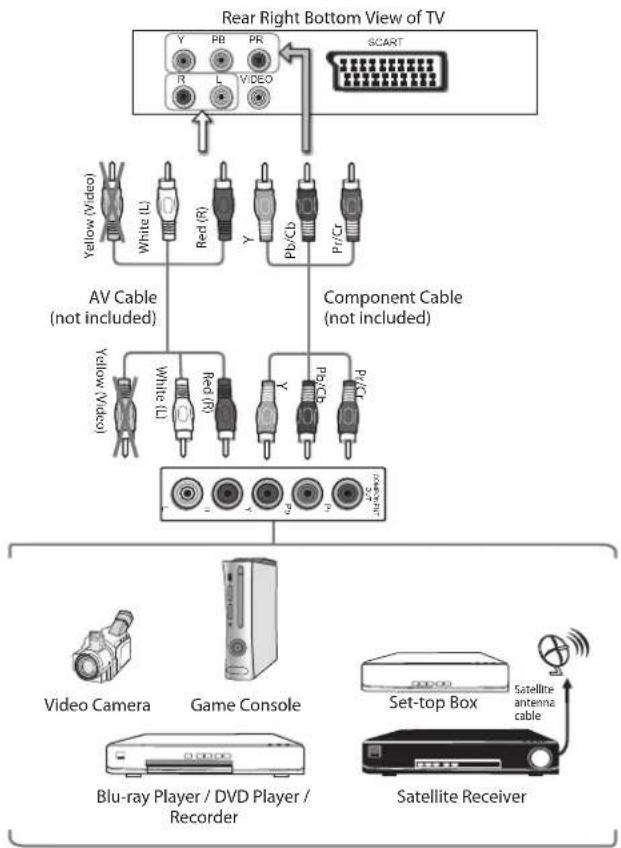

Connecting an AV Device Using a Component (YPbPr) Cable 14

Connecting an AV Device Using a SCART Cable 15

Connecting an AV Device Using Composite Cable 15

Connecting Headphones....16

Initial Setup 17

Turning the TV On for the First Time 17

- Target Region Descriptor....18

- Selecting the Input Source....19

- Channel Selection ....19

- Display Channel Information ....19

– Volume Adjustment....19

Customising TV Settings 20

Channel Setting (DTV, TV or Radio Mode)....20

- Auto Tuning (DVB-T) 20

- Auto Tuning (DVB-C) 21

- DTV Manual Tuning (DVB-T) 22

- DTV Manual Tuning (DVB-C)....22

- ATV Manual Tuning 23

- Channel Edit (DTV / ATV Mode) 24

– Signal Information (DTV Mode) (DVB-T) 25

– Signal Information (DTV Mode) (DVB-C) 25

- CI (Common Interface) (DTV Mode) 26

- Software Update (USB) 27

Picture Setting 27

Sound Setting 29

- Stereo / Dual Sound Reception (ATV Mode)....30

Time Settings.... 30

Option Setting 32

- OSD Language 32

– Audio Language (DTV Mode).... 32

- Subtitle Language (DTV Mode) 33

– Hearing Impaired....33

– Country....34

- PVR File System (DTV Mode)....34

- CEC (Consumer Electronics Control) 35

- Restore Factory Default....36

Lock Setting 36

- Lock System 36

- Set Password 37

- Block Channel 38

- Parental Guidance 39

Using the Features 41

EPG (Electronic Programme Guide) (DTV Mode) 41

• Switch On / Off EPG....41
• Select a Programme ....41

Teletext (ATV Mode)....42

- To Turn on Teletext Function....42

Digital Teletext (DTV Mode)....43 - Teletext within Digital Service....43

Entertainment 44

Connecting a USB Storage Device....44 Viewing Photos....44 Listening to Music....45 Viewing Movies 46 My Text....47

PVR (Personal Video Recorder)......48

Time Shift Function 48 Recording DTV Programme onto a USB Storage Device 49 Timer Programming 50 Play Recorded Programme ....51

Using the DVD Features....52

Using the Built-in DVD Player 52 Compatible Disc Types 52

– Supported Formats....52 - Region Code 52

Basic DVD Playback Functions 53

• Playing the DVD 53
• Menu Playback (for DVD) 53
• Stopping Playback....53
• Previous / Next (for DVD / CD / Multimedia discs) 53
• Forward / Backward (for DVD / CD / Multimedia discs)....53
• Pause (for DVD / CD / Multimedia discs) 53
• Repeat (for DVD / CD / Multimedia discs)....53
• Display (for DVD / Multimedia discs)....54
• Goto (for DVD / CD / Multimedia discs)....54
• Audio (for DVD / CD) 54
• Repeat A-B (for DVD / CD)....54

Program (for DVD) 54 Playing Multimedia Discs....55 Using the DVD Language Setup Page....57 Using the DVD Video Setup Page 57 Using the DVD Rating Setup Page....58 Using the DVD Misc Setup Page....58

Maintenance....59

Hints and Tips....60

Display Modes 62

YPbPr Mode 62 PC Mode 62 HDMI Mode 62

Specifications 63

Safety Warnings 65

Thank you for purchasing your new Logik 22" / 24" Full HD LED TV with DVD Player.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV

Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

TV

TV Stand Support (P.N.: 115C2461101)

TV Base (P.N.: 506C1961101)

Remote Control / AAA Batteries x 2 (P.N.: 504C1961101 & 32200007158)

Screw A x 1 (P.N.: 209100422B1)

Instruction Manual (P.N.: 4031C226106)

Quick Start Guide (P.N.: 4033C226115)

Screw B x 1 (P.N.: 20912223101)

Installing / Removing the Base Stand

The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
3. To install the TV stand, first attach the stand support to the TV by using screw A. Align the screw hole then use screw A to fix the stand support to the TV.

1. To install the base stand, align the screw hole, then secure with a screw driver (not included) using the screw B provided.

Remove the stand assembly before mounting the TV onto the wall.

1. To remove the stand assembly, untighten the screw holding the stand assembly to the rear of the TV. Slide the stand assembly out.

Keep all the spare screws should you want to use the stand assembly option.

1. Mounting on the wall. This TV is designed to be wall-mounted with a standard 100 mm x 100 mm mounting kit (sold separately) designed for flat-panel TVs. Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections (refer to page 13-16 and page 44 for details) before mounting on to the wall.

• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Item Description

1 POWER LED	Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will flash blue and red when the timer programming has started in standby mode.
2 IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
3 Disc Slot	Insert the disc with the label side facing towards the rear of the TV. (12 cm discs only.Don't insert 8 cm discs.)
4 ▲	Press to eject disc. (DVD mode)
5 ▶II	Press to start playback or pause. (DVD mode)
6 INPUT⊖	Press to select among different input signal sources:DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.Use the ▲▼ buttons on the remote control to select the input, and then press the OKbutton to confirm.
7 MENU Displays the OSD (on screen display) menu.
8 CH +/– Press to select a channel or select a sub-menu from the OSD menu.
9 VOL +/–	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
10 ⏻	Switches the TV on from standby mode.Switches the TV back to standby mode.

Socket Description
1 Y, PB, PR / AUDIO (L/R)	Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
2 VIDEO / AUDIO (L/R)	Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
5 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
6 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 26 for details.)
7 HEADPHONE Connects to the headphones.
8 HDMI1 / HDMI2	Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.
9 USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (USB mode) and record DTV programmes on to a USB storage device.

Installing Batteries in the Remote Control

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab. - Do not drop or cause impact to the remote control. - Do not spill water or any liquid on the remote control. • Do not place the remote control on a wet object. - Do not place the remote control under direct sunlight or near sources of excessive heat. - Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

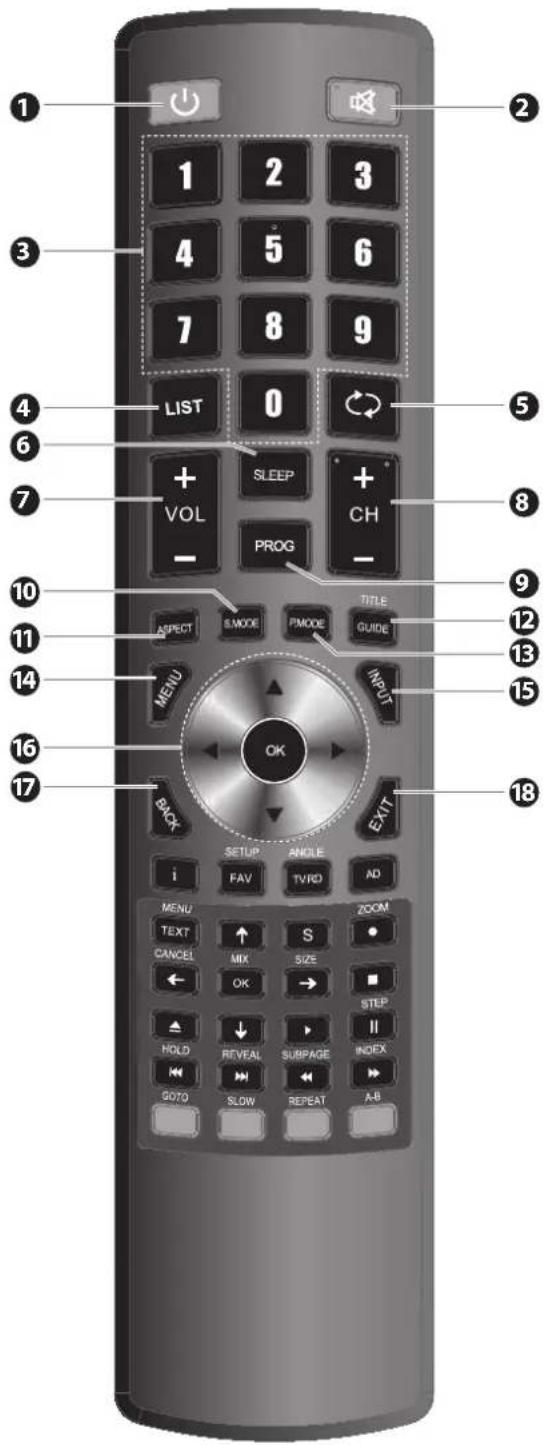

Remote Control

1. ⏻

Switch the TV between on and standby mode.

2. MUTE

Mute and restore your TV sound.

3. 0-9 Number Button

• Press to select a programme. - Select numbered items in a menu. (DVD mode)

4. LIST

• Display the channel list. (ATV / DTV mode) • Display the text page on the teletext screen. (ATV mode)

5. ↔RECALL

• Return to the previous viewing channel. (ATV / DTV mode) • Return to menu (DVD mode)

6. SLEEP

Set the TV sleep timer: OFF / 10 / 20 / ... / 180 / 240 min.

7. VOL + / -

Adjust the volume.

8. CH + / -

Select a channel.

9. PROG

• Display the channel edit menu. (ATV / DTV mode) • Programme the DVD. (DVD mode)

10. S.MODE

Select sound mode: Standard / Music / Movie / Sports / User.

11. ASPECT

Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom / Full.

12. GUIDE

Display the EPG Electronic Programme Guide. (DTV mode)

TITLE

Display the DVD title content. (DVD mode)

13. P.MODE

Select picture mode: Standard / Mild / User / Dynamic.

14. MENU

Display the OSD (On Screen Display) menu.

15. INPUT

Select among the different input signal sources: DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB

16. ◀ △ ▼ ▶

Allow you to navigate the OSD menus and adjust the system settings to your preference.

OK

Confirm the selection in the OSD menus.

17. BACK

Return to the previous menu in the OSD menus.

18. Exit

Exit the OSD menu.

19. FAV

Display the favourite channel list. (ATV / DTV mode)

SETUP

Display and exit the DVD setup menu. (DVD mode)

20.i

Display the present screen information such as the current channel on ATV / DTV mode and the input source except ATV / DTV mode.

21. TV.RD

A short-cut to switch input source to TV / Digital radio channels.

ANGLE

Select different angles for the video. (DVD mode)

22. AD (Audio Description)

• Turn on / off the Audio Description (AD) function (only applicable when the TV programme has this feature). (DTV mode)
• Select different Audio modes on DVD mode. (DVD mode) • Select Stereo / Dual Sound Reception. (ATV mode)

23. TEXT

Turn on and off the teletext function. (ATV / DTV mode)

MENU

Display the DVD menu. (DVD mode)

24. S (Subtitle)

• Display subtitles which are broadcast with the programme. (DTV mode) • Display subtitles on the DVD. (DVD mode)

25. ● REC

Record the current programme. (DTV mode).

ZOOM

Zoom in on the displayed frame. (DVD mode)

26. ←↑↓→

Navigate the DVD menu and adjust the system settings to your preference. (DVD mode)

OK

Confirm the selection in the DVD menus. (DVD mode)

CANCEL

Exit the teletext mode. (ATV mode)

MIX

Select TELETEXT with a TV programme. (ATV mode)

SIZE

Enlarge the picture on the TV in teletext. (ATV mode)

27. ■Stop

Stop the playback or recording. (DVD / USB / DTV mode)

28.

Eject a disc. (DVD mode)

29. || Pause

• Pause playback. (DVD / USB mode) • Start the time-shift function (DTV mode)

STEP

Play the playback forwards frame by frame. (DVD mode)

30. PLAY

Start playback. (DVD / USB mode)

31.

Skip to the beginning of the next chapter / track / photo. (DVD / USB mode)

REVEAL

Reveal hidden information such as the answer to a quiz in teletext. (ATV mode)

32.

To skip to the beginning of the previous chapter / track / photo. (DVD / USB mode)

HOLD

Freeze a multi-page passage on screen in teletext. (ATV mode)

33.

Reverse playback rapidly. (DVD / USB mode)

SUBPAGE

Display the subpage on the teletext screen. (ATV mode)

34.

Advance playback rapidly. (DVD / USB mode)

INDEX

Select the page number of the index from teletext. (ATV mode)

35. Coloured buttons

Access the TELETEXT items or channel edit when using Digital / Freeview TV Channels. (ATV / DTV mode)

GOTO (RED)

Skip to a specific location on a DVD / CD. (DVD mode)

SLOW (GREEN)

Play video slowly. (DVD mode)

REPEAT (YELLOW)

Select between different repeat modes. (DVD mode)

A-B (BLUE)

Repeat a segment between A and B. (DVD mode)

Making Video and Audio Connections

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

	Signal Type	Separate Audio Connection Required
	HDMI(480i/480p/576i/576p/720p/1080i/1080p)	No
PC IN	PC	YesPC AUDIO
YPRPR	Component Video(480i/480p/576i/576p/720p/1080i/1080p)	Yes
SCART	SCART (RGB Input) No
VIDEO[SDGC]	Composite Video	Yes

Connecting an AV Device Using an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• This TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected and corresponds to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p.
• Use an HDMI cable to connect the TV's HDMI input socket to the external AV device's HDMI output socket.
• Plug the connected devices into the mains socket before switching on the TV.
• Press the ⏻ button on the right side panel of the TV or on the remote control to turn on your TV.
• Press the button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲▼ buttons to select HDMI1 / HDMI2 and then press the OK button to confirm.

Although this TV is able to connect to an HDMI device, it is possible that some devices may not operate correctly.

Connecting a Computer Using a VGA Cable

1. Use a VGA cable to connect the TV's PC IN input socket to a computer's VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the ⏻ button on the right side panel of the TV or on the remote control to turn on your TV.
4. Press the ⏻ button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲▼ buttons to select PC and then press the OK button to confirm.

• The best resolution is 1920 x 1080. - If your computer is set to shut down after a few minutes in the idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the ⏻ button on the right side panel of the TV or on the remote control to restart the TV.

Rear Right Side View of TV

Connecting an AV Device Using a Component (YPbPr) Cable

1. Use a component cable to connect the TV's YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's AUDIO(L/R) input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV Y Pb Pr

Video output ports on DVD player	Y Pb	Pr
	Y Cb	Cr

1. Plug the connected devices into the mains socket before switching on the TV.
2. Press the ⏻ button on the right side panel of the TV or on the remote control to turn on your TV.
3. Press the ⏻ button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲▼ buttons to select YPbPr and then press the OK button to confirm.

Connecting an AV Device Using a SCART Cable

1. Use a SCART cable to connect the TV's SCART input socket to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the ⏻ button on the right side panel of the TV or on the remote control to turn on your TV.
4. The TV will change the input source to SCART automatically once the AV device is switched on.

Connecting an AV Device Using Composite Cable

1. Use an AV cable to connect the TV's AUDIO(L/R) / VIDEO input sockets to the external AV device's composite audio / video output sockets. (VIDEO = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the TV.
3. Press the ⏻ button on the right side panel of the TV or on the remote control to turn on your TV.
4. Press the ⏻ button on the right side panel of the TV or the INPUT button on the remote control to display the Source List. Use the ▲▼ buttons to select AV and then press the OK button to confirm.

Connecting Headphones

Connect your headphones to the TV's HEADPHONE socket.

Before putting on the headphones, turn the volume down, then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.

Turning the TV On for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the rear right side of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
3. In standby mode, press the ⏻ button on the right side panel of the TV or on the remote control to turn the TV on. The red LED indicator will turn blue.

• Always disconnect the TV from the mains socket when not in use for a long period of time. - The button on the right side panel of the TV or on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.

1. The first time you turn the TV on, it will go straight into the First Time Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please go to the section "Selecting the Input Source" on the next page.)
2. Press the ▲◀▶ buttons to select your desired language to be displayed on the menu. The default on-screen menu language is set as English. Press the OK button to confirm.
3. Press the ▲▼ buttons to select DVB-T / DVB-C and then press the OK button to confirm.

First Time Installation

Please ensure aerial is plugged in!

Then press OK button.

OSD Language
Česky		Français	Magyar	Polski English
Dansk	Español	Hrvatski	Nederlands	Portugues
Deutsch	Eλληνικα	Italiano	Norsk	Pycck μ

DVB SELECT TYPE

DVB-T

DVB-C

a. If you select DVB-T, press the ▲◀▶ buttons to select the desired country and then press the OK button to start tuning.

b. If you select DVB-C, the next step is to configure the DVB-C system (Scan type / Frequency / Network ID / Symbol rate (ks/s). Press the OK button to go to the tune type and add country select menu. This step is the same as the DVB-T's select the tune type (DTV) process. Press the ▲◀▶ buttons to select the desired country and then press the OK button to start tuning.

1. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you have selected DTV+ATV and want to skip the ATV tuning, press the MENU button to interrupt the tuning halfway. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the Channel menu (refer to page 24 for details).

Target Region Descriptor

During tuning your TV may have received signals from more than one transmitter. If this has occurred the Target Region Descriptor screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

Press the ◀▶ buttons to adjust each option's setting and then press the OK button to confirm.

Country Code This will be shown as GBR for the UK.
Primary Region	This will show the regional country (England, Wales, Scotland, Northern Ireland (NI)).
Secondary Region	This will allow you to set the region for your local news service.
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath).

DVB-C Scan Menu
Scan type Full
Frequency	610000
Network ID	Auto
Symbol(ks/s)	Auto

Target Region Setting
Country Code	GBR
Primary Region	England
Secondary Region	London
Tertiary Region

Selecting the Input Source

1. Press the ➕ button on the right side panel of the TV or the INPUT button on the remote control to display the Input source list.
2. Press the ▲▼ buttons to select the input source that you want: DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.
3. Press the OK button to confirm your selection.

Alternative

Press the TV.RD button to switch to TV / digital radio channels directly.

Input Source

DTV

ATV

SCART

YPbPr

PC

HDMI1

HDMI2

AV

DVD

USB

OK

Channel Selection

- Press the CH + / - buttons on the remote control repeatedly or the 0-9 buttons to select the channel.

Alternative

Press the LIST button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 38 for details on Block Channel).
• Press the FAV button to view the Favourite List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel (refer to page 24 for details on Channel Edit).
• Press the ⬆ button to return to the previously viewed channel.

Display Channel Information

• Press the i button to view the current information.

Volume Adjustment

• Press the VOL + or - button on the side panel of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the ⓍMUTE button. Press the ⓍMUTE button again or the VOL + or - button to resume audio listening.

Channel Setting (DTV, TV or Radio Mode)

Auto Tuning (DVB-T)

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Auto Tuning and then press the OK button.
3. Press the ▲▼ buttons to select DVB-T and then press the OK button to confirm.
4. In the Tune Type menu, press the ◀ buttons to select DTV / ATV / DTV + ATV. Press the ▼ button and then press the ▲ buttons to select the country where you will operate the TV. Press the OK button to confirm.
5. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
6. If you have selected DTV+ATV and want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
7. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Channel Edit under the channel menu (refer to page 24 for details).

Auto Tuning (DVB-C)

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Auto Tuning and then press the OK button to confirm.
3. Press the ▲▼ buttons to select DVB-C and then press the OK button to confirm.
4. Press the ▲▼ buttons to select Scan type/Symbol(ks/s) and then press the OK button to confirm.
5. In the Tune Type menu, press the ▶ buttons to select DTV / ATV / DTV + ATV. Press the ▼ button and then press the ▲ buttons to select the country where you will operate the TV. Press the OK button to confirm.
6. Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
7. If you have selected DTV+ATV and want to skip the ATV tuning, press the MENU button to interrupt the tuning halfway. A pop-up screen will be displayed; press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
8. After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order, or rename channels, select Channel Edit under the channel menu (refer to page 24 for details).

DVB-C Scan Menu
Scan type	Full
Frequency	610000
Network ID	Auto
Symbol(ks/s)	Auto
OK	MENU

DTV Manual Tuning (DVB-T)

Allows you to make manual fine tuning adjustments to the channel under DTV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. Press the ▲▼ buttons to select DTV Manual Tuning and then press the OK button.

1. The DTV Manual Tuning screen will pop up. Press the ▶ buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
2. Press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

DTV Manual Tuning (DVB-C)

Allows you to make manual fine tuning adjustments to the channel under DTV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. The CATV Manual Tuning screen will pop up. Press the ▲▼ buttons to select (Frequency / Symbol(ks/s / QAM Type QAM). Press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
2. The DTV Manual Tuning screen will pop up. Press the ◀▶ buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
3. Press the MENU button to return to the main menu.
4. Press the EXIT button to exit the menu.

ATV Manual Tuning

Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select ATV Manual Tuning and then press the OK button.
3. The ATV Manual Tuning screen will pop up. Use the ▲▼ buttons to select the following options and the ◀▶ buttons to adjust the setting.

Storage To Presets the channel number.
Sound System	Selects the sound system: I / DK / BG / L (for SECAM).
Current CH Displays the current channel number.
Search	Press the◀buttons to start the manual tuning.
Fine-Tune	Press the◀buttons to make manual fine tuning adjustments.
Frequency Displays the current tuned frequency.

1. After finishing the manual tuning adjustment of a channel, press the RED button to save your channel before tuning the next channel.
2. Press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

Channel Edit (DTV / ATV Mode)

Allows you to edit TV channel information in the Channel List.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Channel Edit and then press the OK button.
3. A Channel Edit screen will pop up. Press the ▲▼ buttons to select the programme you want to edit.

All channels (DTV and ATV) are listed, please ensure that you edit the correct channel.

a. Delete

Press the RED button to delete the selected channel.

b. Rename (ATV channels)

Press the GREEN button to rename the selected channel. Press the ▲▼ buttons to select the characters to represent the station name. Press the ◀ buttons to move to the next character and then press the GREEN button again to confirm the new name.

c. Move

Press the YELLOW button and then press the ▲▼ buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm.

d. Skip

Press the BLUE button to skip the selected channel. Press the BLUE button again to undo it.

e. FAV (Favourite)

Press the FAV button to set the selected channel as one of the favourite programmes. Press the FAV button again to undo it.

1. Press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

Care should be taken when editing the position of digital channels as this may affect EPG and reminder settings.

Signal Information (DTV Mode) (DVB-T)

Allows you to view the signal information.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.
3. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
4. Press the EXIT button to exit the menu.

Signal Information (DTV Mode) (DVB-C)

Allows you to view the signal information.

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.
2. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.
3. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
4. Press the EXIT button to exit the menu.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the MENU button and then press the ▲▼ buttons to select the CHANNEL menu and then press the OK button.

1. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
2. Press the EXIT button to return to the previous menu. Press the EXIT button again to exit the menu.

This screen is for illustration only.

Software Update (USB)

This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ or call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.

Picture Setting

Allows you to set your preferred picture mode.

1. Press the MENU button and then press the ▲▼ buttons to select the PICTURE menu and then press the OK button.

1. Press the ▲▼ buttons to select the following picture options and then press the OK button.

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Picture Mode Cycles among picture mode: Standard / Mild / User / Dynamic.

Alternative

You may press the P.MODE button to select the picture mode directly.

Contrast Adjusts the difference between light and dark levels in the picture (for User mode).
Brightness Increases or decreases the amount of white in the picture (for User mode).
Colour Controls the colour intensity (for User mode).
Sharpness Adjusts the level of crispness in the edges between light and dark areas of the picture (for User mode).
Tint (For NTSC format)	Adjusts the balance between red and green levels (Tint is only available for NTSC signal reception).

Picture Mode	Standard
Contrast 82
Brightness 50
Colour 50
Sharpness 50
Tint 50

Colour Temperature	Cycles among colour temperature: Medium / Cool / User / Warm. Adjusts the colour components independently to achieve a warm or cool (for User mode).Red: Increases red tintGreen: Increases green tintBlue: Increases blue tint	Colour Temperature Medium
		Red 40
		Green 31
		Blue 50

Colour Temperature Medium
Red 40
Green 31
Blue 50

Aspect Ratio	Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom / Full.
		Input Signal 4:3 Input Signal		16:9
	Auto This selection	will displaythe picture according tothe aspect ratio of theinput source.		This selection will displaythe picture according tothe aspect ratio of theinput source.
	4:3 This selection will allowyou to view a picture withan original 4:3 aspectratio. Black bars willappear on both the leftand right of the screen.			This selection will allowyou to adjust the picturehorizontally, in linearproportion. Black bars willappear on both the leftand right of the screen.
	16:9 This selection will allowyou to adjust the picturehorizontally, in linearproportion, to fill the entirescreen.			This selection will allowyou to view a picture withan original 16:9 aspectratio.
	Zoom This selection will allowyou to zoom in thepicture without anyalteration, while filling theentire screen. However,the top and bottomof the picture will becropped.			This selection will allowyou to zoom in thepicture without anyalteration, while the 4sides of the picture willbe cropped.
	Subtitle This selection will allowyou to zoom in the picturewithout any alternation,while filling the entirescreen with subtitlesshown at the bottom of thescreen.			This selection willallow you to zoom inthe picture withoutany alternation, whileshowing subtitles at thebottom of the screen.
	Smart Zoom This selection is similar to16:9 mode, but the pictureslightly stretches verticallyand clips off a little fromthe top and bottom.			This selection is similarto 16:9 mode, but thepicture slightly stretchesvertically and clips off alittle from the top andbottom.
	Full(HDMI mode, PCmode and YPbPrmode only)	This selection will detectthe resolution of the HDMIsignal and display an imagewith the same number ofpixels.		This selection will detectthe resolution of theHDMI signal and displayan image with the samenumber of pixels.
Noise Reduction	Select to reduce the noise level of the connected device: Off / Low / Middle / High. (ATV mode)
Screen Allows you to adjust the PC desktop content. (PC mode only)
	Auto Adjust Allows you to synchronise a PC signal automatically.
	Horizontal Pos.Adjusts the position of the picture left and right inthe window.
	Vertical Pos.Adjusts the position of the picture up and down inthe window.
	Size Allows you to adjust the picture horizontally, in linearproperties
	Phase	Controls the signal phase, which can improve focusclarity and image stability based on the PC mode.

1. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

Allows you to select an audio-enhancement technique.

1. Press the MENU button and then press the ▲▼ buttons to select the SOUND menu and then press the OK button.

1. Press the ▲▼ buttons to select the following sound options and then press the OK button.

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Sound Mode	Allows the selection of an audio-enhancement technique: Standard / Music / Movie / Sports / User.AlternativeYou may press theS.MODEbutton to select the sound mode directly.
	TrebleControls the	relative intensity of higher pitched sounds (for User mode).
	BassControls the relative intensity of lower-pitched sounds (for User mode).
BalanceAdjusts the relative volume of the speakers in a multiple speaker system.
Auto Volume	Volume levels are automatically controlled (e.g., advertisements tend to be louder than the programmes).
SRS TruSurround HD	SRS TruSurround HDTM(TS HD) is a robust multichannel virtualisation technology developed by SRS Labs that provides an enhanced listening experience unlike any other technology that has been offered for a two speaker playback environment. TruSurround HD builds upon its predecessor, the industry leading surround sound virtualiser, SRS TruSurround XT®. Not only does TruSurround HD process up to 6.1 channels for playback over two speakers or headphones, but it also utilises additional proprietary algorithms from SRS Labs to optimise bass performance, for deep rich bass, dialogue clarity for better intelligibility of vocals, and definition control for maximum high-frequency clarity. Press theOKbutton to selectOn / Off.
AD Switch(for DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster.Set to “Off” for normal broadcasting sound coming out from speakers.Set to “On” to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner.

1. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

Stereo / Dual Sound Reception (ATV Mode)

When a programme is selected, press the AD button to display the sound information for the selected station.

Broadcast On Screen Display
Mono	MONO / NICAM MONO
Stereo	MONO / NICAM STEREO
Dual	MONO / NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II

Mono sound selection

If the stereo signal is weak, you can switch to mono by pressing the AD button. In mono reception, the clarity of sound is improved. To switch back to stereo, press the AD button again.

Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II or MONO by pressing the AD button repeatedly.

NICAM DUAL I	Sends the primary broadcast language to the loudspeakers
NICAM DUAL II	Sends the secondary broadcast language to the loudspeakers
NICAM DUAL I+II	Sends the primary and secondary broadcast languages to the loudspeakers

Time Settings

Allows you to adjust power on / off time, sleep timer, auto standby and time zone.

1. Press the MENU button and then press the ▲▼ buttons to select the TIME menu and then press the OK button.
2. Press the ▲▼ buttons to select the following time options and then press the OK button.

1. Press the ▲▼ buttons to select the options. Press the OK button and then press the ◀▶ buttons to adjust each option's setting.

Clock The clock is set automatically when receiving a digital signal.
Off Time	Allows you to set the off time that will automatically switch off the TV. Cycle through and select from the following off time options: Off / Once / Every Day / Mon.~Fri. / Mon.~Sat. / Sat.~Sun. / Sunday.
On Time	Allows you to set the on time that the TV will automatically switch on the TV and tune to the source, channel and volume you select. Cycle through and select from the following on time options: Off / Once / Every Day / Mon.~Fri. / Mon.~Sat. / Sat.~Sun. / Sunday. Ensure your SCART device is turned off before entering the ON TIME menu. If your SCART device is turned on, the ON TIME menu will default to the SCART device.
Sleep Timer	The sleep timer automatically switches the TV to standby mode after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.Press the ▲▼ buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min. The timer begins to count down from the number of minutes selected. If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased.[YCSA] Alternative1. You may press the SLEEP button repeatedly to select the number of minutes: OFF / 10 / 20 / ... / 180 / 240 min directly.2. To cancel the sleep time, press the SLEEP button repeatedly until Off appears.
Auto Standby The unit will automatically switch to standby mode4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode. To turn off the auto standby function, press the MENU button to display the main menu. Press the ▲▼ buttons to select the Time option and then press the OK button. Press the ▲▼ buttons to select the Auto Standby option and then press the OK button to select "Off". Press the EXIT button to exit the main menu. To save energy you should always turn the auto standby function back to "3H" or "4H".
Time Zone	When you select a Time Zone, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

1. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

Option Setting

OSD Language

Allows you to select your desired on screen menu language.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select OSD Language and then press the OK button. The default on-screen menu language is English.
3. Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm.
4. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
5. Press the EXIT button to exit the menu.

Audio Language (DTV Mode)

Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Audio Language and then press the OK button.

1. Press the ▲▼ buttons to select the Primary / Secondary Audio Language. Press the ▼ button and then press the ▲ buttons to select your desired audio language. Press the OK button to confirm.
2. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

Subtitle Language (DTV Mode)

Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select Subtitle Language and then press the OK button.
3. Press the ◀ buttons to select the Primary / Secondary Subtitle Language. Press the ▼ button and then press the ▲ buttons to select your desired subtitle language. Press the OK button to confirm.
4. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
5. Press the EXIT button to exit the menu.

While watching a DTV programme, you can press the S button on the remote control to display the Subtitle Language List and then press the ▲▼ buttons to select the Subtitle Language OFF. Press the OK button to confirm. (Only applicable when the TV programme has this feature.)

Hearing Impaired

Shows information for the hearing-impaired in some programmes. (For DTV channels only if available.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Hearing Impaired and then press the OK button to select On / Off.
2. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

Country

This shows the country you selected in auto tuning. If you want to change the country, please refer to Auto Tuning on page 20-21.

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select PVR File System and then press the OK button.

1. Press the ▲▼ buttons to select the following PVR File System options and then press the OK button.

Select Disk Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR. The system will show "Checking". Upon the completion the system will show either "SUCCESS" or "FAIL".	Select Disk C:Check PVR File System StartUSB DiskFormatTime Shift SizeSpeedFree Record Limit 6 Hr.MenuSelect Disk C:Check PVR File System SUCCESSUSB Disk PassFormat PassTime Shift Size AISpeed Inputed 2048 KB/sFree Record Limit 6 Hr.Menu
USB Disk	If no USB storage device is connected, it will show "No USB Disk". If the Check PVR File System has a "SUCCESS" it will show "Pass".

Format

Press the OK button, a File System Size menu will pop-up. Press the ◀▶ buttons to select your preferred file type between FAT32 and HiSpeed FS. If you select HiSpeed FS, press the ▼ button and then press the ◀▶ buttons to select your preferred file size. Press the OK button to confirm and then press the ◀ button to start formatting.

Time Shift Size After

formatting the Time Shift Size menu will appear if you have selected HiSpeed FS in PVR File System Type. Press the ▶buttons to select your preferred file size. Press the OK button to confirm. This option cannot be chosen if you have selected FAT32 in PVR File System Type.

Speed This shows you the transfer rate of your USB storage device.

Free Record Limit Press the

◀buttons to set the recording time limit from 1-4 hours.

CEC (Consumer Electronics Control)

Allows you to command and control two or more CEC-enabled devices, that are connected through HDMI, by using only one of the TV remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). CEC also allows individual CEC-enabled devices to command and control each other without user intervention.

Make sure that your CEC compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.)

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.
2. Press the ▲▼ buttons to select CEC and then press the OK button to select On / Off.
3. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
4. Press the EXIT button to exit the menu.

• This unit can only communicate with HDMI-CEC compatible devices.
• To be sure that the HDMI-CEC device has this feature, check to see if there is HDMI-CEC compatible logo on it.
• Some HDMI-CEC compliant devices may not support this function.
• HDMI-CEC function only works when the AV device supporting CEC is turned on.

Restores all settings to the factory defaults.

1. Press the MENU button and then press the ▲▼ buttons to select the OPTION menu and then press the OK button.

1. Press the ▲▼ buttons to select Restore Factory Default and then press the OK button.

1. Press the ◀ button to select "Yes". The TV will turn off and restart after a few seconds. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Lock Setting

To access the LOCK menu, you must enter the password. Enter the default password "6666" for first time use. To change the

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

1. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

The default password is "6666". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "9527".

1. Press the ▲▼ buttons to select Lock System and then the OK button to select On / Off. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Restore Factory Default.
2. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.

Set Password

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

Customising TV Settings

1. Press the ▲▼ buttons to select Set Password and then press the OK button.
2. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.

The default password is "6666". If you change the password, be sure to remember the new password! If you forget the new password, enter the master password "9527".

1. Press the ▶ button to return to the previous menu. Press the MENU button to return to the main menu.
2. Press the EXIT button to exit the menu.

Block Channel

Block Channel is designed to prevent children from watching unsuitable programmes.

When a channel is blocked, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

1. Press the ▲▼ buttons to select Block Channel and then press the OK button.

1. A Block Channel screen will pop up. Press the ▲▼ buttons to select a channel. Press the GREEN button on the remote control to block or unblock the channel. Press the GREEN button again to unblock.
2. Press the MENU button once to return to the previous menu. Press the MENU button again to return to the main menu.
3. Press the EXIT button to exit the menu.

Parental Guidance

This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This allows you to set up blocking schemes to block specific channels and ratings.

This TV is programmed to remember which option it was last set to even if you switch the TV off.

When a programme is locked or rated with delayed state, a valid password must be entered.

1. Press the MENU button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

Customising TV Settings

1. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.

1. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm.
2. Press the BACK button to return to the previous menu or press the MENU button to return to the main menu.
3. Press the EXIT button to exit the menu.
