000-346 - Loudspeaker Marquant - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Marquant
Model	000-346
Dimensions (approx)	7.5 x 7.5 x 15 cm
Weight (approx)	350 g
Power Source	Rechargeable lithium-ion battery, USB-C charging
Battery Life	Up to 12 hours at moderate volume
Bluetooth Version	5.0
Wireless Range	10 meters
Speaker Type	Full-range driver with passive radiator
Output Power	10 W RMS
Frequency Response	80 Hz – 20 kHz
Impedance	4 ohms
Water Resistance	IPX5 (splash proof)
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing button
Audio Inputs	Bluetooth, 3.5 mm AUX
Hands-free Function	Built-in microphone for calls
Package Contents	Speaker, USB-C charging cable, AUX cable, manual
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety Features	Overcharge protection, short circuit protection
Repairability	Battery replaceable by qualified technician; no user-serviceable parts inside
General Information	Designed for indoor and outdoor use; compatible with most Bluetooth devices

Frequently Asked Questions - 000-346 Marquant

How do I pair my speaker with a smartphone?

Press and hold the Bluetooth button until the indicator flashes. On your phone, enable Bluetooth and select 'Marquant 000-346' from the list. If prompted, enter PIN 0000 or confirm pairing.

How long does it take to fully charge?

Charging via USB-C typically takes about 3 hours. Use a standard 5V/1A adapter for best results.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a power source. However, battery charging may be slower during use.

What does the flashing red light mean?

A flashing red light indicates low battery. Please recharge the speaker as soon as possible.

How do I reset the speaker?

To reset, turn off the speaker, then press and hold the Power and Volume+ buttons simultaneously for 5 seconds until the indicator flashes rapidly. Release and restart.

Is the speaker waterproof?

The speaker has an IPX5 rating, meaning it is splash-proof but not fully waterproof. Avoid submerging it in water.

Why is the sound distorted at high volumes?

Distortion at high volumes may occur if the audio source is clipping or the speaker is pushed beyond its limits. Reduce the volume on your device or the speaker.

Can I connect two speakers together?

This model does not support stereo pairing or daisy-chaining. It is designed for standalone use.

How do I clean the speaker?

Use a soft, slightly damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse in water.

What should I do if the speaker won't turn on?

First, ensure the battery is charged. Connect to a charger and wait 10 minutes. If still unresponsive, try a reset (see FAQ above). If the issue persists, contact support.

USER MANUAL 000-346 Marquant

Exterior view of a black rectangular electronic device with mesh grille and mounting holes (no visible text or symbols)

SE Bruksanvisning för Bluetooth-högtalare
NO Bruksanvisning for Bluetooth-høyttaler
PL Instrukcja obstugi głośnika Bluetooth
EN Operating instructions for Bluetooth speaker

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

CE

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

RoHS Directive 2011/65/EU

IEC 62321-1:2013

This product was CE marked in year -16

Skara 2016-07-07

MATTIAS LIF

BUSINESS AREA MANAGER

SÄKERHETSANVISNINGAR

Read the operating instructions carefully before use.

Save them for future reference.

• This appliance can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the appliance and understand the risks involved with its use.
• Cleaning and maintenance must not be carried out by children unless they are more than eight years old, and are kept under supervision.
• Do not subject the product to knocks and blows
• The product is waterproof and dustproof when it is connected via Bluetooth. The IP67 rating does not apply if a 3.5 mm connection is used.
• The product can be damaged in very hot, or very cold conditions.
• Do not block the speaker.
• Any repairs must be carried out by an authorised service centre. Never try to open or dismantle the product.
• Recycle discarded product in accordance with local regulations.
• Never modify the product in any way. The manufacturer cannot accept liability for any damage caused by unauthorised modifications.

TECHNICAL DATA

Charging voltage 5 V DC
Battery Li-Ion 2000 mAh
Output 6 W
Signal/noise ratio ≥ 65 dB
Impedance 4 Ω
Frequency range 120 Hz - 16 kHz
Distortion < 0.5%
Connection Bluetooth 4.0/AUX
Battery life Approx. 8 h
Charging time Approx. 3 h
Protection rating IP67
Dimensions	194 x 80 x 34 mm
Weight	330 g

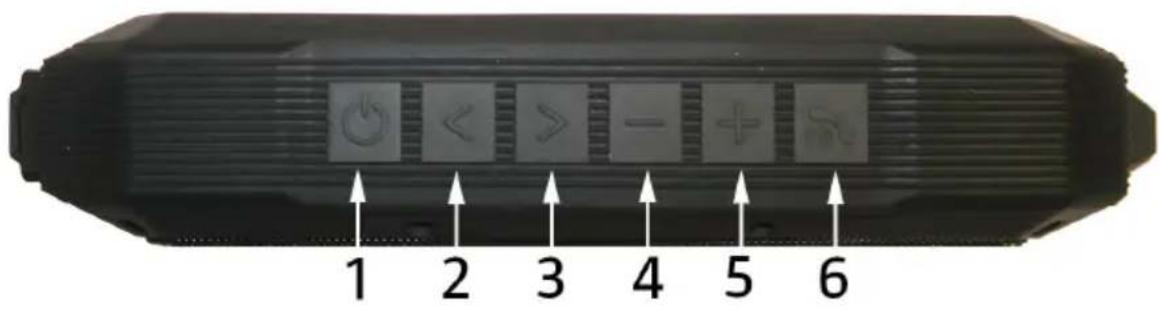

DESCRIPTION

1. Power switch. Put the power switch in the ON position for 2–3 seconds to start the product. Put the power switch in the OFF position for 2–3 seconds to start the product.
2. Previous track: Tap to go to previous track.
3. Next track: Tap to go to next track.
4. Lower volume: Tap to lower the volume.
5. Increase volume: Tap to increase the volume.
6. Button for pause/answer/recall: During playback, tap the button once to start or pause. Press and hold to end pairing with the product. For an incoming call press the button to answer. Playback resumes when the call is ended.
7. RESET: Tap the button to reset the product.
8. Micro USB port.
9. 3.5 mm audio input.

USE

Package contents

1 Bluetooth speaker

1 USB cable

13.5 mm audio cable

1 copy of operating instructions

Status lamps

Charging: Red light on.

Fully charged: Red lamp off.

Pairing mode: Blue light flashes rapidly.

Connected: Blue lamp on.

Playback: Blue lamp flashes slowly.

Charging the battery

Charge the battery for at least 24 hours before using it for the first time.

1. Connect the micro USB cable to the charging port on the speaker.
2. Connect the other end of the cable to a USB port on a computer or to a compatible network adapter.
3. The red status lamp goes on to show that the battery is charging.
4. The red status lamp goes off when battery is fully charged.
5. When the battery becomes discharged it will now take about 3 hours to fully charge it.

Pairing

1. Place the speak within range of the Bluetooth unit.
2. Put the power switch in the ON position. The blue status lamp flashes slowly 3 times and then flashes rapidly to indicate pairing mode.
3. Follow the instructions on the Bluetooth unit to search for the speaker.
4. The speaker designation during pairing is "000346". If asked for a PIN code, enter 0000.
5. The blue status lamp flashes slowly when the pairing is completed.

Use

1. Put the power switch in the ON position for 2–3 seconds to start the speaker.
2. An audio prompt is given and the blue status lamp flashes slowly.
3. The blue status lamp goes on during playback.
4. Put the power switch in the OFF position for 2–3 seconds to switch off the speaker.

TROUBLESHOOTING

Problem Action
Bluetooth pairing failed several times. Switch off and switch on the speaker.
The playback falters. Check if there is too big a gap between the units, or if there is an obstruction in between.
No sound during playback. Check the volume setting on the speaker.
No sound in AUX mode. Check that the audio cable is correctly connected.
The product will not start. Check if the battery is discharged.
