Product Type	19-inch LCD Monitor
Brand	AOpen
Model	WT19M-FP2
Display Diagonal	19 inches
Native Resolution	1280 x 1024 (SXGA)
Aspect Ratio	5:4
Contrast Ratio	1000:1 (typical)
Response Time	5 ms
Brightness	250 cd/m²
Viewing Angle (H/V)	170°/160°
Power Consumption	20 W (typical), <1 W (standby)
Power Input	100-240 VAC, 50/60 Hz
Dimensions (W x H x D)	17.3 x 15.4 x 7.5 inches (with stand)
Weight	11.0 lbs (5.0 kg)
Connectivity	1 x VGA, 1 x DVI-D (optional), 1 x Audio in
VESA Mount	100 x 100 mm
Included Accessories	Power cord, VGA cable, Audio cable, User manual
Cleaning Instructions	Wipe with a soft, dry cloth; use mild detergent if needed; avoid liquids entering the monitor.
Safety Precautions	Do not place near water; avoid blocking vents; use only the provided power adapter.
Spare Parts Availability	Power cord, VGA cable, stand; contact AOpen support for other parts.
Reparability	User-replaceable base; internal components require professional service.
Certifications	CE, FCC, RoHS

Frequently Asked Questions - WT19M-FP2 AOPEN

Why is there no power on the monitor?

Check that the power cord is securely connected to both the monitor and a working power outlet. Ensure the power button is pressed. If using a power strip, verify it is turned on.

The monitor shows 'No Signal' or 'Cable Not Connected'. What should I do?

Verify that the video cable (VGA or DVI) is firmly connected to both the monitor and the computer. Ensure the computer is powered on and not in sleep mode. Try a different cable or port if available.

The screen is blank but the power LED is on.

Adjust the brightness and contrast settings using the on-screen display (OSD) menu. Check the input source selection; make sure it matches the cable being used. If the issue persists, try connecting another device.

Why does the display flicker?

Flickering may be caused by an unstable refresh rate or interference. Set the screen refresh rate to 60 Hz in your computer's display settings. Move other electronic devices away from the monitor.

How do I clean the monitor screen?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water or a mild screen cleaner. Gently wipe the screen in a circular motion. Never spray liquid directly onto the screen.

How can I adjust the screen settings?

Use the buttons on the monitor to open the On-Screen Display (OSD) menu. Navigate to adjust brightness, contrast, color temperature, and other settings. Press the Menu button to access options.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA 100 x 100 mm mounting. Remove the stand and attach a compatible wall mount bracket using the four mounting screws. Ensure the wall mount can support the monitor's weight.

What cables are included in the box?

The monitor comes with a power cord, a VGA cable, and an audio cable. Depending on the region, a DVI cable may not be included.

What is the warranty for this monitor?

AOpen provides a standard 1-year limited warranty for the WT19M-FP2. Warranty terms may vary by region. Keep your purchase receipt for support.

Where can I find the user manual?

You can download the PDF manual from the AOpen website or from the product page on notice-facile.com. The manual is also included in the box.

USER MANUAL WT19M-FP2 AOPEN

Blue background with white icon of a hand pressing a button on a computer screen, no text or symbols present

eTILE

WT19M-FP2

Commercial All In One PC

Technical Manual

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under "Green Products"

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.

All other brand names and trademarks are owned by their respective owners.

Copyright © 2011 by AOpen Inc.

All rights reserved.

AOpen Inc.

http://www.aopen.com.tw

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :
   a. Liquid has penetrated into the equipment.
   b. The equipment has been exposed to moisture.
   c. The equipment has not work well or you can not get it work according to user's manual.
   d. The equipment has dropped and damaged.
   e. If the equipment has obvious sign of breakage.
9. Ambient operation temperature: less than 40 degrees C.
10. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.
11. Wall Mounting Holder need to use UL 1678 approved product.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Table of Contents

1. Packing List....11

1-1. Standard Accessories ...... 11

2. System View....12

2-1. Front View....12

2-2. Rear View....12

2-3. I/O ports....13

2-4. Dimension 14

3. System Assembly ...... 15

3-1. SSD Replacement .... 15

3-2. RAM Replacement....16

3-3. Power Adapter Replacement....17

3-4. Wireless LAN Installation....17

4. Peripheral Installation....18

4-1. VESA-bracket support....18

5. Specification....19

Appendix A: Drivers Installation....21

Appendix B: Trouble Shotting 22

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro Devices, Inc.

The logos of Intel, Intel Celeron and Pentium II&III are the registered trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related information. AOpen Company reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve all rights.

Under no circumstances are any types of duplicating and loading this brochure in any databases and media permitted except the permission signed on formal document by AOpen Company.

1996-2008 Copyrights, AOpen Ltd. All rights reserved.

http://www.aopen.com

1. Packing List

1-1. Standard Accessories

a.

Blank tablet device with blank screen area (no text or symbols)

d.

b.

C.

Pure diagram of a connector or connector with no text, numbers, or symbols

a. System

b. Utility and Driver

c. Power adapter (90W)

d. Power cord

Notice:

The pictures may look slightly different from the product you purchased, due to our constant product improvement effort.

2. System View

2-1. Front View

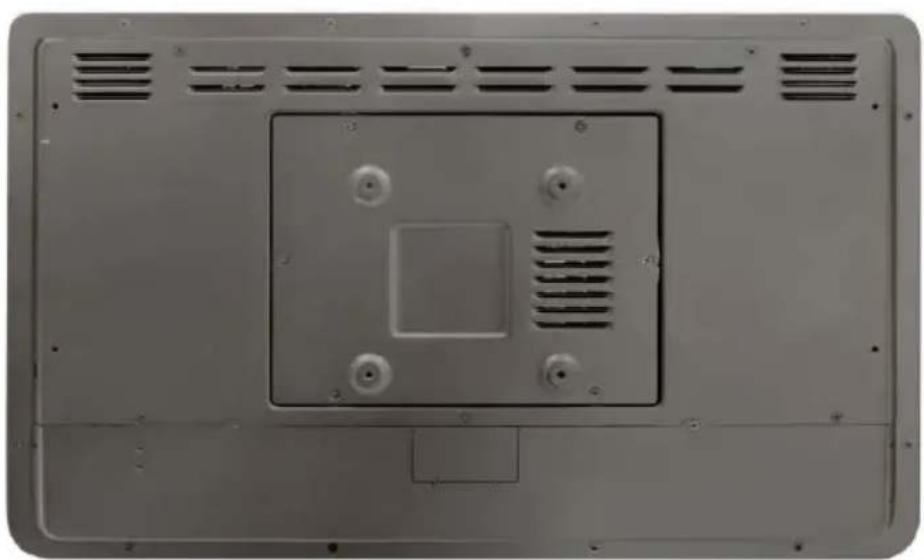

2-2. Rear View

Front view of a metallic electronic device casing with ventilation grilles and central square component (no text or symbols visible)

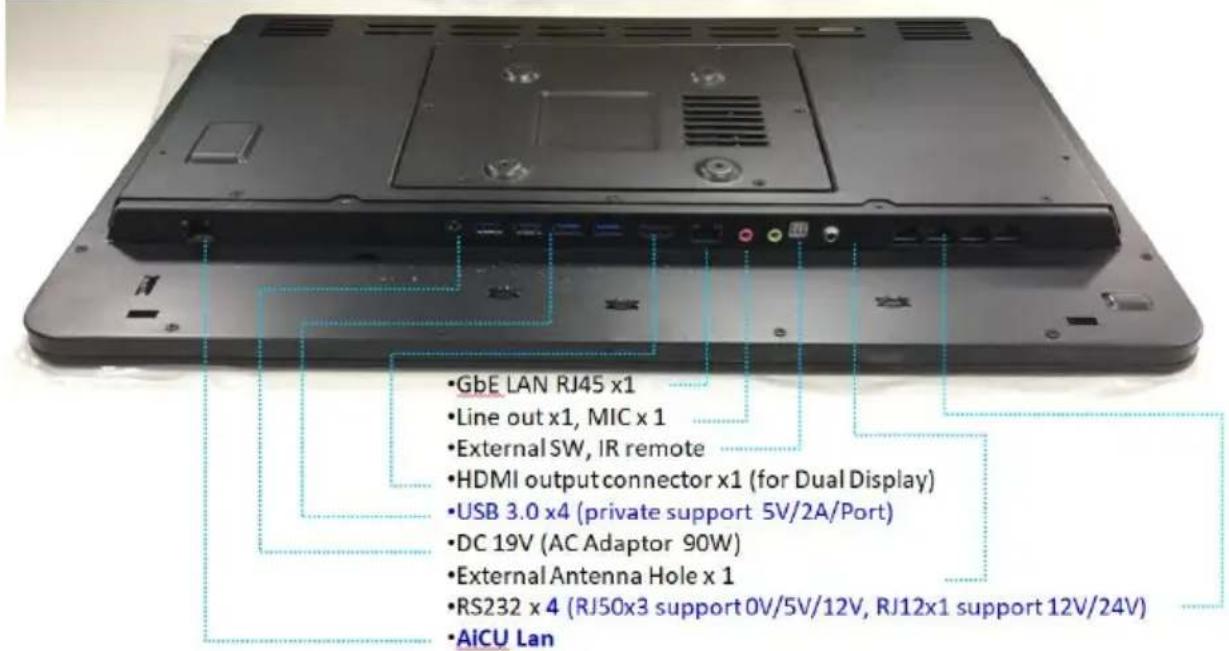

2-3. I/O ports

Caution: When you install devices or cables, please removed DC jack at first to prevent inadvertently switched to cause system boot/ damage to system/electric shock. The HDMI connector is output port, not input.

2-4. Dimension

3. System Assembly

Please remove all screws of rear cover

Top-down view of a device casing with four red-circled mounting points on the front panel (no text or symbols visible)

3-1. SSD Replacement

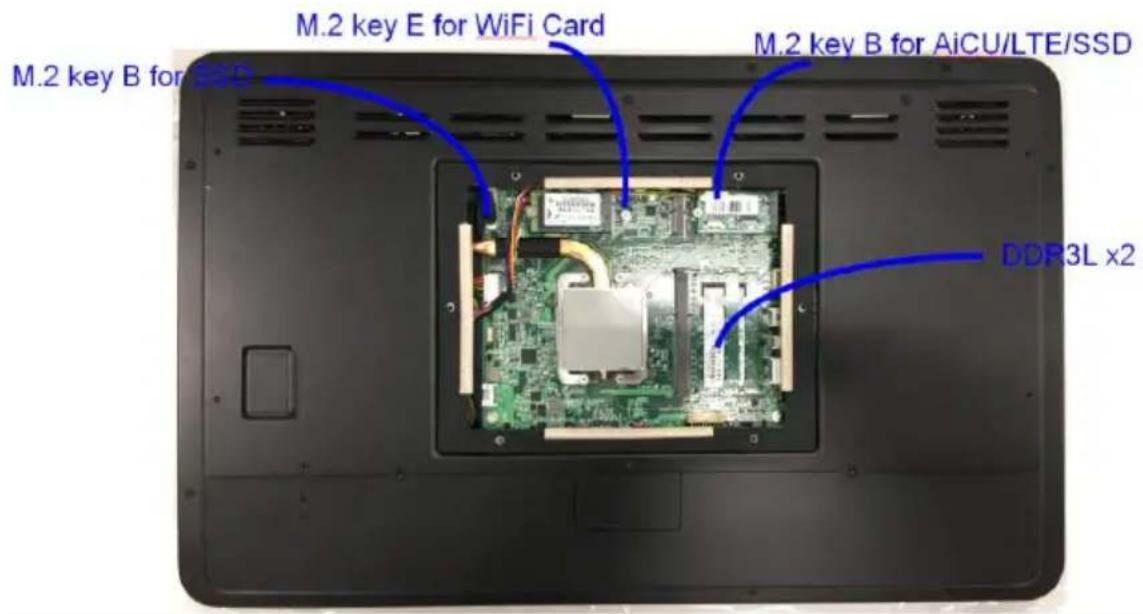

System internal placement

3-2. RAM Replacement

Opening the Rear Cover

Please open the rear cover first then remove and replace the RAM module.

You can refer to the motherboard layout to find the memory compartment.

Swapping a RAM Module

1. Use both fingers to pull the ejector clips out of the sides of the module.
2. Slide the memory module out of the memory slot.

3D diagram of a rectangular electronic component with internal slots and directional arrows indicating flow or movement (no text or symbols)

Installing a RAM Module

1. Slide the memory module into the memory slot and press down until the ejector clips click in place.

Technical illustration of a computer RAM module with internal components and an arrow indicating assembly (no text or symbols present)

3-3. Power Adapter Replacement

1. Please turn off the system
2. Disconnect the power cable from the I/O panel (DC IN), then can swap the adapter

3-4. Wireless LAN Installation

To external antenna

Diagram of a mechanical device with arrows indicating motion or force direction, no text or symbols present

4. Peripheral Installation

4-1. VESA-bracket support

The system support standard 100x100mm VESA mount, so other VESA mount bracket followed this standard spec can be assembled. Please use the system attached VESA screw - M4, otherwise will be broken system's VESA screw hole.

5. Specification

CPU

Intel (Apollo Lake CPU TDP 10.0W)

MEMORY/

Support : SO-DIMM DDR3L x 2 (MAX 8G)

Low voltage version, 1.35V

GRAPHICS

Integrated Intel® CPU (GMA HD Graphics series)

LAN

Realtek RTL8111H

Audio

RealTek ALC269Q-VC2-GR

Mini-Card slot (Option)

x1 (2242, key B for SSD),

x1 (2242, key B for MCU/4G/SSD,

x1 (2230, key E for WiFi)

Storage

M.2 SSD

SYSTEM BIOS

AMI BIOS

Touch Panel

Win 10 support 10 Fingers (PCT Multi Touch)

Surface Pencil Hardness >=7H per ASTM D 3363.

Durability Characteristics, Pen Hitting: more than 20,000,000 times.(Loading 180g)

VA Panel 19.5"(1920x1080 250cd/m²) LED Back Light

Another SPEC

Standard VESA Screw Hole (100x100mm), Screw L=3mm

Optional 2W Stereo Speaker

Watchdog Timer: (1sec \~255sec)

System Build-in Embedded Antenna

Not support Monitor OSD function

Optional Wireless KIT

Side I/O – with cover

RS232 x 4 (5V/1A, 12V/0.5A through RJ50, default 0V)

USB 3.0 x 4 (private support 5V/2A/Port)

GbE LAN RJ45 *1

Line out x1

MIC in x1

DC 19V (AC Adaptor 65W)

HDMI output connector x1 (for Dual Display)

External Power Switch (3pins) x1

AiCU Remote Lan x1

Dimension / Weight

494x308x33.37mm (WxHxD) 5Kg

Appendix A: Drivers Installation

The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system.

Please insert the Driver CD into the drive and double click on the "index.htm" to select the models. You can refer to the drivers installation guide for each driver in the "Driver/Manual List".

Appendix B: Trouble Shotting

No screen

1. Check system power line is connected
2. Please press power knob again to turn on system (please check the power led at right rear side is turned on)

Motherboard

Can't boot on

1. Check the power led at right rear side is turned on, but still no booting screen after 3 minutes.
2. Remove power line, after 1 min, connecting power line and power on system again. If still no booting after 10\~30 sec, please contact with Service guys.

Only the blinking cursor at the upper left of the screen

If blinking cursor is kept after 3 minutes, it might be Motherboard issue. Please contact with Service guys.

Hardware Issue

Please clean out the visual dirty of appearance

DRAM issue

1. Connection is loose, please reinsert DRAM again
2. COMS setting is wrong, please reset as default value
3. DRAM performance is getting worse by time. Please swap a new one.

HDD issue

Please reboot from other booting device. If system is booting without any problem, it shows the hard drive may be crashed. Please swap a new one.

System crash issue

1. The additional peripheral may be over loading for adapter, and this will cause system to turn on or turn off sometime. Please check by removing additional peripheral.

2. If thermal air hole is blocked, it will cause the system can't drop out heated air flow, and then system will be crashed. Please keep clean area over 25.4mm(1 inch) around system air hole.
