USER MANUAL KF610 BRAUN

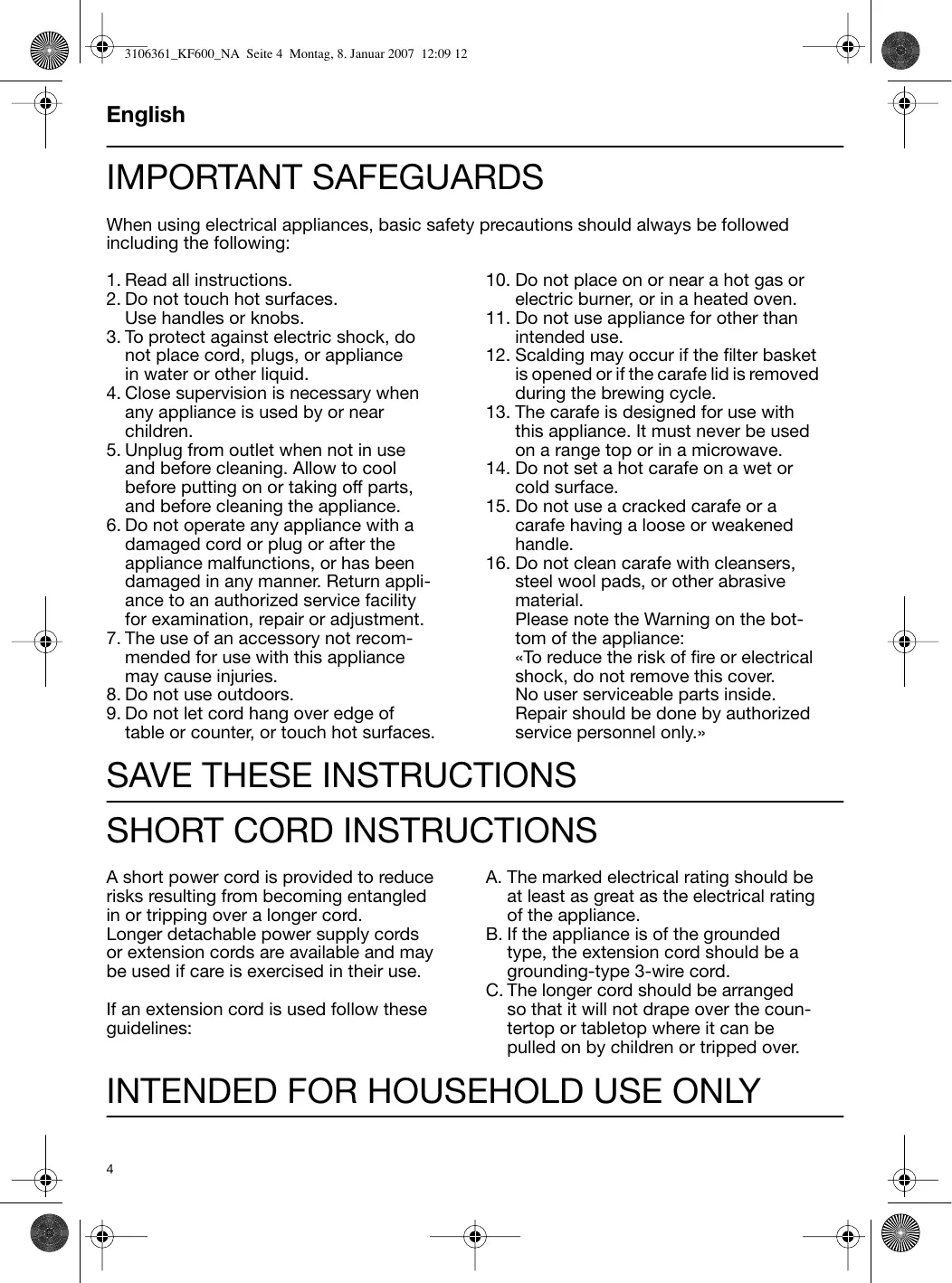

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces.

Use handles or knobs.

3. To protect against electric shock, do

not place cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when

any appliance is used by or near children.

5. Unplug from outlet when not in use

and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a

damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized service facility for examination, repair or adjustment.

7. The use of an accessory not recommended for use with this appliance

8. Do not use outdoors.

9. Do not let cord hang over edge of

table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or

electric burner, or in a heated oven.

11. Do not use appliance for other than

12. Scalding may occur if the filter basket

is opened or if the carafe lid is removed during the brewing cycle.

13. The carafe is designed for use with

this appliance. It must never be used on a range top or in a microwave.

14. Do not set a hot carafe on a wet or

15. Do not use a cracked carafe or a

carafe having a loose or weakened handle.

16. Do not clean carafe with cleansers,

steel wool pads, or other abrasive material. Please note the Warning on the bottom of the appliance: «To reduce the risk of fire or electrical shock, do not remove this cover. No user serviceable parts inside. Repair should be done by authorized service personnel only.»

SAVE THESE INSTRUCTIONS

SHORT CORD INSTRUCTIONS

A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power supply cords or extension cords are available and may be used if care is exercised in their use. If an extension cord is used follow these guidelines: A. The marked electrical rating should be at least as great as the electrical rating of the appliance. B. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. C. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over. Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun Impressions coffeemaker. Caution

• Please read the use instructions carefully and completely before using the appliance.
• This appliance must be kept out of reach of children.
• Before plugging into a socket, check that your voltage corresponds with the voltage printed on the bottom of the appliance.
• This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Never place the thermal carafe on a hotplate or other heated surfaces, as this would damage the carafe base.
• Caution: During and after operation, the metal surfaces will get hot. Avoid touching hot surfaces, especially the carafe base, to prevent burns or scalds. Always use the handle to carry the carafe and keep it upright.
• Do not use the thermal carafe in a microwave.
• Never submerge the thermal carafe in water, nor clean it in a dishwasher.
• Before you start preparing a new carafe of coffee, always allow the coffeemaker to cool down for approximately five minutes (switch off the appliance), otherwise steam can develop when filling the water tank with cold water.
• Braun electric appliances meet applicable safety standards. Repairs on electric appliances (including cord replacement) must only be carried out by authorized Braun service centers. Faulty, unqualified repair work may cause accidents or injury to the user.
• This appliance was constructed to process normal household quantities.
• Always use cold water to make coffee. Maximum cups 10 cups (0.125 l / 4.4 fl. oz per cup) Description

Cord/cord storage Space compensator Water level indicator Water tank Water filter cartridge Water filter exchange dial Filter basket push button release Swing-out filter basket with pause and serve Base J On/off switch On = Off = K Thermal carafe L Gold tone filter I Setting into operation Using the cord storage feature (1), you can adjust the cord length by pulling it out of or pushing it into the opening in the back of the coffemaker. Water filter benefits and installation The water filter improves coffee flavor by significantly reducing chlorine and also prevents calcification (scale) buildup. Provided that the cartridge is replaced regularly (every two months), it not only brews better tasting coffee, but can also extend the life of your coffeemaker by preventing calcification buildup. Braun water filter cartridges are available at your local retailer, Braun service centers or www.theessentials.com. Installing the water filter cartridge

1. Unpack the water filter cartridge (E) and follow the

instructions given on the pack.

2. Remove the space compensator (B) from the

3. Insert the water filter cartridge. (Be certain to keep

the space compensator as it must be installed in the water tank whenever the water filter cartridge is removed.)

4. The water filter should be exchanged every two

months. To remind you, set the water filter exchange dial (F) to the month that the water filter should be replaced. Note: Before using the coffeemaker for the first time, after a long period of not using it, or after installing a new water filter cartridge, fill the water tank with water not more than 8 cups of fresh, cold water and run the coffeemaker through one brewing cycle without any ground coffee in the filter basket. Thermal carafe The thermal carafe (K) is made of high-quality, double walled, vacuum stainless steel. In order to create the best heat-retention environment, it is essential to preheat the thermal carafe by rinsing with hot water.

• To remove the lid, turn the grip counter-clockwise (a) and lift it off.
• To close it, place it on the carafe with the grip positioned to the right of the carafe handle (b) and turn it clockwise until it locks into place.
• During brewing, the coffee runs through a special opening in the closed lid.
• If you want to serve coffee after brewing is finished, press the raised end of the silver lid grip (c) and keep it pressed down during pouring.

II Making coffee IV Decalcifying Note: Your coffeemaker is equipped with a reusable gold tone filter (L), which may be used instead of paper filters. Please note the following: Your coffee should be a medium grind; a very fine grind could cause the filter basket to overflow. Scoop the ground coffee into the center of the gold tone filter and prepare your coffee as described above. To clean, rinse the gold tone filter under running water. After using the filter for some time, clean it with a soft brush or sponge – do not use abrasive cleaners or scouring pads. The gold tone filter can be cleaned in the dishwasher. If you have hard water and you use your coffeemaker without a water filter, it has to be decalcified regularly. When using the water filter cartridge and exchanging it regularly, you ordinarily will not need to decalcify. However, if your coffeemaker takes longer than usual to brew it should be decalcified. Fill the tank with cold, fresh water (d), press the filter basket push button release (G) to open the filter basket, insert a No. 4 paper filter or the gold tone filter, put in ground coffee and close the filter basket. Place the carafe on the base (I) and switch on the coffeemaker. For added convenience, when filling with or disposing of ground coffee, the filter basket can be easily taken off its hinge (e). The pause and serve feature prevents dripping when the carafe is removed to pour a cup before brewing is finished. Carafe should be immediately returned to the base to prevent the filter baket from overflowing. Brewing time per cup: approximately one minute. Auto-off: For your convenience and safety, the appliance will automatically switch off approximately 17 minutes the coffemaker is turned on. If brewing takes longer and your coffeemaker automatically switches off, although there is still water in the water tank, it has to be decalcified (see IV). III Cleaning Always unplug the appliance before cleaning. Never clean the appliance under running water, nor immerse it in water. Clean the metal surfaces of the thermal carafe and filter basket with a damp cloth only (f). You may use small amounts of dishwashing liquid. Do not use steel wool pads or any abrasive cleaners. Never use any solvents such as alcohol and benzene. The thermal carafe is not dishwasher-safe. Use a soft brush, hot water and small amount of dishwashing liquid to clean the carafe inside. After cleaning, rinse it out with hot water.

Important: Replace water filter with the space compensator during any decalcification procedure. You can either use a commercially available decalcifying agent that does not affect aluminum or white household vinegar (4 - 5 % acid). a) If you are using a decalcifying agent, follow the manufacturer's instructions. Make sure not to fill the water tank above the «8 cups» mark on the water level indicator. b) If you are using vinegar, please proceed as follows: Fill the tank to the 6-cup mark with vinegar. Do not mix the vinegar with water or any other liquid. Turn on the coffeemaker and allow half of the vinegar to flow through. Switch off the appliance and leave for 10 minutes. Switch it on again and allow the rest of the vinegar to flow through. Repeat either procedure as many times as necessary in order to reduce the brewing time per cup to a normal level. Allow a maximum of eight cups of fresh, cold water to run through at least twice to clean the coffeemaker after decalcification. Best practices for best results This coffeemaker is designed to deliver maximum coffee aroma. Therefore, Braun recommends:

• Using only fresh ground coffee.
• Storing ground coffee in a cool, dry and dark place (e.g. cupboard or refrigerator) in an airtight container.
• Using only Braun water filters and exchanging every two months with regular use.
• Cleaning and decalcifying the coffeemaker regularly as described in parts III and IV. Subject to change without notice How to obtain service in the USA How to obtain service in Canada Should your Braun product require service, please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. Should your Braun product require service, please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you. To obtain service: A. Take the product in to the authorized Braun Service Center of your choice or, B. Ship the product to the authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain service: A. Carry the product in to the authorized Braun Service Center of your choice or, B. Ship the product to the authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact an authorized Braun Service Center. Please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (800-272-8611). Limited Warranty Braun warrants this Braun appliance to be free of defects in material and workmanship for a period of one year from the date of original purchase at retail. If the appliance exhibits such a defect, Braun will, at its option, repair or replace it without cost for parts and labor. The product must be carried in or shipped, prepaid and insured (recommended), to an authorized Braun Service Center. Proof of date of original purchase is required. The cost to ship the product to an authorized Service Center is the responsibility of the consumer, the cost to return the product to the consumer is the responsibility of Braun. This warranty does not cover finishes, normal wear, nor does it cover damage resulting from accident, misuse, dirt, water, tampering, unreasonable use, service performed or attempted by unauthorized service centers, failure to provide reasonable and necessary maintenance, including recharging, or units that have been modified or used for commercial purposes.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR

ANY PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO ONE YEAR FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE

RESPONSIBLE FOR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state. To obtain original Braun replacement parts & accessories: Contact an authorized Braun Service Center. Please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-387-6657. Limited 1-year Warranty In the event a Braun appliance fails to function within the specified warranty period because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada will, at its option either repair or replace the unit without additional charge to the consumer. This warranty does not cover any product which has been damaged by dropping, tampering, servicing performed or attempted by unauthorized service agencies, misuse or abuse. This warranty excludes units which have been modified or used for commercial purposes. To the extent allowed by law, Braun Canada shall not be responsible for loss of the product, loss of time, inconvenience, commercial loss, special or consequential damages. The provisions of this warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in applicable provincial legislation.
