Product Type	Water Dispenser
Brand	Imarflex
Model	IWD-1055
Dimensions (W x D x H)	Approx. 30 x 30 x 90 cm
Weight	Approx. 5 kg
Power Supply	220-240 V ~ 50/60 Hz
Heating Power	500 W
Cooling Power	100 W
Water Temperature Options	Hot, Cold, Room Temperature
Hot Water Temperature	85–95°C
Cold Water Temperature	5–15°C
Water Tank Capacity	2.0 L (approx.)
Water Source	Bottled or Container-fed
Drip Tray	Removable, dishwasher safe
Child Safety Lock	Yes, on hot water tap
Overheat Protection	Yes, automatic shut-off
Cleaning and Descaling	Regular descaling recommended every 3 months
Spare Parts Available	Faucets, drip tray, heating element
Repairability	Modular design for easy part replacement
Certifications	CE, RoHS

Frequently Asked Questions - IWD-1055 Imarflex

How do I install the IWD-1055 water dispenser?

Place the dispenser on a level, stable surface near a power outlet. Connect the water bottle or container as per the manual. Plug in and allow time for heating/cooling (about 15-20 minutes).

What type of water can I use?

Use clean, potable water. For best taste and to reduce scale, filtered or bottled water is recommended. Avoid using distilled water as it may affect taste and mineral balance.

How do I clean the water dispenser?

Unplug the unit. Remove and wash the drip tray with warm soapy water. Wipe the exterior with a damp cloth. For internal cleaning, use a descaling solution (vinegar or citric acid) every 3 months.

Why is the hot water not getting hot?

Check if the unit is plugged in and the power switch is on. The heating element may need time to heat up (up to 30 minutes). If still not hot, there may be a faulty thermostat or heating element; contact support.

Why is there no cold water?

Ensure the cooling switch is turned on. The compressor may take 15-20 minutes to cool. If the room is very hot, cooling efficiency may decrease. If still not cold, check the power supply or compressor.

How do I change the water bottle?

Turn off the hot water switch and wait for the water to cool. Lift the empty bottle off the probe, then place a new bottle securely onto the probe. Ensure no leaks.

Can I use the dispenser without a bottle?

Yes, some models allow connection to a water line. For the IWD-1055, it is designed for bottles or containers with a probe. Check the manual for alternative water source options.

What does the child safety lock do?

The child safety lock prevents accidental dispensing of hot water. Push the lock button before pressing the hot water tap. This reduces burn risk for children.

How can I save energy with this dispenser?

Turn off the heating and cooling switches when not in use for long periods. Use the dispenser only as needed. Some models have an energy-saving mode; check the manual.

Where can I find spare parts for the IWD-1055?

Contact Imarflex customer service or authorized dealers. Common spare parts like drip tray, faucets, and heating elements are available online. Use only genuine parts.

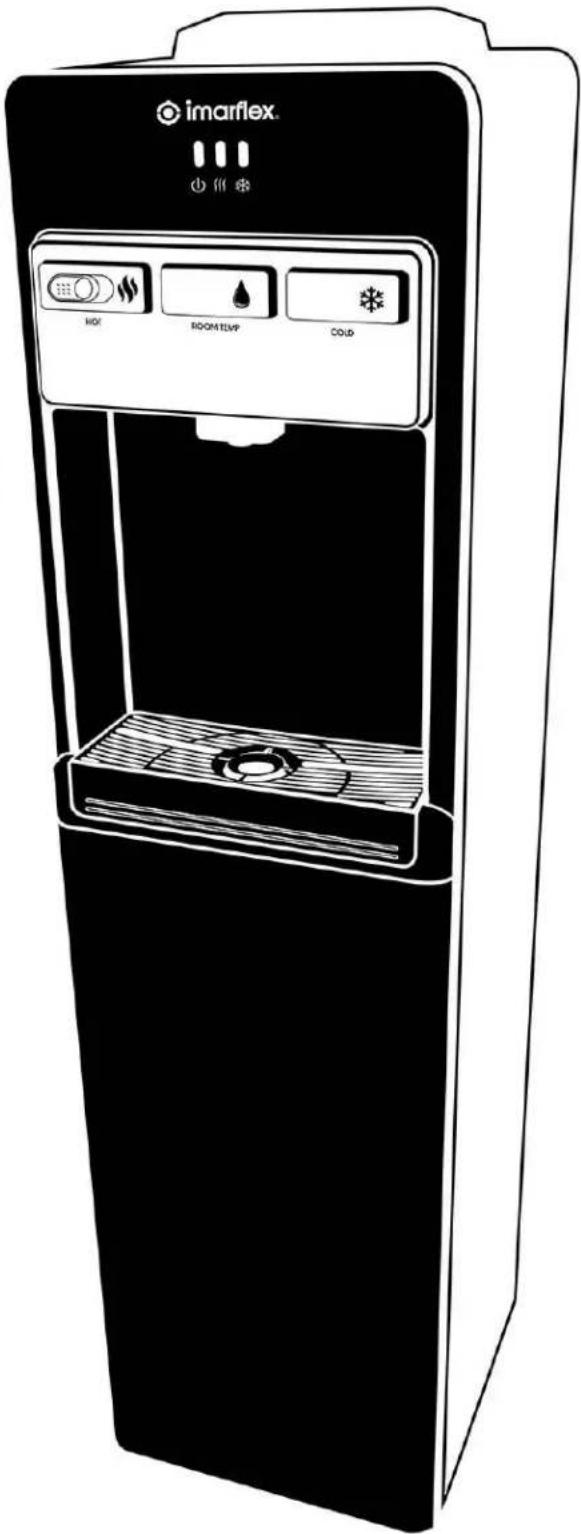

USER MANUAL IWD-1055 Imarflex

HOT and COLD WATER DISPENSER

TRI-DISPENSE

Three white icons representing steam, water droplet, and snowflake (no text or symbols)

HOT
ROOM TEMP

COLD

Compressor cooling

SPACE SAVER DESIGN

DISPENSING SYSTEM

WATER TANK CAPACITY
1L Hot / 3L Cold

IWD-1055

SPECIFICATION:

MODEL NO. : IWD-1055

POWER CONSUMPTION : Hot - 420W

Cold - 100W

RATED VOLTAGE : 230Va.c. 60Hz

BOX DIMENSION : 340*370*1150mm

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the Water Dispenser, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest lmarflex Authorized Service Center to avoid hazard.

5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6. Do not place the Water Dispenser near gas stove, electric burner or heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Keep the water dispenser in a dry and cool place and avoid direct sunlight. Rearward of the machine should be at least 20cm far from the wall. Never put the machine on the paper or foam, which may cause unstable condition, such as store water or cause creepage. Never put anything flammable beside this machine.

10. To avoid damage, do not plug the power cord or turn on the heating switch until 3 minutes after you put the filled water gallon.

11. This water dispenser must be used with third-prong grounding plug and creepage protection switch. If two flat plugs will use, the grounding wire must be properly grounded before use.

12. In case the unit will not use for a long time, turn off the switch and pull the plug out from the socket then drain the remaining water through drain hole.

13. Never use organic liquid to clean the machine. Splashing of water to the body is strictly prohibited.

14. You should use the ON/OFF switch to turn on or off the unit. It is prohibited to turn on or off the unit through plugging or unplugging the power cord. Never extend the length of the power supply cord to avoid fire.

15. Never turn the machine upside down or lean it more than 45^ .

16. Do not adjust the thermostat of the unit by yourself.

17. Power cord or other parts of the unit must be replaced by authorized service center personnel.

18. The cooling time of the unit might take longer when the environment temperature is higher than the normal.

19. Save this instruction for future reference.

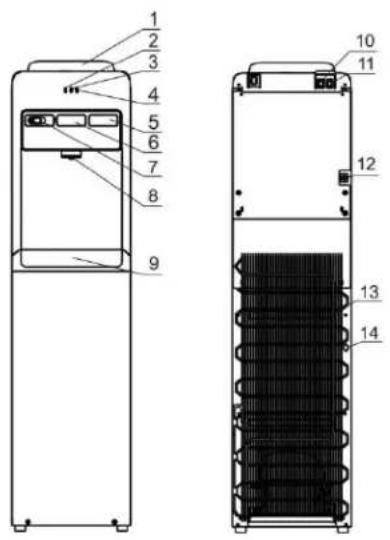

DESCRIPTION OF PARTS:

NUMBER	PART NAME
1	Gallon Supporter
2	Power Light Indicator
3	Hot Light Indicator
4	Cold Light Indicator
5	Cold Water Tap
6	Room Temp Water Tap
7	Hot Water Tap
8	Water Spout
9	Water Collector
10	Cold Switch
11	Hot Switch
12	Power Cord
13	Condenser
14	Drain Hole

HOW TO USE:

1. Tear the label from the water gallon.

2. Turn the water gallon upside down then vertically insert the water gallon into the gallon supporter on top of the machine.

3. Insert the plug to the socket; turn on the power switch located at the back portion of the unit. The indicator lights up accordingly once the machine works.

4. Vertically pull out the water gallon by two hands when the gallon is empty and replace it with another gallon of water.

5. The latest single tap can be fitted for consumer's taste; you can freely control the water temperature by pressing the two taps at the same time.

CLEANING AND MAINTENANCE:

• Prepare bleach disinfecting solution

Mix 1 teaspoon (5ml) of household bleach with 1 liter of water. Do not make this any stronger. If you make extra solution, this should be used up within 30 days. Safety note: Use vinegar instead if you are sensitive to bleach

- Draining Instruction: Open the taps and take off the cap and rubber stopper from the water outlet on the rear side of the unit

- Clean your water dispenser

1. Unplug the unit.

2. Remove the empty water gallon.

3. Remove no-spill top and/or baffle if equipped.

4. Wearing gloves and safety goggles, scrub interior of reservoir and nozzle(s) with sponge soaked in bleach solution. Let the solution stand for more than 2 minutes but less than 5 minutes to avoid plastic corrosion.

5. Fill the reservoir with clean tap or bottled water to rinse four (4) times and drain into a bucket. Dispose into sink.

6. Clean the drip pan, no-spill top and baffle with bleach solution as well. Rinse and replace.

- Replace and use new gallon to fill dispenser. If there is any remaining smell, continue rinse process

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSE	REMEDY
No hot or cold water	Over Consumption of hot or cold water in short timeNo power supply	The hot and cold water will be available after a whileConnect the plug and turn on heating or cooling switch
No running water from the taps	Empty gallonInlet of gallon supporter blocked by gallon seal	Replace it with a new water gallonClean wasted paper and gallon seal and re-install the water gallon
Leakage from gallon supporter	Broken water gallon	Replace it with a new water gallon
Noise Operation	No placid installation	Place the unit on placid & solid surface
