IWD-1130W - Water dispenser Imarflex - Free user manual and instructions

Product Type	Water Dispenser
Brand	Imarflex
Model	IWD-1130W
Dispensing Type	Top-loading
Dimensions (H x W x D)	Approx. 90 x 30 x 30 cm
Weight	Approx. 8 kg
Power Supply	220-240V, 50/60Hz
Heating Power	500W
Cooling Power	75W
Hot Water Temperature	Up to 95°C
Cold Water Temperature	5-10°C
Upper Tank Capacity	5 L
Lower Tank Capacity	3 L
Functions	Hot and cold water dispensing
Safety Features	Overheat protection, child safety lock
Maintenance	Weekly cleaning with vinegar solution
Spare Parts Availability	Available from Imarflex service centers
Material	Plastic casing, stainless steel interior
Certifications	CE, RoHS

Frequently Asked Questions - IWD-1130W Imarflex

How do I clean the Imarflex IWD-1130W water dispenser?

Unplug the unit. Remove the top cover and water tanks. Wash tanks with warm soapy water, rinse thoroughly. Wipe the exterior with a damp cloth. Descale monthly using a vinegar solution (1 part vinegar to 3 parts water) run through the system.

How can I remove limescale buildup?

Mix equal parts white vinegar and water. Pour into the upper tank and let it sit for 30 minutes. Run the solution through the hot and cold taps. Then flush with several tanks of clean water until no vinegar smell remains.

Why is the water not heating up?

Check that the power cord is plugged in and the hot water switch is on. The heating element may have failed; contact Imarflex support. If the unit is new, it may take 15-20 minutes to heat the water initially.

Why is no water coming out of the taps?

Ensure the upper water tank is filled. For top-loading models, the bottle may need to be seated properly. Also check that the air vent is not blocked. If the problem persists, the water valve may be clogged.

Can I use the dispenser without a water filter?

Yes, the IWD-1130W does not require a filter. It is designed for use with bottled water or tap water. If using tap water, ensure it is clean or boil it first to avoid contamination.

How do I set up the dispenser for first use?

Remove all packaging and protective films. Place the dispenser on a level surface. Rinse the water tanks with warm water. Fill the upper tank with water. Plug in and turn on the power. Wait 15-20 minutes before dispensing hot water.

What is the water tank capacity?

The upper tank holds approximately 5 liters and the lower tank (reservoir) holds approximately 3 liters. Total capacity is about 8 liters.

How often should I clean the water dispenser?

We recommend cleaning the exterior and drip tray weekly. The water tanks should be cleaned every month. Descaling every 3-6 months is advised depending on water hardness.

Are the plastic parts BPA-free?

Yes, the materials used in the IWD-1130W are food-grade and BPA-free, ensuring safe drinking water.

Where can I find spare parts or customer support?

Spare parts are available through Imarflex authorized service centers. Contact Imarflex customer service via their website or phone number listed in the manual for assistance.

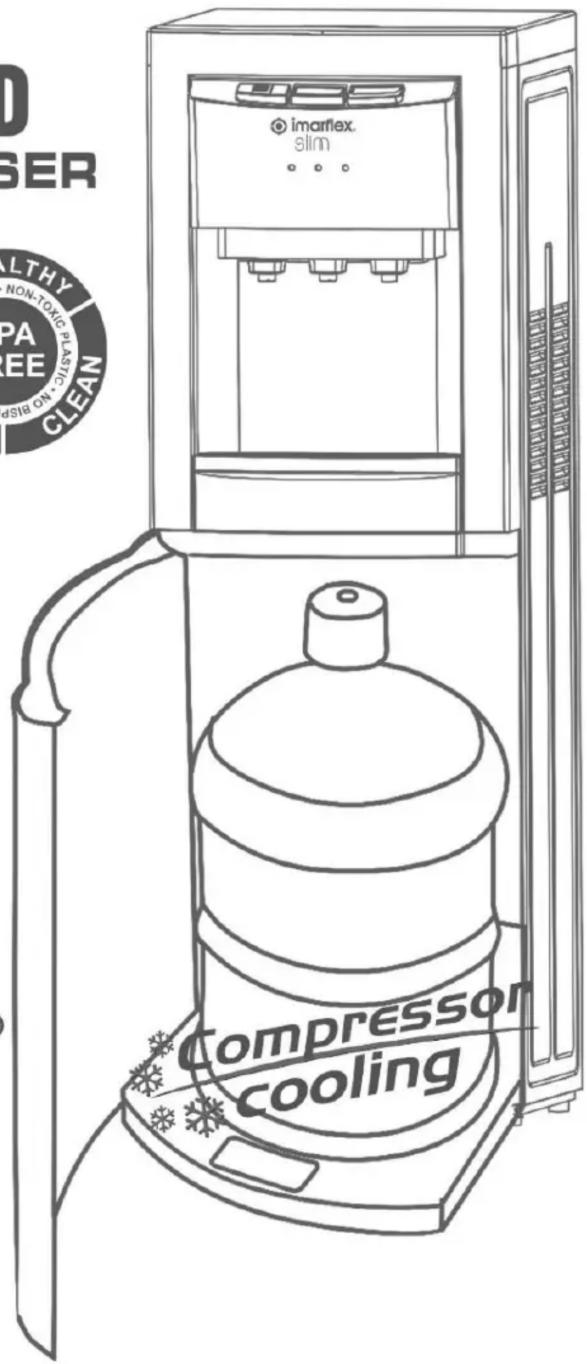

USER MANUAL IWD-1130W Imarflex

HOT and COLD WATER DISPENSER

TRI-DISPENSE

HOT

NORMAL

COLD

BOTTOMLOADING with ROLLERS

FOOD GRADE STAINLESS STEEL WATER RESERVIOR

■ ENERGY EFFICIENT
■ CHILD-LOCK FEATURE
■ REMOVABLE DRIP TRAY
■ INSULATED HOT & COLD RESERVOIR

imarflex®

In Every Home.

www.imarflex.com

IWD-1130W

SPECIFICATION:

MODEL NO. : IWD-1130W

POWER CONSUMPTION : Hot - 420W

Cold - 100W

RATED VOLTAGE : 230Va.c. 60Hz

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the Water Dispenser, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest Imarflex Authorized Service Center to avoid hazard.

5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6. Do not place the Water Dispenser near gas stove, electric burner or heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Keep the water dispenser in a dry and cool place and avoid direct sunlight. Rearward of the machine should be at least 20cm far from the wall. Never put the machine on the paper or foam, which may cause unstable condition, such as store water or cause creepage. Never put anything flammable beside this machine.

10. To avoid damage, do not plug the power cord or turn on the heating switch until 3 minutes after you put the filled water gallon.

11. This water dispenser must be used with third-prong grounding plug and creepage protection switch. If two flat plugs will use, the grounding wire must be properly grounded before use.

12. In case the unit will not use for a long time, turn off the switch and pull the plug out from the socket then drain the remaining water through drain hole.

13. Never use organic liquid to clean the machine. Splashing of water to the body is strictly prohibited.

14. You should use the ON/OFF switch to turn on or off the unit. It is prohibited to turn on or off the unit through plugging or unplugging the power cord. Never extend the length of the power supply cord to avoid fire.

15. Never turn the machine upside down or lean it more than 45^ .

16. Do not adjust the thermostat of the unit by yourself.

17. Power cord or other parts of the unit must be replaced by authorized service center personnel.

18. The cooling time of the unit might take longer when the environment temperature is higher than the normal.

19. Save this instruction for future reference.

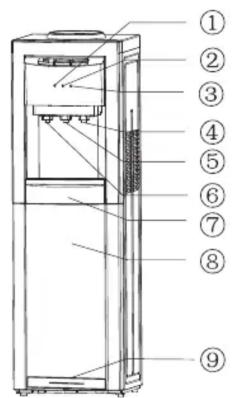

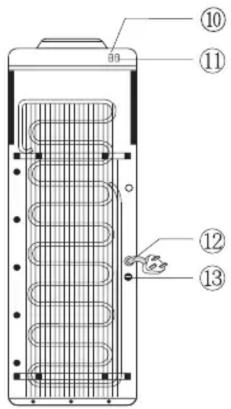

DESCRIPTION OF PARTS:

NO.	PART NAME	NO.	PART NAME
1	Heat Light Indicator	8	Door
2	Cold Light Indicator	9	Container Stand with Rollers
3	Refill Water Light Indicator	10	Cold Switch
4	Cold Water Tap	11	Hot Switch
5	Normal Water Tap	12	Power Cord
6	Hot Water Tap	13	Hot Tank Drain Valve
7	Water

HOW TO USE:

1. Tear the label from the water gallon.
2. Put the water pump rod inside the gallon and place slowly inside the unit.
3. Insert the plug to the socket and wait for about 5 minutes before you turn ON the power switch.
4. Press the Hot, Cold and Room Temp Water button. Once, there is water flows out in every water tap you may now turn ON the hot & cold power switch located at the back portion of the unit. The indicator lights up accordingly once the machine works.
5. The refill water light indicator will be flashing once the water gallon needs to be refill.

For Initial Use:

1. Clean the unit.

a. Put the water pump rod inside the gallon and place slowly inside the unit.
b. Press the cold, room temp and hot tap until the water flows out of the faucet for about 20 minutes.
c. Pull off the water pump rod into the gallon and turn on the drain valve to empty the water inside the unit.

CLEANING AND MAINTENANCE:

1. Turn off and unplug the unit.
2. Wait until the hot water in the water tank cools down.
3. Open the hot tank drain valve until the water tank gets empty.

4. Cleaning of the unit should be done regularly.

5. Wipe the body of the water dispenser with damp cloth.

6. Do not use abrasive materials to avoid scratches.
7. Cleaning of the unit should be done regularly.
8. Wipe the body of the water dispenser with damp cloth.
9. Do not use abrasive materials to avoid scratches.

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSE	REMEDY
No hot or cold water	Over Consumption of hot or cold water in short timeNo power supply	The hot and cold water will be available after a whileConnect the plug and turn on heating or cooling switch
No running water from the taps	Empty gallonInlet of gallon supporter blocked by gallon seal	Replace it with a new water gallon
Leakage from gallon supporter	Broken water gallon	Replace it with a new water gallon
Noise Operation	No placid installation	Place the unit on placid & solid surface
The hot tap do not provide hot water and cold tap do not provide cold water	Excessive use of hot and cold water in a short period of timeThe unit is unplugThe cold cooling time is not enoughThe cold and hot switch is off	Wait for a few minutes to have cold and hot waterCheck if the hot and cold switch is onWait for about 2 hours before getting a cold water

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A. Linao St. Malate, Manila

Made in China
