IWD-1050 - Water dispenser Imarflex - Free user manual and instructions

Product Type	Water Dispenser
Brand	Imarflex
Model	IWD-1050
Power Consumption (Hot)	420W
Power Consumption (Cold)	100W
Rated Voltage	230V a.c. 60Hz
Box Dimensions	340 x 370 x 1150 mm
Hot Water Capacity	1 Liter
Cold Water Capacity	3 Liters
Dispensing Options	Hot, Room Temperature, Cold (Tri-Dispense)
Cooling System	Compressor cooling
Design Feature	Space saver design
Water Tank Capacity	1L Hot / 3L Cold
Power Cord Type	Third-prong grounding plug
Safety Features	Overheat protection, grounding required
Cleaning Method	Bleach solution (1 tsp per liter water), rinse thoroughly
Maintenance	Drain through rear drain hole for long storage
Minimum Rear Clearance	20 cm from wall
Warranty	Refer to authorized service center for repairs

Frequently Asked Questions - IWD-1050 Imarflex

How do I clean the water dispenser?

Unplug the unit, remove the empty gallon, and scrub the interior reservoir with a bleach solution (1 teaspoon household bleach per 1 liter of water). Let stand 2-5 minutes, then rinse with clean water four times. Clean drip pan and other parts with the same solution.

Why is there no water from the taps?

Possible causes: empty water gallon, or the gallon seal is blocking the inlet. Replace with a new gallon or clean the inlet and reinstall the gallon.

What should I do if the dispenser is leaking?

If leakage comes from the gallon supporter, the water gallon may be broken. Replace the water gallon with a new one.

How long does it take to cool water?

The cooling time may be longer if the ambient temperature is higher than normal. Allow sufficient time for the compressor to cool the water.

Can I use an extension cord?

No, do not extend the length of the power supply cord to avoid fire hazard. Plug directly into a wall outlet.

How do I replace the water gallon?

When the gallon is empty, vertically pull it out by two hands. Insert a new full gallon upside down into the gallon supporter.

What do the indicator lights mean?

Power Light Indicator shows the unit is on. Hot Light Indicator indicates heating is active. Cold Light Indicator indicates cooling is active.

Why is the dispenser making noise?

Noise may occur if the unit is not placed on a stable and level surface. Ensure the dispenser is on a flat, solid surface.

What voltage is required?

The rated voltage is 230V a.c. 60Hz. Check that your outlet matches before plugging in.

How do I drain the dispenser for long storage?

Turn off the switch, unplug, open the taps, and remove the cap and rubber stopper from the rear drain hole to let water drain completely.

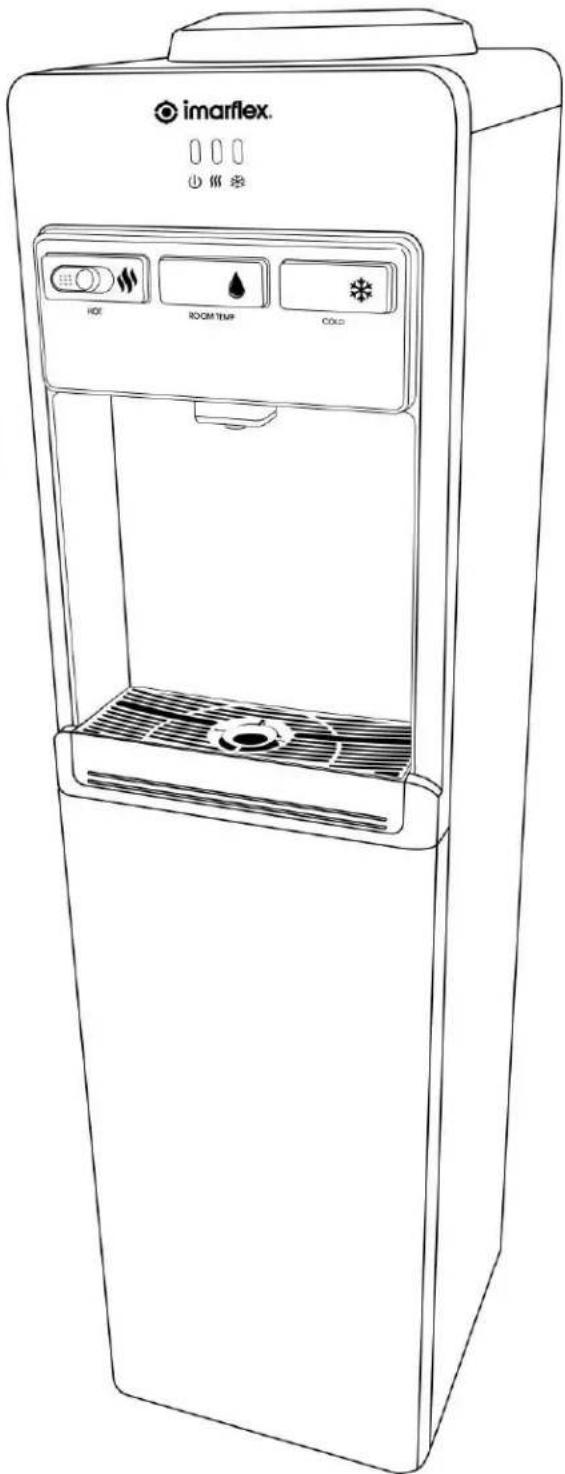

USER MANUAL IWD-1050 Imarflex

HOT and COLD WATER DISPENSER

TRI-DISPENSE

Three white icons on a dark gray background: steam wave, droplet, and snowflake (no text or symbols)

HOT
ROOM TEMP
COLD

Compressor cooling

SPACE SAVER DESIGN

DISPENSING SYSTEM

WATER TANK CAPACITY
1L Hot 3L Cold

imarflex®
In Every Home.

IWD-1050

SPECIFICATION:

MODEL NO. : IWD-1050

POWER CONSUMPTION : Hot - 420W

Cold - 100W

RATED VOLTAGE : 230Va.c. 60Hz

BOX DIMENSION : 340*370*1150mm

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the Water Dispenser, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest lmarflex Authorized Service Center to avoid hazard.

5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6. Do not place the Water Dispenser near gas stove, electric burner or heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Keep the water dispenser in a dry and cool place and avoid direct sunlight. Rearward of the machine should be at least 20cm far from the wall. Never put the machine on the paper or foam, which may cause unstable condition, such as store water or cause creepage. Never put anything flammable beside this machine.

10. To avoid damage, do not plug the power cord or turn on the heating switch until 3 minutes after you put the filled water gallon.

11. This water dispenser must be used with third-prong grounding plug and creepage protection switch. If two flat plugs will use, the grounding wire must be properly grounded before use.

12. In case the unit will not use for a long time, turn off the switch and pull the plug out from the socket then drain the remaining water through drain hole.

13. Never use organic liquid to clean the machine. Splashing of water to the body is strictly prohibited.

14. You should use the ON/OFF switch to turn on or off the unit. It is prohibited to turn on or off the unit through plugging or unplugging the power cord. Never extend the length of the power supply cord to avoid fire.

15. Never turn the machine upside down or lean it more than 45^ .

16. Do not adjust the thermostat of the unit by yourself.

17. Power cord or other parts of the unit must be replaced by authorized service center personnel.

18. The cooling time of the unit might take longer when the environment temperature is higher than the normal.

19. Save this instruction for future reference.

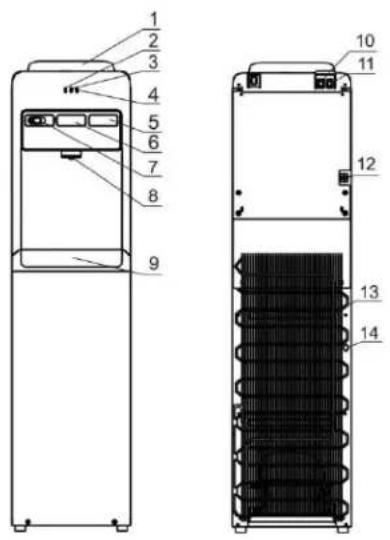

DESCRIPTION OF PARTS:

NUMBER	PART NAME
1	Gallon Supporter
2	Power Light Indicator
3	Hot Light Indicator
4	Cold Light Indicator
5	Cold Water Tap
6	Room Temp Water Tap
7	Hot Water Tap
8	Water Spout
9	Water Collector
10	Cold Switch
11	Hot Switch
12	Power Cord
13	Condenser
14	Drain Hole

HOW TO USE:

1. Tear the label from the water gallon.

2. Turn the water gallon upside down then vertically insert the water gallon into the gallon supporter on top of the machine.

3. Insert the plug to the socket; turn on the power switch located at the back portion of the unit. The indicator lights up accordingly once the machine works.

4. Vertically pull out the water gallon by two hands when the gallon is empty and replace it with another gallon of water.

5. The latest single tap can be fitted for consumer's taste; you can freely control the water temperature by pressing the two taps at the same time.

CLEANING AND MAINTENANCE:

• Prepare bleach disinfecting solution

Mix 1 teaspoon (5ml) of household bleach with 1 liter of water. Do not make this any stronger. If you make extra solution, this should be used up within 30 days. Safety note: Use vinegar instead if you are sensitive to bleach

- Draining Instruction: Open the taps and take off the cap and rubber stopper from the water outlet on the rear side of the unit

- Clean your water dispenser

1. Unplug the unit.

2. Remove the empty water gallon.

3. Remove no-spill top and/or baffle if equipped.

4. Wearing gloves and safety goggles, scrub interior of reservoir and nozzle(s) with sponge soaked in bleach solution. Let the solution stand for more than 2 minutes but less than 5 minutes to avoid plastic corrosion.

5. Fill the reservoir with clean tap or bottled water to rinse four (4) times and drain into a bucket. Dispose into sink.

6. Clean the drip pan, no-spill top and baffle with bleach solution as well. Rinse and replace.

- Replace and use new gallon to fill dispenser. If there is any remaining smell, continue rinse process

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSE	REMEDY
No hot or cold water	Over Consumption of hot or cold water in short timeNo power supply	The hot and cold water will be available after a whileConnect the plug and turn on heating or cooling switch
No running water from the taps	Empty gallonInlet of gallon supporter blocked by gallon seal	Replace it with a new water gallonClean wasted paper and gallon seal and re-install the water gallon
Leakage from gallon supporter	Broken water gallon	Replace it with a new water gallon
Noise Operation	No placid installation	Place the unit on placid & solid surface
