Product Type	Water Dispenser
Brand	Imarflex
Model	IWD-1160UV
Dimensions (W x D x H)	310 x 310 x 950 mm
Weight	8 kg
Power Supply	220-240 V, 50 Hz
Heating Power	500 W
Cooling Power	65 W
UV Lamp Power	6 W
Hot Water Temperature	85-95 °C
Cold Water Temperature	5-10 °C
Hot Water Tank Capacity	3 L
Cold Water Tank Capacity	4 L
Water Supply Type	Bottle (5-gallon / 18.9 L)
Cooling System	Compressor
Heating System	Stainless steel heating element
UV Lamp Life	6000 hours
Safety Features	Automatic shut-off, overheating protection, child safety lock
Cleaning	Descaling every 3 months, drip tray removable
Color	White and gray
Material	ABS plastic body, stainless steel internal tanks
Certification	CE, RoHS

Frequently Asked Questions - IWD-1160UV Imarflex

How do I change the water bottle on the Imarflex IWD-1160UV?

To replace the bottle, first unplug the dispenser. Remove the empty bottle by lifting it off the top. Place a new 5-gallon bottle onto the top, ensuring it is seated firmly. Plug the dispenser back in and wait for the water to fill the tanks.

How often should I clean my water dispenser?

Clean the exterior with a damp cloth weekly. Every 3 months, descale the internal tanks using a mixture of water and white vinegar. Remove and wash the drip tray regularly to prevent mold.

Why is the hot water not heating?

Check if the heating switch is turned on. Ensure the dispenser is plugged in. If still not heating, the heating element may be faulty; contact support. Allow time for water to reach temperature after refilling.

Why is the cold water not cold?

Make sure the cooling switch is on. The compressor takes about 1 hour to cool after first use. If persistent, check for ventilation blockages around the back. If issue continues, the cooling system may need service.

How do I replace the UV lamp in the IWD-1160UV?

The UV lamp should be replaced every 6000 hours (about 1 year). Open the front cover, locate the lamp socket, remove the old lamp by twisting, and insert a new one. Ensure the dispenser is off and unplugged.

The dispenser is making unusual noises. What could be the cause?

Noises can occur due to air bubbles in the system, a vibrating water bottle, or the compressor running. If loud rattling occurs, check the bottle is seated properly and the drip tray is secure. Occasional humming is normal.

What should I do if water is leaking from the dispenser?

First check the water bottle for cracks. Ensure the bottle is correctly placed. Inspect the drip tray—it may be full. If leaking from internal connections, turn off and unplug the unit, then contact customer service.

How does the child safety lock work?

The child safety lock is typically a mechanical switch or button that prevents accidental dispensing of hot water. To activate, press or slide the lock into place. It must be released before dispensing hot water.

Where can I purchase spare parts for the IWD-1160UV?

Spare parts like faucets, drip trays, and UV lamps are available from authorized Imarflex dealers or online marketplaces. Check your warranty card for contact details or visit the Imarflex website.

How do I descale the water dispenser?

Mix white vinegar and water in a 1:2 ratio. Pour into the hot tank and let it sit for 30 minutes. Flush with fresh water until no vinegar smell remains. Repeat for cold tank if needed. Descaling ensures efficient operation.

USER MANUAL IWD-1160UV Imarflex

DISPENSING SYSTEM

FOOD GRADE

COMPRESSOR

IWD-1160UV

SPECIFICATION:

MODEL NO. : IWD-1160S

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the Water Dispenser, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest lmarflex Authorized Service Center to avoid hazard.

5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6. Do not place the Water Dispenser near gas stove, electric burner or heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Keep the water dispenser in a dry and cool place and avoid direct sunlight. Rearward of the machine should be at least 20cm far from the wall. Never put the machine on the paper or foam, which may cause unstable condition, such as store water or cause creepage. Never put anything flammable beside this machine.

10. To avoid damage, do not plug the power cord or turn on the heating switch until 3 minutes after you put the filled water gallon.

11. This water dispenser must be used with third-prong grounding plug and creepage protection switch. If two flat plugs will use, the grounding wire must be properly grounded before use.

12. In case the unit will not use for a long time, turn off the switch and pull the plug out from the socket then drain the remaining water through drain hole.

13. Never use organic liquid to clean the machine. Splashing of water to the body is strictly prohibited.

14. You should use the ON/OFF switch to turn on or off the unit. It is prohibited to turn on or off the unit through plugging or unplugging the power cord. Never extend the length of the power supply cord to avoid fire.

15. Never turn the machine upside down or lean it more than 45^ .

16. Do not adjust the thermostat of the unit by yourself.

17. Power cord or other parts of the unit must be replaced by authorized service center personnel.

18. The cooling time of the unit might take longer when the environment temperature is higher than the normal.

19. Save this instruction for future reference.

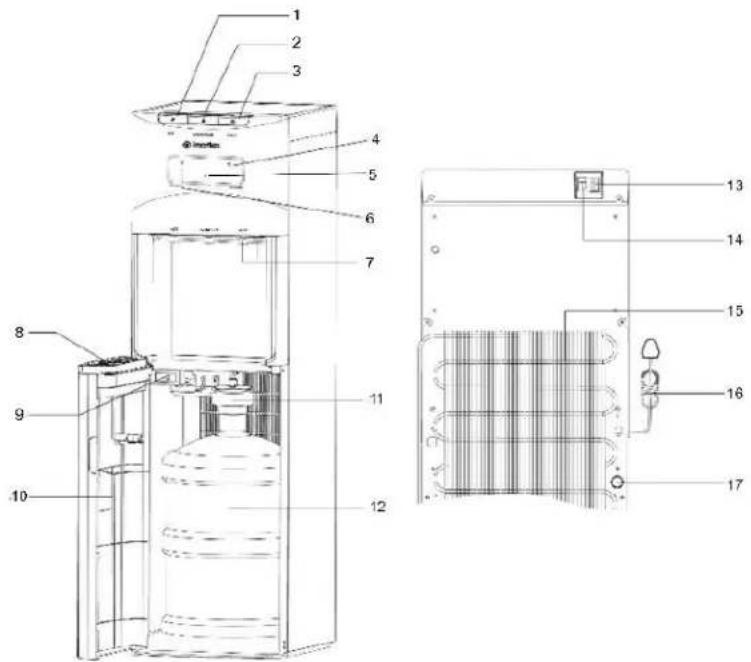

DESCRIPTION OF PARTS:

NO.	DESCRIPTION
1	Hot Water Button
2	Room Temp Water Button
3	Cold Water Button
4	Cooling Light Indicator
5	UV / Refill Tank Light Indicator
6	Boiling Light Indicator
7	Water Tap
8	Removable Water Collector
9	Reset Button
10	Cabinet Door
11	Water Pump
12	Water Gallon
13	Hot Power Switch
14	Cold Power Switch
15	Condenser
16	Power Cord
17	Drain Valve

HOW TO USE:

1. Tear the label from the water gallon.

2. Put the water pump rod inside the gallon and place slowly inside the unit.

3. Insert the plug to the socket and wait for about 5 minutes before you turn ON the power switch.

4. Press the Hot, Cold and Room Temp Water button. Once, there is water flows out in every water tap you may now turn ON the hot & cold power switch located at the back portion of the unit. The indicator lights up accordingly once the machine works.

5. The UV Function has a one-hour interval. For the first hour, there will be a Steady Light Indicator, showing that the UV is working. For the second hour, the UV light indicator will turn off indicating that the UV function is off. This cycle will be continuous. UV light indicator lights up indicating that the UV is working.

6. The refill water light indicator will be flashing once the water gallon needs to be refilled.

For Initial Use:

1. Clean the unit.

a. Put the water pump rod inside the gallon and place slowly inside the unit.
b. Press the cold, room temp and hot tap until the water flows out of the faucet for about 20 minutes.
c. Pull off the water pump rod into the gallon and turn on the drain valve to empty the water inside the unit.

CLEANING AND MAINTENANCE:

1. Turn off and unplug the unit.
2. Wait until the hot water in the water tank cools down.
3. Open the hot tank drain valve until the water tank gets empty.
4. Cleaning of the unit should be done regularly.
5. Wipe the body of the water dispenser with damp cloth.
6. Do not use abrasive materials to avoid scratches.

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSE	REMEDY
No hot or cold water	Over Consumption of hot or cold water in short timeNo power supply	The hot and cold water will be available after a whileConnect the plug and turn on heating or cooling switch
No running water from the taps	Empty gallonInlet of gallon supporter blocked by gallon seal	Replace it with a new water gallon
Leakage from gallon supporter	Broken water gallon	Replace it with a new water gallon
Noise Operation	No placid installation	Place the unit on placid & solid surface
The hot tap do not provide hot water and cold tap do not provide cold water	Excessive use of hot and cold water in a short period of timeThe unit is unpluggedThe cold cooling time is not enoughThe cold and hot switch is off	Wait for a few minutes to have cold and hot waterCheck if the hot and cold switch is onWait for about 2 hours before getting a cold water

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A. Linao St. Malate, Manila

Made in China
