IWD-1140W - Water dispenser Imarflex - Free user manual and instructions

Product Type	Water Dispenser
Brand	Imarflex
Model	IWD-1140W
Dimensions (approx.)	30 cm x 30 cm x 80 cm
Weight (approx.)	5 kg
Power Supply	AC 220-240V, 50/60Hz
Heating Power	550 W
Cooling Power	80 W
Water Dispensing	Hot and Cold water
Hot Water Temperature	≥ 90°C
Cold Water Temperature	5-15°C
Water Reservoir Capacity	2 L (cold) / 1 L (hot)
Operation	Manual buttons for hot and cold water
Safety Features	Child lock, overheat protection, anti-drip
Maintenance	Regular descaling and cleaning of drip tray
Spare Parts Available	Heating element, water tank, drip tray
Repairability	User-replaceable parts; professional service recommended for major repairs

Frequently Asked Questions - IWD-1140W Imarflex

How do I set up the Imarflex IWD-1140W water dispenser?

Place the dispenser on a level surface, plug it in, and wait for the water to heat or cool. Ensure the water bottle is properly installed (if using a bottle) or fill the reservoir.

How do I clean the water dispenser?

Unplug the unit, remove the drip tray and wash it with mild soap. Wipe the exterior with a damp cloth. For internal cleaning, run a vinegar solution through the system and rinse thoroughly.

Why is the water not heating?

Check if the power cord is plugged in and the heating switch is on. If still not heating, the heating element may be faulty. Contact Imarflex support for replacement.

Can I use tap water in the dispenser?

It is recommended to use filtered or bottled water to prevent mineral buildup. Tap water may clog the system and require more frequent descaling.

How often should I descale the dispenser?

Descaling every 3-6 months is recommended depending on water hardness. Use a descaling solution or white vinegar mixed with water.

What does the child lock function do?

The child lock prevents accidental dispensing of hot water. Activate it by pressing the lock button; it disables the hot water tap until unlocked.

The dispenser is leaking. What should I do?

Check the drip tray for overflow, ensure water bottle or tank is properly seated, and inspect hoses for cracks. Tighten connections if needed.

How do I install a new water bottle?

Remove the old bottle, clean the probe, and insert the new bottle. Ensure the bottle is sealed and puncture the cap if required for bottom-load models.

What is the power consumption of the IWD-1140W?

Heating consumes 550W and cooling 80W. Standby power is minimal. Total energy use depends on usage frequency.

Where can I find spare parts?

Contact Imarflex customer service or check authorized dealers. Common parts like heating elements and drip trays are available.

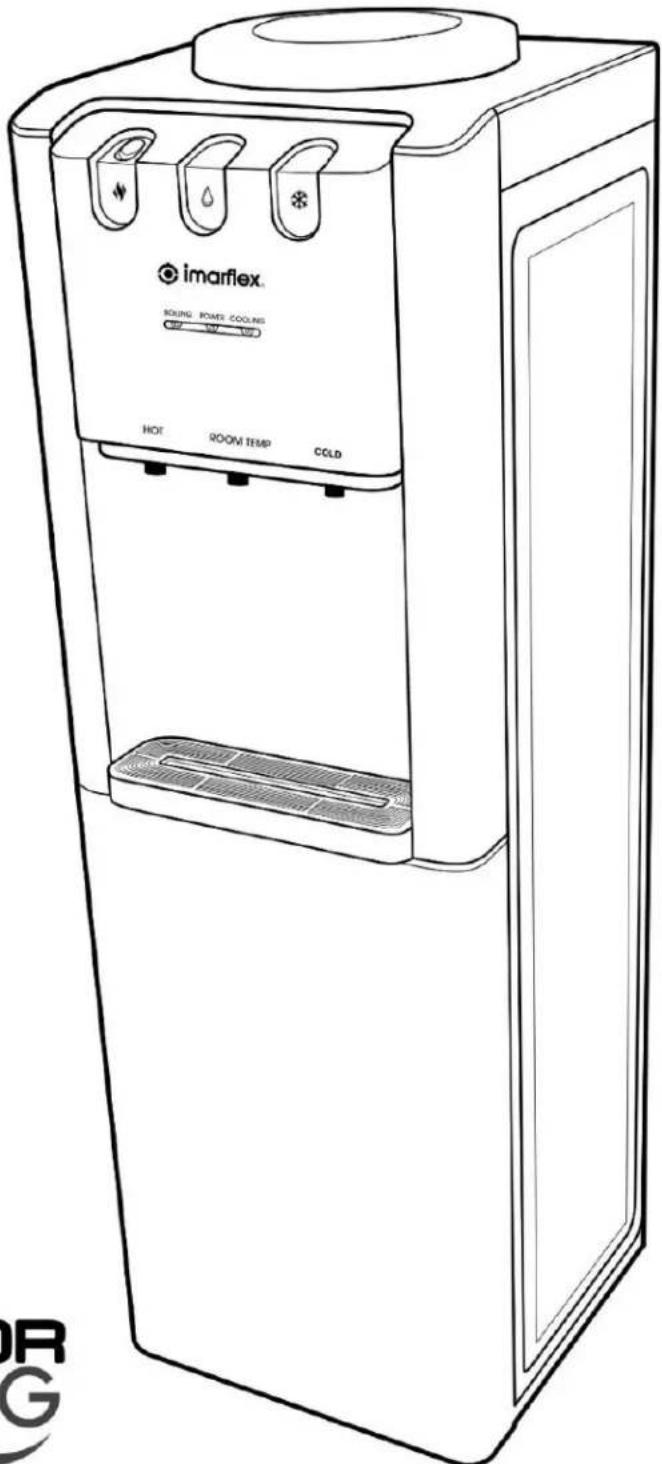

USER MANUAL IWD-1140W Imarflex

HOT and COLD WATER DISPENSER

TRI-DISPENSE

FOOD GRADE

STAINLESS STEEL WATER RESERVOIR

DISPENSING SYSTEM

COMPRESSOR

IWD-1140W

imarflex®

In Every Home.

SPECIFICATION:

MODEL NO. : IWD-1140W

POWER CONSUMPTION : Hot - 420W

Cold - 85W

RATED VOLTAGE : 230Va.c. 60Hz

BOX DIMENSION : 326*340*965mm

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the Water Dispenser, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest Imarflex Authorized Service Center to avoid hazard.

5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

6. Do not place the Water Dispenser near gas stove, electric burner or heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Keep the water dispenser in a dry and cool place and avoid direct sunlight. Rearward of the machine should be at least 20cm far from the wall. Never put the machine on the paper or foam, which may cause unstable condition, such as store water or cause creepage. Never put anything flammable beside this machine.

10. To avoid damage, do not plug the power cord or turn on the heating switch until 3 minutes after you put the filled water gallon.

11. This water dispenser must be used with third-prong grounding plug and creepage protection switch. If two flat plugs will use, the grounding wire must be properly grounded before use.

12. In case the unit will not use for a long time, turn off the switch and pull the plug out from the socket then drain the remaining water through drain hole.

13. Never use organic liquid to clean the machine. Splashing of water to the body is strictly prohibited.

14. You should use the ON/OFF switch to turn on or off the unit. It is prohibited to turn on or off the unit through plugging or unplugging the power cord. Never extend the length of the power supply cord to avoid fire.

15. Never turn the machine upside down or lean it more than 45°.

16. Do not adjust the thermostat of the unit by yourself.

17. Power cord or other parts of the unit must be replaced by authorized service center personnel.

18. The cooling time of the unit might take longer when the environment temperature is higher than the normal.

19. Save this instruction for future reference.

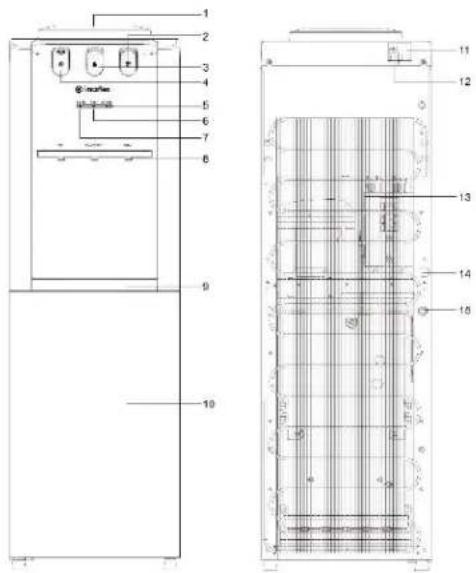

DESCRIPTION OF PARTS:

NUMBER	PART NAME
1	Gallon Supporter
2	Cold Water Button
3	Room Temp Water Button
4	Hot Water Button
5	Cooling Light Indicator
6	Room Temp Water Light Indicator
7	Boiling Water Light Indicator
8	Water Spout
9	Water Collector
10	Built-in Cabinet
11	Hot Power Switch
12	Cold Power Cord
13	Condenser
14	Power Cord
15	Drain Valve

HOW TO USE:

1. Tear the label from the water gallon.
2. Turn the water gallon upside down then vertically insert the water gallon into the gallon supporter on top of the machine.
3. Insert the plug to the socket; turn on the power switch located at the back portion of the unit. The indicator lights up accordingly once the machine works.
4. Vertically pull out the water gallon by two hands when the gallon is empty and replace it with another gallon of water.

CLEANING AND MAINTENANCE:

• Prepare bleach disinfecting solution

Mix 1 teaspoon (5ml) of household bleach with 1 liter of water. Do not make this any stronger. If you make extra solution, this should be used up within 30 days. Safety note: Use vinegar instead if you are sensitive to bleach

• Draining Instruction: Open the taps and take off the cap and rubber stopper from the water outlet on the rear side of the unit

• Clean your water dispenser

• Unplug the unit.

• Remove the empty water gallon.

• Remove no-spill top and/or baffle if equipped.
• Wearing gloves and safety goggles, scrub interior of reservoir and nozzle(s) with sponge soaked in bleach solution. Let the solution stand for more than 2 minutes but less than 5 minutes to avoid plastic corrosion.
• Fill the reservoir with clean tap or bottled water to rinse four (4) times and drain into a bucket. Dispose into sink.
• Clean the drip pan, no-spill top and baffle with bleach solution as well. Rinse and replace.

- Replace and use new gallon to fill dispenser. If there is any remaining smell, continue rinse process

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSE	REMEDY
No hot or cold water	Over Consumption of hot or cold water in short timeNo power supply	The hot and cold water will be available after a whileConnect the plug and turn on heating or cooling switch
No running water from the taps	Empty gallonInlet of gallon supporter blocked by gallon seal	Replace it with a new water gallonClean wasted paper and gallon seal and re-install the water gallon
Leakage from gallon supporter	Broken water gallon	Replace it with a new water gallon
Noise Operation	No placid installation	Place the unit on placid & solid surface

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address

[e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A. Linao St. Malate, Manila

Made in China
