PSW731L-PT02 - Wall mount Mitsai - Free user manual and instructions

Product Type	TV Wall Mount
Brand	Mitsai
Model	PSW731L-PT02
TV Size Range	14" - 47"
Maximum Load Capacity	30 kg (66 lbs)
VESA Compatibility	Up to 400 x 400 mm
Tilt Range	-2° to +12°
Swivel Range	±3°
Distance from Wall	36 mm to 408 mm
Integrated Cable Management	Yes
Material	Steel and Aluminum
Color	Black
Mounting Surface	Wood stud or solid concrete
Installation	Two people recommended
Included Hardware	Bolts, washers, anchors, screws, wrench
Warranty	2 years
Indoor Use Only	Yes

Frequently Asked Questions - PSW731L-PT02 Mitsai

What is the maximum TV size and weight this mount can support?

This mount supports TVs from 14 to 47 inches and a maximum weight of 30 kg (66 lbs).

What VESA patterns are compatible?

The mount is compatible with VESA patterns up to 400x400 mm.

Can I install this mount on a concrete wall?

Yes, it is designed for both wood stud and solid concrete walls. Use the provided anchors for concrete.

Does the mount tilt or swivel?

Yes, it offers tilt from -2° to +12° and swivel of ±3° for optimal viewing angles.

How far does the TV sit from the wall?

The distance from the wall ranges from 36 mm to 408 mm depending on arm extension.

Is cable management included?

Yes, the mount features integrated cable management to keep cords organized.

How do I adjust the tension of the arms?

Use the provided 5x5 mm wrench to tighten or loosen the tension screw on the articulating arms. Do not overtighten.

Can I use this mount with a curved TV?

The mount is designed for flat back TVs. Curved TVs may require additional adapters not included.

How do I clean the mount?

Use a soft dry cloth for dusting. Avoid harsh chemicals to prevent damage to the finish.

What is the warranty period?

The mount comes with a 2-year warranty against manufacturing defects from the date of purchase.

USER MANUAL PSW731L-PT02 Mitsai

LCD/LED TV WALL MOUNT

SOPORTE DE PARED PARA TV LCD/LED

SUPORTE DE PAREDE PARA TV LCD/LED

Black and white photo of a mounted device with four arms, set against a pixelated orange grid background (no text or symbols visible)

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

Instruction Manual

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided. The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

Index

1. Safety Instructions 3

1.1. General Precautions 4

1. Product Description 4

2.1. Hardware Kit 4

2.2. Mounting 5

2.2.1. Wood Stud Mounting 5

2.2.2. Concrete Wall Mounting 6

2.2.3. Attaching the VESA Plate to the Screen 7

2.2.4. Attaching Adapter Bracket to the Wall Plate 7

2.2.5. Attaching Plastic Covers to Wall Plate 8

2.2.6. Adjusting Display and Using Cord Management 9

1. Technical Specifications 9

2. Aftermarket 9

3. Environment Conservation 10

1. Safety Instructions

WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN.

WARNING: TO AVOID THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. SEEK ASSISTANCE FROM QUALIFIED PROFESSIONALS.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

THIS APPLIANCE CAN BE USED BY CHILDREN FROM 8 YEARS OLD AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

These instructions are also available on www.suporteworten.pt

1.1. General Precautions

• This product was designed to be installed on wood stud walls and solid concrete walls.
• Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
• Never exceed the Maximum Load Capacity.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.
• Make sure these instructions are read and completely understood before attempting installation. If you are unsure of any part of this installation, contact a professional installer for assistance.
• The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. A minimum of two people are required for this installation. Failure to use safety gear can result in property damage, serious injury or death.

2. Product Description

2.1. Hardware Kit

2.2. Mounting

2.2.1. Wood Stud Mounting

Use wall plate (1) as a template, make sure it is level, and mark three mounting holes on the wood studs. Drill three 3/16" (5mm) diameter holes 70mm deep. Level wall plate (1) and attach to wall with three long bolts (B1) and three washers (B3). Tighten screws firmly. Do not over tighten.

Stud finder

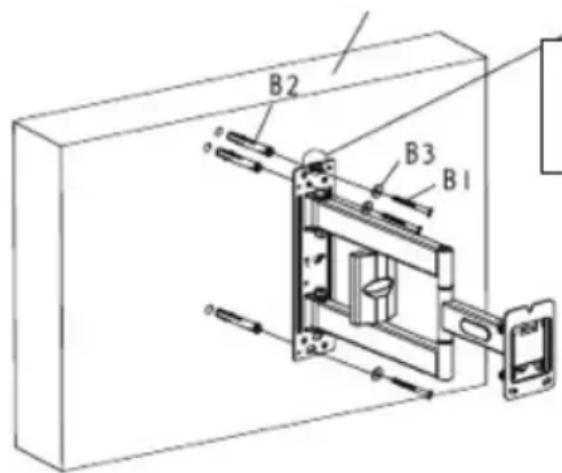

2.2.2. Concrete Wall Mounting

Level wall plate and use wall as a template to mark three holes. Drill three 3/8" (10mm) diameter holes 70mm deep. Insert three anchors (B2) into holes and secure wall plate with three long bolts (B1) and three washers (B3). Tighten bolts firmly. Do not over tighten.

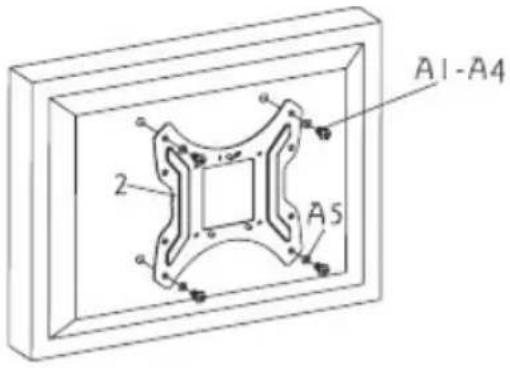

2.2.3. Attaching the VESA Plate to the Screen

For TV's with flat back screen:

If use A1, A2, please only use A5, if use A3, A4, please don't use A5

2.2.4. Attaching Adapter Bracket to the Wall Plate

Before attaching the TV plate to the wall plate, tighten the top screw nut in case the TV would slide off during installation.

Tighten or loose the screw nuts on the head of the wall plate to adjust the tilting function.

Tighten or loose the screw nuts M6 on the head of the wall plate to keep level.

If the LCD hole pattern is larger than the TV plate, you are required to use the Extension Plates to install.

2.2.5. Attaching Plastic Covers to Wall Plate

Secure plastic covers over the wall plate by pushing them towards each other until they lock in place.

Technical line drawing of a mounted TV with mechanical components and directional arrows (no text or symbols)

2.2.6. Adjusting Display and Using Cord Management

Route cords along the articulating arms using the cord management clip. The articulating arms can be adjusted to position display into desired location. Use wrench 5x5 to tighten and loosen the tension screw. Do not overt tighten and do not loosen to the point where screws come out.

3. Technical Specifications

TV Size Range: 14" to 47".

Maximum Weight Capacity: 30kg/66lbs.

Integrated Cable Management.

Distance to the Wall: 36-408mm.

VESA: 400 x 400.

Rotation: ± 3^

Inclination: -2^ 12^

4. Aftermarket

Mitsai has designed this appliance in order to guarantee the maximum reliability. However, if a problem occurs, by following the procedures suggested in this section you may be able to determine its cause.

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

All users must be familiarized with this section. Knowing what could go wrong can help you avoid the occurrence of problems.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of components, repairing must be made on the specialized locations of technical assistance, as appropriate tools are needed.

5. Environment Conservation

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local legislation concerning recycling of all materials.
