MSC8308BK - Wall mount Mitsai - Free user manual and instructions

Product Type	Wall Mount
Brand	Mitsai
Model	MSC8308BK
Compatible Screen Size	32" - 65"
Weight Capacity	50 kg (110 lbs)
VESA Patterns	100x100mm to 600x400mm
Material	Cold-rolled steel
Color	Black
Tilt Adjustment	-15° to +5°
Swivel Adjustment	±45°
Rotation	±3° level adjustment
Distance from Wall	60 mm to 500 mm
Cable Management	Yes, with cable covers
Installation Type	Single stud or concrete wall
Included Hardware	Bolts, spacers, washers, anchors
Warranty	5 years limited
Box Dimensions	800 x 250 x 120 mm
Net Weight	4.5 kg

Frequently Asked Questions - MSC8308BK Mitsai

What is the maximum TV size this mount can support?

The Mitsai MSC8308BK supports TVs from 32 to 65 inches diagonally, depending on weight.

What VESA patterns are compatible?

It is compatible with VESA patterns from 100x100mm up to 600x400mm.

Can this mount be used on a concrete wall?

Yes, it can be installed on concrete walls using appropriate anchors (included).

Does the mount allow tilting?

Yes, it offers a tilt range of -15° to +5° for optimal viewing angle.

Is there a swivel feature?

Yes, the mount can swivel ±45° to adjust the screen direction.

What tools are needed for installation?

You will need a Phillips screwdriver, a level, and a drill with masonry bit if installing on concrete.

How far from the wall will the TV sit?

The mount keeps the TV 60mm from the wall at the closest, and can extend up to 500mm.

Can I use this mount with a curved TV?

Yes, as long as the VESA pattern and weight are within specifications.

Is cable management included?

Yes, the mount includes covers to hide and organize cables.

What is the weight capacity of this mount?

The maximum weight capacity is 50 kg (110 lbs).

USER MANUAL MSC8308BK Mitsai

Two medical catheters with copper rods arranged on a grid background, no text or symbols visible

Universal Tripod Tv Stand

Suitable for all TV screens from 45"-65" | Includes Universal

Soundbar holder | VESA Compatible: 200x200, 300x200,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. Safety Instructions 4

1.1. Cleaning 5
1.2. General Precautions 6

2. Operating Instructions 8

2.1 Product usage 8

3. Post-Sale Service 20

1. Environmental Protection 21

EN

UNIVERSAL TRIPOD TV STAND

1. SAFETY INSTRUCTIONS

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

11 Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply.

EN

UNIVERSAL TRIPOD TV STAND

Always allow the unit to cool down before cleaning. To clean the exterior of the product, use a dry soft cloth only.

1.2 General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.

• Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
  • Make sure that the supporting surface can safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN the mounting screws.
• This product contains small items that pose a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• IMPORTANT: Ensure that you have received all parts on the component checklist prior to installation. It any parts are missing or faulty, contact the place of purchase for a replacement.

EN

UNIVERSAL TRIPOD TV STAND

• MAINTENANCE: Regularly check that the product is secure and safe to use (at least every three months).
• CAUTION: Use with products heavier than the rated weights indicated may result in instability and possibly cause injury.

2. OPERATING INSTRUCTIONS

2.1 Package Contents

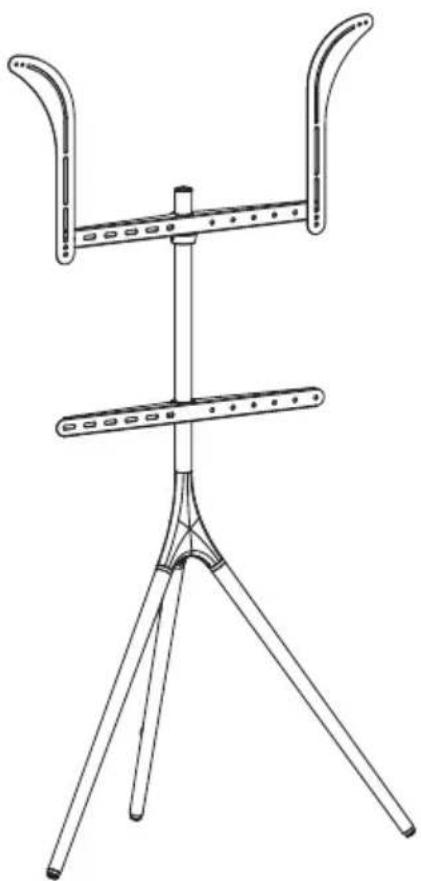

Line drawing of a three-legged stand with curved metal supports and a central vertical support (no text or symbols)

MSC8308BK

MSC8308WH

VESA Compatible

200x200 300x200

300x300 400x200

400x300 400x400

600x400

Simple line drawing of a cylindrical object with a protruding rod (no text or symbols)

A (x2)

Simple line drawing of a cylindrical mechanical component with a protruding shaft (no text or symbols)

B (x1)

Technical line drawing of a mechanical component with evenly spaced holes and a central bracket (no text or symbols)

C (x1)

Technical line drawing of a mechanical tool or bracket with evenly spaced holes and a central cylindrical feature (no text or symbols)

D (x1)

Line drawing of a mechanical tool or rod with a pointed tip and flanged ends, labeled E (x1) below (no text or symbols on the diagram itself)

Simple line drawing of a curved object with two horizontal slots and small dots at the ends (no text or symbols)

F (x2)

G (x2) ST4.2×12

H (x2)

I (x1) 4mm

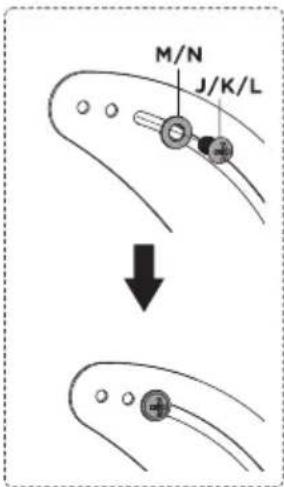

J (x2) M4x14

K (x2) M5x14

L (x2) M6x14

M (x2) D5

N (x2) D8

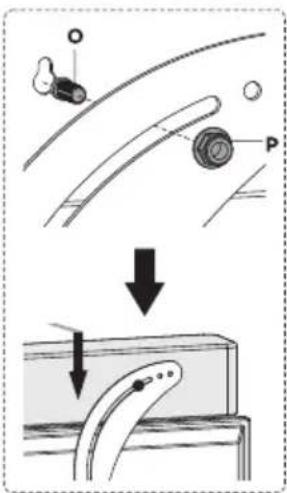

O (x2) M6x14

P (x2) M6

Safety Disclaimer

This product includes an anti-tip kit that must be used with the product to prevent the product from falling or tipping over. Please follow the enclosed information to properly install these safety accessories. The Seller will not be held liable for any direct, indirect, punitive, incidental, or consequential damages to property or life whatsoever arising from or connected with the use or misuse of this product.

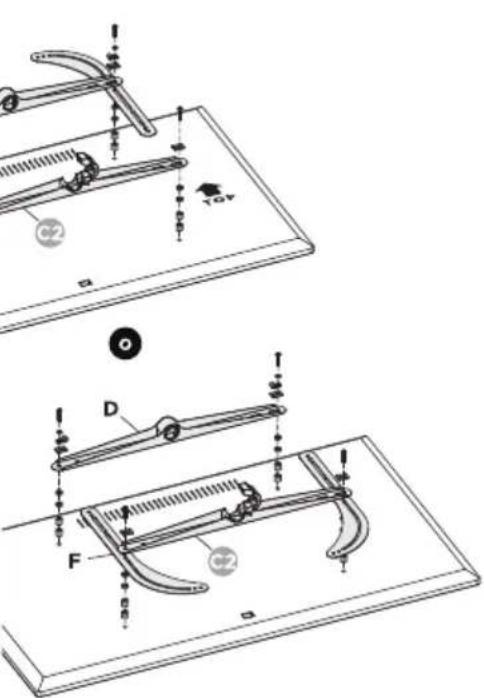

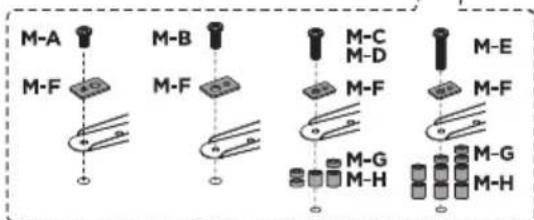

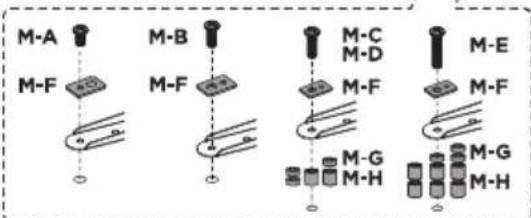

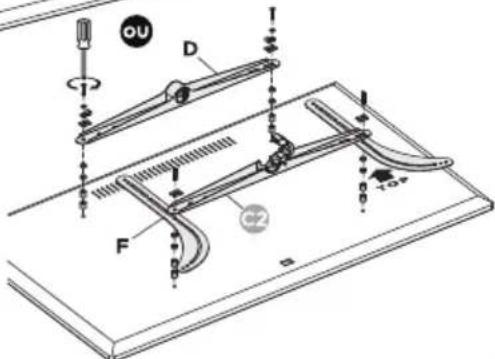

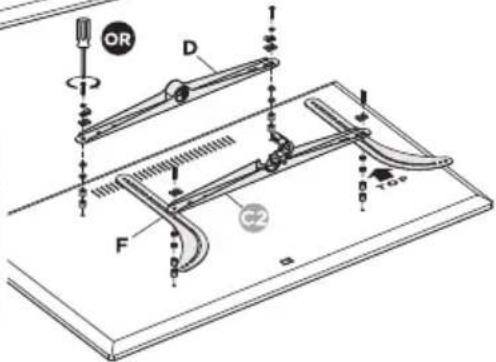

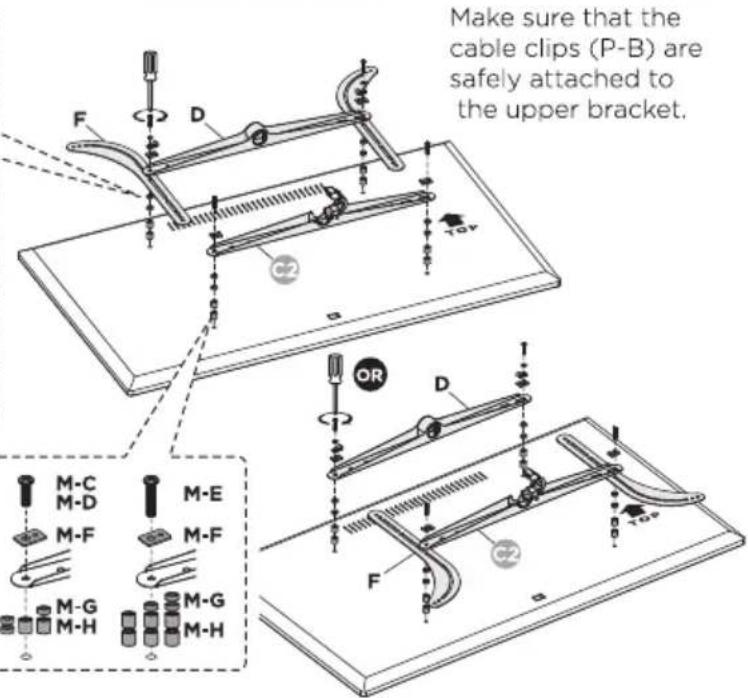

Note:

- Please secure the locking collar before attaching the TV screen.

- Make sure the screw holes face outwards.

4

5

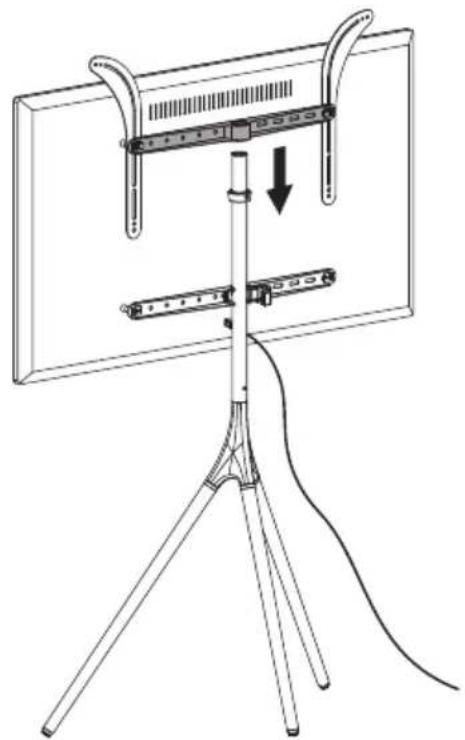

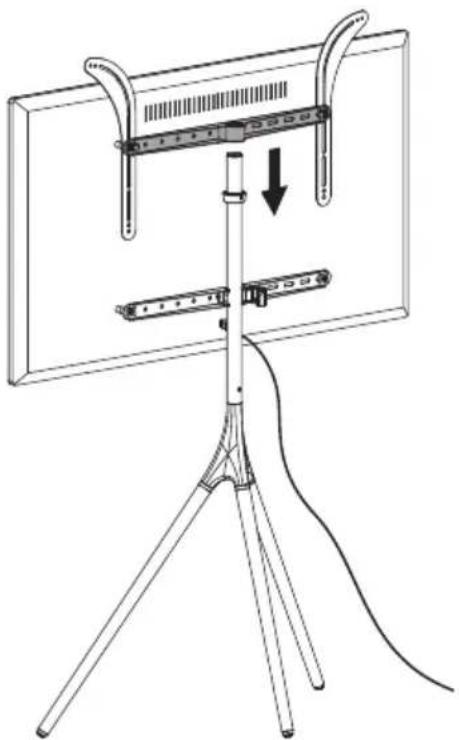

Line drawing of a tripod-mounted device with a monitor and cable, showing no text or symbols

Please make sure the screen doesn't touch the aluminium plate.

7a

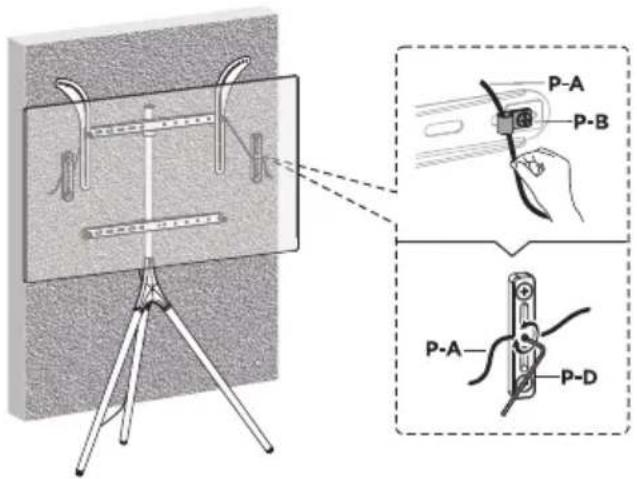

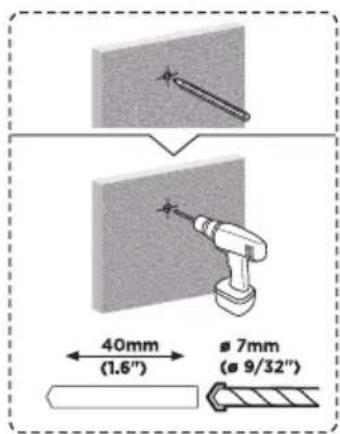

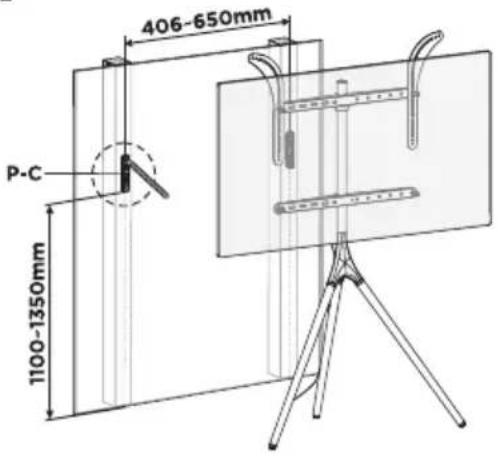

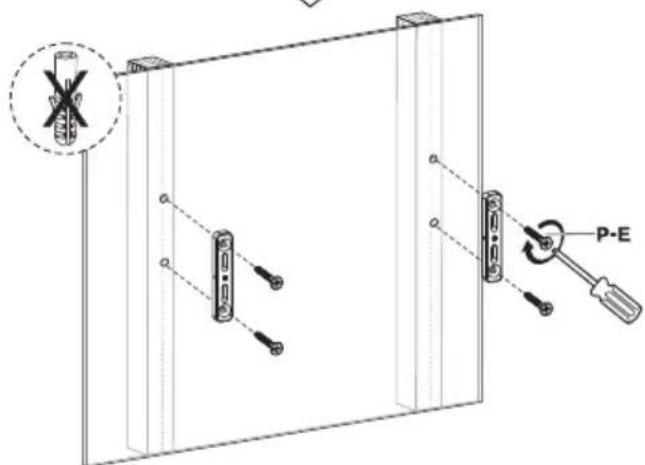

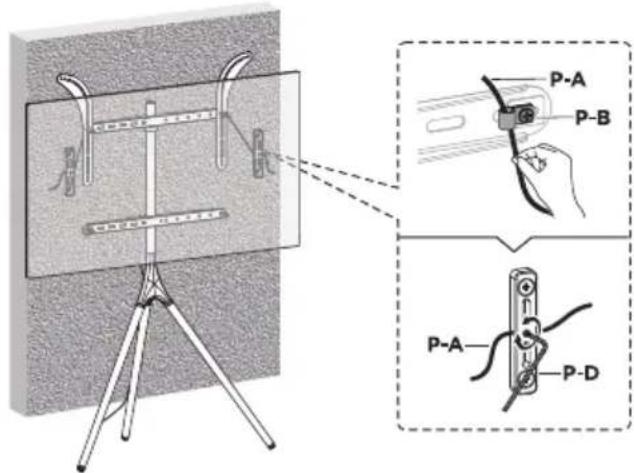

To prevent the TV from falling over, install an anti-fall cable.

7b

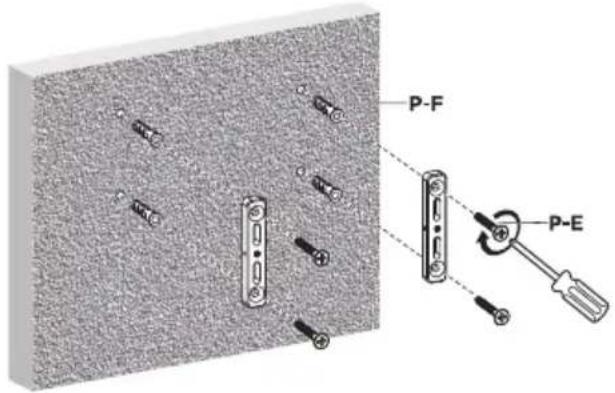

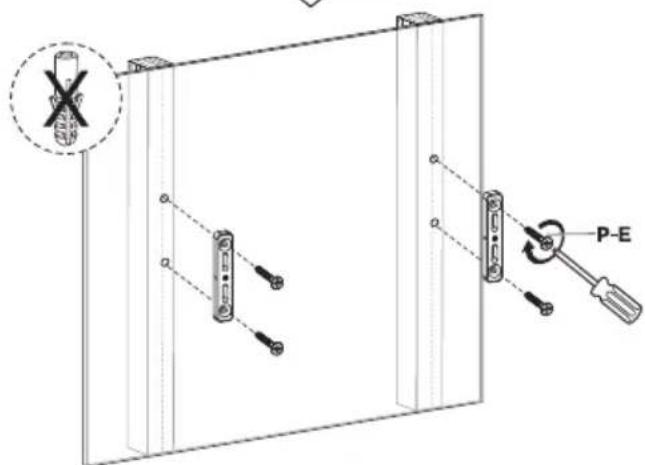

To prevent the TV from falling over, install an anti-fall cable.cable.

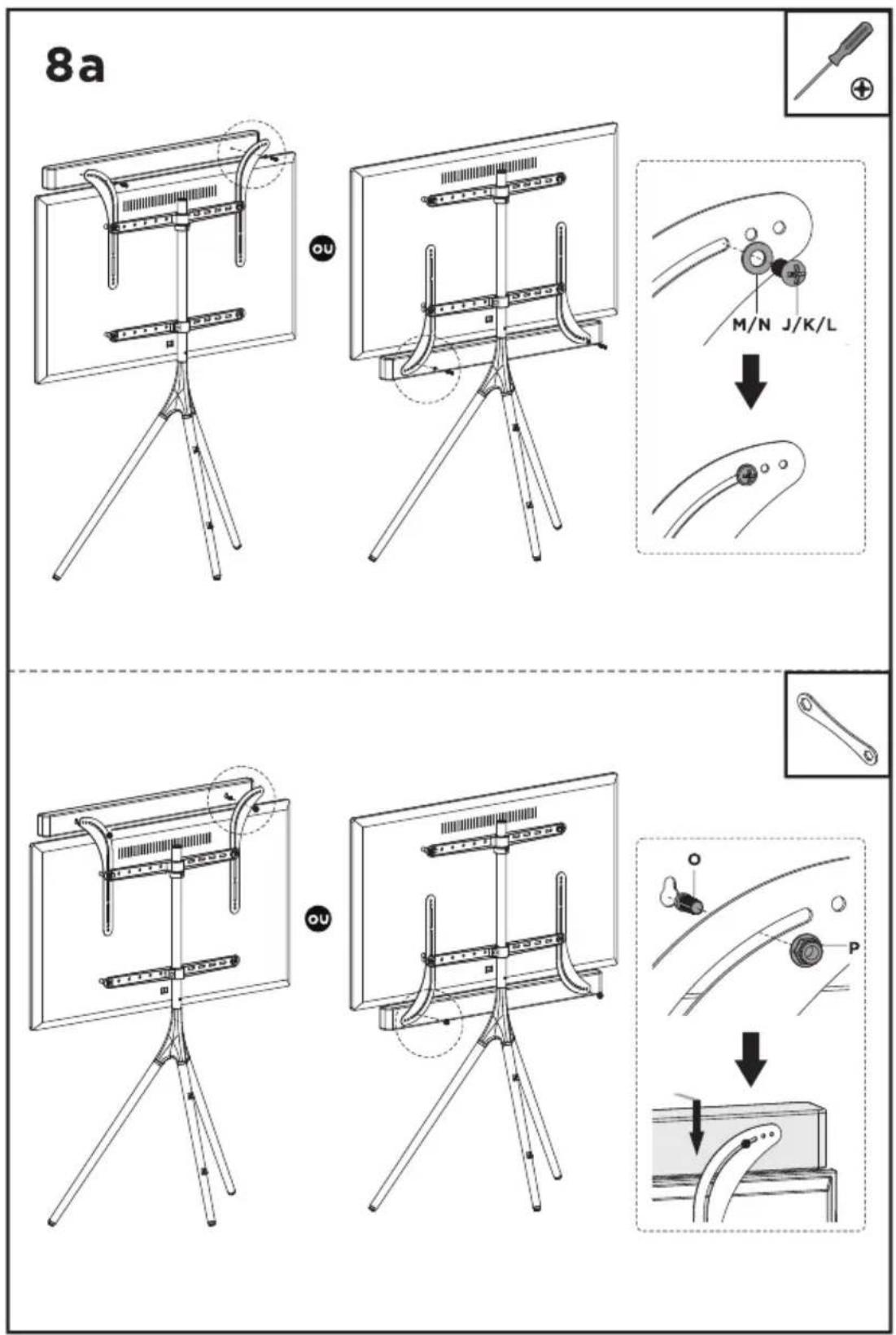

8a

Technical line drawing of a stand-mounted electronic device with a curved panel and two vertical rulers, no text or symbols present.

Technical line drawing of a stand-mounted monitor with a ruler and tripod base (no text or symbols)

Technical line drawing of a stand-mounted electronic device with a screen and three legs (no text or symbols)

Technical line drawing of a monitor setup with tripod base and stand (no text or symbols)

EN

UNIVERSAL TRIPOD TV STAND

3. POST-SALE SERVICE

Mitsai has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 3-year warranty, or another period defined in the applicable legislation, for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

Line drawing of a three-legged stand with curved metal legs and a central support (no text or symbols)

MSC8308BK

MSC8308WH

Compatible con VESA

200x200 300x200

300x300 400x200

400x300 400x400

600x400

65"

MAX

工

SUELOS NORMALES

32kg/70.4lbs

CALIFICACIÓN

SUELOS BRILLANTE

25kg/55lbs

CALIFICACIÓN

BARRA DE SONIDO

5kg/11lbs

CALIFICACIÓN

Simple line drawing of a cylindrical object with a protruding rod (no text or symbols)

A (x2)

Simple line drawing of a cylindrical object with a protruding shaft (no text or symbols)

B (x1)

Technical line drawing of a mechanical component with evenly spaced holes and a central shaft (no text or symbols)

C (x1)

Technical line drawing of a mechanical tool or bracket with multiple holes and a central cylindrical feature (no text or symbols)

D (x1)

Line drawing of a mechanical tool or tool with a pointed tip and flanged end (no text or symbols)

Simple line drawing of a curved mechanical component with evenly spaced slots (no text or symbols)

F (x2)

G (x2) ST4.2x12

H (x2)

I (x1) 4mm

J (x2) M4x14

K (x2) M5x14

L (x2) M6x14

M (x2) D5

N (x2) D8

O (x2) M6x14

P (x2) M6

5

Line drawing of a tripod-mounted device with a screen and lever mechanism, no text or symbols present

8a

Technical line drawing of a mechanical assembly with tripod base and ruler, no visible text or symbols

©

Technical line drawing of a monitor mounted on a tripod stand, showing structural components and measurement markings (no text or symbols present)

Technical line drawing of a stand-mounted electronic device with three legs and a screen, no text or symbols present.

©

Technical line drawing of a monitor mounted on a tripod stand, showing structural components and a magnified view (no text or symbols)

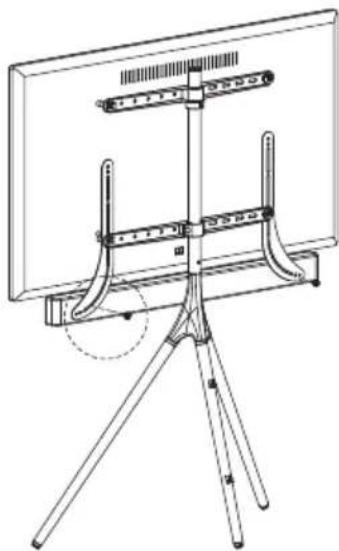

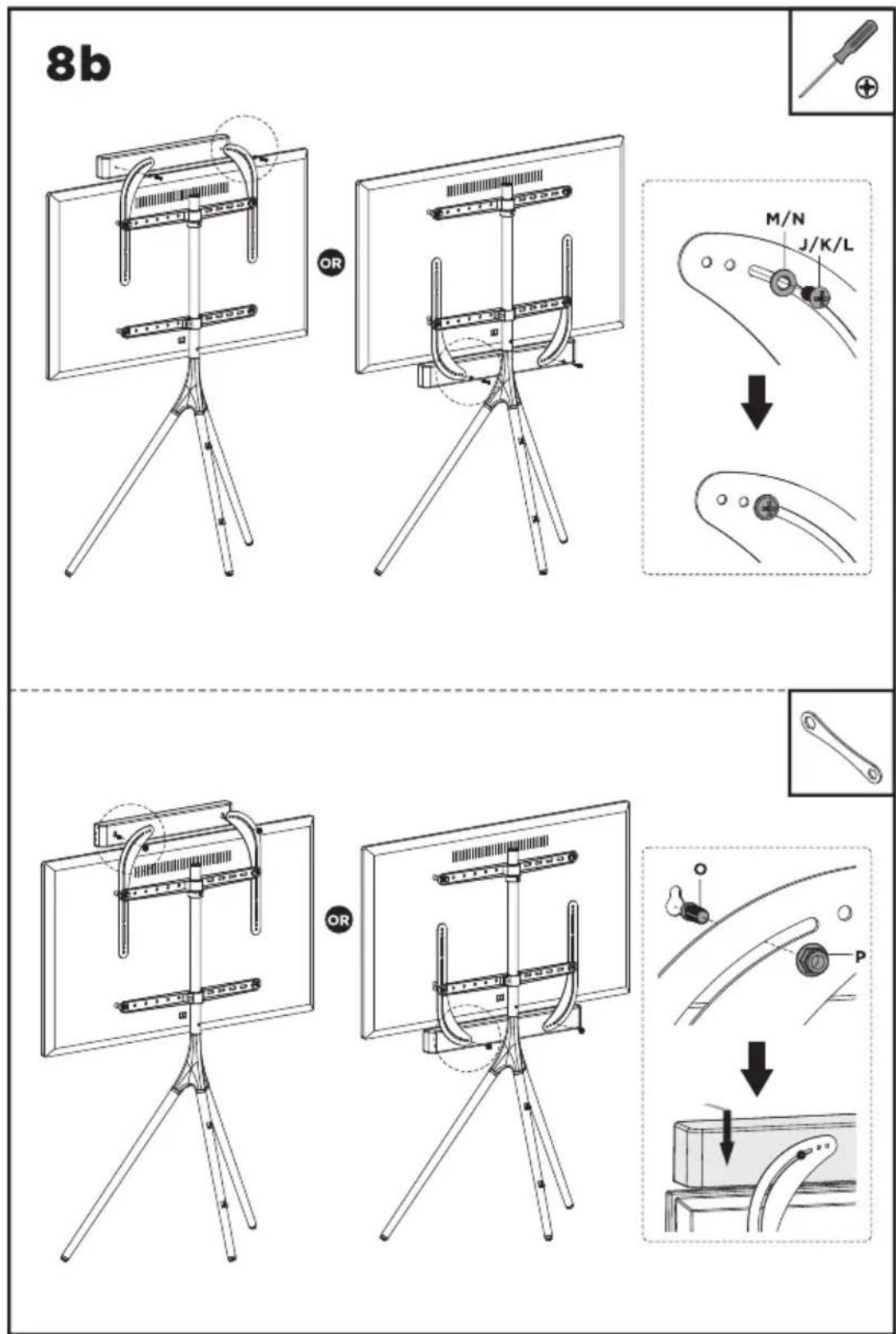

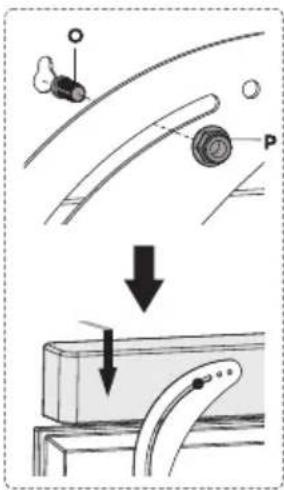

8b
