Product Type	Desk Clamp Monitor Riser
Brand	StarTech.com
Model	MNRISERCLMP
Category	Monitor Riser / Stand
Compatible Screen Size	Up to 32 inches (812 mm)
Weight Capacity	20 kg (44 lb)
Product Dimensions (W x D x H)	650 x 260 x 130 mm
Platform Thickness	16 mm
Mounting Method	Clamp (desk edge)
Number of Clamps	2
Construction Material	Metal
Color	Black
Package Contents	1x Monitor Platform, 2x Desk Clamp Assemblies, 1x Hex Key, 4x Screws, 4x Washers
Warranty	5 Years
Intended Use	Elevate monitor to ergonomic viewing height
Installation	Easy assembly with included hex key and thumb screws
Ergonomic Benefit	Reduces neck and eye strain
Desk Compatibility	Clamps to edge of suitable mounting surface (thickness not specified)
Safety Warning	Do not exceed 20 kg weight capacity
Maintenance	Wipe with dry cloth to clean
Tools Required	Hex key (included)
Additional Features	Space-saving design, frees up desk space
Application	Home office, commercial office, workstation
Manufacturer	StarTech.com Ltd. (Canada & USA)
Support	Visit startech.com/MNRISERCLMP for latest requirements

Frequently Asked Questions - MNRISERCLMP StarTech.com

What is the maximum weight capacity of the MNRISERCLMP?

The maximum weight capacity is 20 kg (44 lb).

What is the maximum monitor screen size it can support?

It supports monitors up to 32 inches (812 mm).

Does the monitor riser require drilling or permanent mounting?

No, it uses a clamp mechanism that secures to the desk edge without drilling.

What tools are included for assembly?

An hex key, screws, and washers are included. No additional tools required.

Is assembly required?

Yes, simple assembly is required. Attach the two clamp assemblies to the monitor platform using the provided hardware and hex key.

How do I clean the monitor riser?

Clean with a dry cloth. Avoid using liquids or abrasive cleaners.

What is the warranty period for this product?

The product is backed by a five-year warranty.

Can I install it on any desk?

It must be installed on a suitable mounting surface with an edge that the clamps can securely grip. Desk thickness is not specified, but ensure the surface is stable.

How do I install the clamp assemblies?

Align the clamp assembly with the mounting holes on the bottom of the monitor platform, insert screws with washers, and tighten with the hex key. Then slide the clamps over the desk edge and tighten the thumb screws to secure.

Is the height of the monitor riser adjustable?

No, the riser provides a fixed height of 130 mm. It is not height adjustable.

USER MANUAL MNRISERCLMP StarTech.com

Desk Clamp Monitor Riser

Product Diagram (MNRISERCLMP)

Component Function
1	Monitor Platform • Used to support the Monitor.
2	Legs (x 2) • Used to support the Monitor Riser.
3	Clamps (x 2) • Used to secure the Monitor Riser to the edge of the surface.
4	Thumb Screws (x 2) • Used to secure the Monitor Riser to the edge of the surface.

Requirements

For the latest requirements, please visit www.startech.com/MNRISERCLMP

• Suitable Mounting Surface x 1

Package Contents

• Monitor Platform x 1
• Desk Clamp Assemblies x 2
• Hex Key x 1
• Screws x 4
• Washers x 4

Assembling the Monitor Riser

1. Place the Monitor Platform screw-hole side facing upwards on a flat, stable surface.

2. Align the Screw Holes (x 2) on the Clamp Assembly with the Mounting Holes (x 2) on the bottom of the Monitor Platform. When aligning the Clamp Assembly with the Mounting Holes, the back of the Clamp Assembly should be closest to the edge of the Monitor Platform.

3D rendering of a black rectangular object with a vertical clamping arm (no text or symbols visible)

Assembling the Monitor Riser

1. Align the Washers (x 2) with the Screw Holes on the Clamp Assembly.
2. Insert the Screws (x 2) through the Washers and Clamp Assembly and into the Monitor Platform.
3. Using the Hex Key (included) tighten the Screws, being careful not to over-tighten.
4. Repeat steps 2 - 5 to install the second Clamp Assembly to the Monitor Platform.

Installing the Monitor Riser

The Monitor Riser can support one monitor with a maximum screen size of 812 mm (32").

1. Align the Clamp Assemblies with the edge of the surface
2. Slide the Clamp Assemblies over the edge of the surface.
3. Using the Thumb Screw, tighten the Clamp until the Clamp is pressed tightly against the surface.

Product Specifications

Type of Measurement Measurement
Weight Capacity	20 kg. (44 lb.)

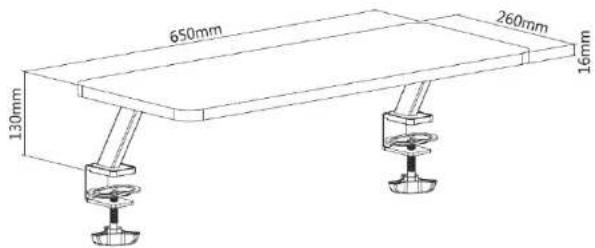

Product Dimensions
