Product Type	Cordless Stick Vacuum Cleaner
Brand	Simplicity
Model	Freedom S10CV (S10CV.6)
Power Source	Rechargeable battery pack (charger model P/N 10201026, C223-2000)
Charger Input	120V AC, 60Hz (polarized plug)
Battery Type	Li-ion (not explicitly stated, typical for cordless vacs)
Battery Life Display	4 green LEDs + 1 red LED; press button to illuminate
Charging Indicator	Red LED while charging, green when fully charged
Bag Type	Genuine HEPA Media Vacuum Bag (SLH-6) or with Charcoal Filtration (SLHC-6)
Belt Type	Genuine Vacuum Belt (ULW-B2)
Squeegee	Replaceable squeegee for bare floor cleaning
Edge Cleaning	Yes; left side of nozzle for wall/edge cleaning
Carpet Height Adjustment	Automatic self-adjusting nozzle
Bare Floor Cleaning	Yes, with squeegee
Under Furniture Cleaning	Yes; handle reclines to lay flat on floor
Headlight	Yes, on nozzle
Handle	Ergonomic handle with release pedal
Battery Removal	Removable battery for independent charging
Maintenance	Replace bag, belt, squeegee; annual checkup recommended
Safety Features	Polarized plug, do not use outdoors, keep away from heat sources

Frequently Asked Questions - Freedom S10CV.6 Simplicity

How do I charge the battery?

Plug the charger into a wall outlet and connect the DC cable to the charge point on the battery (can be charged on or off the vacuum). The charger LED will be red during charging and green when fully charged.

How do I replace the vacuum bag?

Turn off the vacuum and unplug the charger. Unzip the bag compartment, pull the green bag collar tab away from the vacuum to remove the old bag (it seals automatically). Slide a new bag into the bag holder until it snaps, then tuck corners and zip closed.

What type of bags does the Freedom S10CV use?

It uses genuine Simplicity HEPA Media bags: SLH-6 (standard) or SLHC-6 (with charcoal filtration). Always use genuine parts for best performance.

How do I replace the vacuum belt?

Turn off the vacuum, unplug the charger, and remove the battery. Remove the bottom plate by turning two screws a quarter turn. Remove the brushroll and worn belt, loop the new belt (ULW-B2) around the motor shaft and brushroll, reinstall the brushroll, bottom plate, and battery.

How do I clean bare floors effectively?

The vacuum is equipped with a squeegee on the bottom plate. For best results, use the edge cleaning feature (left side of nozzle against walls) and ensure the squeegee is not worn.

Can I use this vacuum under furniture?

Yes. Press the handle release pedal to recline the handle, then continue lowering until the vacuum lays flat on the floor for cleaning under beds and tables.

What should I do if the vacuum won't turn on?

Check that the battery is charged (charge if needed). If still not working, contact an Authorized Simplicity Retailer for service.

How do I remove and reinstall the battery?

Push up on the battery release button and lift the battery off. To reinstall, line up the bottom of the battery with the posts on the vacuum and push until it clicks.

Where can I get service or replacement parts?

Contact an Authorized Simplicity Retailer or visit SimplicityVac.com for service. Genuine replacement parts (bags SLH-6/SLHC-6, belt ULW-B2, squeegee) are available.

What does the warranty cover?

The warranty covers defects in material and workmanship for one year from the original purchase. It does not cover normal wear items like bags and belts. Service must be obtained from an Authorized Simplicity Retailer.

USER MANUAL Freedom S10CV.6 Simplicity

CORDLESS VACUUM

Model S10CV

Owner's Manual

CONTENTS

Getting Started

Important Safety Instructions 2

Polarization Instructions 3

Description of the Vacuum 4

Assembling the Vacuum 5

Operation

Battery Charging 6

Battery Life Display 6

Reclining the Handle 6

On/Off Switch 7

Edge Cleaning 7

Automatic Carpet Height Adjustment 7

Bare Floor Cleaning 8

Vacuuming Under Furniture 8

Maintenance and Care

Replacing the Vacuum Bag 9

Removing and Reinstalling the Battery 10

Removing and Reinstalling the Bottom Plate 11

Replacing the Vacuum Belt 12

Replacing the Squeegee 13

Annual Checkup 13

Problem Solving Guide

Troubleshooting 14

Visit Simplicity Vacuums Online 14

How to Contact Your Authorized Retailer 14

Key Replacement Parts 14

For Best Performance 14

Warranty 15

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. FOR HOUSEHOLD USE ONLY.

IMPORTANT:

IMPORTANT. The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.

WARNING:

To reduce the risk of fire, electric shock, damage or injury:

• Fully assemble vacuum before operating.
- Use and store in a dry location.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual.
- Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Simplicity Retailer for service.
- Do not pull or carry charger by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug charger by pulling on cord. To unplug charger, grasp the plug, not the cord.
- Do not handle charger, including charger plug, and charger terminals with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
- Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

• Do not use without vacuum bag in place.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not attempt to service the unit while charger is plugged in.
• Do not charge the unit outdoors.
• Only charge in temperatures between 0-45°C (32-113°F).
• Do not open, crush, expose to heat above 100^ (212°F) or incinerate the battery even if it is severely damaged. The battery can explode in a fire.
• Use only with the Cordless Battery Vacuum Charger supplied - P/N 10201026 Winkind. (C223-2000)
• Batteries must be disposed of responsibly. Contact your Authorized Simplicity Retailer for information on battery disposal. To find battery recycle pickup sites near you, please visit www.call2recycle.org.
• Remove the battery before performing any service on the vacuum.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.

SAVE THESE INSTRUCTIONS

POLARIZATION INSTRUCTIONS

Power Cord, 2-Wire Polarized Cord

To reduce the risk of electric shock, the charger is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

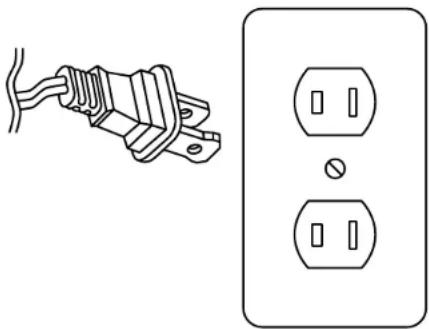

Line drawing of a wire-wrapped electrical plug next to two separate socket (no text or symbols)

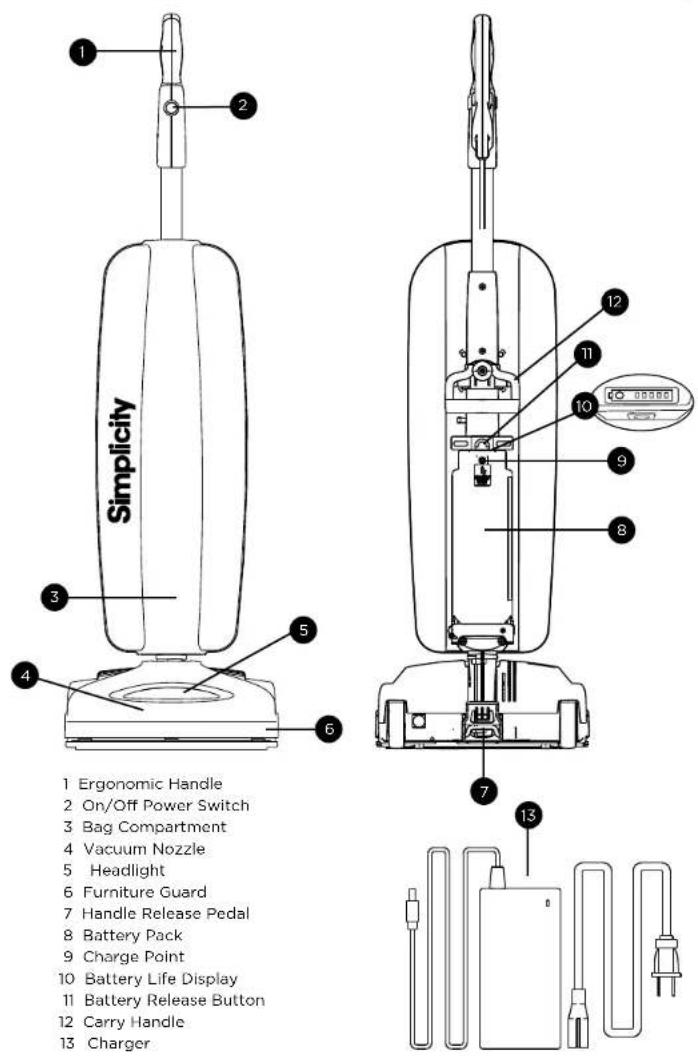

1 Ergonomic Handle
2 On/Off Power Switch
3 Bag Compartment
4 Vacuum Nozzle
5 Headlight
6 Furniture Guard
7 Handle Release Pedal
8 Battery Pack
9 Charge Point
10 Battery Life Display
11 Battery Release Button
12 Carry Handle
13 Charger

ASSEMBLING THE VACUUMDES

Attaching the Handle to the Vacuum

NOTE: Do not turn on the vacuum until it is completely assembled.

The vacuum cleaner and the handle are packed separately and require assembly.

• Remove the handle bracket by removing the two screws (Fig. 1).
• Place handle onto the back of the vacuum, aligning holes with pegs (Fig. 2).
• Place the handle bracket back into position (Fig. 3).
• Secure with two screws removed in Fig. 1. Tuck the cord into the space to the left of the handle.
• Open the bag compartment to ensure a vacuum bag is in place.
• Your vacuum is now ready for use.

Technical line drawing showing two views of a mechanical component with no visible text or symbols

Fig. 1 Fig. 2

Fig. 3

OPERATION

OPERATION

This vacuum is intended for household use only.

Battery Charging

• The battery is partially charged and will run for a short time.
• The battery is located on the back of the vacuum. It can be charged while installed on the vacuum, or the battery can be removed from the vacuum and charged independently (see Removing and Reinstalling the Battery, page 10).
• Plug the AC cable into the charger and into a wall socket (Fig. 1).
• Plug the charger DC cable into the Charge Point on the battery. (Fig. 2).
• The charger LED light will be red during charging and will turn green when the battery pack is fully charged.

Battery Life Display

• Press the button on the battery to illuminate the LED lights.
• When the battery is fully charged there will be four (4) green lights and one (1) red light showing (Fig. 3).
• As the battery is discharged during use, the number of green lights showing will reduce from four (4) to none (0).
• When all of the green lights are off and only the red light is showing there is a small amount of time remaining before the battery will be fully discharged and will require recharging.

Reclining the Handle

- Press the Handle Release Pedal located on the back of the vacuum with your foot to recline the handle (Fig. 4).

Simple line diagram showing a device with an arrow pointing to it, no text or symbols present

Fig. 1

Fig. 2

Line drawing of a device rear panel with a button and arrow indicator (no text or symbols)

Fig. 3

Mechanical component diagram showing a base with a directional arrow indicating movement (no text or symbols)

Fig. 4

On/Off Switch

• Turn the switch on to use the vacuum. If the vacuum doesn't turn on, check that the battery is charged (see page 6).
  • Always unplug the charger from the charge point before use.

Edge Cleaning

The edge cleaning feature provides improved cleaning near walls and stationary furniture. For maximum edge cleaning, place the left side of the nozzle, from the user's perspective, against the wall or stationary furniture (Fig 2).

Automatic Carpet Height Adjustment

Your vacuum is designed with an automatic self-adjusting nozzle. No manual adjustments are required. The height of the nozzle automatically adjusts to the flooring surface. This self-adjusting feature allows the nozzle to float evenly over all flooring surfaces.

Diagram of a robotic arm with a curved handle and arrow indicating motion (no text or symbols)

Fig. 1

Fig. 2

Bare Floor Cleaning

Your vacuum is equipped with a squeegee on the bottom of the vacuum to improve its effectiveness in cleaning bare floors (Fig. 1).

Vacuuming Under Furniture

Your vacuum will lay flat on the floor for effective cleaning under beds and tables.

• Press the Handle Release Pedal once for normal vacuum cleaning (Fig. 2).
• Continue to lower the handle to enable the vacuum to lay flat on the floor (Fig. 3).

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 1

Line drawing of a mechanical device with a tool inserted, no visible text or symbols

Fig. 2

Line drawing of a vehicle's side profile showing front and rear sections (no text or symbols)

Fig. 3

Replacing the Vacuum Bag

NOTE: Turn the vacuum off and unplug the charger from the charge point before changing the bag.

• Unzip the bag compartment.
• Remove the used vacuum bag by pulling the green bag collar tab away from the vacuum (Fig. 1). Slide the used bag out of the bag holder which automatically seals the bag opening (Fig. 2). Discard the used bag.
• To install a new bag, slide the bottom of the green bag collar into the bag holder until it "snaps" into place (Fig. 3).
• Push the top of the bag collar upward until the collar "snaps" into place on the vacuum (Fig. 4).
• Tuck the bag corners into the bag compartment then zip the bag compartment closed.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 1

Technical line drawing of a mechanical device with a lever mechanism (no text or symbols)

Fig. 2

Technical line drawing of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols)

Fig. 3

Diagram of a door latch mechanism with an arrow indicating clockwise motion (no text or symbols)

Fig. 4

Removing and Reinstalling the Battery

NOTE: Turn the vacuum off. If the battery charger is plugged into the charge point on the vacuum, remove the charger from the charge point before removing the battery.

The battery can be removed and charged independently from the vacuum.

• To remove the battery push up on the release button, and lift the battery off (Fig. 1).

• To replace the battery, line up the bottom of the battery with the posts at the base of the battery mount. Push the battery in until it clicks (Fig. 2).

Recycling the Battery

Contact your Authorized Simplicity Retailer for information on battery disposal. To find battery recycle pickup sites near you, please visit www.call2recycle.org.

Fig. 1

Line drawing of a vacuum cleaner device with attached casing and mounting base (no text or symbols)

Fig. 2

Removing and Reinstalling the Bottom Plate

WARNING! To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug the charger from the charge point before servicing or cleaning the vacuum.

To Remove the Bottom Plate:

• Make sure the vacuum is turned off.
- Remove the battery (see Removing and Reinstalling the Battery, page 10).
- Press the handle release pedal to place the vacuum cleaner in the flat position.
- Turn the vacuum cleaner over, exposing the bottom plate.
- Turn the two screws a quarter turn to release the bottom plate (Fig. 1). Remove the bottom plate.
- To reinstall the bottom plate: Align the front edge of the bottom plate into the notches inside the nozzle (Fig. 2).
- Press the bottom plate into position until the plate "clicks" on both sides. Tighten the two screws a quarter turn to secure the bottom plate.
- Replace the battery (see see Removing and Reinstalling the Battery, page 10).

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 1

Line drawing of a boat's side view showing internal components and hull (no text or symbols)

Fig. 2

Replacing the Vacuum Belt

WARNING! To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug the charger from the charge point before servicing or cleaning the vacuum.

NOTE: To ensure maximum cleaning efficiency, the belt should be checked regularly to be sure it is in good condition. Check to see if the belt is stretched, cracked, or if excessive slipping is occurring. Replace if needed.

• Turn the vacuum off and unplug the charger from the charge point before changing the belt.
• Remove the battery (see Removing and Reinstalling the Battery, page 10).
• Remove the bottom plate (see Removing and Reinstalling the Bottom Plate, page 11).
• Remove the brushroll and the worn or broken belt from the brushroll pulley and the motor drive shaft.
• Loop the new belt around the motor drive shaft and the brushroll (Fig. 1).
• Reinstall the brushroll into the nozzle. Turn the brushroll by hand, making sure the belt is not twisted and all rotating parts move smoothly (Fig. 2).
• Reinstall the bottom plate (see Removing and Reinstalling the Bottom Plate, page 11).
• Replace the battery (see Removing and Reinstalling the Battery, page 10).

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 1

Technical line drawing of a device casing with internal components and a cable (no text or symbols)

Fig. 2

Replacing the Squeegee

WARNING! To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug the charger from the charge point before servicing or cleaning the vacuum.

If your squeegee splits or begins to look worn, simply slide the worn squeegee from its track and slide a new one into the track. If you have trouble installing the new squeegee, please visit an Authorized Simplicity Retailer for help.

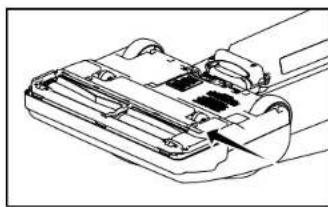

Annual Checkup

To keep your vacuum in peak operating condition, it is recommended you bring it to an Authorized Simplicity Retailer for an annual checkup. The retailer will conduct a comprehensive examination to ensure your vacuum is in top operating condition.

Technical line drawing of a mechanical component with no visible text or symbols

Troubleshooting

WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug the charger from the charge point and remove the battery before servicing or cleaning the vacuum.

CAUTION! To reduce the risk of electric shock, do not handle charger plug or appliance with wet hands.

PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum won't turn on	Battery is fully discharged charge battery (page 6)
	Needs service Take to Authorized Simplicity Retailer
Vacuum won't pick up or low suction	Vacuum bag full Install new bag (page 9)
	Broken belt Replace belt (page 12)
	Worn brushroll Replace brushroll (page 12)
Dust escaping from vacuum	Vacuum bag not installed properly	Install bag properly.Review bag installation (page 9)

Any other service should be performed by an Authorized Simplicity Vacuum Retailer. To locate your nearest Authorized Retailer, visit our website at SimplicityVac.com or call 888-9-SIMPLY.

Key Replacement Parts

• Genuine HEPA Media Vacuum Bags: SLH-6
• Genuine HEPA Media Vacuum Bags with Charcoal Filtration: SLHC-6
• Genuine Vacuum Belts: ULW-B2

For Best Performance

• Keep your vacuum clean and in good operating condition.
• Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.
• Always use genuine Simplicity vacuum bags and replacement parts. Use of other products may result in poor cleaning performance, potential vacuum cleaner damage and may void vacuum warranty. Genuine Simplicity products are designed for maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Simplicity Retailer.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow these owner's manual instructions.

What is Covered:

This warranty covers any defects in material and workmanship in your new vacuum and applies exclusively to the original purchaser.

How Long Coverage Lasts:

Warranty coverage for S10CV lasts one year.

What is Not Covered:

• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse or improper maintenance.
  • Normal replacement items: disposable bags and belts.

What We Will Do:

This warranty provides, at no cost to you, all labor and parts to keep this vacuum in correct operating condition during the warranted period.

How to Get Service:

Warranty service can only be obtained by presenting the vacuum to an Authorized Simplicity Retailer. A proof of purchase and product serial number will be required before service is rendered. To locate your nearest service center, please call 888-9-SIMPLY or visit SimplicityVac.com.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

How State Law Applies:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Owner's Warranty Information (keep this for your records.)

Store name

Store Address ____ City ____ State Zip

Telephone Date of purchase

Serial number Model number

Register your warranty online at SimplicityVac.com

Simplicity®

SIMPLICITYVAC.COM
