Deutsch

(Modelle 5040s w&d/5030s/5020s)

Clean&Charge Station

nur fur Modelle 5090cc/5070cc/5050cc

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality and we hope you enjoy your new Braun shaver.

Please read the use instructions carefully and completely before using the appliance.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

Do not shave with a damaged foil or cord.

This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

Oil bottle

/models 5040s w&d/5030s/5020s)

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

Clean&Charge Station

To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.

Shaver

1 Foil & Cutter cassette
2 Cassette release button
3 MultiHeadLock switch
4 On/off switch
5 Shaver display
6 Long hair trimmer
7 Shaver-to-station contacts
8a Release button for long hair trimmer
8b Model number of shaver
9 Shaver power socket
10 Special cord set
11a Brush
11b Hard travel case
11c Protection cap

First use and Charging

Prior to first use remove the protection foil from the shaver display and connect the shaver to an electrical outlet using the special cord set (10).

Charging and basic operating information

• A full charge provides up to 45 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5^ to 35^ . The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for storage and shaving is 15^ to 35^ .
• Do not expose the appliance to temperatures higher than 50^ for extended periods of time.
• When the shaver will be connected to an electrical outlet, it may take some minutes until the display illuminates.

Shaver display

Charge status

The shaver display (5) shows the charge status of the battery.

During charging: The battery symbol will blink. (5090cc: The respective battery segment will blink.) Fully charged (shaver is connected to an electrical outlet): The battery symbol will light up for a few seconds. (5090cc: All battery symbols will light up for a few seconds.)

Low charge

The low-charge light flashes red when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.

Cleaning status

Models 5090cc/5070cc/5050cc only

The cleaning indicator lights up, when the shaver needs to be cleaned in the Clean&Charge Station.

Travel lock

The lock symbol lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).

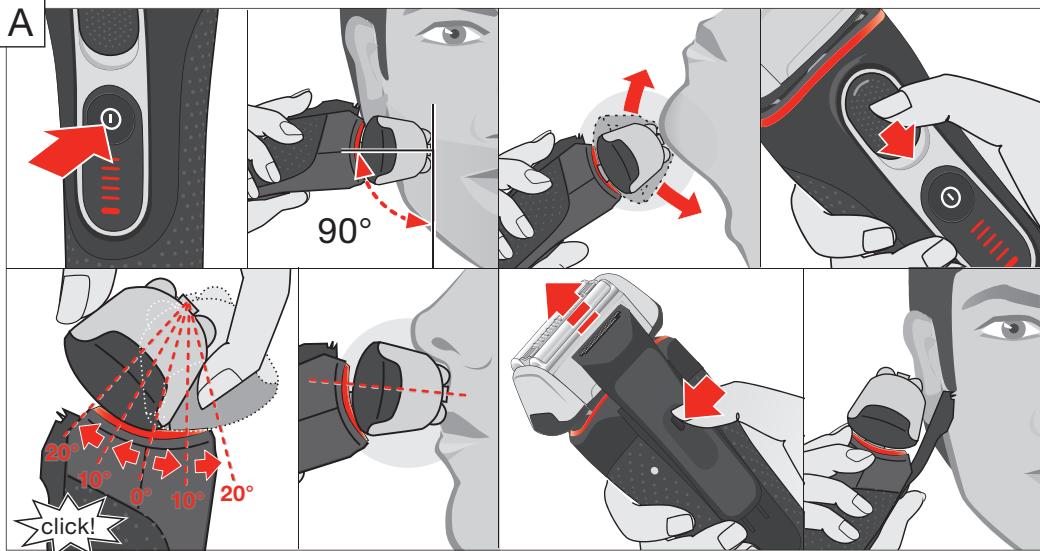

Using the shaver (see fig. A)

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

For best results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90^) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Model 5040s w&d only:
This appliance is suitable for use in a bath or shower. For safety reasons this appliance can only be operated cordlessly.

MultiHeadLock switch (head lock)

To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position. To set it back into the pivoting position the MultiHeadLock switch needs to be slid up again.

Models 5090cc/5070cc/5050cc: For automatic cleaning in the Clean&Charge Station the head lock should be released.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (8a) and slide the long hair trimmer (6) upwards.

Shaving with the cord (models 5090cc/5070cc/ 5050cc/5030s/5020s only)

If the shaver has run out of power (discharged), you may also shave with the shaver connected to an electrical outlet via the special cord set.

Travel lock

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again.

Manual cleaning of the shaver (s. fig. B/C)

The shaver is suitable for cleaning under running tab water. Warning: Detach the shaver from the power supply before cleaning it in water.

• Switch the shaver on (cordless) and rinse the shaver head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the release button (2) to remove the Foil & Cutter cassette (1) and let it dry.

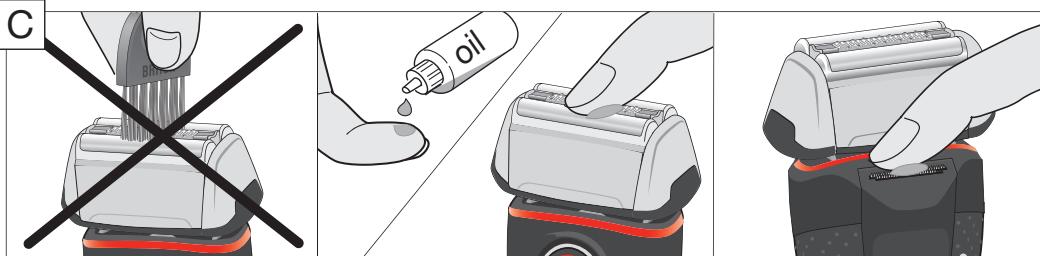

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

Alternatively, you may clean the shaver using the brush provided:
- Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using

the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

Model 5040s only - foam usage:

After each foam use release the shaver head and rinse all parts for 30 seconds under warm water.

Clean&Charge Station

for models 5090cc/5070cc/5050cc only

The Clean&Charge Station has been developed for cleaning, charging, lubricating, disinfecting and storing your Braun shaver.

12 Station power socket
13 Lift button for cartridge exchange
14 Station-to-shaver contacts
15 Clean&Charge Station display
15a Status light
16 Start button
17 Cleaning cartridge

Installing the Clean&Charge Station (see fig. D)

• Remove the protection foil from the Clean&Charge Station display.
• Using the special cord set (10), connect the station power socket (12) to an electrical outlet.
• Press the lift button (13) at the rear side of the Clean&Charge Station to lift up the housing.
• Hold the cleaning cartridge (17) down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge from the rear side into the base of the station until it snaps into place.
• Slowly close the housing by pushing it down until it locks.

Charging the shaver in the Clean&Charge Station (see fig. D)

Insert the shaver head down into the cleaning station.

Important: The shaver needs to be dry and free from any foam or soap residue!

The contacts (7) on the back of the shaver need to align with the contacts (14) in the station. Push the shaver in the correct position.

A beep sound confirms that the shaver sits properly in the station. Charging will start automatically.

Model 5090cc: The Clean&Charge Station analyzes the hygiene status. The status is shown by the cleaning program indicators in the Clean&Charge Station display (15) more details see chapter «Cleaning programs» below.

Cleaning the shaver (see fig. D)

When the cleaning indicator lights up in the shaver display, insert the shaver into the Clean&Charge Station, upside down and with the front showing (with released head lock/contact alignment/beep sound).

Cleaning programs

5090cc: The hygiene status will be analyzed and one of the following program indicators will light up.

<

<

short economical cleaning required
normal level of cleaning required
high intensive cleaning required

5070cc/5050cc: One standard cleaning program included.

Start automatic cleaning

Start the cleaning process by pressing the start button (16). If status light (15a) does not shine (Clean&Charge Station switches to stand-by after ca. 10 minutes), press start button twice. Otherwise cleaning will not start.

For best shaving results, we recommend cleaning after each shave.

Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Charge Station model and/or program selected, the cleaning time takes up to 3 minutes. During this time the status light blinks. Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions. Afterwards the shaver is ready for use.

After completing the cleaning and charging procedure, all indicators turn off.

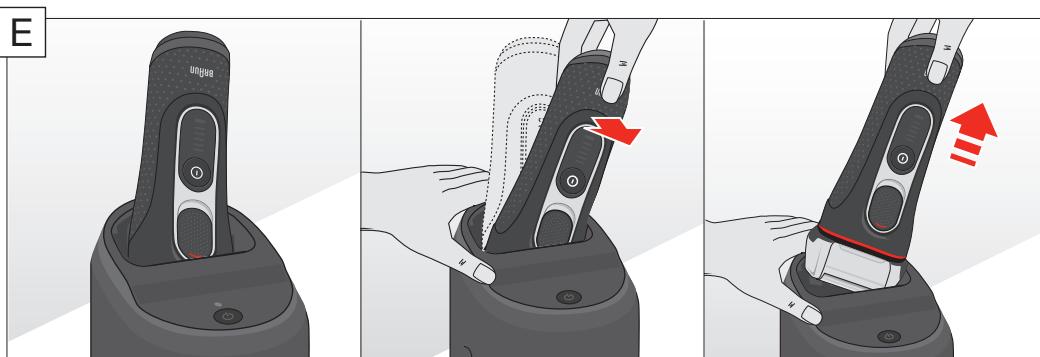

Removing the shaver from the Clean&Charge Station (see fig. E)

Hold the Clean&Charge Station with one hand and tilt the shaver slightly to the front to release it.

Cleaning Cartridge / Replacement (see fig. F)

When the level indicator lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced - about every 4 weeks (*when used daily).

After having pressed the lift button (13) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge,

since the used cartridge will contain contaminated cleaning solution.

The hygienic cleaning cartridge contains ethanol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection.

The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the Clean&Charge Station. These marks can be removed easily by wiping gently with a damp cloth.

Do not refill the cartridge and use only original Braun refill cartridges.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 52S/52B
• Cleaning cartridge Clean&Charge Station: CCR
• Braun Shaver cleaner spray

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Trouble-Shooting

Problem	Possible reason	Remedy
SHAYER
Unpleasant smell from the shaver head.	1. Shaver head is cleaned with water. 2. Cleaning cartridge is in use for more than 8 weeks.	1. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry. 2. Change cleaning cartridge at least every 8 weeks.
Battery performance dropped significantly.	1. Foil and cutter are worn which requires more power for each shave. 2. Shaver head is regularly cleaned with water but not lubricated.	1. Renew Foil & Cutter cassette. 2. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.
Shaving performance dropped significantly.	1. Foil and cutter are worn. 2. Shaving system is clogged.	1. Renew Foil & Cutter cassette. 2. Soak the Foil & Cutter cassette into hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.
Battery segments in the display are skipped with decreasing battery capacity.	Foil and cutter are worn which requires more power for each shave.	- Renew Foil & Cutter cassette. - Regularly oil the shaving system, especially when cleaning with water only.
Shaver head is humid.	1. Drying time after automatic cleaning was too short. 2. Drain of the Clean&Charge Station is clogged.	1. Clean directly after shaving to allow enough time for drying. 2. Clean the drain with a wooden toothpick.

CLEAN&CHARGE STATION
Cleaning does not start when pressing the start button.	1. Shaver is not placed properly in the Clean&Charge Station. 2. Cleaning cartridge contains not enough cleaning fluid (display blinks red).	1. Insert shaver into the Clean&Charge Station and push it to the rear side of the station (contacts of the shaver need to align with contacts in the station). 2. Insert new cleaning cartridge. Press start button again.
Increased consumption of cleaning fluid.	Drain of the Clean& Renew station is clogged.	- Clean the drain with a wooden toothpick. - Regularly wipe the tub clean.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com)

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park NSW 2113

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time - in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1800641820

New Zealand Consumer Service (free call): 0800108909

N2820

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances

17- 19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@statewideservices.

com.au

QUEENSLAND

Walters Import trading as Brisbane Appliance

Service Centre

449 Beaudesert Road

Moorooka QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd

Shop 4,

9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email:[e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

7D Echelon Place East Tamaki

Manukau City

Auckland

New Zealand

(PO Box 38569, Howick, Auckland,

New Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]

Français

(modules 5040s w&d/5030s/5020s)

Installation de la station Clean&Charge (cf fig. D)

(modelos 5040s w&d/5030s/5020s)

Alternatively,我会 say that you're a bit more than the other people.

(modelos 5040s w&d/5030s/5020s)

Bottiglietta di lubricicante (modelli 5040s w&d/5030s/5020s)

Rasatura col cavo (solo modelli 5090cc/5070cc/5050cc/5030s/5020s)

(modellen 5040s w&d/5030s/5020s)

Clean&Charge station

(modellen 5090cc/5070cc/5050cc)

Clean&Charge station

alleen modellen 5090cc/5070cc/5050cc

Olieflaske (model 5040s w&d/5030s/5020s)

Clean&Charge-stationen

(model 5090cc/5070cc/5050cc)

Kun model 5040s w&d:

Clean&Charge-station

kun til model 5090cc/5070cc/5050cc

(modellene 5040s w&d/5030s/5020s)

Kun for modell 5040s w&d:

(modellerna 5040s w&d/5030s/5020s)

Forvaras utom rackhall for barn. Far ej svaljas. Far inte appliceras pa ogonen. Tom flaska kasseras pa lampligt satt.

Clean&Charge-stationen

(modeller 5090cc/5070cc/5050cc)

Clean&Charge-station

endast for modellerna 5090cc/5070cc/5050cc

(malleihin 5040s w&d/5030s/5020s)

(5040s w&d (islak & kuru)/5030s/5020s modelleri)

[e-mail]

Eληνικα

TTa npoiovta mac kataoekuacovtai etai oote va
Tnpoov ta uynloTepa nptunia noiOtnac, aeIOUpyikotntac kai oxediouou. Sa euxapiotouje yia tnv
eumioouvnaocnvyoiotnaBraun ka eanicoue
oti ta kavononthe antoluta an to vea oc
Epiotk mxavn Braun.

Iapakaloume diaβaote npooektikacic odnyiecs xnpnncipxnpoiomoinoeTe m ouokeuñ.

Ppoetdoonin

H Eupiotikn oac eivai exoiaouevn e eva EIiko oet kaawbiou, to onioi diaotei evomegaatwoe Moaoxmaotn PIoX XauanL Taon yia nepioo-otepn aoafaleia. IaTov loyo auto bEv npTei va avtkataohtne Tpnoionoe Otooiobnte lepcoc tou. Zavriotm nepiittwn unapxki kivduoc nAekptponlqic. Xpnaiotoite MovoTo EIko oet kaawdiou nou napexetai me tn ouakeun oc.

Mn xpoaioieTne T ouokueu mKATEOTpauevo IAAyua n Kaawdbio pEutatoC.

Autn ouakeun 6ev npoipctai yia xpon ani o na i a ta o ma e u wvec o watikec n diavotikec icavotntec, ktoac av tBentovta i ano atooueuvoo yia nV aoapaleia touc. EviKA, ouviotoue va kpatate mV ouakeun akpiad ano naia Ta naia npenla v biokovta uno etinpnon yia va eaoaipalioente ot d ev naiouv m Oaukeun.

Aδi

(μοντέλα 5040s w&d/5030s/5020s)

KpatnoTe to aakpi a nio naia. Mny to katanive. Mny to anawveTe oTa maia. AnoppipTe to e aopaaia otav aebiaeI.

Clean&Charge

(μοντέλα 5090cc/5070cc/5050cc)

Tia va anopuyET OIOIAIDHOTIDEIaPOn Tou Uypo KaOapiaou, tooOeHTnTe m ouakeun Clean&Charge o 3 ia e nIeEg EpiAevia. Mny vepvET n meKtive t anotota m ouokeun, u e onioovhntote TpTo, aV exi TnooTEnTe iN8n N kaetapaKaapiaouKaWcMnopevivaXuTeivp Kaapiaou ano tv KaOeTa. Ma ngteTt m oukeun oTo papi Tou kOeFPTn Oac n navw OE yuaiaoe c Eipavieic, h Eipavieic kaumuEvcs M eBepviki.

H oukeun kaopouo npieexi Eaepitka eupkto yrho. Kpatote nnu maipia ano mnyec avapE5nc. Mny eketete n oukeun amoea o nlaikn aktioia. Mny kaniotekovt aonu oukeun kai mnu tnto0eite naov e kaolipep.

Eupiotik Mxavn

UK Maintain your shaver's maximum performance. Change foil & cutterblock every 18 months.

Within 18 months, your Braun shaver will cut an average of 6,000,000 hairs - equivalent to shaving an entire soccer field. In accomplishing this substantial tasks, the cutting parts will gradually wear out and your shave may become less close and comfortable. Please note down the suggested replacement date (in 18 months from now) below the key parts number.

5090cc
5070cc
5050cc
5040s wet&dry
5030s
5020s

Kaufdatum

Date of purchase

Date d'achat

Fecha de requisión

Data de compra

Data d'acquisto

Koopdatum

Købsdato

Kjøpsdato

Inköpsdatum

Ostopävä

Satin alma tarihi

Hερομηνίαγοράς

Stamp and signature of dealer

High Performance Parts

Maintain your shavers’ maximum performance

Please note down the suggested replacement date (in 18 months from now) below the key parts number.

52S/52B

Change Foil & Cutter cassette every 18 months! For a perfect shave every day.
