| Product Type | Power conditioner / Surge-protected power strip |
| Brand | Furman |
| Model | M-8x² |
| Number of outlets | 9 (8 rear, 1 front) |
| Electrical capacity | 15 amps |
| Input voltage | 120 VAC, 60 Hz |
| Power cord | 1.83 m (6 ft), 3x14 AWG, captive |
| Surge protection | Yes, Line to Neutral mode, 150 Joules dissipation, max impulse current 12,000 A |
| RFI/EMI filtering | Attenuation >23 dB (200 kHz - 10 MHz) |
| Circuit breaker | Yes, resettable on rear panel |
| Protection OK indicator | LED on front panel |
| Dimensions (H x W x D) | 4.45 x 48.26 x 9.53 cm (1.75 x 19 x 3.75 in) |
| Weight | 2 kg |
| Construction | Black painted steel chassis |
| Warranty | 3 years limited |
| Maintenance and cleaning | Clean with a damp cloth only, do not use solvent |
| Safety | Do not expose to rain or moisture, unplug before maintenance |
| Spare parts and repairability | Contact Furman customer service for any repairs, do not open the case |
| General information | Designed in USA, made in China |
Frequently Asked Questions - M-8x2 Furman
User questions about M-8x2 Furman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power Strip in PDF format for free! Find your manual M-8x2 - Furman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M-8x2 by Furman.
USER MANUAL M-8x2 Furman
M-8x² / M-8Lx / M-8Dx OWNER'S MANUAL
M-8x²
M-8Lx
M-8Dx
IDEAL FOR...
DEEQUIPMENT PROAUDIO
FURMAN®
MERIT SERIES POWER CONDITIONER
CONDITIONNEUR D'ALIMENTATION MERIT / MERIT ACONDICIONADOR DE ENERGÍA
M-8x² FEATURES
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
Spike & surge protection ensures equipment stays safe and your power stays clean•
"Protection OK" indicator•
8 rear panel outlets and 1 front panel convenience outlet•
15 amp rating, with circuit breaker•
Three year warranty•
M-8Lx FEATURES
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
Spike & surge protection ensures equipment stays safe and your power stays clean•
"Protection OK" indicator•
8 rear panel outlets, with front panel convenience outlet•
15 amp rating, with circuit breaker•
Two retractable incandescent light fixtures with dimmer control for convenient rack illumination•
Three year warranty•
M-8Dx FEATURES
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
Spike & surge protection ensures equipment stays safe and your power stays clean•
"Protection OK" indicator•
8 rear panel outlets, with front panel convenience outlet•
15 amp rating, with circuit breaker•
Two retractable incandescent light fixtures with dimmer control for convenient rack illumination.
Digital voltmeter displays incoming line voltage•
Three year warranty•
INTRODUCTION
Thank you for purchasing a Furman Merit Series Power Conditioner, and congratulations on your choice. The Merit Series power conditioners feature excellent surge protection as well as RFI / EMI AC noise filtration.
SAFETY INFORMATION
To obtain best results from your Furman Merit Series unit, please read this manual carefully before using.
Warnings:
To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dangerous high voltages are present inside the enclosure. Do not remove the covers. Refer servicing to qualified personnel only.
The lightning flash with an arrowhead symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
CAUTION:
This equipment shall be connected to a 20 Amperes rated receptacle of the branch circuit. The total current drawn from the receptacles of this equipment is 15 Amperes maximum, and no individual receptacle shall draw more than 12 Amperes.
Important Safety Guidelines:
(Please read prior to installation)
-
Please read and observe all safety and operating instructions before installing your Merit Series unit. Retain these instructions for future reference.
-
Your Merit Series unit should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc.
- Do not place your Merit Series unit near heat sources such as radiators, heat registers, stoves, or other appliances that produce heat.
- The Merit Series units should only be connected to a 120 VAC, 60Hz, 15 amp grounded electrical outlet. Do not defeat the ground or change polarization of the power plug.
- Route the power cord and other cables so that they are not likely to be walked on, tripped over, or stressed. Pay particular attention to the condition of the cords and cables at the plugs, and the point where they exit your Merit Series unit. To prevent risk of fire or injury, damaged cords and cables should be replaced immediately.
- Clean your Merit Series unit with a damp cloth only. Do not use solvents or abrasive cleaners. Never pour liquid on or into the unit.
- If any of the following events occur, contact Furman Customer Service immediately at 1-707-763-1010.
Your unit might require service if:
- The power supply cord or the plug has been frayed, kinked, or cut.
- Objects have fallen or liquid has spilled into the unit.
- The unit has been exposed to rain or other moisture.
- The unit does not appear to operate normally.
-
The unit has been dropped, or the enclosure has been damaged.
-
The retractable lights have failed.
• Protection OK indicator is not lit. -
Your Merit Series unit requires that a safety ground be present for proper operation. Any attempt to operate the unit without a safety ground is considered improper operation and could invalidate the warranty.
- Do not attempt to service your Merit Series unit beyond what is described in this manual. All other servicing should be referred to qualified service personnel.
FEATURES
M-8x²
The M-8x ^2 power conditioner provides 9 switched outlets for powering equipment. It not only protects anything plugged into it from spikes and surges, but also has a built in AC noise filter to rid the system of RFI / EMI interference. This allows equipment to function better and last longer.
M-8Lx
In addition to features of the M-8x ^2 , the M-8Lx features incandescent rack lights and increased AC filtering. A dimmer control for the rack lights allows the user to adjust the level of illumination.
M-8Dx
In addition to all the features of the M-8Lx, the M-8Dx offers a laboratory precision digital meter that displays incoming voltage in 1-volt steps. The voltmeter's accuracy is ±2 volts.
OPERATION
Retractable Rack Lights and Dimmer Control:
The M-8Lx and M-8Dx utilize a dimmer control for the two retractable front panel light tubes. The dimmer knob controls the brightness of both light fixtures. Turn it clockwise to increase brightness; turn it counter-clockwise to decrease brightness. When the lights are not in use, we recommend pushing the fixtures all the way into the chassis (engaging the off switches) to better maximize the life of the bulbs.
On/Off Rocker Switch:
The front panel on/off rocker switches power on and off to all outlets (including the front panel outlet) as well as the retractable lights. This 15 amp capacity power switch is specifically designed to stand up to the enormous high inrush current demands of many power amplifiers.
Circuit Breaker:
If you are not getting any power to the outlets even though the unit is switched on, the circuit breaker might have tripped. To reset the circuit breaker, push the round reset button located on the rear panel.
Protection OK Indicator:
Although Furman's Ground Contamination Free Surge Suppression rarely requires servicing, nature has a way of occasionally creating electrical forces that are beyond the capabilities of any transient voltage surge suppressor device to absorb without some degree of damage. In the instance that this occurs, the “Protection OK” LED indicator will turn off. If this happens, Furman's surge suppression circuit is compromised. The unit must be returned to Furman Sound for repair.
Digital Voltmeter (M-8Dx):
Furman's digital voltmeter continually displays incoming voltage within a typical tolerance of ± 2VAC .
NOTE: The Merit Series units do not compensate for high or low line voltage. If you frequently move your rack to different locations, derive power from generators, use long extension cords, travel internationally, or are in an area prone to brownouts, you may benefit from the use of one of Furman's AC Line Voltage Regulators.
THREE YEAR LIMITED WARRANTY
SAVE YOUR SALES RECEIPT! The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims.
Furman, a brand of Panamax Inc., warrants its Merit x Series (the "Product") as follows:
Furman warrants to the original purchaser of the product that the product sold hereunder will be free from defects in material and workmanship for a period of three years from the date of purchase. If the product does not conform to this Limited Warranty during the warranty period (as herein above specified), purchaser shall notify Furman of the claimed defects by calling 707-763-1010 or via email (info@furmansound.com). If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize purchaser to return the product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice or receipt showing the purchase date. Shipping charges to Furman headquarters must be prepaid by the purchaser of the product. Fur man shall, at its own expense, furnish a replacement product or, at Furman's option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman.
THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Furman does not warrant against damages or defects arising out of improper use or abnormal handling of the product, or against defects or damages arising from improper installation. This warranty shall be cancelable by Furman at its sole discretion if the product is modified in any way without written authorization from Furman or Panamax Inc. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman or Panamax Inc.
THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective product in the manner and for the period provided above. Furman shall not have any other obligation with respect to the products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. This Limited Warranty states the entire obligation of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.
SERVICE
Questions or issues with your Furman unit should be directed to the Furman Customer Service Department, available 8AM-4:30PM Pacific Time at (707) 763-1010 or via email at info@fur-mansound.com. If a unit requires service, it must have an RA number assigned from Furman's Customer Service Department.
Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please enclose a brief note giving your name, address, phone number and a description of the problem. Please display your RA number prominently on the front of all packages.
M-8x ^2 FRONT PANEL FEATURES
M-8Lx FRONT PANEL FEATURES

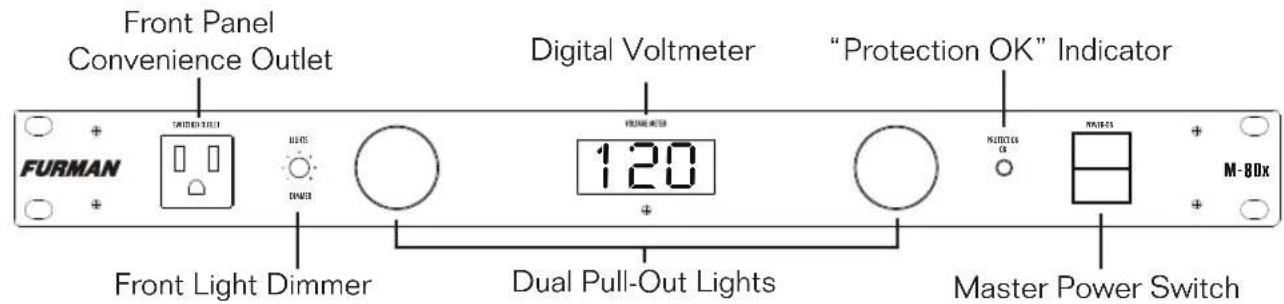

M-8Dx FRONT PANEL FEATURES
MERIT SERIES REAR PANEL FEATURES
SPECIFICATIONS
Maximum Output Current:
15 amps
Line Cords:
Captive 6 foot cord, 3x14 AWG
Lamps (If present):
Two 120V incandescent bulbs, 4 watts each
Operating Voltage:
120VAC 60HZ
Spike Protection Modes:
Line to Neutral
Energy Dissipation:
150 joules
Peak Impulse Current:
12,000 amps
Maximum Continuous Operating Voltage:
130 VAC RMS
Noise Attenuation (Transverse Mode):
M-8x²: Greater than 23db, 200Khz to 10MHz
M-8Lx: Greater than 26db, 200Khz to 10MHz
M-8Dx: Greater than 26db, 200Khz to 10MHz
Dimensions:
M-8x²: 1.75" H × 19" W × 3.75" D
M-8Lx/M-8Dx: 1.75" H x 19" W x 7.5" D
Weight:
M-8x²: 4 lbs. (2 Kg.)
M-8Lx: 6 lbs. (2.7 Kg.)
M-8Dx: 6 lbs. (2.7 Kg.)
Construction:
Steel Chassis, Black Painted
CARACTÉRISTIqUES DU M-8x ^2
Indicateur "Protection OK"•
Indicateur "Protection OK"•
Indicateur "Protection OK"•
1690 Corporate Circle
Petaluma, California 94954-6919
US Phone: 707-763-1010
US Fax: 707-283-5901
Web: www.furmansound.com
E-mail: info@furmansound.com
Engineered in the USA • Manufactured in China
