SS-6B-Pro - Power Strip Furman - Free user manual and instructions

Product Type	Power Conditioner / Strip
Brand	Furman
Model	SS-6B-Pro
Dimensions	3.5" W x 1.5" D x 9.5" H
Weight	2.64 lbs
Input Voltage	120 VAC, 60 Hz
Current Rating	15 amps
Power Cord Length	15 feet (captive, 14 AWG)
Number of Outlets	6 (standard AC outlets)
Surge Protection Energy Rating	540 Joules
Surge Protection Voltage (UL VPR)	400V
EMI/RFI Filtration	Standard level, -20 dB minimum from 100 kHz to 1 MHz
Extreme Voltage Shutdown (EVS)	Under-voltage shutoff at 95 VAC ±5%; Over-voltage shutoff at 140 VAC ±5%
Construction	Heavy duty steel
Safety Certification	cULus listed
Warranty	1 year limited
Color	Black

Frequently Asked Questions - SS-6B-Pro Furman

Does the Furman SS-6B-Pro provide surge protection?

Yes, it features standard spike and surge protection with a UL VPR of 400V and energy dissipation of 540 Joules.

What is Extreme Voltage Shutdown (EVS)?

EVS automatically disconnects the unit from AC mains if voltage exceeds 140 VAC ±5% or drops below 95 VAC ±5%, protecting connected equipment.

How many outlets does the SS-6B-Pro have?

It has 6 standard surge-protected AC outlets in a block form factor.

What is the length of the power cord?

The unit comes with a 15-foot captive power cord (14 AWG).

Can the SS-6B-Pro be rack-mounted?

No, it is a stand-alone power strip with heavy-duty steel construction, not designed for rack mounting.

What is the warranty period?

Furman offers a 1-year limited warranty covering defects in material and workmanship.

Does it filter electromagnetic interference?

Yes, it includes standard level RFI/EMI filtration with -20 dB minimum attenuation from 100 kHz to 1 MHz.

Is the SS-6B-Pro safe for use in wet environments?

No, it should not be used near water or moisture. It is designed for indoor dry locations only.

How do I reset the unit after a shutdown?

The unit has a breaker/power switch. After an EVS event, unplug and check the power source, then reset the breaker and power on.

What type of maintenance does the SS-6B-Pro require?

Cleaning with a damp cloth only. Do not use solvents. Regularly inspect the power cord and plugs for damage.

USER MANUAL SS-6B-Pro Furman

Whether it's on-stage or in the studio, Furman Pro Plugs give you the protection you need. With surge protection, noise filtration, and diagnostic lighting, you can trust Furman Pro Plugs for reliable, clean, and protected power. Our products have saved billions of dollar's worth of equipment from power problems, and our innovative technologies maximize system performance.

POWER CONDITIONERS

SS-6

Six outlet power conditioners with standard surge protection, EMI/RFI filtration, heavy duty steel construction, and 15 ft. power cords.

The SS-6B-Pro includes the Furman EVS (Extreme Voltage Shutdown) technology that will disconnect the power conditioner from the AC mains to protect your connected equipment as well as itself. The high shutdown is set at 140 Vac +/- 5% while the low shutdown is set at 95 Vac +/- 5%.

SS-6B SS-6B-Pro

15A Rating 15/Draginistic Lights Diagnostrelights Standard Level Standard Level Surge Protection RFI/EMI Filtration

Standard Level Standard Level EVS Voltage Surge Protection RFI/EMI Filtration Protection

POWER DISTRIBUTION UNITS

Black industrial electrical switch unit with five vertical metal components and a 'Pluglock' branding (no readable text beyond branding)

15A Rating 15A Rating outlets

PlugLOCK

Lock your plugs and transformers in place, ensuring you never get disconnected from your power source

Coiled black cable with two metallic connectors, no visible text or symbols

3 Outlets

ACX-25

Discreet, 25 ft. power cord provides ultimate durability and longevity

POWER CONDITIONERS SS-6 SS-6B SS-6B-Pro

AC Protection Technology	Standard spike and surge protectionUL VPR:400V, UL Nominal	Standard spike and surge protectionUL VPR:400V, UL Nominal	Standard spike and surge protectionUL VPR:400V, UL Nominal
Signal Pulse Energy Dissipation	540 Joules 540 Joules 540 Joules
Filtration Technology	Standard level RFI/EMI filtrationFilter: -20dB Min, 100kHz – 1MHz	Standard level RFI/EMI filtrationFilter: -20dB Min, 100kHz – 1MHz	Standard level RFI/EMI filtrationFilter: -20dB Min, 100kHz – 1MHz
Under-Voltage Shutoff	— — 95VAC +/- 5%
Over-Voltage Shutoff	— — 140VAC +/- 5%
Dimensions	2.5"W x 1.5"D x 14.5"H 3.5"W x 1.5"D x 9.5"H 3.5"W x 1.5"D x 9.5"H
Weight	2.52lbs 2.64lbs 2.64lbs
AC Power Cord	15ft. captive cord (14AWG) 15ft. captive cord (14AWG) 15ft. captive cord (14AWG)
Outlets	6 6 6
Line Voltage	120V 120V 120V
Current Rating	15 amps 15 amps 15 amps
Safety Listing	cULus	cULus	cULus
Warranty	1 year	1 year	1 year

Black industrial machine component with multiple clamps and a labeled base (no readable text or symbols)

POWER DISTRIBUTION UNITS
PlugLOCK
ACX-25

Dimensions	2.3"W x 2.5"D x 12.6"H	—
Weight	2.125lbs	3lbs
AC Power Cord	5ft. captive cord (14AWG)	25ft. (14AWG)
Outlets	5	3
Line Voltage	120V 120V
Current Rating	15 amps 15 amps
Safety Listing	cCSAus	cULus
Warranty	1 year	1 year

FURMAN®

1 in Power Protection for Over 40 Years

Product Video

To find your local Furman

Dealer or Regional Sales

Representative, please visit:

www.FurmanPower.com

SS-6B-PRO SAFETY AND WARRANTY INFORMATION (ENGLISH)

SS-6B-PRO FEATURES

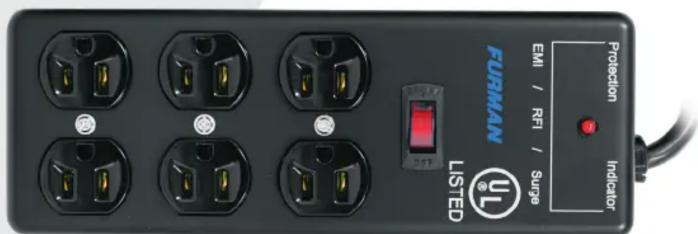

• 6 Standard Surge protected AC outlets in block form factor
  • 15 amp capacity with breaker/power switch
• Standard EMI/RFI noise attenuation
• 15 foot power cord
  • Heavy duty metal construction

• Extreme Voltage Shutoff (EVS)
» Under-voltage shutoff = 95VAC +/- 5%
» Over-Voltage Shutoff = 140VAC +/- 5%
- UL Safety certification

SAFETY INFORMATION

To obtain best results from your Furman SS-6B-PRO, please read this information sheet carefully before using.

WARNING

To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dangerous high voltages are present inside the enclosure. Do not remove the cover. Refer servicing to qualified personnel only.

IMPORTANT SAFETY INSTRUCTIONS

(Please read prior to use)

1. Please read and observe all safety and operating instructions before using your SS-6B-PRO. Retain these instructions for future reference.
2. Your SS-68-PRO should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
3. Do not place your SS-6B-PRO near high heat sources such as radiators, heat registers, stoves, or other appliances that produce extreme heat.
4. Your SS-6B-PRO should only be connected to a 120 VAC, 60Hz, grounded electrical outlet. Do not defeat the ground or change polarization of the power plug.
5. Route the AC power cord and other cables so that they are not likely to be walked on, tripped over, or stressed. Pay particular attention to the condition of the cords and cables at the plugs, and the point where they exit your Furman product. To prevent risk of fire or injury, damaged cords and cables should be replaced immediately.
6. Clean your SS-6B-PRO with a damp cloth only. Do not use solvents or abrasive cleaners. Never pour liquid on or into the unit.
7. Your SS-6B-PRO should be serviced by qualified service personnel when:
   • The power supply cord or the plug has been frayed, kinked, or cut.
8. Objects have fallen or liquid has spilled into the unit.
   • The unit has been exposed to rain or extreme moisture.
9. The unit does not appear to operate normally.
10. The unit has been dropped, or the enclosure has been damaged.
11. Your SS-6B-PRO requires that a safety ground be present for proper operation. Any attempt to operate the unit without a safety ground is considered improper operation and could invalidate the warranty.
12. Do not attempt to service your SS-6B-PRO beyond what is described in this manual. All other servicing should be referred to qualified service personnel.

SERVICE

Questions or issues with your Furman unit should be directed to the Furman Customer Service Department, available 8AM-4PM Pacific Time at [phone] or via email at [e-mail]. If a unit requires service, it must have an RA number assigned from Furman's Customer Service Department. Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please enclose a brief note giving your name, address, phone number and a description of the problem. Please display your RA number prominently on the front of all packages.

1 YEAR LIMITED WARRANTY

SAVE YOUR SALES RECEIPT! The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims.

Furman, a brand of Nortek Security & Control, warrants its SS-6B-PRO (the "Product") as follows: Furman warrants to the original purchaser of the product that the product sold hereunder will be free from defects in material and workmanship for a period of one year from the date of purchase. If the product does not conform to this Limited Warranty during the warranty period (as herein above specified), purchaser shall notify Furman of the claimed defects by calling 707-763-1010 or via email ([e-mail]). If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize purchaser to return the product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice or receipt showing the purchase date. Shipping charges to Furman headquarters must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman's option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman.

THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Furman does not warrant against damages or defects arising out of improper use or abnormal handling of the product, or against defects or damages arising from improper installation. This warranty shall be cancelable by Furman at its sole discretion if the product is modified in any way without written authorization from Furman. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman.

THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective product in the manner and for the period provided above. Furman shall not have any other obligation with respect to the products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. This Limited Warranty states the entire obligation of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.

SÉCURITÉ DE SS-6B-PRO ET INFORMATION DE GARANTIE (FRANÇAISE)

SS-6B-PROFEATURES
