Brand	Oregon Scientific
Model	WS911
Product type	2-in-1 massager (Shiatsu + vibration)
Shiatsu massager dimensions	620 x 350 x 155 mm
Vibration massager dimensions	720 x 450 x 130 mm
Shiatsu massager weight	1365 g
Vibration massager weight	625 g
Power supply	12 V DC adapter, input 100-240 V / 50-60 Hz
Main functions	Shiatsu massage (circular kneading), vibration massage, soothing heat function
Intensity adjustment	By pulling on straps (Shiatsu)
Automatic shut-off	After 15 minutes of use
Overheat protection	Built-in protection circuit
Recommended use	Up to 15 minutes per session, 1 to 2 times per day
Massage areas	Neck, shoulders, lower back
Care and cleaning	Unplug and let cool; clean with a soft, slightly damp cloth; do not immerse
Important safety instructions	Do not use on damaged skin, in the presence of children, or if you have a pacemaker; consult a doctor if in doubt
Spare parts and repairability	No user-serviceable parts; do not attempt to repair yourself
Compliance	European Directive 2004/108/EC
Package contents	Shiatsu massager, vibration massager, power adapter, velcro straps, user manual

Frequently Asked Questions - WS911 OREGON SCIENTIFIC

What types of massage does the WS911 offer?

The WS911 offers two types of massage: a Shiatsu massage (deep circular kneading) and a vibration massage. Each can be used alone or combined, and the soothing heat function can be activated separately.

How to assemble the two massagers for combined use?

Attach the velcro straps located on one side of each massager. Plug the vibration massager into the power outlet, then connect the two devices via their connection port. Place the Shiatsu massager around the neck and the vibration massager around the waist, then fasten the other side of the straps.

What is the maximum recommended usage time?

It is recommended not to use the device for more than 15 minutes per session. Wait at least 15 minutes before a new session to avoid overheating.

How to adjust the intensity of the Shiatsu massage?

The intensity of the Shiatsu massage is adjusted by pulling or releasing the straps on the device. You can also place a towel between the device and the skin for a softer massage.

Can I use only one massager without the other?

Yes, you can use only the Shiatsu massager or the vibration massager. Disconnect the connecting cables and plug the desired device directly into the power adapter.

Does the device turn off automatically?

Yes, the WS911 is equipped with an automatic shut-off after 15 minutes of operation. This prevents excessive use and overheating.

What to do if the device overheats?

If the device overheats, it will turn off automatically thanks to its protection circuit. Unplug it and let it cool down completely before using it again.

How to clean the massager?

Unplug the device and wait for it to cool down. Clean it with a soft, slightly damp cloth. Never immerse it in water and do not use abrasive products.

Are there any medical contraindications?

Yes, consult a doctor before use if you are pregnant, have a pacemaker, suffer from diabetes, phlebitis, thrombosis, or a skin condition. Do not use the device on open wounds or inflamed areas.

Is the device suitable for children?

No, this device is not designed for children. Keep it out of reach of children and never leave the device plugged in unattended in their presence.

USER MANUAL WS911 OREGON SCIENTIFIC

All-Purpose Massager

Model: WS911

USER MANUAL

All-Purpose Massager

Model: WS911

USER MANUAL

CONTENTS

Introduction 1

Important Safety Instructions 1

Precautions 1

Overview

Front Views 2

Control Panels 2

Features 2

Getting Started

Unit Connections 2

Using the Massagers 3

Maintenance

Storing 4

Cleaning 4

Recommended Massage Time 4

Specifications 4

About Oregon Scientific 4

EU-Declaration Of Conformity 4

INTRODUCTION

Thank you very much for purchasing "WS911 All-Purpose Massager". This instruction manual contains useful information on appropriate use and maintenance of this product. In order to benefit from its features, read this manual before first use and save it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING AN ELECTRICAL PRODUCT, ESPECIALLY WHEN CHILDREN ARE PRESENT, ALWAYS FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING INSTRUCTIONS:

Read all instructions before using these appliances.

DANGER To reduce the risk of electric shock:

• Unplug the unit from the electrical outlet immediately after using and before cleaning.
- If the unit has been dropped into water, do not pick up or touch it. Switch off at the mains and unplug immediately. Do not operate if it is wet.
- Do not use while bathing or in shower. Keep the unit always dry. Store the unit in a dry and safe place. Keep away from risks of dropping into a sink or a tub.
• Do not submerge in water.

WARNING

• Do not insert pins or other metallic fasteners into the unit.
• Keep dry – Do not operate in a wet or moist condition. Do not sit or stand on the massage unit (the back part of the appliance).
  • To reduce the risk of burns, fire, electric shock, or injury to persons:

- Keep out of reach of children.

- Do not leave a plugged unit unattended. Unplug from outlet when not in use and before putting on or taking off parts.

• These units are not intended for use by persons with certain disabilities or lack of knowledge.

- Do not use if you have poor blood circulation. If in doubt, consult with your doctor.

- Do not cover or use the unit under a blanket when operating. Covering it during usage may excessively heat the unit which can cause fire, electrocution or injury to persons.

- Stop using the unit when you are feeling drowsy. Do not use when you are sleeping.

- Stop using the unit if it is damaged, wet, tempered, forced or not functioning properly. If in doubt, contact our Helpline.

- Keep the power cord away from heat source.

- Do not lift this unit by pulling power cord or use cord as handle.

- Do not drop or insert any object into any opening.

- Do not operate where aerosol (spray) units are being used or where oxygen is being administered.

- Before unplugging, turn the unit off by pressing the on / off button on the remote control.

- Do not put heavy objects on the unit. Avoid risk of crushing.

• This unit is intended for indoor use only.

• This unit is designed for non-professional use only.

- Use this unit only for its intended use as described in this manual. Do not use provided attachments not recommended by Oregon Scientific.

• Save the user manual for future reference.

- Do not cover or use the massager under a blanket when operating. Covering it during usage may excessively heat the product which can cause fire, electrocution or injury to persons

- Do not drop or insert any object into the unit.

- This unit is designed to use mainly on neck and lower back. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Oregon Scientific; explicitly any attachment not provided with the unit.

PRECAUTIONS

Please read all instructions carefully before operating.
- This unit is not intended for medical use or to substitute medical care. It is intended only to provide a luxurious massage.
- Individuals, who are pregnant, fitted with pacemaker, suffering from diabetes, phlebitis and / or thrombosis, or is at an increased risk of developing blood clots due to recent surgery or prolonged bed rest should consult their physician before using the unit.
• Not recommended for use by Diabetics.
- This unit should not be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
- Do not leave the unit unattended when children are present.
- This unit is not suitable for children's use. Keep out of reach of children.
- Do not cover the unit with anything when it is in operation.
- Do not obstruct with objects or thrust any part of your body in the moving massage mechanism.
- Do not use the unit for more than 15 minutes at a time. Excessive use may over heat the unit. Should this occur, stop using the unit and wait until it cools down before the next use.
- Do not use the unit directly on open wounds, swollen or inflamed areas and skin eruptions.
- Do not use this unit before going to bed. The massage has stimulating effect which may delay sleep.
• Do not use this unit in bed.
- Do not use the Spot Shiatsu with heat function on a single spot for more than 3 minutes.
- Not recommended for use on timber surfaces as the zipper may damage the wood. Take special care when using on upholstered furniture.
• Do not use in automobiles.
- If you feel ill after use or experience pain in muscles or joints for a long time, discontinue use and consult a physician. Persistent pain could be a symptom of a more serious condition.
- Do not use the unit on erupted, swollen, inflamed skin areas, when you have a skin disease, ulcer or varicose veins are present.
- Do not use this unit for more than 15 minutes at a time. Allow 15 minutes rest before next section. Extensive use could lead to the unit's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
- The unit is equipped with overheating protection circuit, if the power is cut-off, please wait until the unit is cool down.
- Do not use if you have diabetes, tuberculosis, benign or malignant tumors, phlebitis and thrombosis, or if you have poor circulation. Consult a physician before using if you have any kind of fungal infection, swelling, fracture or persistent pain.
• To avoid velcro strips to damage your clothes, avoid using delicate fabrics or knitwear when using this unit.
- If you are feeling drowsy, stop using the unit and do not leave the unit operating when you are sleeping.
- Ensure that your hands are dry when operating the controls or removing the plug.
- Do not sit or stand on the massage unit (the back part of the unit).
- Before unplugging, turn the unit off by slide the controller to OFF position.

OVERVIEW

MASSAGERS

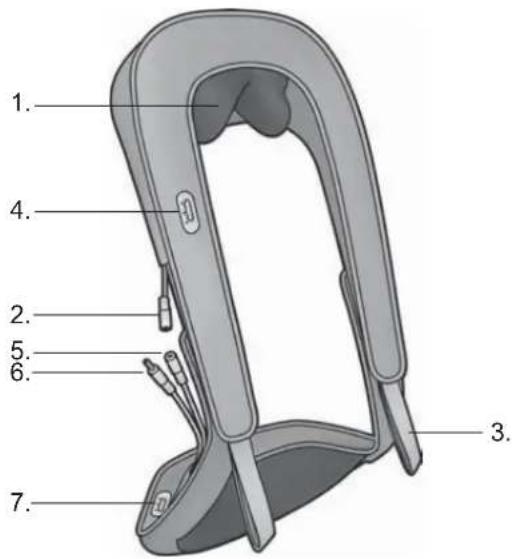

This massager comes in 2 separate units that can be attachable and detachable.

Unit 1: Shiatsu Massage unit

Unit 2: Vibration Massage unit

Shiatsu massage unit:

Shiatsu massage is a deep kneading circular massage technique.

1. Powerful Shiatsu massages nodes: Spot Shiatsu massage works on a specific point of your neck.
2. DC Jack: Socket for connecting to the power transformer.
3. Handle strap: Handle strap: Pull the straps to control the massage intensity and to stop the unit to slip off.
4. Shiatsu control panel: Control and display massage program.

Vibration massage unit:

For the joy of invigorating vibration massage.

1. DC Jack: Socket for connecting to power transformer.
2. Connection jack: Socket for connecting to Shiatsu massages unit.
3. Vibration control panel: Control and display massage programs.

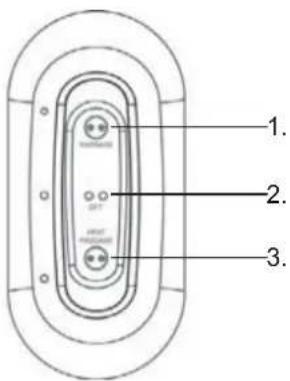

CONTROL PANELS

Slide switch for Shiatsu Massage Unit + Heat

1. Shiatsu massage indicator (Green)
2. Shiatsu unit power indicator (Red)
3. Soothing heat Shiatsu indicator (Green)

Slide switch for Vibration Massage Unit + Heat

1. Vibration massage indicator (Green)
2. Vibration massage power indicator (Red)
3. Soothing heat Vibration indicator (Green)

FEATURES

• All-in-1 massage experience:

1. Heat and Shiatsu
2. Heat and Vibration
3. Shiatsu
4. Vibration

• Brand new kneading Shiatsu massage

• Soothing heat selection

• Individual easy control slide with light indicator

- Extendable and detachable design to fit for most body shape and height

• External handle to hold the unit easily and increase the intensity of massaging

GETTING STARTED

The All-Purpose Massager with Heat offers flexible and versatile massage. For a customised massage experience, you can use the 2 units provided either separately or together by attaching their velcro strips.

UNIT CONNECTIONS

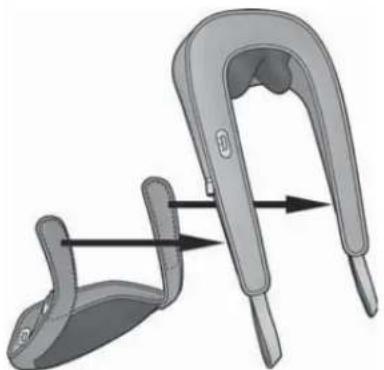

Attaching the units

To get the best out of a neck and lower back massage, we recommend that you use the units together.

1. Attach the velcro strips as shown in the diagram.

Diagram of a mechanical clamp or bracket with directional arrows indicating movement (no text or symbols)

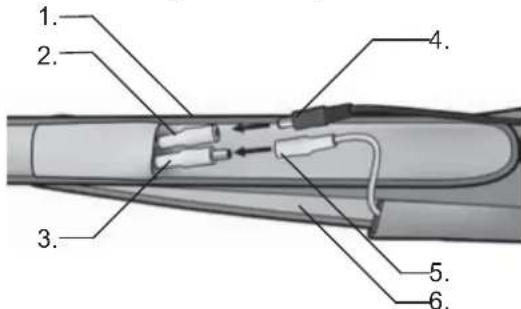

1. Connect the Vibration massager unit (main unit) to power with the power cable. Connect the Vibration massager connection jack to Shiatsu massager's AC/DC jack.

1. Vibration massager
2. Vibration massager's AC/DC jack
3. Vibration massager's connection jack
4. Power cable
5. Shiatsu massager's AC/DC jack
6. Shiatsu massager

To use the Shiatsu Massage unit and the Vibration Massage unit separately, please follow the below instructions:

For using Shiatsu massage unit:

Connect the AC/DC jack of the Shiatsu Massage unit to the power cable.

3D rendered image of a U-shaped mechanical component with a black tool inserted (no text or symbols visible)

For using Vibration massage unit:

Connect the AC/DC jack of the Vibration Massage unit to the power cable.

Illustration of a gray ergonomic device with attached cable (no text or symbols)

USING THE MASSAGERS

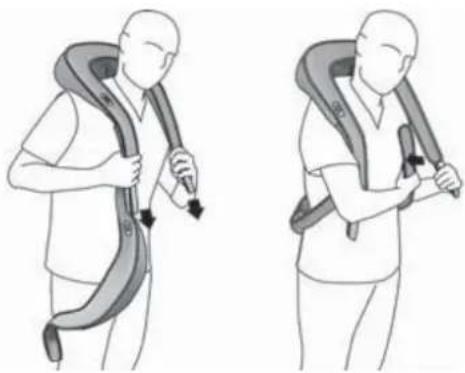

Two in one massager:

Firstly attach the velcro strips of the one side of the units together. Secondly, place the Shiatsu Massage unit around your neck. Afterwards, place the Vibration Massage unit around your lower back and then attach the other side of the two units together by using the velcro strips again as illustrated below.

Illustration of a person carrying a shoulder bag, shown in two sequential poses (no text or symbols)

• To activate the Shiatsu / Shiatsu with Heat massage program, slide the controller on the neck massager upward or downward.
• To activate the vibration / vibration with Heat massage program, slide the controller on the back massager upward or downward.
• To turn off both massagers, slide the controller to the middle notch respectively.

To use the Shiatsu massager alone:

Remove the Vibration massager and disconnect all the cables from the unit. Attach power cable as described in UNIT CONNECTIONS. Place the massager around your neck or shoulder. Pull straps to secure in place.

Illustration of a person wearing a backpack with directional arrows indicating movement (no text or symbols)

NOTE To adjust the intensity of the Shiatsu massage, pull or release the straps as appropriate. If you prefer, a lighter massage, you can always use a towel in between the unit and your skin.

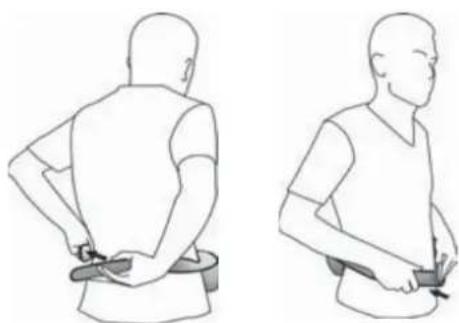

To use the Vibration massager alone:

Remove the Shiatsu massager and disconnect all the cables from the unit. Attach power cable as described in UNIT CONNECTIONS. Fasten the belts around your body by the Velcro strips and adjust the massager in place.

Line drawing of a person performing a backbathing exercise with a belt (no text or symbols)

NOTE

For your maximum safety and comfort, both of the massage units are equipped with overheating protection circuit. After 15 minutes of usage, the units switch off automatically.

Excessive use may over heat the units. Should this occur, stop using the appliance and wait until the units cool down before the next use.

MAINTENANCE

STORING

• Place the massagers in a secure and dry place, away from excessive heat or sharp objects.
• Do not handle the massagers by any of the electrical cord and do not wrap the cords around the units.

CLEANING

Unplug the unit and allow it to cool down before cleaning. Spot clean only with a soft, slightly damp cloth. Never allow water or any other liquids to come into contact with the unit.

• Do not immerse in any liquid.
- Never use abrasive cleaners, brushes, gasoline, kerosene, glass / furniture polish or paint thinner to clean.
- Do not attempt to repair the All-Purpose Massager. There are no user serviceable parts.

RECOMMENDED MASSAGING TIME

Generally, a massage should last no longer than 15 minutes. Use the massagers once or twice daily as needed.

As metabolism varies among individuals, so does their response to massage. You will soon adjust the time to suit your particular needs and personal comfort. If you have any doubts regarding the massage treatment, we recommend you consult your physician.

SPECIFICATIONS

TYPE	DESCRIPTION

SHIATSU MASSAGE UNIT

L x W x H	620 x 350 x 155mm(24.4 x 13.8 x 6.1 in)
Weight	1365g (48.14 oz)

VIBRATION MASSAGE UNIT

L x W x H	720 x 450 x 130mm(28.3 x 17.7 x 5.1 in)
Weight	625g (22 oz)
Power	12V DC power adaptor:INPUT 100-240V 50/60Hz

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com to learn more about Oregon Scientific products. If you're in the US and would like to contact our Customer Care department directly, please visit: www2.oregonscientific.com/service/support OR

Call 1-800-853-8883.

For international inquiries, please visit:

www2.oregonscientific.com/about/international

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that this All-Purpose Massager (model: WS911) is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

www2.oregonscientific.com/about/international

Diagram of a medical device with a curved handle and internal structure, showing directional arrows (no text or symbols)

Illustration of a U-shaped medical or surgical device with attached bandages and a clip (no text or symbols)

Illustration of a gray headband device with attached wires (no text or symbols)

USO DEI MASSAGGIATORI

Illustration of a person carrying a shoulder strap, shown in two sequential poses (no text or symbols)

Illustration of a person carrying a shoulder bag, showing posture with arrows indicating movement (no text or symbols)

Two line drawings of a person viewed from behind, showing back and forward views (no text or symbols)

www2.oregonscientific.com/about/international.asp.

Diagram of a mechanical device with a curved handle and internal components, showing directional arrows (no text or symbols)

Illustration of a U-shaped mechanical device with attached wires (no text or symbols)

Illustration of a gray headband device with attached wires (no text or symbols)

Illustration of a person carrying a shoulder bag, shown in two sequential poses (no text or symbols)

Illustration of a person carrying a shoulder bag with directional arrows indicating movement (no text or symbols)

Line drawing of a person viewed from behind, showing back and forward views with bandages (no text or symbols)

EUROPE - DÉCLARATION DE CONFORMITÉ

Diagram of a medical device with a curved handle and attached seat, showing directional arrows (no text or symbols)

Illustration of a U-shaped medical or surgical device with attached tubing (no text or symbols)

Illustration of a gray headband with attached wires (no text or symbols)

Illustration of two men carrying a shoulder bag, showing posture changes (no text or symbols)

Illustration of a person wearing a high back with downward arrows indicating motion or pressure (no text or symbols)

Two line drawings of a person wearing a belt, viewed from behind (no text or symbols)

Diagram of a medical device with a curved handle and attached grip, showing directional movement (no text or symbols)

Illustration of a U-shaped medical or surgical device with attached bandages and a small connector (no text or symbols)

Illustration of a gray headband with attached wires (no text or symbols)

CÓMO USAR LOS MASAJEADORES

Illustration of two men carrying a shoulder bag, showing different postures of lifting or lifting motion (no text or symbols)

Illustration of a person carrying a shoulder bag, showing posture with arrows indicating movement (no text or symbols)

Two line drawings of a person wearing a belt, viewed from behind (no text or symbols)

Diagram of a medical device with a curved handle and internal components, showing directional arrows (no text or symbols)

Illustration of a U-shaped medical or surgical device with attached bandages and a black clip (no text or symbols)

Illustration of a gray headband device with attached cable (no text or symbols)

Illustration of two men carrying a shoulder bag, showing posture changes (no text or symbols)

Illustration of a person wearing a shoulder strap and holding a bag, with no visible text or symbols

Two line drawings of a person viewed from the back, showing different postures of posture (no text or symbols present)

Diagram of a medical device with a curved handle and internal structure, showing directional arrows (no text or symbols)

Illustration of a U-shaped medical device with attached bandages and a black clip (no text or symbols)

Illustration of a gray headband device with attached wires (no text or symbols)

HET GEBRUIK VAN DE MASSEURS

Illustration of a person carrying a medical or surgical device with arrows indicating motion (no text or symbols)

Line drawing of a person carrying a backpack (no text or symbols)

Illustration of a person carrying a shoulder bag, showing posture with arrows indicating movement (no text or symbols)

Line drawing of a person viewed from behind, holding a tool near their back (no text or symbols)

Line drawing of a bald person holding a small object, viewed from the side (no text or symbols)

Illustration of a mechanical device with a handle and lever mechanism (no text or symbols)

Illustration of a U-shaped medical or surgical device with attached bandages and a central connector (no text or symbols)

Illustration of a gray ergonomic device with a black cable and connector (no text or symbols)

ANVÄNDA MASSAGEENHETERNA

Två-i-en-massage:

Illustration of a person carrying a shoulder bag, shown in two sequential poses (no text or symbols)

Illustration of a person wearing a shoulder strap and holding a bag, with arrows indicating movement or pressure (no text or symbols)

Line drawings of a person performing back-to-back exercise with bandages (no text or symbols)

Diagram of a medical device with a curved handle and attached seat, showing directional arrows (no text or symbols)

Illustration of a U-shaped mechanical device with attached wires (no text or symbols)

欲使用震動按摩機體：

Illustration of a gray headband device with attached cable (no text or symbols)

使用按摩器

二合一按摩器：

Illustration of two individuals carrying a shoulder bag, showing posture changes (no text or symbols)

Illustration of a person wearing a backpack with directional arrows indicating movement (no text or symbols)

Line drawing of two human figures viewed from behind, showing back angles and torso positioning (no text or symbols)

Diagram of a medical device with a curved handle and attached grip, showing directional arrows (no text or symbols)

Illustration of a U-shaped mechanical device with attached wires (no text or symbols)

欲使用震动按摩机体：

Illustration of a gray ergonomic headband with attached cable (no text or symbols)

使用按摩器

二合一按摩器：

Illustration of two men carrying a shoulder bag, showing posture changes (no text or symbols)

Illustration of a person wearing a backpack with directional arrows indicating movement (no text or symbols)

Line drawing of a person viewed from behind, showing back and forward views with bandages (no text or symbols)
