Product Type	Countertop Microwave Oven
Brand	Hoover
Model	HMC 2592 DBK
Capacity	25 Liters
Dimensions (W x H x D)	455 x 262 x 345 mm
Net Weight	11.5 kg
Power Source	230 V / 50 Hz
Microwave Power	900 W
Grill Power	1000 W
Convection Power	Not Available
Functions	Microwave, Grill, Defrost, Auto Cook
Control Type	Touch & Rotary
Display	LED Digital
Door Opening	Left Hinge, Push Button
Interior Light	Yes
Turntable	Yes, 315 mm
Child Lock	Yes
Auto Shut-off	Yes
Cleaning	Wipe with damp cloth, mild detergent
Spare Parts Availability	Contact Hoover Customer Service
Warranty	2 Years (subject to terms)

Frequently Asked Questions - HMC 2592 DBK HOOVER

How do I set the clock on my Hoover HMC 2592 DBK?

Press the Clock button, then use the rotary dial to set the hour and minute. Confirm with Clock again.

How do I defrost food using the microwave?

Select the Defrost function, enter the weight of the food, and press Start. The microwave will automatically set the time.

What should I do if the microwave does not start?

Check that the door is fully closed, the power cord is plugged in, and the child lock is not activated. If the issue persists, contact support.

How to clean the interior of the microwave?

Wipe with a damp cloth and mild detergent. Do not use abrasive cleaners. For tough stains, heat a bowl of water with lemon juice for 2 minutes, then wipe.

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the appliance. Use microwave-safe glass, ceramic, or plastic containers.

How to activate the child lock?

Press and hold the Stop/Clear button for 3 seconds. The display will show a lock icon. Repeat to deactivate.

What does the error code 'E-01' mean?

E-01 indicates a communication error between the control board and display. Try unplugging the unit for 30 seconds and plugging it back in. If persistent, call service.

How to use the grill function?

Place food on the metal rack (if provided) and select Grill. Set the timer and press Start. Turn food halfway for even browning.

Why does the turntable not rotate?

Ensure the turntable glass plate and roller ring are correctly positioned. If still not working, check for obstructions or contact service.

Where can I download the full user manual?

You can download the manual for free from notice-facile.com or the official Hoover website.

USER MANUAL HMC 2592 DBK HOOVER

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	HMC2592DBK
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input (Grill):	1100W
Rated Input (Convection):	2500W
Oven Capacity:	25L
Turntable Diameter:	315mm
External Dimensions:	513X470X305mm
Net Weight:	Approx.17.9kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

Line drawing of a plug with two leads (no text or symbols)

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

GB

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

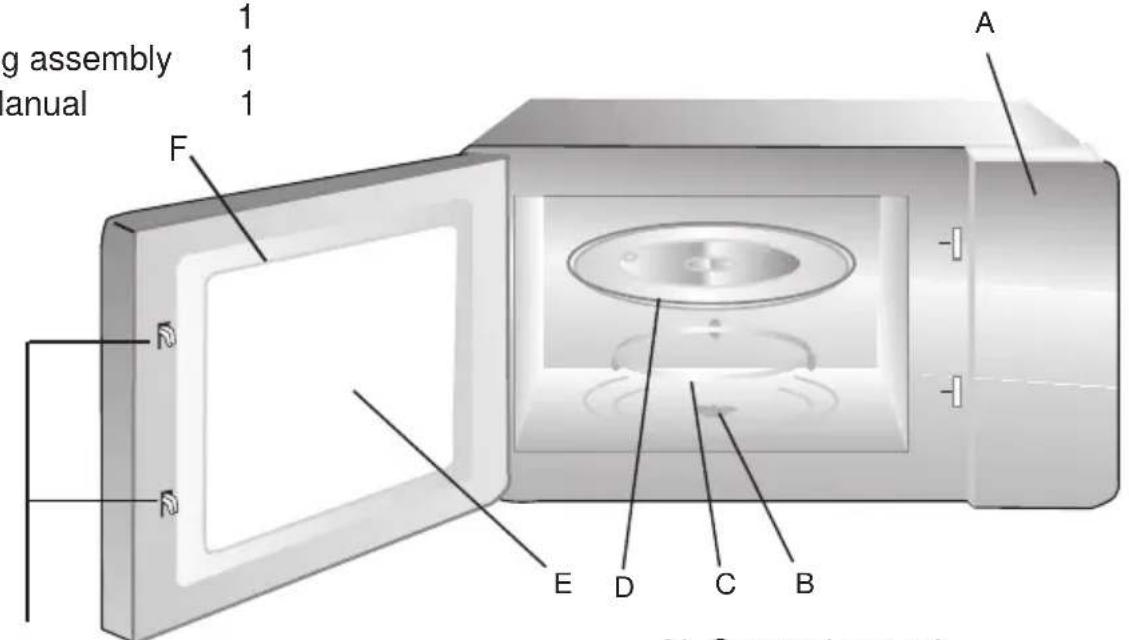

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

G

Simple line drawing of a horizontal oval structure with vertical supports and a central vertical bar (no text or symbols)

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shut off oven power if the door is opened during operation.

GB

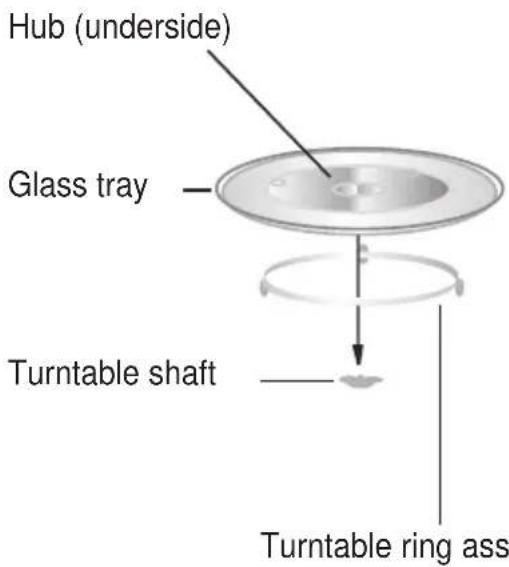

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

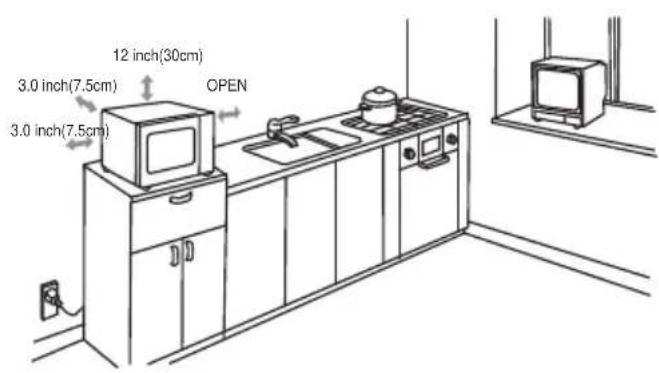

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. The input time should be within 0:00--23:59(24 Hour); 1:00--12:59(12 Hour).

Example: To set 12:12.

(1) Press " once to select 24 hours system and twice for 12 hours system, at the same time, "24H" or "12H" will display.
(2) Press the number buttons of "1", "2", "1", "2" in order.
(3) Press " ☉ to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " " the oven will go back to the previous status automatically.

2. Microwave Cooking

Select different microwave power level and set cooking time as you wish. There are five power levels available for choosing. Keep on pressing "to choose the power.

Example: If you want to use 80% microwave power to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " once, the oven will display "P100", " indicator will light.
2) Press "once again to choose 80% power, the oven will display "P80".
3) Press the number buttons of "1", "0", "0", "0" in order, the oven will display "10:00"
4) Press " "to start cooking, ":" will light and the " indicator will flash.

Note: " Pad presses instructions

Presses Instructions	Display	Microwave Power
1	P100	100%
2	P 80	80%
3	P 50	50%
4	P 30	30%
5	P 10	10%

3. Grill Cooking

Example: If you want to use 100% to cooking for 35 minutes, you can operate the oven as the following steps.

1) Press the "key, the oven will display "G-1".
2) Press the number buttons of "3", "5", "0", "0" in order, the oven will display "35:00"
3) Press the " " key to start cooking.

Note: If half the grill time passes, the oven will sound twice to tell you to turn the food over. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" " to cooking.

4. Convection Cooking(With preheating function)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the " *key once, the oven will display "150".
At the same time, "°C", "※" will light. (Press the " ✕" key several times to select the temperature.)

2) Press the " "key to start cooking. The temperature figure will flash when reach to the temperature in advance and buzzer will ring twice to remind you to put the food into the oven.

3) Press the number buttons to select the cooking time.

4) Press the " "key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

5. Convection Cooking(Without preheating function)

1) Press the "key once, the oven will display "150".
At the same time, "°C", "※" will light. (Press the "×" key several times to select the temperature.)
2) Press the number buttons to select the cooking time.
3) Press the " " key to start cooking.

Note: " Pad presses instructions

Presses Instructions	Display	Convection
1	150^
2	160^

GB

3	170°C	●
4	180°C	●
5	190°C	●
6	200°C	●
7	210°C	●
8	220°C	●
9	230°C	●
10	240°C	●

6. Combination Cooking

Example: If you want to use combination to cook (C-1) for 40 minutes, you can operate the oven as per the following steps.

1) Press the "key once, the oven will display "C-1".

At the same time, " ✉" and " ⏱ " will light.

2) Press the number buttons of "4", "0", "0", "0" in order, the oven will display "40:00".

3) Press the " 🔊 " key to start cooking. The " 🔊",

" * " will flash, ":" will light.

Note: "Pad presses instructions

Presses Instructions	Display	Microwave Power	Grill Power	Convection Power
1	C-1
2	C-2
3	C-3
4	C-4

7. Delay Start

Example: To start a cooking at 12:12.

(1) First, set the clock, then set the cooking program you want. At most 3 sections can be set. Defrost program cannot set here.

GB

Example: If you want to use 80% microwave power to cook for 15 minutes, you can operate the oven as the following steps.

a. Press " twice to choose 80% power.
b. Press "1", "5", "0", "0" to choose 15 minutes.
c. Be careful! Please do not press " " to start cooking.

(2) Press " to display 0:00.

(3) Press "1", "2", "1", "2" in order.

(4) Press " " to confirm the setting. The unit will turn back to the clock state.

(5) Cooks begin when the time arrives, ":" will light.

Note: clock must be set first. Otherwise, this function will not work.

8. Reheat

1) Press " "pad, the "h-1" will display in oven and flash." "and " AUTO " indicators will light(Press the " "pad several times to select the the cooking program you wanted.)
2) Press " " key to confirm, the "h-1" will display.
3) Press " " pad, the oven will display "150"." and " " and "g" indicators will light. (Press the " pad several times to select the the weight of the cooking food.)
4) Press " " key to start cooking.

Reheat Chart

Menu	Weight(g)	Display
h-1(Auto Reheat)	150	150
	250	250
	350	350
	450	450
	600	600
h-2(Dinner Plate)	250	250
	350	350
	450	450
h-3(Coffee)	1(approximately 240g)	1
	2(approximately 480g)	2
	3(approximately 720g)	3
h-4(Roll)	1(approximately 70g)	1
	2(approximately 140g)	2
	3(approximately 210g)	3

9. Defrost By time

1) Press " " once, the oven will display "d-1".
2) Input the figure of the time of cooking. " 🔊", " **" indicators will light. (the maximum cooking time is 99 minutes and 99 seconds.)
3) Press " " key to start defrosting. " " and " * * indicators will flash.

10. Defrost By weight

1) Press " " pad twice, the oven will display "d-2".
2) Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)
3) Press " " key to start defrosting. " " and " * * indicators will flash and "g" indicator will go out.

11. Defrost Groud meat

1) Press " " pad thrice, the oven will display "d-3".
2) Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)
3) Press " " key to start defrosting. " " and. " * * indicators will flash.

12. Defrost Sea food

1) Press " ☐" pad 4 times, the oven will display "d-4".
2) Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)
3) Press " " key to start defrosting. " " and. " * * indicators will flash.

13. Auto Menu Cooking

The numeral pads 0—9 are matching with ten different subjects respectively;

Pad	Cook	Pad	Cook Pad	Cook		Pad	Cook
1	VEGETABLE	4	PASTA	7	ROAST CHICKEN	0	PIZZA
2	FISH	5	POTATO	BREAD8
3	MEAT	6	SOUP	9	CAKE

Example: Cooking vegetable of 350g:

(1) Press "button," "and" "will light.
(2) Press "button again to choose weight, oven will display "350", "g", " " and "AUTO" will light.
(3) Press " " to start cooking, "g" will go out, time counts down, " 🔍 " and "AUTO " will flash.

Auto menu Chart

Menu	Weight(g)	Press Times	Power
Vegetable	150	Once	100% microwave
	350	Twice
	500	Thrice
Fish	150	Once	80% microwave
	250	Twice
	350	Thrice
	450	4 times
	650	5 times
Meat	150	Once	100% microwave
	300	Twice
	450	Thrice
	600	4 times
Pasta	50(with cold water 450g)	Once	80% microwave
	100(with cold water 800g)	Twice
	150(with cold water 1200g)	Thrice
Potato	1(approximately 230g)	Once	100% microwave
	2(approximately 460g)	Twice
	3(approximately 690g)	Thrice
Soup	200ml	Once	100% microwave
	400ml	Twice
	600ml	Thrice
Roast Chicken	500	Once	C-4 (microwave+grill +convection)
	750	Twice
	1000	Thrice
	1200	4 times
Bread	50	Once	C-3 (grill+convection)
	100	Twice
	150	Thrice
Cake	475	Once	Preheat at 180 degrees
Pizza	200	Once	C-4 (microwave+grill +convection)
	300	Twice
	400	Thrice

Note: Cake menu is under convection cooking with 180^ C-warm-up function.

14. MEMORY

1) Press "Key several times to set "memory 1" to "memory 3" program, and the oven will display "1", to "3".
2) Set one or two stages program you want. Example:a) Press "once to choose 100% microwave power; b) Press number keys "1","0","0","0" in order to adjust the cooking time;
3) Press " "key to save the memory program setted, or press " " to start cooking and save the program automatically.
4) Next time when you want to cook with the memory program which has been set, you just only need to press "key to choose the program wanted and then press" "to start cooking.

15.Multi-Stage Cooking

Three stages of cooking can be maximally set. If one of the stages is defrosting, it should be put in the first stage, and auto cooking should not be set here. The buzzer will ring once after each stage and the next stage will begin, and auto cooking should not be set here.

Example: If you want to cook the food with 100% microwave power for 10 minutes+ 80% microwave power for 15 minutes. Do it as following:

1) Press " once to choose 100% microwave power;
2) Press number keys "1", "0", "0", "0" in order to adjust the cooking time;
3) Press " twice to choose 80% microwave power;
4) Press number keys "1", "5", "0", "0" in order to adjust the cooking time;
5) Press " " to start cooking.

16. Speedy Cooking

When the oven is in the waiting states, Press " " key to start cooking with full microwave power for 30 seconds.(the maximum setting is 99 minutes and 99 senonds) When the oven is in themicrowave, grill ,convection and combination cooking states, Press " " key to add 30 seconds cooking time.(in the Defrosting, Multi-stage cooking or Auto Menu state is invalidation)

17. Inquiring Function

(1) In cooking state, press " [×], or [=], and the current power will be displayed for 2\~3 seconds.
(2) In cooking state, press " ✅ " to inquire the time for cooking. The cooking time will flash for 2-3 seconds.
(3) In pre-set state, press " " to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds.

GB

18. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long "beep"

denoting entering into the children-lock state and a key " " will lighted. The oven will display "0:00" or current time.

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep"

denoting that the lock is released and " will go out.

19. Display Specification

(1) In waiting state, the oven will display clock and " : " will flash.
(2) In function setting state, the oven will display the related setting.
(3) In the operation and suspending state, the oven will display the residual cooking time.

Maintenance
Troubleshooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

Forno a microonde

Line drawing of a single electrical outlet plug (no text or symbols)

Simple line drawing of a horizontal oval structure with vertical supports and a central vertical bar (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a plug with two leads and a terminal socket (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
