Product Type	Built-in Microwave Oven
Brand	Hoover
Model	HMC440TVX-80
Housing Color	Stainless Steel
Dimensions (H x W x D)	390 x 595 x 400 mm
Oven Capacity	44 Liters
Net Weight	25 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	1450 W
Microwave Power	900 W
Grill Power	1000 W
Convection Power	1200 W
Control Type	Touch Control with Digital Display
Functions	Microwave, Grill, Convection, Combination, Defrost, Auto Cook Menus
Safety Features	Child Lock, Automatic Shut-off, Overheat Protection
Turntable	Yes, 315 mm diameter
Cleaning & Maintenance	Easy-clean enamel interior; wipe with damp cloth
Spare Parts & Reparability	Original Hoover spare parts available; service network

Frequently Asked Questions - HMC440TVX-80 HOOVER

How do I set the clock on my Hoover HMC440TVX-80?

Press the CLOCK button, then use the number pad to enter the current time. Press CLOCK again to confirm.

Can I use metal utensils in the microwave?

No, metal can cause sparks and damage the oven. Use only microwave-safe containers.

What is the maximum cooking time for microwave mode?

The maximum cooking time is 99 minutes and 59 seconds.

How do I use the grill function?

Press the GRILL button to set grilling mode, then select the desired cooking time. Food should be placed on the metal rack for best results.

Why does the microwave stop during operation?

The oven may stop due to overheating or a door open. Check the door seal and allow the appliance to cool down before restarting.

How do I clean the interior?

Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. For stubborn stains, place a bowl of water with lemon and heat for 2 minutes.

What does the 'Auto Defrost' function do?

It automatically sets the time and power level based on the weight of the food entered. Turn the food over during defrosting for even results.

Can I cook with both microwave and grill at the same time?

Yes, you can use combination cooking. Select the COMB function and choose the desired microwave and grill power levels.

How do I set the child lock?

Press and hold the LOCK button for 3 seconds. A lock icon will appear on the display. Repeat to unlock.

What size turntable does this model use?

The turntable is 315 mm in diameter. It can be removed for cleaning.

USER MANUAL HMC440TVX-80 HOOVER

Microwave Oven INSTRUCTION MANUAL

MODEL: HMC440TVX-80

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	HMC440TVX-80
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1650W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1750W
Rated Input Power(Double grill):	2300W
Rated Input Power(Double grill+Microwave):	3350W
Rated Input Power(Convection):	1750W
Oven Capacity:	44L
Turntable Diameter:	∅ 360mm
External Dimensions:	595(W)×5(18) ×454(H)mm
Net Weight:	Approx. 3kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

GB

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

2. Do not overcook food.

3. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

4. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

5. Install or locate this oven only in accordance with the installation instructions provided.

6. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

7. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

GB

1. Do not let cord hang over edge of table or counter.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
4. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
8. Accessible parts may become hot during use.
   Young children should be kept away.
9. Steam cleaner is not to be used.
10. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
11. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

GB

31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
33. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubtexists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyoneother than a competent personto carry out any service or repairoperation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

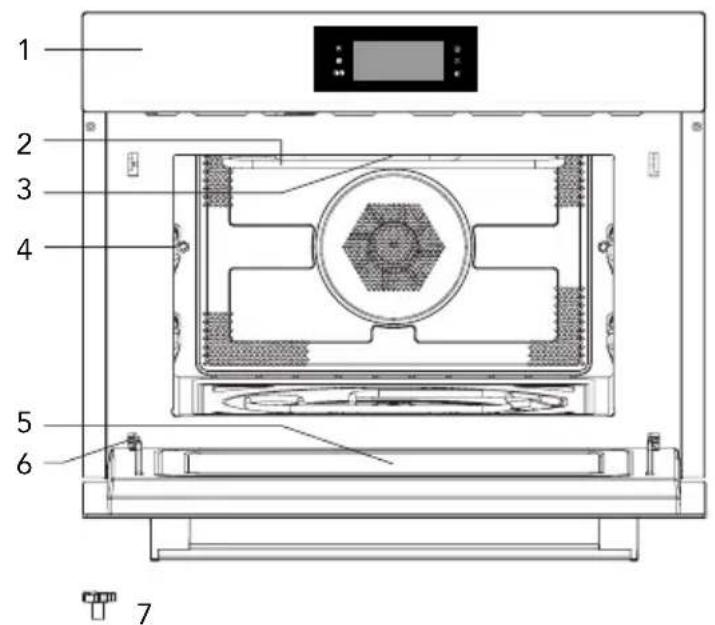

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity

Your oven comes with the following accessories:

Enamel Tray 1

Turntable ring assembly 1

Instruction Manual 1

Three different types of outdoor heating fans or grates, shown in separate views with numerical labels (8, 9, 10) on each panel.

1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge

7. Turntable shaft

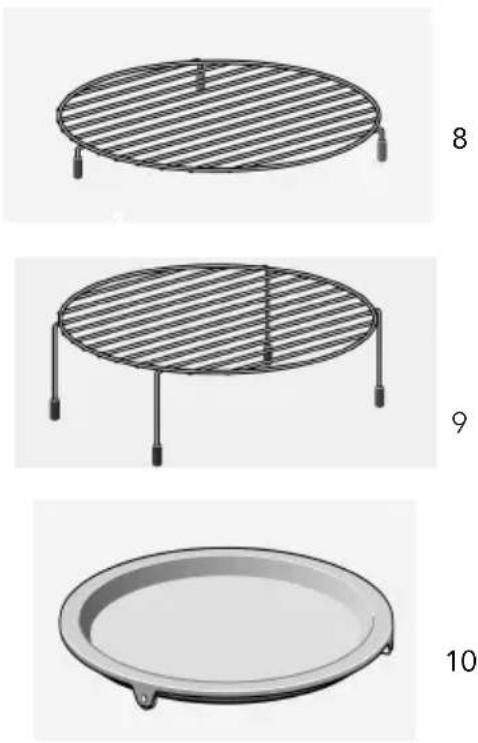

8. Short Grill Rack

9. Long Grill Rack
   10.Grill Pan

Turntable Installation

Hub (underside)

a. Never place the enamel tray upside down. The enamel tray should never be restricted.
b. The enamal tray must always be used during cooking.
c. All food and containers of food are always placed on the enamel tray for cooking.
d. If enamel tray cracks obreaks, contact your nearest authorized service center.

Important information about installing

• This appliance is NOT intended for use in a commercial environment.
• Please observe the installation instructions provided and note that this appliance should only be installed by a qualified technician.
• Adapters, multiway strips and extension cords must not be used. Overloading can result in fire.

The accessible surfacemay be hot duringoperation.

Warning symbol of rising steam inside a triangle (no text or numbers)

Placement

• Danger! Do not disassemble this appliance. Touching internal components of this appliance can cause serious personal injury or death.
• Place the microwave oven on a firm, flat surface.

Make sure that there is sufficient ventilation around the microwave oven. At the rear • and sides keep at least 10 cm free.

Do not cover the air vents.

The adjustable feet should not be removed.

Do not place the microwave oven near a heat source.

- Transmitting and receiving equipment such as radios and televisions can affect the operation of the microwave oven.

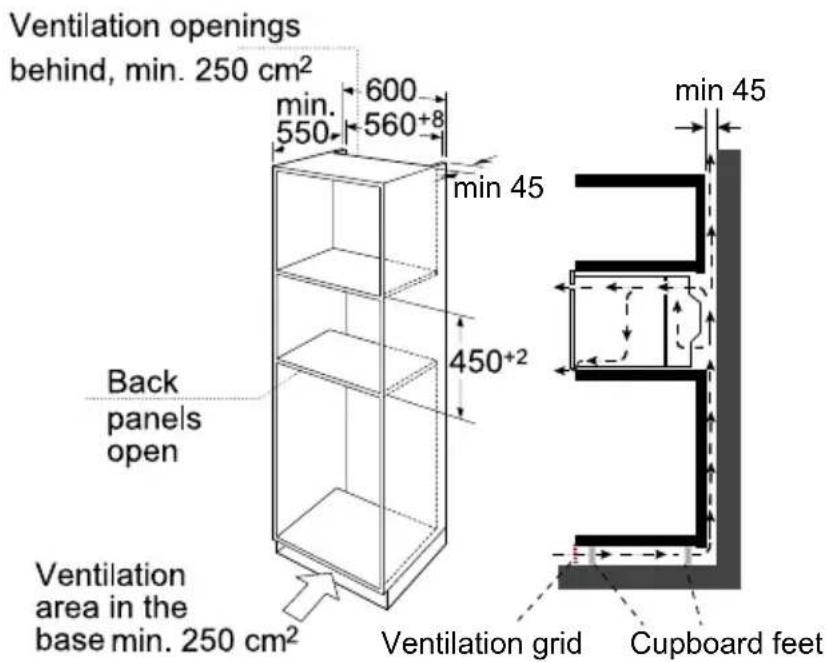

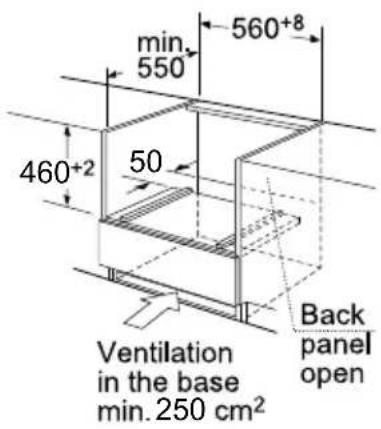

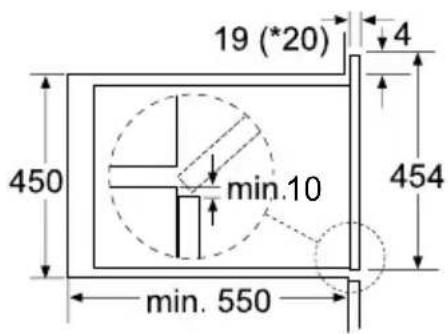

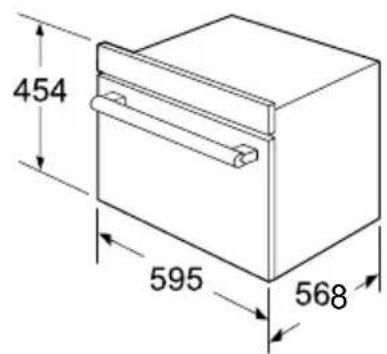

Installation dimensions

Note: There should be gap above the oven.

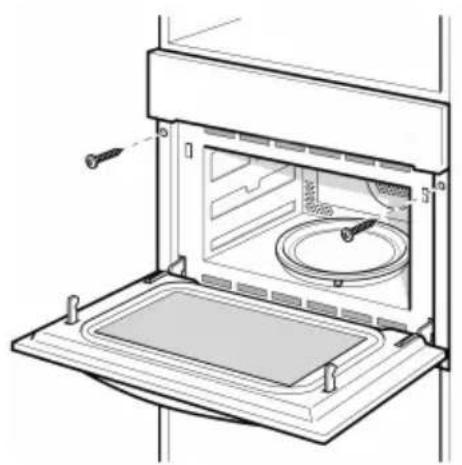

Building in

- Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.

1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the scores that were supplied.

Line drawing of an open microwave oven with a dish inside, showing internal components and a handle (no text or symbols)

* 20 mm for metal fascias

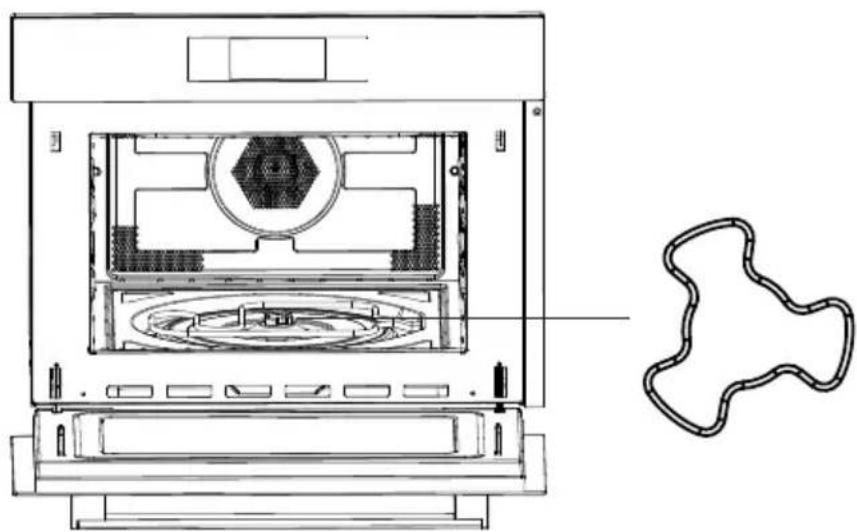

INSTALL THE TRAY

1. Check the position of the shaft.

Technical line drawing of an oven with internal components and a separate abstract outline (no text or symbols)

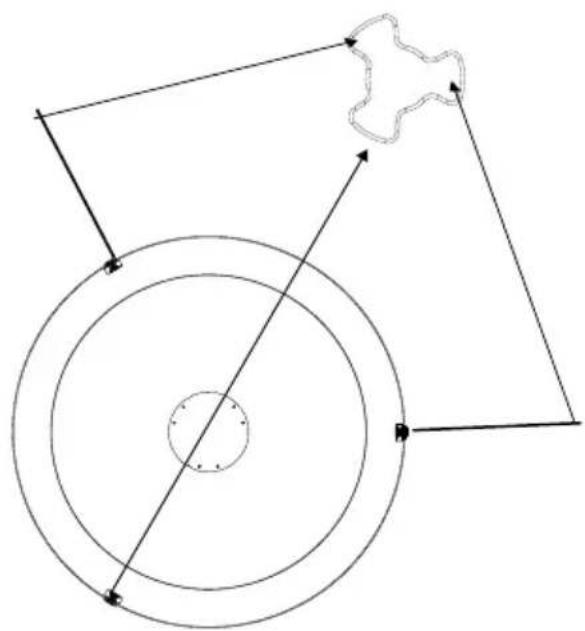

1. Adjust the angle of the tray, the tray roller should point to one of the shaft arm.

Pure geometric diagram with concentric circles and arrows, no text or symbols present

1. Put the tray on the shaft and adjust slightly .

OPERATION

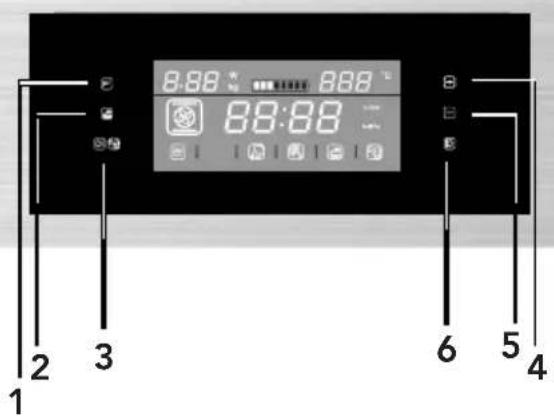

Control Panel and Features

1) Power/Weight button
2) Quickly preheating button
3) Cancel/Child lock Button
4) Adjustment button
5) Adjustment button
6) Start/Pause button

GB

You can see from the table below from which power levels you can choose and for which foods the power levels are suitable.

Power level Food
900 W - Boiling water, reheating- Cooking chicken, fish, vegetables
700 W - Reheating- Cooking mushrooms, shell fish- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting- Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods- Defrosting irregularly-shaped foods- Softening ice cream- Allowing dough to rise

Functions

Function Mode
	Microwave Microwave		Wave	Use the microwave function to cook and reheat vegetables, potatoes, rice, fish and meat.
	Heating		Hot air Hot air	With hot air you can prepare meals in the same way as you do with a conventional oven. The microwave is not activated. You are advised to preheat the oven before putting the meal in the oven.
			Grill with fan Grill with fan Use this function to roast meals evenly and at the same time give the meal a brown crust.
			Grill Grill	The grill is very suitable to prepare thin pieces of meat and sh
	Heating		Hot air+Bottom heat	Use this function to roast big pieces of meat, pizza, etc.
			Double grill	Use this function to roast big pieces of meat, pizza, etc.
	Combination		Hot air Microwave + Hot airUse this function to roast meals quickly.
			Grill with fan Microwave + Grill with fan
			Grill Microwave + GrillUse this function to cook meals quickly and at the same time give the meal a brown crust (also au gratin). The microwave and the grill are activated at the same time. The microwave is cooking and the grill is roasting.
			Hot air+Bottom heat	Use this function to roast big pieces of meat, pizza, etc.
			Double grill	Use this function to roast big pieces of meat, pizza, etc.
	Auto-programs		P01 - P13	Automatic cooking programs
	Defrost d01 + d02 Defrost

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.

1) Press " + " or " - " to set the right time(between 00:00 and 23:59.)
2) After you have set the right time, press " [▶] ". The clock has been set.

Note: When the oven is electrified, if no operation, "00:00" will display all the time. If do not press " [▶] " , it will confirm the clock setting in 3 seconds.

2. Microwave Cooking

1) Press the "F" button to activate the microwave function. "900" is blinking in the display and the microwave icon appears, "1:00" will display.
2) Press " + "or " - " button to adjust the microwave power(900,700,450,300,100), press " |> " button to confirm the microwave power and enter the cooking time setting status,the cooking time will display.
3) Press " + " or " - " button to set the cooking time. When the power is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
4) Press " [▶] " button to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Display

900W

700W

450W

300W

100W

3. Grill Cooking

1) Press the "button to activate the microwave function."900" is blinking in the display and the microwave icon appears,"1:00"will display. Press "button five times to activate the grill cooking function.

2) When " □ " display and enter grill mode, the grill power leverl 3 will flash, the default time "10:00" will display.

3) Press " + "or " - " to adjust the power(range1,2,3,the minimum is level 1, the maximum is level 3.) Press " "to confirm the power and enter cooking time setting status.

4) Press " + " or " - " to select the cooking time of grill. The MAX.time is 90 minutes.

5) Press " [ID] " button to start cooking.

4. Convection Cooking

1) Press the "Button to activate the microwave function. "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "Button twice to activate the functionvection

2) When " lights, it enters convection mode, the default temperature 180 degrees is blinking, the default time "10:00" will display.

3) Press" + "or" - " to select temperature. The temperature is from 50 to 230 degrees. The temperature are 50, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230.

Press " [icon] "to confirm the temperature and enter cooking time setting status.

4) Press " + " or " - " to adjust the cooking time. The MAX.time is 5 hours.

5) Press " [icon] " button to start cooking.

5. Grill Fan Cooking

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "F" button three times to activate the grill fan cooking function.
2) When " lights, it enters grill fan cooking mode. The default temperature 180 degrees is blinking, the default time "10:00" will display.
3) Press " + " or " - " to select the temperature between 100 to 230 degrees. The temperature are 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230.

Press " [icon] "to confirm the temperature and enter cooking time setting status.

4) Press" + "br " - " to adjust the cooking time. The MAX.time is 5 hours.
5) Press " [ID] " button to start cooking.

6. Convection+ Bottom heat Cooking

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "F" button four times to activate the convection +bottom heat function.

2) When " lights, it enters convection +bottom function. The default temperature 180 degrees is blinking, the default time "10:00" will display.
3) Press " + " or " - " to select the temperature between 100 to 230 degrees. The temperature are 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230.

Press " "to confirm the temperature and enter cooking time setting status.

4) Press " + " or " - " to adjust the cooking time. The MAX.time is 5 hours.
5) Press " [ID] " button to start cooking.

7. Double Grill Cooking

1) Press the "F" button to activate the microwave function

"900" is blinking in the display and the microwave icon appears, "1:00" will display. Press " " button six times to activate the double grill function.

2) When "☐" lights, it enters double grill function. The default time "10:00" will display.

3)Press " + "or " - " to adjust the cooking time. The MAX.time is 90 minutes.

4) Press " [icon] " button to start cooking.

1. Microwave + Grill Cooking.

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "F" button times to activate the microwave+grill function.

2) When " lights and " flashes, it enters microwave + grill mode, The default grill power "3" is blinking, the default cooking time "10:00" will display.

3) Press " + " or " - " to adjust microwave power(range 1,2,3,the minimum is 1, the maximum is level 3).Press" [▶] " to confirm the heat power and enter setting microwave power status.

4) Press " + " or " - " to adjust microwave power 700W, 450W, 300W and 100W. Press " | > " to confirm the microwave power and enter setting cooking time status.

5) Press " + " or " - " to adjust cooking time. The MAX.time is 90 minutes.

6) Press " [ID] " button to start cooking.

1. Microwave + Convection Cooking

1) Press the "F" button to activate the microwave function
"900" is blinking in the display and the microwave icon appears,"1:00" will display. Press "F" button seven times to activate the microwave + convection function.

2) When " lights and " flashes, it enters microwave + convection mode. The default temperature 180 degrees is blinking. The default time "10:00 will display

3) Press " + " or " - " to adjust the temperature between 50 to 230 degrees. The temperature are 50,100,105,110,115,120,125,130,135,140,145,150,155,160,165,170,175,180,185,190,195,200,205,210,215,220,225,230. Press " | > " to confirm the temperature and enter setting microwave power status.

4) Press " + " or " - " to adjust microwave power 700W,450W,300W and 100W. Press " [▶] " to confirm the microwave power and enter setting cooking time status.

5) Press " + " or " - " to adjust cooking time. The MAX.time is 90 minutes.

6) Press " [▶] " button to start cooking.

1. Microwave + Grill Fan Cooking

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "E" button eight times to activate the microwave+grill fan function.

2) When " lights and " flashes, it enters microwave + grill fan mode. The default temperature 180 degrees is blinking. The default time "10:00" will . display

3) Press " + " or " - " to adjust the temperature between 100 to 230 degrees. The temperature are 100,105,110,115,120,125,130,135, 140,145,150,155, 160,165,170,175,180,185,190, 195,200,205,210, 215,220,225,230. Press " |> " to confirm the temperature and enter setting microwave power status.

4) Press " + " or " - " to adjust microwave power 700W, 450W, 300W and 100W. Press " |> " to confirm the microwave power and enter setting cooking time status.
5) Press " + " or " - " to adjust cooking time. The MAX.time is 90 minutes.
6) Press " [▶] " button to start cooking.

1. Microwave + Bottom grill+ Convection Cooking

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "F" button nine times to activate the microwave+bottom grill+convection function.
2) When " lights and" flashes, it enters microwave +bottom grill mode, The default temperature 180 degrees is blinking. The default time "10:00". will display
3) Press " + " or " - " to adjust the temperature between 160230 degrees. The temperature are 00,105,110,115, 120,125,130,135, 140,145,150,155,160,165,170,175,180,185,190, 195,200,205,210, 215,220,225,230. Press " "to confirm the temperature and enter setting microwave power status.
4) Press " + "or" - " to adjust microwave power700W,450W,300W and 100W. Press " |> " to confirm the microwave power and enter setting cooking time status.
5) Press " + " or " - " to adjust cooking time. The MAX.time is 90 minutes.
6) Press " [▶] " button to start cooking.

1. Microwave + Double Grill Cooking

1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "Button eleven times to activate the microwave+double grill function.
2) When " lights and " flashes it enters microwave+double grill mode. The default time "10:00" will display. The default power 300 is blinking.
3) Press " + " or " - " to adjust microwave power 700W,450W,300W and 100W. Press " [ ] " to confirm the microwave power and enter setting cooking time status.
4) Press " + " or " - " to adjust cooking time. The MAX.time is 90 minutes.
5) Press " [▶] " button to start cooking.
13. Auto Cook
1) Press the "F" button to activate the microwave function "900" is blinking in the display and the microwave icon appears, "1:00" will display. Press "F" button thirteen times to activate the auto cook function.
2) When " lights, it enters auto cook mode. The default menu "P01" is blinking. Time, weight, the first number of the automatic programs are shown in the display.
3) Press " + " or " - " to select auto menu. "P01", "P02".... "P13" will display.
4) Press " [ID] " to confirm the auto menu and enter setting weight status.
5) Press " + " or " - " to select weight of the menu.
6) Press " 🔘 " button to start cooking.

- If auto menu is with preheating, when preheating temperature arrives, open the door and put the food inside, you should press " [ID] " to start cooking.

14. Auto Defrost

1) Press the "F" button to activate the microwave function

"900" is blinking in the display and the microwave icon appears, "1:00" will display.

Press " "button

twelsed activate the auto

dienfroctisdn.

2) When " lights, it enters auto defrost mode. The default menu "d01" is blinking. Time, weight, the first number of the automatic programs are shown in the display.
3) Press " + "or " - " to select auto defrost type."d01","d02"will display.
4) Press " [ID] " to confirm the auto defrost type and enter setting weight status.
5) Press " + " or " - " to select weight of the menu.
6) Press " [▶] " button to start cooking.

- Press " [IMAGE] " to keep defrosting after turning over the food.

Program Category	Item
d01 (defrost)** If you eat a pantry and food	Meat, pastry and food	mi microwave oven stops. Turn the food and press the start/pause button to continue the defrosting program.
d02 (defrost)** Bread	read, cake and fruit
P01** Vegetables	Fresh vegetables
P02** Side dishes	Potatoes - peeled/cooked
P03* Side dishes	Potatoes - roasted	If you hear a beep, turn the food. The combi microwave oven starts the next fase automatically.
P04	Poultry/ Fish	Chicken pieces/ Fish piecesIf you hear a beep, turn the food. The combi microwave oven starts the next fase automatically.
P05* Bakery Cake
P06* Bakery Apple pie
P07* Bakery Quiche
P08** Reheat Drink/soup
P09** Reheat Plated meal
P10** Reheat Sauce/stew/dish
P11* Convenience Frozen - pizza
P12* Convenience	Oven	Forbizen-If you hear a beep, turn the food. The combi microwave oven starts the next fase automatically
P13* Convenience Frozen - lasagne

15. Preheating Function

The prehating function can be activated after you have chosen the functions: Convection, Grill fan, bottom -convection,MW-convection,MW-Grill fan and Microwave -Bottom-convection.

1) Press " " button. The preheating icon appears in the display.
2) Press " [id] " button to start preheating. You can stop the preheating by opening the oven door or by pressing the " [id] " button.
3) When preheating temperature arrives, the buzzer will ring three times. If do not press " [ID] " to start cooking, after 2 hours, the buzzer will ring once and return to standby status.
4) When preheating temperature arrives, put the food inside and press " [→] " to cook, the preheating symbol will go out.

Note: The preheating function only works if you have already chosen one of the modes above. During preheating, the microwave function is switched off.

16. Lock-out Function for Children

Lock: In waiting state, press " 🔍 🔍 🔍 " at the same time for 3 seconds,

there will be a long "beep" denoting entering into the children-lock state and " indicator will light.

Unlock : In locked state, press " 🔍 🔒 " for 3 seconds, there will be a long "beep" denoting that the lock is released, and " 🔒 " indicator will disappear.

17. Display Specification

(1) If open the door during cooking, you should press " [ID] " to continue cooking.
(2) The oven lamp will light up all the time if the door is opened.
(3) When the cooking is stopped, the lamp will go out.
(4) When the oven is in setting state or pause state, including auto menu and defrost program, if no operation in 5 minutes, it will enter into the off state.
(5) When setting the oven, if no operation in 10 seconds, it will confirm automatically.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with two crossed lines, no text or labels present

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

CE UK CA
