Product Type	Microwave with Grill
Brand	Hoover
Model	HMCF25STB-UK
Capacity	25 Litres
Microwave Power	900 W
Grill Power	1000 W
Control Type	Digital with LED Display
Defrost Function	Yes, by weight or time
Auto Cook Programs	8 preset menus
Child Lock	Yes
Turntable	Yes, glass tray
Interior Light	Yes
Dimensions (WxDxH)	550 x 460 x 320 mm
Weight	15.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1450 W (microwave + grill)
Cavity Material	Stainless steel
Door Type	Drop-down (pull handle)
Cleaning	Wipe interior and exterior with a damp cloth
Accessories Included	Glass turntable, grill rack
Repairability Index	7.5/10 (spare parts available)
Energy Efficiency Class	A

Frequently Asked Questions - HMCF25STB-UK HOOVER

How do I set the clock on my Hoover HMCF25STB-UK microwave?

Press the Clock button, then use the numeric keypad to enter the time. Press Clock again to confirm. The clock is 24-hour format.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Only use microwave-safe glass, ceramic, or plastic containers.

How do I activate the child lock?

Press and hold the Stop button for 3 seconds. The display will show a lock icon. Repeat to unlock.

What is the maximum cooking time?

You can set up to 99 minutes and 99 seconds for microwave cooking.

How do I use the grill function?

Press the Grill button, then set the time using the numeric keypad. Use the grill rack for best results.

Why is my microwave not heating?

Check that the door is fully closed, the power cord is plugged in, and the child lock is off. If still not heating, contact Hoover support.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. For odors, heat a bowl of water with lemon juice for 2 minutes.

What are the preset auto cook programs?

Programs include popcorn, potato, pizza, beverage, dinner plate, soup, rice, and pasta. Select by pressing Auto Cook and choosing the number.

Can I place the microwave on any surface?

Place on a flat, stable, heat-resistant surface. Ensure at least 10 cm clearance on all sides for ventilation.

Where can I find replacement parts?

Replacement parts like the turntable, grill rack, or fuse are available from Hoover authorized service centers or online spare parts stores.

USER MANUAL HMCF25STB-UK HOOVER

Front view of a white appliance front panel with control buttons and a horizontal bar (no text or symbols on the main body)

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven. Retain this manual for future reference.

CE

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

WASTE MANAGEMENT AND ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European Directive 201/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused.) It's important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),

b. Hinges and latches (broken or loosened),

c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

Declaration of compliance 1

Waste management and environmental protection 1

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ----2

SPECIFICATIONS 3

IMPORTANT SAFETY INSTRUCTIONS 4

MICROWAVE COOKING PRINCIPLES 6

UTENSILS GUIDE 7

PART NAMES 7

CONTROL PANEL 8

HOW TO SET THE OVEN CONTROLS 9

SETTING THE CLOCK----9

Mute function 9

Eco function 9

MICROWAVE COOKING----10

GRILL 10

MICRO. + GRILL 10

CONVECTION 11

MICRO.+ CONVECTION---- 11

Speed DEFROST 11

WEIGHT DEFROST 11

CHILD PROOF LOCK 12

KEEP WARM 12

AUTO MENU COOK 12

CLEANING AND CARE 13

SPECIFICATIONS

Power Consumption:	230V~50Hz, 1400W(Microwave)
	1200W(Grill)
	2050W(Convection)
Microwave Power Output:	900W
Operation Frequency:	2450MHz
Outside Dimensions:	303mm(H)×504mm(W)×497mm(D)
Oven Cavity Dimensions:	197mm(H)×340mm(W)×338mm(D)
Oven Capacity:	25Litres
Cooking Uniformity:	Flat System
Net Weight:	Approx. 15.3 kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at

back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

1. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
2. The socket must be readily accessible so that it can be easily unplugged in an emergency.
3. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive

microwave energy:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING!--When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

6. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. To reduce the risk of fire in the oven cavity:

- When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

8. Utensils should be checked to ensure that they are suitable for use in microwave oven.

9. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

12. Children should be supervised to ensure that they do not play with the appliance.

13. The microwave oven is only used in freestanding.

14. WARNING!--Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.

15. The accessible surface may be hot during operation.
16. The microwave oven shall not be placed in a cabinet.
17. The door or the outer surface may get hot when the appliance is operating.
18. The temperature of accessible surfaces may be high when the appliance is operating.
19. The appliance shall be placed against a wall.
20. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
21. Children being supervised not to play with appliance.
22. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
23. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
24. The microwave oven is for household use only and not for commercial use.
25. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
26. Please secure the turn table before you move the appliance to avoid damages.
27. CAUTION!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
28. The microwave oven is intended for defrosting, cooking and steaming of food only.
29. Use gloves if you remove any heated food.
30. Caution! Steam will escape, when opening lids or wrapping foil.
31. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
32. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE	GRILL	COMBINATION	Convection
Heat-Resistant Glass	Yes	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray	No	Yes	No	Yes
Metal Rack	No	Yes	No	Yes
Aluminum Foil & Foil Containers	No	Yes	No	Yes

* Combination: applicable for both "microwave+ grill", and "microwave+ convection" cooking.

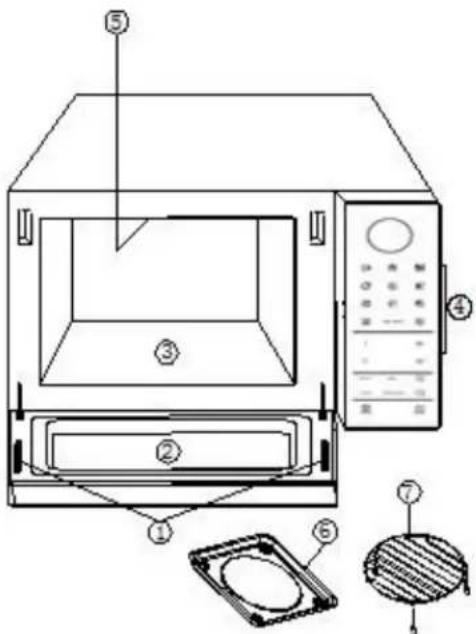

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Cavity Floor
4. Control Panel
5. Grill Heater
6. Baked Tray
7. Metal Rack

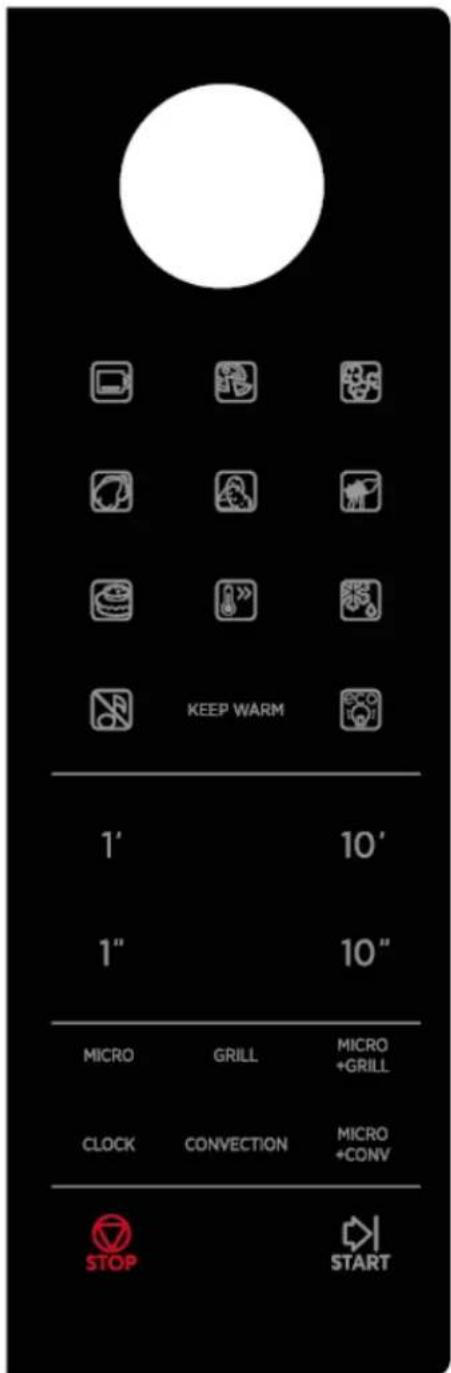

CONTROL PANEL

- MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

● AUTO MENU COOK BUTTONS

Instant settings to cook popular foods.

● NUMBER PADS

Used to enter clock, cooking time, temperature, etc.

MICRO

Touch this button a number of times to set microwave cooking power level.

GRILL

Touch to set grilling cooking program.

MICRO + GRILL

Touch to combination cooking program.

CLOCK

Use to set kitchen timer or clock time.

CONVECTION

Touch to set convection cooking program.

MICRO + CONVECTION

Touch to set microwave and convection combined cooking program.

STOP

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

It is also used for setting child lock.

START

Touch to start a cooking program.

HOW TO SET THE OVEN CONTROLS

When the oven first plugged in, beep will sound and the display will show" 1:01" and

During cook setting mode, the system will return the to standby mode if there is not any operation within 25 seconds.
During cooking program, touch STOP button to pause the program, then touch START button to resume. Touch STOP button twice to cancel the program.
➢ After ending cooking, the screen will display End with sound every two minutes until user touch

STOP button or open the door.

The electronically controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after cooking end, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.

SETTING THE CLOCK

This is a 12 or 24 hour clock. you can choose to set the clock time in 12 or 24 hour cycle by pressing the CLOCK button in standby mode.

FOR EXAMPLE: Suppose you want to set the oven clock time to 1:01.

1. In standby mode, touch, touch and hold CLOCK for 3 seconds to select 12 hour cycle, touch CLOCK button again to set the clock in 24-hour cycle.
2. Use the number buttons to enter "1" and 1".
3. Touch CLOCK to confirm.

NOTE: During cooking, you can not check the current time.

Mute function

To set mute function: ☑ Press once, then a beep will sound. This time by all the function keys have no prompt tone.

To relieve mute function: In mute mode, Press MUTE pad once, then a beep will sound.

Eco function

Set the method: In standby mode, pressing sound. The oven will enter power saving mo

once can turn off the display screen and a beep will

Lifting method: During the power saving mode, it will be canceled by press any pad and a beep will sound. The display screen will light up.

MICROWAVE COOKING

For microwave cooking, in standby mode, touch the MICRO button a number of times to select a cooking power level. Then use the number buttons to enter cooking time. Maximum cooking time is 99 minutes and 99 seconds. The oven will start to cook after START button is pressed.

Press	Power Level	Description
Once	100% (P100)	High
Twice	80%(P-80)	M. High
Thrice	60%(P-60)	Medium
4 times	40%(P-40)	M. Low
5 times	20%(P-20)	Low
6 times	0%(P-00)	Zero

Suppose you want to cook for 5 minute at 60% Power Level

1. In standby mode, open the door and place the food into the oven, close it.
2. Touch MICRO button until the screen show the intended power.
3. Use the number buttons to enter cooking time until the correct cooking time (5:00) is displayed.
4. Touch START to start

GRILL

Maximum cooking time is 99 minutes and 99 seconds. Suppose you want to program grill cooking for 12 minutes.

1. In standby mode, open the door and place the food into the oven, close it.
2. Touch GRILL button once.
3. Use the number buttons to enter cooking time.
4. Touch START button to confirm.

MICRO. + GRILL

The maximum cooking time here is 99 minutes and 99 seconds.

Suppose you want to set combination cooking for 25 minutes.

1. In standby mode, open the oven door and place the food, close it.
2. Touch MICRO. + GRILL button once or twice.

Touch MICRO. + GRILL button	Combination	Cooking time
		Microwave	Grill
Once	Co-1	30%	70%
Twice	Co-2	55%	45%

1. Use the number buttons to enter cooking time.
2. Touch START to start.

CONVECTION

During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures. Max cooking time user can set is 9 hour 99 minutes.

To Cook with Convection

To cook with convection, touch CONVECTION button once and then touch the number button to enter the desired convection temperature. (200°C → 110°C → 120°C → 130°C → 140°C → 150°C → 160°C → 170°C → 180°C → 190°C).

Suppose you want to cook at 180^ C for 40 minutes.

1. Open the oven door and place the food, close it.
2. Touch CONVECTION button once.
3. Touch number button to indicate convection temperature.
4. Touch CONVECTION button to confirm.
5. Use the number buttons to enter cooking time.
6. Touch START button to start.

NOTE: You can check the convection temperature while cooking is in progress by touching the CONVECTION button.

MICRO.+ CONVECTION

Maximum cooking time for convection is 9 hour 99 minutes.

This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically.

Suppose you want to bake a cake for 24 minutes on 170°C.

1. In standby mode, touch MICRO.+ CONVECTION button once.
2. Use the number buttons to select a convection temperature(1-110°C, 2-140°C, 3-170°C, 4-200°C).
3. Touch MICRO.+ CONVECTION button to confirm.
4. Use the number buttons to enter cooking time as desired.
5. Touch START button to start.

NOTE: You can check the convection power level while cooking is in progress by pressing the MICRO.+CONVECTION button.

Speed DEFROST

1. In standby mode, touch pad once.
2. Use the number pads to enter defrosting time.
3. Touch START pad to confirm.

NOTE: During defrosting program, the system will pause to remind you to turn over the food.

WEIGHT DEFROST

1. In standby mode, touch pad twice.

2. Use the number pads to enter food weight.

3. Touch START pad to confirm.

NOTE: During defrosting program, the system will pause to remind you to turn over the food.

CHILD PROOF LOCK

Use to prevent unsupervised operation of the oven by little children. The oven cannot be operated while the CHILD LOCK is set.

● To set the CHILD LOCK: In standby mode, without any operation within one minute, the oven will auto enter child lock mode and all buttons are invalid.

● To cancel the CHILD LOCK: In child lock mode, open or close the oven door can cancel the program.

KEEP WARM

Use to maintain the temperature of foods. Touch KEEP WARM to enter the keep warm mode, then touch START to active this function.

AUTO MENU COOK

For food or the following cooking mode, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight or shares of this food.

1. In standby mode, touch the corresponding menu button once or repeatedly to select the weight of food to be cooked.
2. Touch START button.
3. Auto cook menu :

Touch corresponding menu button to enter amount
		Once	Twice	3times	4times	5times	6times	7times
Cake (g) [HSHO]		475g
Reheat(g)		200g	300g	400g	500g	600g	700g	800g
Beverage(200ml/cup)		1	2	3
Spaghetti(g)		100g	200g	300g
Potato(each 230±10g) [4BHW]		1	2	3
Popcorn(g)		99g
Pizza(g)		150g	300g	450g
Chicken(g) [Z8KT]		800g	1000g	1200g	1400g

CLEANING AND CARE

1. Rotate the off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally Rotate theing on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwave able bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
12. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
14. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.
