Product type	Universal kitchen machine (Food processor)
Brand	Bosch
Model	MUM9GX5S21
Series	Serie 18 OptiMUM
Power supply	220-240 V, 50/60 Hz, 1600 W
Dimensions (W x D x H)	280 x 280 x 350 mm
Weight	Approx. 8 kg
Mixing bowl capacity	5.5 L
Number of speeds	Stepless 1-7, plus fold-in (Ω) and pulse (M)
Main drive	Black drive for tools and accessories
Accessory drives	Yellow drive 2, red drive 3
Included tools	Kneading hook, Professional flexible stirrer, Professional beating whisk
Integrated scales	Yes, with resolution 5 g (0.01 lb)
Timer	Yes, up to 3 hours
Automatic programmes (SensorControl Plus)	Cream, Egg white, Yeast dough
Safety features	Overload protection, restart lock-out, start lock-out, swivel arm protection
Material	Stainless steel bowl, plastic housing
Cable length	Adjustable, retractable (approx. 1.2 m)
Cleaning	Base unit wipe clean; bowl and tools dishwasher safe (hand wash recommended)
Spare parts availability	10 years

Frequently Asked Questions - MUM9GX5S21 BOSCH

How do I use the timer on my Bosch MUM9GX5S21?

Press the timer button on the control panel. Use + and - to set the desired time (5 seconds to 3 hours). Then start processing by turning the rotary switch. The appliance will stop automatically when time expires. You can also use the timer without processing by pressing the timer button twice to start.

How do I weigh ingredients with the integrated scales?

Ensure the bowl is inserted and the rotary switch is set to Ω. Press the scales button without touching the appliance. Wait for calibration (display shows 0 g). Add ingredients; the weight is displayed. To preset a weight, press + after calibration, set desired weight, then add ingredients until the signal stops.

What is SensorControl Plus and how do I use it?

SensorControl Plus automatically processes food to the perfect consistency. Press the SensorControl Plus button, select a programme (CREAM, EGG WHITE, YEAST DOUGH), add the correct ingredients, then hold the rotary switch on M/A for at least 2 seconds. The programme runs automatically and stops when done.

What should I do if the motor overloads and stops?

If the display shows MOTOR OVERLOAD, turn the rotary switch to ○. Reduce the quantity of ingredients or processing time. Allow the appliance to cool down to room temperature. If the problem persists, contact Customer Service.

How do I clean the Bosch MUM9GX5S21?

Unplug the appliance. Wipe the base unit with a soft, damp cloth. Do not immerse in water. The stainless steel bowl, lid, and tools can be hand washed or placed in the dishwasher. Use a soft cloth with a few drops of cooking oil to remove discolouration from plastic parts.

How do I attach and remove the tools?

To attach: press the tool into the main drive until it engages. To remove: press the two eject buttons on the protective cap and pull the tool out. Always ensure the drive has stopped and the appliance is unplugged.

What is the restart lock-out feature?

The restart lock-out prevents the appliance from automatically restarting after a power failure. If power is interrupted, the appliance will not resume processing until you turn the rotary switch to ○ and then set it again to your desired speed.

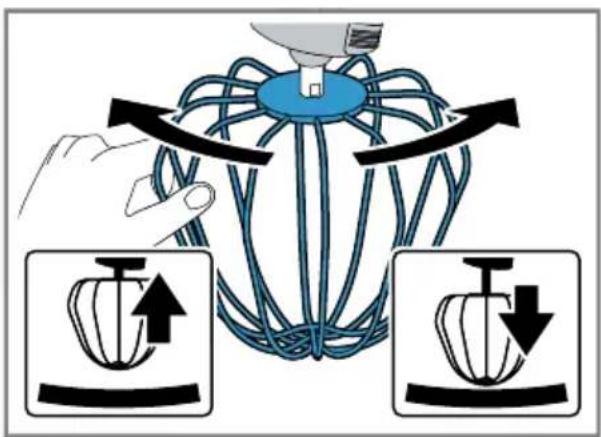

How do I adjust the distance between the whisk and the bowl?

Hold the whisk at the bottom, loosen the lock nut with a spanner, turn the tool to adjust (one turn clockwise = 1 mm more distance, anti-clockwise = 1 mm less). The optimal setting is 3 mm. Tighten the lock nut after adjustment.

Which accessories are compatible with this machine?

Only genuine Bosch accessories are recommended. Use accessories matching the drive colour codes: black main drive (e.g., meat mincer, pasta press), yellow drive 2 (e.g., continuous feed shredder), red drive 3 (e.g., glass blender attachment). Always quote the product number (E-Nr.) when purchasing.

How do I store the power cable?

The cable can be adjusted via the cable storage compartment or rewinder. Pull to required length; to shorten, push into storage or allow the rewinder to retract. Do not push by hand if it jams; pull out fully and let it rewind.

USER MANUAL MUM9GX5S21 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Serie 18 OptiMUM

MUM9...

[en] Information for Use Universal kitchen machine 7

Illustration of kitchen appliances including a mixer, plate with food, kitchen utensil, and door (no text or symbols)

1

2

3

4

5

6

7

Two identical diagrams of a blue bucket being placed on a stand, with arrows indicating direction (no text or symbols)

8

9

10

The image is too blurry to recognize any text content.

12

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer blending liquid into a bowl (no text or symbols)

14

The image is too blurry to recognize any text content.

16

The image is too blurry to recognize any text content.

18

The image is too blurry to recognize any text content.

20

Illustration of a kitchen mixer with blue lid and black upward arrows indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

22

You can find additional information and explanations online. Scan the QR code on the title page.

Table of contents

1 Safety 8

1.1 General information 8
1.2 Intended use 8
1.3 Restriction on user group ...... 9
1.4 Safety instructions 9

2 Avoiding material damage ..... 11

3 Environmental protection and saving energy 11

3.1 Disposing of packaging ..... 11

4 Unpacking and checking ..... 11

4.1 Unpacking the appliance and parts 11
4.2 Contents of package 12
4.3 Setting up appliance 12

5 Familiarising yourself with your appliance .... 12

5.1 Appliance 12
5.2 Rotary switch 12
5.3 Illuminated ring ^1 ..... 13
5.4 Control panel 13
5.5 Function buttons 13
5.6 Display 14
5.7 Drives 14
5.8 Tools 14
5.9 Safety systems 15

6 Before using for the first time .. 16

6.1 Preparing the appliance ..... 16

7 Basic operation ...... 16

7.1 Cable length 16
7.2 Swivel arm positions 16
7.3 Opening swivel arm 17
7.4 Closing swivel arm 17
7.5 Removing bowl 17

7.6 Inserting bowl 17
7.7 Attaching bowl lid 17
7.8 Removing bowl lid 17
7.9 Inserting tools 17
7.10 Removing tools 17
7.11 Processing 17
7.12 Drive cover 19

8 Basic settings 19

8.1 Overview of basic settings ..... 19
8.2 Changing basic settings ..... 19

9 Timer 19

9.1 Display values of timer 20
9.2 About the timer 20
9.3 Reading off and resetting the processing time 20
9.4 Processing ingredients with the timer 20
9.5 Using the timer without processing 20
9.6 Pausing or switching off the timer 21

10 Scales ^1 ...... 21

10.1 Display values of scales ..... 21
10.2 Weighing ingredients ..... 21
10.3 Presetting the weight 22
10.4 Resetting scales 22

11 SensorControl Plus ^1 ...... 22

11.1 Overview of programmes ..... 23
11.2 Using SensorControl Plus ..... 23

12 Cleaning and servicing ...... 24

12.1 Cleaning products ...... 24
12.2 Cleaning the base unit ..... 24
12.3 Overview of cleaning 25

13 Special accessories ...... 25

14 Recipes and application examples 25

14.1 Overview of recipes ...... 25

15 Troubleshooting 27

16 Disposal 29

16.1 Disposing of old appliance ... 29

17 Customer Service 30

17.1 Product number (E-Nr.) and production number (FD) ..... 30

Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
  ■ Please note the additional instructions when using supplied or optionally available accessories.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ with genuine parts and accessories.
■ for mixing, kneading and beating food.
■ for additional applications described in the instructions for accessories that are optional or come with the appliance.
■ under supervision.
■ for normal processing quantities and for normal processing times for domestic use.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Disconnect the appliance from the power supply when:

■ not using the appliance.
■ the appliance is unattended.
■ assembling the appliance.
■ taking the appliance apart.
■ cleaning the appliance.
■ approaching rotating parts.

■ changing tools.
■ confronted with a fault.

1.3 Restriction on user group

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cord.

1.4 Safety instructions

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 30
Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

- The protective conductor system of the domestic electrical installation must be properly installed.

Improper repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

en Safety

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock.
  ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
  ▶ Only use the appliance in enclosed spaces.
  ▶ Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.

⚠ WARNING – Risk of fire!

Intense heat may cause the appliance and other parts to catch fire.

▶ Never place the appliance on or near hot surfaces.

⚠ WARNING – Risk of injury!

Rotating drives, tools or accessory parts may cause injury.

• Keep hands, hair, clothing and utensils away from rotating parts.
  ▶ Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.
  Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.
  ▶ Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.
  ▶ Never open the swivel arm during processing.

Operating the appliance with damaged parts may result in injury.

- Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts.

⚠ WARNING – Risk of crushing!

Your hands and fingers could get caught.

- Do not reach into the bowl or housing when lowering the swivel arm.

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of harm to health!

Soiling on surfaces may be harmful to health.

▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

2 Avoiding material damage

ATTENTION

Improper use may cause material damage.

▶ Never use different drives at the same time.
- Observe the colour coding marked on the accessories and drive.
▶ Never operate the appliance longer than necessary.
- Do not operate the appliance at no-load.
▶ Never use genuine parts and accessories for other appliances.
- Do not exceed maximum processing quantities.
▶ Before use, check the bowl for foreign objects and remove.

Vibrations may impair functioning of the appliance.

- Do not place the appliance on moving or vibrating surfaces.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

4 Unpacking and checking

Find out here what you need to note when unpacking the appliance.

4.1 Unpacking the appliance and parts

1. Take the appliance out of the packaging.

2. Take all other parts and the accompanying documents out of the packaging and place them to hand.

3. Remove any packaging material.

4. Remove any stickers or film.

4.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features. See the instructions for the accessories to discover the further contents of the package.

→Fig. 1

A	Main unit with mixing bowl
B	Lid with integrated filling shaft
C	Professional flexible stirrer1
D	Professional beating whisk
E	Kneading hook
F	Accompanying documents

4.3 Setting up appliance

WARNING

Risk of fire!

Intense heat may cause the appli- ance and other parts to catch fire.

▶ Never place the appliance on or near hot surfaces.

ATTENTION

Vibrations may impair functioning of the appliance.

- Do not place the appliance on moving or vibrating surfaces.

1. Place the appliance on a stable, level, clean and flat work surface.
2. Pull the power cable out to the required length.

→ "Cable length", Page 16 Do not insert the mains plug.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

→Fig.2

1	Control panel
2	Stainless steel mixing bowl
3	Lid with integrated filling shaft
4	Protective cover for drive 2
5	Protective cover for drive 3
6	Illuminated ring
7	Rotary switch
8	Swivel arm
9	Release button for swivel arm
10	Drive 2, yellow
11	Drive 3, red
12	Main drive, black
13	Recesses for bowl
14	Cord storage

5.2 Rotary switch

The rotary switch is used to start and stop processing and select the speed.

Symbol	Function
○	Stop processing.
Ω	Fold in ingredients at the lowest speed.
1	Process ingredients at low speed.
Symbol Function
7	Process ingredients at maximum speed.
M^1	Process ingredients briefly at maximum speed.→ "Using instantaneous switching", Page 18
M/A^1	Depending on the application:■ Process ingredients briefly at maximum speed.→ "Using instantaneous switching", Page 18■ Start automatic programme.→ "SensorControl Plus", Page 22

Tip: You can adjust the speed steplessly between 1 and 7.

5.3 Illuminated ring ^1

The illuminated ring on the rotary switch informs you about the operating status of your appliance.

Display Status

The illuminated ring lights up and processing is underway.	The appliance is functioning perfectly.
The illuminated ring does not light up and processing cannot start.	The appliance has no power supply.There is a fault with the appliance.
The illuminated ring lights up and processing cannot start or continue.	The timer has ended processing.

Display Status
	A safety system has been activated.There is a fault with the appliance.

Tip: You can find further information here:

→ "Safety systems", Page 15
→ "Troubleshooting", Page 27

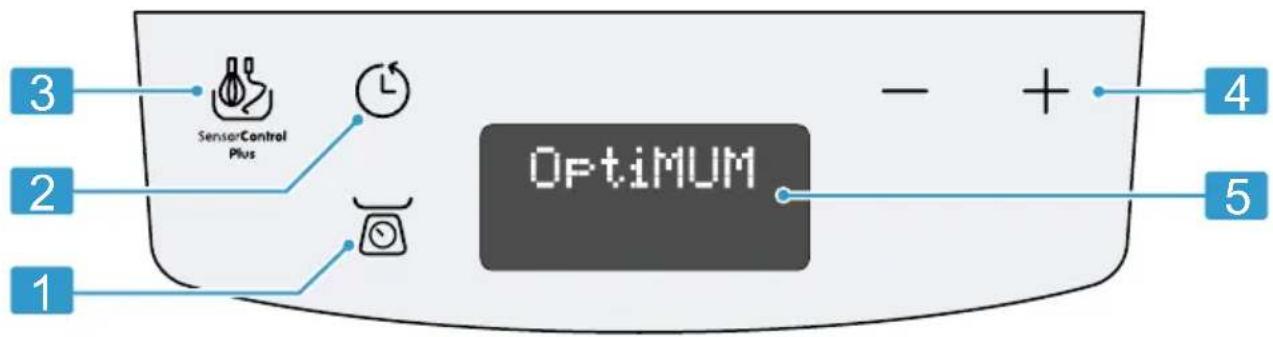

5.4 Control panel

You can find an overview of the control panel here.

→Fig. 3

1 Scales button ^1
2 Timer button
3 SensorControl Plus ^1 button
4 Setting buttons
5 Display

5.5 Function buttons

You can use the function buttons to select additional functions or configure settings. To make a selection, touch the relevant symbols with your finger.

Symbol Function

	Timer■ Use timer.■ Reset timer.■ End additional functions.
	Scales ^1 ■ Use scales.■ Calibrate scales.■ End additional functions.
Symbol Function
	SensorControl Plus1Select automatic pro-gramme.End additional functions.
-	Change settings.Reduce values.
+	Change settings.Increase values.

Note: Press the buttons with your fingers without wearing rubber/oven gloves. Do not operate buttons with objects, e.g. a wooden spoon.

5.6 Display

The display shows settings, information and values, as well as messages about the operating status.

Plugging in the appliance activates the display, which shows "OptiMUM". The display shows text on 2 lines.

Long text scrolls across the display.

Note: The display will switch off automatically if the appliance is not operated for a given period of time. To reactivate the display, press a button or start processing.

Tip: You can change the display language and the control panel brightness at any time.

→ "Overview of basic settings", Page 19

5.7 Drives

Your appliance is equipped with different drives, which are specially designed for its tools and accessories.

Note: Drives 2 and 3 come with protective covers.

→ "Drive cover", Page 19

Colour coding

The drives are colour-coded. The colour coding is also marked on the accessories to ensure they are matched to the correct drive.

Overview of drives

You can find an overview of the drives and their purposes here.

Drive Use

Main drive, black	For the tools and accessories, e.g.▪ Meat mincer▪ Pasta press
Drive 2, yellow	For accessories marked yellow, e.g.▪ Continuous feed shredder▪ Multi-blender attachment
Drive 3, red	For accessories marked red, e.g.▪ Glass blender attachment▪ Multi-chopper set

5.8 Tools

You can find out everything you need to know about the different tools here.

Tools are equipped with a protective cap to protect the drive from soiling. The two eject buttons on the protective cap make it easier to remove tools.

→ "Removing tools", Page 17

Overview of tools

Use the appropriate tool depending on use.

Tool Use

	Kneading hook■ Knead dough, e.g. yeast dough, bread dough, pizza dough, pasta dough, pastry dough.■ Fold in food that is not to be cut, e.g. raisins or chocolate chips.
	Professional flexible stirrer1■ Mix dough, e.g. cake mixture, fruit flan.■ Fold ingredients into the dough, e.g. raisins, chocolate chips.
	Professional beating whisk■ Beat whipped egg whites and cream (at least 30% fat).■ Mix light dough, e.g. sponge mixture.

Fine adjustment of the professional whisk

Use the fine adjustment system to correct the distance between the bowl and the professional beating whisk.

Note: The professional beating whisk is factory-set so that ingredients are mixed together perfectly.

Correcting tool adjustment

ATTENTION

The appliance and tools can be damaged if a wrong tool setting is used.

▶ Never operate a tool that touches the bowl.

Requirements

■ The mains plug is not inserted.
■ The swivel arm is open.

■ The professional beating whisk is inserted.
■ The bowl has been inserted.

1. Hold the beating whisk at the bottom with one hand and release the lock nut clockwise using a spanner wrench.

$$ \rightarrow \text { Fig. } 4 $$

1. To change the distance, turn the tool.

$$ \rightarrow \text { Fig. } 5 $$

Observe the values in the table:

Setting Distance

Optimum setting	3 mm
One turn clockwise	1 mm more
One turn anti-clockwise	1 mm less

1. Press the release button and push the swivel arm down until it engages.
2. Check the setting.
3. Press the release button and raise the swivel arm until it engages.
4. Hold the beating whisk at the bottom with one hand and tighten the lock nut anticlockwise using a spanner wrench.

5.9 Safety systems

You can find an overview of your appliance's safety systems here.

Start lock-out

Start lock-out prevents your appli- ance from being switched on acci- dentally.

The appliance can only be switched on and operated if

■ the swivel arm is engaged in position 1 and the bowl is inserted.

en Before using for the first time

■ the swivel arm is engaged in position 1 and the bevel gear is fitted on the main drive.

Restart lock-out

Restart lock-out prevents your appliance from automatically restarting processing after a power failure. The appliance is switched on again after a power failure. Processing cannot start again until the rotary switch has been set to ☐

Overload protection

The overload protection system prevents the motor and other components from being damaged through being overloaded.

The motor will switch off if

■ too large a quantity is processed.
■ processing is taking too long.
■ a tool or accessory is blocked.

Swivel arm protection device

The swivel arm protection device prevents the swivel arm from being opened if an accessory is attached to the rear drive.

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing the appliance

1. Press the release button and raise the swivel arm until it engages.

→ "Opening swivel arm", Page 17

1. Turn the bowl clockwise and remove.

→ "Removing bowl", Page 17

1. Clean all parts that come into contact with food before using for the first time.

→ "Cleaning and servicing", Page 24

1. Put the cleaned and dried parts out ready for use.

7 Basic operation

7.1 Cable length

Adjust the length of the power cable to your needs.

Adjusting cable length via cable storage compartment ^1

1. Pull the power cable out to the required length.

2. To shorten the cable, push it into the cable storage compartment.

Adjusting cable length via cable rewinder ^1

1. Pull the power cable out to the required length and slowly let go.

2. To shorten the cable,

▶ pull the cable,
- allow the cable to wind up,
▶ pull the cable out again.

Note: Do not push the cable in by hand. If the cable jams, pull right out and let it wind up again.

7.2 Swivel arm positions

You can find an overview of the positions of the swivel arm here.

Position

Use

Position 1

Swivel arm is closed.

■ Process ingredients with tools.

Posi- Use tion

■ Use accessory on main drive, e.g. Meat mincer.
■ Use accessory on drive 2, e.g. Continuous feed shredder
■ Use accessory on drive 3, e.g. Glass blender attachment

Position 2

Swivel arm is open.

• Insert or remove bowl.
  ■ Attach or remove lid.
• Insert or remove tool.
  ■ Add the ingredients to the bowl.

7.3 Opening swivel arm

• Press the release button and raise the swivel arm until it engages.
  →Fig.6
  √ The swivel arm is fixed in position 2.

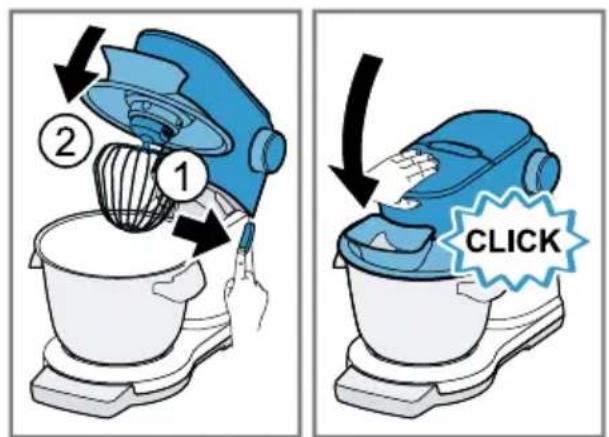

7.4 Closing swivel arm

- Press the release button and push the swivel arm down until it engages.

→Fig. 7

√ The swivel arm is fixed in position 1.

7.5 Removing bowl

- Turn the bowl clockwise and remove.

→Fig.8

7.6 Inserting bowl

1. Place the bowl in the main unit.

→Fig.9

Use the recesses on the main unit.

1. Turn the bowl anticlockwise until it engages.

→Fig. 10

7.7 Attaching bowl lid

Requirement: No tool is used here.

- Fit the lid onto the main drive until it engages.

→Fig. 11

The filling shaft must face towards the front.

7.8 Removing bowl lid

Requirement: No tool is used here.

▶ Take the cover off the main drive.

7.9 Inserting tools

1. Select the tool required.

→ "Overview of tools", Page 14

1. Press the tool into the main drive until it engages.

→Fig. 12

The protective cap a must cover the main drive completely.

7.10 Removing tools

- Press the two eject buttons b together and pull the tool completely out of the drive.

→Fig. 13

7.11 Processing

You can find out everything you need to know about processing food here.

Recommended speeds

Observe the recommended speeds for optimum results.

Setting Use
Q	Fold in and mix ingredients gently, e.g. beaten egg whites.
1-2 Stir in and mix ingredients.
3 Knead heavy dough, e.g. yeast dough.
5-7 Beat and stir ingredients, e.g. whipped cream.
M1	Briefly beat and stirr ingredients at maximum speed.→ "Using instantaneous switching", Page 18
M/A1	Depending on the application:▪ Briefly beat and stirr ingredients at maximum speed.→ "Using instantaneous switching", Page 18▪ Control speed with automatic programme.→ "SensorControl Plus", Page 22

Processing ingredients with tools

WARNING

Risk of injury!

Rotating drives, tools or accessory parts may cause injury.

• Keep hands, hair, clothing and utensils away from rotating parts.
• Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance.
  Before changing tools or cleaning the appliance, switch off and disconnect it from the mains.
  ▶ Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place.
  ▶ Never open the swivel arm during processing.

Requirements

■ The bowl has been inserted.
■ The bowl lid is fitted.
■ The required tool is inserted.

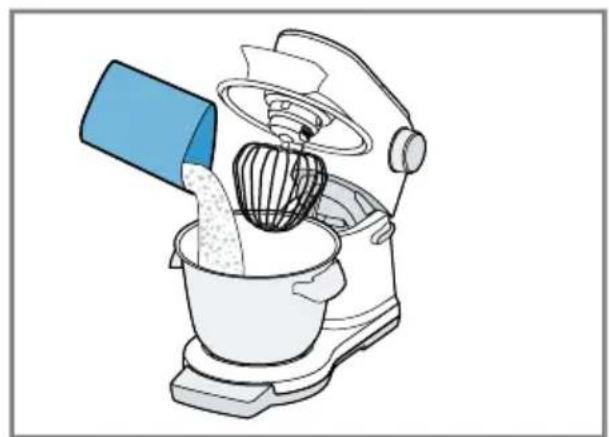

1. Add the ingredients to the bowl.

→Fig. 14

1. Press the release button and push the swivel arm down until it engages.

→Fig. 15

1. Insert mains plug.

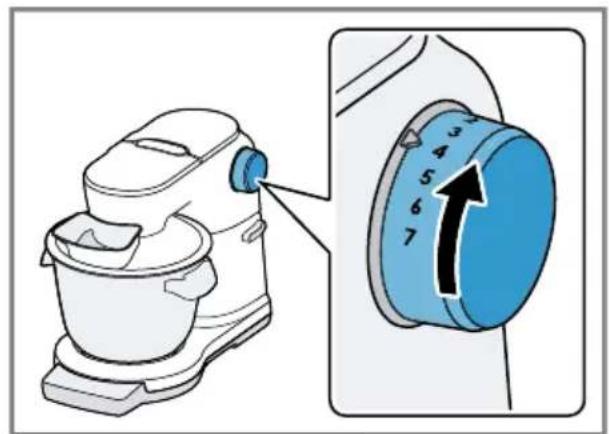

2. Set the rotary switch to the required speed.

→Fig. 16

1. Process the ingredients until you achieve the required result.

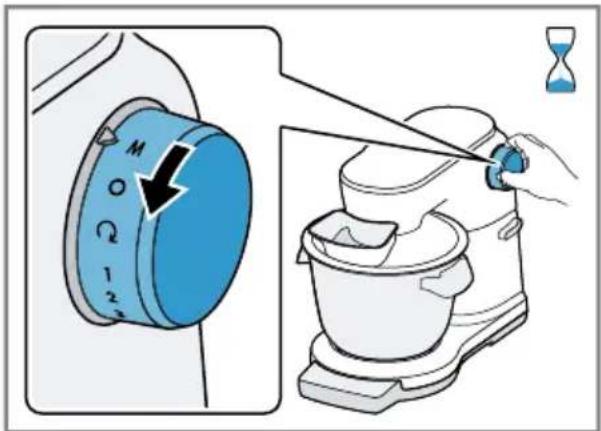

2. Set the rotary switch to ○

→Fig. 17

Wait until the appliance stops.

1. Unplug the mains plug.

Tips

• You can change the speed at any time during processing or interrupt processing.
  ■ Clean all parts immediately after use so that residues do not dry on.

Adding more ingredients

1. To add ingredients during processing, use the filling shaft in the lid.

→Fig. 18

1. To add large quantities, set the rotary switch to ☐ Wait until the appliance stops.

2. Press the release button and raise the swivel arm until it engages.

3. Add the ingredients to the bowl.

4. Press the release button and push the swivel arm down until it engages.

5. Process the ingredients until you achieve the required result.

Using instantaneous switching

1. Set the rotary switch to M^1 , or M/A^1 and hold.

→Fig. 19

√ The ingredients are processed at maximum speed.

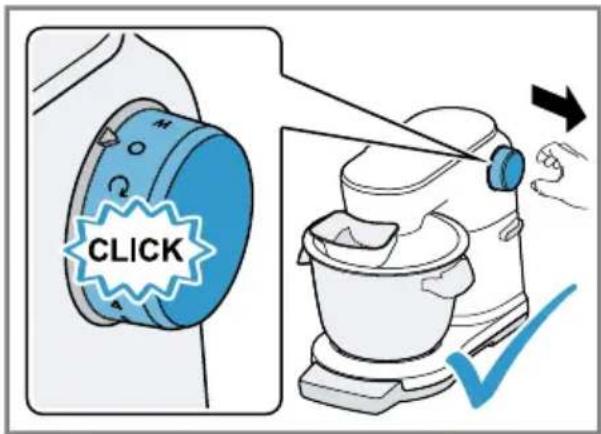

1. Release the rotary switch.

→Fig. 20

√ The rotary switch springs to ○
√ Processing stops.

Tip

Instantaneous switching is especially suitable when using the following accessories:

■ Glass blender attachment
■ Multi-chopper set
■ Multi-blender attachment

7.12 Drive cover

Remove the protective cover to use accessories on drive 2 or 3.

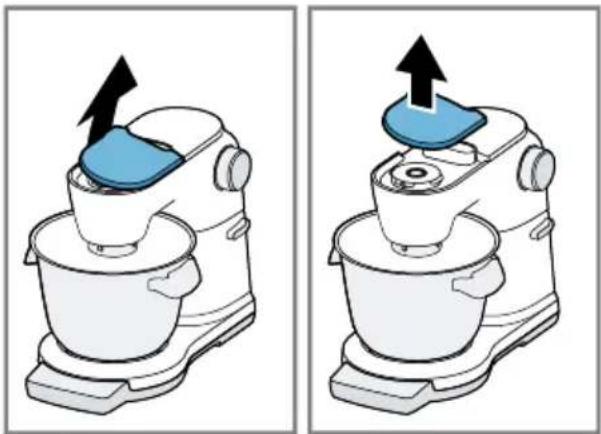

Removing drive cover

• Lift the protective cover of drive 2 or 3 by the side lug lift and remove.
  →Fig. 21

Fitting drive cover

• Position the protective cover of drive 2 or 3 and press down firmly.
  →Fig. 22

8 Basic settings

You can configure the basic settings for your appliance to meet your needs.

8.1 Overview of basic settings

You can find an overview of the basic settings here.

Setting Description

LANGUAGE Select the display language.

TONE Switch signal tones off or adjust the volume.

Setting Description
BRIGHTNESS Set the display brightness.
UNITS1	Set the display units for the scales.

8.2 Changing basic settings

Requirement: The mains plug is inserted.

1. If the display is switched off, press any button.
2. Press and hold Ⓐ and +simultaneously.
   √ The display shows the configuration menu.
3. Use Ⓗ to select the required setting.
4. Use +or -to change the selected setting.
   √ The display shows "SAVING: O & +".
5. To save the changed setting, press and hold ⏻ and +simultaneously.
   √ The display shows "SETUP" "SAVED".
6. To change and save other settings, repeat steps 3-5.
7. To exit the configuration menu, select one of the following options:
   ▶ Press and hold 🎨 or . 📋
   ▶ Start processing.

9 Timer

You can read off the processing time elapsed or preset a time.

Tip: You can also monitor times with the timer, e.g. resting times for dough.

9.1 Display values of timer

Observe the following values when using the timer.

Display range 0 seconds to 3 hours

Display steps 1 second

Settings range 5 seconds to 3 hours

Settings steps 5 seconds

9.2 About the timer

To ensure optimum use of the timer, note the following.

Notes

• If the timer is stopped or switched off during processing, processing will continue.
• When processing is started with the timer running, the appliance will end processing on expiry of the remaining time.
  ■ If you interrupt processing for less than 3 minutes, the last values displayed are saved and will resume if processing starts again.

Tips

• You can adjust the remaining time using +or -at any time.
  ■ Values will change faster if +or — is pressed and held down.
  ■ You can change the volume of the signal tones at any time.
  → "Overview of basic settings", Page 19

9.3 Reading off and resetting the processing time

Note

Display of the previous processing time will not start

■ if the processing time has been preset.

■ if the SensorControl Plus function is used.

1. Set the rotary switch to the required speed.
   √ The display shows "TIME" and the previous processing time.
2. To reset the display to "00:00", press and hold Ⓤ

9.4 Processing ingredients with the timer

Requirement: The appliance is prepared and the ingredients have been added.

→ "Processing ingredients with tools", Page 18

1. If the display is switched off, press any button.

2. Press Ⓤ

√ The display shows "TIMER" and "00:00".

1. Use +or to set the required duration.

2. Set the rotary switch to the required speed.

√ The display shows the remaining processing time.
√ Once this time has elapsed, a signal tone sounds and the display shows "END" "TIMER".
√ The appliance stops processing automatically and the display shows "ROTATE THE SWITCH TO 0".

1. Set the rotary switch to ☐

9.5 Using the timer without processing

1. If the display is switched off, press any button.
2. Press Ⓤ
   √ The display shows "TIMER" and "00:00".

3. Use for to set the required duration.

4. To start the timer, briefly press Ⓤ twice.

√ The display counts down the remaining time.
√ Once this time has elapsed, a signal tone sounds and the display shows "END""TIMER".

9.6 Pausing or switching off the timer

Requirements

■ The timer is running.
■ The display shows the time that has elapsed.
1. Briefly press ⓤ twice.
√ The timer stops.
√ The remaining time is displayed continuously.
2. Briefly press Ⓤ twice.
√ The timer starts again.
√ The remaining time continues to count down.
3. To switch the timer off, press and hold down ⏻
√ The display shows "OptiMUM".

10 Scales ^1

Your appliance is equipped with a set of scales. You can weigh ingredients individually or a preset a weight.

The main unit has 4 weight sensors in its feet.

The following factors can falsify the measuring result:

■ Feet not standing on the work surface properly
■ Work surface vibrating
■ Objects underneath the main unit
- Ingredient quantities less than 5 g or 0.01 lb

■ Main unit slipped
■ Main unit touched
■ Objects on the main unit

10.1 Display values of scales

Observe the following values when using the scales.

Display unit in grams

Display range -990 g to 5000 g

Display steps 5 g

Settings range 50 g to 3000 g

Settings steps 10 g

Display unit in pounds

Display range -2.20 lb to 11.00 lb

Display steps 0.01 lb

Settings range 0.10 lb to 6.60 lb

Settings steps 0.02 lb

Tip: You can change the display units of the scales at any time.

→ "Overview of basic settings", Page 19

10.2 Weighing ingredients

Requirements

■ The bowl is inserted or an accessory is fitted.

■ The rotary switch is set to Q

■ The display is activated.

1. Press 📋 and do not touch the appliance again.

√ The scales will be calibrated.

√ The display shows "----".

1. Wait for calibration to finish.

√ The display shows "0 g" or "0.00 lb".

1. Add the required ingredient.

√ The display shows the weight.

en SensorControl Plus

1. To weigh further ingredients, select one of the following options:

2. Add further ingredients and read off the total weight.
   ▶ Repeat the process and weigh the ingredients individually.

10.3 Presetting the weight

Requirements

■ The bowl has been inserted.
■ The rotary switch is set to ○
1. If the display is switched off, press any button.
2. Press 📋 and do not touch the appliance again.
√ The scales will be calibrated.
√ The display shows "----".
3. Wait for calibration to finish.
√ The display shows "0 g" or "0.00 lb".
4. Press +
√ The display shows "100 g" or "0.20 lb".
5. Use +or to set the required weight.
6. Add the required ingredient to the bowl.
√ The display shows the quantity by which the weight is short, e.g. 65 g.
√ A recurring signal tone will sound from a short weight of 40 g or 0.08 lb.
7. Continue adding the ingredient little by little.
√ The lower the weight that is short, the faster the signal tone will sound.
√ When the preset quantity is reached, the signal tone will stop.
8. Note: If the preset quantity is exceeded, the signal tone will sound continuously. The display shows

the excess weight added as a negative value, e.g. -40 g.

1. Take the excess weight added away again.

2. To end weighing, press and hold 📋 or start processing.

Tip: You can change the volume of the signal tones at any time.

→ "Overview of basic settings", Page 19

10.4 Resetting scales

If an error message appears or unaccustomed measured values are displayed, reset the scales.

1. Press and hold 📋
   √ The display shows "OptiMUM"
2. To restart the scales, press 📋

Note: If the scales still do not work properly, disconnect the appliance from the power supply for a while and then start the scales again.

11 SensorControl Plus ^1

You can use the SensorControl Plus function to run different programmes and automatically process food.

Sensors monitor processing of the ingredients and end it automatically once the preprogrammed consistency is reached.

For optimum results please note the following:

■ Before using the SensorControl Plus function for the first time, operate the new appliance at no-load for at least 2 minutes or process food without an automatic programme.
■ Only the combinations of food, quantity and tool described are

programmed. Do not process other combinations with the automatic programmes.

• Do not add any more food once an automatic programme has started.
• Do not process ingredients that have already been processed once again with an automatic programme.
  ■ The age, temperature and constituents of the ingredients used will affect the time required and the result.
  ■ Only use fresh eggs.
  ■ Only use cream that has been cooled to approx. 6 °C.
• Cream which was previously frozen cannot be whipped.
• Cream which contains additives or is lactose-free will not offer optimum results.
• Do not add sugar, flavourings or other additives for cream or beaten egg whites until the automatic programme has ended.

Notes

• Do not add ingredients until the display shows "0 g", "0.00 lb" or "ADD INGREDIENTS".
• Buttons are locked when an automatic programme is running.
• To cancel an automatic programme, set the rotary switch to ○ A slight resistance must be overcome here.

11.1 Overview of programmes

You can find an overview of the automatic programmes and their purposes here.

Programme Use
CREAM Automatic preparation of 300-1500 ml whipped cream with the beating whisk
CREAM > 300 ml ^1	Automatic preparation of 300-700 ml whipped cream with the beating whisk
CREAM > 700 ml ^1	Automatic preparation of 700-1500 ml whipped cream with the beating whisk
EGG WHITE	Automatic preparation of beaten egg whites from 2-12 eggs with the beating whisk
YEAST DOUGH	Automatic preparation of yeast dough with the kneading hook Ingredients and quantities according to the recipe → "Overview of recipes", Page 25

11.2 Using SensorControl Plus

You can find out here how to select and start an automatic programme.

Requirements

■ The bowl has been inserted.
■ The bowl lid is fitted.
1. Insert the appropriate tool:
▶ Beating whisk for whipping cream and egg whites
▶ Kneading hook for yeast dough

1. Insert mains plug.

√ The display shows "OptiMUM".

1. Press

√ The display shows "CREAM".

en Cleaning and servicing

1. Use & or to select the required programme, e.g. "EGG WHITE".

√ The scales will be calibrated.
√ The display shows "----".
5. Wait for calibration to finish.
√ The display shows "0 g" or "0.00 lb".
6. Add the relevant ingredient to the bowl, e.g. egg whites.
√ The display shows the weight.
7. Note: On appliances without any scales, the display shows "ADD IN-GREDIENTS" after selection of the programme.
8. Add the measured ingredients to the bowl.
9. Wait a short time after adding them.
√ The display shows "HOLD ROTARY SWITCH ON M/A 2s".
10. Press the release button and push the swivel arm down until it engages.
11. Set the rotary switch to Mand hold for at least 2 seconds.
12. Release the rotary switch.

√ The rotary switch stops at M/A

√ The display shows "SENSOR CONTROL PLUS" and the automatic programme is running.

√ When the preprogrammed result has been achieved, the display shows "FINISH".

√ The rotary switch jumps to ○ and processing ends.

Tip: If the result is not what you want, you can continue processing cream and egg whites to the consistency required using speed 7 or yeast dough using speed 3.

12 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

12.1 Cleaning products

Find out here which cleaning products are suitable for your appli-ance.

ATTENTION

Using unsuitable cleaning agents or incorrect cleaning may damage the appliance.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
  ▶ Only clean the control panel and the display using a damp microfibre cloth.

12.2 Cleaning the base unit

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
- Do not use steam- or high-pressure cleaners to clean the appliance.

1. Remove the drive covers.
2. Wipe the main unit and drive covers with a soft, damp cloth.
3. Clean the control panel and the display using a damp microfibre cloth.
4. Dry the main unit and drive covers with a soft cloth.

12.3 Overview of cleaning

You can find an overview of how to best clean the appliance and the other parts here.

→Fig. 23

Tip: When processing food such as carrots, plastic parts may become discoloured. Remove discolouration with a soft cloth and a few drops of cooking oil.

13 Special accessories

You can buy accessories from the after-sales service, from specialist retailers or online. Only use genuine accessories as these have been specifically designed for your appliance. Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 30

You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service.

www.bosch-home.com

14 Recipes and application examples

You can find a selection of recipes specially developed for your appliance here.

Tips

■ For optimum results observe the maximum processing quantities specified here.
- If your appliance is equipped with SensorControl Plus, you can use the automatic programmes to prepare whipped cream, egg whites and yeast dough.
→ "SensorControl Plus", Page 22
- If your appliance is equipped with a set of scales, you can weigh out the ingredients when adding them. "Scales", Page 21
- You can use the timer to monitor or preset processing times. → "Timer", Page 19

14.1 Overview of recipes

This overview lists the ingredients and processing steps for various recipes.

Recipe Ingredients Processing

Whipped cream	200-1500 g cream Insert beating whisk.
		Add cream.Process for 1 12 -4 minutes at setting 7.
Egg whites 2-12 Egg whites (room temperature)		Insert beating whisk.Add egg whites.Process for 4-6 minutes at setting 7.
Sponge mix-ture	3 eggs3-4 tbsp hot water150 g sugar1 tbsp vanilla extract	Insert beating whisk.Add all ingredients except the flour and cornflour.
Recipe Ingredients Processing
	150 g flour (sifted)50 g cornflourBaking powder (as wished)Note:Process max. 2 times the quantity at the same time.	Process for 4-7 minutes at setting 7.Select setting 1.Add the flour and cornflour by the spoonful within 30-60 seconds.
Cake mixture 3-4 eggs200-250 g sugar1 pinch salt1 tbsp vanilla sugar or zest of half a lemon200-250 g butter or margarine (room temperature)500 g flour15 g baking powder150 ml milkNote:Process max. 212 times the quantity at the same time.		Insert stirring whisk.Add all ingredients.Process for 30 seconds at setting 2.Process for 2-3 minutes at setting 7.
Shortcrust pastry	125 g butter100-125 g sugar1 egg1 pinch saltA little vanilla sugar or lemon zest250 g flourBaking powder (as wished)Note:Process max. 4 times the quantity at the same time.	Insert stirring whisk.Add all ingredients.Process for 30 seconds at setting 2.Process for 2-3 minutes at setting 6.From 250 g flour:Insert kneading hook.Add all ingredients.Process for 30 seconds at setting 1.Process for 3-4 minutes at setting 3.
Yeast dough 500 g flour1 egg80 g fat (room temperature)80 g sugar200-250 ml lukewarm milk25 g fresh yeast or 1 tbsp dried yeastZest of half a lemon1 pinch saltNote:Process max. 3 times the quantity at the same time.		Insert kneading hook.Add all ingredients.Process for 30 seconds at setting 1.Process for 3-6 minutes at setting 3.

Pasta dough 500 g flour Insert kneading hook.

Recipe Ingredients Processing

	▪ 250 g eggs (approx 5)▪ 20-30 ml cold water (as wished)Note: Process max. 112 times the quantity at the same time.	▪ Add all ingredients.▪ Process for 3-5 minutes at setting 3.
Bread dough	1000 g flour▪ 2 tbsp dried yeast▪ 2 tsp salt▪ 660 ml lukewarm waterNote: Process max. 112 times the quantity at the same time.	▪ Insert kneading hook.▪ Add all ingredients.▪ Process for 30 seconds at setting 1.▪ Process for 3-6 minutes at setting 3.

15 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The appliance is not working.	The mains plug of the power cord is not plugged in. ► Connect the appliance to the power supply.
	The circuit breaker in the fuse box has tripped. ► Check the circuit breaker in the fuse box.
	There has been a power cut. ► Check whether the lighting in your room or other appliances are working.
Appliance does not start processing.	Rotary switch is set incorrectly. ► Set the rotary switch to Obefore processing.
Release button cannot be pressed.	An accessory is fitted to red drive 3. ► Remove the accessory from drive 3.
Fault Cause and troubleshooting
Scales show no change in weight despite ingredients being added.1	Quantity of ingredients outside measuring range of scales.► Add at least 5 g or 0.01 lb so the scales show correct values.
Processing with the SensorControl Plus function starts briefly but immediately stops again.1	Rotary switch was not held toMang enough.1. Select the required automatic programme again.→ "SensorControl Plus", Page 222. To start processing, set the rotary switch toMand hold in this position for at least 2 seconds.
Display shows "MO-TOR OVERLOAD".	Processing quantity is too big or processing time was too long.► Set the rotary switch to○► Reduce the quantity of ingredients.► Allow the appliance to cool down to room temperature.
	Appliance or accessory is blocked.► Set the rotary switch to○► Remove the blockage.
	Motor is defective.► If this message keeps on appearing, contact Customer Service.→ "Customer Service", Page 30
Display shows "ARM OPEN".	Swivel arm was opened.1. Set the rotary switch to○2. Move the swivel arm until it engages correctly.
Display shows "CHECK BOWL".	Bowl or bevel gear is not fitted properly or has become detached.► Turn the bowl anticlockwise as far as possible.► Attach the bevel gear as described in the instructions for the accessory.
Display shows "ERROR" "SCALES".1	Appliance has been moved on the work surface.► Lift the appliance and set it down again.► Reset the scales.→ "Resetting scales", Page 22
	Scales are not working properly.► Reset the scales.→ "Resetting scales", Page 22

Fault Cause and troubleshooting

Display shows "ERROR" "SCALES".1	Scales are defective.► If this message keeps on appearing, contact Customer Service.→ "Customer Service", Page 30
	Scales are exposed to vibrations.► Do not use the appliance on work surfaces exposed to vibrations, e.g. with a dishwasher running.
Display shows "FOR SCALE" "STOP MACHINE".1	Scales were switched on while appliance was running.1. Set the rotary switch to ○2. Wait for the appliance to stop before using the scales.
Display shows "OVER-LOAD" or "UNDERLOAD".1	Display values of scales have not been observed.► Observe the display values of the scales.→ "Display values of scales", Page 21
Display shows "OVER-LOAD" or "UNDER-LOAD" when using SensorControl Plus.1	Too much or too little of the ingredients has been added for the programme selected.► Add the ingredients according to the specified quantities.→ "SensorControl Plus", Page 22
Display shows "ADD INGREDIENTS" although ingredients have already been added. The automatic programme cannot be started.1	Ingredients were added before the scales were activated.1. Empty the bowl.2. Select the programme again.3. Wait for the scales to calibrate.✓ The display shows "0 g" or "0.00 lb".4. Add the ingredients.

16 Disposal

16.1 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.

2. Cut through the power cord.

3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the re-turn and recycling of used appliances as applicable throughout the EU.

17 Customer Service

BSH Hausgeräte GmbH is extending the availability of spare parts to 10 years. This refers to all functionally relevant and storable parts for appliances produced after 1st January 2023.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

17.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

5.4 Panel kawalan 38

5.5 Butang fungsi 38

5.6 Paparan 39

5.7 Pemacu 39

5.8 Alatan 39

5.9 Sistem keselamatan 40

الموضوع Egyptian Domination Team Visitation. 2 ■ retirement yesterday ago an anti-2017. ■ retirement yesterday ago an anti-2018. ■ retirement yesterday ago an anti-2019. ■ retirement yesterday ago an anti-2020. ■ retirement yesterday ago an anti-2021. ■ retirement yesterday ago an anti-2022. الوعاء

,"SensorControl Plus"←

112prec#

electronic equipment -

.(WEEE

وهذه المواصفة تمدد

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001246901 (050314)

en, ms, zh-tw, zh, ar
