Product Type	Dual Monitor Desk Stand
Brand	StarTech.com
Model	ARMBARDUO
Color	Black
Maximum Weight Capacity (Total)	35.2 lb (16 kg)
Maximum Weight Capacity per Monitor	17.6 lb (8 kg)
Compatible Monitor Size	15 to 24 inches
VESA Mount Compatibility	75x75mm and 100x100mm (M4 screws)
Tilt Adjustment	+/- 15 degrees
Swivel Adjustment	360 degrees
Height Adjustment	Yes, via height-adjustment ring
Cable Management	Yes, includes cable-management clips
Mounting Type	Free-standing desk stand (base)
Material	Steel (heavy-duty)
Included Accessories	Pole, baseplate, crossbar, 2 VESA mounts, hardware kit (M4/M5/M6 screws, plastic spacers), hex keys (M3, M4, M5), cable-management clips (3), pole cap, height-adjustment ring
Warranty	2 years
Cleaning Instructions	Use a soft, dry cloth; do not use abrasive cleaners

Frequently Asked Questions - ARMBARDUO StarTech.com

How do I adjust the height of the monitors?

Slide the Height-Adjustment Ring down the pole to the desired height, then press the lever to tighten it. Slide the crossbar onto the ring and tighten the crossbar screw with the M3 hex key.

What is the maximum weight the stand can hold?

The total maximum weight capacity is 35.2 lb (16 kg), with each monitor mount supporting up to 17.6 lb (8 kg).

What monitor sizes are compatible with the ARMBARDUO?

The stand is designed for monitors between 15 and 24 inches in size.

Can I tilt or swivel the monitors?

Yes. You can tilt each monitor +/- 15 degrees (up/down) and swivel 360 degrees (left/right) by applying light pressure.

How do I route the cables to keep them organized?

Attach the included cable-management clips to the crossbar and pole. Run the monitor cables through the clips and snap them shut to keep cables tidy.

Does the stand support VESA mounting?

Yes, the included VESA monitor mounts are compatible with 75x75mm and 100x100mm patterns using the provided M4 screws.

What is the warranty period for this product?

The ARMBARDUO comes with a two-year warranty. Visit www.startech.com/warranty for details.

How do I install the desk stand?

First, attach the baseplate to the pole using three M6x15 mm screws and tighten with the M4 hex key. Then slide the height-adjustment ring and crossbar onto the pole. Adjust the VESA plates and attach the monitors using the appropriate M4 screws (flush or recessed).

What should I do if the monitors do not stay in place after adjustment?

Tighten the hex screw on the back of each VESA mount using the M5 hex key while holding the plastic disc with needle-nose pliers. Always tighten these screws immediately after adjusting.

Is the stand suitable for outdoor use?

No, the stand is intended for indoor use only. Do not expose it to moisture or harsh environments.

USER MANUAL ARMBARDUO StarTech.com

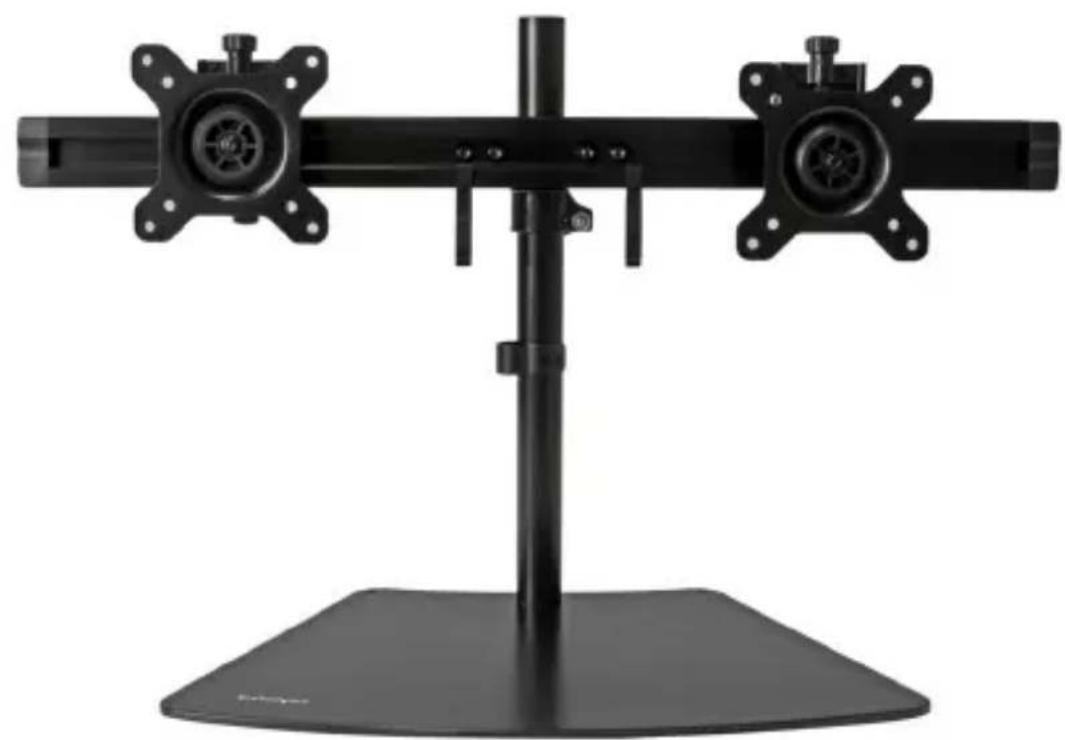

Desk Stand for Dual Monitors

Black desktop monitor with dual-mounted motors mounted on a stand (no text or symbols visible)

Actual product may vary from photos

User Manual

SKU#: ARMBARDUO

For the latest information and specifications visit

www.startech.com/ARMBARDUO

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure that you assemble this product according to the instructions.
- Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 35.2 lb. (16 kg).
- This product is intended for indoor use only and should not be used outdoors.
- The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warnhinweise

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

- Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements....1

Warning Statements....2

Safety Statements....5

Product Diagram....7

Front View....7

Product Dimensions 8

Product Information....9

Package Contents 9

Assembly 12

Assembling the Base....12

Attaching the Crossbar 13

Adjusting the Monitor Plates....14

Attaching the Monitors - Flush Installation 16

Attaching the Monitors - Recessed Installation 17

Adjusting the Monitors 19

Tilt Adjustment ....19

Swivel Adjustment....19

Adjusting the VESA Mount 20

Routing the Cables....21

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

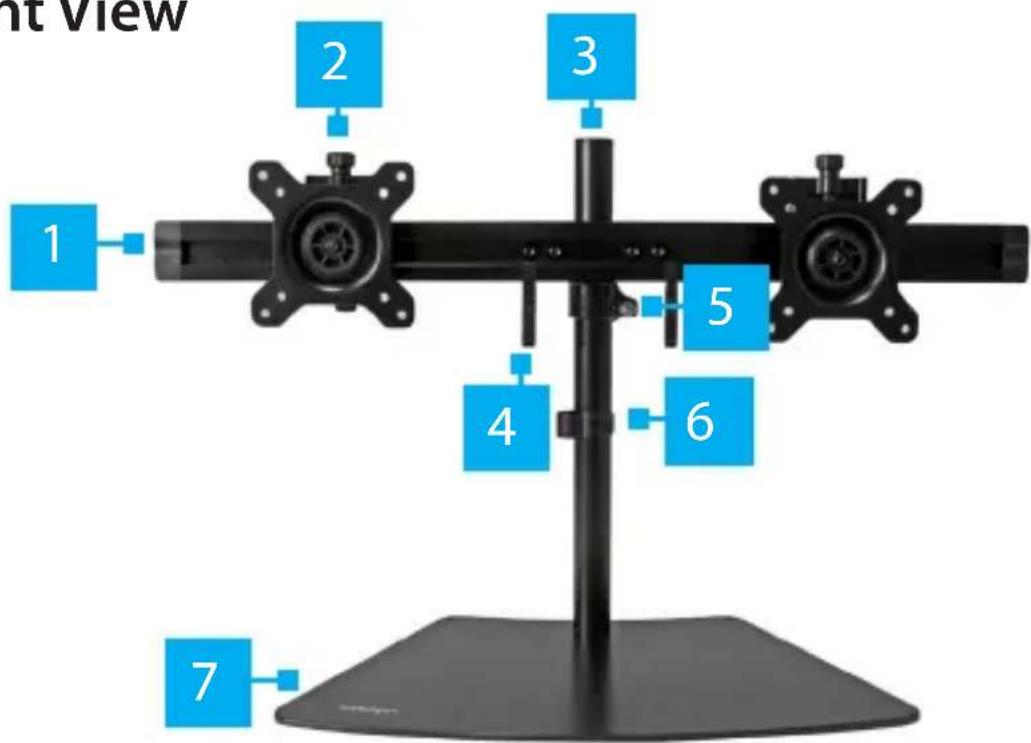

Front View

1	Crossbar Height Adjustment Ring
2	VESA Monitor Mounts (x 2) Cable-Management Clip
3	Pole Baseplate
4	Crossbar Cable-Management Clip

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

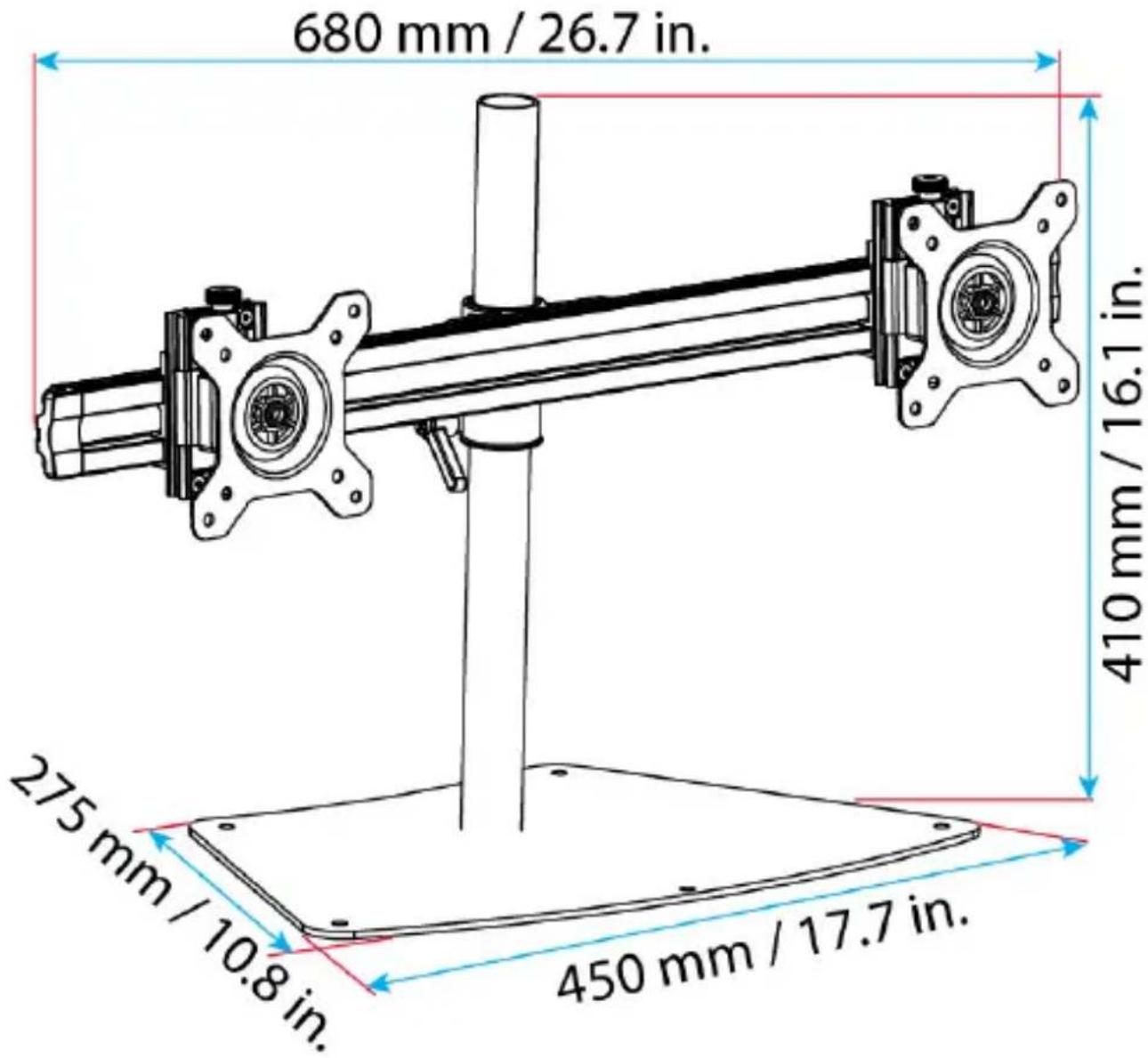

Product Dimensions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Pole

Qty: 1

Simple line drawing of a rectangular frame with four corner holes (no text or symbols)

Baseplate

Qty: 1

M6x15 mm Screws

Qty: 3

Cable-Management Clip

Qty: 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Pole CapQty: 1	Height Adjustment RingQty: 1
CrossbarQty: 1	VESA Monitor MountQty: 2
M4x12 mm ScrewQty: 8	M4x30 mm ScrewQty: 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Plastic SpacersQty: 8	M3 Hex KeyQty: 1
M4 Hex KeyQty: 1	Cable-Management ClipsQty: 2
M5 Hex KeyQty: 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Assembly

Warning! Make sure that all of the hardware is assembled securely and checked for stability before you install the monitors.

Assembling the Base

1. Insert the three M6x15 mm Screws through the three holes in the Baseplate and into the Pole.

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

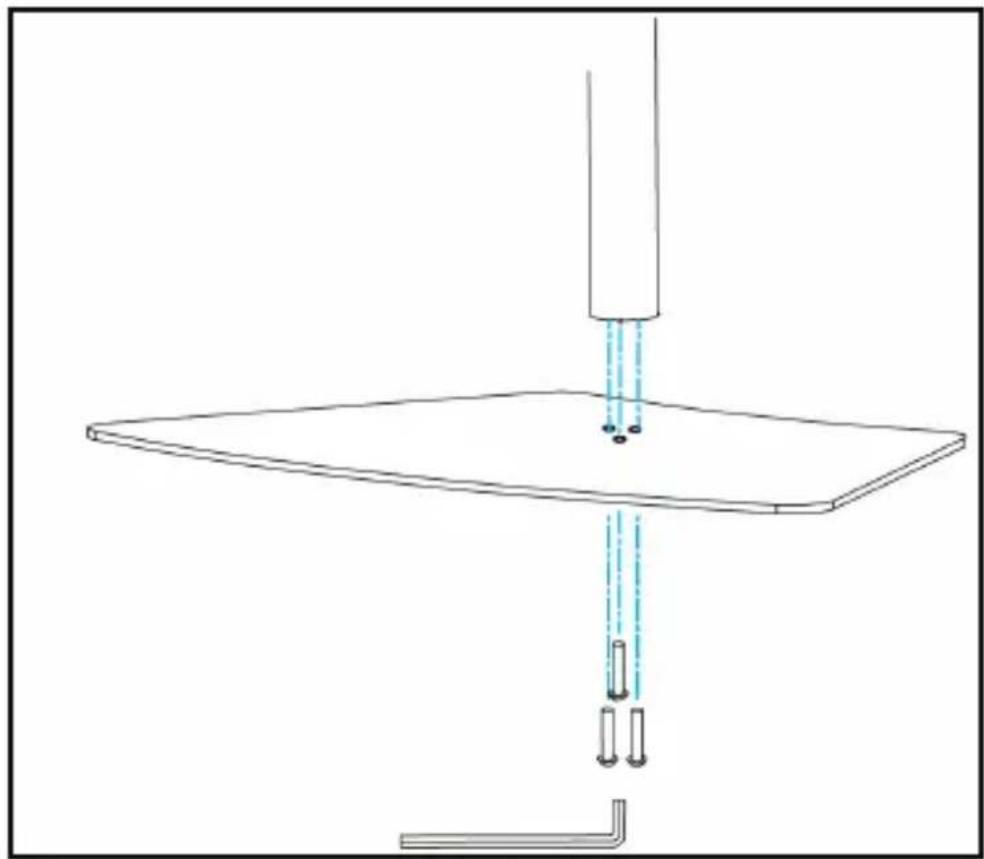

Inserting the M6x15 mm Screws into the Baseplate

1. Using the M4 Hex Key, turn the M6x15 mm Screws clockwise to tighten them.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attaching the Crossbar

1. Slide the Height-Adjustment Ring down the Pole to the height that you want the monitors to be at.

2. Press the lever on the Height-Adjustment Ring to tighten it and prevent it from sliding down the pole.

3. Slide the Crossbar down the Pole so that it sits on the Height-Adjustment Ring.

4. Push the Pole Cap down onto the top of the Pole.

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

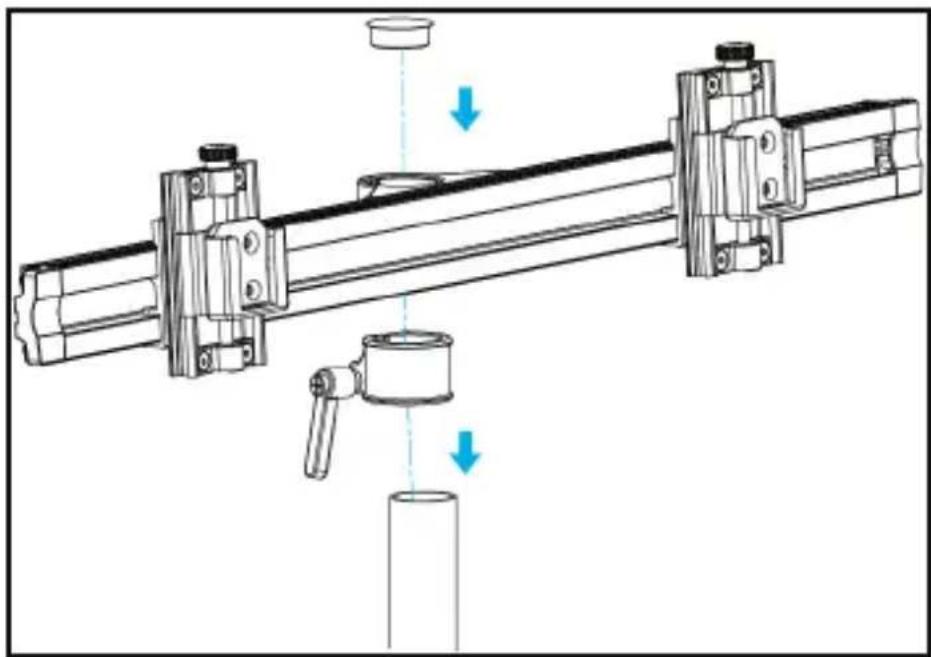

Attaching the Crossbar Assembly

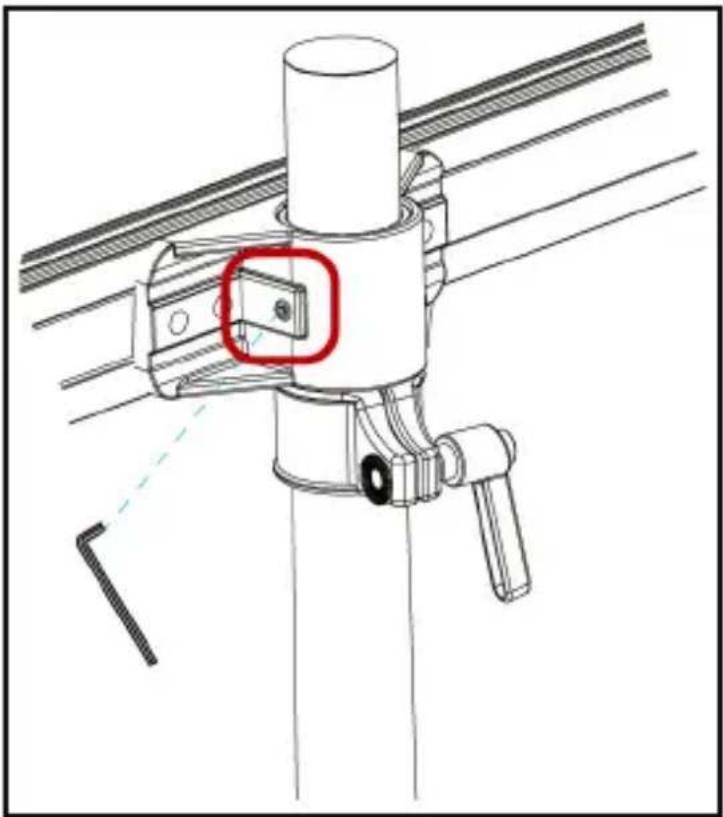

1. Using the M3 Hex Key, turn the screw in the crossbar clockwise to tighten it and prevent the crossbar from moving

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Tightening the Crossbar

Adjusting the Monitor Plates

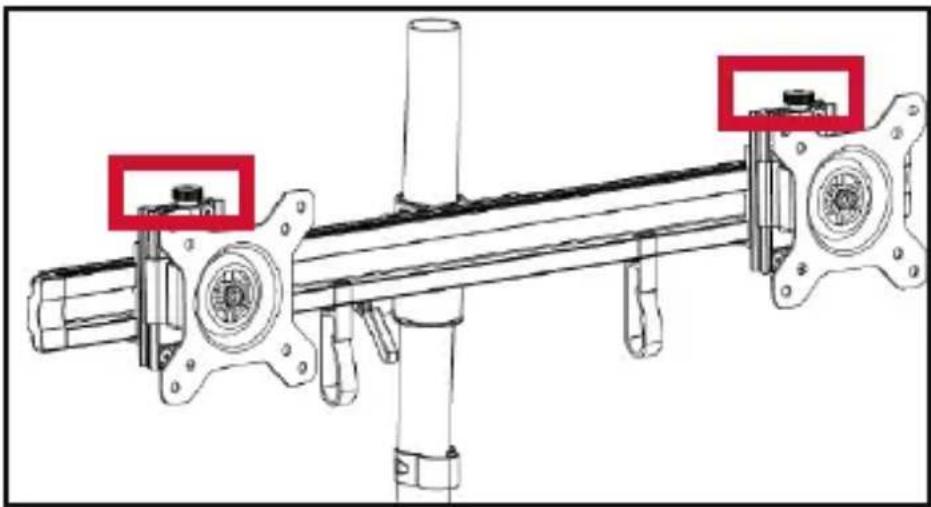

1. Loosen the Plates on the Crossbar, by turning the Thumb Screws at the bottom of the plates counterclockwise.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with a highlighted circular section (no text or symbols)

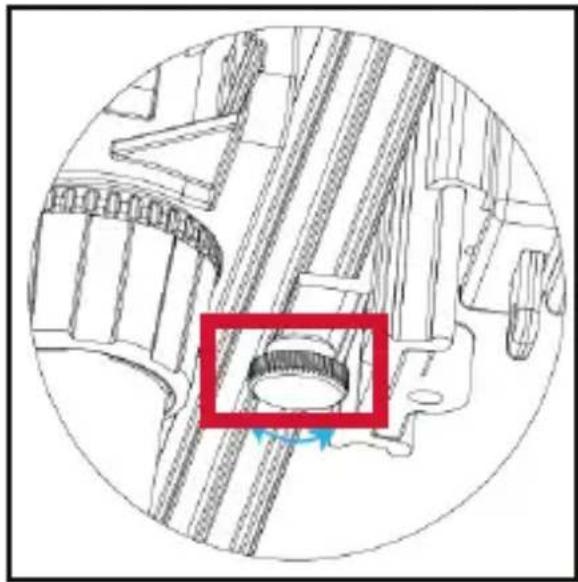

Loosening the Plates

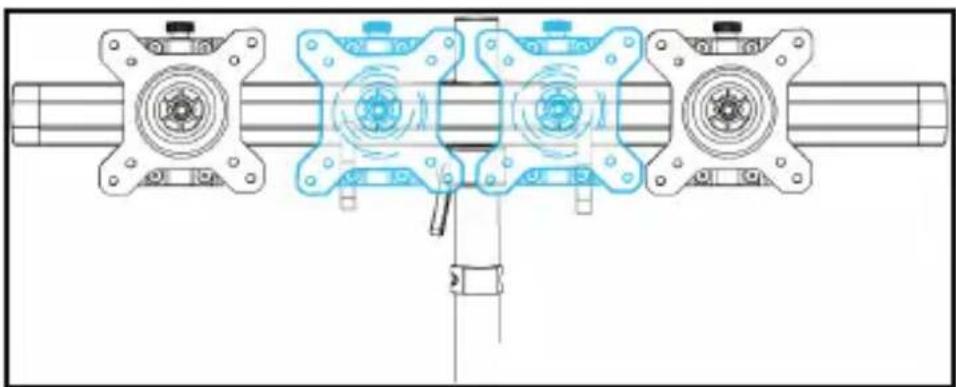

1. Move the Plates right and left until the Plates are in the desired position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Moving the Plates Left and Right

1. When the Plates are in the desired position, turn the Thumb Screws at the bottom of the plates clockwise to lock the Plates in place.

2. To move the Plates up or down, turn the Thumb Screws at the top of the Plates counterclockwise or clockwise.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical line drawing of a mechanical assembly with two red boxes highlighting specific components (no text or symbols present)

Moving the Plates Up and Down

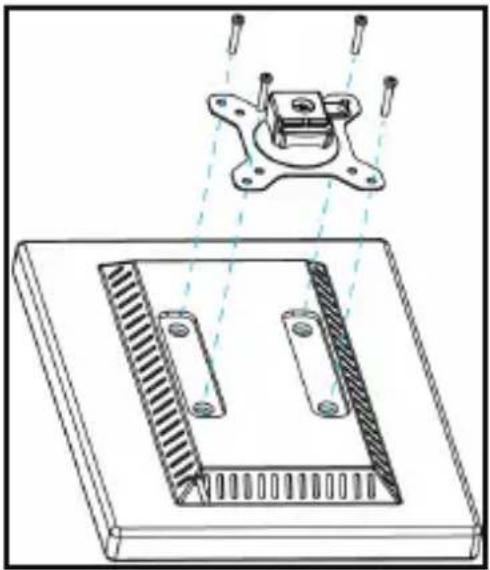

Attaching the Monitors - Flush Installation

Warnings! The Desk Stand is designed to display two monitors between 15 and 24 inches in size. The maximum weight capacity of the Desk Stand is a total of 35.2 lb. (16 kg), with each monitor mount able to hold 17.6 lb. (8 kg).

To prevent scratching during the installation process, you should handle the surface of the Monitors with care.

1. Insert four of the M4x12 mm Screws through the VESA Monitor Mount and into the Mounting Holes on the back of the Monitor.
2. Use a Phillips Screwdriver to tighten the screws.
3. Repeat steps 1 - 2 to install the second Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram of a mechanical assembly with mounting bracket and internal components (no text or symbols)

Installing the VESA Monitor Mount - Flush Installation

1. Slide each of the VESA Monitor Mounts onto the Plates on the Crossbar.
2. Turn the screw on the side of each of the VESA Monitor Mounts clockwise to tighten the VESA Monitor Mounts in place.

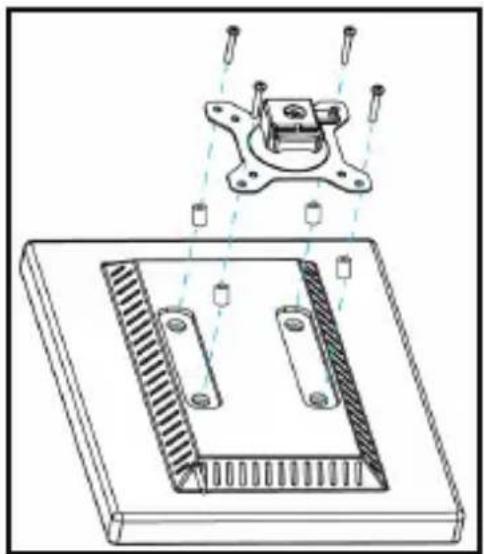

Attaching the Monitors - Recessed Installation

1. Insert four of the M4x30 mm Screws through the VESA Monitor Mount, into four of the Plastic Spacers, and into the Mounting Holes on the back of the Monitor.
2. Use a Phillips Screwdriver to tighten the screws.
3. Repeat steps 1 - 2 to install the second Monitor.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical diagram of a mechanical assembly with mounting bracket and internal components (no text or labels)

Installing the VESA Monitor Mount - Recessed Installation

1. Slide each of the VESA Monitor Mounts onto the Plates on the Crossbar.

2. Turn the screw on the side of each of the VESA Monitor Mounts clockwise to tighten the VESA Monitor Mounts in place.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the Monitors

Tilt Adjustment

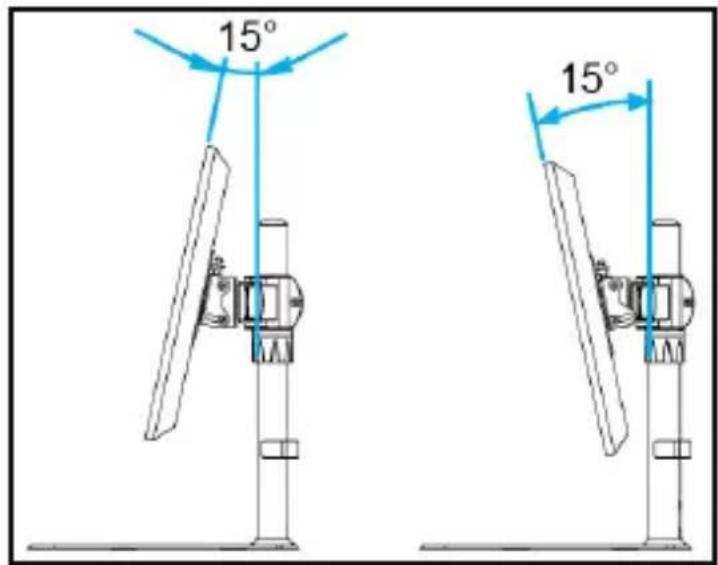

The Monitors can be tilted to accommodate different viewing angels (15 degrees downward or upward).

- Place both of your hands on either side of the Monitor and apply light pressure either downward or upward. The Monitor will tilt to a maximum of 15 degrees in either direction.

Monitor Adjustment

Swivel Adjustment

The Monitors can be adjusted on a 360 degree swivel.

- Place both of your hands on either side of the Monitor and apply light pressure either left or right. The Monitor will swivel 360 degrees.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjusting the VESA Mount

If the Monitors are not staying in place, the Hex Screw on the back of the VESA Monitor Mount will need to be tightened. This Hex Screw may also need to be loosened in order to readjust the position of the Monitors.

1. Remove the VESA Monitor Mount from the Plate by turning the Screw on the side of each of the VESA Monitor Mounts counterclockwise to loosen the VESA Monitor Mounts.
2. Lift the Monitors straight up and out of the Plates.
3. Place the Monitors screen side down on a scratch-free surface.
4. Remove the Monitors from the VESA Monitor Mounts by loosening all four Screws on each of the VESA Monitor Mounts, using a Phillips Head Screwdriver. Remove the Screws, the VESA Monitor Mounts, the Washers and any Spacers that may have been used for the installation.

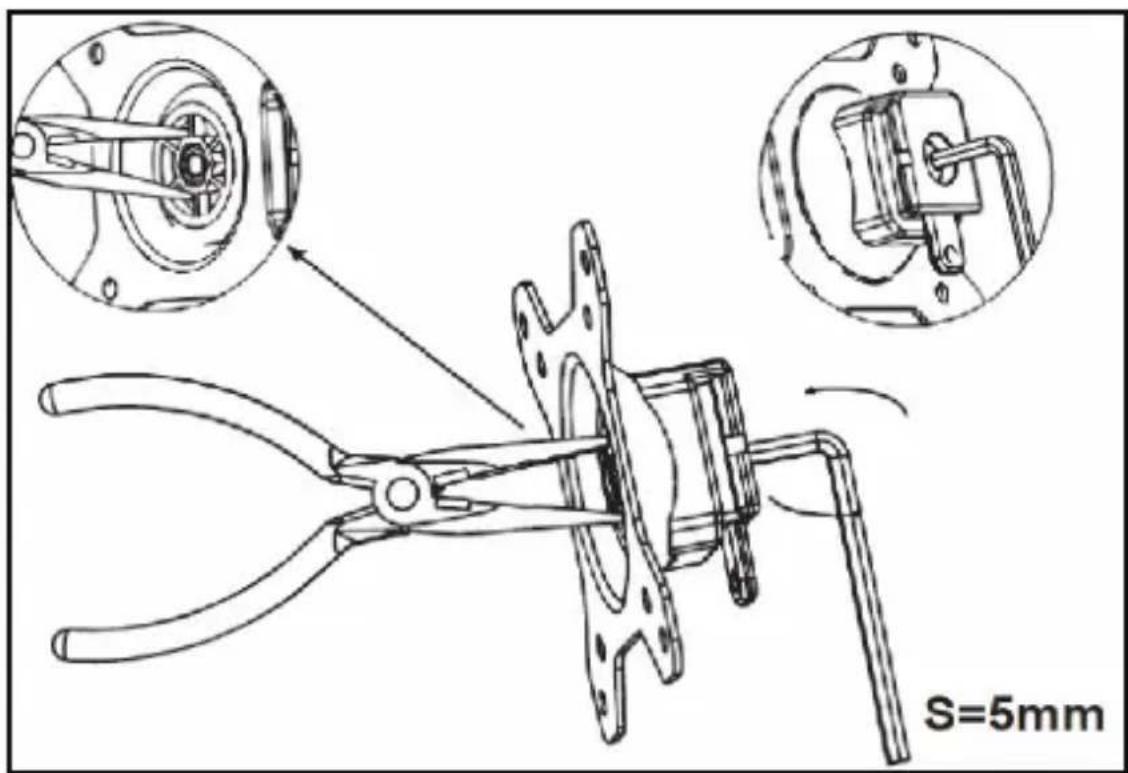

5. Hold the Plastic Disc (located on the front of the VESA Monitor Mount) in place using Needle-nose Pliers. While holding the Plastic Disc, tighten the Hex Screw, located on the back of the VESA Monitor Mount, using the M5 Hex Key.

Notes: Always tighten these Hex Screws immediately after adjusting the position of the Monitors.

A second person may be required to hold the Monitor after adjusting its position.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Once the Hex Screw is tightened, re-attach the VESA Monitor Mount.

Adjusting the Monitor Tilt

Routing the Cables

The Desk Stand comes with three Cable-Management Clips that you can use to direct the monitor cables along the Crossbar and down the Pole so that they are out of your way.

Make sure that the cables that you are routing are unplugged before you complete the following steps.

1. Attach the two Cable-Management Clips (crossbar) to the Crossbar. If necessary, you can move the Cable-Management Clips right or left along the Crossbar.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Run the cable coming from each of the monitors through the corresponding Cable-Management Clips (crossbar).

2. Hold the cables against the Pole and snap the Cable-Management Clip (pole) over the cables and onto the Pole. You can place the Cable-Management Clip on the front or the back of the Pole, depending on your preference.

Diagram of a mechanical device with blue tubing and a central shaft, no text or symbols present

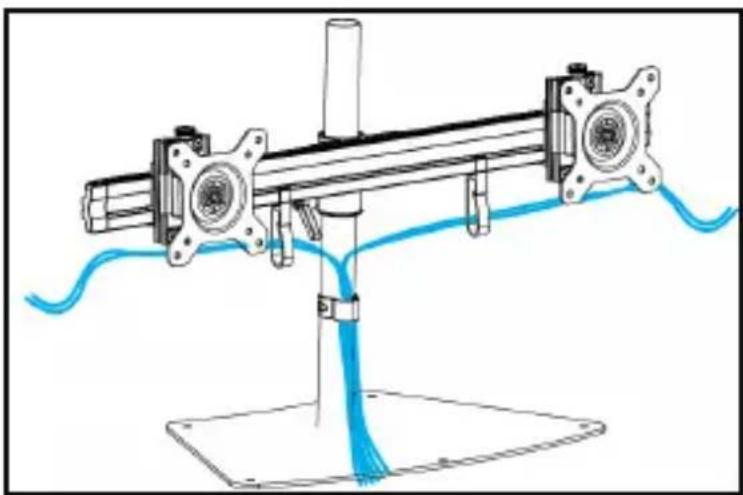

Routing the Cables

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
