USER MANUAL GS1010PS2 Cudy

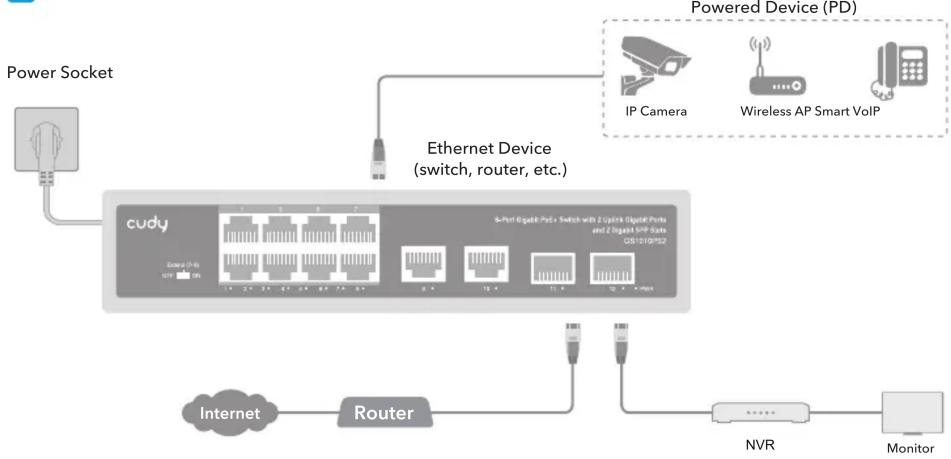

1 Hardware Connection

Physical Appearance
Front board

Specifications

Model	GS1010PS2
Power	Input: AC 100-240V, 50/60Hz
Ethernet	8* Gigabit PoE Ports
	2* Gigabit RJ45 Uplink Ports
	2* Gigabit SFP Ports
Switching Capacity	24 Gbps
Max Forwading Rate	17.856 Mpps
Packet Buffer	448 Kbit
MAC Address	2 K
Jumbo Frame	15 KB
Transfer Mode	Store and forward
MTBF	100000 hour
Product Size	220×161×44 mm

Supply Power	52 V ~ 2.3 A
POE Power	Maximum 110W
Working Temperature	-10~50°C
Storage Temperature	-40~70°C
Network Protocols	IEEE802.3 (10Base-T) / IEEE802.3u (100Base-TX)
	IEEE802.3ab (1000Base-TX) / IEEE802.3z (1000Base-FX)
	IEEE802.3x (Flow control)
PoE Protocols	IEEE802.3af (15.4W) IEEE802.3at (30W)
Network Medium	10Base-T : Cat3/4/5 or above UTP (≤100m)
	100Base-TX : Cat5 or above UTP (≤100m)
	1000Base-TX : Cat5 or above UTP (≤100m)
Optical Media	Multimode fiber : 50/125, 62.5/125, 100/140μm
	Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

4 DIP Explanation

Default	Standard Switch	Common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port watchdog is disabled.
Extend	Link Extension	Link extension mode, 7-8 ports force to 10 Mbps, link 250M (enable PoE watchdog)

5 LED and Interface Explanation

PWR	ON	Power on
	OFF	No power
Link ACT	ON	Link connected
	OFF	Link disconnected
	Flashing	Data transmitting
