Product Type	5-Port Fast Ethernet Unmanaged Switch
Ports	5 x RJ45 10/100 Mbps
Data Transfer Rate	200 Mbps (full-duplex)
Switching Capacity	1 Gbps
MAC Address Table	2K entries
Jumbo Frames	Support up to 9KB
Auto MDI/MDIX	Yes
Housing Material	Plastic
LED Indicators	Power, Link/Activity per port
Cooling	Fanless, silent operation
Power Supply	External AC adapter, 5V DC, 0.6A
Power Consumption	< 2W
Dimensions (W x D x H)	100 x 75 x 25 mm
Weight	200 g
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 70°C
Operating Humidity	5% to 90% non-condensing
Certifications	CE, FCC, RoHS
Warranty	1 year
Mounting	Desktop or wall-mountable (screws not included)

Frequently Asked Questions - FS105 Cudy

How do I set up the Cudy FS105 switch?

Simply connect the power adapter, then use Ethernet cables to connect your devices (computers, printers, etc.) to any of the 5 ports. No configuration is needed; the switch works plug-and-play.

What is the maximum speed of the FS105?

Each port supports up to 100 Mbps in half-duplex and 200 Mbps in full-duplex mode. The total switching capacity is 1 Gbps.

Does the FS105 support VLAN or managed features?

No, the FS105 is an unmanaged switch. It does not support VLAN, QoS, or any advanced configuration. It is designed for simple network expansion.

Can I use the FS105 to connect a modem and router?

Yes, you can connect a modem, router, or any device with an Ethernet port. The switch will forward traffic between all connected devices automatically.

What do the LED indicators on the FS105 mean?

The Power LED lights up when the switch is powered. Each port has a Link/Activity LED: solid when a device is connected, blinking during data transmission.

Is the Cudy FS105 a gigabit switch?

No, it is a Fast Ethernet switch with 10/100 Mbps ports. For gigabit speeds, consider the Cudy GS series.

Can I mount the FS105 on a wall?

Yes, the switch has mounting holes on the bottom for wall mounting. Use appropriate screws (not included) to secure it.

How do I clean the FS105 switch?

Unplug the switch before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquids or solvents.

What power adapter does the FS105 require?

It requires a 5V DC power adapter with at least 0.6A output. The connector is a standard barrel jack (5.5mm/2.1mm). Use only the included adapter.

Is the FS105 fanless?

Yes, the FS105 is fanless, making it silent and suitable for quiet environments like offices or bedrooms.

USER MANUAL FS105 Cudy

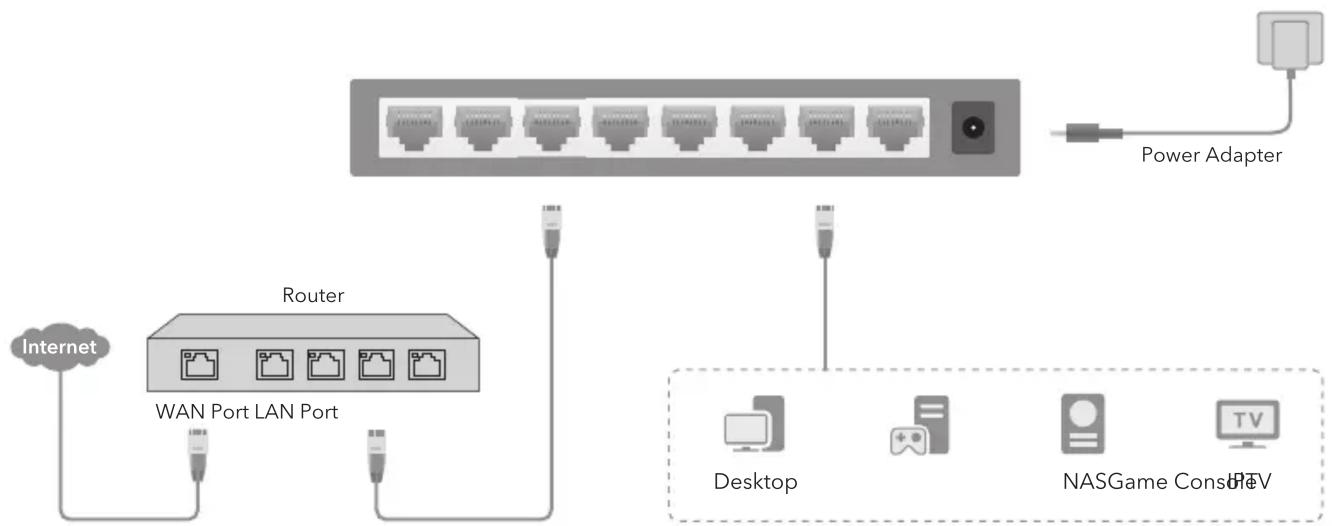

Connection

Note: The images in this guide are only for example and may not reflect your actual experience.


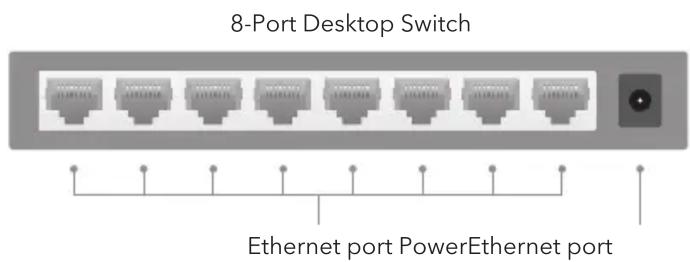

LED and Interface Explanation

PWR	ON	Powered
	OFF	No power
Link/Act	ON	Connecting to a device but no activity
	Blinking	Transmitting or receiving data
	OFF	link failure

Quick Installation Guide

5/8-Port Desktop Switch

EU declaration of conformity

Cudy hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at http://www.cudy.com/
