FS108 - Switch Cudy - Free user manual and instructions

Product Type	Switch
Brand	Cudy
Model	FS108
Ports	8 x 10/100 Mbps RJ45
Switching Capacity	1.6 Gbps
MAC Address Table	1K entries
Dimensions (W x D x H)	160 x 100 x 25 mm
Weight	200 g
Power Supply	DC 5V / 0.6A external adapter
Power Consumption	Max 3W
Network Standards	IEEE 802.3, 802.3u, 802.3x
Flow Control	IEEE 802.3x full-duplex, backpressure half-duplex
Data Transfer Rate	10/100 Mbps (auto-negotiation)
LED Indicators	Power, Link/Act per port
Mounting	Desktop or wall-mountable (holes provided)
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Fan	Fanless (silent operation)
Care and Cleaning	Wipe with dry cloth; avoid liquids
Safety	CE, FCC compliant; use only included power adapter
Spare Parts	Power adapter (model GPE05-050060-ZZ) available from Cudy
Repairability	No user-serviceable parts; contact support for issues
Warranty	1 year limited warranty

Frequently Asked Questions - FS108 Cudy

How many devices can I connect to the FS108 switch?

You can connect up to 8 devices using the 8 RJ45 ports, each supporting 10/100 Mbps speeds.

Does the FS108 support PoE (Power over Ethernet)?

No, the FS108 is an unmanaged switch without PoE. Each device needs its own power source.

What is the maximum cable length for the switch?

The maximum cable length for Ethernet is 100 meters (328 feet) per segment using standard CAT5e or higher cable.

How do I reset the switch to factory defaults?

This switch is unmanaged and has no reset button. Simply power cycle it to clear temporary issues.

Can I mount the FS108 on a wall?

Yes, the switch has mounting holes on the underside. Use appropriate screws to mount it securely.

What does the LED indicator mean?

The Power LED lights when power is connected. Each port has a Link/Act LED: solid green indicates a link, blinking indicates activity.

Is the FS108 plug-and-play?

Yes, it is plug-and-play. No configuration is needed; just connect devices and power, and the switch will auto-negotiate speeds.

What power adapter does the FS108 use?

It uses a DC 5V / 0.6A adapter with a 2.5mm barrel jack. Only use the included adapter to avoid damage.

Can I cascade multiple FS108 switches?

Yes, you can connect switches using any port to expand the network. The total network length must respect the 5-4-3 rule for 10/100.

What should I do if the switch stops working?

First, check power and cable connections. If still not working, try power cycling. If the issue persists, contact Cudy support for warranty service.

USER MANUAL FS108 Cudy

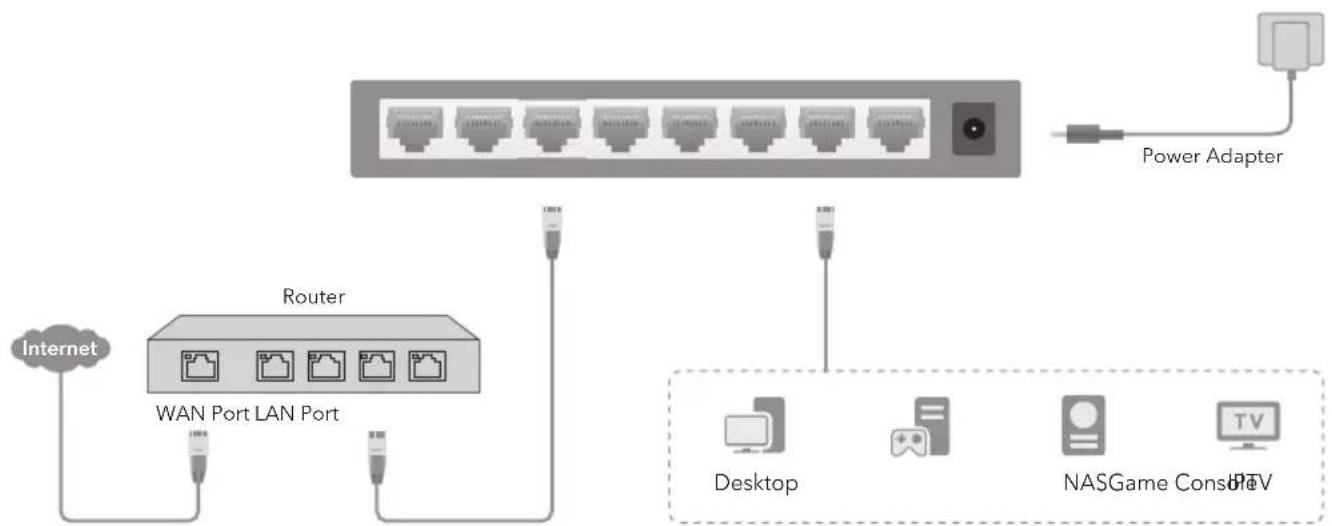

Connection

Note: The images in this guide are only for example and may not reflect your actual experience.


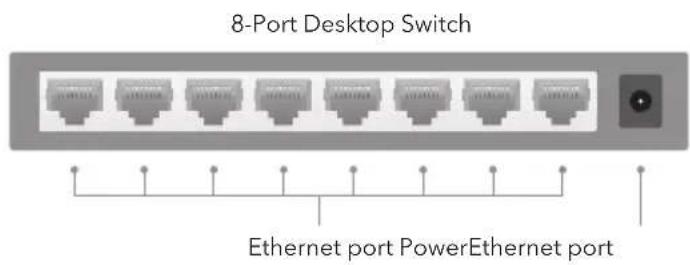

LED and Interface Explanation

PWR	ON	Powered
	OFF	No power
Link/Act	ON	Connecting to a device but no activity
	Blinking	Transmitting or receiving data
	OFF	link failure

Quick Installation Guide

5/8-Port Desktop Switch

EU declaration of conformity

Cudy hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at http://www.cudy.com/
