USER MANUAL VC8012 Khind

Abstract grayscale graphic with white globe and globe segments, no text or symbols present

••• Vacuum Cleaner / 吸尘机 / Pembersih Vakum

Instruction Manual / 说明指示书 / Buku Panduan

KHIND®

Enjoy hassle-free customer service

1 Scan E-Warranty QR code or go to http://www.khind.com.my/e-warranty.html
2 Fill-up your details, product information & proof of purchase
HOTLINE [phone]

khind.com.my

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

This manual is also available online.

P/N: 40-51523-00

Safety Precaution Information

Safety & Warning Information

1. This appliance is not attended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Read the instruction manual carefully and follow the instruction closely.
3. Use only the attached parts which are supplied by the manufacturer.
4. This appliance is intended for household use only. Commercial use will void warranty.
5. Do not leave the appliance unantended while it is connected to the main power outlet.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazards.
7. Do not pull, lift or carry the appliance by its supply cord. In order to avoid damages to the cord, do not pull the cord around sharp corners and edged.
8. Always switch off the power before unplugging the unit from the socket. Do not unplug by pulling and jerking the cord with force.
9. Do not handle the plug or the appliance with wet hands.
10. Do not vacuum the following corrosive or inflammable liquids, lighted cigarette butts, ash or matches sharp objects or objects which could block and get stuck in the hose.
11. Do be more cautions when you want to clean and vacuum the staircase.
12. Make sure the household voltage is the same as that indicated on the rating label of the unit.
13. Do not use appliance without the filters.
14. Hold the plug when rewinding onto the cord reel. Do not allow the plug to whip when rewinding.
15. Do not wrest, tramp and haul the hose.
16. Keep the appliance away from the ovens and stoves etc.
17. Kept the appliance dry to protect agains electric shock.

Cleaning & Maintenance

1. Always unplug the power cord before performing any cleaning.
2. It is recommended to regularly clean the dust container.
3. Do not clean the appliance's surface with metal sourcing pads as it may scratch the surface or cause electrical shock. Use only a damp soft cloth to clean it.
4. Do not immerse the appliance into the water or other liquids when cleaning.
5. Do not use abrasive chemicals, cleaning solvents like petrol, thinner or benzene to clean the appliance.

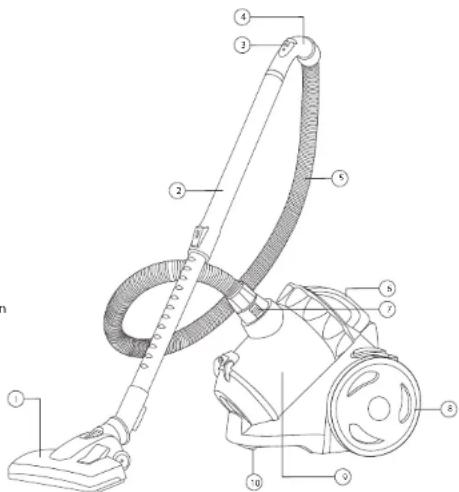

Parts Identification

1. Performance Floor Brush
2. Metal Tube
3. Airflow Regulator
4. Hose Handle
5. Hose
6. Dust Container Handle
7. Hose Connector
8. Wheel
9. Dust Container
10. Caster Wheel
11. Crevice Nozzle
12. ON/OFF Power Button
13. Tube Holder
14. Air Outlet
15. Dust Container Release Button
16. Cord Rewinder Button
17. Dust Container Top Cover
18. Sponge Filter
19. Cyclone Unit

* Pictures are for illustration purpose only.

Specifications

Model	: VC8012
Voltage	: 220-240V ~ 50/60Hz
Power	: 1200W
Suction Power	: 140W; 20kPa
Cable Length	: 4.5 meter
Noise Level	: 84dB
Air Flow	: 1.5m^3/min
Dust Container Capacity	: 2L
Filtration Type	: Multi Cyclone
Net Weight	: 3.8kg
Product Dimension (LxWxH)mm	: 330 x 238 x 285mm

^y Specifications are subject to change without prior notice.

How to Use

A ASSEMBLE THE UNITS

1. Remove and assemble the hose connector, hose, metal tube, main nozzle or crevice nozzle from the box.

a. Connect the hose handle to the main nozzle or crevice nozzle together with metal tube.

b. Insert the hose connector to the vacuum body.

1. Pull out the power cord to its full length and plug it into the power supply.
2. Switch on the power supply and press the On/Off power button to start operating the vacuum cleaner.
3. Before rewinding the power cord, unplug from the power supply and press the cord rewinder button.

Always hold the plug before pressing the cord rewinder button as the cord will retract very quickly. NOTE: In case of long operation time, it is recommended that after every 30 minutes of usage, a short interval rest is taken.

B CLEAN THE DUST CONTAINER & FILTER

1. The dust container should be emptied regularly to obtain consistent best results.
2. Switch off and unplug before disengage the dust container by pressing the dust container release button on the handle.
3. Press the button and lift the container away from vacuum body.
4. Clear the dust from the container before cleaning.
5. Remove the Dust Container Top Cover, Sponge Filter & Cyclone Unit from Dust Container.
6. Tap the Sponge Filter against the side of a dustbin softly and clean it with a soft brush to remove excess dust.
7. Wash the Dust Container and Sponge Filter with warm or cold water if necessary.
8. Do not use detergents to clean the Dust Container and Sponge Filter.
9. Make sure the Dust Container and Sponge Filter is completely dry before install back to main body.
10. Do not expose the Sponge Filter under the sun to avoid any damage.

C CARRYING THE APPLIANCE

1. Carry the appliance by the dust container handle on the body.
2. Do not press the dust container release button or shake the appliance when carrying, otherwise the dust container could disengage, fall off and cause injuries.

△安全预防措施

安全和警告信息

*图片仅供说明之用.

规格

型号

电压

功率吸土

电源线长度

噪音水平

风量

集尘桶容量

过滤类型

守里

产品尺寸（长×宽×高）mm

*规格如有更改，恕不另行通知。

VC8012

220-240V \~ 50/60Hz

1200W

140W, 20KPa

4.5 meter

84dB

1.5m/1min

2L

Multi cyclone

5.6kg

330×238×285mm

如何使用

A 组装单位
